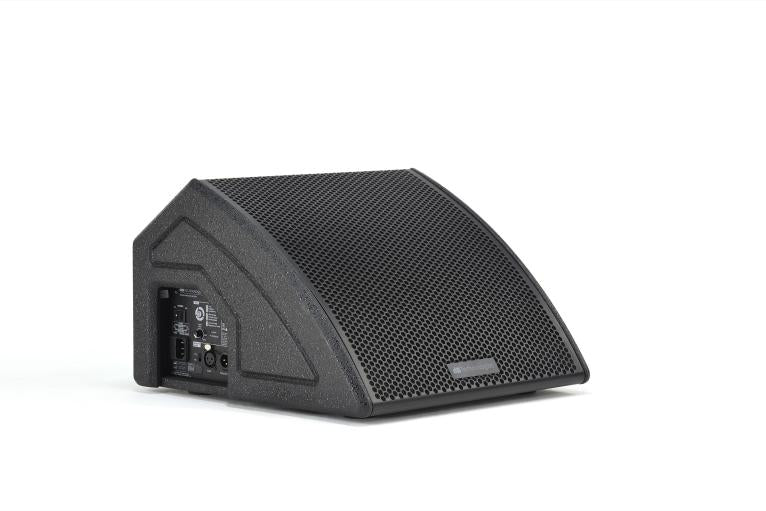

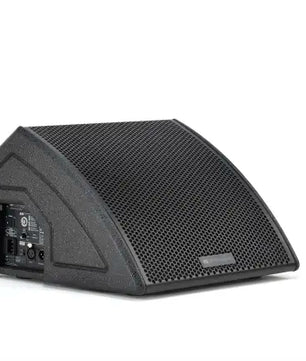

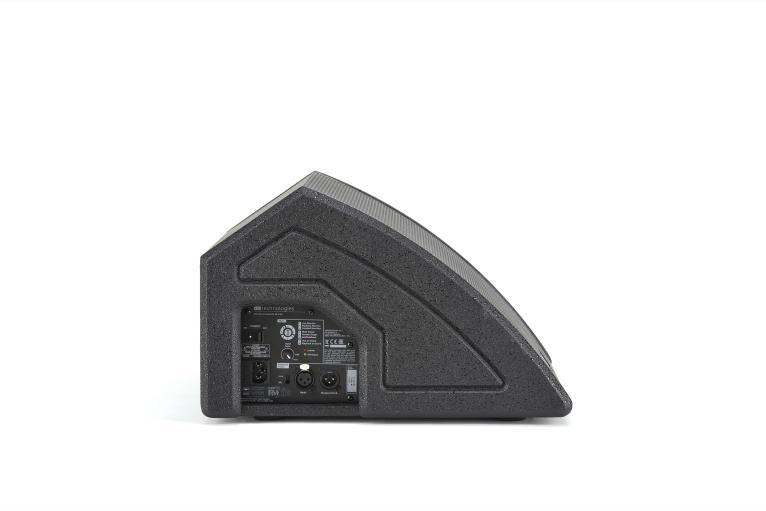

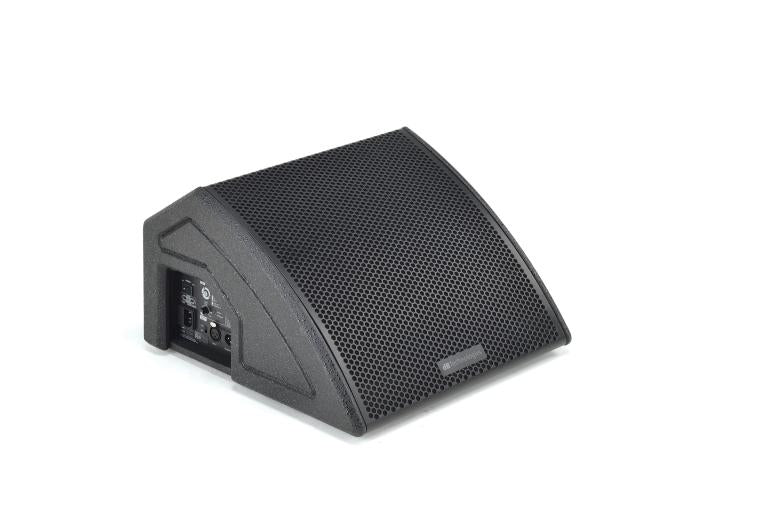

dB Tech FMX10 | 2 way, 10in - 125dB

$1,043.00

Order within [hour] to get by [date_end]

Quantity

Direct Ship from Our Supplier

Guarantee Safe
Checkout

trust_2dea69ed-7223-44f3-828d-a80bc0f3aef4

FMX is an active 2-way coaxial stage monitor series encompassing 3 models (10,12 and 15”) equipped with 400 RMS (for FMX 10) or 600 RMS (for FMX 12 and 15) Class D amplifiers.

The wedge’s coaxial acoustic design, together with its custom horn design and its advanced DSP featuring linear phase FIR filters, provides an even, highly-intelligible sound.

In facts, FMX’s horn design allows a very precise dispersion pattern (60° horizontal and 90° vertical) which can be easily reversed (90° horizontal and 60° vertical) by rotating the horn, adapting the wedge to the habits of the user.

Moreover, 8 on-board presets optimize EQ for different needs making FMX a skilful yet easy-to-use tool for performers of every kind.

All wedges of the series feature a peculiar front-rear grille design, a single handle integrated on the bottom side of the plywood cabinet and a 36mm pole mount on side panel which further enhance FMX versatility.

FEATURES:

Active 2-way stage monitor
Coaxial configuration
Linear phase FIR Filters
Ultra-precise directivity
Rotatable horn (90°x60° or 60°x90° dispersion)
Front-rear grille design
Integrated handle on bottom side

SPECIFICATIONS:

Technical Data
Speaker Type2-Way Active Coaxial Stage Monitor
Acoustical data
Frequency Response [- 10 dB]57 - 19.000 Hz
Max SPL125 dB
HF1", 1" v.c.
Directivity60°X90°
HornRotatable
LF10", 2" v.c.
Amplifier
Amp ClassClass D
Peak Power800 W
Processor
ControllerDSP 28/56 bit
AD/DA Converter24 bit/48 kHz
System Presets8 presets
LimiterPeak, RMS, Thermal
Advanced DSP FunctionFIR Filters
Crossover Frequency1800 Hz
Slope LF/HF24 dB/oct
Mechanics
HousingPlywood
Housing DesignMultifunctional
Handles1 integrated on bottom side
Pole mount36 mm
Width390 mm (15.35 in)
Height268 mm (10.55 in)
Depth411 mm (16.18 in)
Weight11.3 kg (24.9 lbs)
