Elation KL Profile FC | 305W RGBMA LED, 6-50 Degrees

$3,196.00

Order within [hour] to get by [date_end]

Quantity

Direct Ship from Our Supplier

Guarantee Safe
Checkout

trust_2dea69ed-7223-44f3-828d-a80bc0f3aef4

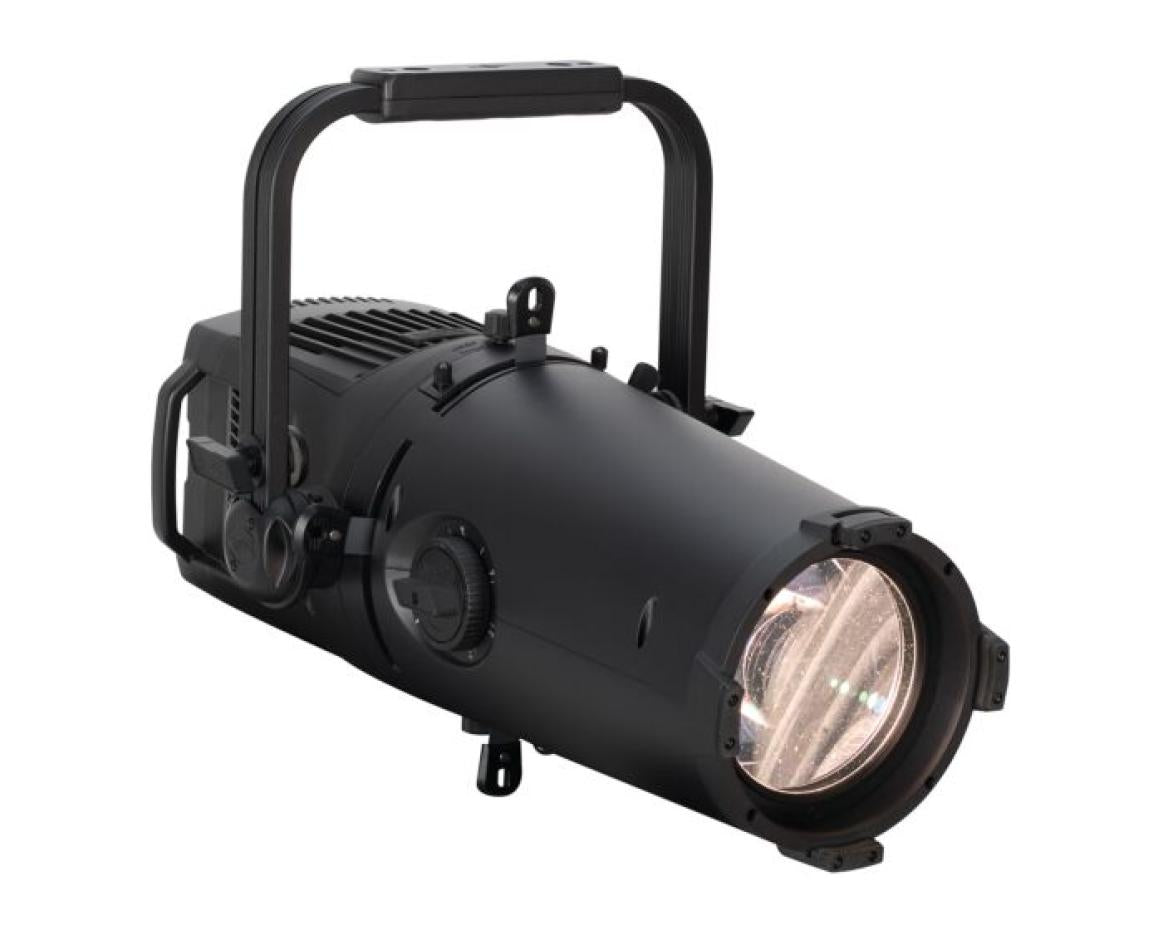

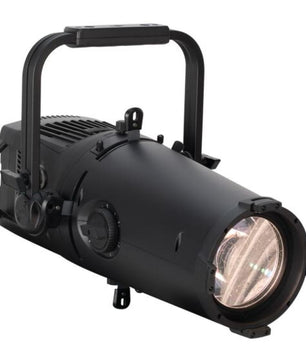

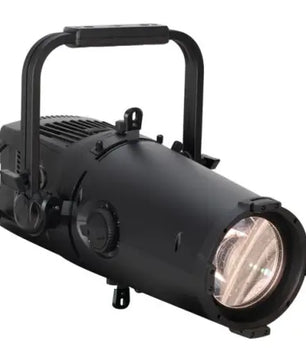

Elation KL Profile FC

The Elation KL Profile FC is a full-color ellipsoidal fixture designed for professional stage lighting applications. With its advanced LED engine and precise optics, this fixture delivers exceptional color rendering and output, making it ideal for theaters, broadcast studios, and live events. The KL Profile FC offers a wide range of features and control options to meet the demands of any lighting designer.

Key Features

Brand: Elation
Model: KL Profile FC
Full-color LED engine
Advanced color mixing and dimming
High CRI for accurate color rendering
Variable color temperature
Multiple control options, including DMX and RDM
Robust and durable construction

Competitive Differences

High CRI for superior color accuracy
Versatile control options for flexible operation
Robust build quality for reliable performance

Product Description

The Elation KL Profile FC is a cutting-edge ellipsoidal fixture that combines a full-color LED engine with precise optics to deliver stunning lighting effects. With advanced color mixing and dimming capabilities, this fixture ensures accurate color reproduction and smooth fades, making it perfect for professional lighting applications. The high CRI ensures that colors are rendered faithfully, while the variable color temperature allows for customization to suit different environments. The KL Profile FC offers multiple control options, including DMX and RDM, providing flexibility and ease of use for lighting designers. Built with durability in mind, this fixture is designed to withstand the rigors of professional use, ensuring reliable performance in any setting.

Photometric Data

10,600 Total Lumen Output
CRI: 93.5
Zoom Range: 6° - 50°
Beam Angle: 5.9° - 45.6°
Field Angle: 6.6° - 50°

Specifications

Source: 305W 6,500K RGBMA LED Engine
30,000 Hour Average LED Life*
Light Source: Full-color LED engine
CRI: High (exact value not provided)
Color Temperature: Variable
Control Protocol: DMX, RDM
Power Consumption: 358W maximum
Dimensions: 30.7 x 14.3 x 9.5 in (780 x 364 x 241 mm)
Weight: 24.3 lbs (11 kg)

*Test lab conditions. May vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.

Control / Connections

8 DMX Channel Modes (1/5/12/21) CMY(10/17) RGB(10/17)
DMX Adjustable LED Frequency
DMX, RDM Protocol Support
4 Button Touch Control Panel
Encoder Control for Standalone Operation
Full Color 180° Reversible LCD Menu Display
5pin DMX In/Out
IP65 Locking Power In/Out
Elation’s E-FLY™ Internal Wireless DMX Transceiver

Electrical / Thermal

AC 100-240V - 50/60Hz
358W Max Power Consumption
14°F to 113°F (-10°C to 45°C)
BTU/hr (+/- 10%): 1124.1

Approvals / Ratings

CE
cETLus
IP20

Optional Accessories

#8050000053 - Omega Bracket

What's in the Box

Elation KL Profile FC
User manual

Accessories

Clamps and mounting hardware
Protective cases
DMX controllers
Additional power cables
