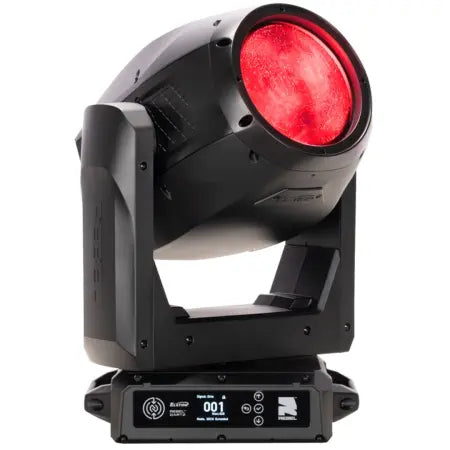

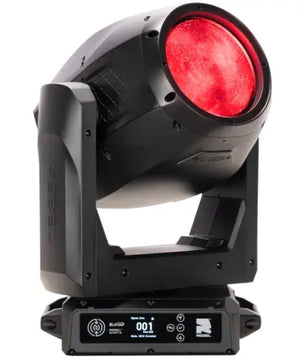

Elation Rebel Dartz | 150W Beam FX Light - 1.5° | IP65 Moving Head with Gobos, Prisms & Wireless DMX

Beam FX Moving Head Light

The Elation Rebel Dartz is a next-generation beam FX moving head that blends blistering speed, razor-sharp optics, and weather-resistant reliability in a compact design. Built for lighting designers who demand power and precision, it features a 150W RBL LED engine and an ultra-narrow 1.5° beam for striking aerial effects—even in dense atmospherics.

Elation Rebel Dartz Competitive Differences

• Ultra-narrow 1.5° beam with 125,475 lux at 5 meters
• IP65-rated with wireless DMX (Aria X2) and NFC configuration

Elation Rebel Dartz Description

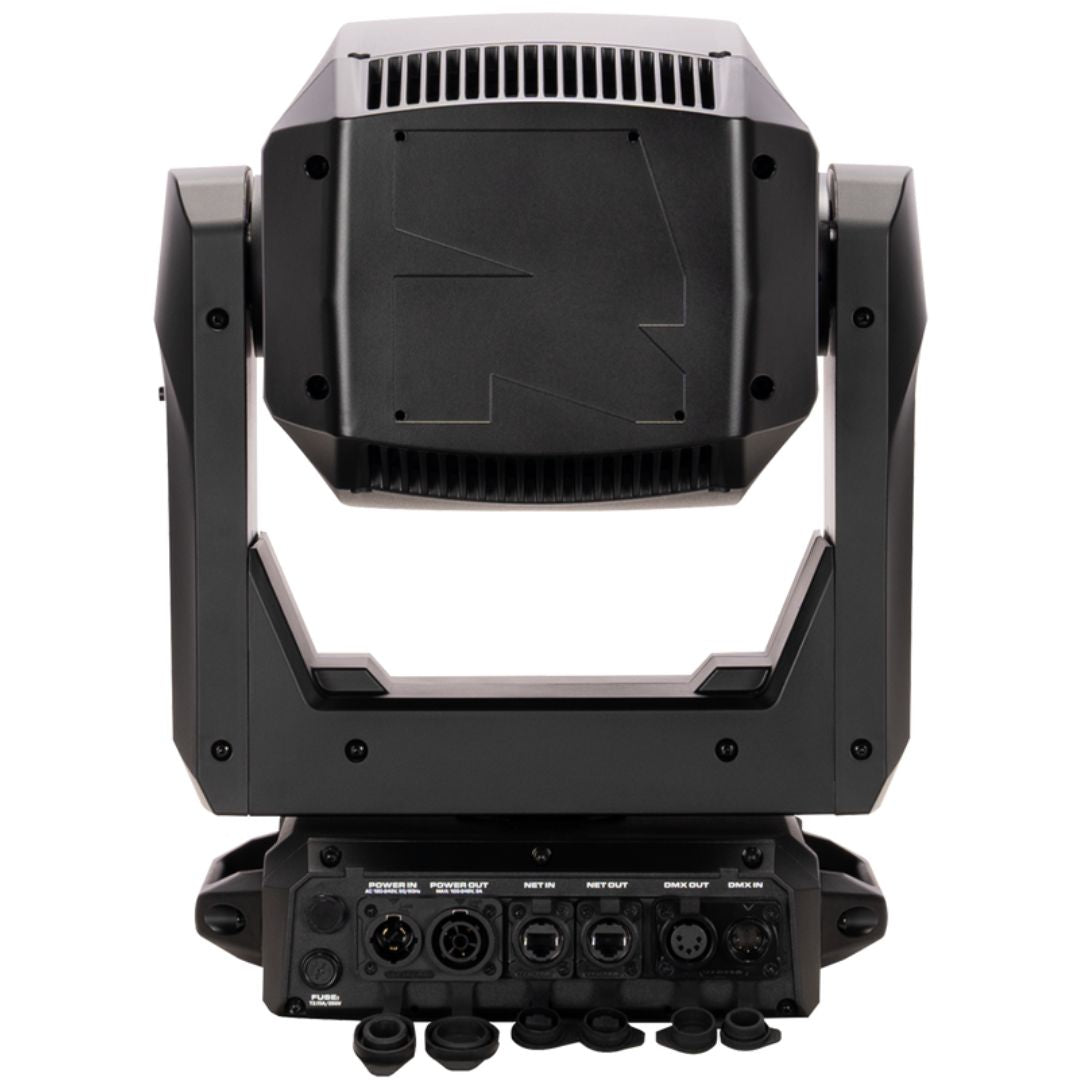

The Elation Rebel Dartz channels the creative power of the DARTZ 360 into a reinvented fixture that’s faster, brighter, and more versatile. Powered by a 150W RBL LED engine, it delivers over four times the brightness of its predecessor, throwing out a tight 1.5° beam that’s perfect for impactful aerial visuals and FX programming. This fixture is equipped with advanced features including dual gobo wheels (rotating and static), dual stacking prisms, heavy frost, and a True Green color filter—all packed into a compact, rugged IP65 chassis built for outdoor or indoor use. It supports full 360° continuous pan and tilt motion for limitless movement, and its variable CCT (6500K–16000K), virtual gel swatch book, and high-speed strobing give designers full flexibility over look and feel. With built-in Aria X2 wireless DMX, RDM support, and NFC configuration, setup and management are quick and intuitive—even in challenging environments. Selectable fan modes, including a silent option, ensure it performs reliably in both noise-sensitive and high-output applications, while power thru, DMX, and Ethernet I/O support flexible rigging and signal flow for touring or fixed installs.

Model Features

• 150W RBL LED engine with 20,000-hour life
• 1.5° beam angle with 125,475 lux @ 5m
• Dual gobo wheels: 10 rotating + 16 static gobos
• Dual stacking prisms and frost filter for layered effects
• True Green color filter and variable CCT (6500K–16000K)
• 360° continuous pan and tilt rotation
• Aria X2 wireless DMX + NFC configuration
• IP65-rated for all-weather operation

Model Specifications

• Light Source: 150W RBL LED
• Beam Angle: 1.5°
• Luminosity: 125,475 lux @ 5m
• Gobos: 10 rotating, 16 static
• Prisms: Dual independent stacking (linear + circular)
• Pan/Tilt: 360° continuous rotation
• Color: RBL array + True Green + virtual gels
• Control Protocols: DMX, RDM, Art-Net, sACN
• Wireless: Aria X2 wireless DMX, NFC setup
• Power: 100–240V AC, 260W max
• IP Rating: IP65
• Dimensions: 8.1 x 13.3 x 18.8 in (205 x 337 x 478 mm)
• Weight: 35 lb (15.9 kg)
• UPC: Not specified

What's In The Box

• Elation Rebel Dartz Fixture

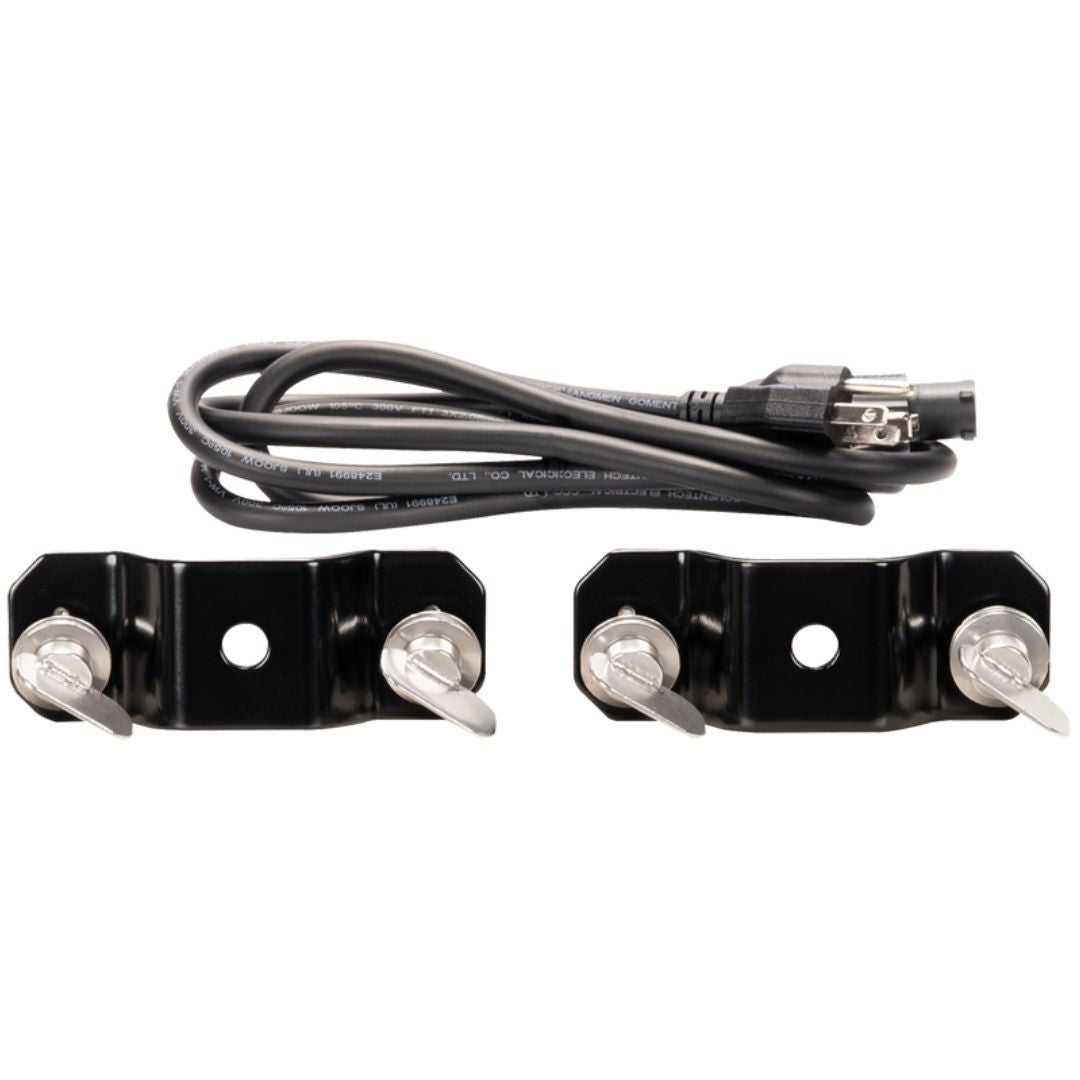

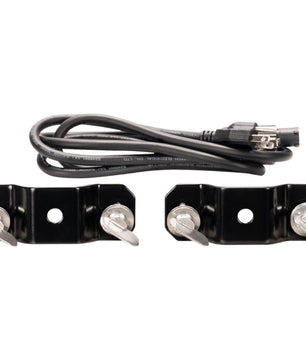

• Power locking cable
• User manual
