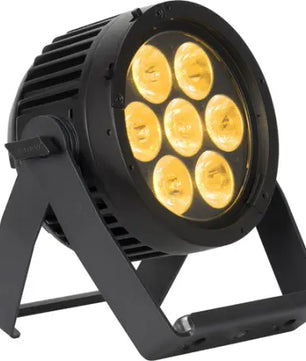

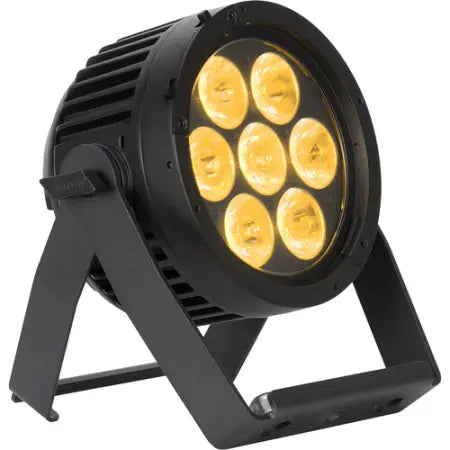

Elation SIX+ PAR S | 7×20W IP65 LED Par with RGBLA+UV & High CRI

Compact IP65 LED PAR Fixture for Indoor / Outdoor Use

The Elation SIX+ PAR S is a rugged, weather‑resistant LED PAR fixture designed for both indoor and outdoor lighting needs. With its fanless cooling, marine‑grade coating, and high output, it’s ideal for environments from theaters and worship venues to film sets and architectural installations.

Elation SIX+ PAR S Competitive Differences

• (7) × 20 W RGBLA+UV LEDs for a six‑colour array and wide spectral mixing
• Total output up to 4,570 lumens (integrating sphere)
• High CRI of 91.7 for excellent color rendering
• IP65 rated housing with C4‑M marine grade coating for coastal or harsh environments
• Fanless (silent) operation—suitable for noise‑sensitive environments
• Remote LED refresh frequency and flicker‑free control for TV/film use
• Variable CCT control (2,400 K to 8,500 K) + CMY emulation mode
• Compatibility with original SixPar fixtures via SixPar Emulation DMX modes
• Comes with MFL (20°) lens; supports optional accessory lenses and a 7.5″ accessory holder
• Dual‑yoke mounting (floor or rigging) and omega bracket receiver included

Elation SIX+ PAR S Description

The Elation SIX+ PAR S is engineered to deliver high performance in a compact form with durability for outdoor use. Its IP65 enclosure and C4‑M coating make it resilient to environmental stress, while the absence of an internal fan ensures silent operation—ideal for stages or installations where ambient noise must be minimized.

The 7 × 20 W RGBLA+UV LED array enables rich and flexible color mixing, supplemented with a dedicated CCT control channel and CMY emulation. This gives lighting designers fine control over both vibrant color effects and accurate white temperature matching. Color presets calibrated to popular gel filters are also included for fast setup.

For control flexibility, it supports multiple DMX channel modes, RDM, and wireless device management via Aria x2. To maintain consistency in mixed rigs, it offers SixPar Emulation mapping and output limiting so newer fixtures can integrate seamlessly with older SixPar units.

In terms of optics, the fixture includes a medium flood (MFL, 20°) lens by default, with options for wide, extra wide, and other beam lenses. The housing includes a diffusion lens holder, gel frame holder compatibility, and a dual yoke or clamp mounting system for versatile deployment.

SIX+ PAR S Features

• (7) × 20 W RGBLA+UV LED array
• Total output up to 4,570 lumens (integrating sphere)
• High CRI (91.7)
• Variable CCT 2,400 K – 8,500 K
• CMY emulation mode
• Color presets / virtual gel swatch library
• 16‑bit dimming modes & curves
• Remote LED refresh rate / flicker‑free control
• Multiple DMX channel modes + SixPar Emulation modes
• RDM (Remote Device Management)
• Aria x2 wireless device management

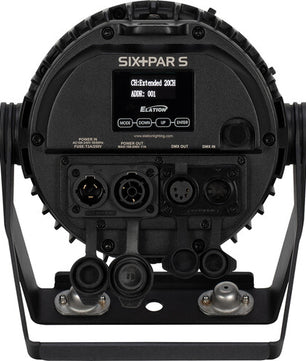

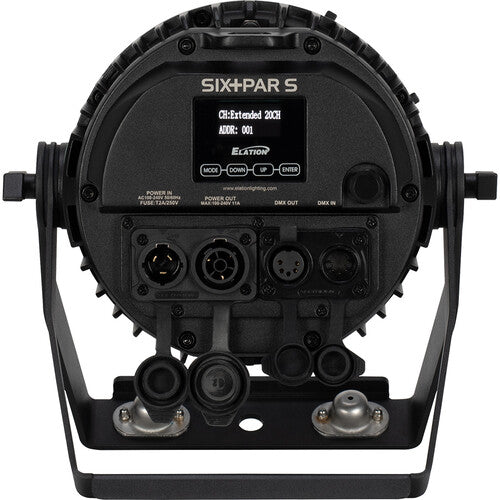

• IP65 locking power & DMX connectors
• Optical diffusion lens holder & optional gel frame compatibility
• Fanless / silent operation

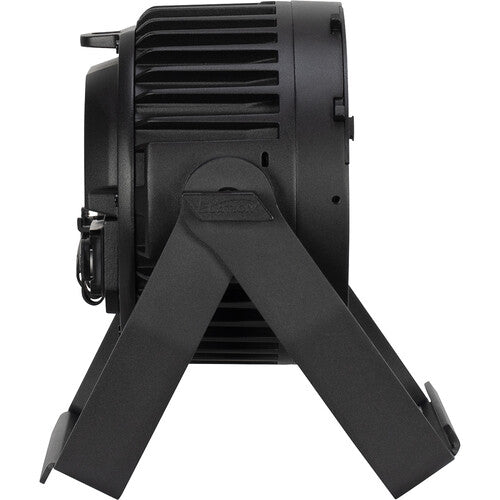

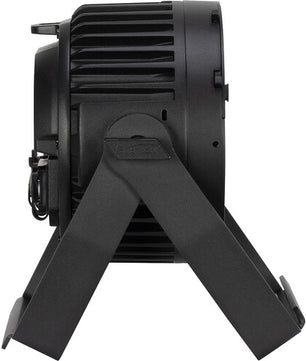

• Dual yoke / omega mount options

SIX+ PAR S Specifications

• LED source: (7) × 20 W RGBLA+UV LEDs
• Average LED life: ~30,000 hours (varies by usage)
• Photometric output: 4,570 lumens (sphere), 4,329 lumens (goniometer)
• CRI: 91.7
• TCLI: 81
• Beam angle: 12° nominal (MFL 20° lens included)
• DMX modes: 1, 3, 6, 7, 8, 9, 11, 14, 20 channels + 4 SixPar Emulation modes
• Control: Manual, DMX, RDM, Aria x2 wireless
• Power input: AC 100‑240 V, 50/60 Hz
• Power consumption: 100 W max
• Power-through capacity: supports up to 11A (≈12 units @ 110 V, 26 units @ 240 V)
• Operating temp range: –15 °C to 45 °C (5 °F to 113 °F)
• BTU/hr: ~341 ±10%
• Dimensions (L × W × H): 7.4″ × 9.7″ × 9.1″ (188 mm × 247.1 mm × 230 mm)
• Weight: 9.48 lbs / 4.30 kg
• IP rating: IP65 (weatherproof)
• Approvals / Certifications: CE, cETLus, FCC, UKCA

What's Included

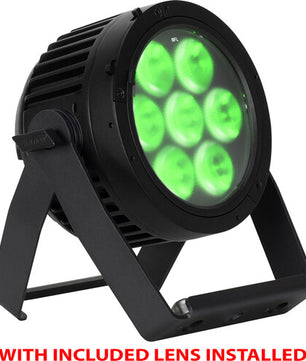

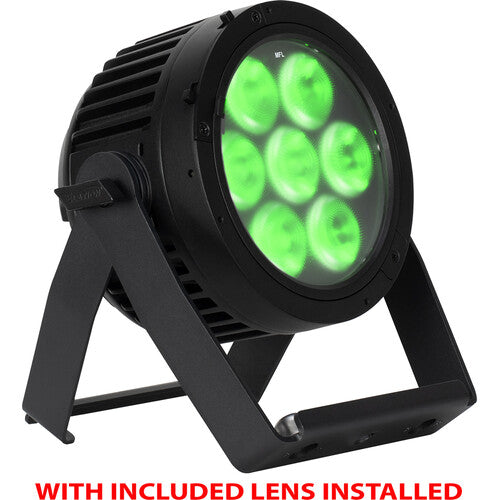

• MFL (20°) lens (installed)
• Safety cable
• IP65 locking power cable
• Omega bracket receiver and dual yoke mount structure
