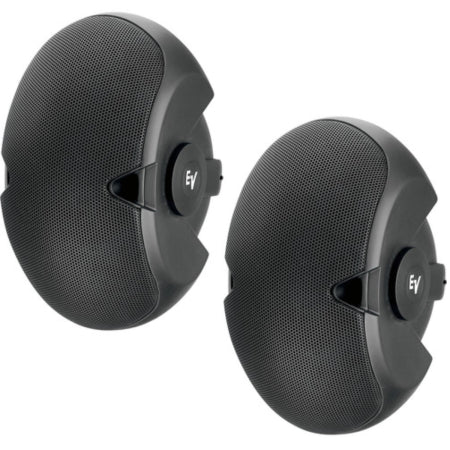

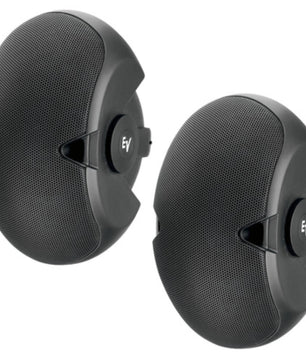

Electro-Voice EVID 4.2T Pair | of Dual 4in Speakers | 70V/100V Install System

Surface-Mount Installation Speaker

Electro Voice EVID 4.2T is a compact full-range 2-way surface-mount installation speaker designed for commercial environments requiring flexible mounting and distributed audio capability. With dual 4-inch woofers, a titanium high-frequency driver, and an integrated 70V/100V transformer, it is well suited for restaurants, patios, bars, retail spaces, and outdoor venues where space is limited.

Electro Voice EVID 4.2T Competitive Differences

• Integrated 70V/100V transformer with selectable wattage taps and 8-ohm bypass
• Dual 4-inch woofers deliver enhanced low-frequency performance in a compact enclosure
• Coherent Coverage Waveguide ensures consistent 120° x 80° dispersion
• Weather-resistant ABS enclosure suitable for indoor and outdoor use
• Strong-Arm Mount system allows 100° swing and 90° rotation for precise aiming

Electro Voice EVID 4.2T Description

The Electro Voice EVID 4.2T is engineered for professional installed sound applications where clarity, coverage, and flexibility are critical. Sold as a pair, these passive loudspeakers combine compact size with impressive output, making them an excellent choice for distributed audio systems in hospitality and retail environments.

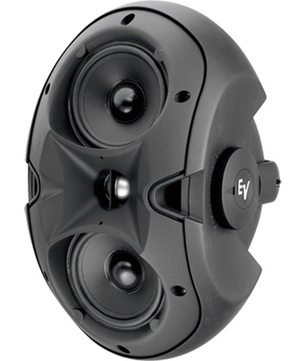

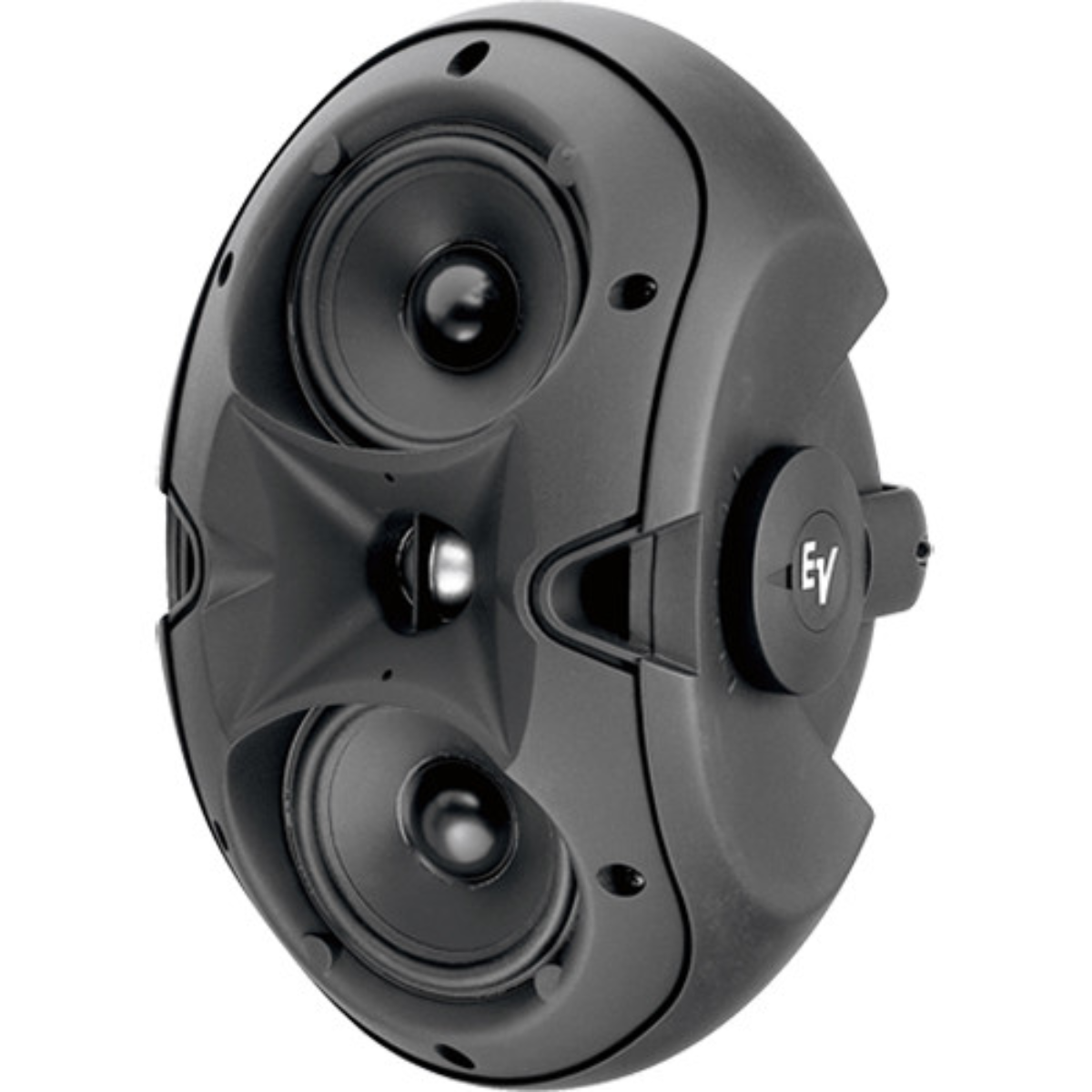

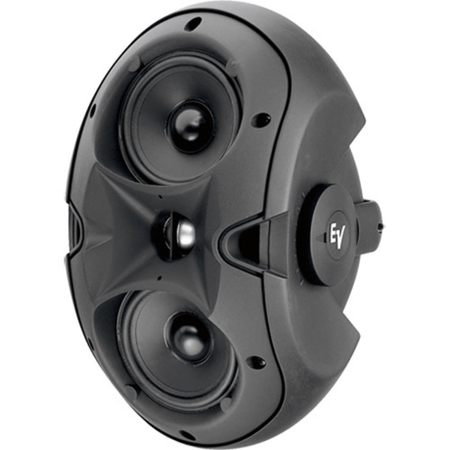

Each speaker features dual 4-inch low-frequency drivers that provide extended bass response beyond typical compact speakers, while the 1-inch titanium dome tweeter with neodymium magnets delivers clear and controlled high-frequency performance. The Coherent Coverage Waveguide ensures even sound dispersion across a wide listening area, maintaining consistent audio quality throughout the space.

The built-in transformer supports 70V and 100V distributed systems with selectable power taps, along with an 8-ohm bypass option for standard low-impedance setups. With 200W continuous and 400W peak power handling, the EVID 4.2T offers reliable performance for both background and foreground music applications.

Its rugged, weather-resistant ABS enclosure is designed for both indoor and outdoor use, meeting demanding environmental conditions. The included cast-aluminum Strong-Arm Mount (SAM) provides secure installation and flexible positioning with up to 100° of horizontal swing and 90° of vertical rotation, allowing precise coverage in any installation scenario.

EVID 4.2T Features

• Passive 2-way installation loudspeaker (pair)
• Integrated 70V/100V transformer with multiple power taps
• Dual 4-inch woofers for enhanced low-frequency output
• 1-inch titanium dome tweeter with neodymium magnetic structure
• Coherent Coverage Waveguide for wide, even dispersion
• Vented low-frequency enclosure with dual bass ports
• Full-bandwidth overload protection
• Weather-resistant, paintable ABS enclosure
• Magnetically shielded for use near video displays
• Strong-Arm Mount (SAM) with flexible aiming
• Suitable for patios, restaurants, bars, and retail installations

EVID 4.2T Specifications

• Speaker Type: Passive 2-way surface-mount loudspeaker
• Frequency Response: 65 Hz - 20 kHz
• Power Handling: 200W continuous / 400W peak
• Sensitivity: 89 dB (1W/1m)
• Max SPL: 113 dB
• Impedance: 8 ohms
• Coverage: 120° H x 80° V
• Crossover Frequency: 2.2 kHz
• LF Drivers: 2 x 4 in (100 mm)
• HF Driver: 1 in (25 mm)
• Transformer Taps: 70V: 3.75W; 70V/100V: 7.5W, 15W, 30W
• Bypass: 8 ohm
• Input Connections: Euroblock (Phoenix)
• Enclosure Material: Paintable ABS
• Environmental: Weather-resistant for indoor/outdoor use
• Dimensions: 12.2 x 6.9 x 8.5 in
• Weight: 8.5 lb (3.9 kg) each
• Package Weight: 22.15 lb

What's In The Box

• 2 x Electro Voice EVID 4.2T speakers
• Strong-Arm Mount assemblies
• Hex key
