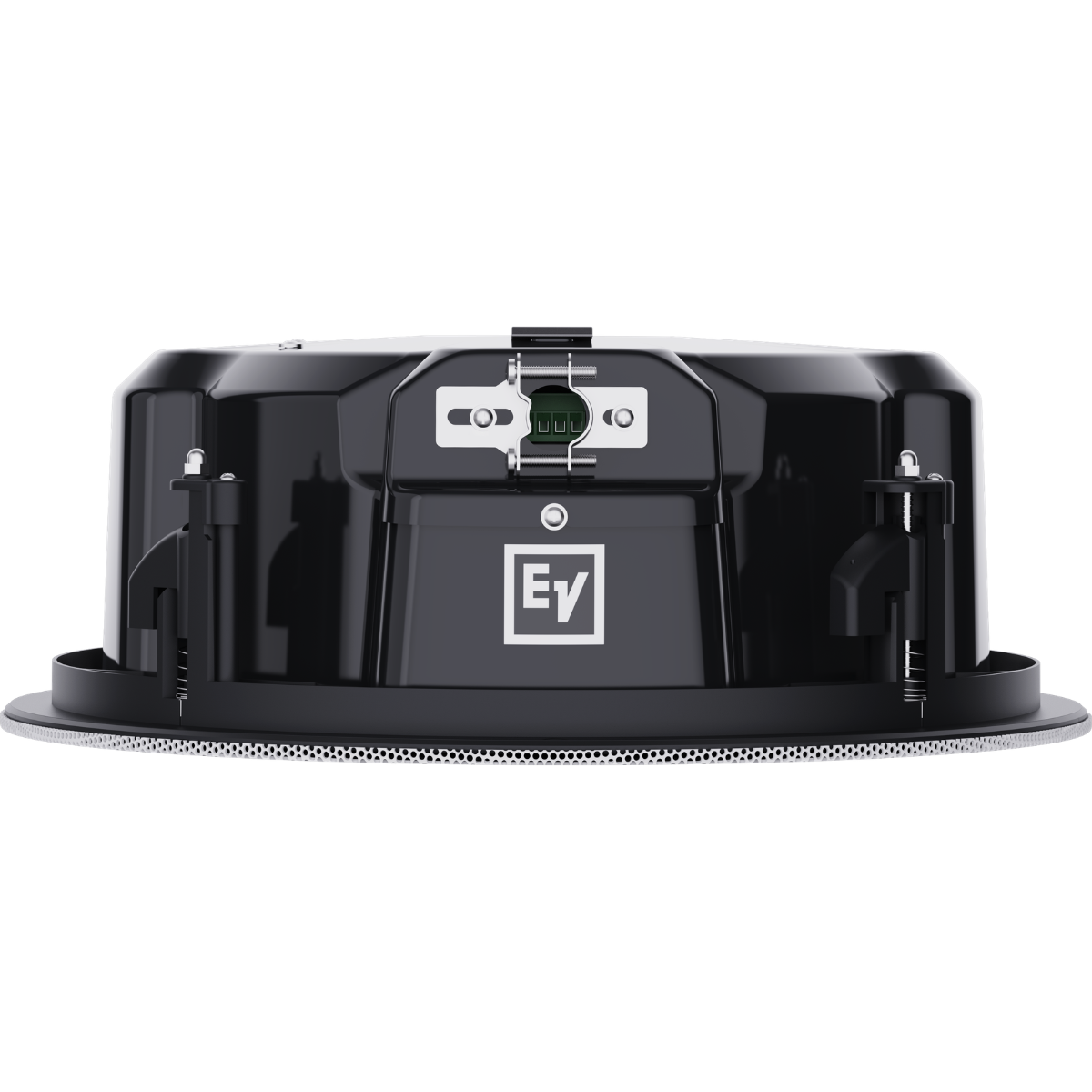

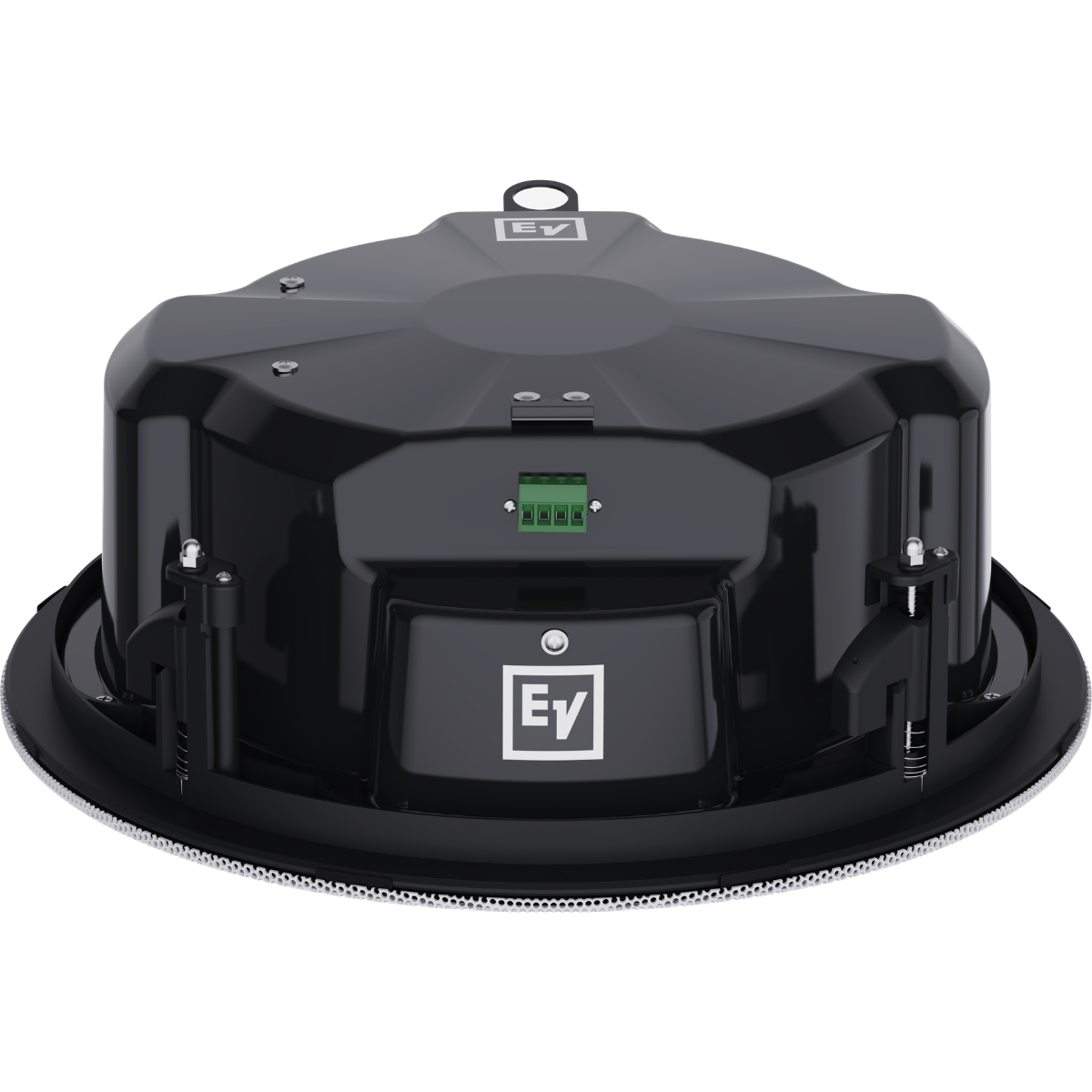

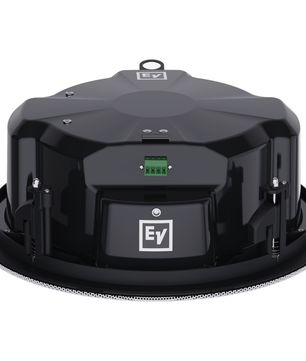

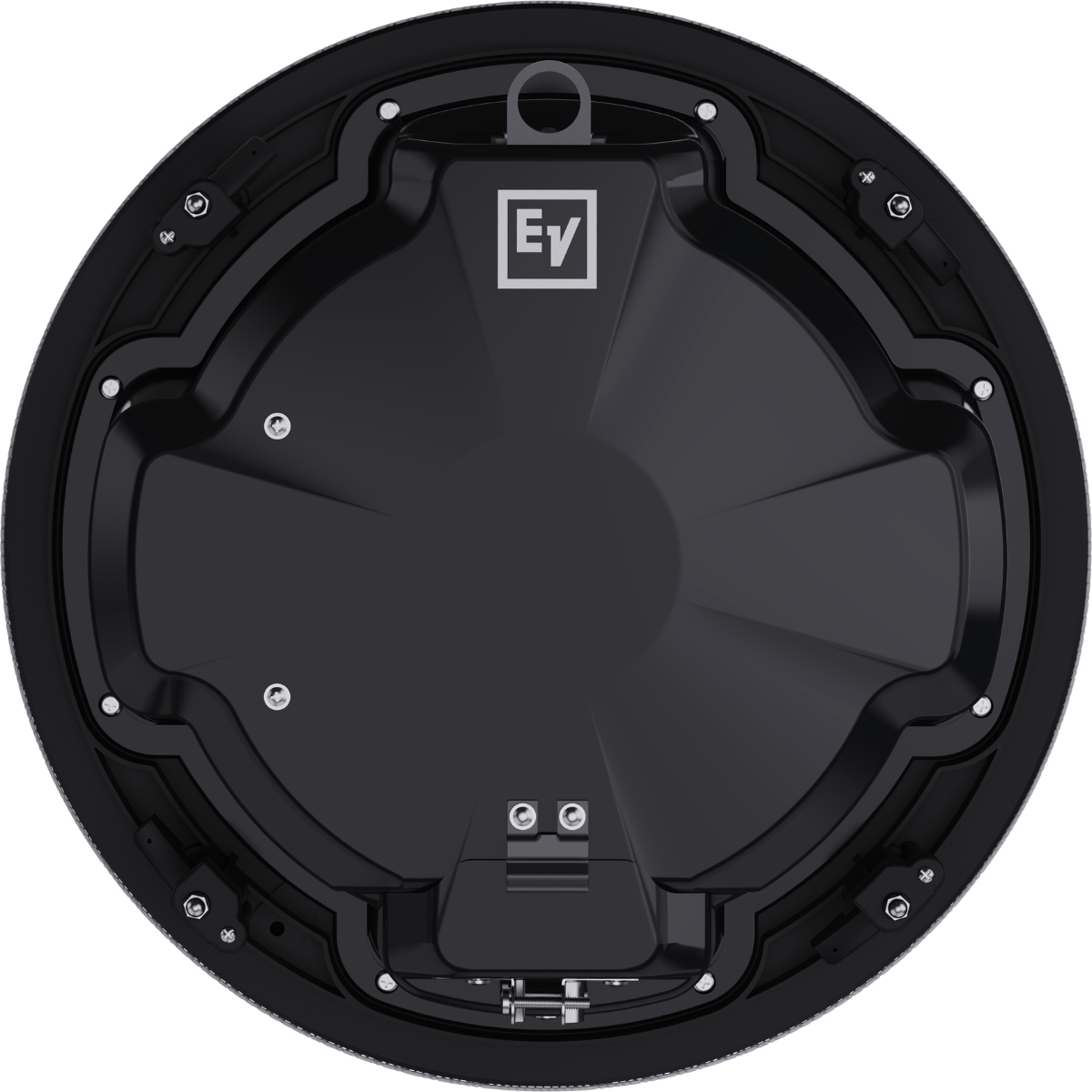

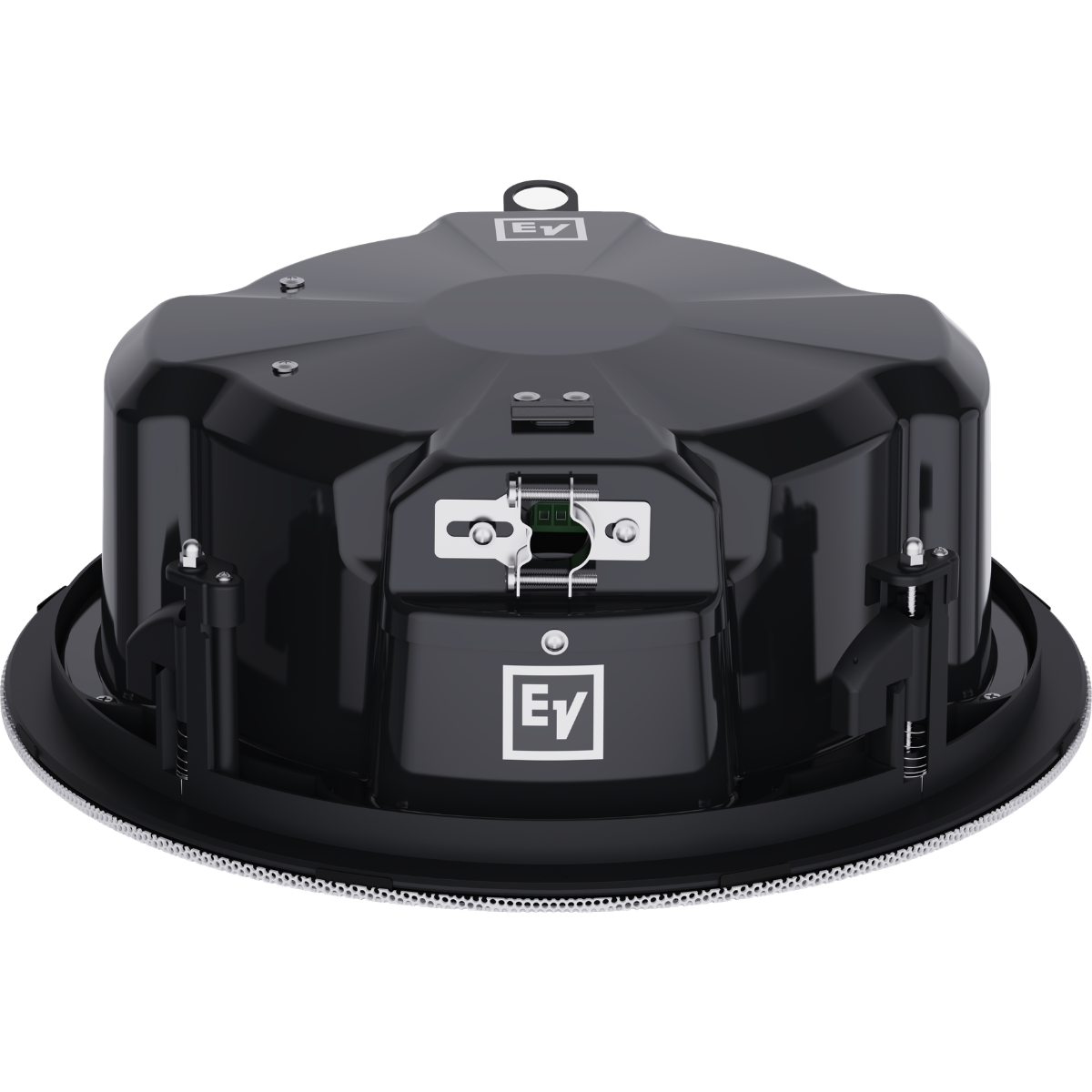

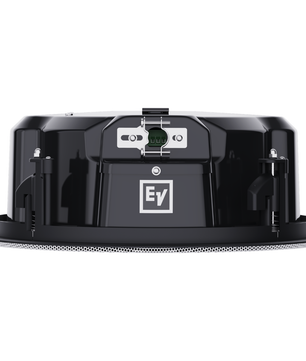

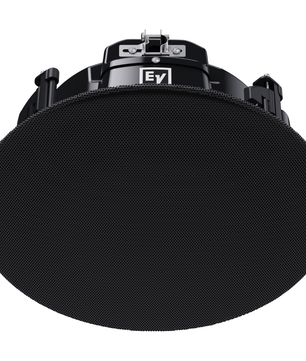

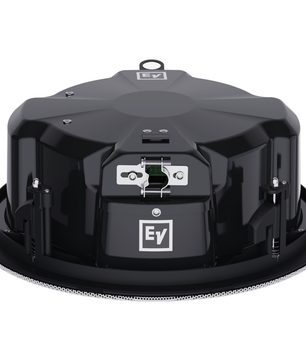

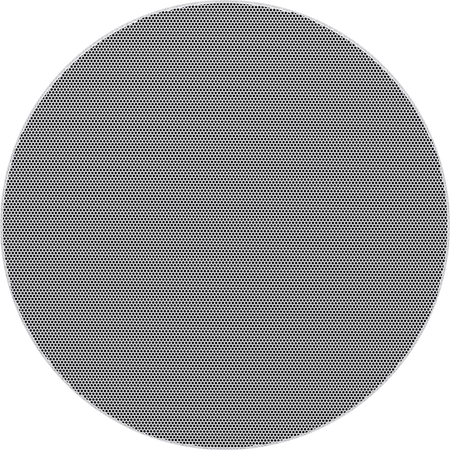

Electro-Voice EVID-C6.2LP-G2 | 6.5in Low-Profile Ceiling Speaker | 70V/100V White Install Speaker

$279.00

Order within [hour] to get by [date_end]

Quantity

Direct Ship from Our Supplier

Guarantee Safe
Checkout

trust_2dea69ed-7223-44f3-828d-a80bc0f3aef4

Low-Profile Ceiling Installation Loudspeaker

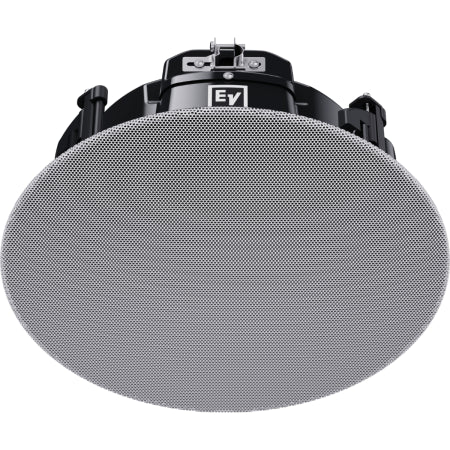

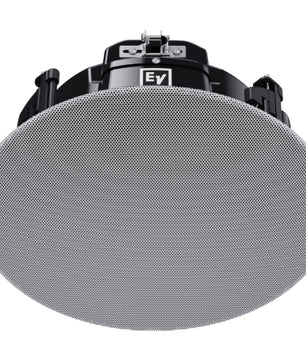

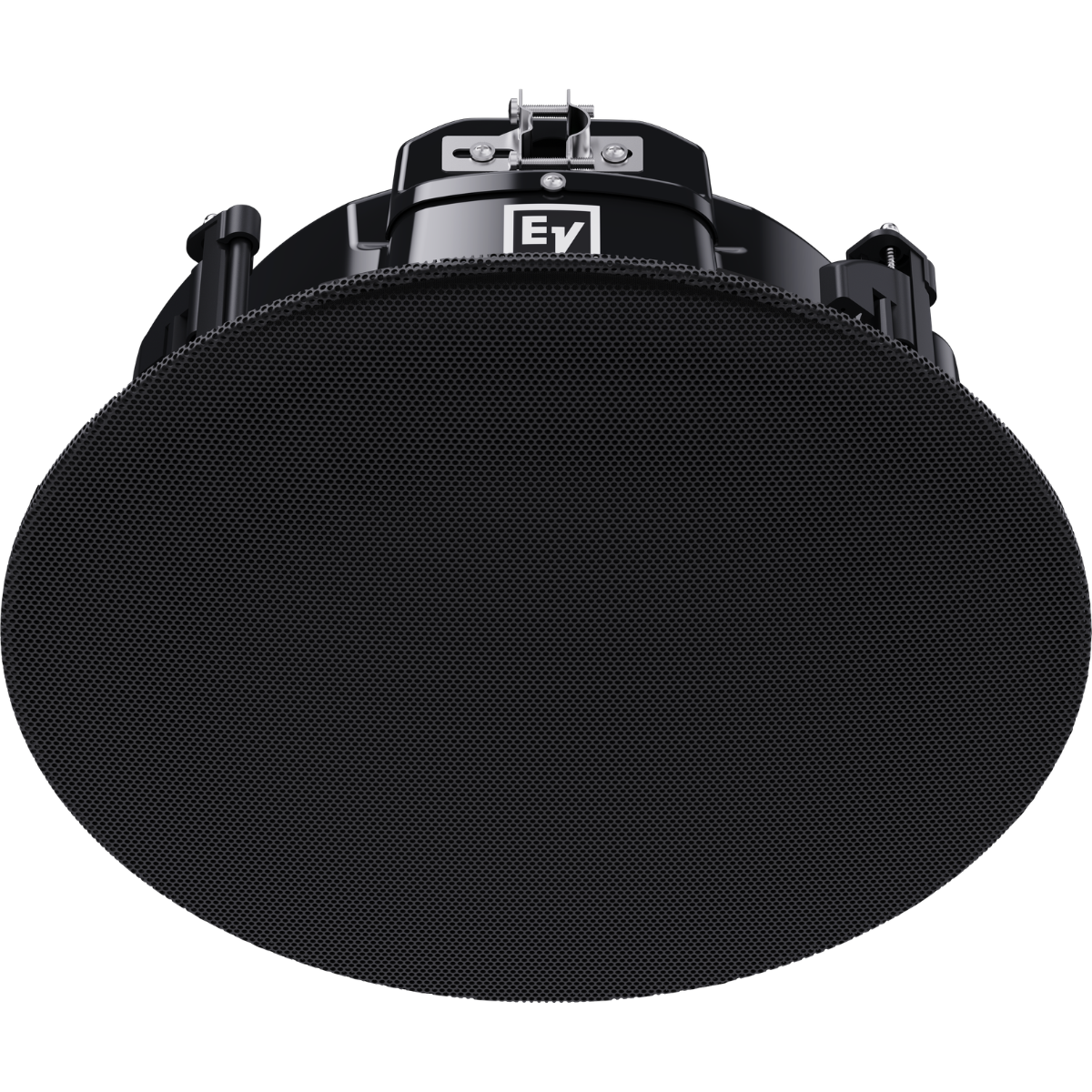

Electro-Voice EVID-C6.2LP-G2 is a white 6.5-inch coaxial two-way ceiling loudspeaker designed for commercial audio systems where ceiling depth is limited. Its low-profile enclosure, bezel-less grille, 110° conical coverage, and SwiftLock mounting system make it ideal for restaurants, retail spaces, offices, hospitality venues, and other indoor installed sound applications.

Electro-Voice EVID-C6.2LP-G2 Competitive Differences

Low-profile 4.8-inch mounting depth supports installation in tight ceiling spaces
SwiftLock mounting system and front baffle tap adjustment simplify installation and system setup

Electro-Voice EVID-C6.2LP-G2 Description

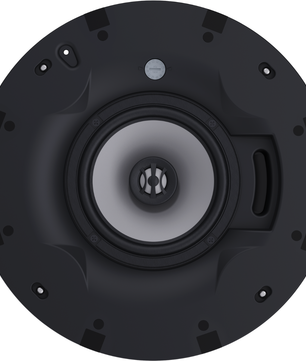

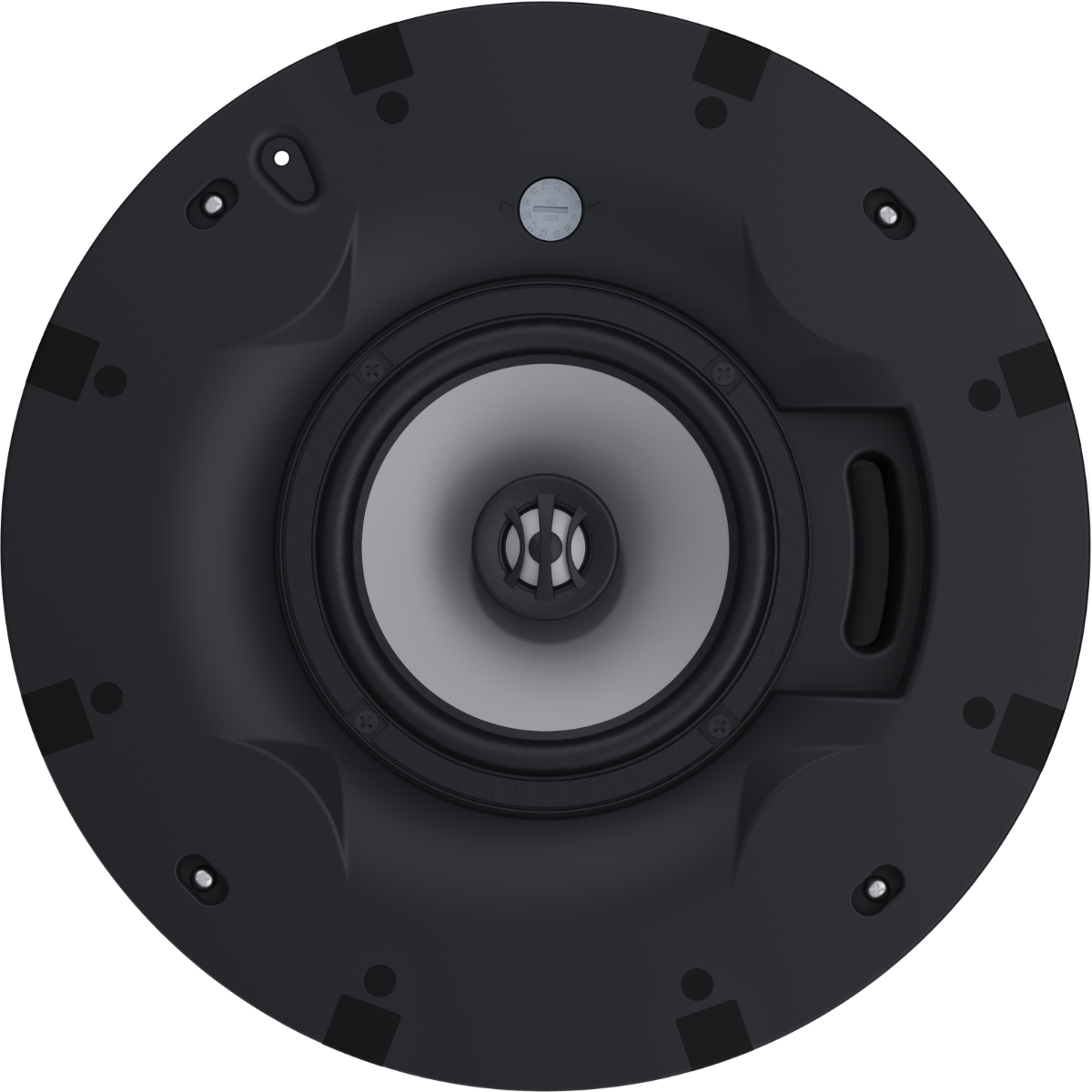

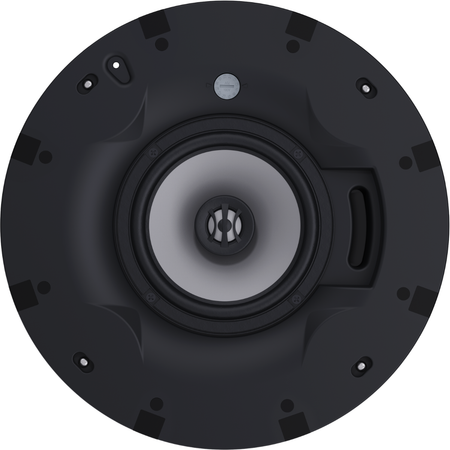

The Electro-Voice EVID-C6.2LP-G2 delivers clear, consistent audio from a coaxial point-source design with a 6-inch low-frequency driver and 1-inch high-frequency driver. Its 110° conical coverage helps provide uniform sound across distributed ceiling speaker systems for background music, foreground audio, and paging.

The integrated transformer supports 70V and 100V constant-voltage systems, with selectable wattage taps accessible from the front baffle. An 8-ohm bypass option also allows use with low-impedance amplifier systems when needed.

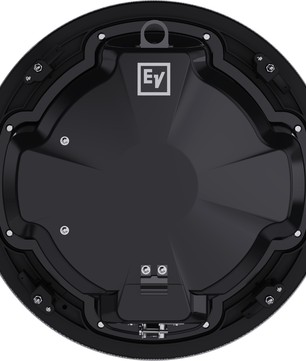

Designed for challenging ceiling installations, this low-profile model uses a 5.3-inch-deep enclosure with a 4.8-inch mounting depth. The speaker is built with a UL 94V-0 rated ABS baffle, heavy-gauge coated steel rear enclosure, and semi-gloss white powder-coated steel grille for a clean installed appearance.

EVID-C6.2LP-G2 Features

White 6.5-inch low-profile coaxial two-way ceiling loudspeaker
SwiftLock mounting system for quick, safe, and reliable installation

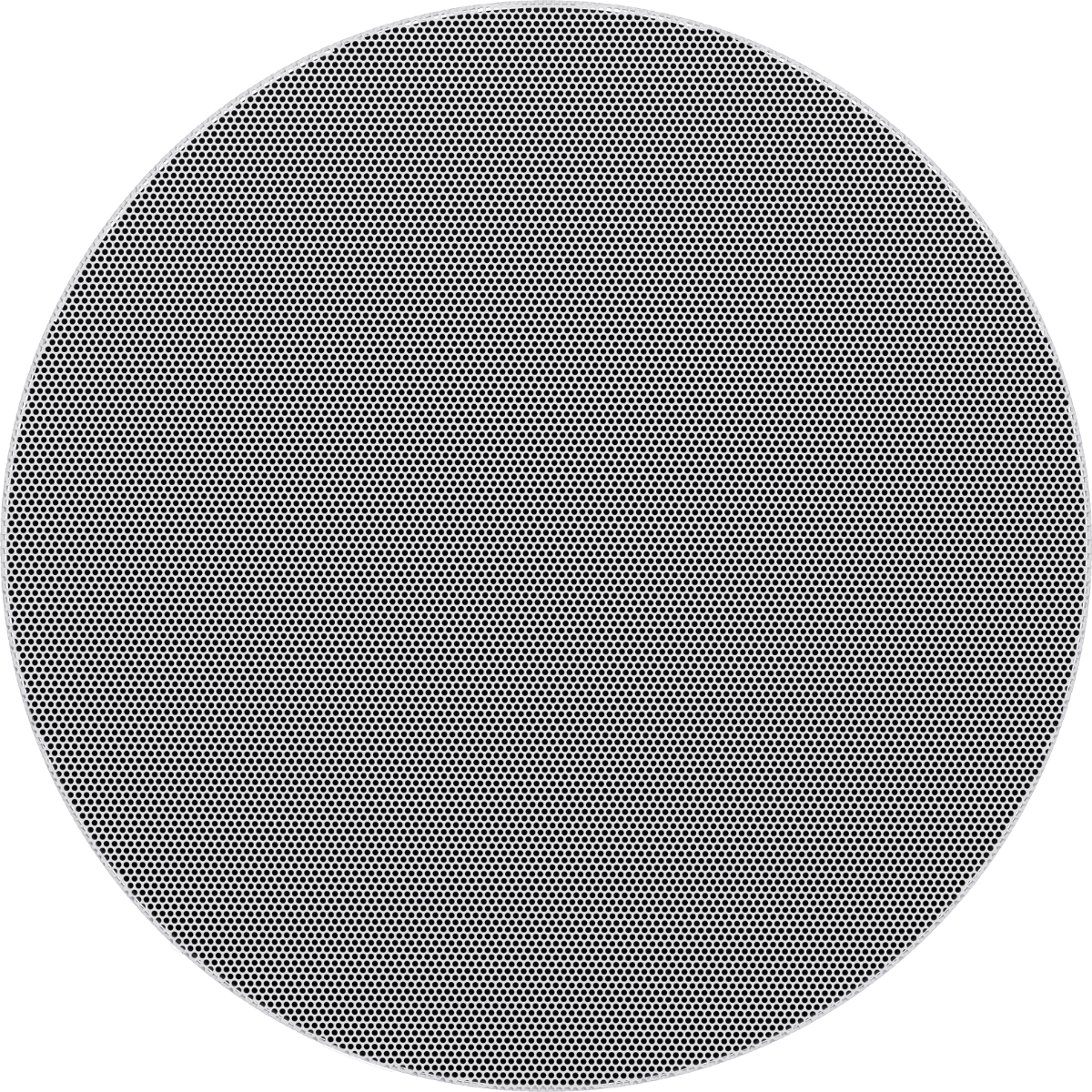

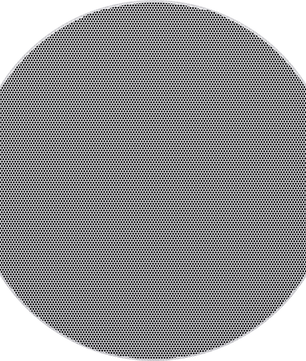

Bezel-less design with easy-attach grille
Front baffle wattage tap adjustment
Point-source design for improved off-axis response
110° conical coverage
70V, 100V, and 8-ohm operation
Includes tile bridge and mounting ring
4-pin Euroblock connector with input and pass-through wiring
Low-profile enclosure for tight ceiling spaces
UL 1480A, UL 2043, CSA 22.2 205, and IEC 62638 certified

EVID-C6.2LP-G2 Specifications

Speaker Type: Passive 2-Way Coaxial Low-Profile Ceiling Loudspeaker
Frequency Range: 60 Hz – 20 kHz (-10 dB)
Max SPL: 109 dB Continuous / 115 dB Peak
Sensitivity: 90 dB SPL, 1W/1m
Coverage: 110° Conical
Power Handling: 80W Continuous / 320W Peak
Long-Term Power Handling: 70W Continuous / 280W Peak
Nominal Impedance: 8 Ohms
Recommended High Pass: 60 Hz
Transformer Taps: 70V: 30W / 15W / 7.5W / 3.75W / 1.88W
Transformer Taps: 100V: 30W / 15W / 7.5W / 3.75W
LF Driver: 6 in
HF Driver: 1 in
Connector: 4-Pin Euroblock, Input + Pass Through
Maximum Wire Size: 12 AWG / 3.3 mm²
Material: Steel Rear Enclosure
Grille Material: Powder-Coated Steel
Color: White / RAL 9003 Signal White
Mounting Cutout: 12.7 in (322 mm)
Dimensions: 13.9 x 5.3 in (353 x 133.1 mm)
Mounting Depth: 4.8 in (122 mm)
Ceiling Thickness: 0.5 - 1.5 in (12.5 - 38 mm)
Weight: 9.9 lb (4.5 kg)
IP Rating: IP34
Weatherization: Indoor
Operating Temperature: 32°F – 122°F (0°C – 50°C)

What's In The Box

Electro-Voice EVID-C6.2LP-G2 Ceiling Loudspeaker
Tile Bridge
Mounting Ring
Easy-Attach Grille
