Surface-Mount Installation Speaker

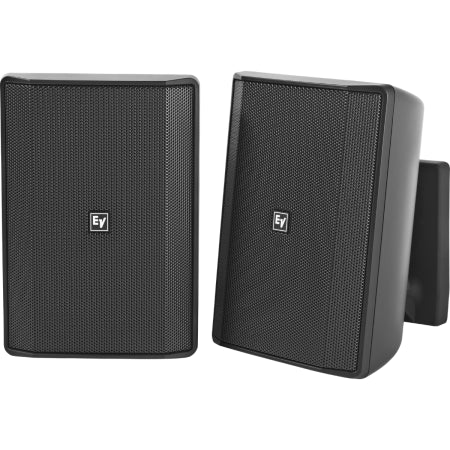

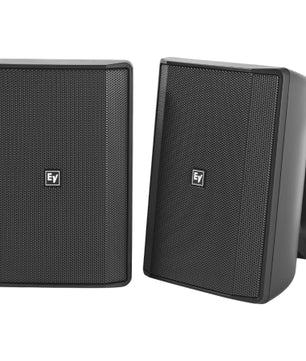

Electro-Voice EVID-S5.2TB is a black 5.25-inch two-way surface-mount speaker pair designed for commercial background music, foreground audio, paging, and sound reinforcement. With 70V/100V transformer operation, IP54 weather resistance, and flexible wall or ceiling mounting, it is ideal for restaurants, bars, patios, retail spaces, fitness clubs, hospitality venues, and other installed audio applications.
Electro-Voice EVID-S5.2TB Competitive Differences
- Integrated 30W transformer supports 70V/100V distributed audio systems plus 8-ohm bypass
- Included mount system provides 90° horizontal and 45° vertical rotation for flexible wall or ceiling installation
Electro-Voice EVID-S5.2TB Description
The Electro-Voice EVID-S5.2TB delivers full-range performance from a 5.25-inch long-throw woofer and 0.75-inch high-frequency transducer. Its 90° x 90° coverage pattern helps provide consistent sound across commercial spaces, making it useful for distributed audio systems, background music, paging, and light sound reinforcement.
The built-in transformer allows operation on 70V and 100V constant-voltage systems, with selectable taps of 3.7W on 70V only, plus 7.5W, 15W, and 30W. An 8-ohm bypass is also available for low-impedance amplifier systems, with tap selection handled from the rear input panel.
Engineered for indoor and outdoor use, the EVID-S5.2TB features an IP54-rated weatherized design that helps resist sun, salt, and moisture. Its fire-rated ABS plastic enclosure, compact size, and included mounting system make installation quick, clean, and reliable.
EVID-S5.2TB Features
- Black 5.25-inch two-way surface-mount speaker pair
- 70V/100V transformer version with 8-ohm bypass
- Integrated 30W transformer
- Long-throw 5.25-inch woofer for extended low-frequency performance
- 0.75-inch high-frequency transducer
- 75W power handling
- 109 dB maximum SPL / 115 dB peak
- 60 Hz – 20 kHz frequency range
- 90° x 90° nominal coverage
- IP54 weatherized construction for indoor and outdoor use
- Fire-rated ABS plastic enclosure
- Included mount system for quick and reliable installation
- Supports wall or ceiling mounting
EVID-S5.2TB Specifications
- Speaker Type: Passive 2-Way Surface-Mount Speaker Pair
- Frequency Range: 60 Hz – 20 kHz (-10 dB)
- Frequency Response: 85 Hz – 20 kHz (-3 dB)
- Max SPL: 109 dB Continuous / 115 dB Peak
- Sensitivity: 90 dB, 1W/1m
- Power Handling: 75W
- Transformer: 70V/100V, 30W
- Transformer Taps: 70V: 3.7W / 7.5W / 15W / 30W
- Transformer Taps: 100V: 7.5W / 15W / 30W
- Nominal Impedance: 8 Ohms
- Minimum Impedance: 6 Ohms
- Coverage: 90° H x 90° V
- LF Driver: 5.25 in (133 mm)
- HF Driver: 0.75 in (20 mm)
- Recommended High Pass: 60 Hz
- Connector Type: Captive Screws on Wall Bracket; Removable Locking 4-Pin Euroblock for Distributed Line Connection
- Maximum Wire Size: 12 AWG (2.5 mm²)
- Weatherized: Yes
- Environmental Rating: IP54
- Color: Black
- Dimensions: 10 x 7.1 x 5.9 in (255 x 180 x 151 mm)
- Net Weight: 7.1 lb (3.2 kg) per pair
- Shipping Weight: 17.4 lb (7.9 kg)
What's In The Box
- 2 x Electro-Voice EVID-S5.2TB Speakers
- Mounting Brackets
