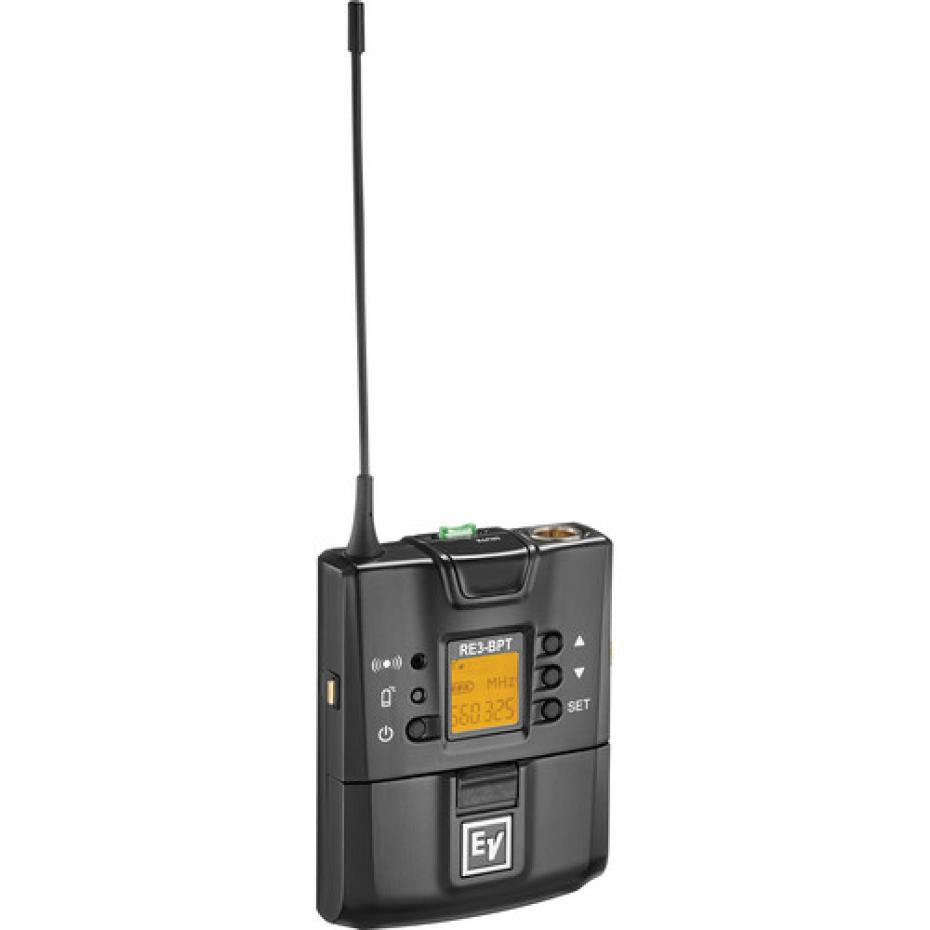

Electro-Voice RE3-BPT-6M | Bodypack Transmitter (653 to 663 MHz)

The RE3-BPT-6M Bodypack Transmitter from Electro-Voice is a small, lightweight, easily worn and concealed, robust UHF bodypack transmitter. It can be used when paired with a lavalier microphone and a receiver (sold separately) to capture audio for a wide variety of professional presentation and performance applications.

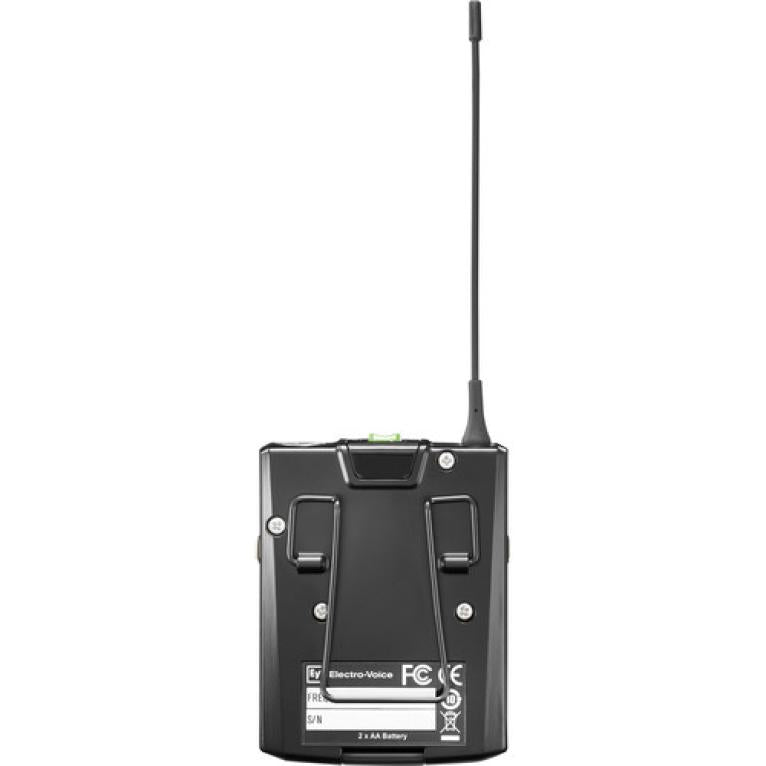

The bodypack transmitter's all-metal body is durable and operates on two AA alkaline or rechargeable NiMH cells. Built with a 10 MHz tuning bandwidth, it offers generous frequency tuning options within the North American Duplex Gap. The selectable 10 or 20mW output power assists in overcoming the challenges of both long, or short transmission ranges.

Furthermore, the ultrasonic sync function makes for a simple system setup by syncing the transmitter to the receiver's frequency tuning and other functional data. Also, recharging contacts offer use with an optional BC2 charging station (sold separately) allowing NiMH rechargeable cells to be charged without removal from the bodypack.

FEATURES:

UHF Bodypack Transmitter
400 Selectable Frequencies
10 MHz Tuning Bandwidth
Selectable 10 and 20 mW Output Power

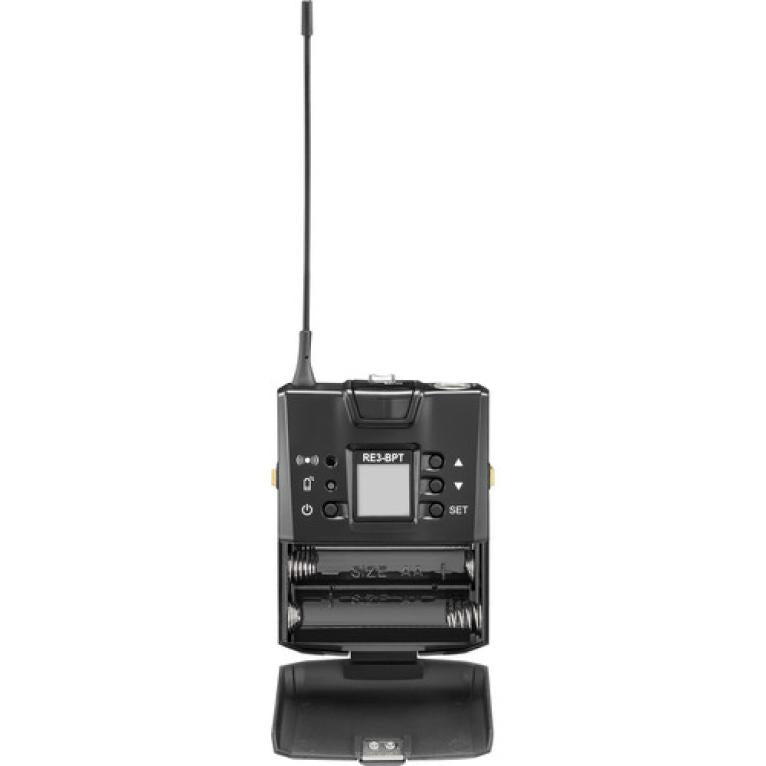

Easy Access to Batteries
Runs on 2 x AA Batteries or Rechargeable
LCD and LED Display
TA4 Mini Input Jack
Charging Contacts

SPECIFICATIONS:

Wireless Technology
Digital UHF
Transmitter Type
Bodypack
Audio I/O
1x TA4/Mini-XLR 4-Pin Male Input
RF Frequency Band
653 to 663 MHz
RF Bandwidth
10 MHz
Modulation
Wideband FM
Transmitter
Transmitter Type
Bodypack
RF Output Power
10 / 20 mW (Switchable)
Audio I/O
1x TA4/Mini-XLR 4-Pin Male Input
Muting
Mute Switch
Sync Method
IR
Antenna
1x Flexible Whip, Fixed (Beltpack)
Power Requirements
Battery
Battery Type
2x AA (Included, Replaceable)
Display & Indicators
1x Backlit LED (Channel, Group, Mute)
Housing
Metal
Dimensions
2.5 x 3.2 x 0.9" / 6.3 x 8.1 x 2.3 cm (without Antennas)
Weight
6.1 oz / 172.9 g (with Antenna)
