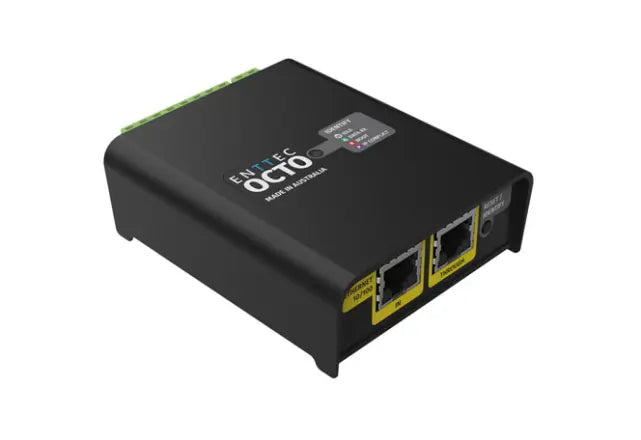

Enttec OCTO Mk2 | 8-Universe DIN Rail LED Pixel Controller

ENTTEC’s OCTO MK2 is a robust and reliable
installation grade LED controller engineered to take
any architectural, commercial or entertainment
project to the next level.
With 8 universes of eDMX to pixel protocol conversion
and network chaining between devices, the OCTO
MK2 allows for fast deployment of LED strips and
pixel dot systems with compatibility with over 20
protocols.
The OCTO MK2 is packed with installer-friendly
features such as an identify button to check correct
wiring, temperature monitoring, a wide input voltage
range (5-60v) and intuitive configuration and
management through its localhost web interface. All
contained within a slim electrically isolated 4 DIN
form factor.
Its inbuilt Fx engine allows users to edit and create
presets, using the OCTO MK2’s web interface that
can be configured to run standalone at power up
without a DMX source.

FEATURES:

Two * 4-universe pixel outputs with Data and
Clock support.
Support for up to 8 universes of Art-Net, sACN,
KiNet and ESP.
Easily extendable network - daisy chain ethernet
connection through multiple devices.
DHCP or Static IP address support.
Multiple pixel protocols supported.
Surface or TS35 DIN rail mounting option.
Intuitive device configuration and updates
through the inbuilt web interface.
Identify/Reset button allows installers to quickly
check wiring is correct without requiring a
network connection.
Simple Fx generator mode to create and execute
preset effects on the fly, configurable to play
from power up.
Grouping functionality to reduce input channel
count.

SPECIFICATIONS:

Connectors
2* Network (RJ45)
2* SPI Output (4-Pin phoenix)
1* Power (2-Pin phoenix)
IP rating IP20
LED indicators
Forward facing LED indicator
Network link / activity
(integrated into RJ45 ports)
eDMX input protocol
Art-Net sACN
KiNet ESP
Data output type
SPI (NZR) See website for all
supported protocols.
Max. eDMX -> pixel
conversion per device 4096 channels
Max. pixels
controllable per device
RGB 1360 (680 per port)
RGBW 1024 (512 per port)
Max. refresh rate 46 frames per second (fps)
Network speed 10/100Base-T
Network discovery ENTTEC’s NMU software
Network configuration Static (Default 192.168.0.10) /
DHCP
Integrated network
switch Yes
Recommended network
device quantity per
chain
Chains of up to 8 devices for
optimal synchronization
between outputs
Max. network device
quantity per chain 50
Identify / Reset button Yes
Configurable pixel
color ordering. Yes
Creation of effects and
presets on the device Yes
Play preset upon
startup Yes
Firmware updates Upgradable via web interface1
Input voltage 5-60V DC
Max. power draw 5W
Max. heat dissipation 4.5 W
Cooling method Convection
Environmental -20°C to 50°C
operating temperature -4°F to 122°F
Environmental
operating humidity
5 to 95%
(non-condensing)
Body material ABS plastic
Mounting options
Surface mount
TS35 DIN Rail mount
Unit dimensions 100.5*72.25*34 mm
Unit weight 0.11kg / 0.24lbs
Shipping dimensions 160*140*40 mm
Shipping weight 0.18kg / 0.39lbs
Warranty 3-year return to base
manufacturer warranty
