Enttec PLink Injector (5V) | Pixel link protocol

What is the
ENTTEC PLink (Pixel Link)
system?
ENTTEC’s Pixel link protocol (or PLink) has been specially designed to extend your LED Pixel or Constant Voltage layout over long distances.

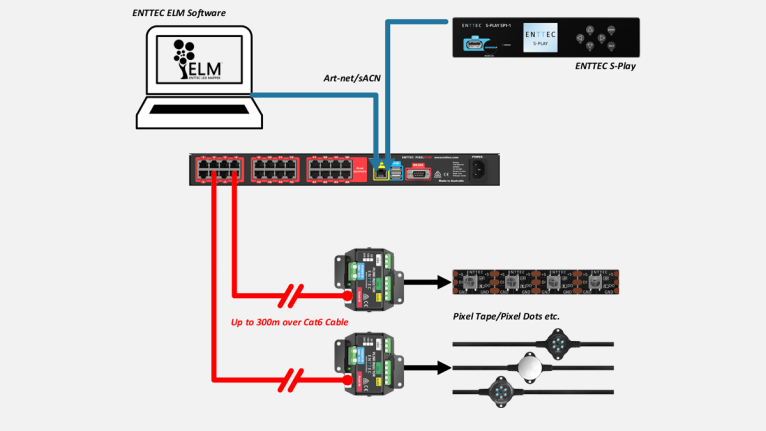

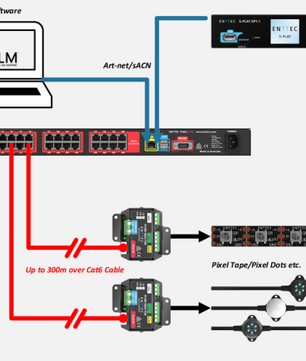

The PLink Injectors receive PLink protocol from a Pixelator family controller. Our protocol transmits up to 1024 channels (2 Universes) over a 300m distance using Cat5e/Cat6 cable from a Pixelator product to each PLink Injector. This means that each injector can control 340 RGB or 256 RGBW pixels. As a result, this satellite system provides great flexibility, and since the Pixelator processes all data conversion, the PLink injector is kept as compact as possible.

The Pixelator family is a group of products that converts sACN, Art-Net, ESP, and Kling-Net into PLink data. 2 Universes are then sent through either 8 (24 universes) or 24 (48 universes) RJ-45 ports with perfect synchronization across all eight of its outputs.  Alternatively, use ENTTEC’s CVC4 to control Constant Voltage (CV) LED tape using the same method!

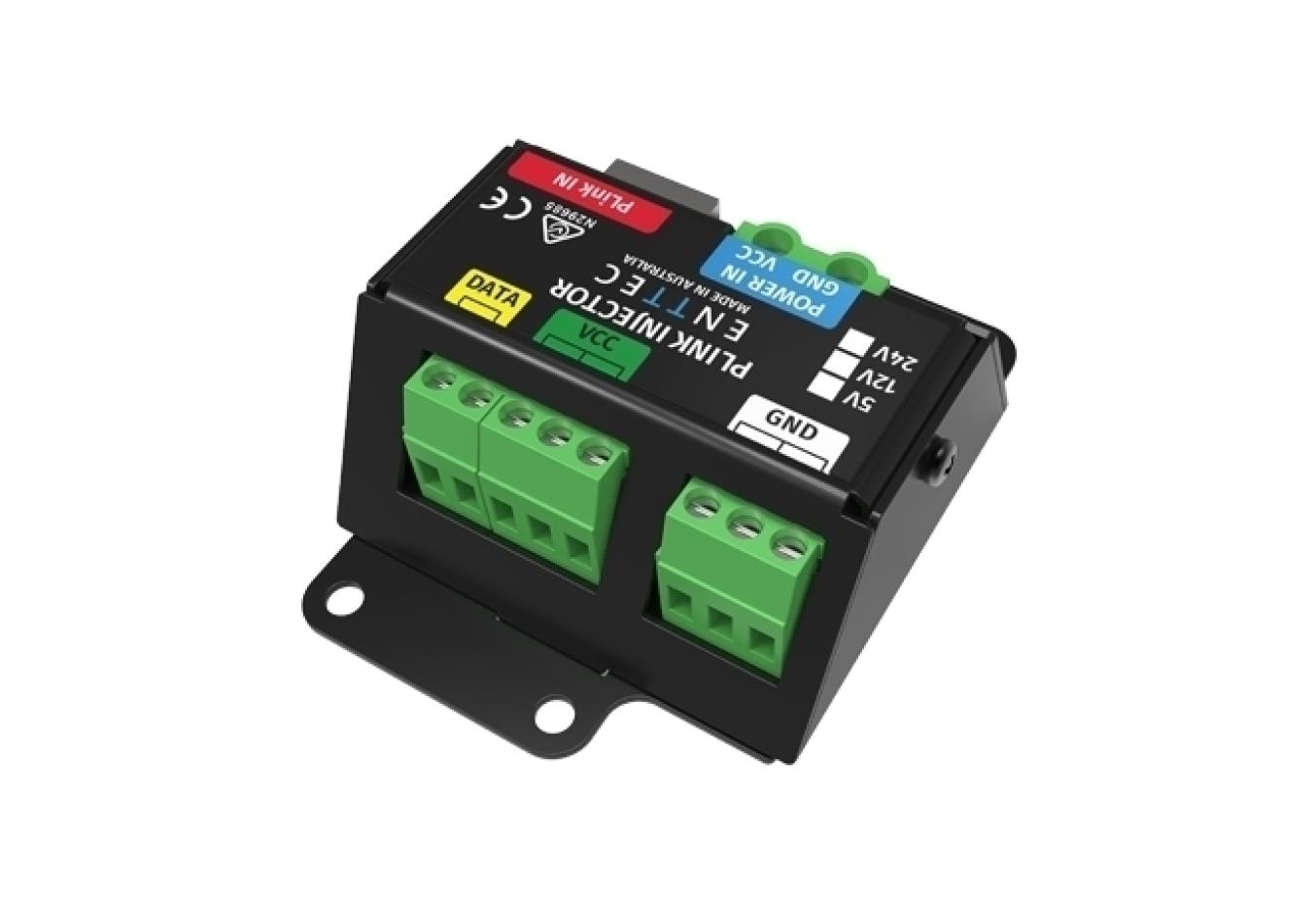

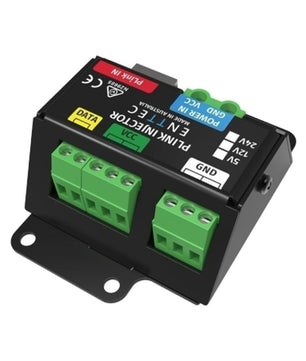

The PLink Injector has been engineered to work as part of an ENTTEC Pixelator Series set up to make it fast, easy and affordable for you to control LED pixel strips or pixel dots over long distances. The injector features an external DC power supply as well as high-power screw terminal connectors. In addition, they are ideal for custom shape pixel LED installations and their scalable design is perfect for large projects.

You can choose from the 5V or 12-24V options depending upon your layout. Then simply re-inject power from an external source, and you’re away!

Depending on your applications, our Plink Injector comes also in a rugged IP66-rated version, ideal for extreme weather conditions and outdoor installations.

Features
Each PLink port can drive up to 340 RGB individual pixels (2 DMX universes)
The PLink is designed for use with the Pixelator system
External DC power supply
Data extensions up to 300 meters over Cat5/Cat5e/Cat6 cable
Small, light and easy to hide design
Scalable design for large projects
Ideal for custom shape pixel LED installations
High power screw terminal connectors
Easy wiring using Cat5/Cat5e/Cat6 standard connections

Safety
This unit is intended for indoor use only. Do not
expose to rain or moisture, doing this will void
the warranty.
Make all the connections before you plug in the
mains power.
Do not remove the cover, there are no serviceable
parts inside.
Never plug this unit into a dimmer pack.

SPECFICATIONS:

Type 5VDC
(73546)
12-24V DC
(73544)

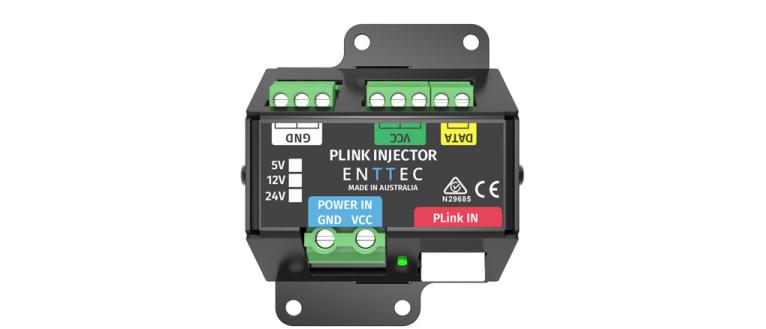

Connectors
1* PLINK Input (RJ45)
1* Power In (rising clamp)
1* Pixel Output (rising
clamp)
IP Rating IP20
LED Indicators Yes
Input Data PLINK data
Output Data
SPI. See the ENTTEC
website for all supported
protocols
Pixels Per PLINK 340 RGB Pixels /
256 RGBW Pixels
Input Voltage 5VDC 12-24V DC
Maximum Throughput
Capacity
10 Amps 10 Amps
50 Watt
12V: 120 Watt
24V:240 Watt
Max. Power Draw 3.5W
Cooling Method Convection
Environmental
Operating
Temperature
-10°C to 65°C
14°F to 149°F
Environmental
Operating Humidity
5- 95%
(non-condensing)
Body Material Folded Aluminium
Unit Dimensions 83.5*73.5*33.7 mm
Unit Weight 0.135kg / 0.30 lbs
Shipping Dimensions 125*75*70 mm
4.92*2.95*2.76”
Shipping Weight 0.15kg / 0.33 lbs
Shipping Dimensions
(Carton of 8)
260*155*140mm
10.24*6.10*5.51”
Shipping Weight
(Carton of 8) 1.2Kg / 2.46lbs
Warranty 3-year return to base
manufacturer warranty
