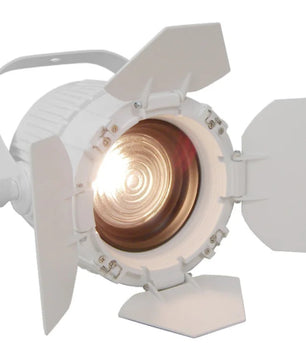

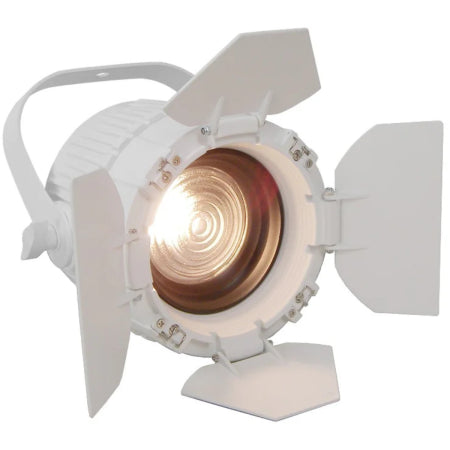

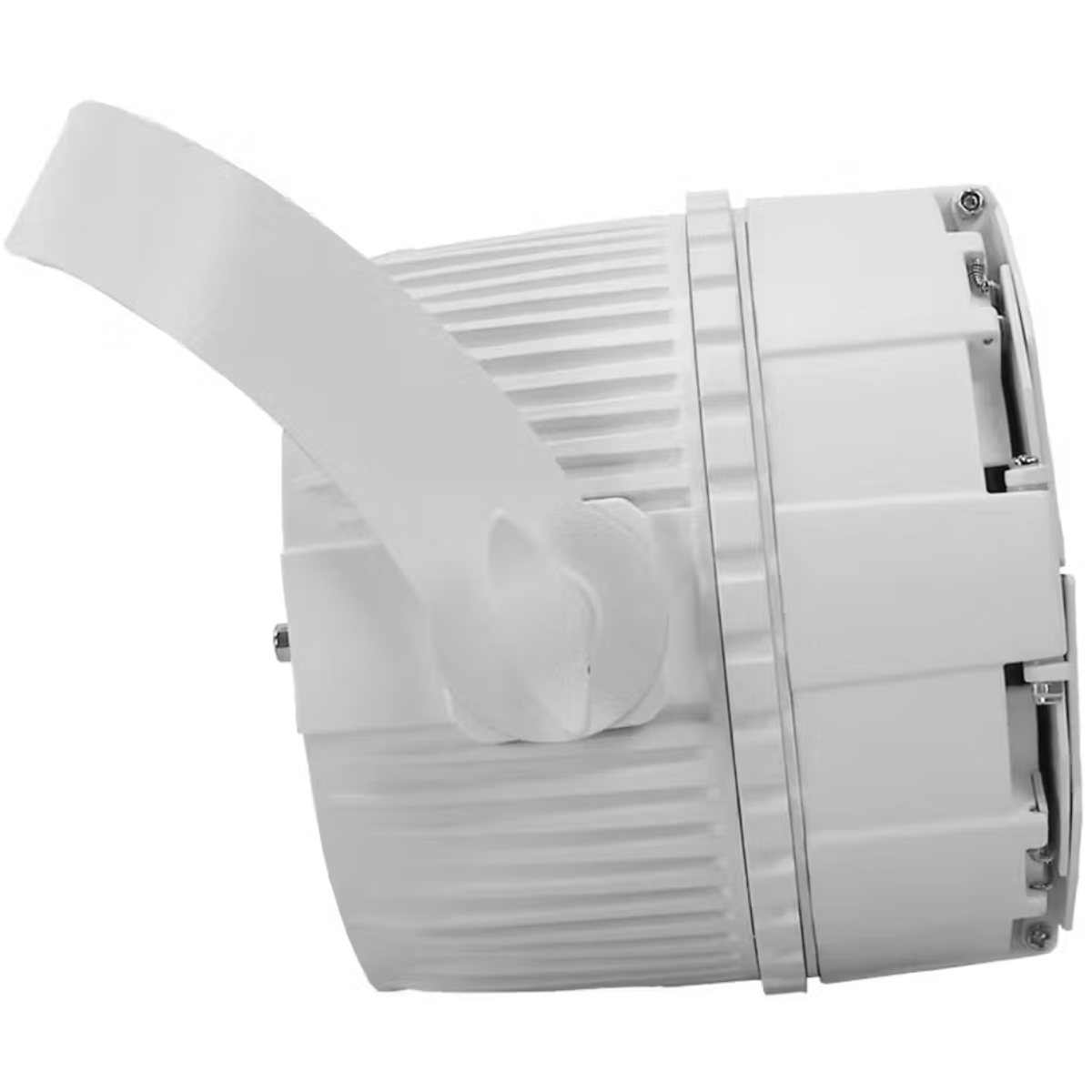

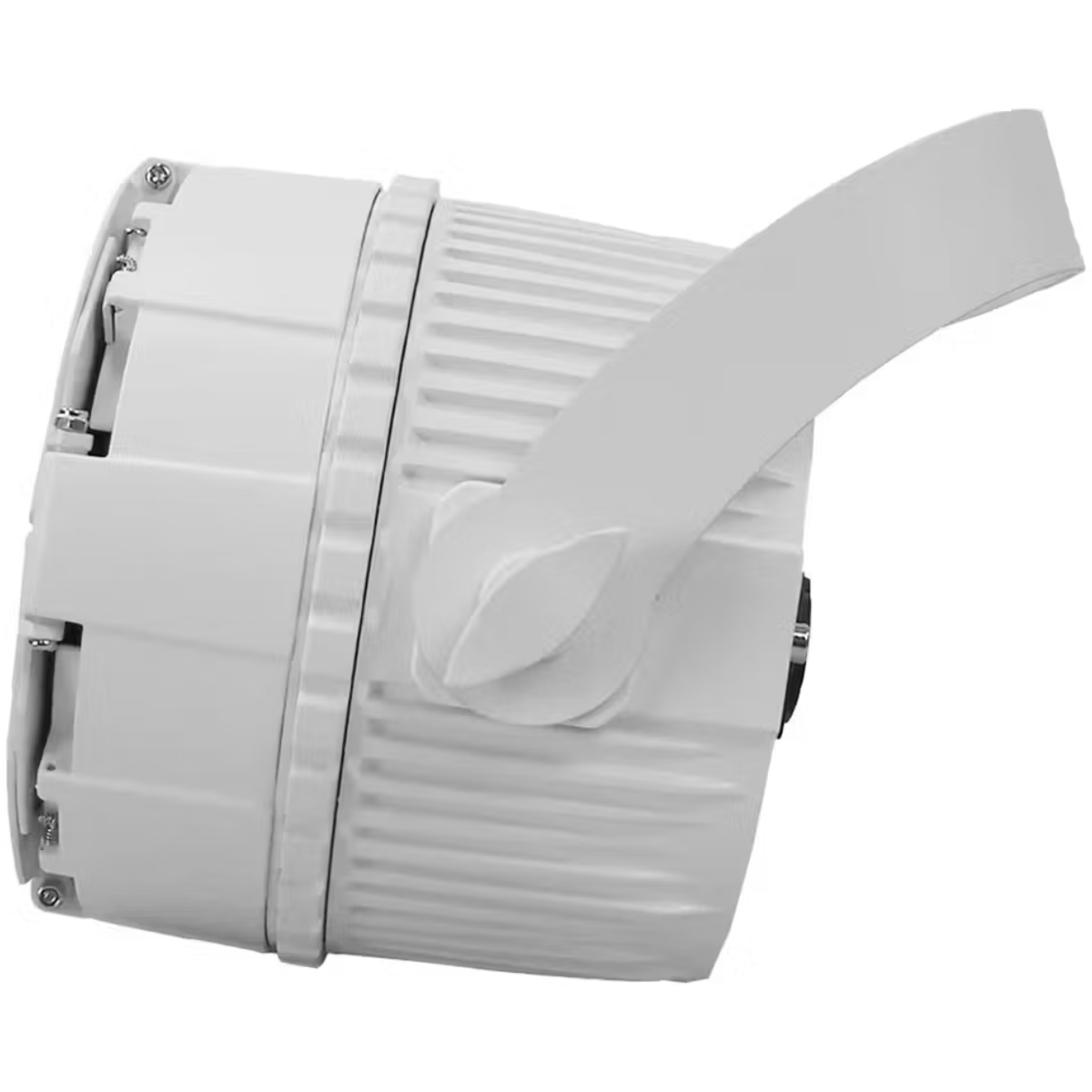

Variable White LED Fresnel
Event Lighting F96VW-WH is a compact LED Fresnel fixture designed for precise front lighting, theatrical applications, and studio environments. Featuring variable white COB LEDs ranging from 2,700K to 5,700K, high CRI output, and a manual zoom, it provides flexible, natural-looking illumination for professional productions.
Event Lighting F96VW-WH Competitive Differences
- High CRI 95+ output for accurate skin tones and color rendering
- Variable white COB LEDs (2,700K to 5,700K) for flexible color temperature control
- Manual zoom range from 20° to 50° for adjustable beam spread
- Fanless cooling for silent operation in studio and theater environments
Event Lighting F96VW-WH Description
The Event Lighting F96VW-WH is engineered for applications that demand consistent, high-quality white light output. Its dual COB LED system blends warm and cool white sources to deliver a wide color temperature range, making it suitable for stage performances, broadcast lighting, and photography setups.
With an 80mm Fresnel lens and a manual zoom range of 20° to 50°, users can easily adjust the beam from a tight spotlight to a wider wash. The fixture delivers strong output levels, reaching up to 1,230 lux at 3 meters at 20°, ensuring it performs well in both small venues and controlled studio environments.
The fanless cooling system ensures completely silent operation, which is critical for film, television, and theater productions. Its die-cast aluminum housing in a clean white finish makes it ideal for installations where aesthetics matter, such as houses of worship, galleries, and corporate venues.
Control options include DMX, manual operation, and master/slave modes, with optional Wireless DMX capability for flexible system integration. The onboard LCD control panel allows for easy adjustments, while 16-bit dimming ensures smooth fades without stepping.
F96VW-WH Features
- 96W variable white LED Fresnel fixture
- 2 x 48W COB LEDs (2,700K warm white and 5,700K cool white)
- CRI: 95+
- Manual zoom: 20° to 50°
- 80mm Fresnel lens
- 0–100% dimming with 16-bit resolution
- Strobe effect: 1–25Hz
- Fanless cooling with temperature protection
- DMX, manual, and master/slave operation
- Optional Wireless DMX (WDMX)

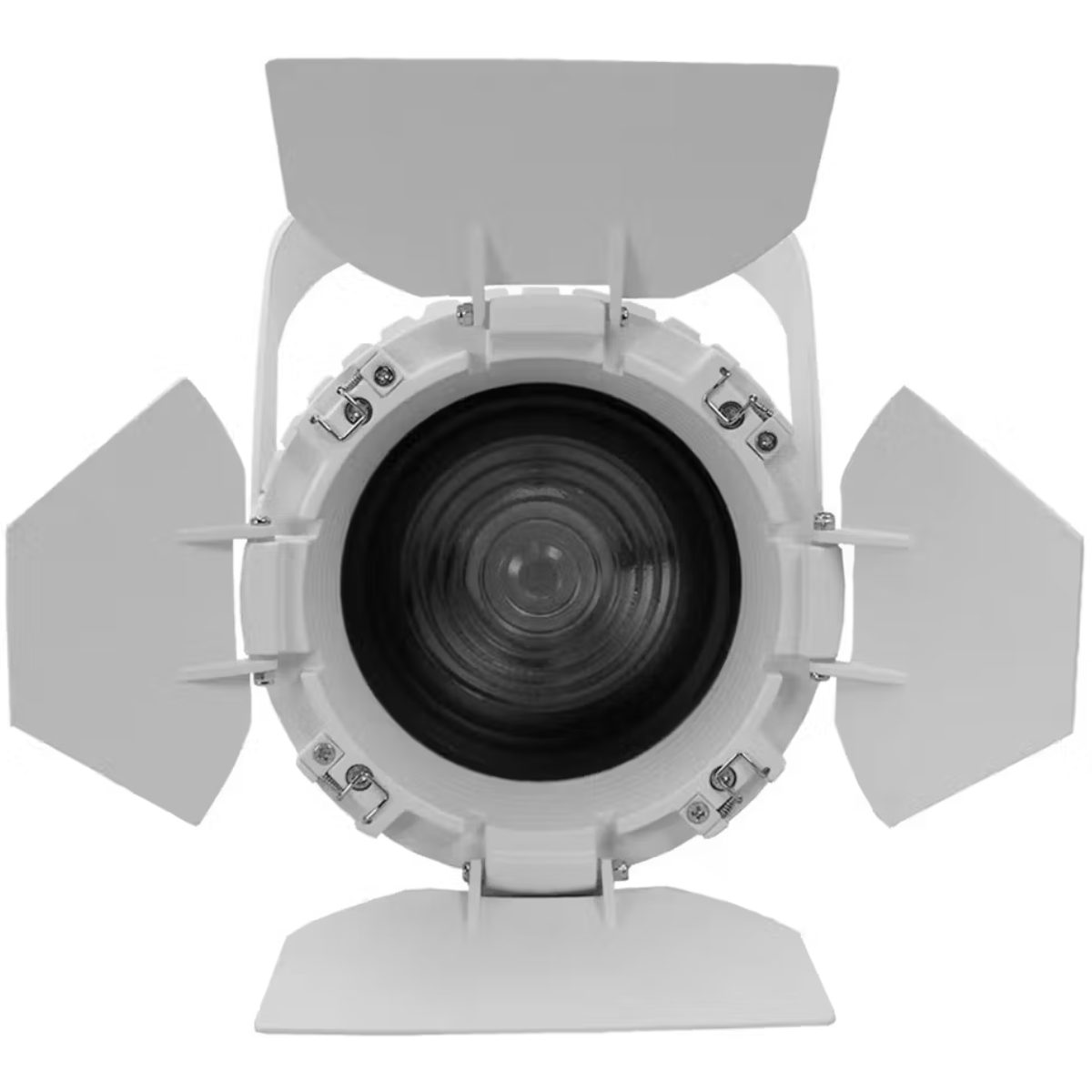

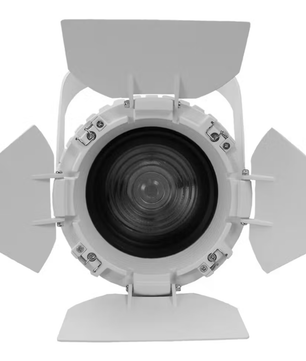

- Includes barn doors and gel clip
F96VW-WH Specifications
- Light Source: 2 x 48W COB LEDs (2,700K–5,700K)
- CRI: 95+
- Beam Angle: 20° to 50°
- Field Angle: 50° to 67°
- Output: 1,230 lux @ 9.8 ft (3 m) @ 20°, 395 lux @ 9.8 ft (3 m) @ 50°
- Lens: 80 mm Fresnel
- PWM Frequency: 1,200 Hz
- LED Lifespan: 50,000 hours
- Dimming: 0 to 100% (16-bit)
- Strobe: 1 to 25 Hz
- Power Supply: 100 to 240V AC, 50/60Hz
- Power Consumption: 75W

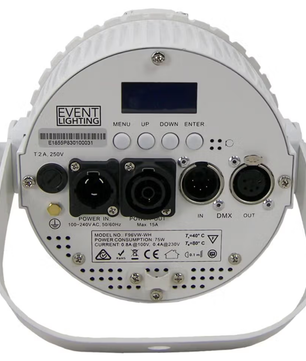

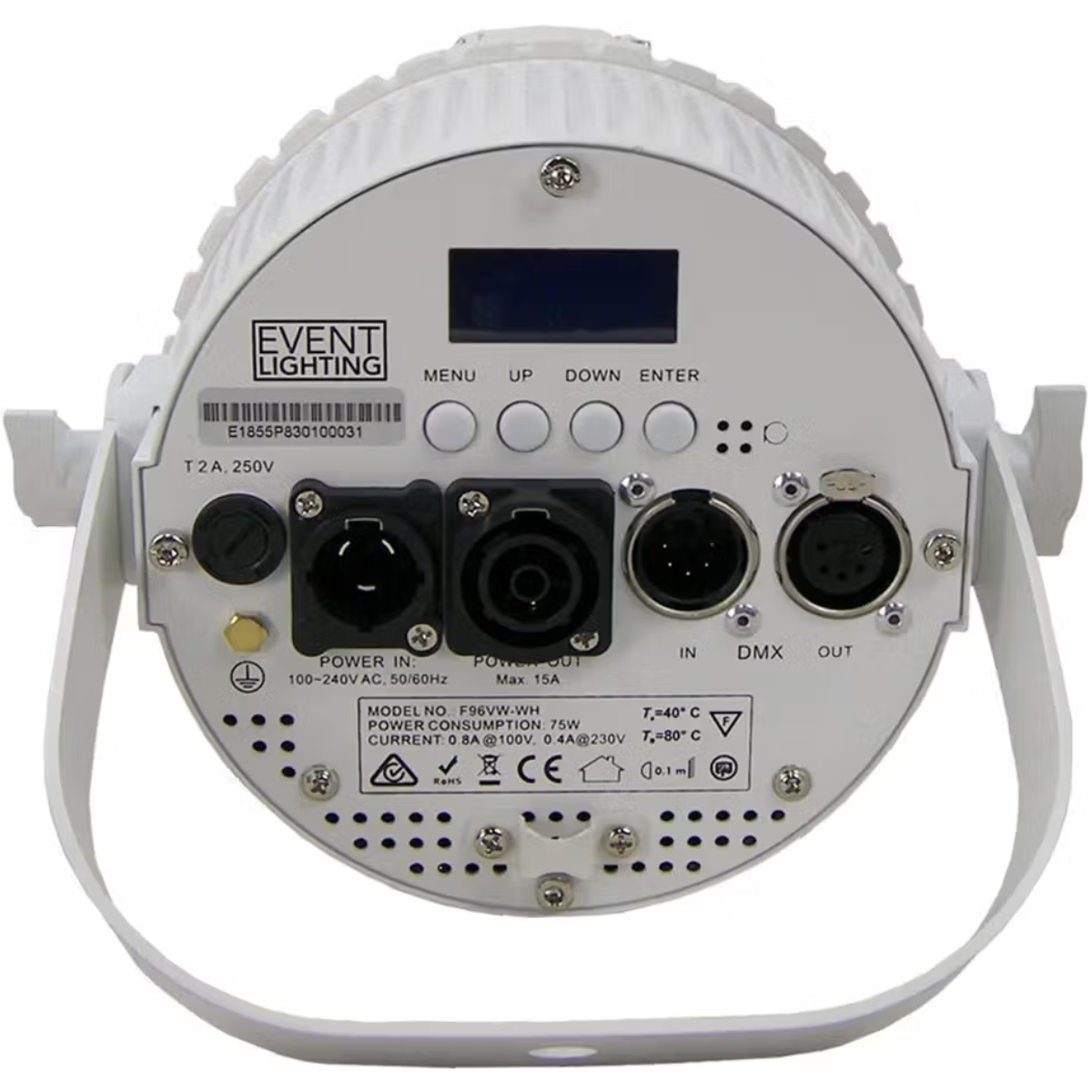

- Power Connection: True1 in/out
- Control Modes: Manual, Master/Slave, DMX, optional WDMX
- Control Protocol: DMX512
- DMX Channel Modes: 1 / 2 / 7
- Control Interface: 5-pin XLR in/out
- Display: 4-button LCD control panel

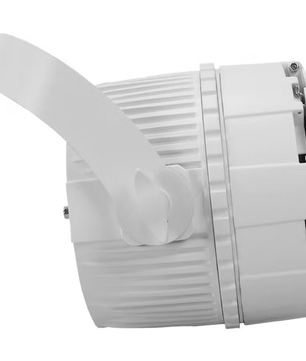

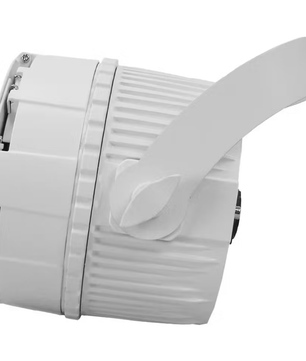

- Housing: Die-cast aluminum
- Finish: White
- Cooling: Fanless with temperature protection
- Dimensions: 8.0 x 5.5 x 7.6 in (202 x 139 x 193 mm)
- Weight: 5.1 lb (2.3 kg)
What's In The Box
- Event Lighting F96VW-WH fixture
- Barn doors
- Gel clip
- Power cable
