LED Wash Fixture

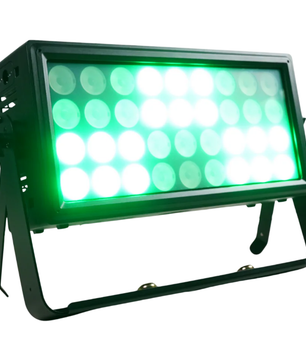

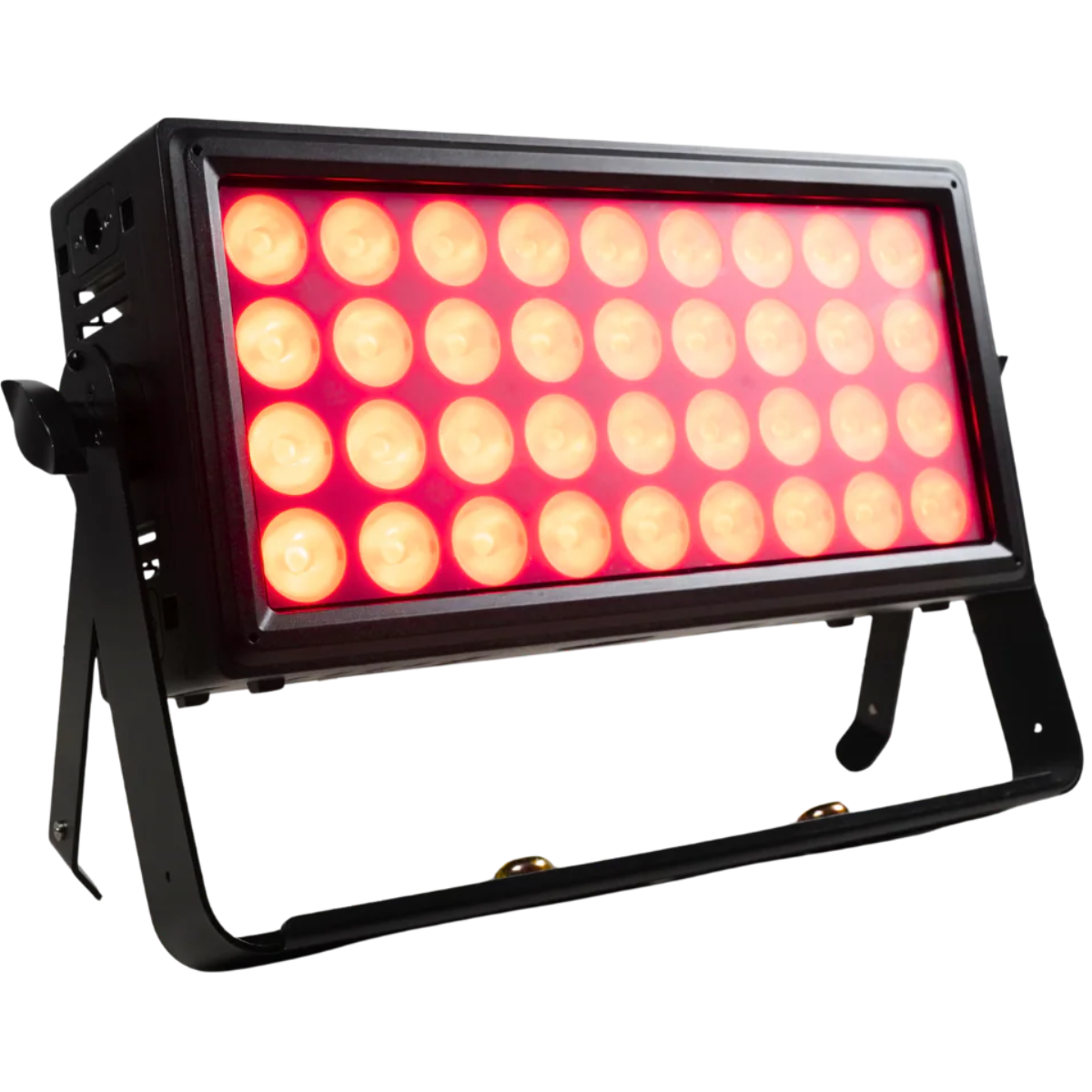

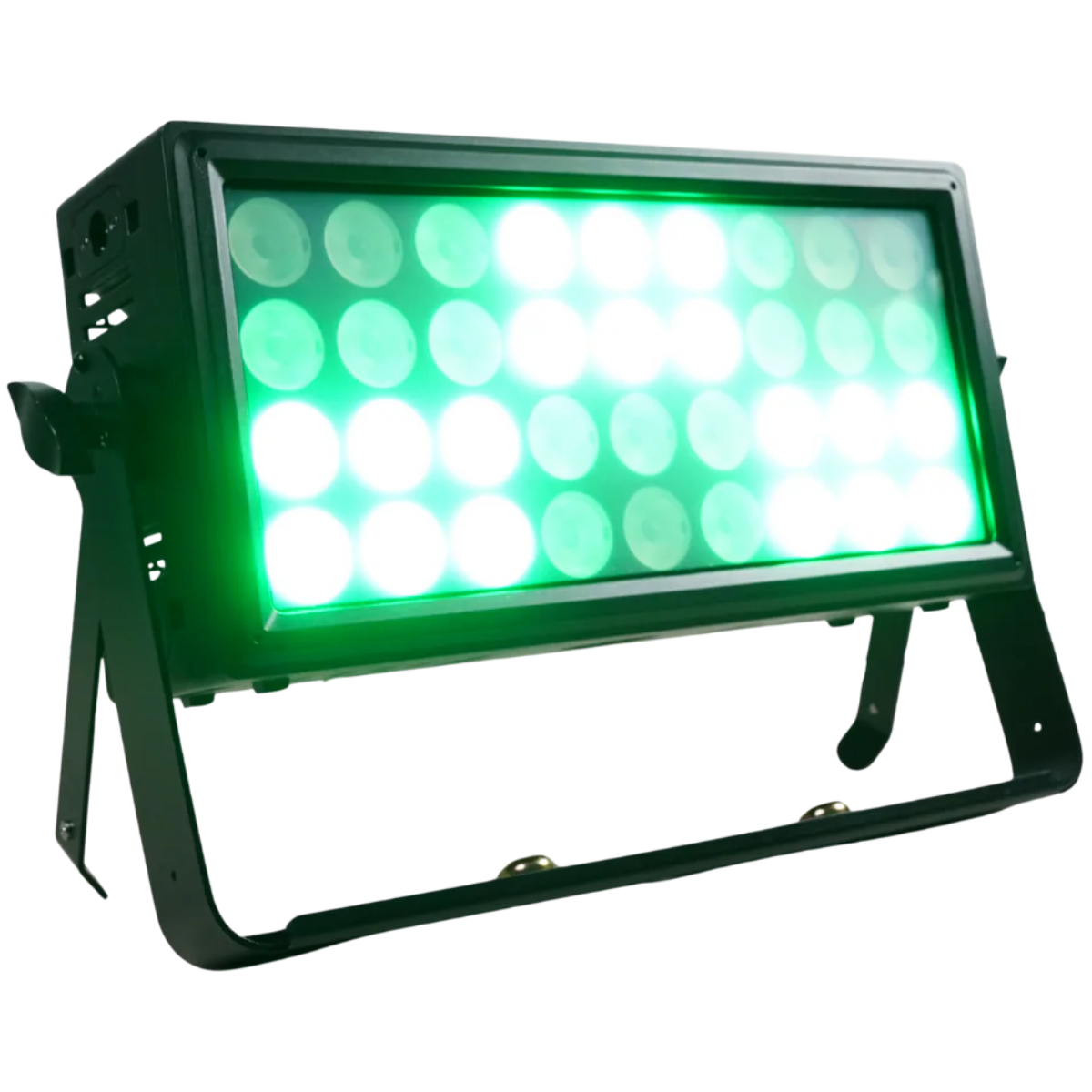

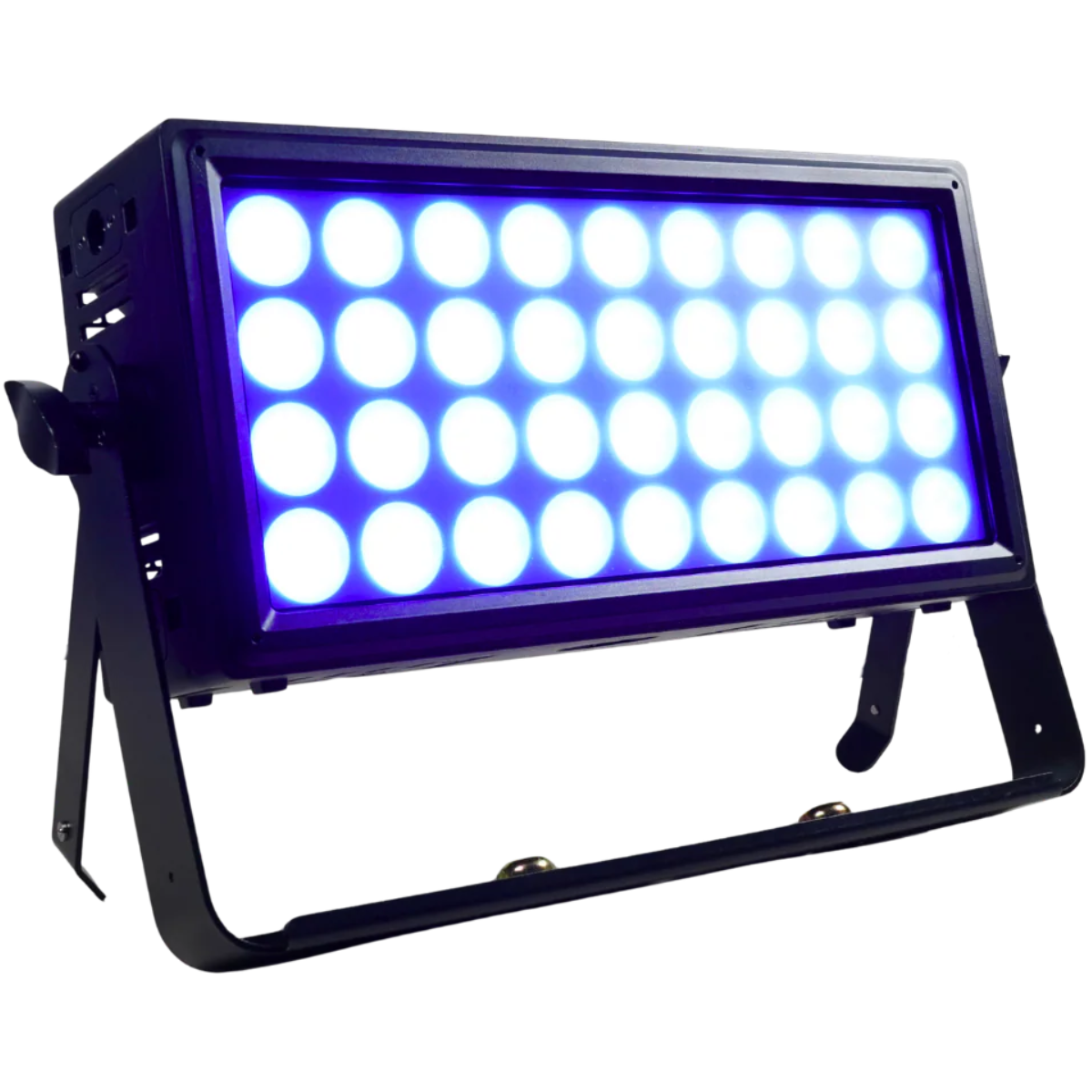

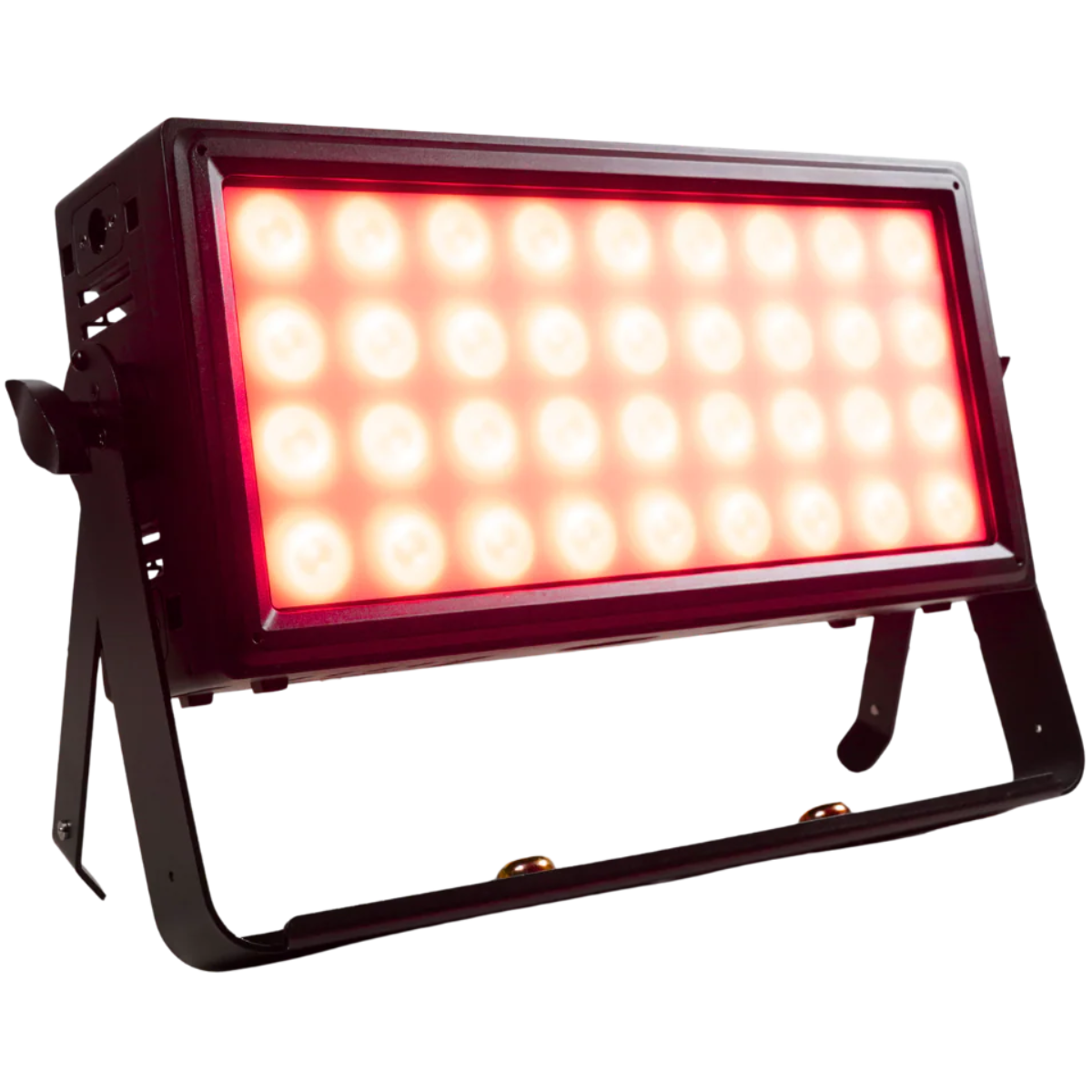

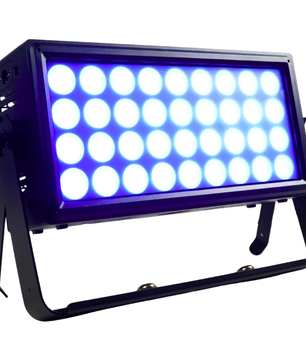

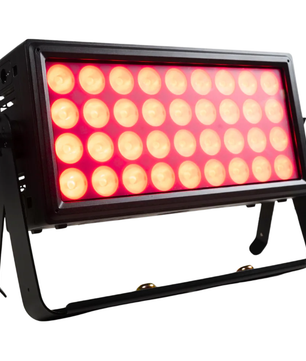

Event Lighting HYBRICK WASH is a high-output IP65-rated LED wash fixture designed for stage, architectural, and event lighting applications. Featuring 36 powerful RGBW+WW LEDs, electronic frost, and segmented control, it delivers vibrant color mixing, tunable white output, and flexible beam shaping for both indoor and outdoor environments.
Event Lighting HYBRICK WASH Competitive Differences
- 36x 10W RGBW+WW LEDs with high CRI (95+) and tunable white from 2500K to 6000K
- Electronic frost and 6-segment pixel control for dynamic beam shaping and effects
Event Lighting HYBRICK WASH Description
The Event Lighting HYBRICK WASH is engineered for demanding professional environments where performance, durability, and flexibility are essential. Its IP65-rated aluminum housing makes it suitable for both indoor and outdoor use, protecting against dust and water while maintaining consistent output in challenging conditions.

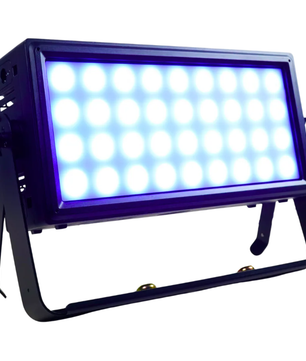

Equipped with 36 high-power 10W RGBW+WW LEDs, this fixture delivers strong output and precise color rendering with a CRI of 95+. The addition of warm white and cool white LEDs allows for accurate color temperature control ranging from 2500K to 6000K, making it suitable for stage lighting, broadcast, and architectural applications. The standard 20° beam angle (with optional 12° and 40° lenses) provides flexibility depending on throw distance and coverage requirements.

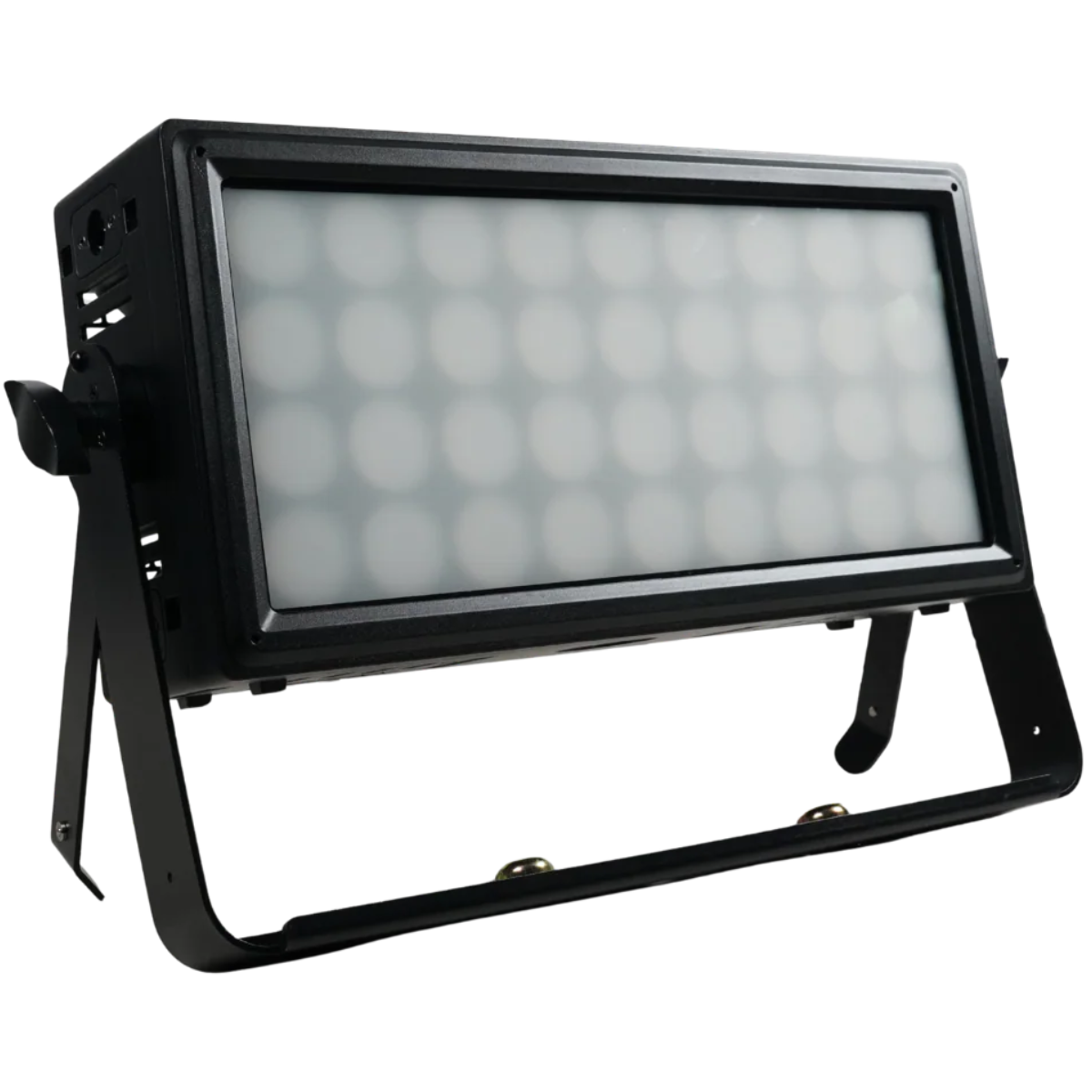

The HYBRICK WASH features advanced effects including 16-bit dimming curves, strobe functionality, and a variable electronic frost that allows users to smoothly transition from a tight beam to a soft wash. Its 6-segment pixel control (6 LEDs per segment) enables dynamic chases, gradients, and creative lighting effects.

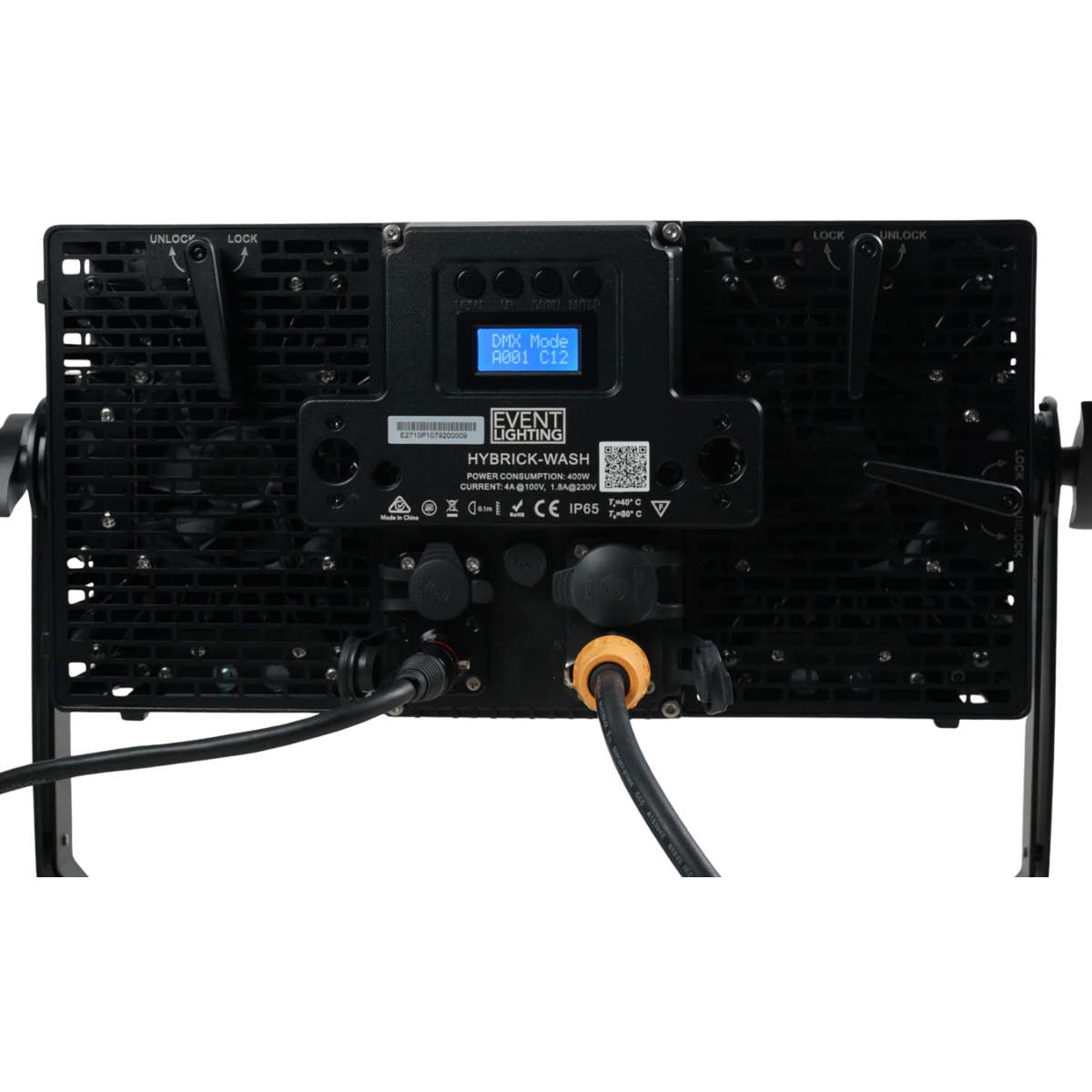

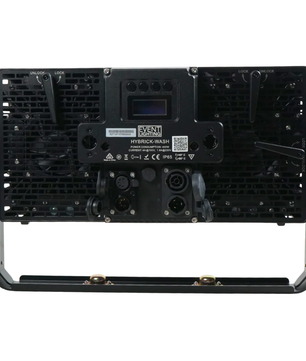

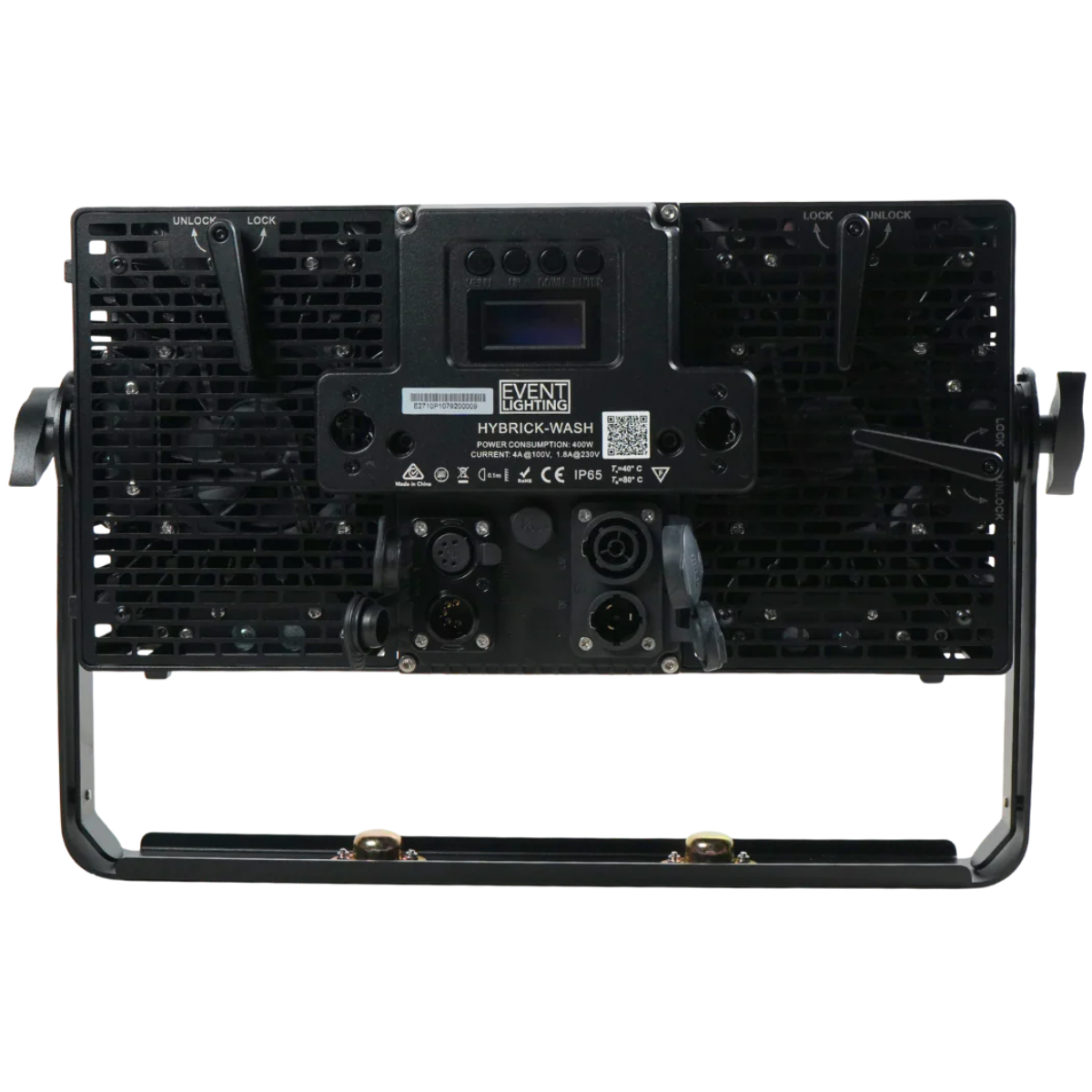

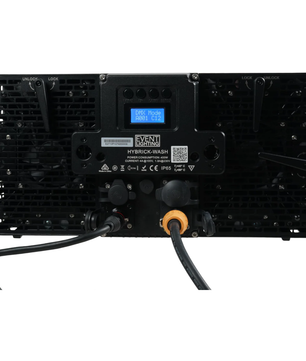

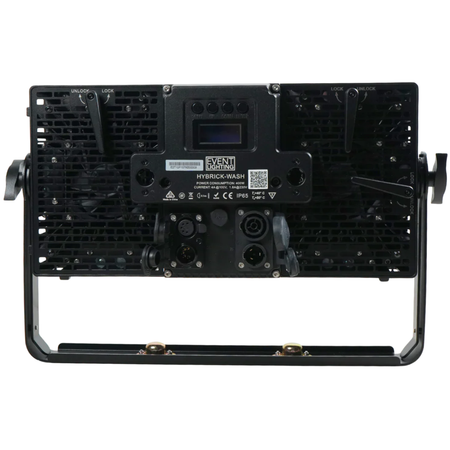

For control, the fixture supports DMX512 with multiple channel modes, as well as RDM and WDMX compatibility for flexible system integration. A 4-button LCD display simplifies onboard configuration, while 5-pin XLR connections ensure reliable data transmission. PowerCON-compatible True1 input/output allows easy daisy-chaining in professional setups.

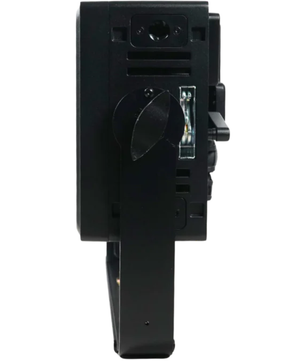

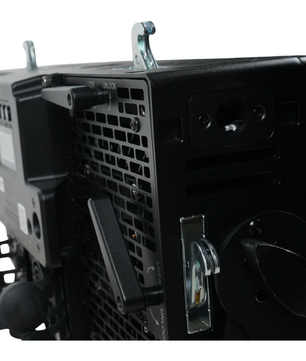

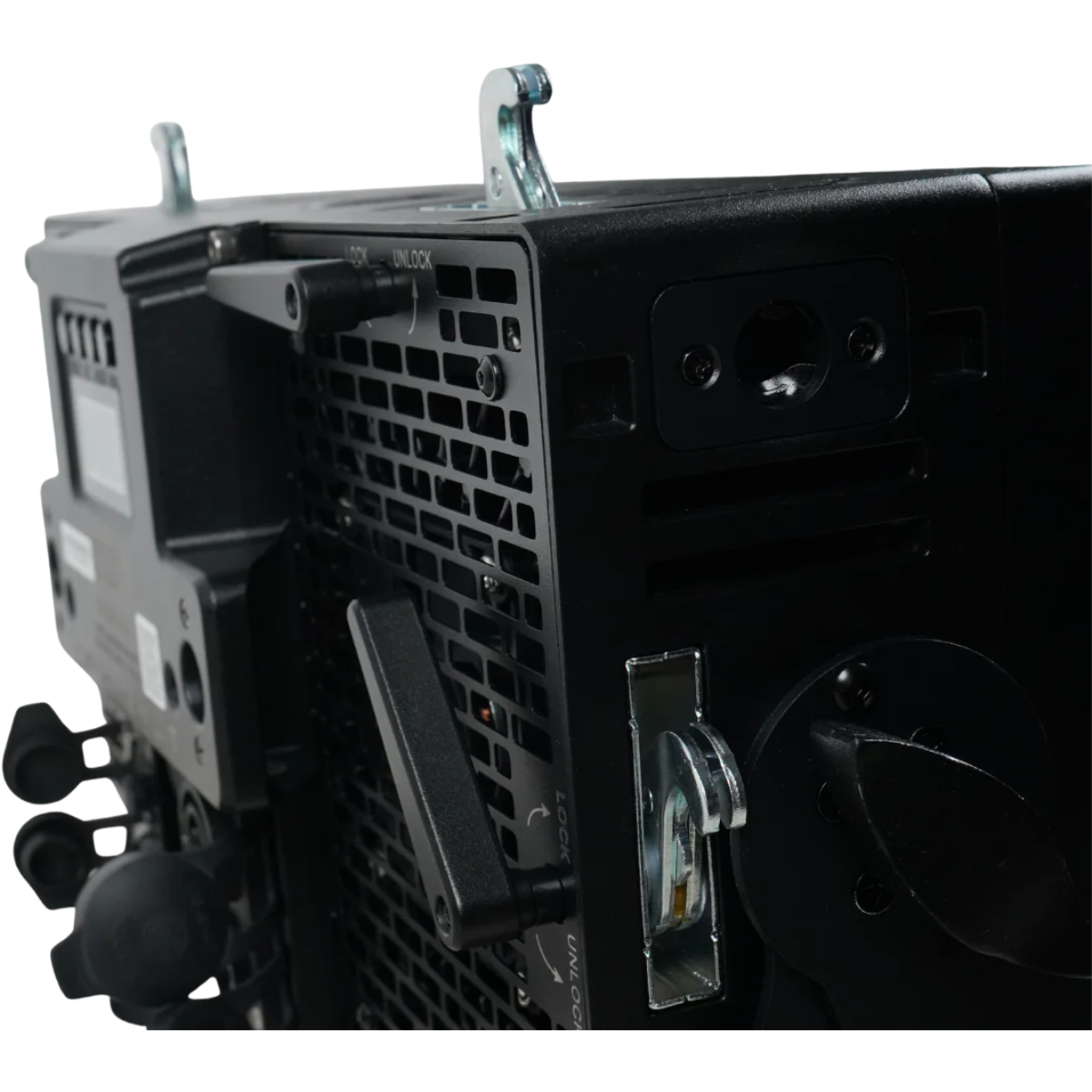

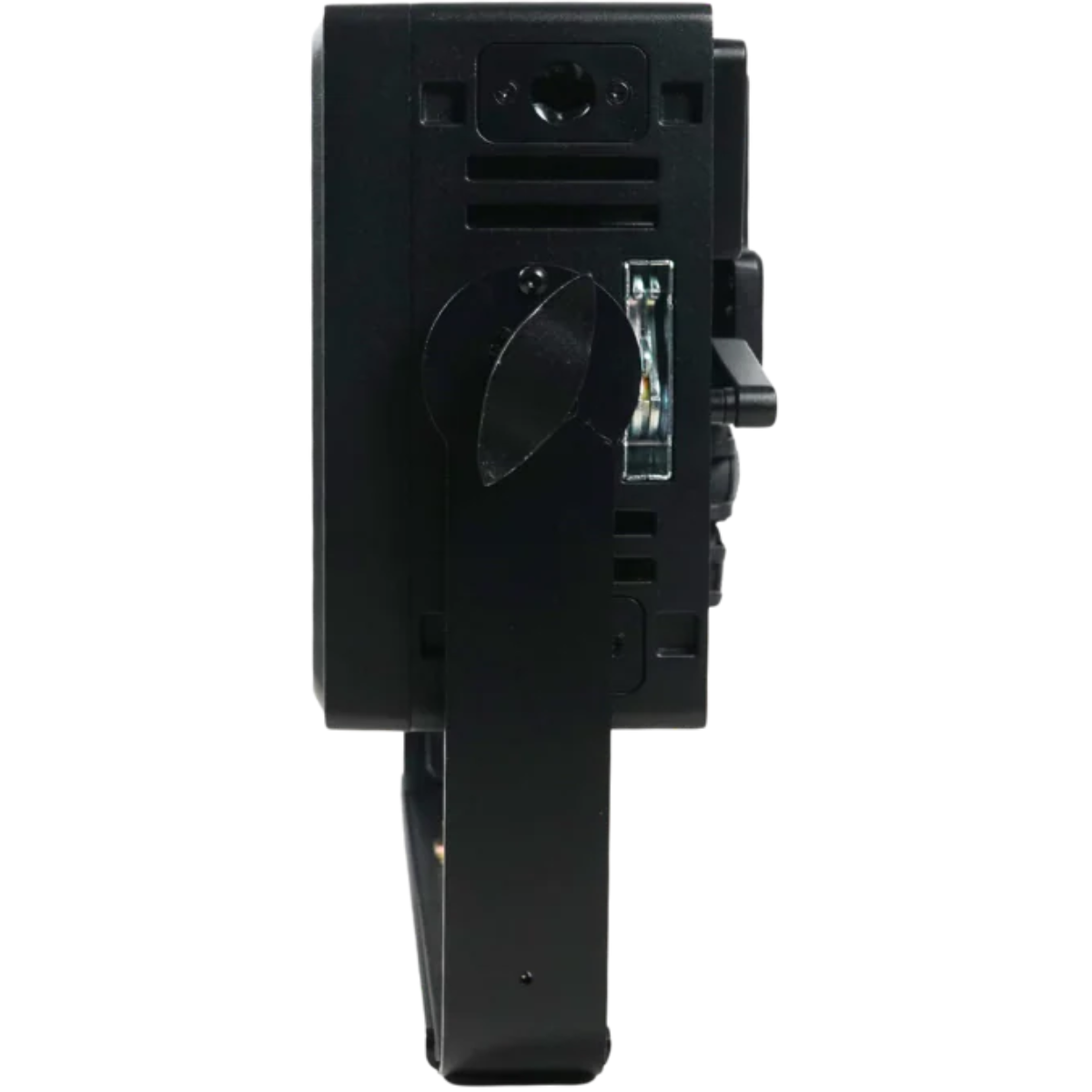

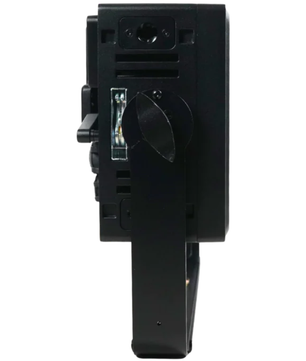

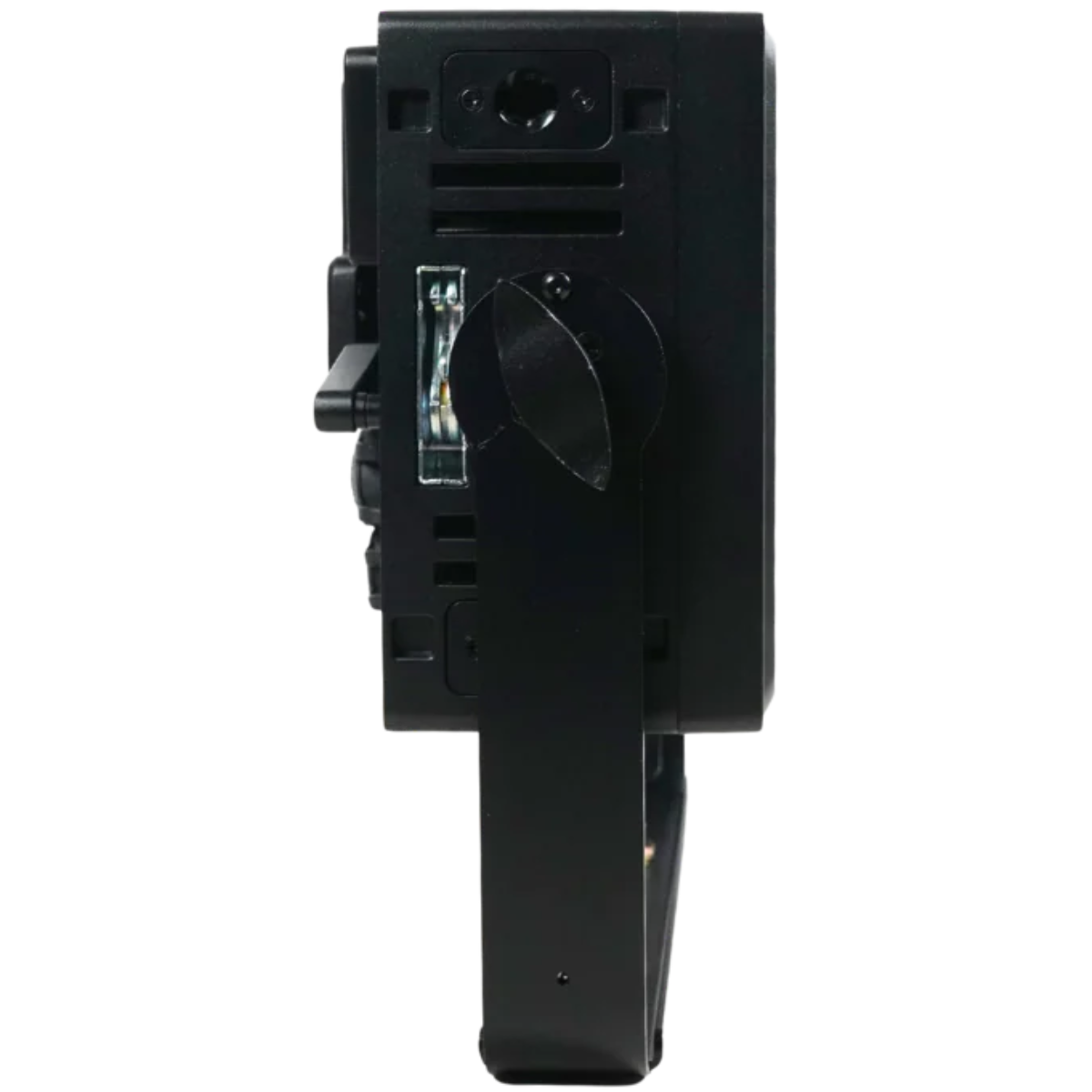

Designed with versatility in mind, the HYBRICK WASH includes interlocking housing and multiple rigging options. Double yokes allow floor or truss mounting, while coffin locks and omega bracket compatibility enable secure linking of multiple units for large-scale installations.
HYBRICK WASH Features
- 36x 10W RGBW+WW LEDs with high CRI (95+)

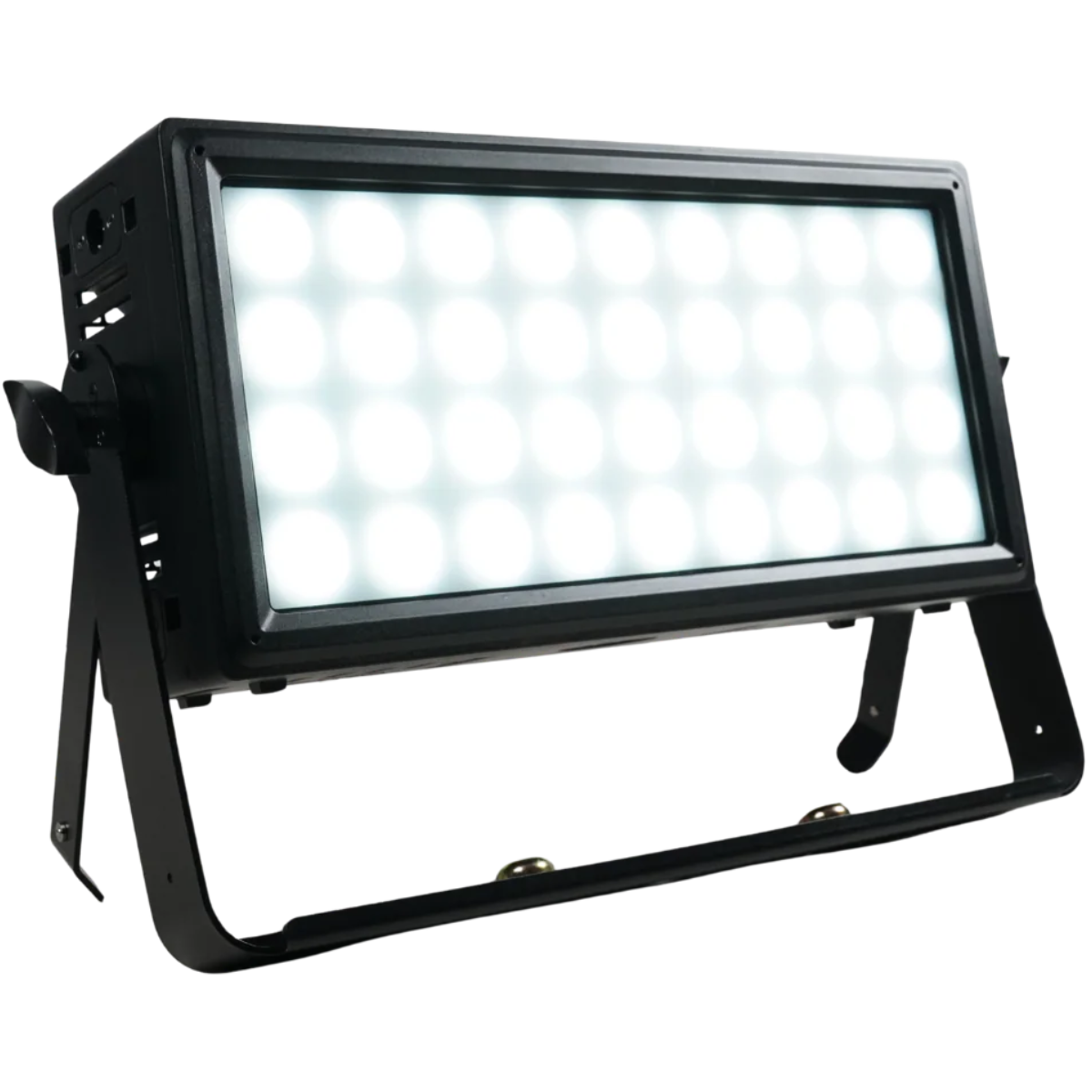

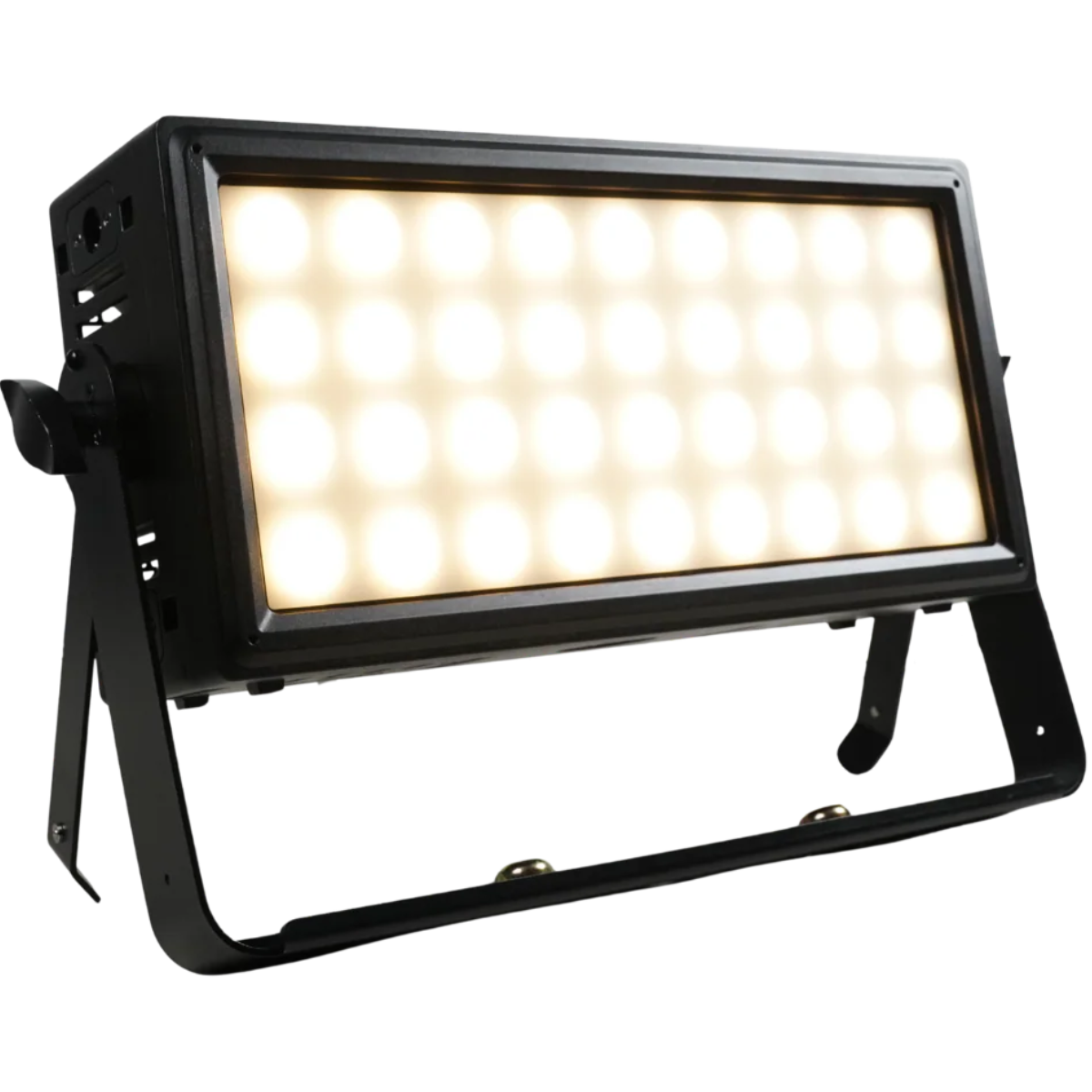

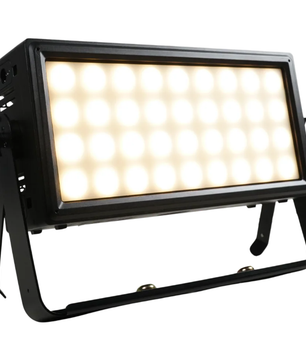

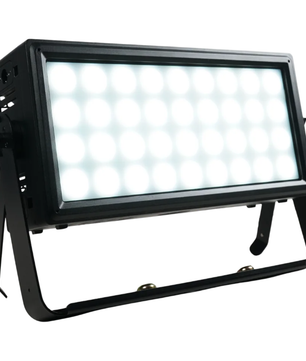

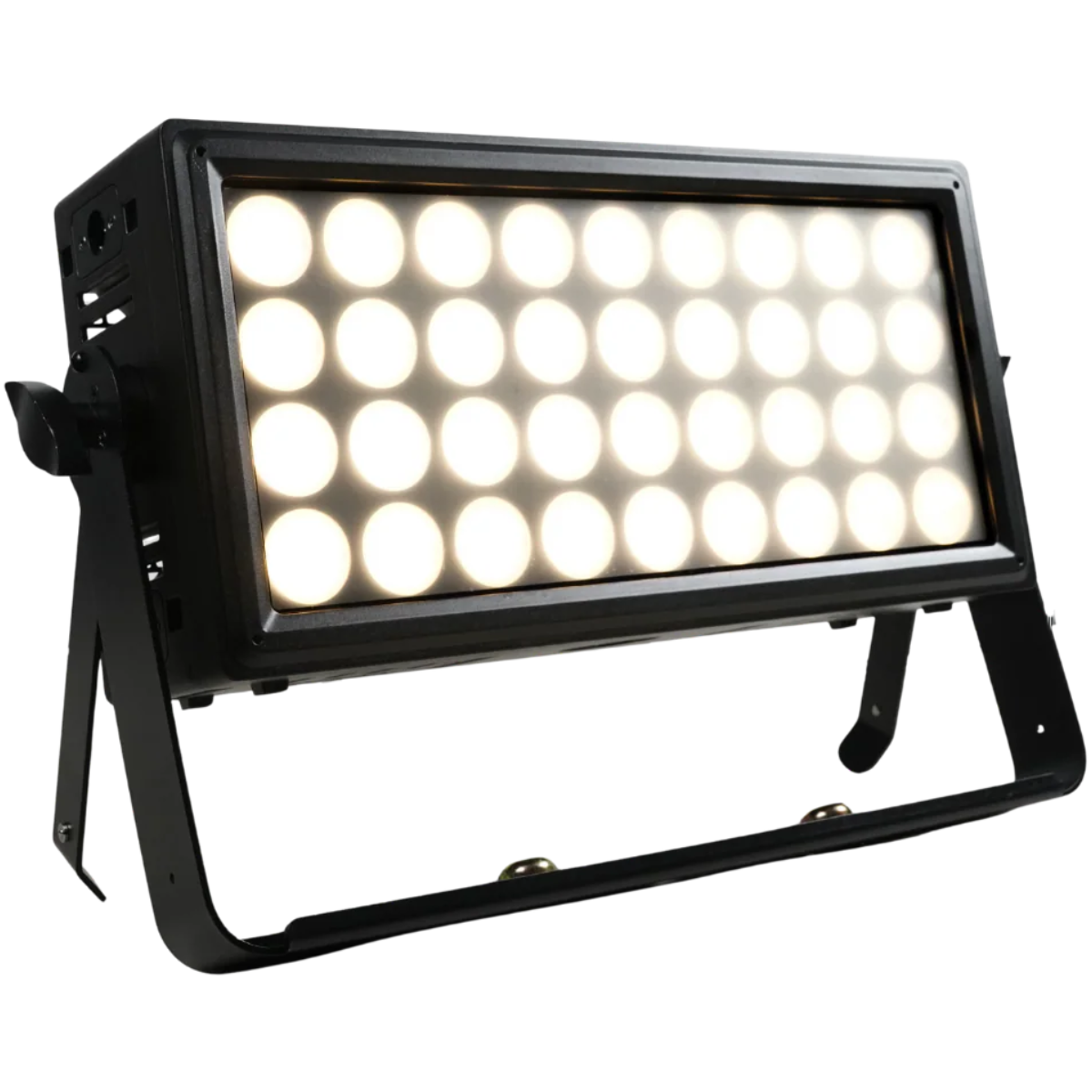

- Adjustable color temperature from 2500K to 6000K

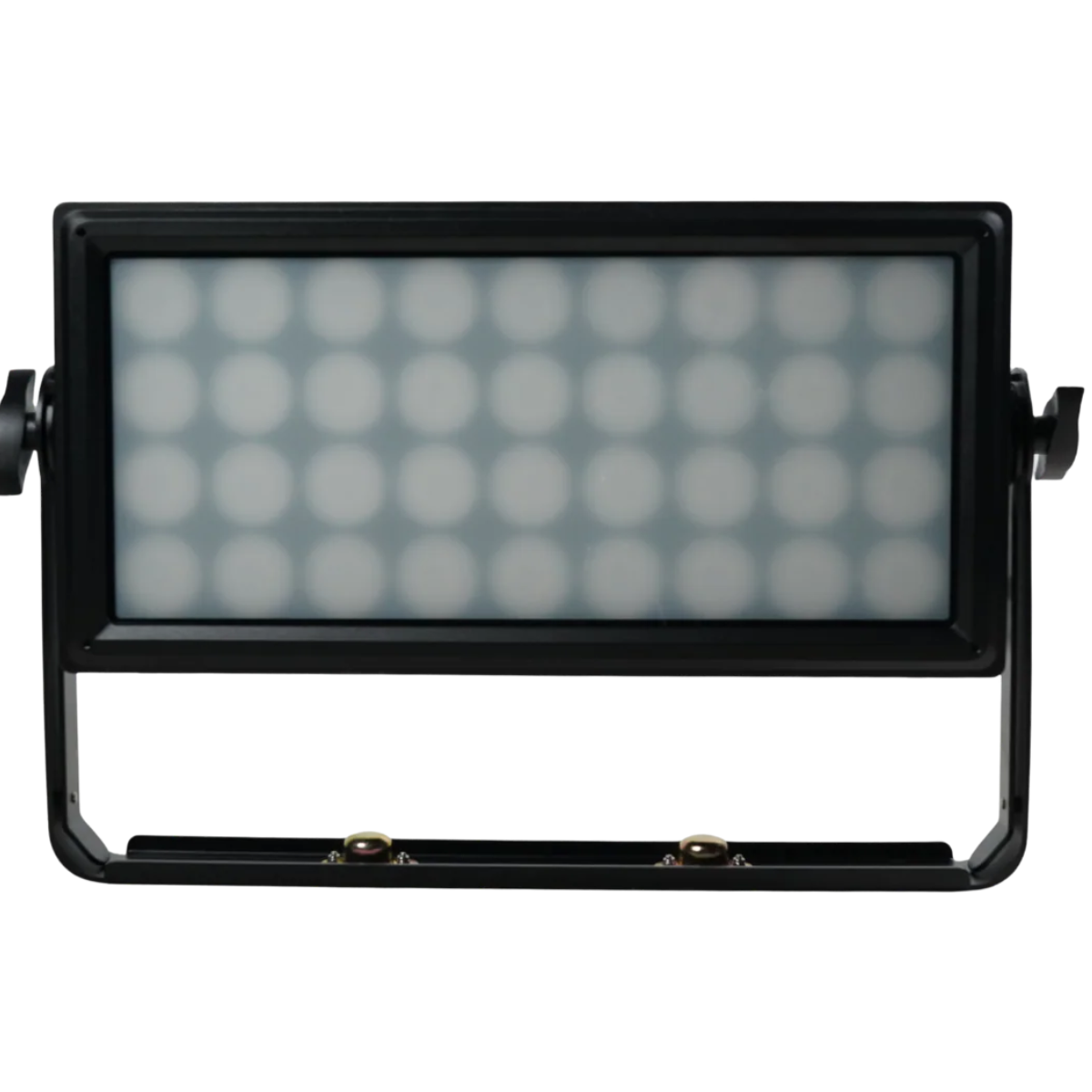

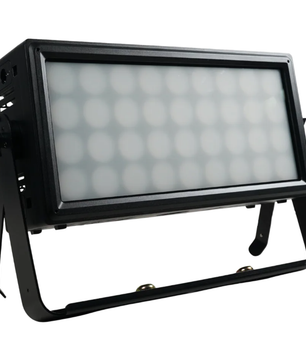

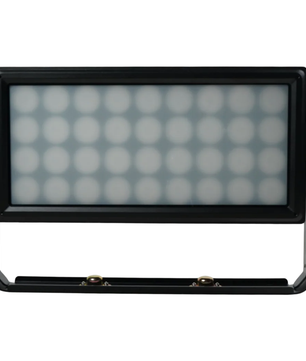

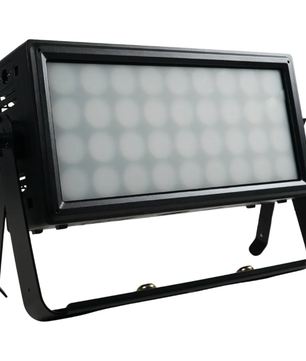

- Electronic frost with 0–100% control

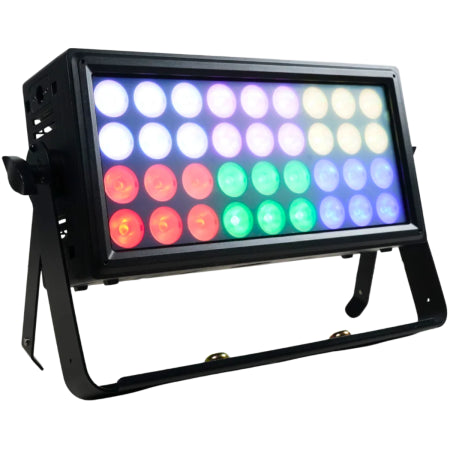

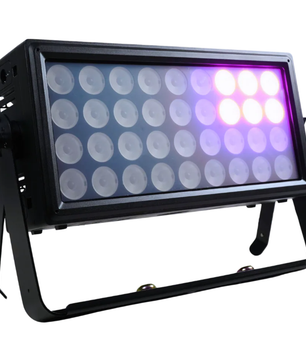

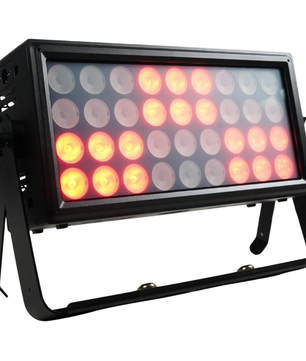

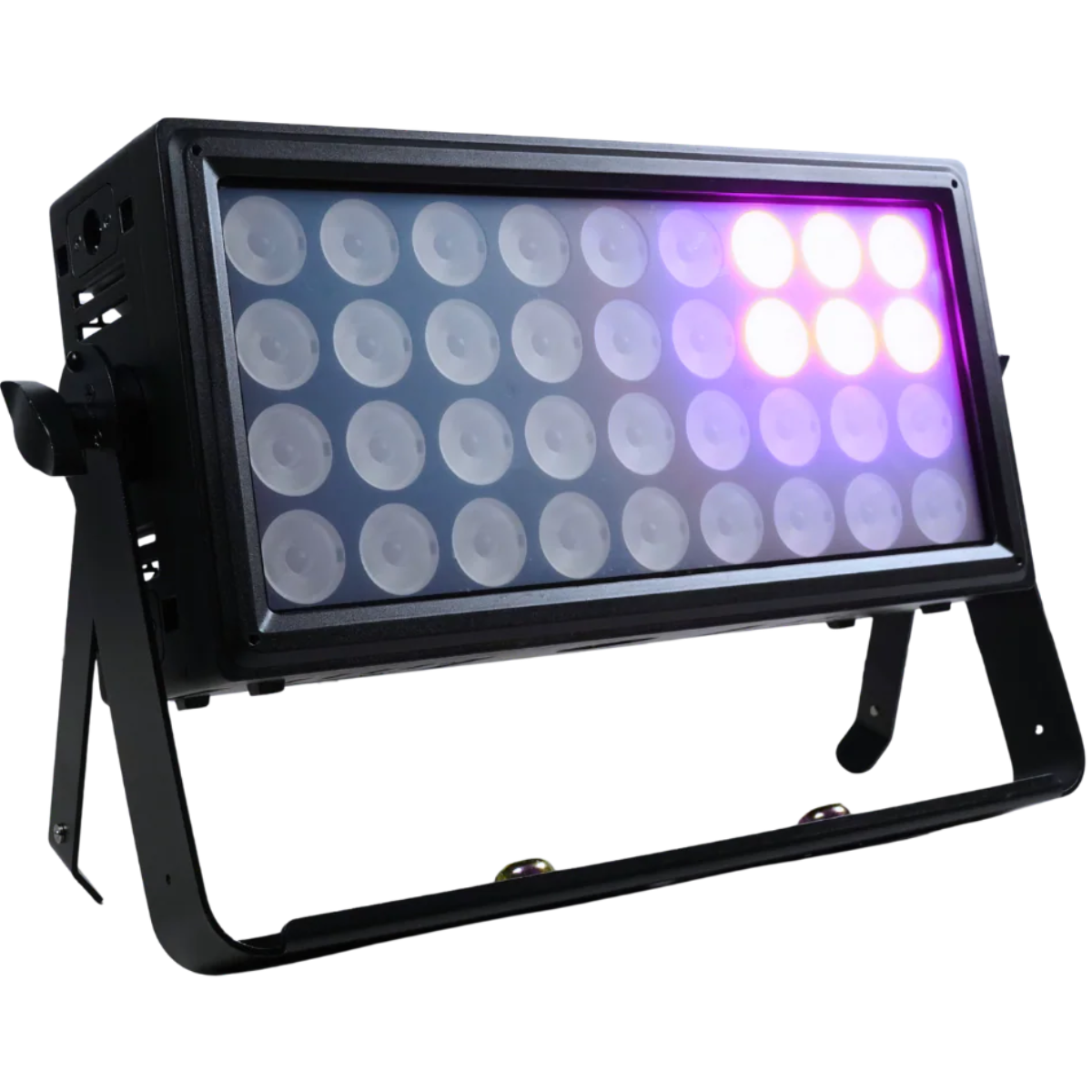

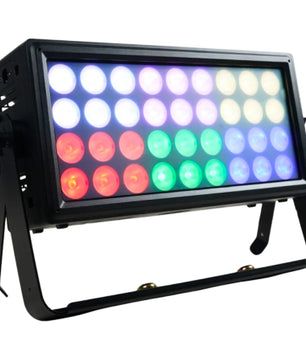

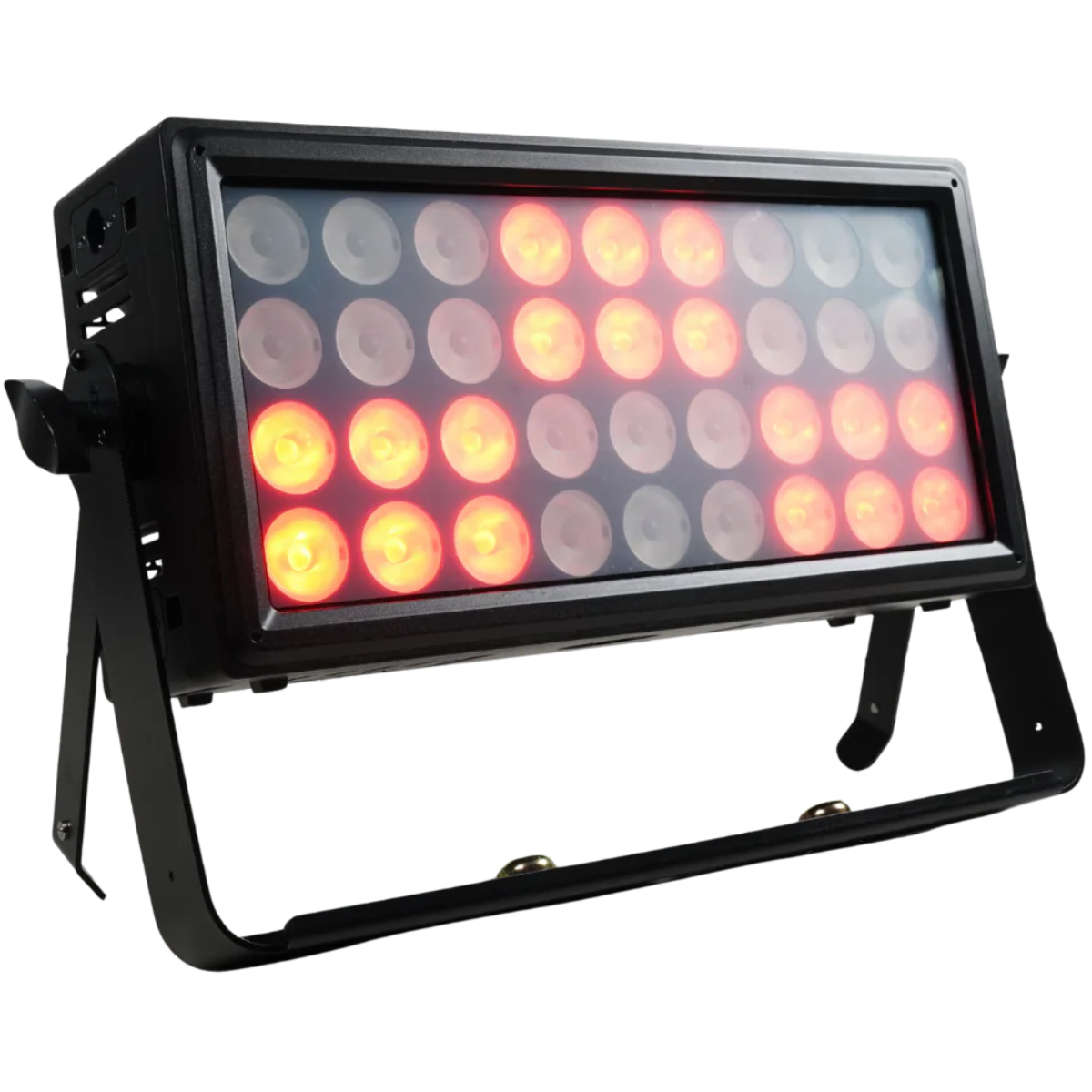

- 6-segment pixel control for dynamic effects
- 5 x 16-bit dimming curves for smooth fades
- Strobe effect: 1–25 Hz
- Multiple operation modes: DMX, auto, sound active, master/slave
- DMX512, RDM, and WDMX compatibility
- Multiple DMX channel modes: 1 / 2 / 3 / 4W / 4S / 5 / 7 / 12 / 13 / 32
- 4-button LCD display control panel
- IP65-rated aluminum housing for outdoor use
- Interlocking design for linking multiple fixtures
- True1 power input/output for daisy chaining
HYBRICK WASH Specifications
- Light Source: 36x 10W RGBW+WW LEDs
- Color Temperature: 2500K – 6000K
- CRI: 95+
- Beam Angle: 20° (Optional: 12°, 40°)
- Output: 82,800 lux @ 1 m / 24,400 lux @ 2 m
- PWM: 1200 Hz
- LED Life: 50,000 hours
- DMX Interface: 5-pin XLR
- Power Consumption: 400W
- Input Voltage: 100–240V AC, 50/60 Hz
- Power Connection: True1 input/output
- Cooling: 2 fans
- Housing: Aluminum, matte black finish
- Dimensions: 14.7 x 7.3 x 5.8 in (372 x 186 x 146.2 mm)
- Weight: 17.9 lb (8.1 kg)
What's In The Box
- Event Lighting HYBRICK WASH fixture
- Omega mounting bracket
