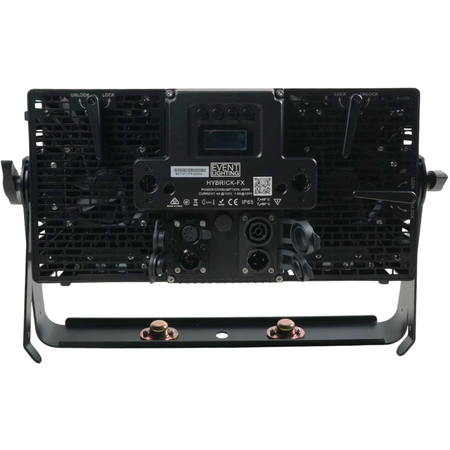

Event Lighting HYBRICKFX | IP65 Pixel Effect Light | RGB Segments with Electronic Frost

IP65 LED Pixel Effect Light

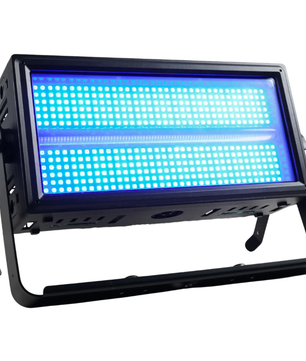

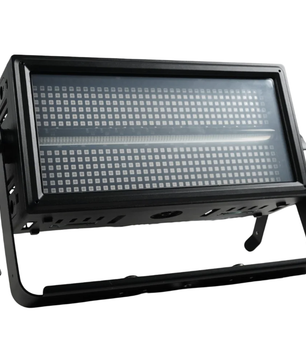

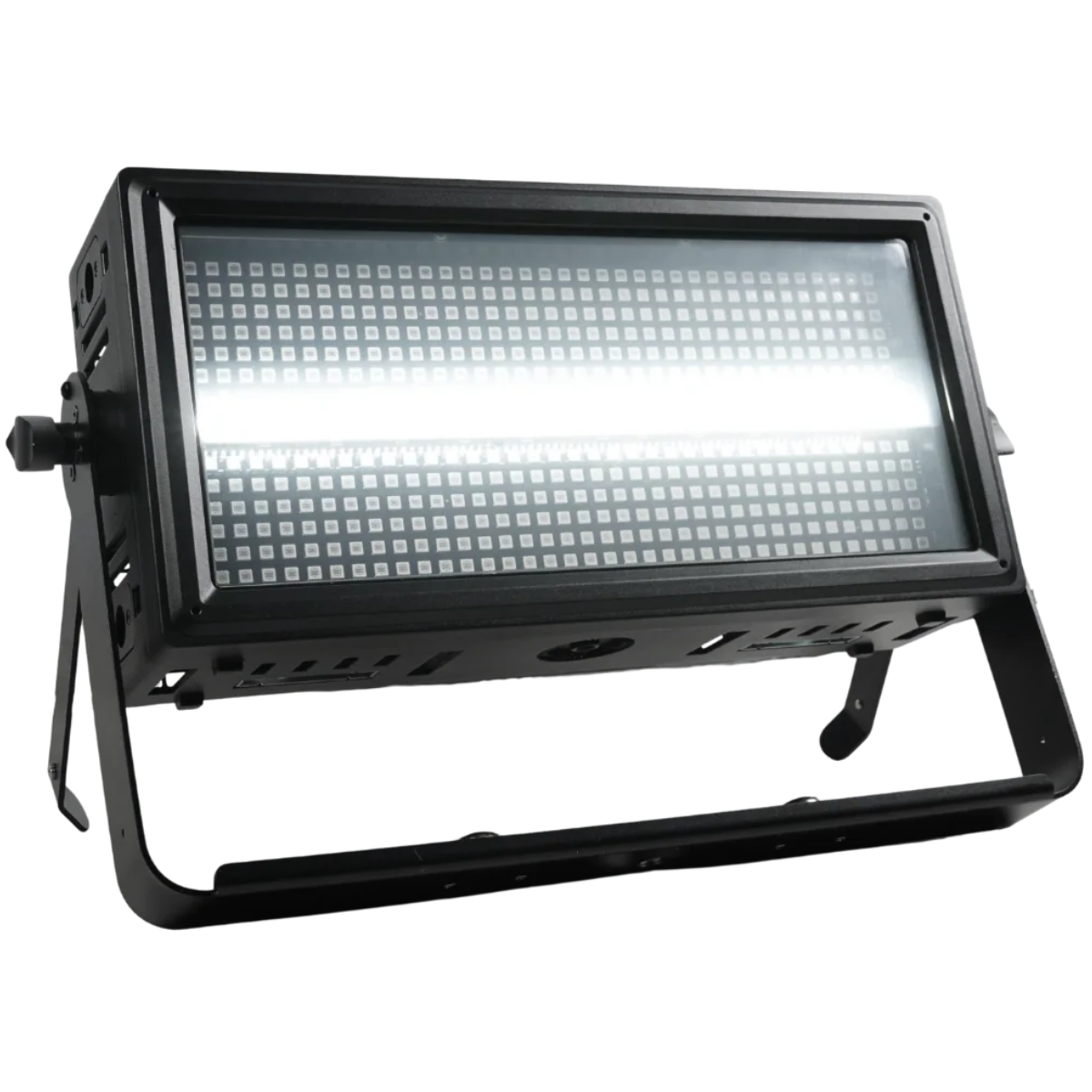

Event Lighting HYBRICKFX is a high-output IP65-rated LED effect fixture designed for dynamic stage visuals, pixel mapping, and architectural lighting installations. Combining RGB segmented lighting with warm white beam elements and electronic frost diffusion, it provides powerful creative flexibility for lighting designers and production environments.

Event Lighting HYBRICKFX Competitive Differences

• 432 RGB LEDs with segmented pixel control for advanced visual effects
• 84 warm white LEDs delivering focused beam accents at 3250K
• Electronic frost system with adjustable transparency from 0–100%
• Interlocking housing system allowing multiple fixtures to link together
• IP65-rated aluminum construction for indoor and outdoor installations

Event Lighting HYBRICKFX Description

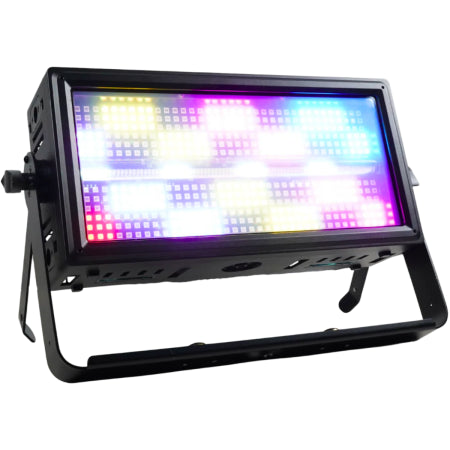

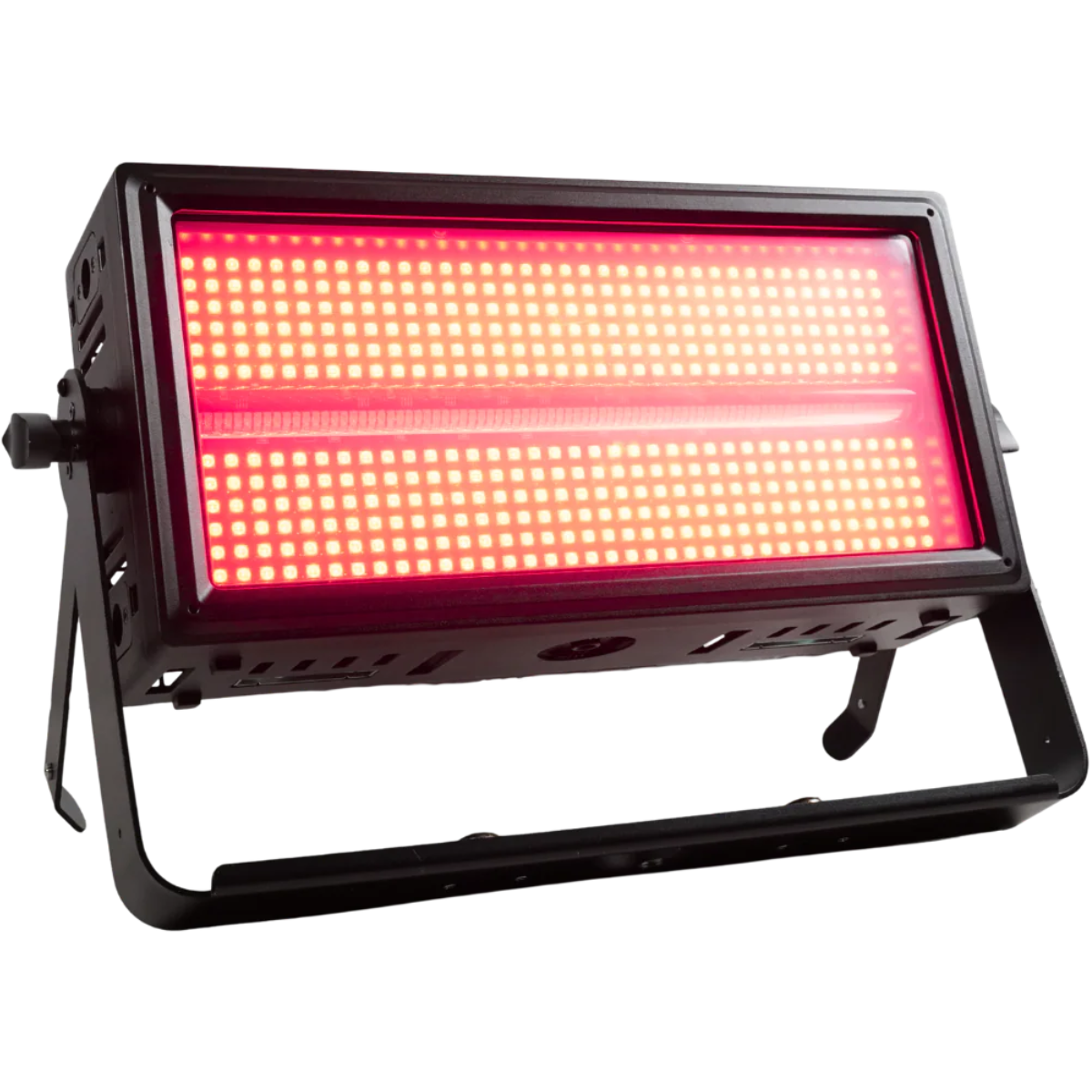

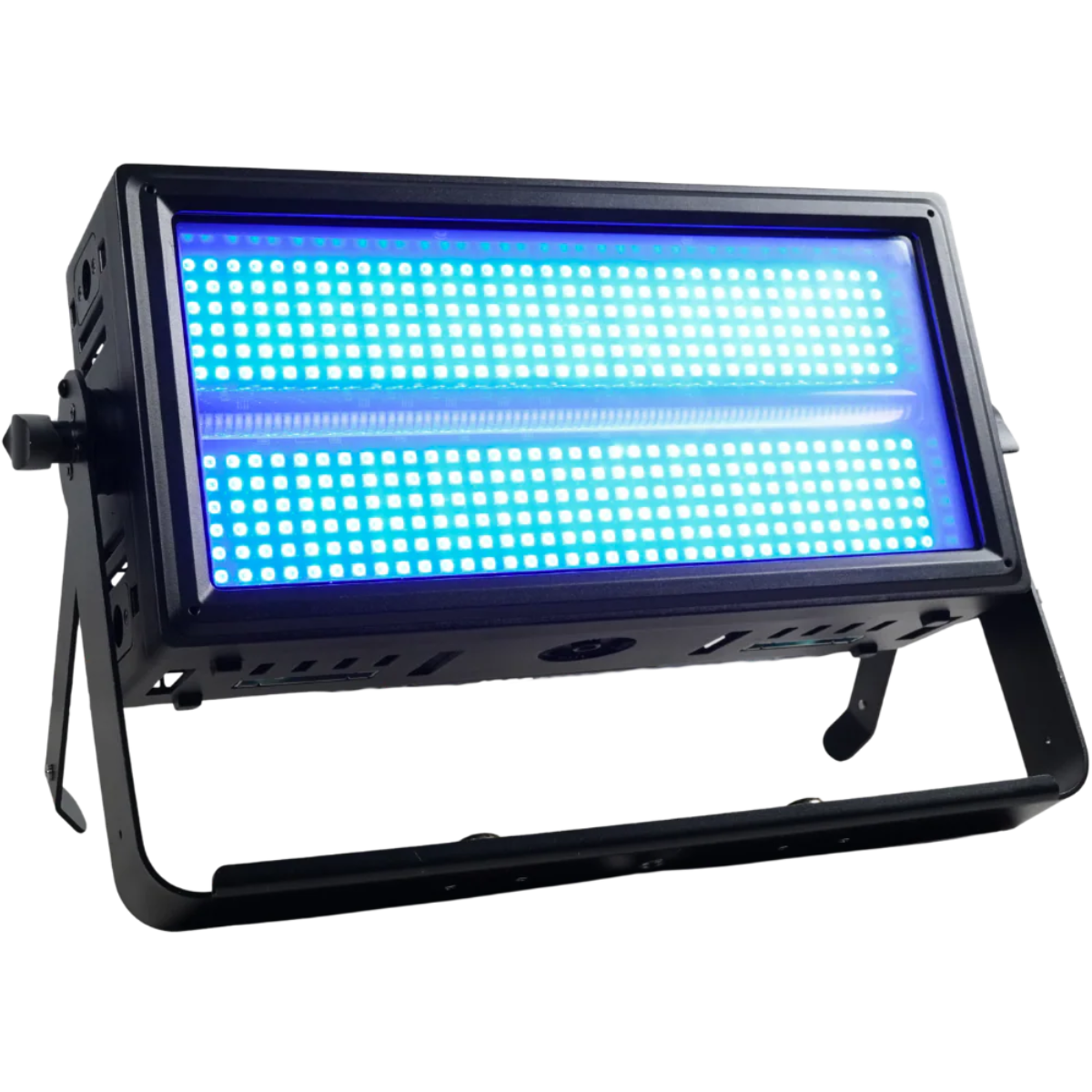

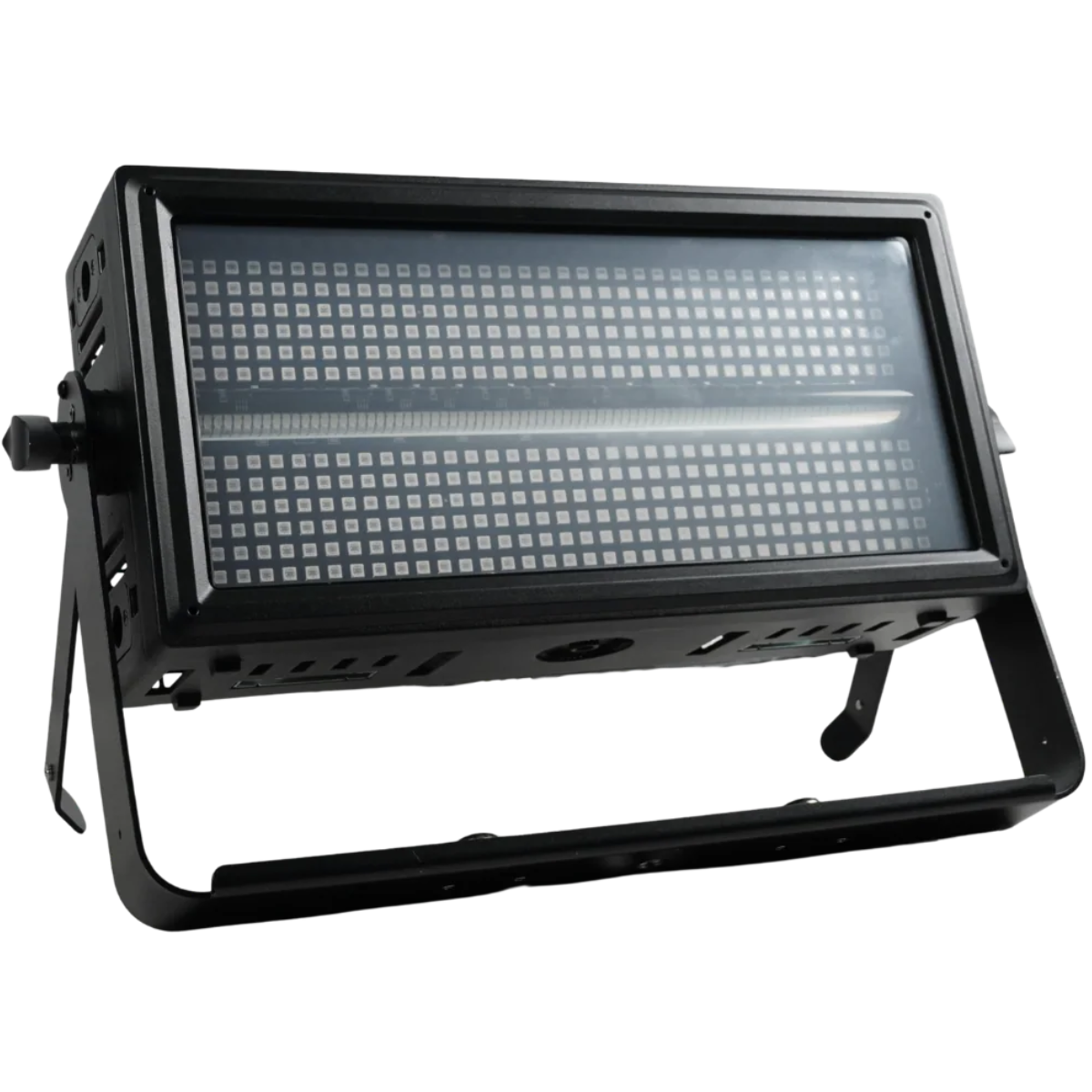

The Event Lighting HYBRICKFX is designed to produce dynamic lighting effects using a combination of high-density RGB LEDs and warm white beam elements. The fixture includes 432 RGB LEDs arranged into 48 pixel cells across segmented plates, enabling detailed pixel mapping, color chases, and creative visual effects.

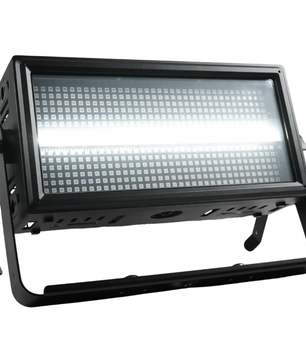

In addition to RGB effects, the fixture integrates 84 warm white LEDs with a 3250K color temperature arranged into 12 beam segments. These provide punchy white accents and layered lighting effects that complement the RGB pixel plate, expanding the range of visual design possibilities.

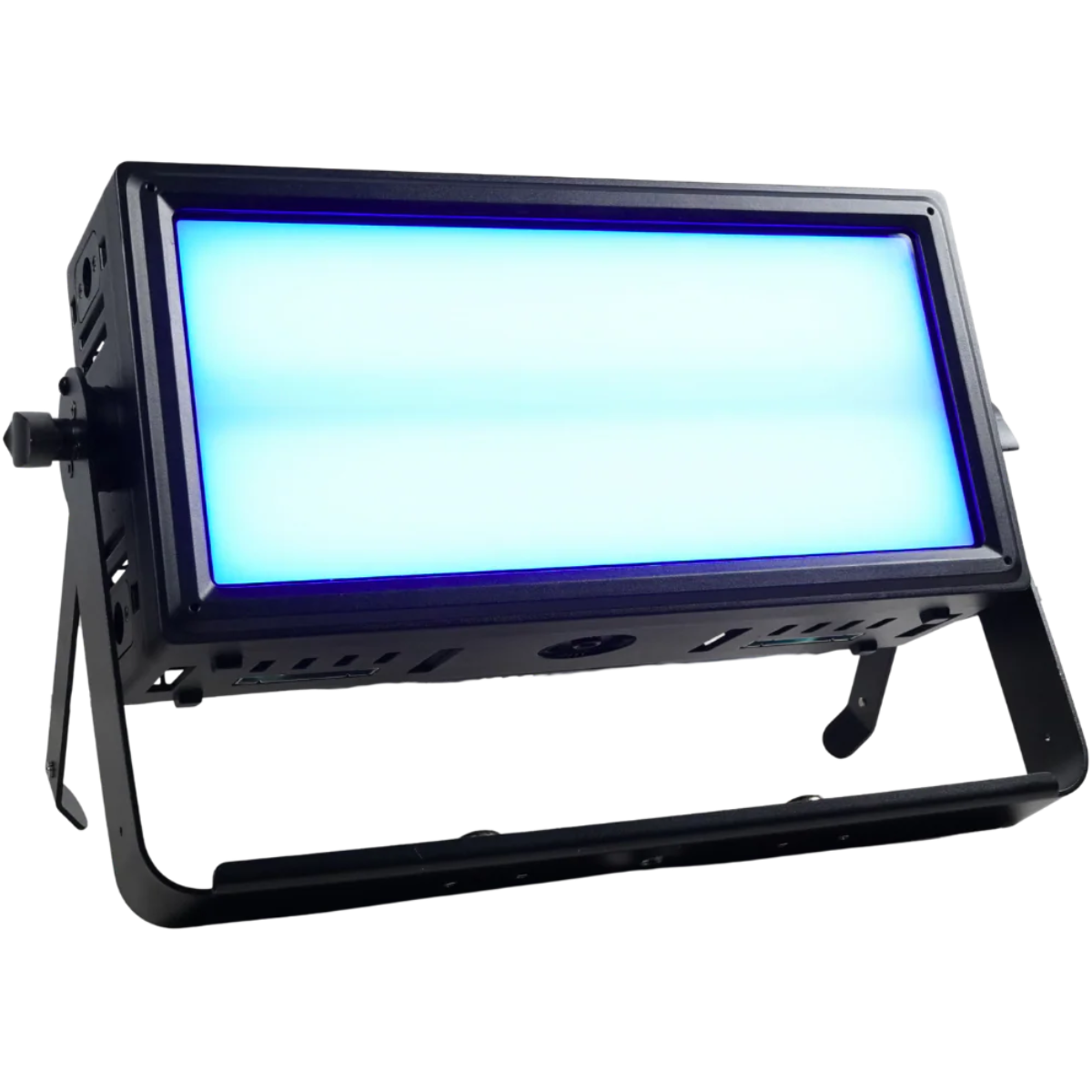

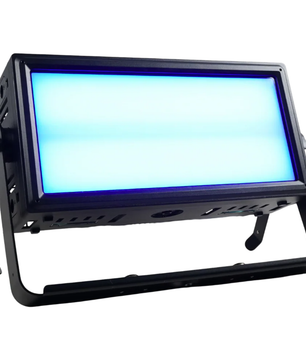

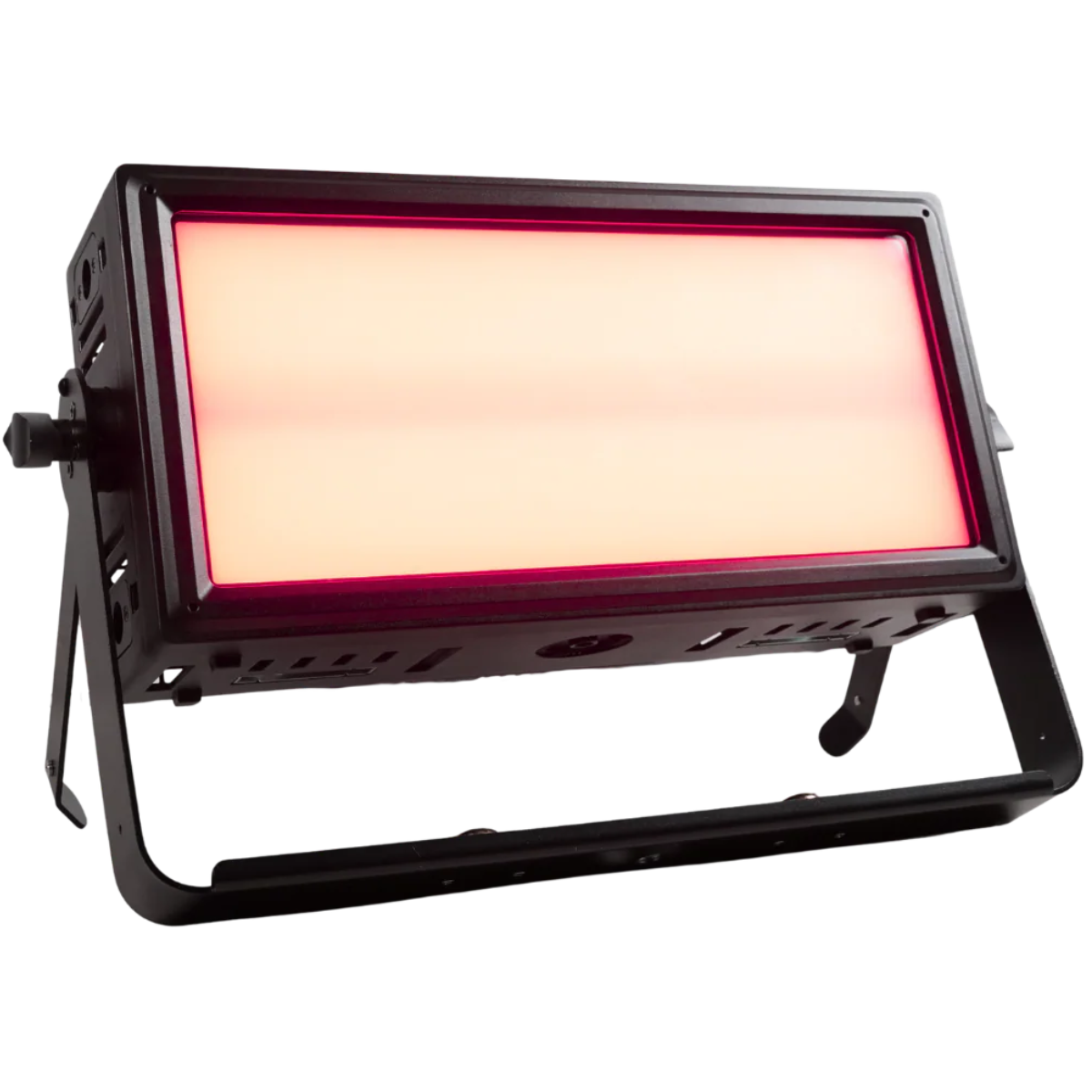

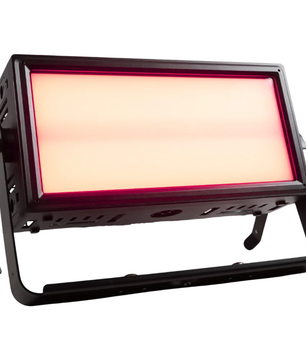

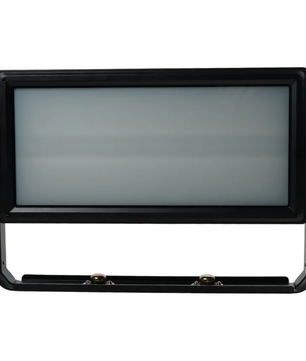

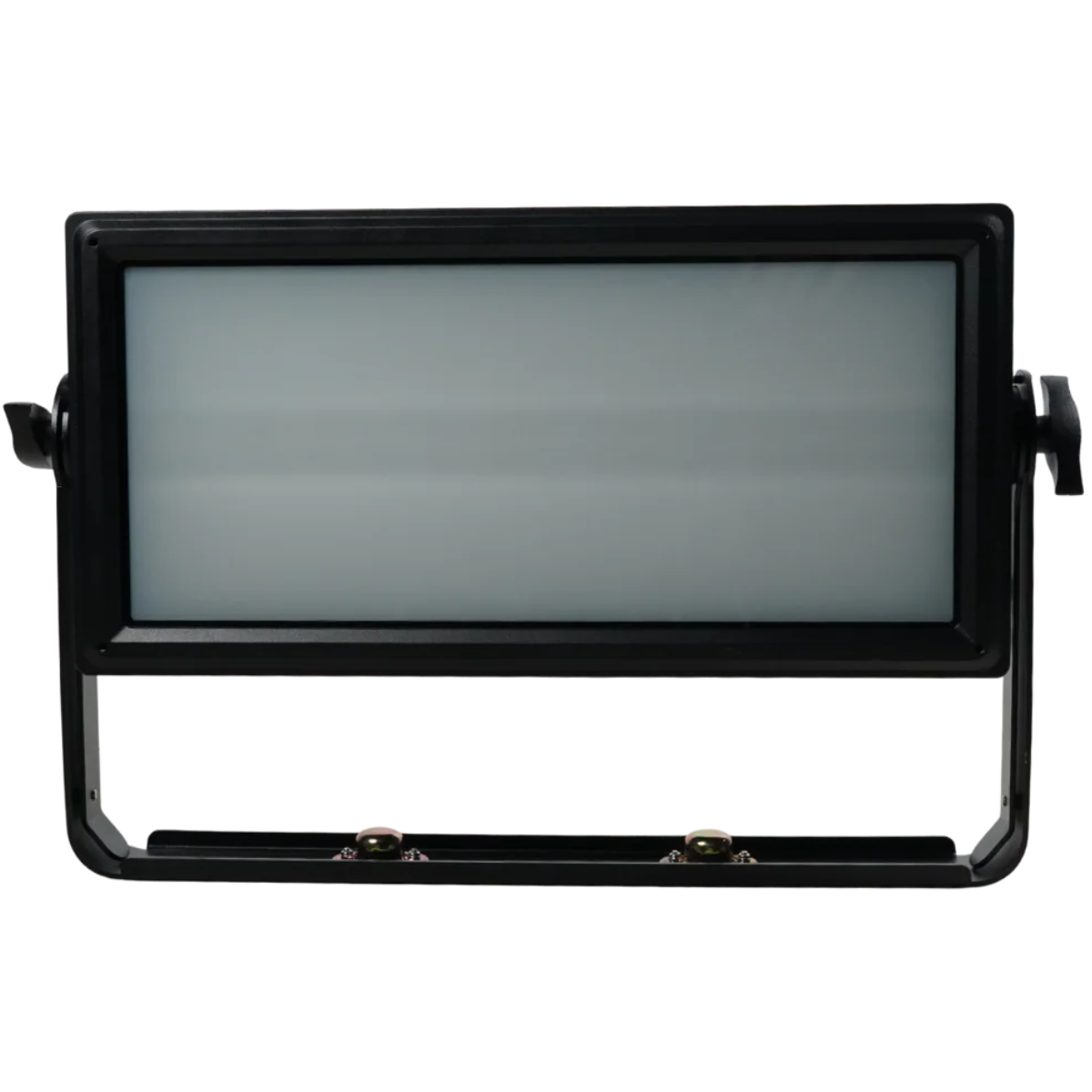

An adjustable electronic frost system allows the beam diffusion level to be controlled from 0% to 100%, giving lighting designers the ability to switch between crisp pixel effects and smooth wash lighting without additional filters. With PWM at 4000 Hz and 16-bit dimming curves, the HYBRICKFX delivers flicker-free performance suitable for broadcast and video environments.

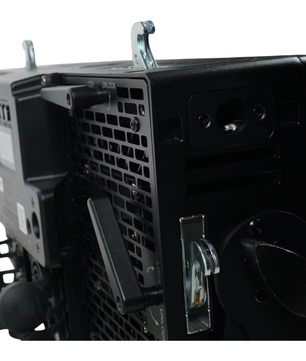

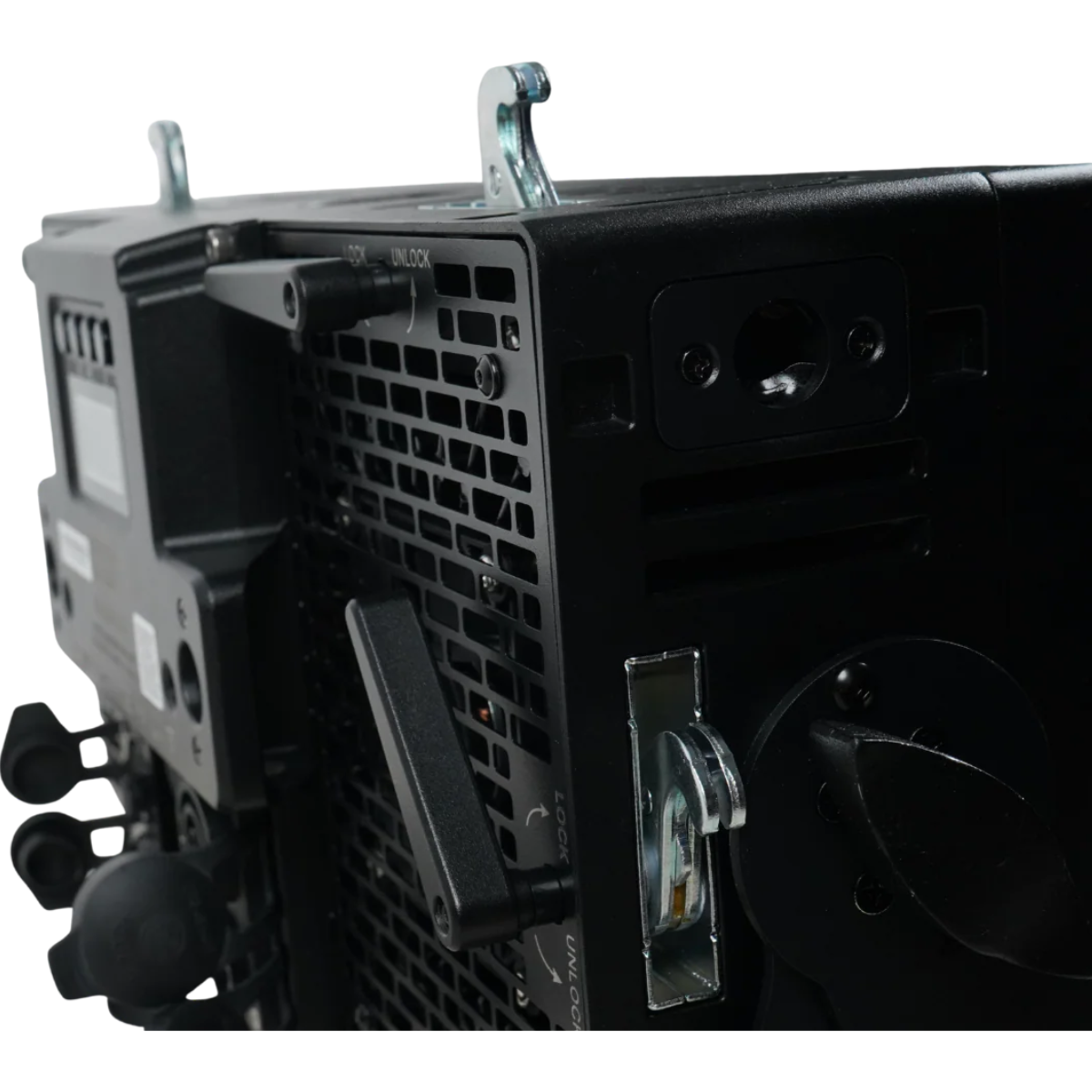

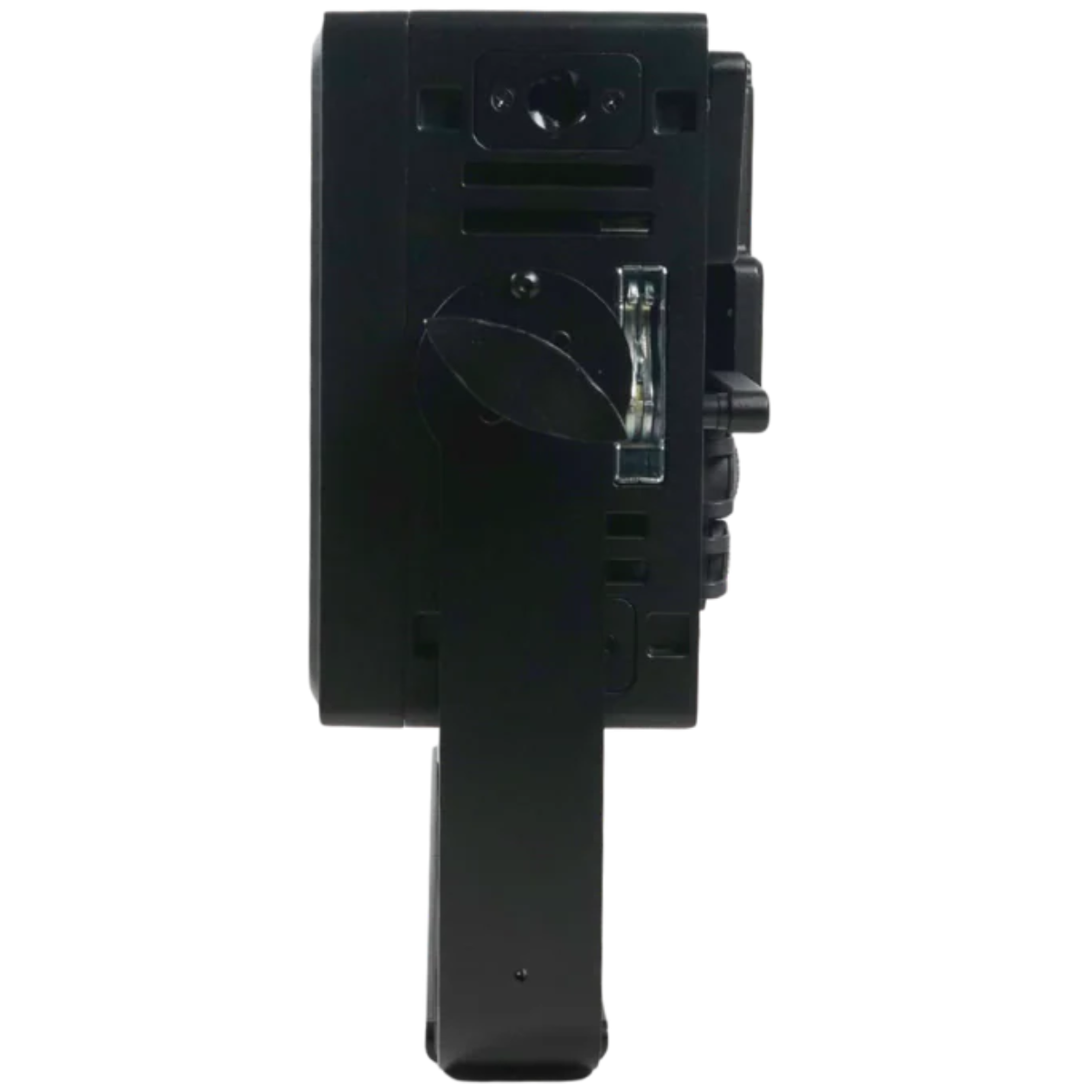

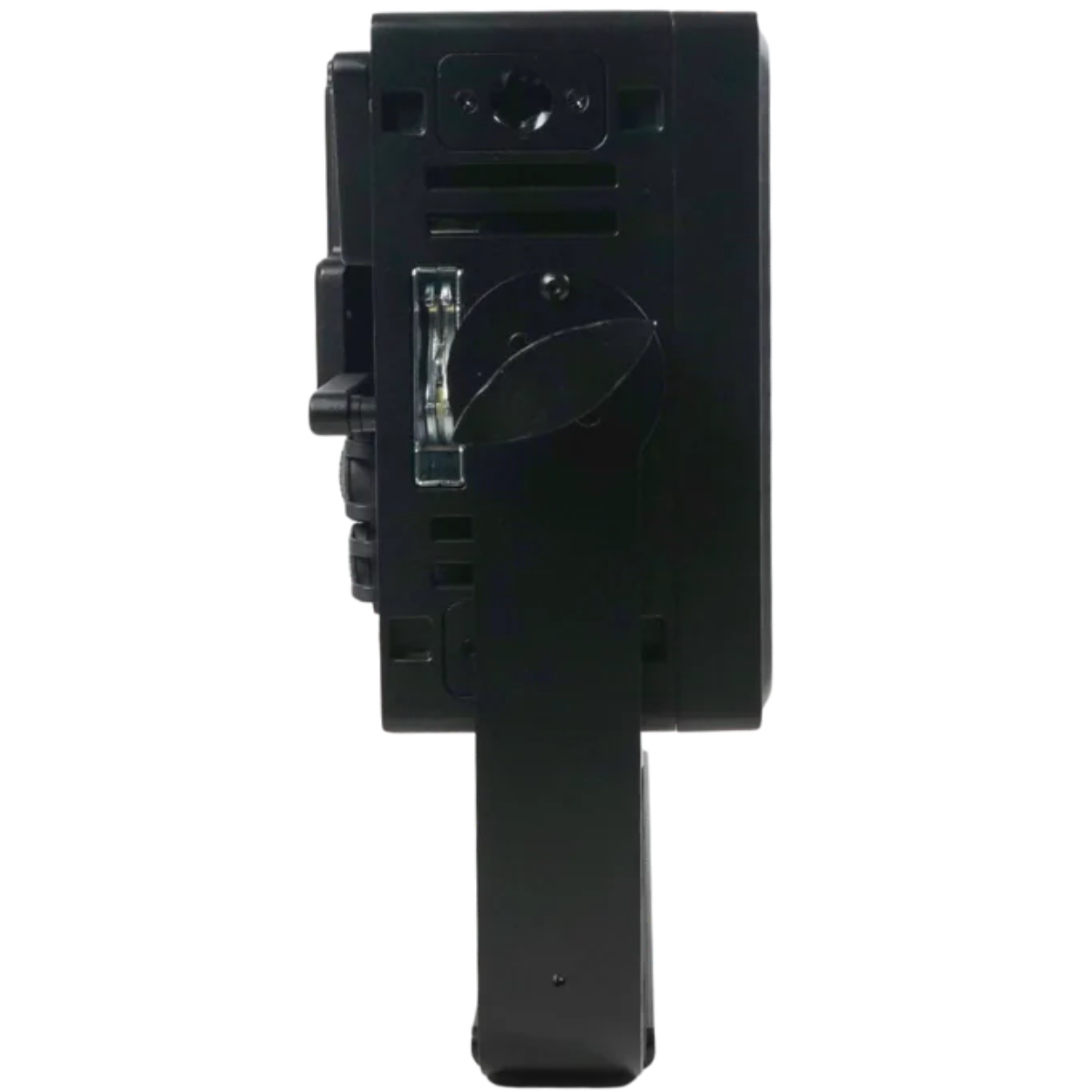

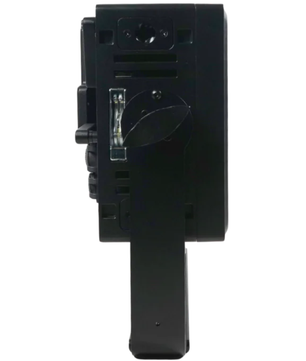

The rugged IP65-rated aluminum housing ensures reliable operation in both indoor and outdoor environments. Its interlocking mechanical design allows multiple fixtures to be connected horizontally or vertically, making it easy to create modular lighting arrays for stage backdrops, architectural features, or touring productions.

HYBRICKFX Features

• 432 x 1.5W RGB LEDs arranged into segmented pixel plates
• 84 x 5W warm white LEDs with 3250K color temperature
• 48 RGB pixel cells plus 12 warm white beam segments
• Electronic frost with adjustable transparency from 0–100%
• Five selectable 16-bit dimming curves
• Strobe effect from 1 to 25 Hz
• PWM frequency of 4000 Hz for flicker-free performance
• Multiple operating modes including DMX, auto, sound active, and master/slave
• Wireless DMX (WDMX) and RDM support
• Software upgrade via DMX

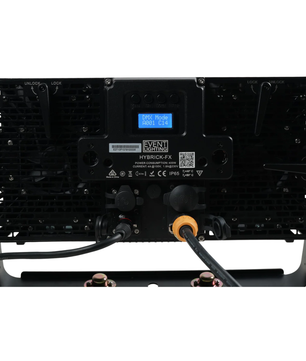

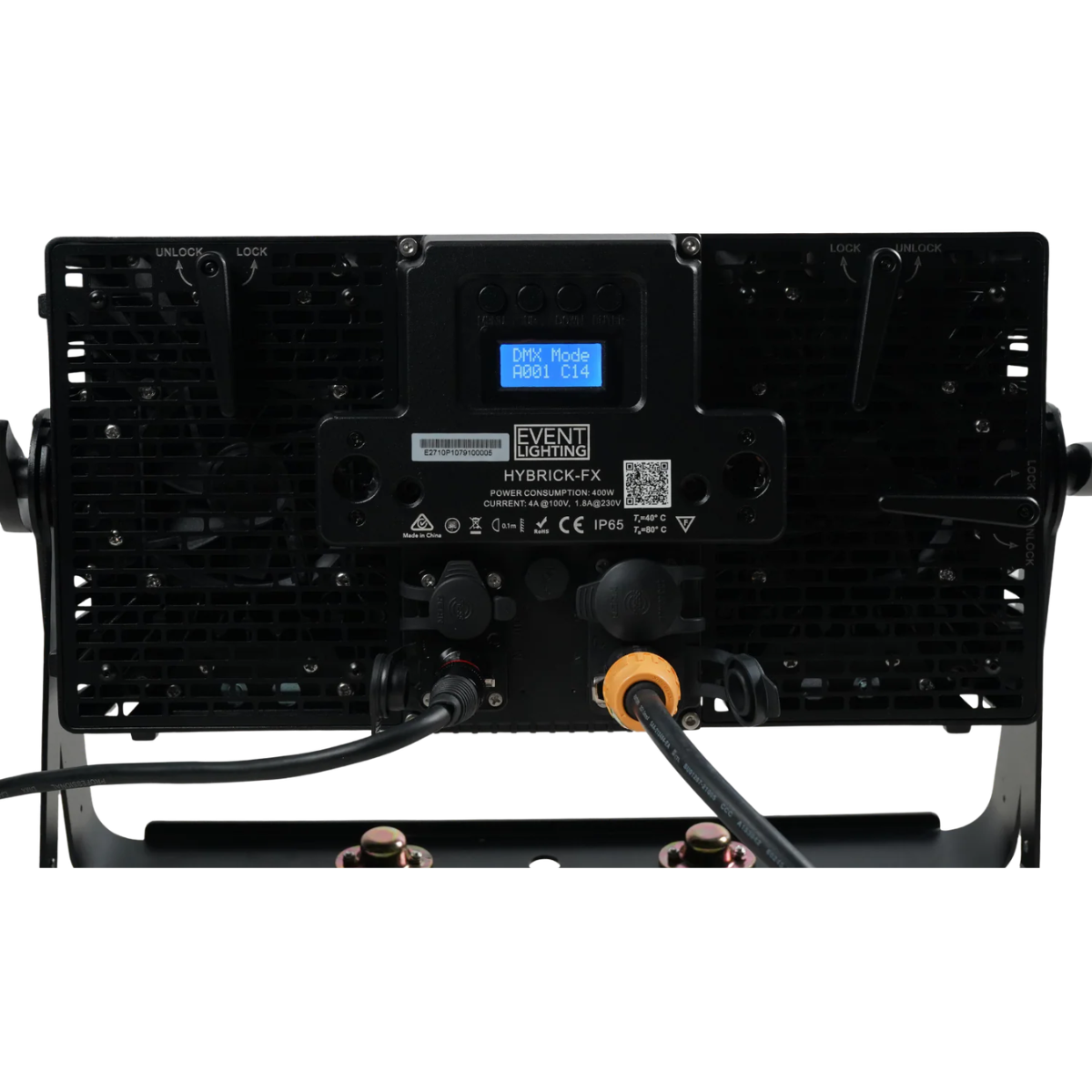

• 4-button LCD display control panel

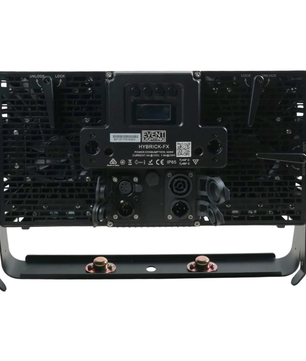

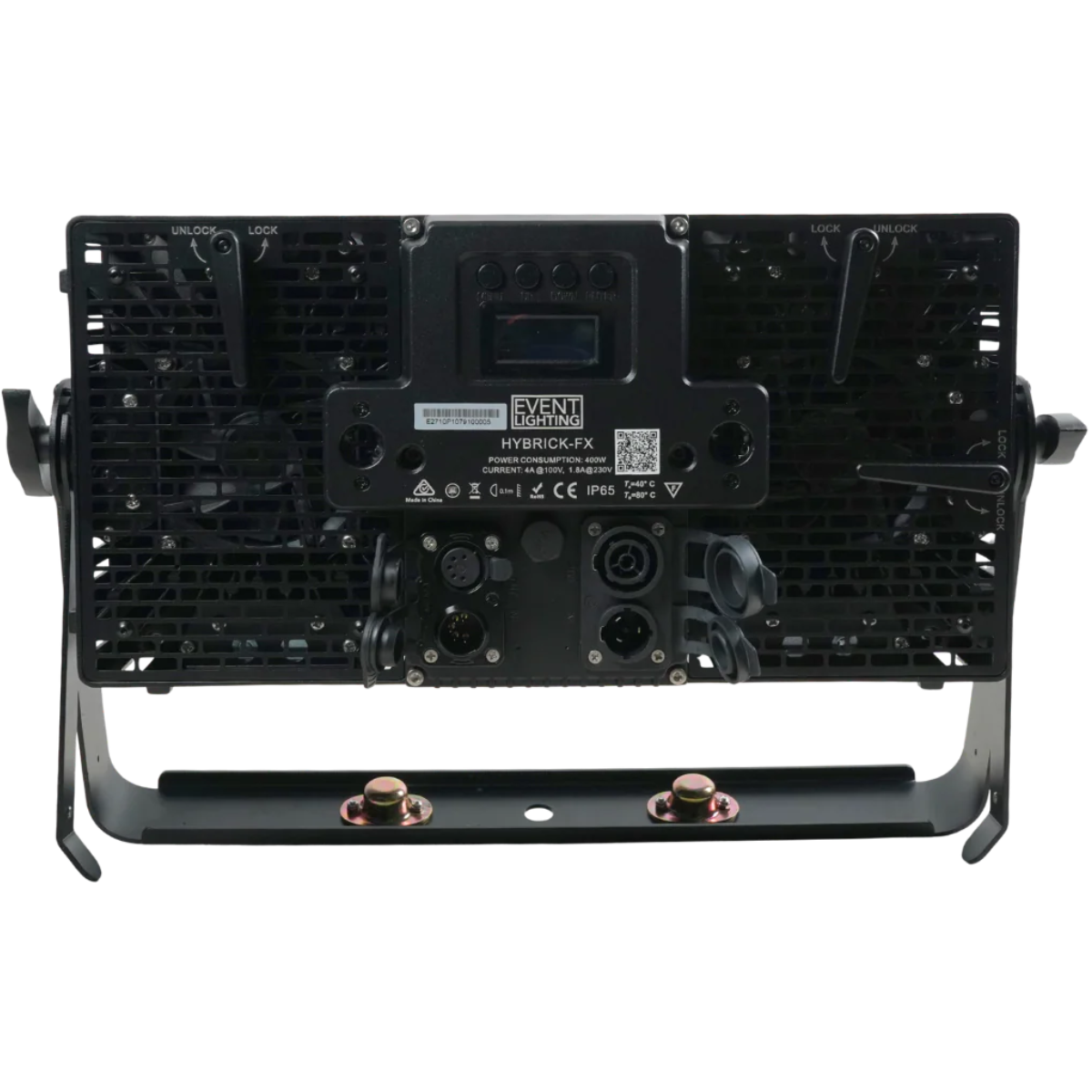

• True1 power input and output connectors
• 5-pin XLR DMX input/output

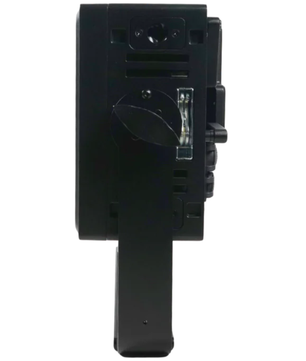

• Interlocking housing for linking multiple fixtures

HYBRICKFX Specifications

• Light Source: 432 x 1.5W RGB LEDs + 84 x 5W warm white LEDs
• Color Temperature (Warm White): 3250K
• Beam Angle: RGB 120°, Warm White 60°
• Output: 8800 lux @ 3.3 ft (1 m), 2205 lux @ 6.6 ft (2 m)
• LED Life: 50,000 hours
• PWM Frequency: 4000 Hz
• Dimming: 5 x 16-bit dimming curves
• Strobe: 1–25 Hz
• Pixel Control: RGB Plate (48 cells) + White Beam (12 cells)
• DMX Protocol: DMX512
• DMX Channel Modes: 1 / 2 / 3 / 4 / 14 / 15 / 50 / 146 / 158
• DMX Interface: 5-Pin XLR
• Operational Modes: Static, Color Fade, Auto Program, Sound Active, Master/Slave, DMX, RDM, WDMX
• Input Voltage: 100–240V AC, 50/60 Hz
• Power Consumption: 400W
• Power Connection: True1 Power Input / Output
• Cooling: 2 Fans
• Housing Material: Aluminum
• Housing Finish: Matte Black
• Dimensions: 14.7 x 7.3 x 5.8 in (372 x 186 x 146.2 mm)
• Weight: 17.9 lb (8.1 kg)

What's In The Box

• Event Lighting HYBRICKFX fixture
• Omega mounting bracket
• User documentation
