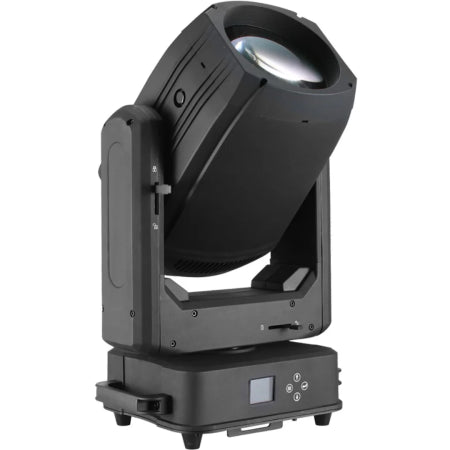

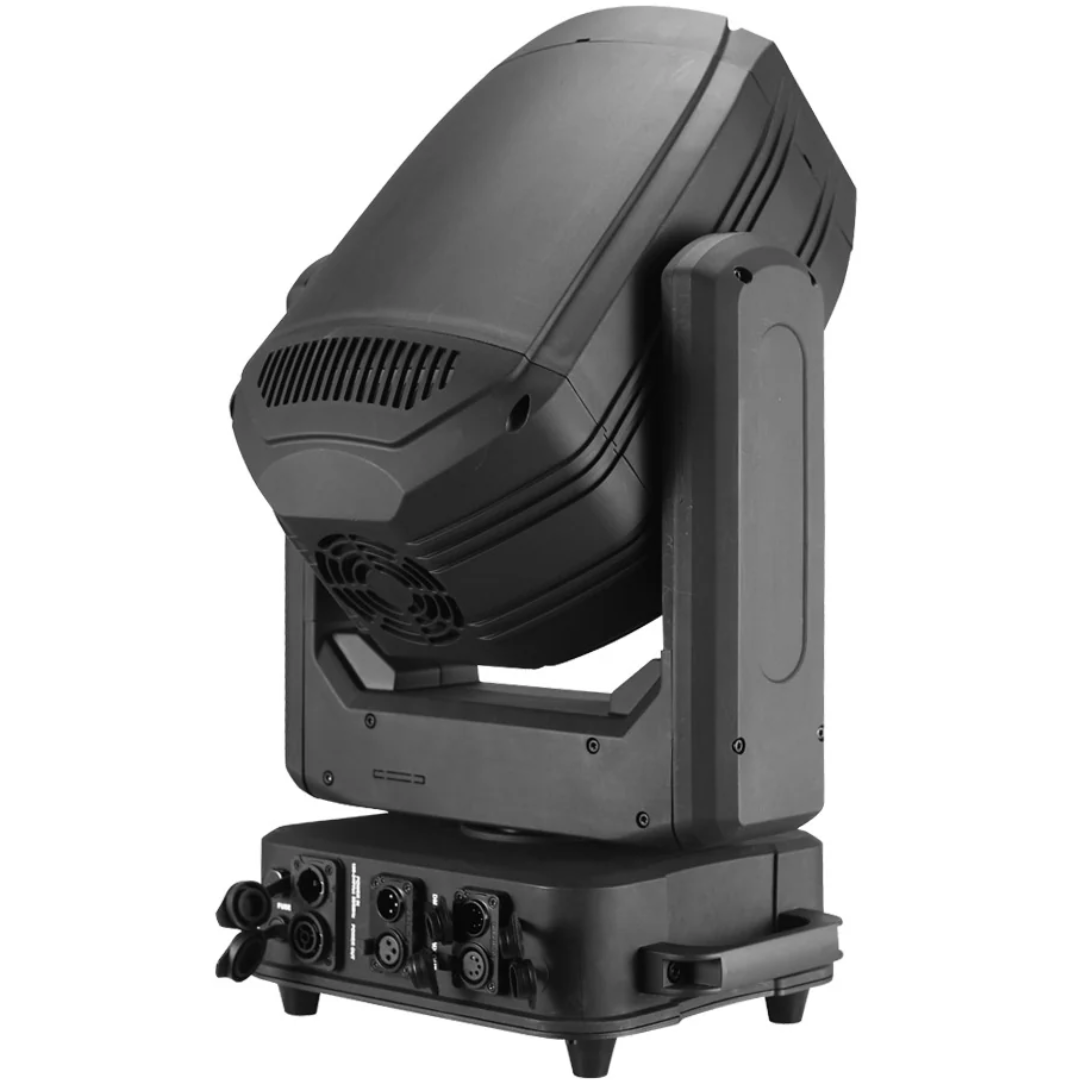

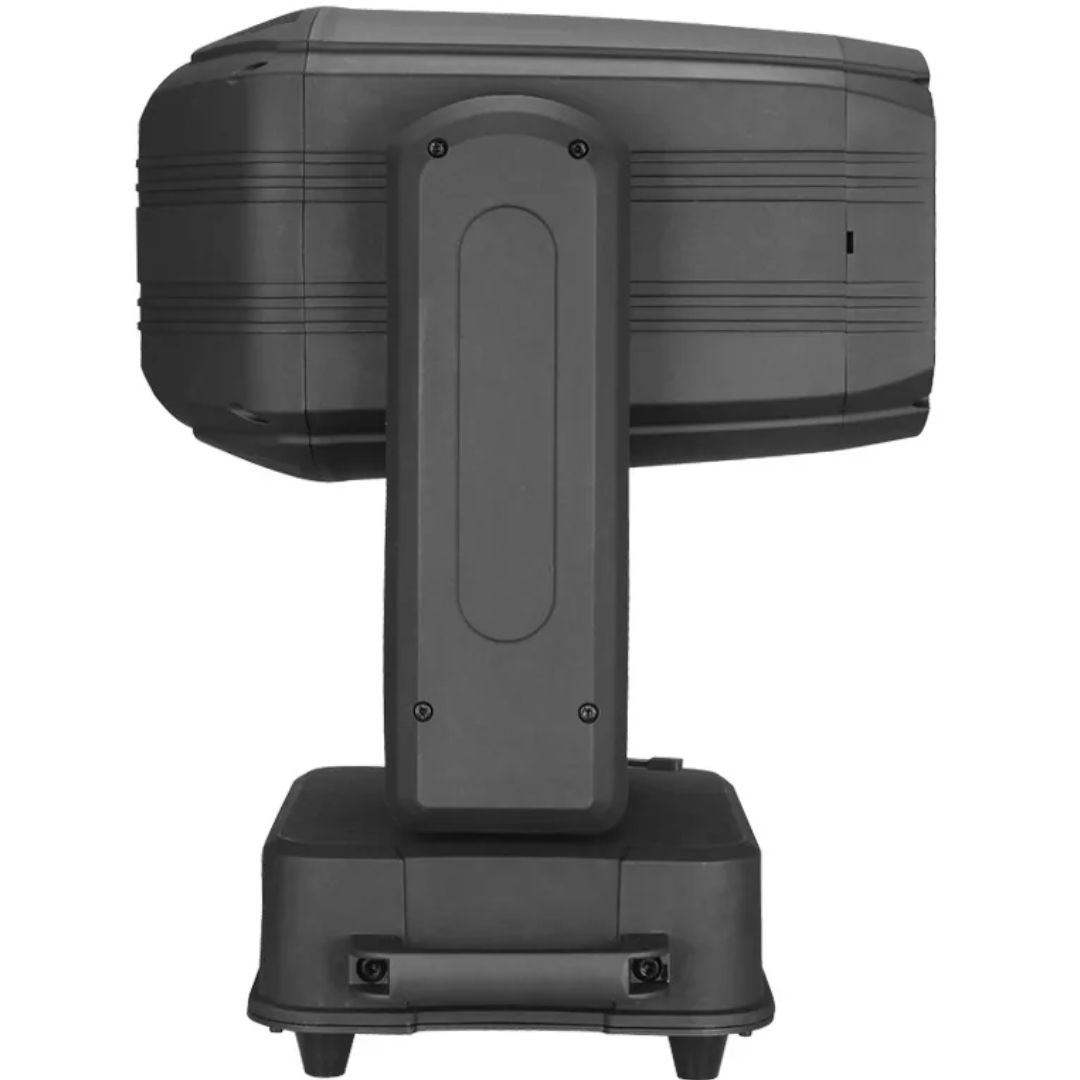

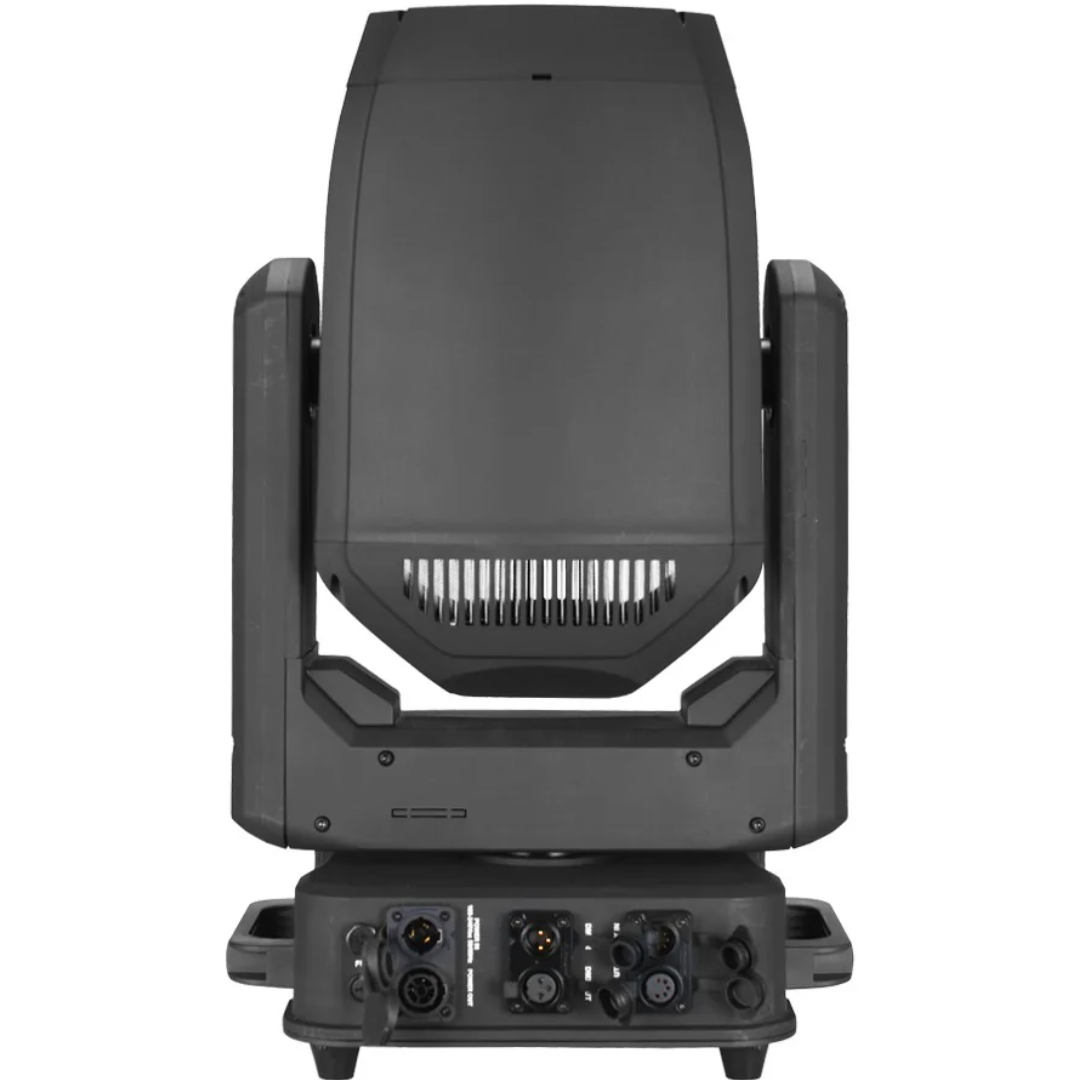

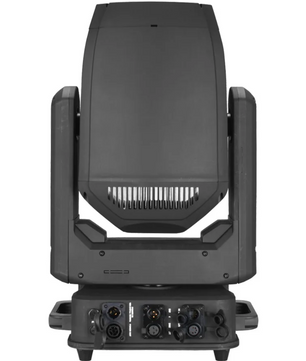

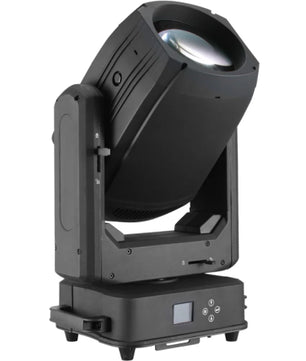

Event Lighting OUTBACK180B | 180W IP65 Beam Moving Head with Dual Prisms & Motorized Focus

Outdoor-Rated Beam Moving Head Light for Powerful Aerial Effects

The Event Lighting OUTBACK180B is a high-intensity, IP65-rated beam moving head fixture engineered for powerful, punchy effects in both indoor and outdoor environments. With a sharp 1.8° beam angle, dual rotating prisms, and motorized focus, this fixture is perfect for concerts, festivals, and large-scale events where visibility and weather protection are critical.

Event Lighting OUTBACK180B Competitive Differences

• Extremely narrow 1.8° beam angle with output up to 191,301 lux at 5 meters
• IP65-rated housing for reliable outdoor use in all weather conditions
• Dual color wheels and dual gobo wheels (fixed and rotating) for advanced effect layering
• 24-facet circular prism and 5-facet linear prism with overlap and indexing
• Motorized focus and built-in frost for beam control and wash effect versatility
• DMX512 and RDM control with optional wireless DMX capability
• TFT display and True1 in/out power connectors for professional touring use

Event Lighting OUTBACK180B Description

The Event Lighting OUTBACK180B delivers stunning beam effects with a powerful 180W white LED engine and a precise 1.8° beam angle. Producing an impressive 191,301 lux at 5 meters, this fixture is ideal for long-throw applications where brightness and precision matter. Its robust IP65-rated housing ensures durability in outdoor environments without compromising performance.

The OUTBACK180B features dual color wheels and both fixed and rotating gobos, enabling intricate aerial effects and layered designs. Two prisms — a 24-facet circular and a 5-facet linear — can be overlapped for complex visuals, while motorized focus and frost functionality allow seamless transitions between beam and soft-edge wash looks.

Control options include 20 or 23 DMX channels, RDM compatibility, and optional wireless DMX, giving lighting designers flexibility across different production environments. Built for touring, it also features 3-pin and 5-pin XLR in/out, True1 power connections, and a user-friendly TFT display for quick setup and configuration.

OUTBACK180B Features

• 180W white LED light source
• Extremely narrow 1.8° beam angle
• Motorized focus and frost filter
• 0–100% smooth dimming
• 1–25 Hz variable strobe

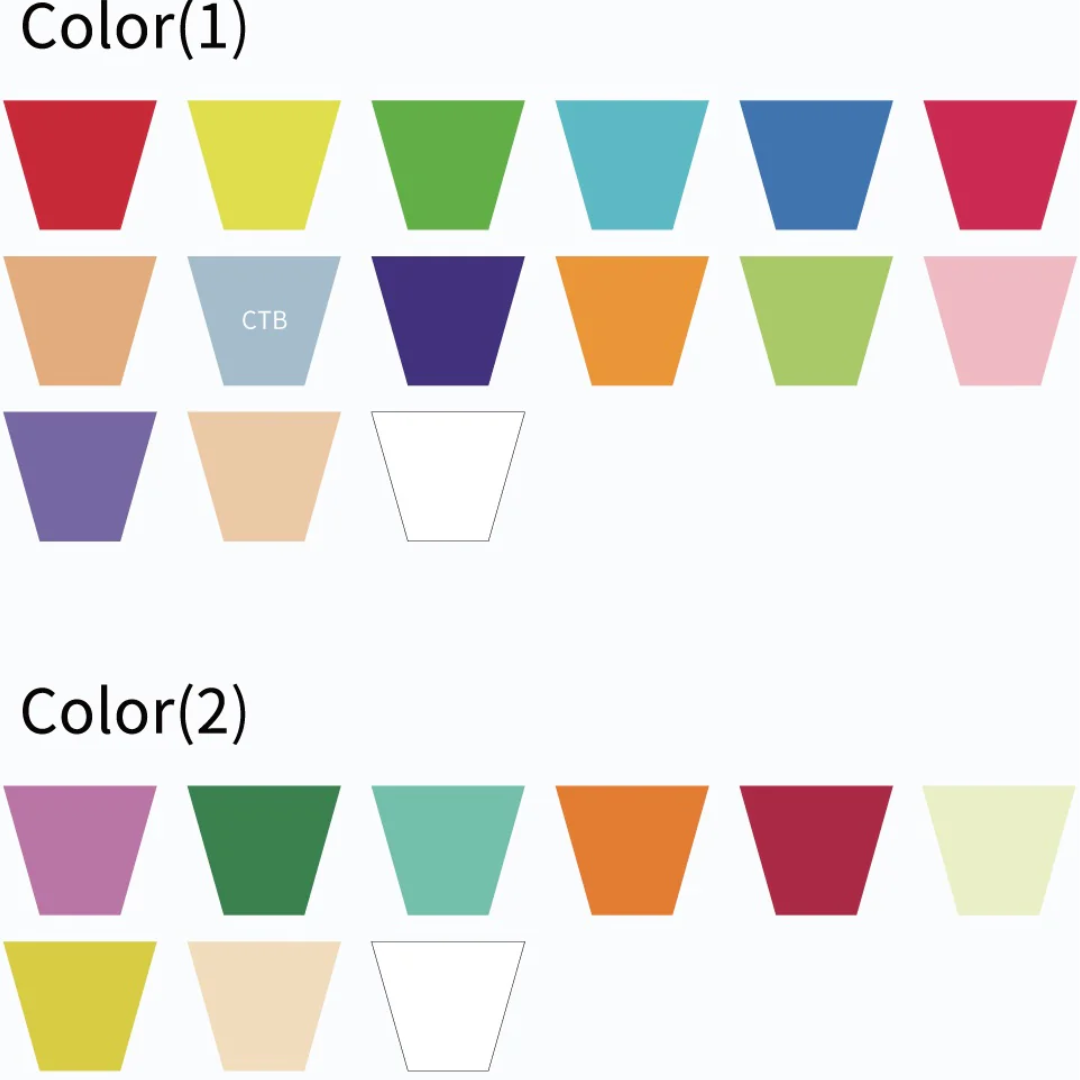

• Dual color wheels: 14 + open and 8 + open

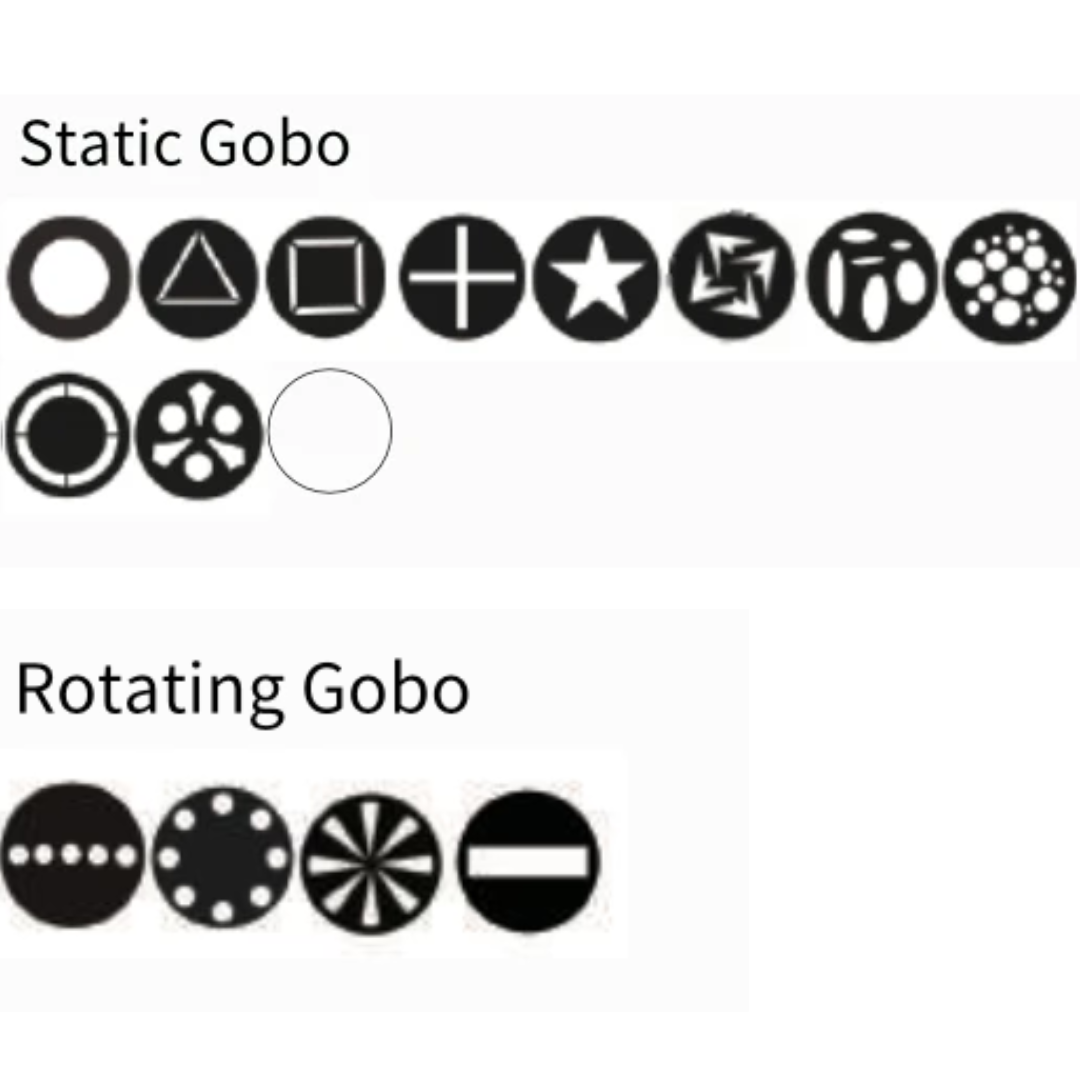

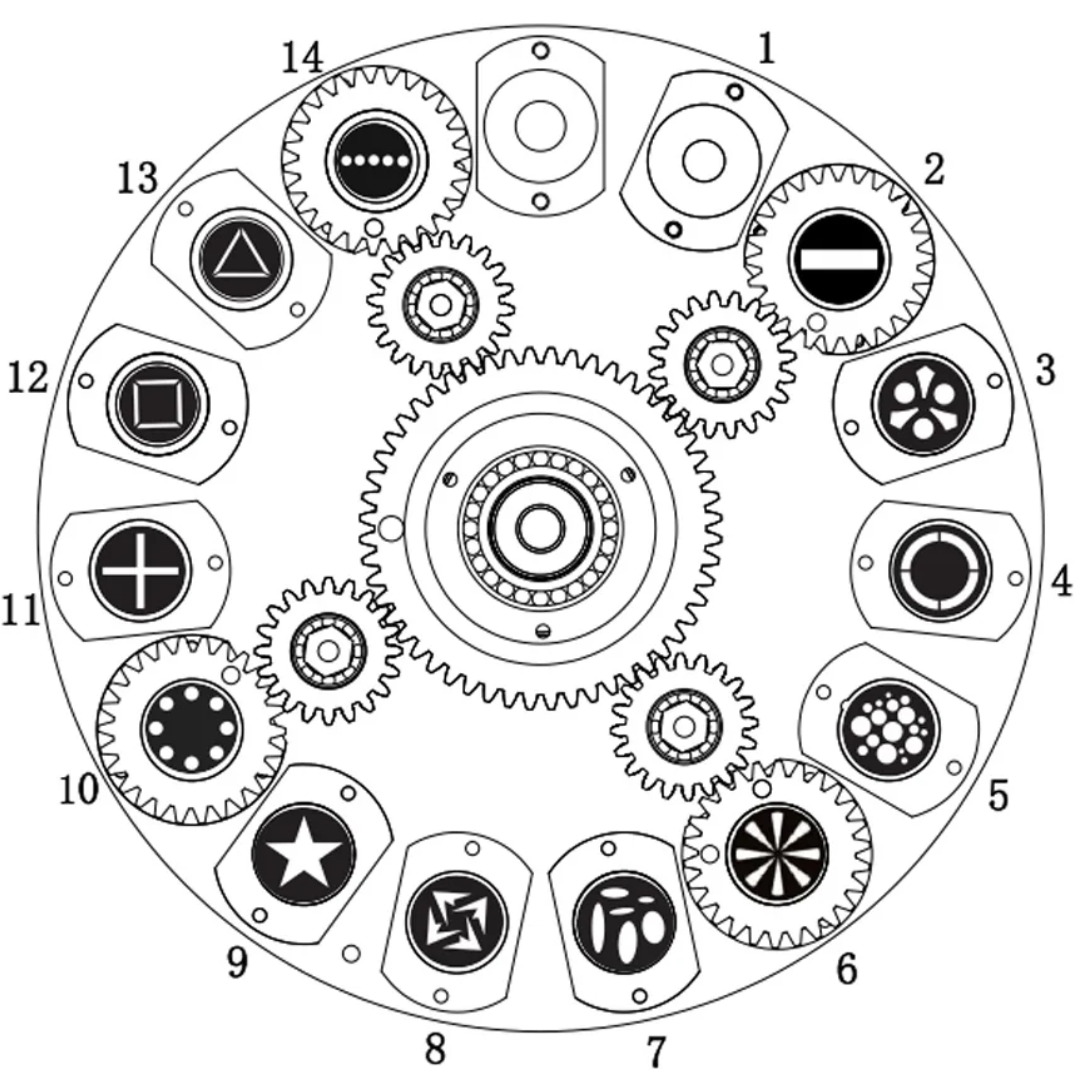

• Fixed gobo wheel: 10 + open
• Rotating gobo wheel: 4 + open
• Gobo shake and indexing features

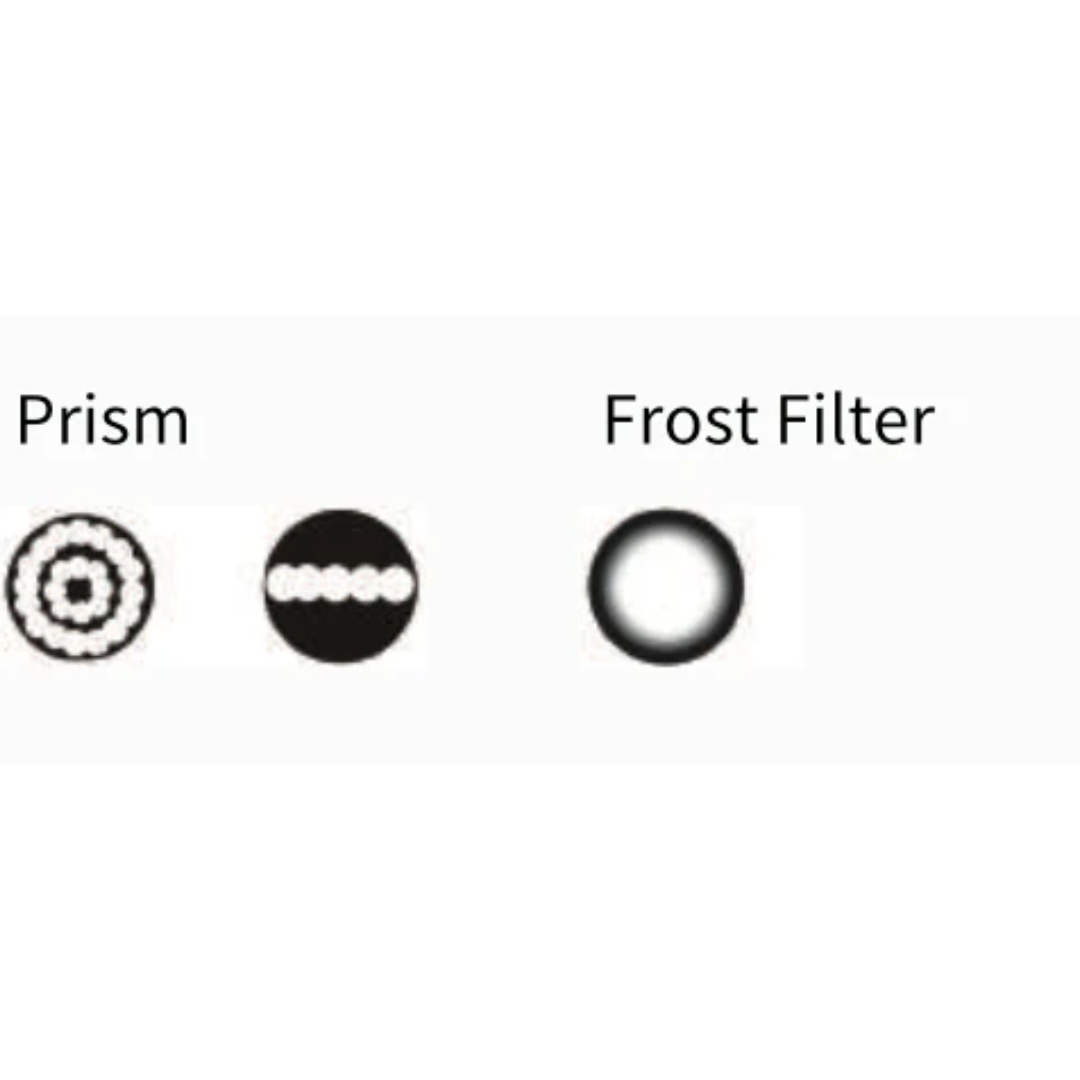

• 24-facet circular prism with optional rainbow effect
• 5-facet linear prism with indexing
• Prism overlap support for enhanced effects
• Pan: 540°, Tilt: 270° with auto repositioning
• 16-bit resolution movement
• DMX512 and RDM protocol compatibility
• Optional wireless DMX capability
• True1 power in/out connectors
• TFT control panel interface
• 3-pin and 5-pin XLR in/out
• High-temperature automatic protection

OUTBACK180B Specifications

• Light Source: 180W White LED
• Beam Angle: 1.8°

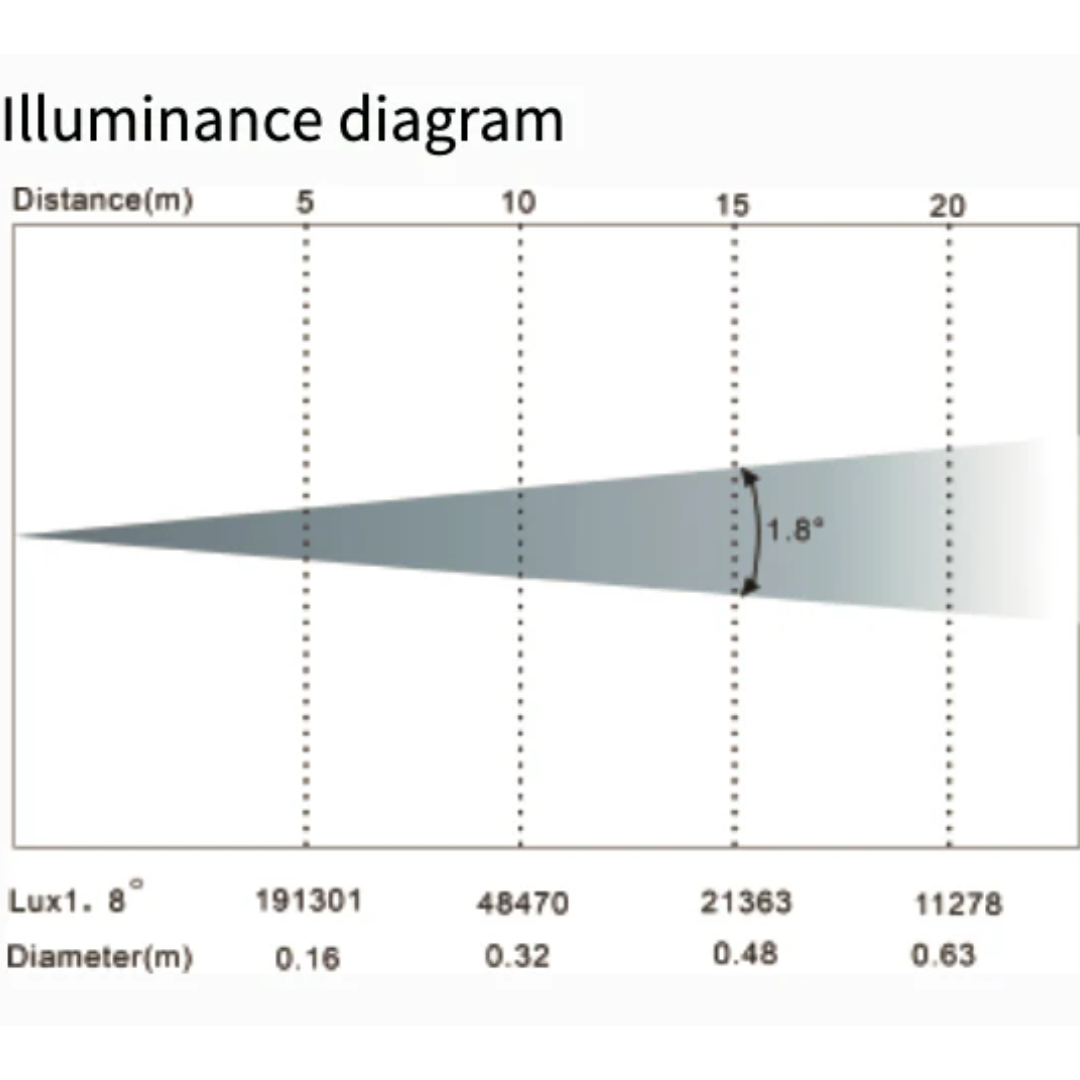

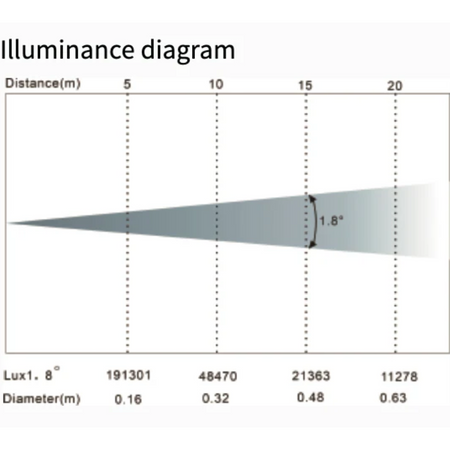

• Output: 191,301 lux @ 5m
• CCT: 7,000K
• CRI: >70
• LED Lifespan: >20,000 hours
• DMX Channels: 20 / 23
• Control Protocol: DMX512, RDM
• Wireless DMX: Optional
• Pan: 540° / Tilt: 270°
• Power Consumption: Max 260W
• Input Voltage: 100–240V AC, 50/60Hz
• Housing Material: ABS & Steel, matte black
• IP Rating: IP65 (dust and water resistant)

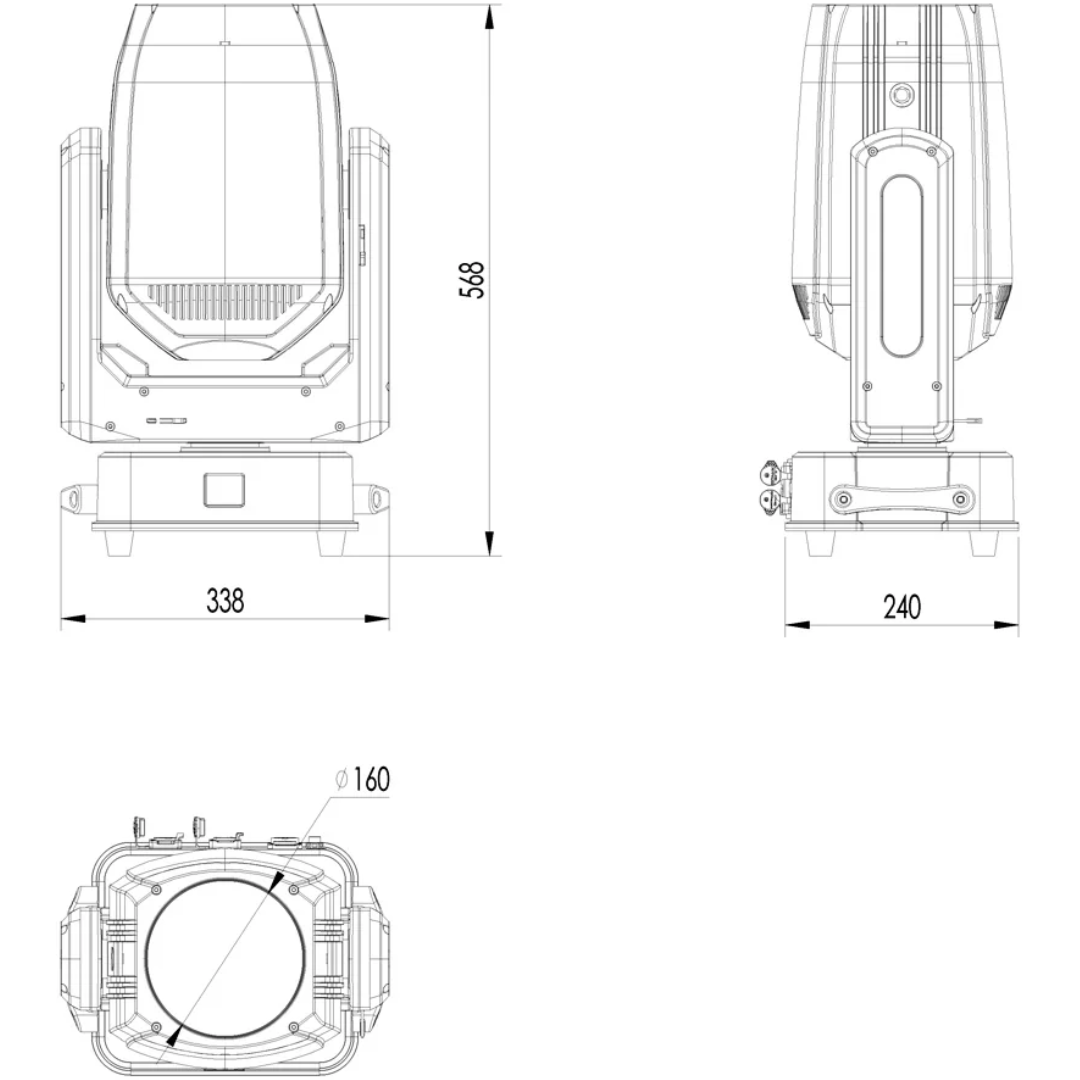

• Dimensions: 13.3 × 9.4 × 21.9 in (338 × 240 × 555 mm)
• Net Weight: 36.4 lb (16.5 kg)
