LED PAR Wash Light

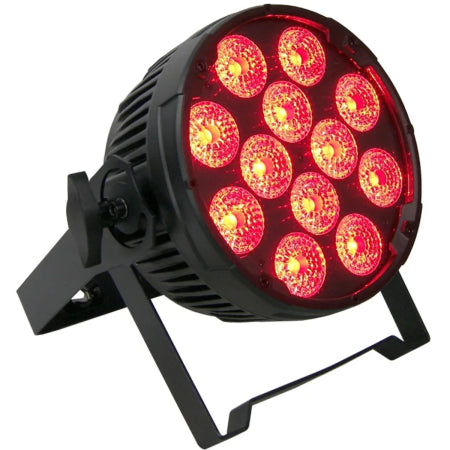

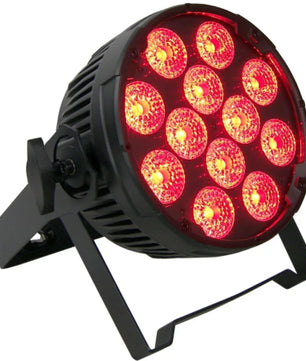

The Event Lighting PAR12H is a professional LED PAR wash light built for high-output stage, venue, and event lighting applications. Equipped with 12 x 12W RGBWA+UV LEDs, this fixture delivers vibrant color mixing, strong brightness, and flexible lighting effects suitable for live productions, theaters, and installation environments.
With interchangeable beam angles and professional connectivity including True1 power input/output and 5-pin DMX, the PAR12H integrates seamlessly into modern lighting systems. Its durable die-cast aluminum housing and fanless cooling system ensure quiet operation and long-term reliability in demanding setups.
Event Lighting PAR12H Competitive Differences
- 12 x 12W RGBWA+UV LEDs for strong output and expanded color mixing
- Interchangeable beam angles including 30° standard with optional 40°, 25°, and 15°
- True1 power connections and 5-pin DMX for professional lighting rigs
- Fanless cooling design for silent operation in performance environments
Event Lighting PAR12H Description
The Event Lighting PAR12H is designed to provide powerful wash lighting with exceptional color flexibility. Its RGBWA+UV LED system allows lighting designers to achieve deeper ambers, clean whites, and UV-enhanced effects that expand creative possibilities for stage lighting, venue uplighting, and event production.

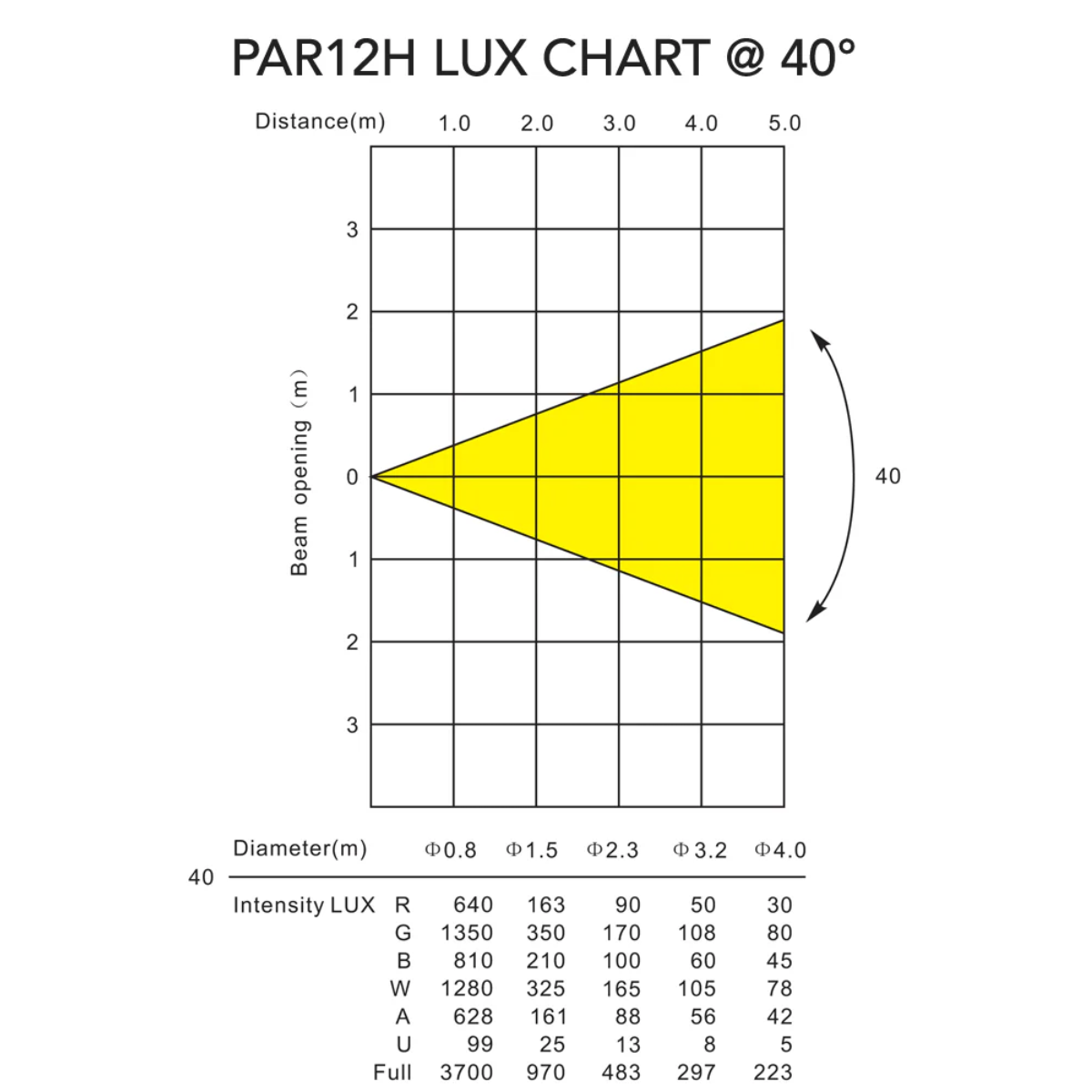

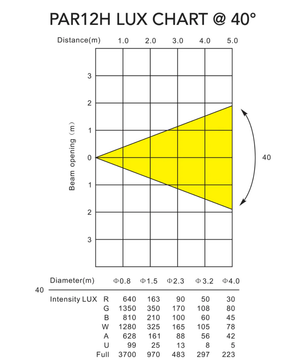

The fixture delivers a strong output of 3,150 lux at 2 meters, ensuring vibrant illumination even in larger spaces. The standard 30° beam angle offers balanced coverage, while optional 40°, 25°, and 15° lenses allow users to customize the beam spread depending on the lighting design and venue size.
Advanced dimming control with five selectable 16-bit dimming curves ensures smooth transitions and precise intensity control. Adjustable strobe effects from 1–30Hz provide additional dynamic effects for concerts, performances, and DJ lighting setups.
Flexible operation modes include DMX control, auto run programs, sound active mode, and master/slave operation. A built-in 4-button LCD control panel makes configuration simple, while optional WDMX wireless control provides additional flexibility for installations and touring setups.
Built with a durable die-cast aluminum housing and matte black finish, the PAR12H is designed for long-term reliability. The included omega bracket with quarter-turn quick locks allows fast and secure mounting on truss or lighting stands.
PAR12H Features

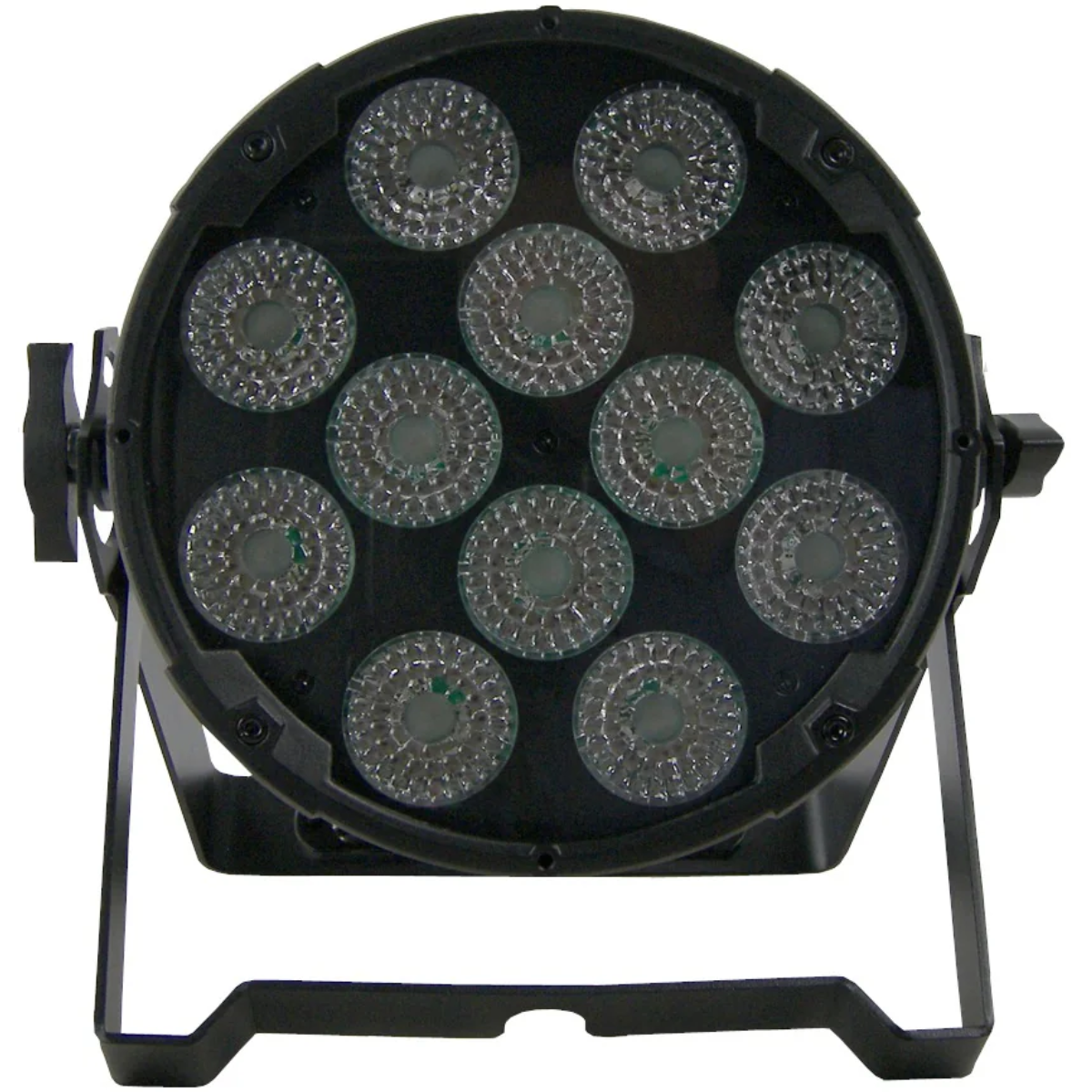

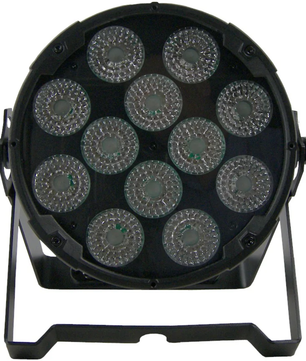

- 12 x 12W RGBWA+UV LEDs
- Standard 30° beam angle with optional 40°, 25°, and 15° lenses
- 3,150 lux output at 2 meters (full on)
- Five selectable 16-bit dimming curves
- Adjustable strobe effects from 1–30Hz
- Multiple DMX channel modes for flexible programming

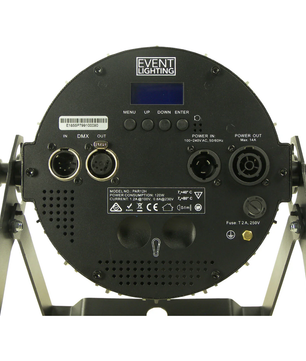

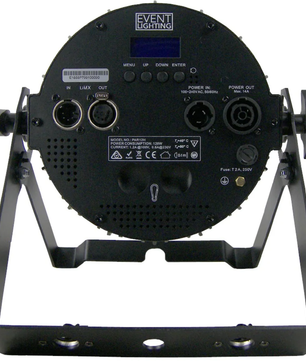

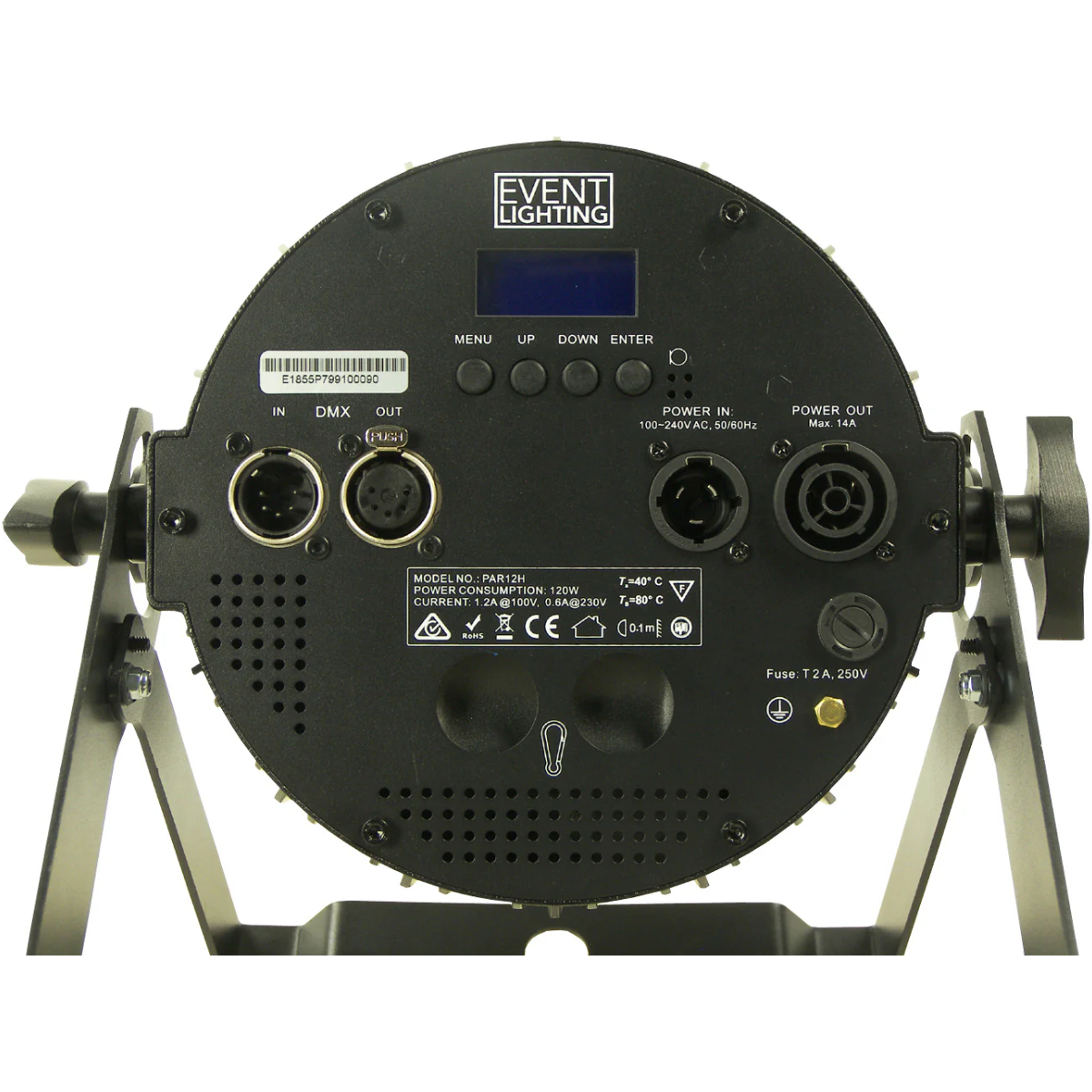

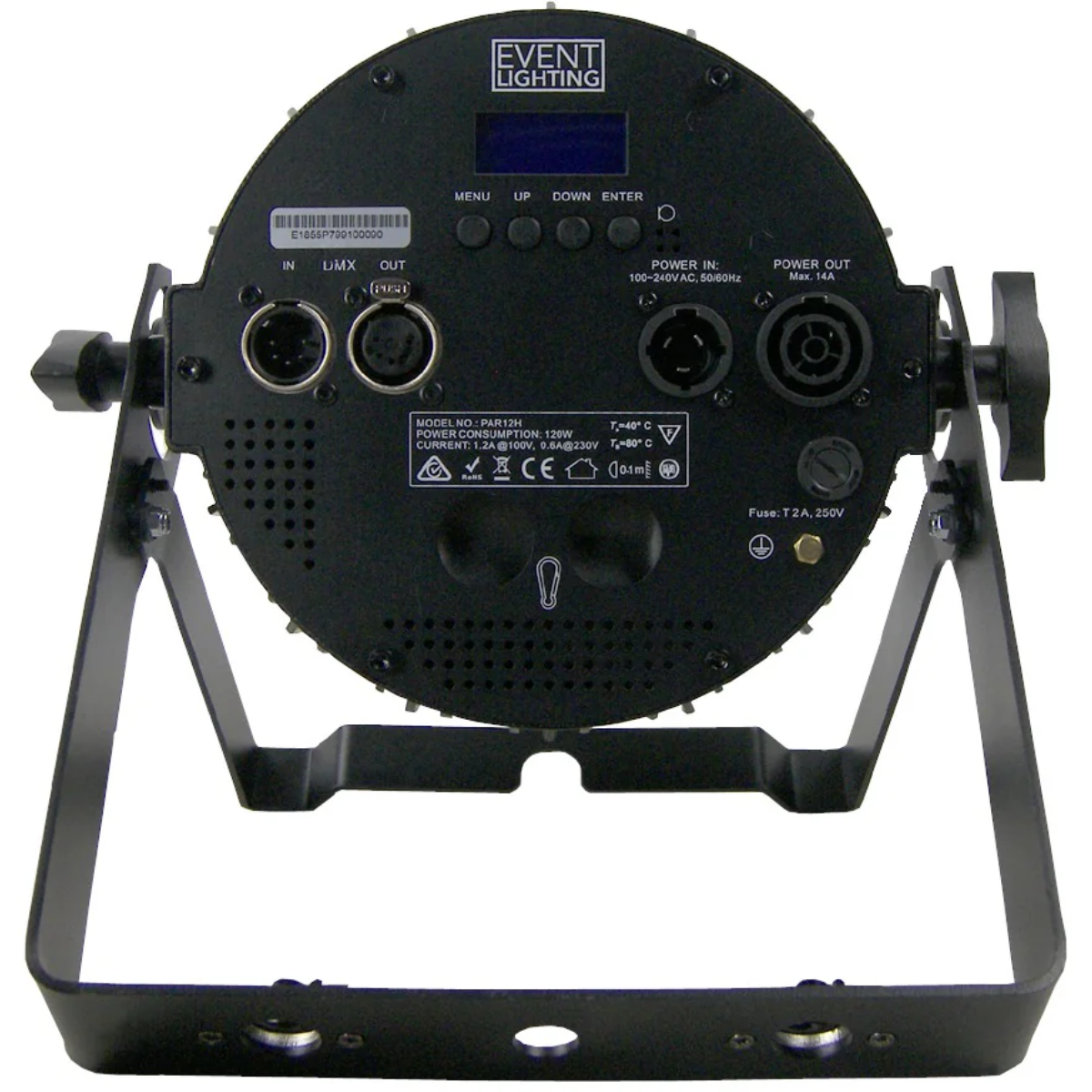

- True1 power input and output connections
- 5-pin XLR DMX input and output
- 4-button LCD control panel
- Fanless cooling system for silent operation

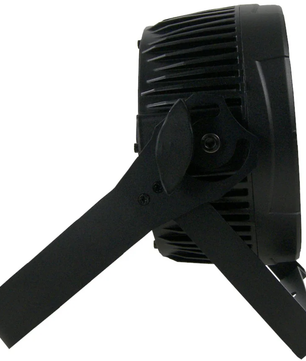

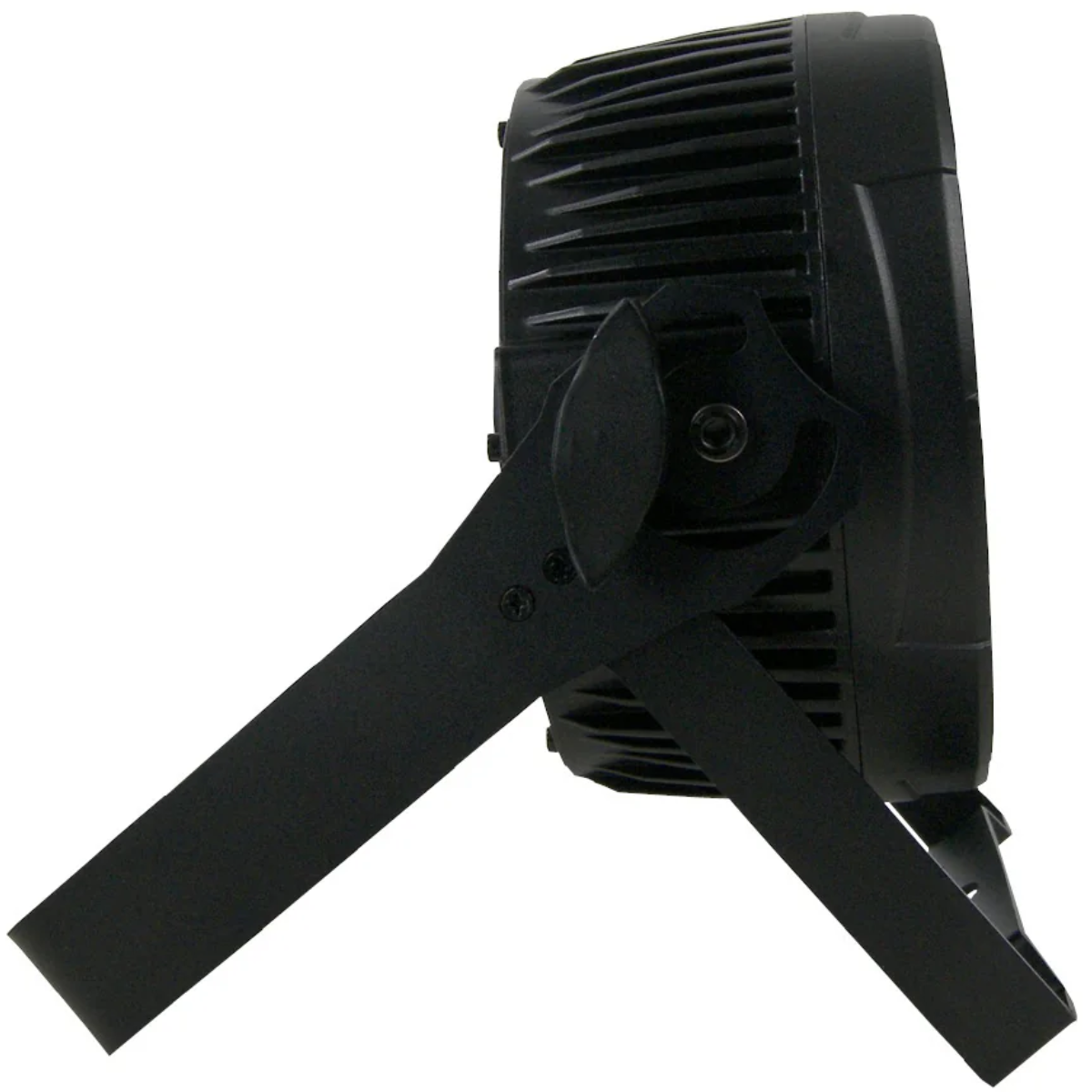

- Omega bracket with quarter-turn quick locks for fast rigging
PAR12H Specifications
- Light Source: 12 x 12W RGBWA+UV LEDs
- Beam Angle: 30° (Optional 40°, 25°, 15°)

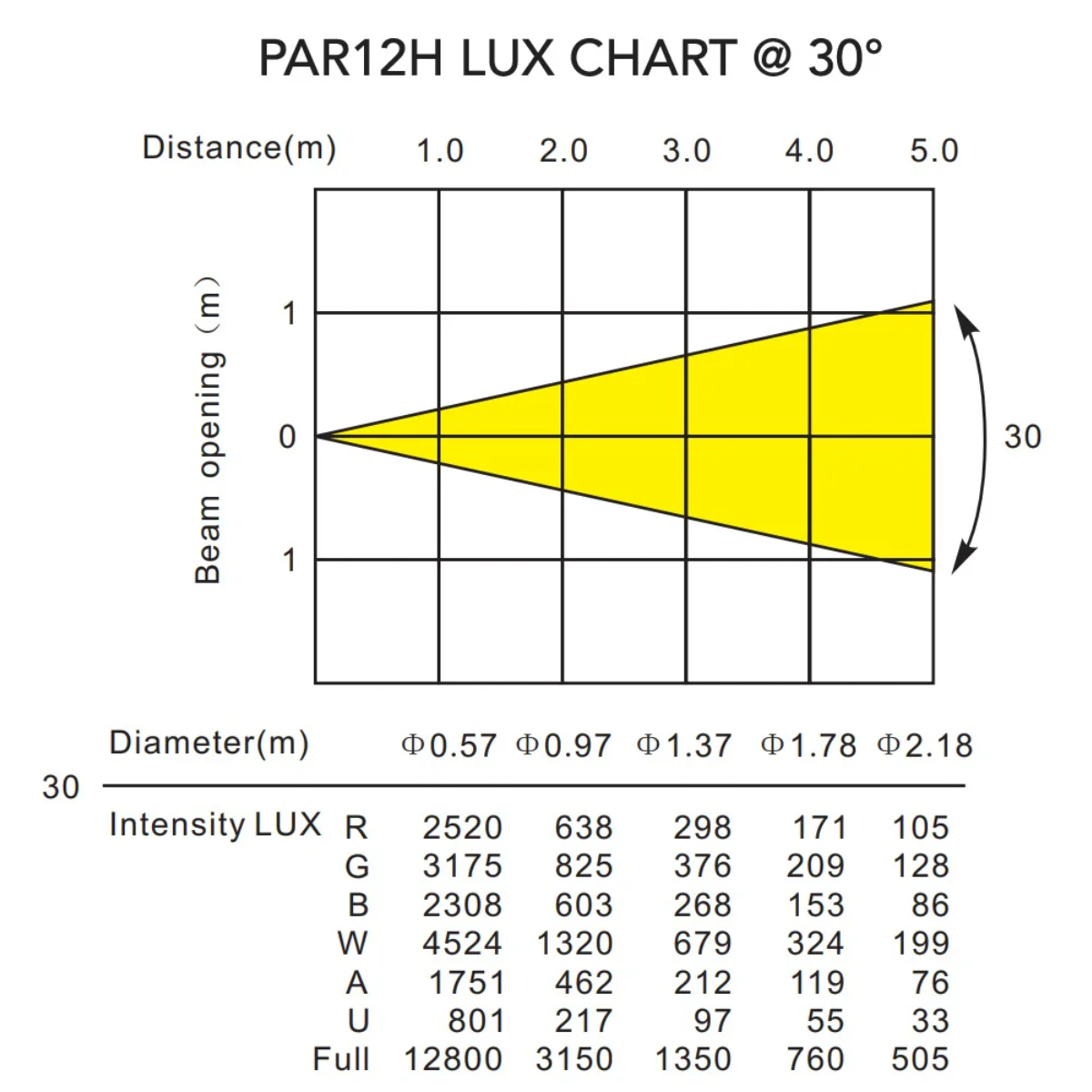

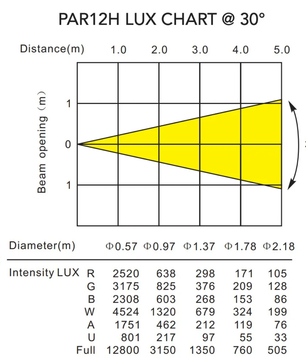

- Output: 3,150 lux @ 2.0 m (full on)
- PWM Frequency: 2,940Hz
- LED Lifespan: 50,000 hours
- Dimming: 5 x 16-bit dimming curves
- Strobe: 1–30Hz
- Input Voltage: 100–240V AC, 50/60Hz
- Power Consumption: 120W
- Power Connection: True1 In/Out
- DMX Protocol: DMX512
- DMX Channel Modes: 1 / 2 / 3 / 4W / 4A / 6 / 8 / 12 / 14
- DMX Interface: 5-pin XLR In/Out
- Display: 4-button LCD control panel
- Housing: Die-cast aluminium with matte black finish
- Cooling: Fanless
- Dimensions: 10.4 x 11.5 x 3.9 in (263 x 293 x 98 mm)
- Weight: 7.1 lb (3.2 kg)
What's In The Box
- Event Lighting PAR12H LED PAR fixture
- Omega mounting bracket with quarter-turn quick locks
- User manual
