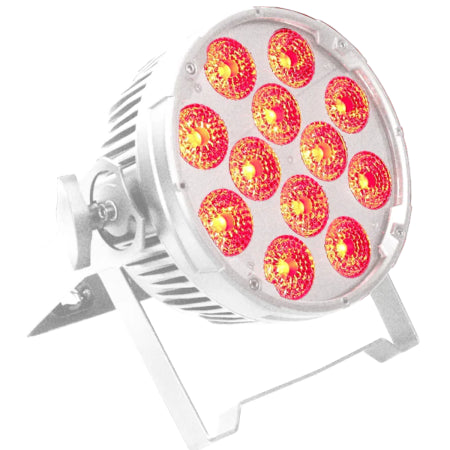

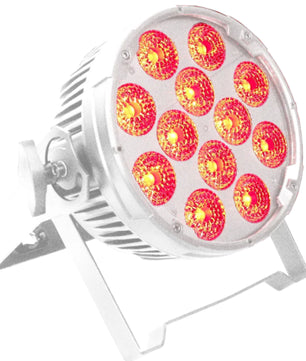

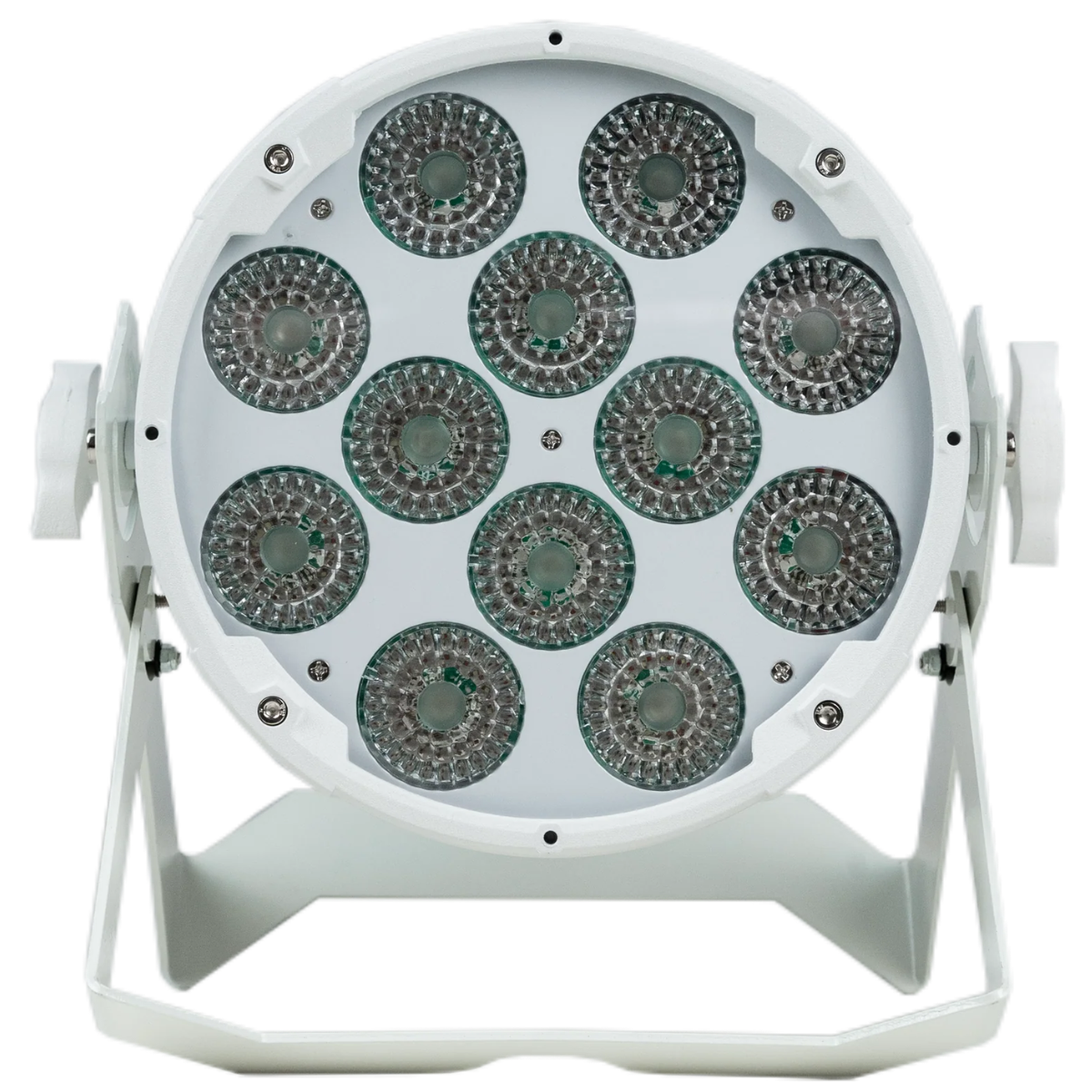

LED PAR Wash Light
The Event Lighting PAR12H-WH is a professional LED PAR wash light designed for high-output performance and flexible lighting control. Featuring 12 x 12W RGBWA+UV LEDs, this fixture produces vibrant color mixing and strong wash coverage, making it ideal for stages, venues, and architectural lighting installations.
Its clean white housing allows the PAR12H-WH to blend seamlessly into venues with light-colored ceilings or décor, making it particularly suitable for wedding venues, churches, theaters, and permanent installations. Professional connectivity including True1 power input/output and 5-pin DMX ensures smooth integration into modern lighting systems.
Event Lighting PAR12H-WH Competitive Differences
- 12 x 12W RGBWA+UV LEDs for powerful output and extended color mixing
- White die-cast aluminum housing ideal for discreet installations
- True1 power connections and 5-pin DMX for professional lighting systems
- Interchangeable beam angles including 30° standard with optional 40°, 25°, and 15°
Event Lighting PAR12H-WH Description
The Event Lighting PAR12H-WH provides strong wash lighting with enhanced color flexibility thanks to its RGBWA+UV LED configuration. This allows lighting designers to produce deeper ambers, crisp whites, and UV-enhanced effects that expand creative possibilities for stage lighting, venue uplighting, and event production.

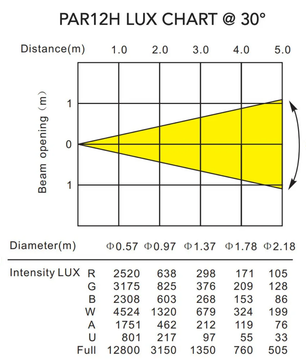

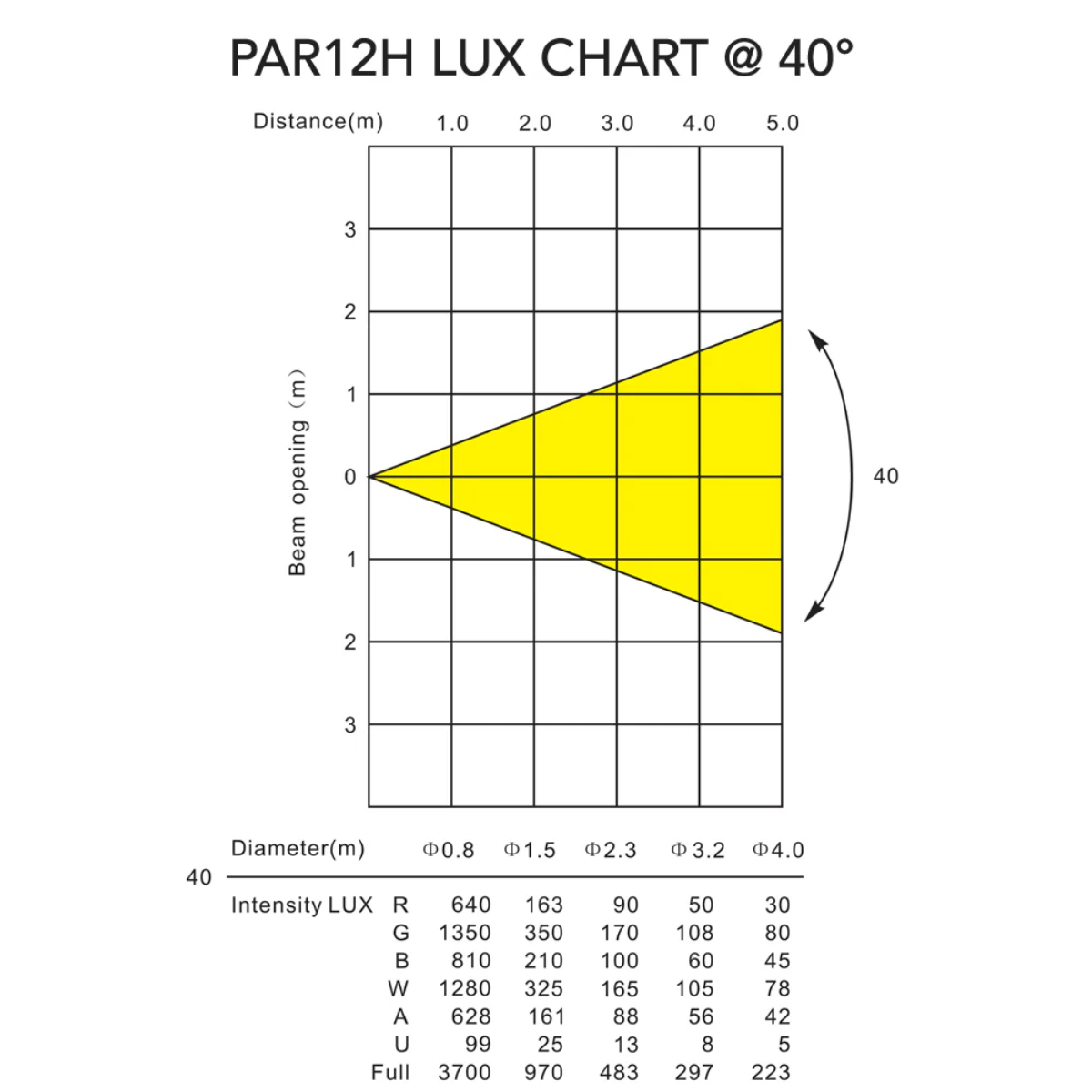

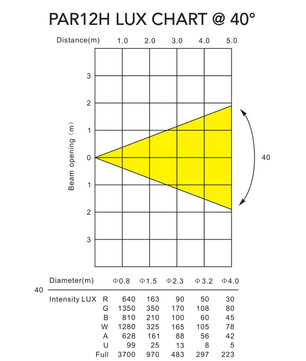

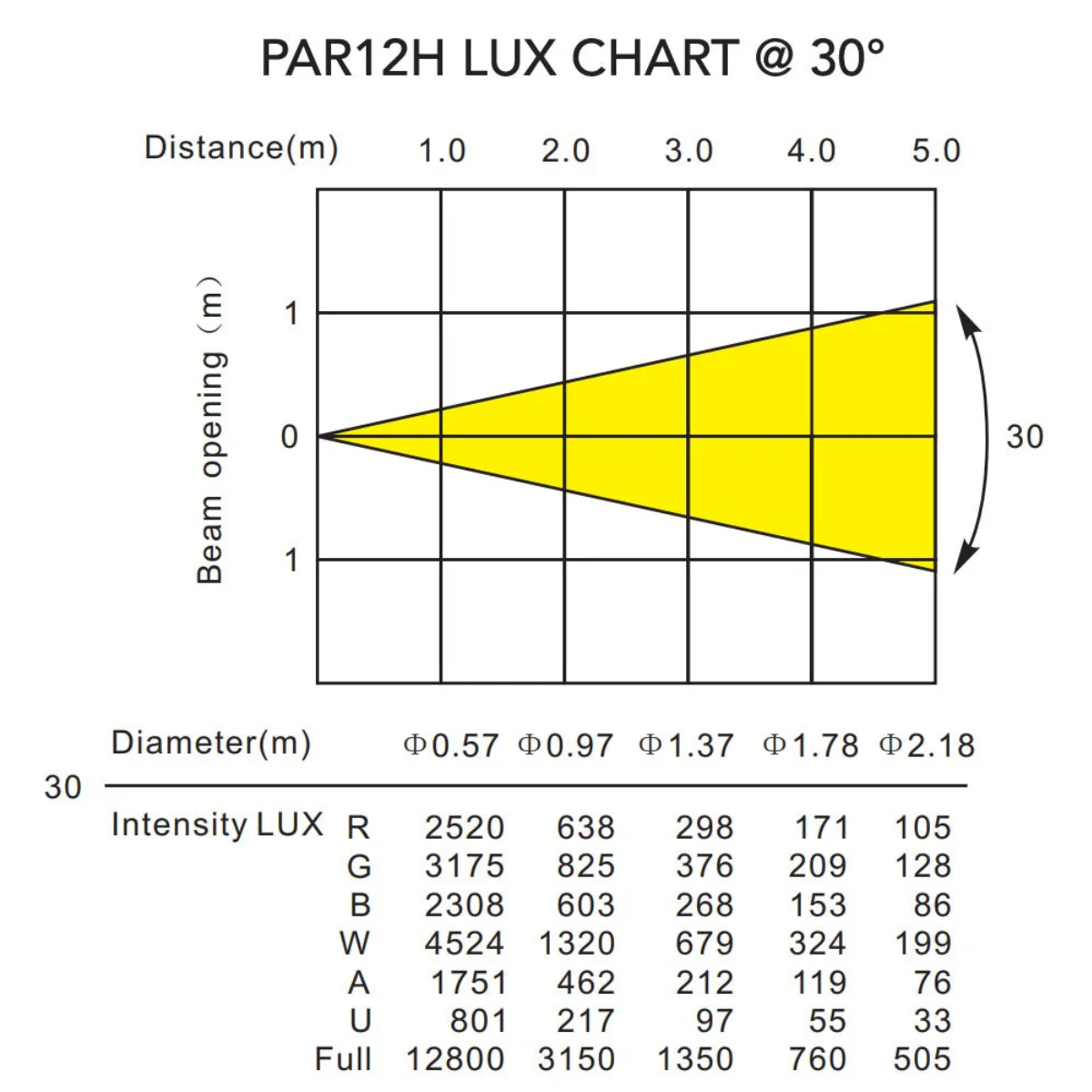

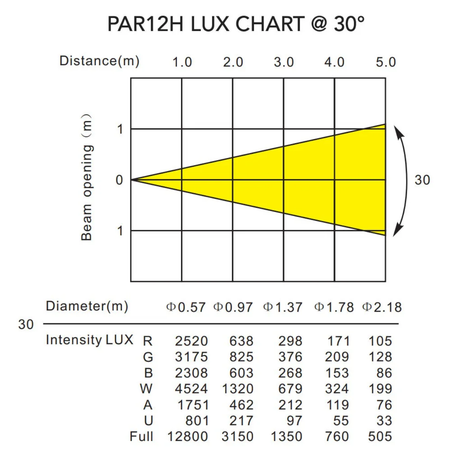

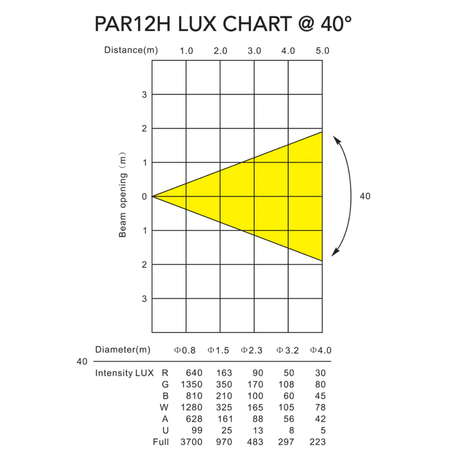

Delivering an output of 3,150 lux at 2 meters, the fixture provides bright and even illumination suitable for medium to large spaces. The standard 30° beam angle offers balanced coverage, while optional 40°, 25°, and 15° lenses allow users to tailor the beam spread for different lighting applications.
Five selectable 16-bit dimming curves allow smooth and precise intensity transitions, while adjustable strobe effects from 1–30Hz provide additional dynamic lighting effects for live performances and productions.
The fixture supports multiple operation modes including DMX, auto run, sound active, manual color control, and master/slave operation. The integrated 4-button LCD control panel makes setup and configuration straightforward, while optional WDMX wireless control adds flexibility for installations and touring setups.
Constructed from durable die-cast aluminum with a white finish, the PAR12H-WH is designed for long-term reliability while maintaining a clean visual appearance. The included omega bracket with quarter-turn quick locks allows quick and secure mounting on truss systems or lighting stands.
PAR12H-WH Features

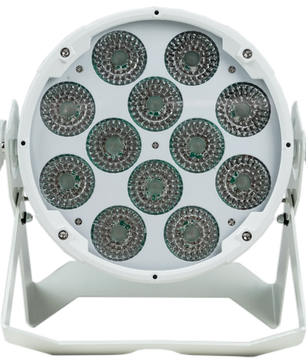

- 12 x 12W RGBWA+UV LEDs
- White die-cast aluminum housing
- Standard 30° beam angle with optional 40°, 25°, and 15° lenses
- 3,150 lux output at 2 meters (full on)
- Five selectable 16-bit dimming curves
- Adjustable strobe effect from 1–30Hz
- Multiple DMX channel modes for flexible programming

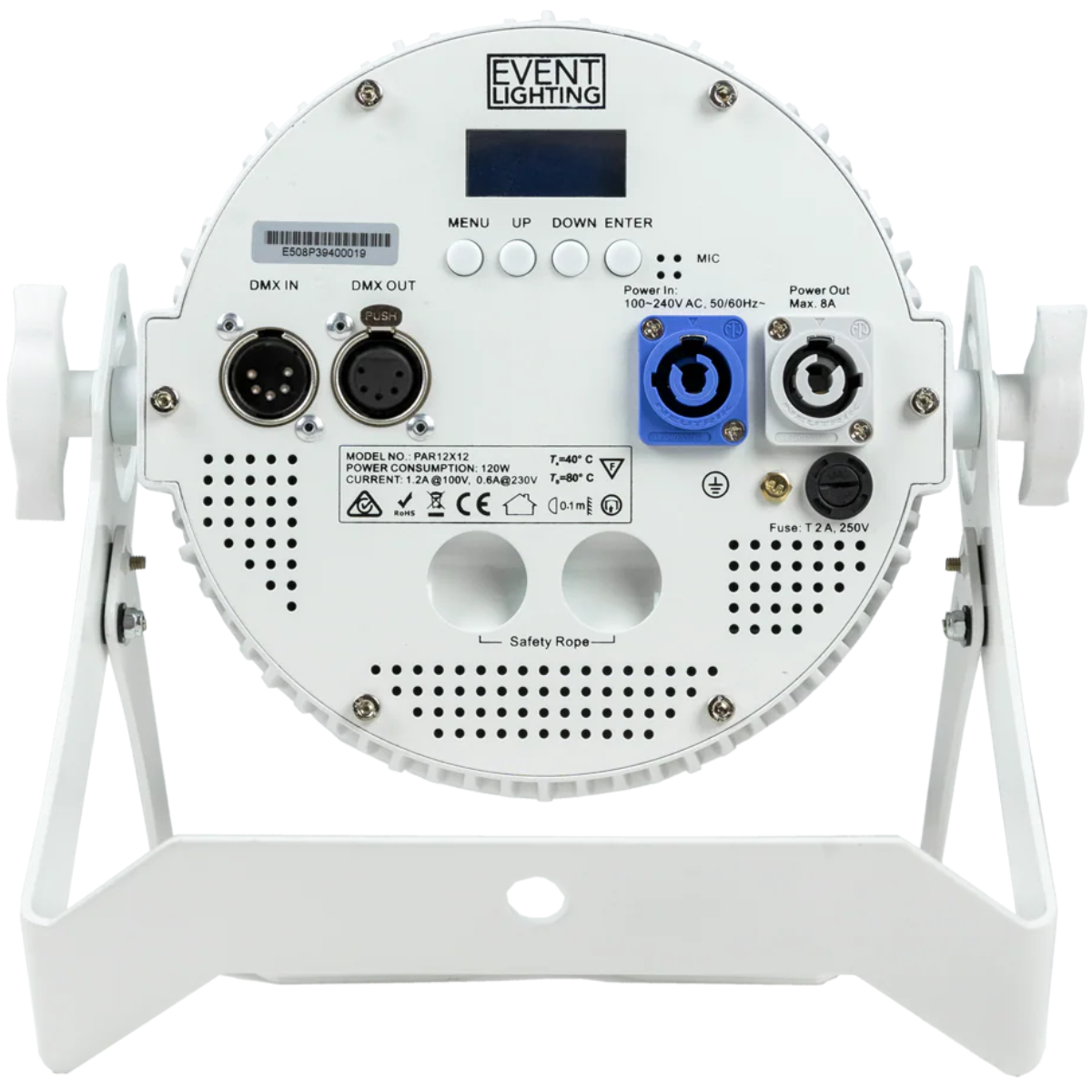

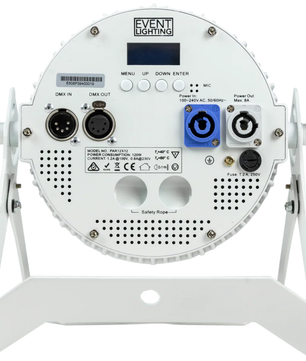

- True1 power input and output connections
- 5-pin XLR DMX input and output
- 4-button LCD control panel
- Fanless cooling for silent operation
- Omega bracket with quarter-turn quick locks for fast rigging
PAR12H-WH Specifications
- Light Source: 12 x 12W RGBWA+UV LEDs
- Beam Angle: 30° (Optional 40°, 25°, 15°)
- Output: 3,150 lux @ 2.0 m (full on)
- PWM Frequency: 2,940Hz
- LED Lifespan: 50,000 hours
- Dimming: 5 x 16-bit dimming curves
- Strobe: 1–30Hz
- Input Voltage: 100–240V AC, 50/60Hz
- Power Consumption: 120W
- Power Connection: True1 In/Out
- DMX Protocol: DMX512
- DMX Channel Modes: 1 / 2 / 3 / 4W / 4A / 6 / 8 / 12 / 14
- DMX Interface: 5-pin XLR In/Out
- Display: 4-button LCD control panel
- Housing: Die-cast aluminium with white finish
- Cooling: Fanless
- Dimensions: 10.4 x 11.5 x 3.9 in (263 x 293 x 98 mm)
- Weight: 7.1 lb (3.2 kg)
What's In The Box
- Event Lighting PAR12H-WH LED PAR fixture
- Omega mounting bracket with quarter-turn quick locks
- User manual
