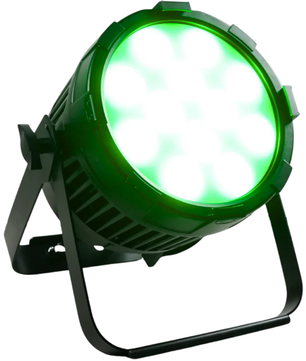

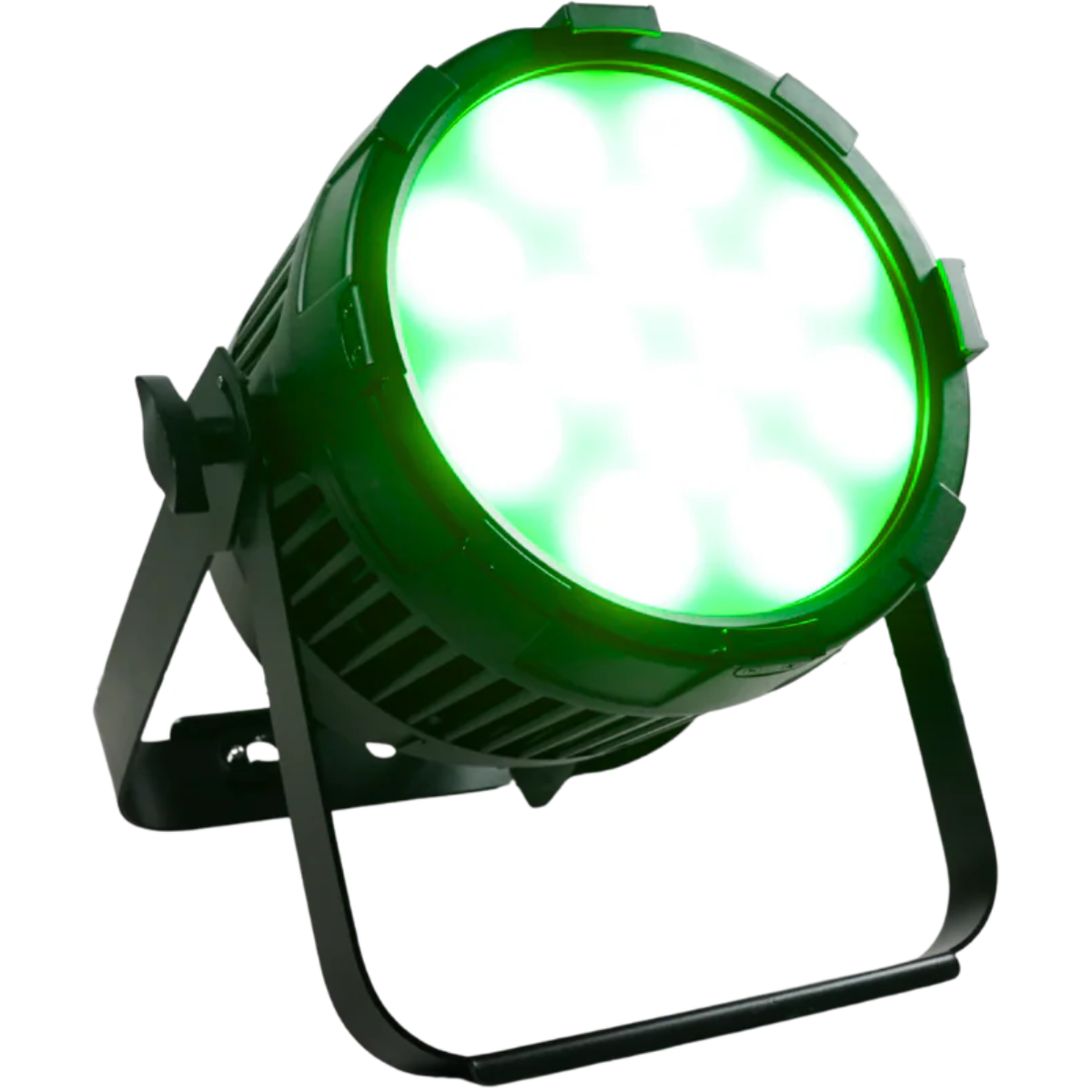

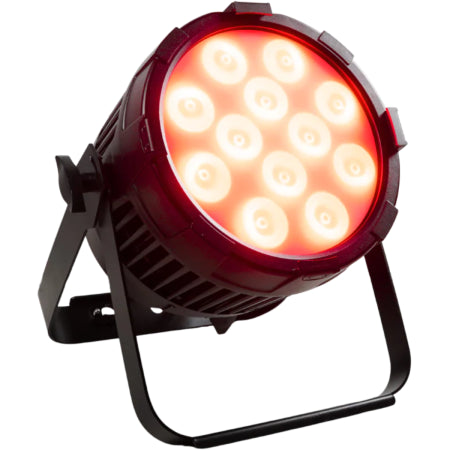

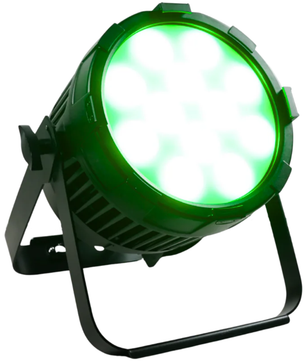

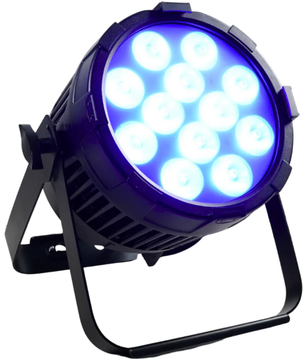

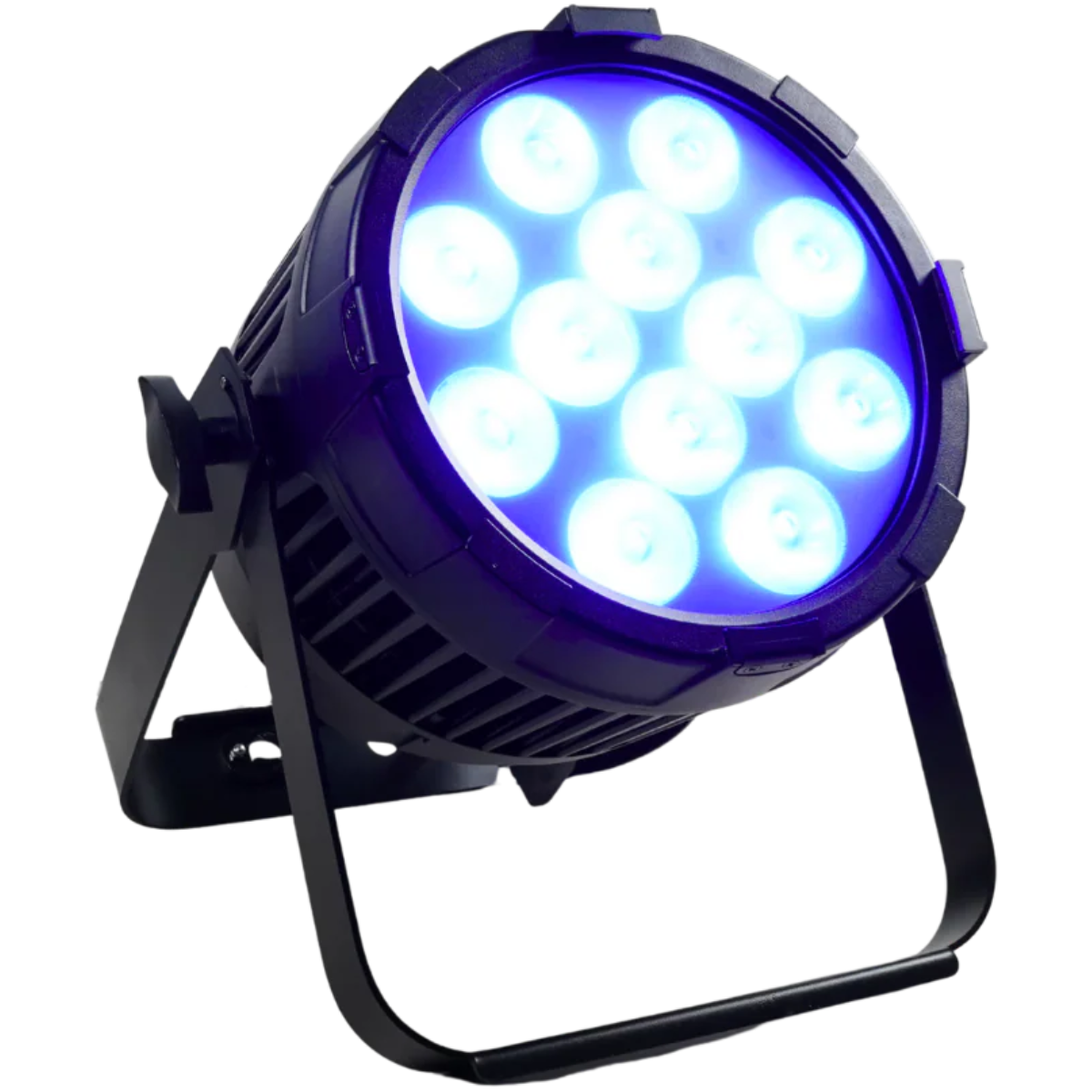

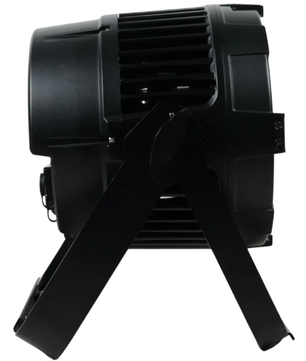

IP65 RGBWAU LED Par Light

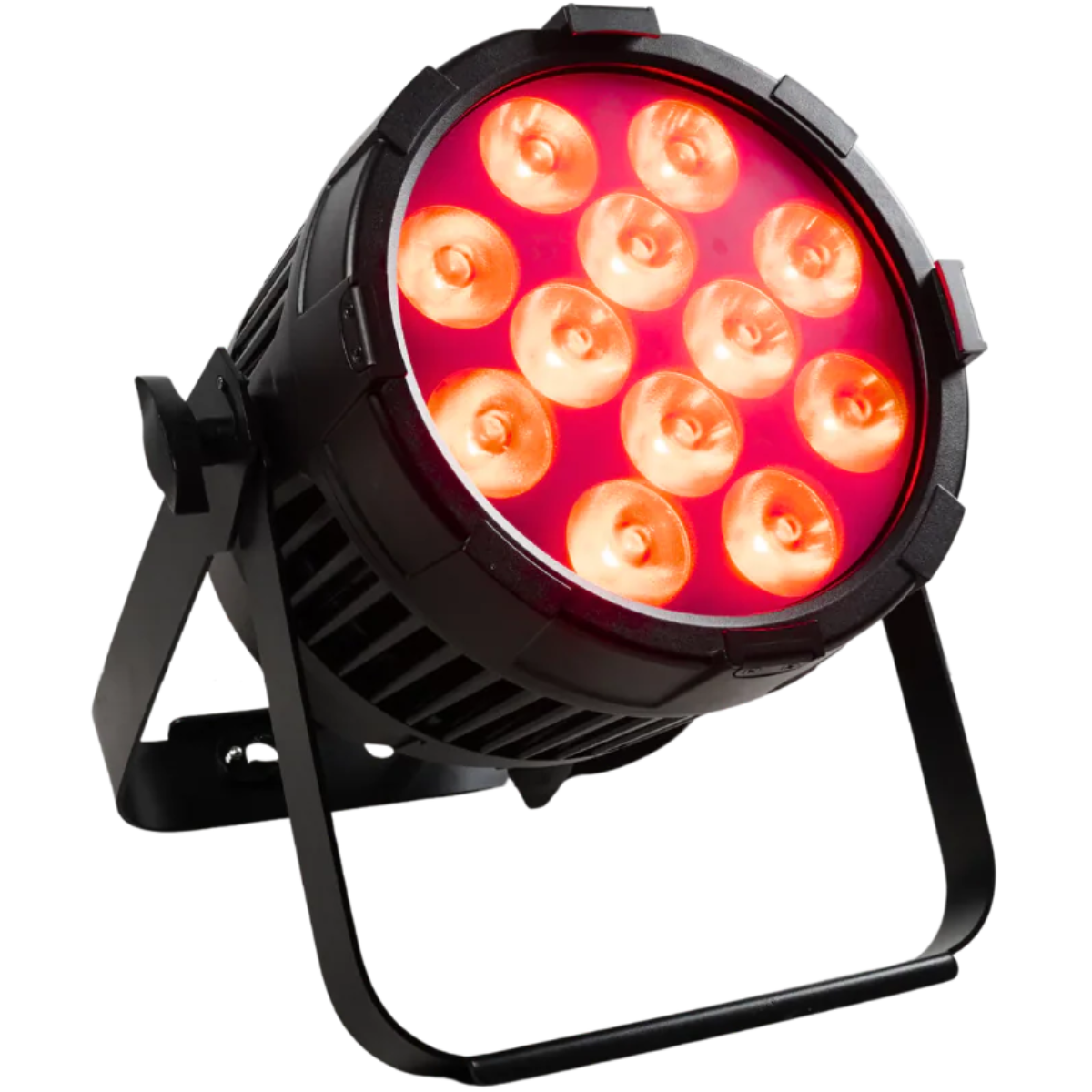

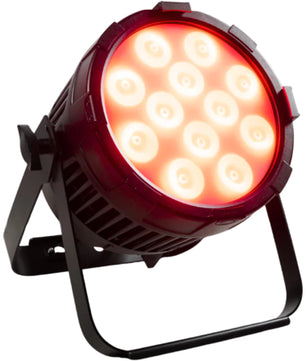

Event Lighting PARF12X20HIP is a weatherproof IP65-rated LED par fixture designed for professional stage, architectural, and event lighting applications. Featuring 12 powerful RGBWAU LEDs and an integrated electronic frost system, it offers vibrant color mixing, flexible beam shaping, and reliable performance in both indoor and outdoor environments.
Event Lighting PARF12X20HIP Competitive Differences
- 12 x 20W RGBWAU LEDs providing rich color mixing with extended palette control
- Electronic frost system allows quick beam diffusion without external filters
- IP65-rated housing for outdoor use and weather resistance
- Fanless cooling design for silent operation in theatre and broadcast environments
- Multiple control modes including DMX, WDMX wireless DMX, and RDM support
Event Lighting PARF12X20HIP Description

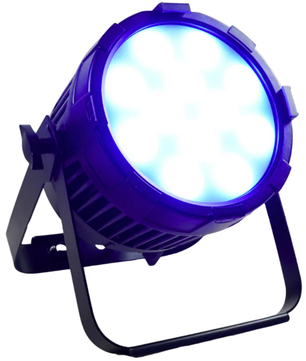

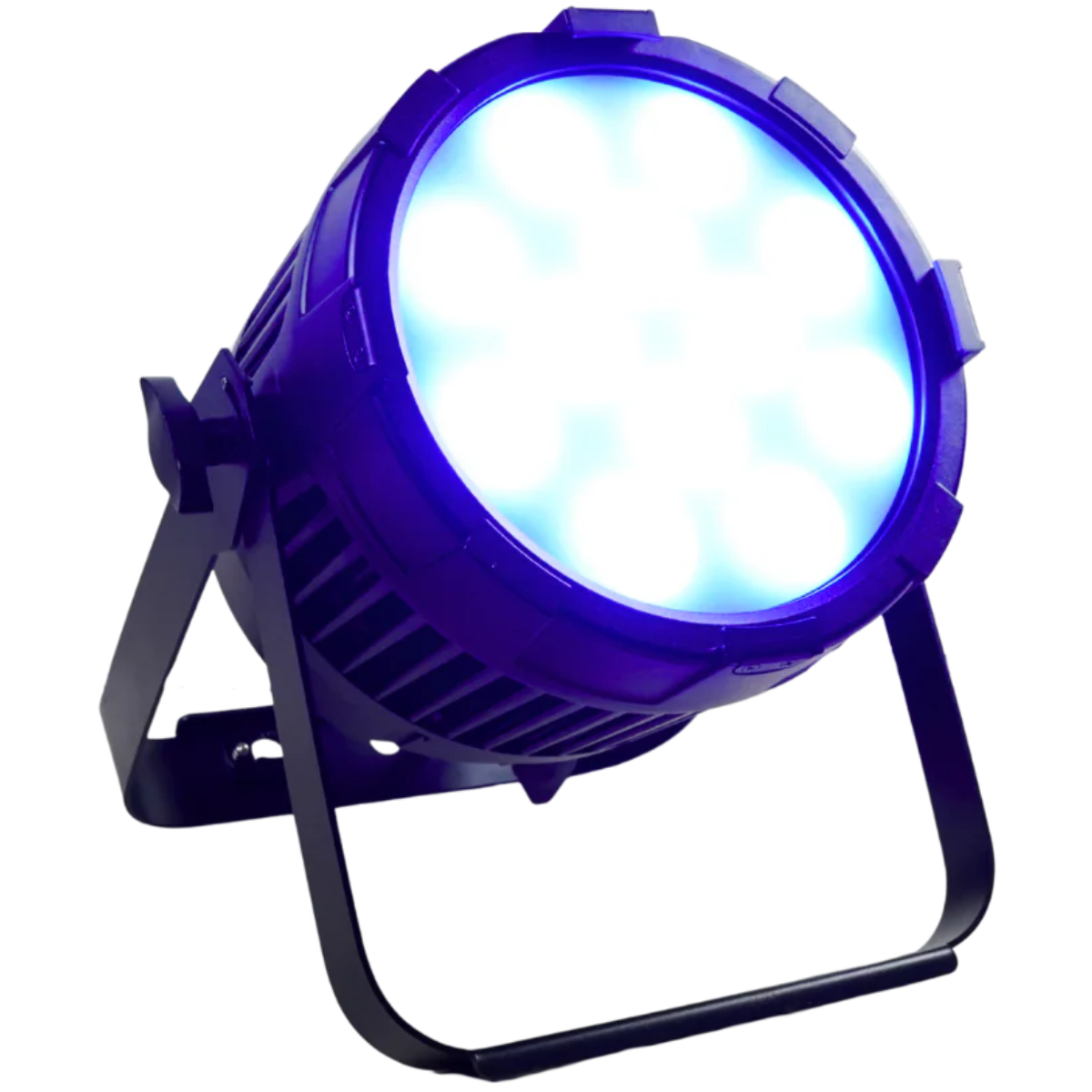

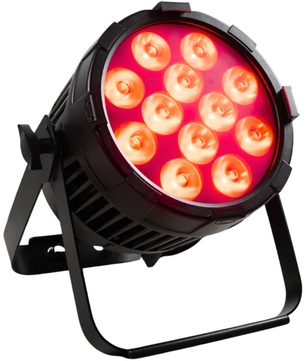

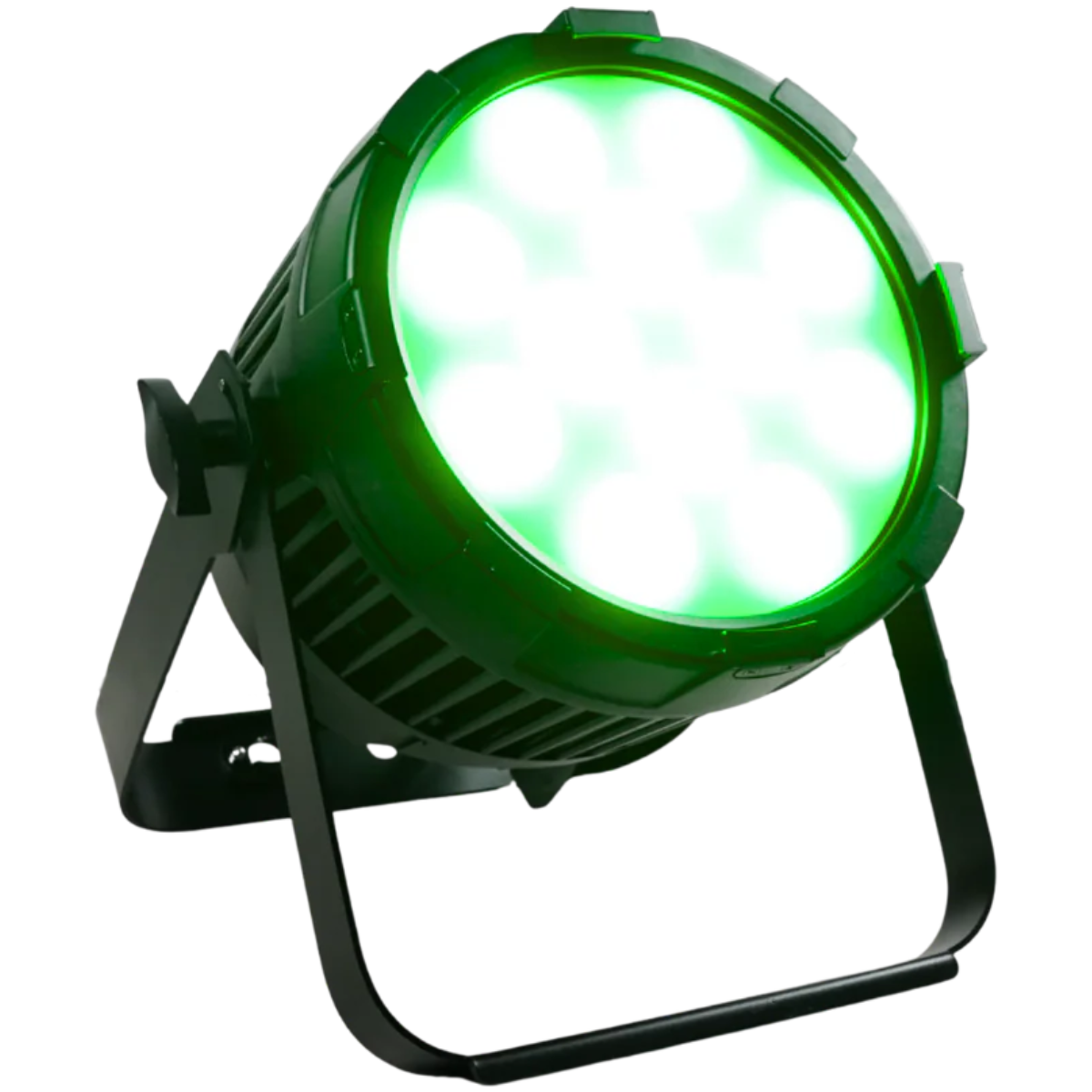

The Event Lighting PARF12X20HIP delivers powerful color output using 12 high-performance 20W RGBWAU LEDs, enabling a wide color spectrum with enhanced pastel tones and color blending capabilities. This flexibility makes it suitable for stage lighting, architectural illumination, corporate events, and outdoor productions.

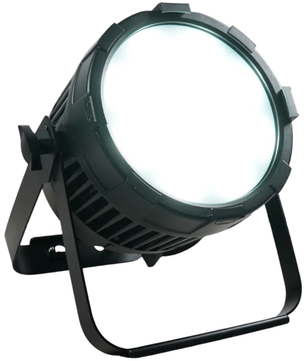

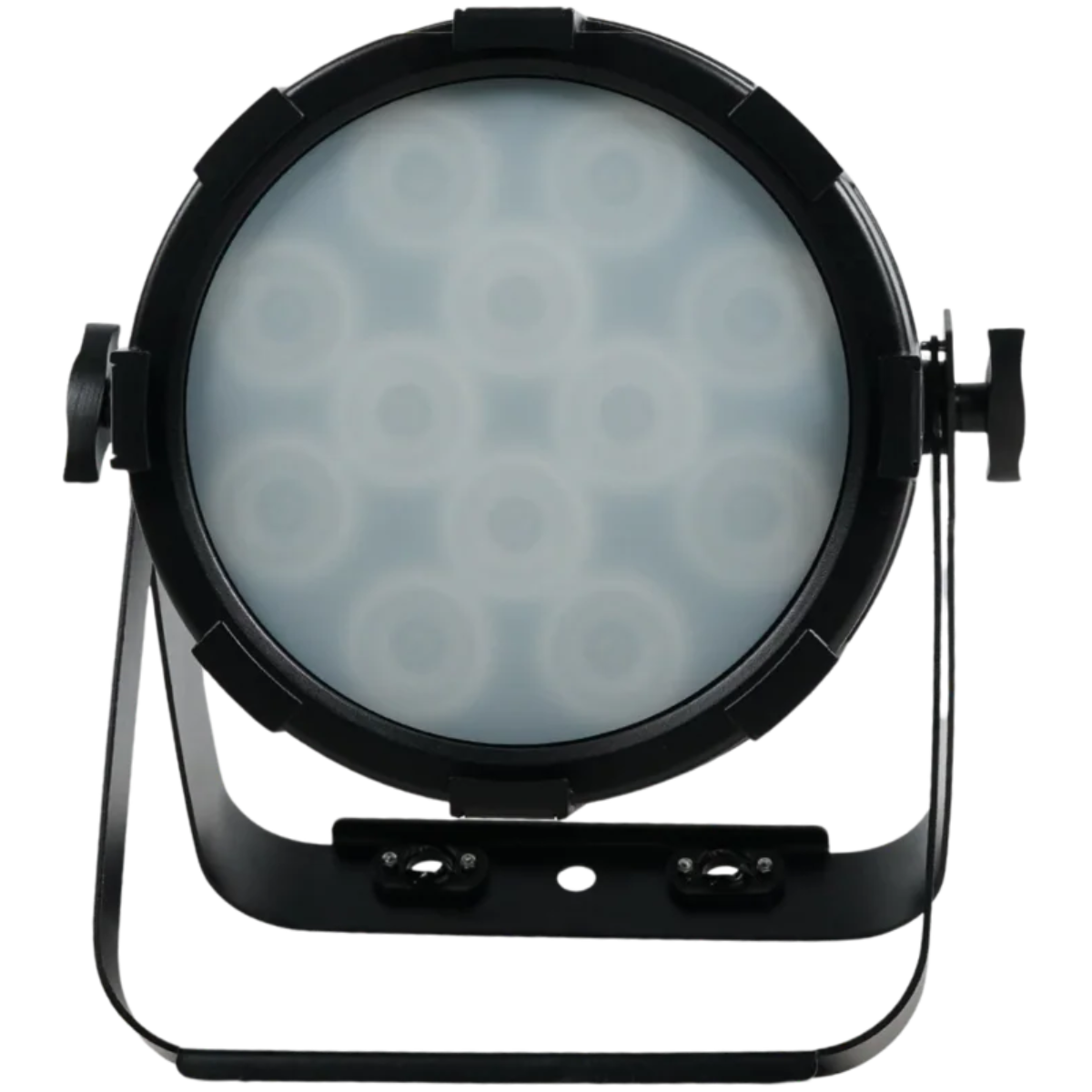

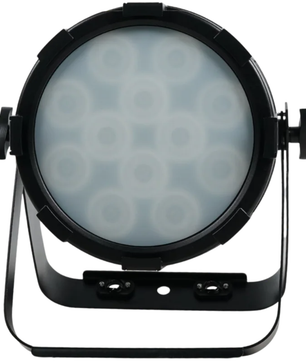

The fixture produces a focused 10° beam with an output of up to 12,700 lux at 2 meters. An integrated electronic frost allows lighting designers to soften the beam quickly, providing additional versatility for wash lighting or smooth coverage without the need for physical diffusion filters.

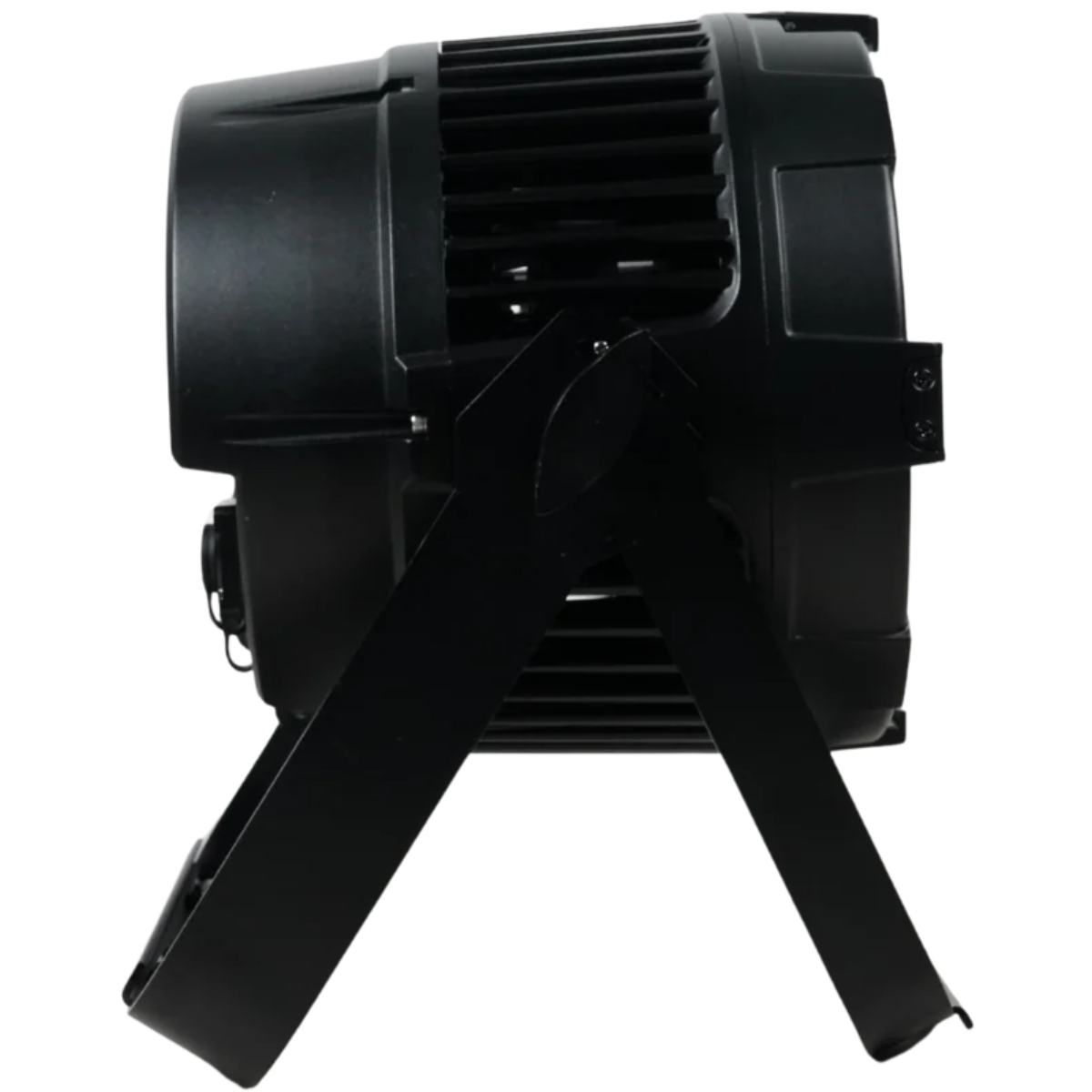

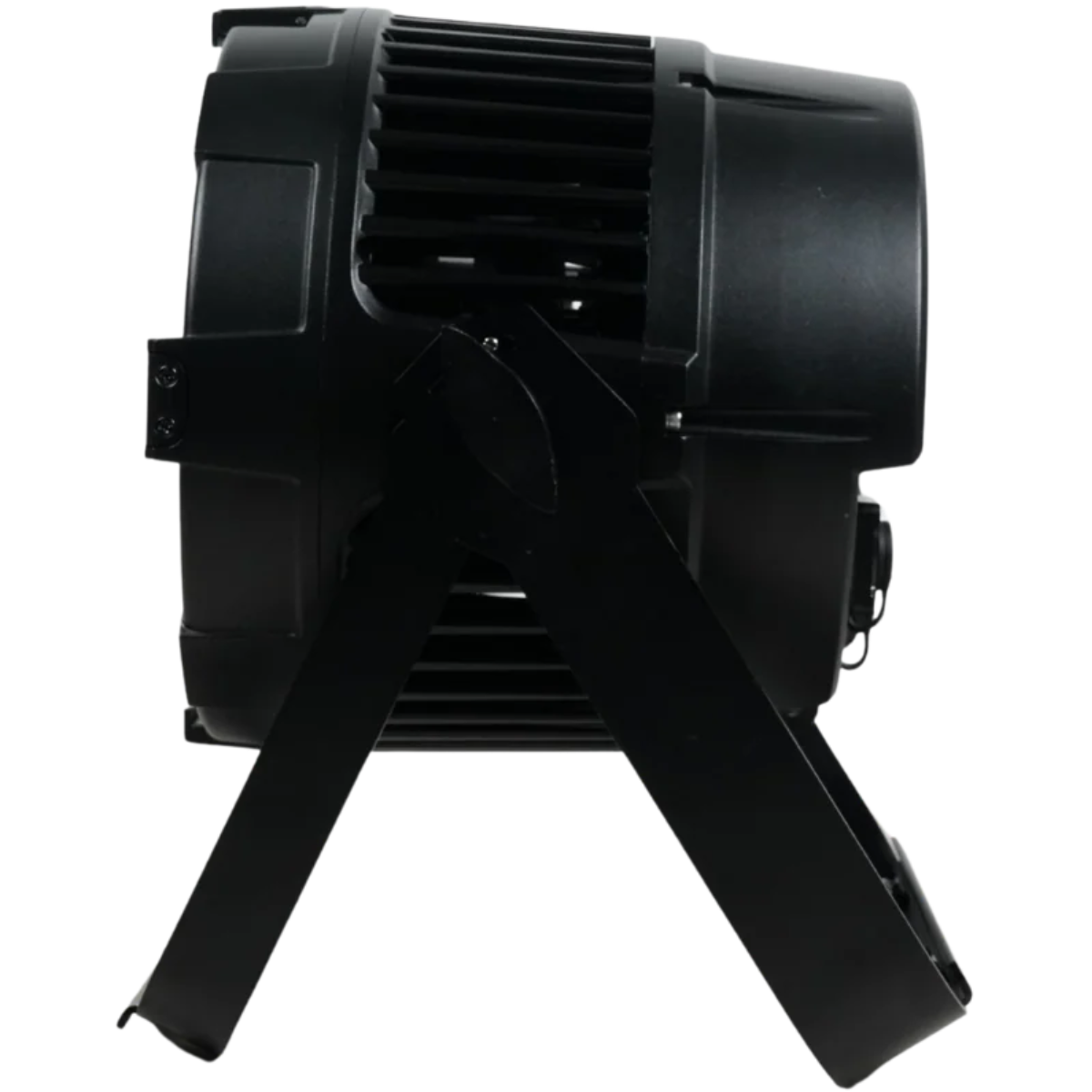

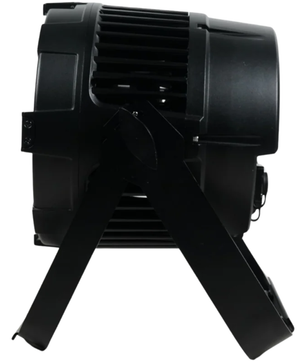

Built for reliability, the PARF12X20HIP features an IP65-rated die-cast aluminum housing with a matte black finish, protecting internal components from dust and water. Its fanless cooling system ensures silent operation, making it well suited for theatre productions, broadcast environments, and installations where noise must be minimized.

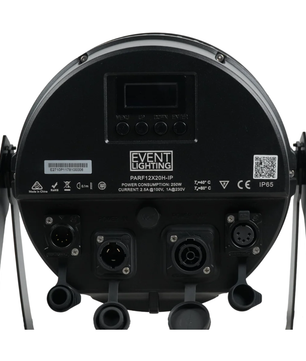

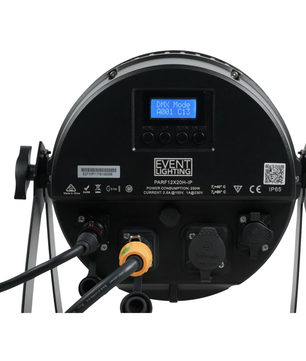

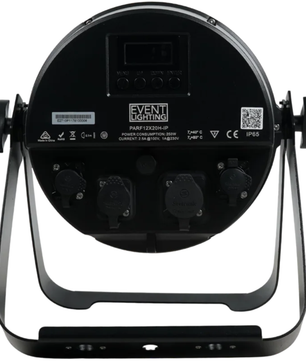

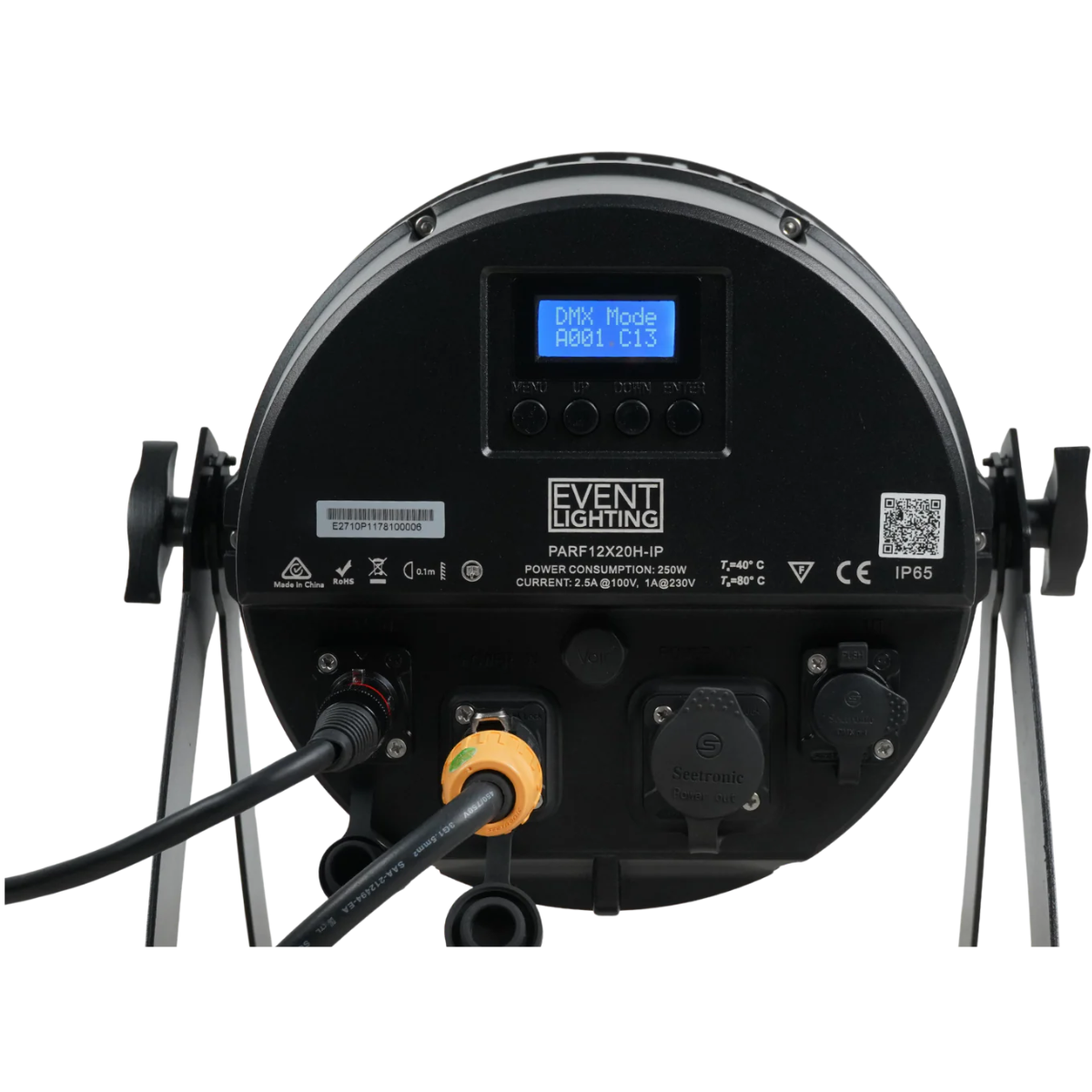

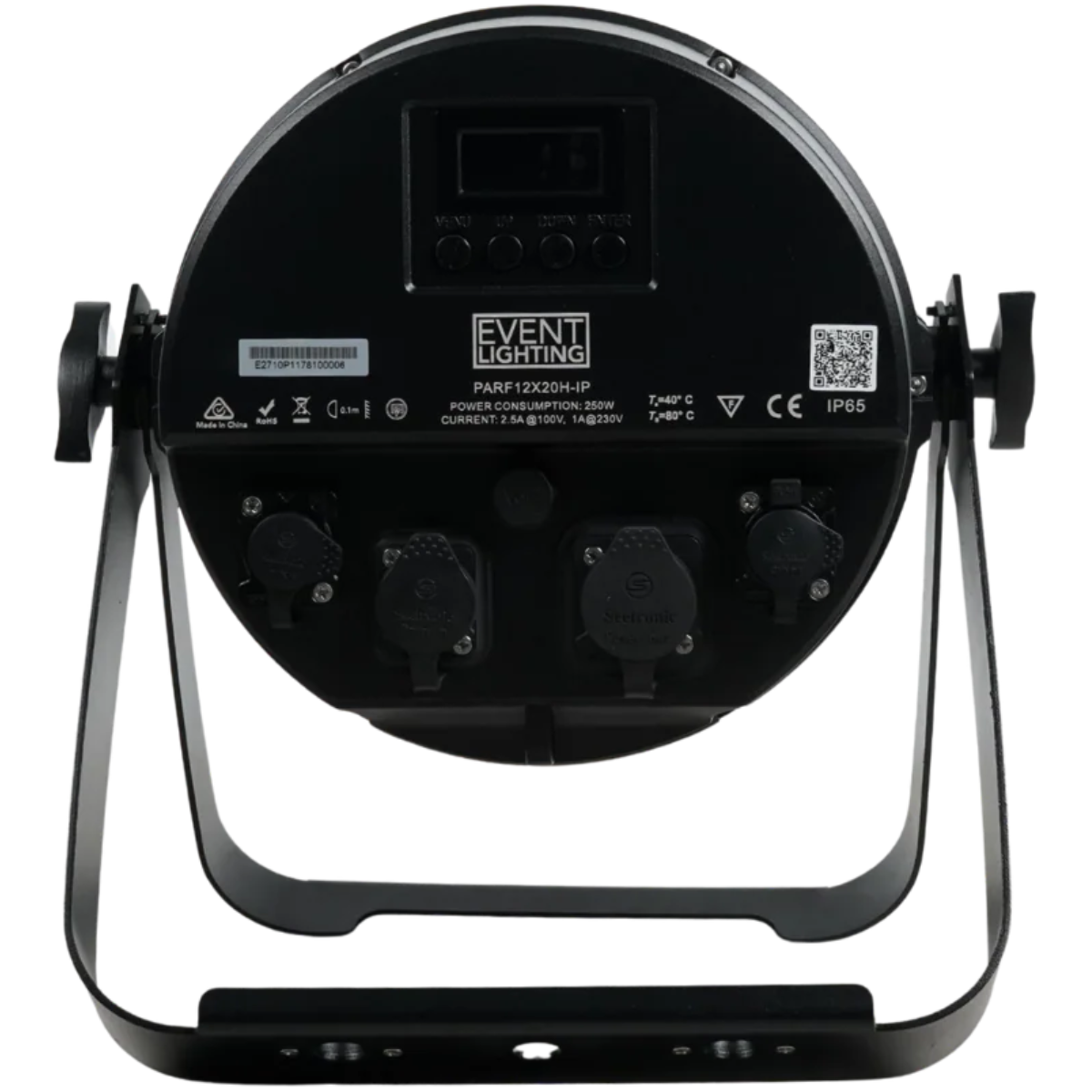

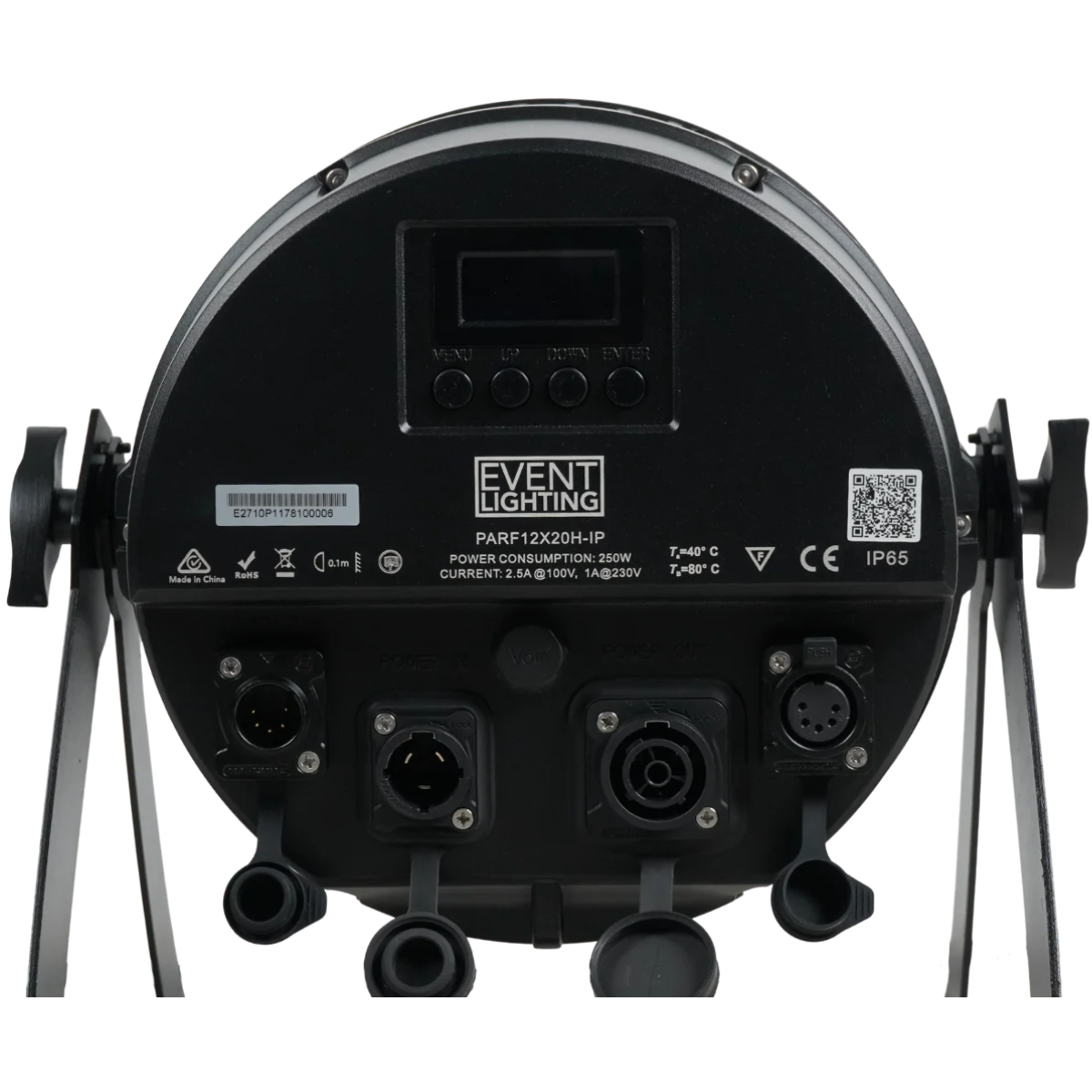

Control options include DMX512, wireless DMX (WDMX), RDM support, and standalone modes such as auto run, sound active, master/slave, manual, and static operation. A 4-button LCD display panel allows easy configuration, while professional-grade TrueOne power connections and 5-pin XLR DMX connectors ensure reliable system integration.
PARF12X20HIP Features
- 12 x 20W RGBWAU LEDs for vibrant color mixing
- Electronic frost for adjustable beam diffusion
- 10° beam angle with high-intensity output
- Five selectable 16-bit dimming curves
- Strobe effect from 1 to 30 Hz
- IP65-rated weatherproof construction
- Fanless cooling system for silent operation
- DMX, WDMX wireless DMX, auto run, sound active, master/slave, manual, and static modes
- RDM support for remote fixture management
- 4-button LCD control panel
- TrueOne power input and output connectors
- 5-pin XLR DMX input and output
- Omega mounting bracket with 1/4 turn quick locks
PARF12X20HIP Specifications
- Light Source: 12 x 20W RGBWAU LEDs
- Beam Angle: 10° (Electronic Frost Included)
- Output: 12,700 lux @ 6.6 ft (2.0 m)
- Refresh Rate: 1,200 Hz
- Dimming: 5 x 16-bit dimming curves
- Strobe: 1–30 Hz
- DMX Protocol: DMX512
- DMX Channel Modes: 1 / 2 / 3 / 4W / 4A / 6 / 8 / 13 / 14
- Operational Modes: DMX, WDMX, Auto Run, Sound Active, Master/Slave, Manual, Static, RDM
- Input Voltage: 100–240V AC, 50/60 Hz
- Power Consumption: 250W
- Fuse: T2A 250V
- Power Connections: TrueOne Input / Output
- DMX Connections: 5-Pin XLR Input / Output
- Cooling: Fanless
- Housing Material: Die-cast aluminum, matte black finish
- Dimensions: 11.8 x 8.5 x 13.1 in (299 x 217 x 333 mm)
- Weight: 14.3 lb (6.5 kg)
What's In The Box
- Event Lighting PARF12X20HIP fixture
- Omega mounting bracket with quick locks
- Power cable
- User documentation
