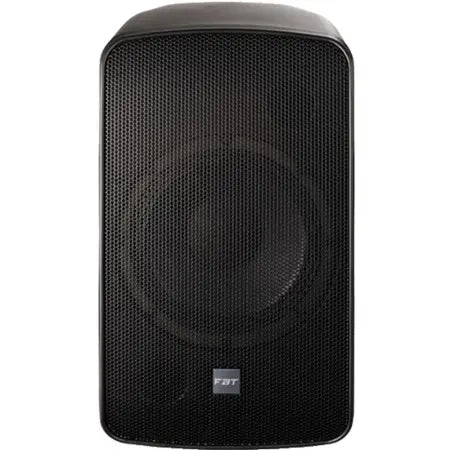

FBT Canto 8C Passive | 8in - 125dB | Coaxial Speaker, 80° Conical Dispersion

Passive Coaxial Loudspeaker

FBT Canto 8C is a passive 2-way coaxial loudspeaker designed for high-fidelity sound reproduction in fixed installations. Housed in a durable, gas-injected polypropylene enclosure, it delivers balanced performance with sleek aesthetics, available in black or white finishes. Its 80° conical dispersion ensures wide, even coverage, making it ideal for commercial spaces, venues, and public environments.

FBT Canto 8C Competitive Differences

• 8” coaxial woofer with 1” HF driver for full-range clarity
• Compact, lightweight polypropylene cabinet with wall-mount options

FBT Canto 8C Description

The FBT Canto 8C combines powerful acoustic output with low-distortion performance in a discreet, compact form factor. Its coaxial design helps maintain phase coherence and consistent sound quality across the listening area, making it equally suited for speech and music. Rated at 125W long-term and 500W short-term power handling, the Canto 8C is built to integrate easily into professional audio systems using external amplification and DSP. With 96dB sensitivity and a 125dB peak SPL, it delivers ample output for small to medium-sized installations. Installation is streamlined with a 4-pin Euroblock connector and dual mounting points compatible with the WM-68 wall bracket. This allows both horizontal and vertical adjustment with minimal visual impact. Whether you're outfitting a hospitality space, corporate facility, or worship venue, the Canto 8C delivers reliable sound and aesthetic flexibility.

Model Features

• Two-way coaxial design with 8” LF woofer and 1” HF driver
• 80° conical dispersion for uniform sound coverage
• Lightweight gas-injected polypropylene enclosure
• Wall-mountable with WM-68 bracket support
• Available in black or white finish

Model Specifications

• Max SPL: 125dB Peak
• Power Output: 500W Peak / 125W Long Term
• Dimensions: 9.4 x 16.3 x 9.4 in (240 x 416 x 240 mm)
• Weight: 13.4 lb (6.1 kg)
• Impedance: 8 Ohms
• Frequency Response: 60Hz – 20kHz (-6dB)
• Sensitivity: 96dB @ 1W/1m
• Crossover Frequency: 2 kHz
• Input Connector: 4-pin Euroblock
• Product Code: 45476 (Black), 45475 (White)

What's In The Box

• FBT Canto 8C Speaker
• 4-pin Euroblock connector
• Quick start guide
