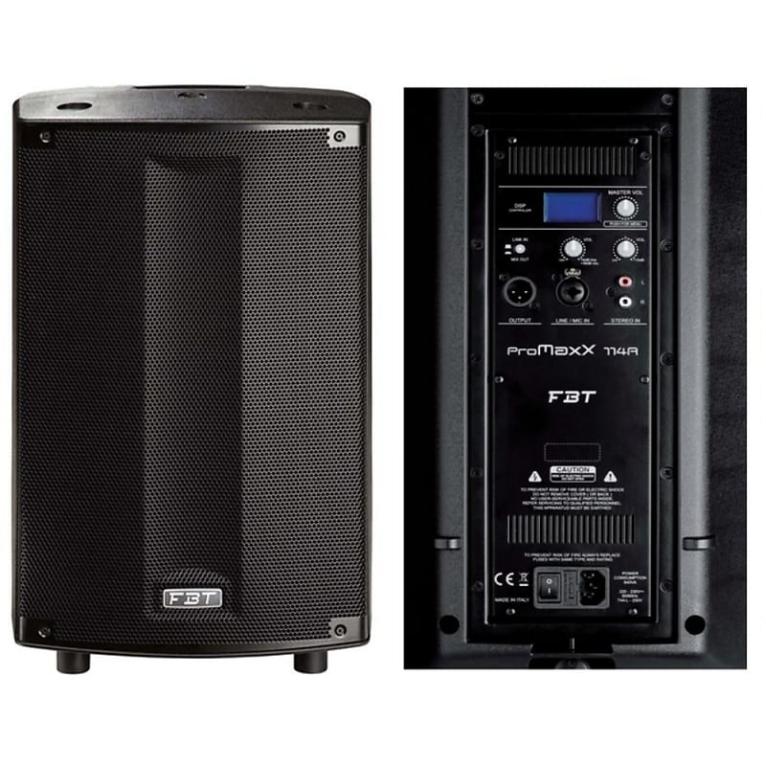

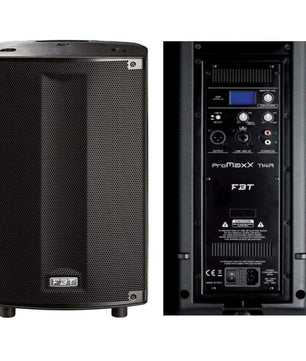

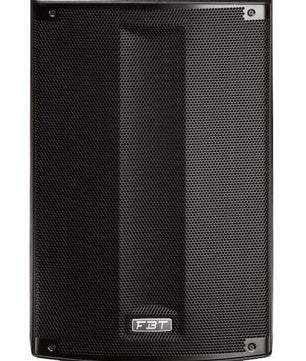

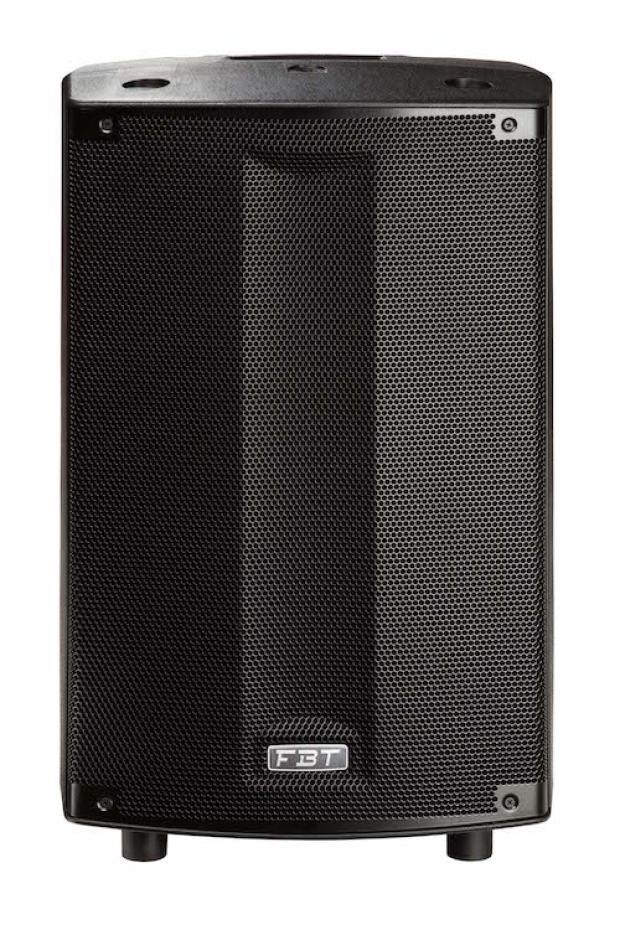

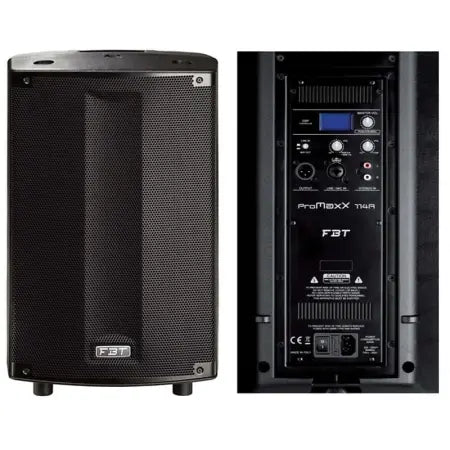

FBT ProMaxX 114A | 14in - 135.5dB Powered Speaker | DSP with 6 Presets & B&C Drivers

Powered PA Speaker

The FBT ProMaxX 114A is a high-performance, 2-way active speaker designed for versatility and powerful audio in a lightweight enclosure. Featuring a custom 14" neodymium woofer and a B&C HF compression driver, it delivers up to 135.5dB SPL with exceptional clarity. Built-in DSP with six tailored presets lets users adapt the speaker’s voicing for any application—live sound, DJ, touring, vocal reinforcement, and more.

FBT ProMaxX 114A Competitive Differences

• Custom 14" B&C neodymium woofer in a compact molded enclosure
• 6 DSP presets with onboard display and rotary encoder

FBT ProMaxX 114A Description

The FBT ProMaxX 114A is engineered for professional users who demand high SPL output, clarity, and reliability in a portable format. At its core is a powerful 900W RMS bi-amplified system (700W LF + 200W HF) driving a custom 14” woofer with 3” voice coil and a 1.4” B&C compression driver, providing rich lows and articulate highs across a wide 45Hz–20kHz frequency range. A built-in digital signal processor with graphical display and rotary encoder makes it easy to access and control six finely tuned presets:

• ORIGINAL / LIVE: Delivers the classic FBT sound signature
• VOCAL: Enhances speech intelligibility
• DJ: Optimized for high-energy music playback
• TOURING: Reliable voicing for road use
• LOUDNESS: Full tone at lower volumes
• WARM: Emphasizes full-bodied low-mid presence

Constructed from gas-injected polypropylene, the cabinet is lightweight yet highly durable, with integrated rigging points and multiple floor monitor angles (12°, 40°, 55°). The ProMaxX 114A also includes a top-hat for pole mounting and a flange for optional wall mounting, making it suitable for a wide range of applications from FOH to floor monitoring to installed sound.

Model Features

• Bi-amplified 700W LF + 200W HF RMS power
• 14" neodymium woofer with 3" voice coil (custom B&C)
• 1.4" B&C HF driver with 2.5" voice coil
• Digital DSP with graphical interface and 6 EQ presets
• 90° x 60° constant directivity horn
• Multiple monitor angles and top-hat pole mount
• Lightweight 40.8 lb (18.8 kg) polypropylene cabinet

Model Specifications

• Max SPL: 135.5dB
• Power Output: 900W RMS (700W LF + 200W HF)
• Frequency Response: 45Hz – 20kHz
• Dimensions: 25.4 x 15.8 x 13.6 in (644 x 402 x 345 mm)
• Weight: 41.4 lb (18.8 kg)
• UPC: Not specified

What's In The Box

• Main unit
• Power cable
• Quick start guide
