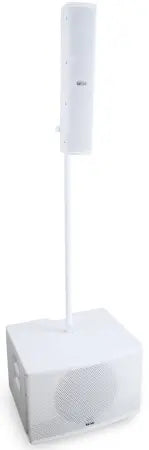

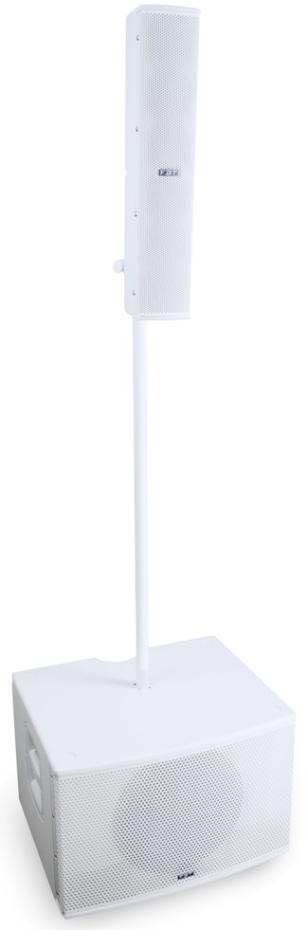

FBT VERTUS CS-1000 White | Compact 1000W Column Array | 129dB SPL with Built-In DSP & Storage

Compact Column Array PA System

The FBT VERTUS CS-1000 (White) is an all-in-one, portable column line array system delivering professional performance in a compact and elegant design. With 1000W RMS of bi-amplified power and a peak SPL of 129dB, this system features a 12" subwoofer and a 6-driver passive satellite for powerful, controlled audio dispersion. Ideal for both live events and permanent installations, the CS-1000 offers plug-and-play simplicity, storage convenience, and premium sound quality in one sleek package.

FBT VERTUS CS-1000 Competitive Differences

• All-in-one design with satellite, pole, and cable stored inside the subwoofer
• 129dB SPL with Class-D amplification and onboard DSP with 8 presets

FBT VERTUS CS-1000 Description

The FBT VERTUS CS-1000 redefines portable line array systems with a focus on power, modularity, and elegant integration. Its bi-amplified Class-D design pushes 600W RMS to the subwoofer and 400W RMS to the satellite, creating a wide frequency response from 40Hz to 20kHz. The subwoofer features a long-excursion 12" driver, while the slim satellite includes six high-efficiency 3" neodymium drivers arranged in a J-array for tight vertical and wide horizontal coverage (110° H x 30° V). Designed with convenience in mind, the CS-1000’s pole, satellite, and connection cables are fully housed within the subwoofer’s body, making transport and setup quick and easy. A push-button locking system keeps everything secure, and the integrated aluminum handles with rubber inserts offer comfort on the move. DSP processing with 8 preset EQ modes lets you optimize the sound for vocals, DJs, live music, or installations. Additionally, the adjustable 3-piece pole mount allows vertical aiming of the satellite array, ensuring optimal coverage in any venue. The modular design allows expansion by pairing two systems per side using optional accessories—boosting SPL and extending vertical dispersion for larger events. Finished in white, this version of the CS-1000 blends perfectly into elegant venues, modern houses of worship, or upscale corporate installations where visual impact matters as much as sonic performance.

Model Features

• Compact line array with integrated subwoofer and passive satellite
• 600W LF + 400W HF RMS Class-D amplification (2000W peak)
• 12" long-excursion subwoofer with 2.5" voice coil
• 6 x 3" neodymium drivers with 0.75" coils in J-array configuration
• 110° horizontal x 30° vertical dispersion pattern

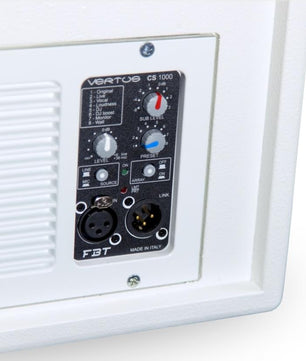

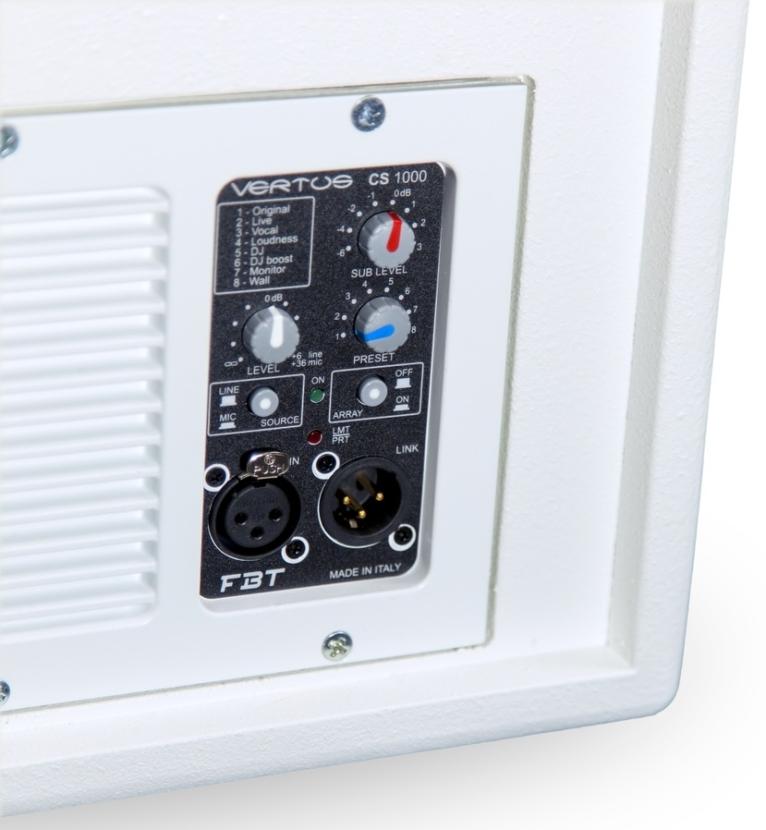

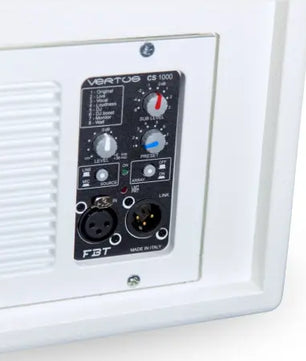

• Built-in DSP with 8 presets and variable volume control

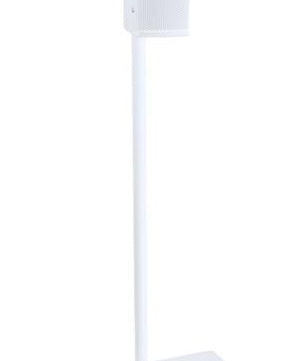

• 3-section pole with adjustable height and vertical aiming

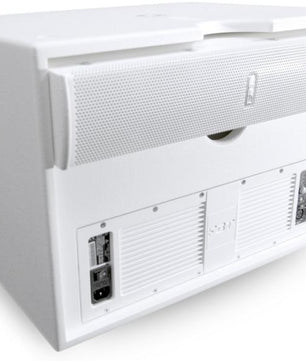

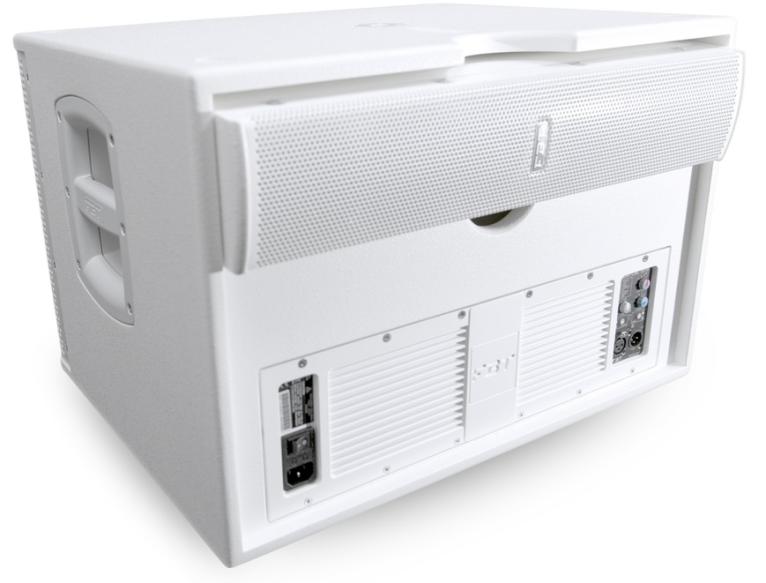

• Storage for pole and satellite inside the subwoofer with secure locking system
• White finish for discreet integration into stylish environments

Model Specifications

• Max SPL: 129dB
• Power Output: 1000W RMS (600W LF + 400W HF), 2000W Peak
• Frequency Response: 40Hz – 20kHz
• Dispersion: 110° H x 30° V
• Crossover Frequency: 180Hz
• Input Impedance: 22kOhm
• Input Connector: XLR
• Satellite Di
