HH Electronics TNA-2051 | Dual 5in - 124dB

HH Electronics TNA-2051 | Dual 5in - 124dB

$529.99

Order within [hour] to get by [date_end]

Quantity

Direct Ship from Our Supplier

Guarantee Safe
Checkout

trust_2dea69ed-7223-44f3-828d-a80bc0f3aef4

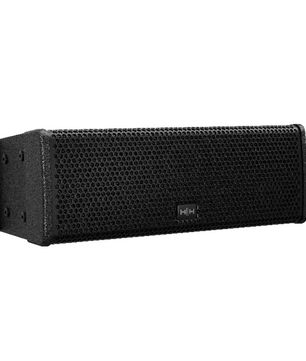

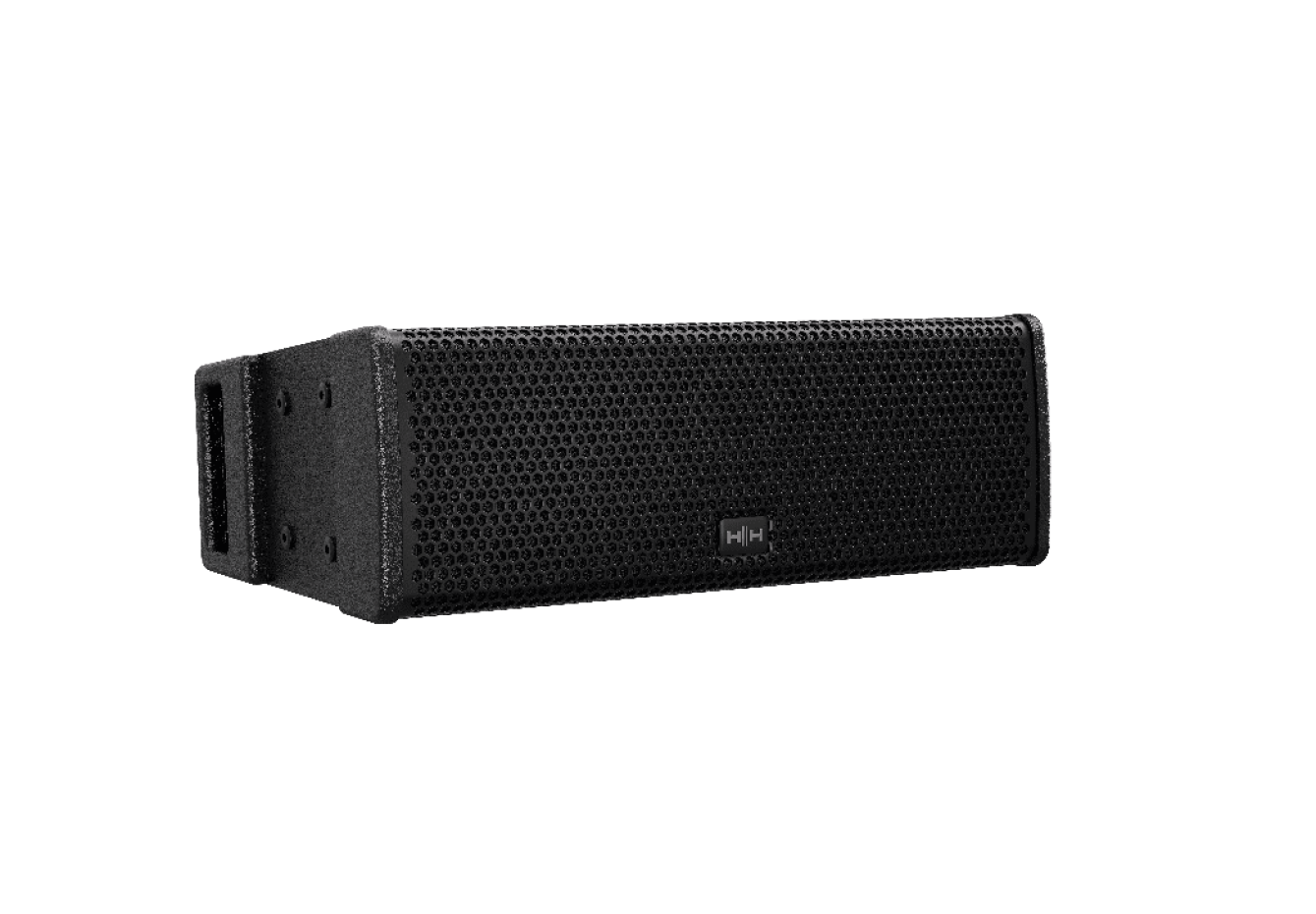

The TNA-2051 passive line array mid/high enclosure features dual 5-inch HH designed drivers alongside a 1.33-inch custom designed Celestion compression driver, mounted to a custom designed Celestion wave guide and horn. Equipped with integrated rigging hardware, the TNA-2051 can be installed efficiently. The TNA-2051 delivers a max SPL of 124dB with a wide frequency range of 65Hz > 20kHz. When combined with the TNA-2051, the TNA system provides a high specification flown installation system or ground stacked point source solution. The perfect live sound system.

SPECIFICATIONS:

Frequency Response (-10)
65Hz - 20kHz
Frequency Response (-3)
100Hz - 18KHz
Power
200W AES, 800W Peak
Sensitivity (1W/1M)
94dB
Max SPL (1M) (Peak)
123dB
Nominal System Impedance
16 Ohms
Input Connector
NL4 ±1 Twist Lock Connector
Link Connector
NL4 ±1 Twist Lock Connector
HF Driver
1 x 1.33 Inch Celestion Compression Driver, mounted to Celestion Designed wave guide and horn
LF Driver
2 x 5 Inch HH designed driver
Crossover Frequency
2000HZ
Nominal Dispersion
120° x 60° (120° x 30° single point)
Splay Angle Settings
Dual Angle, 0° and 8°
Recommended HPF Frequency
100Hz
Cabinet
15mm Plywood
Finish
Painted Black (White finish optional, subject to MOQ)
Mounting Bracket
TNA-BRK1 for suspended mounting
Mounting Points
M8 fixings for optional TNA-BRK1 flying bracket assembly (available separately)
Grille
1.5mm Thickness Steel, Hexagonal mesh, acoustic foam lined
Unit Dimensions (Hwd)
158 x 460 x 265mm / 6.2" x 18.1" x 10.4"
Unit Weight
8.4 Kg, 18.5 lbs (each)
Carton Dimensions (Hwd)
410 x 330 x 530mm, 16.1" x 13" x 20.9"
Packed Weight
18.4 Kg, 40.6 lbs (2pcs per carton)
