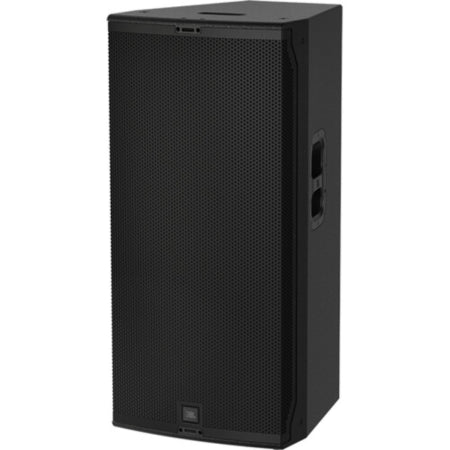

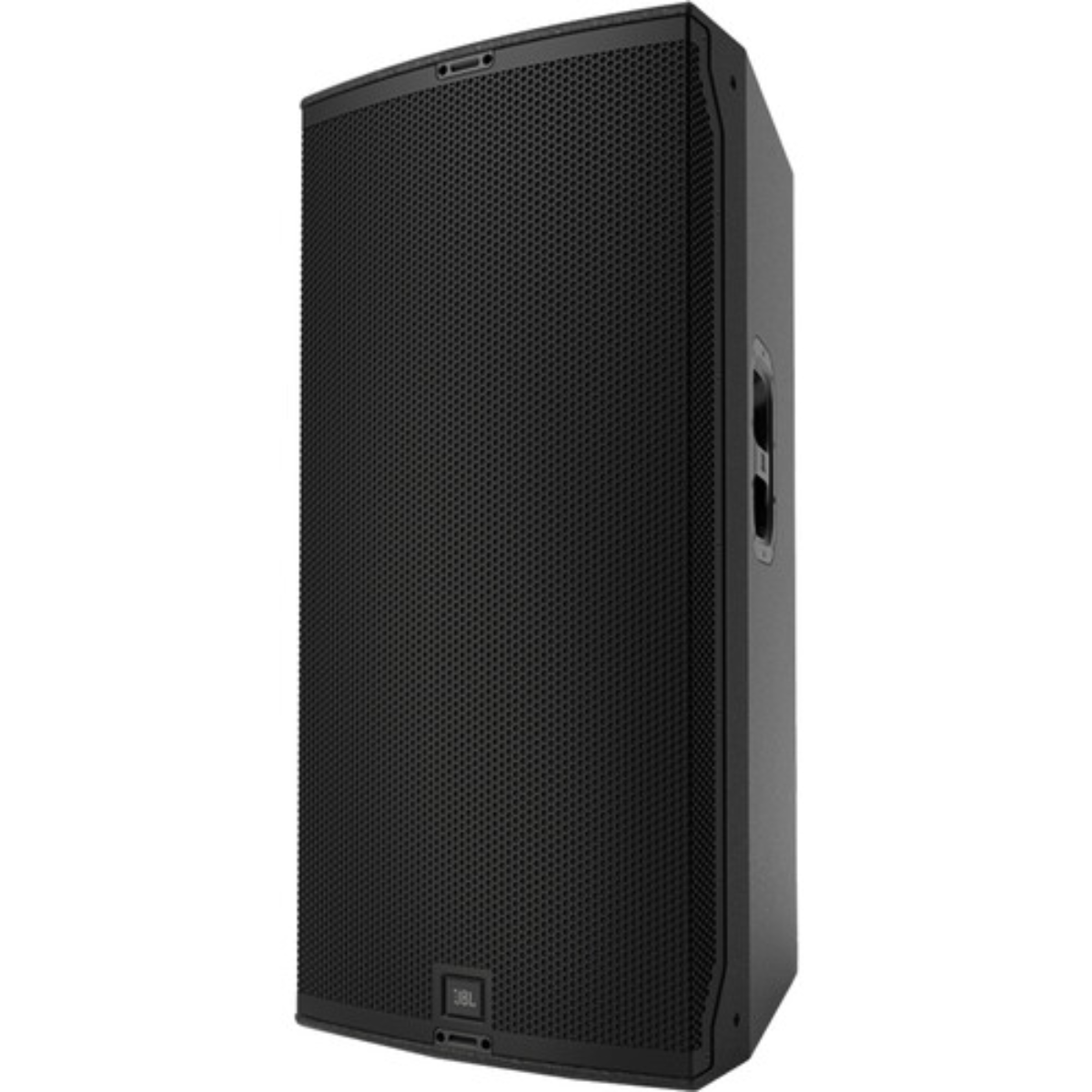

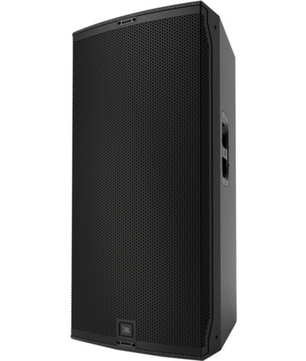

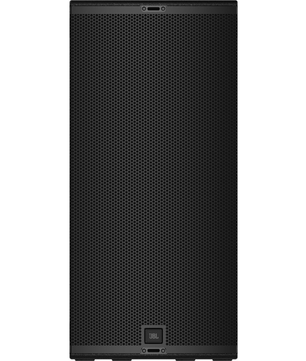

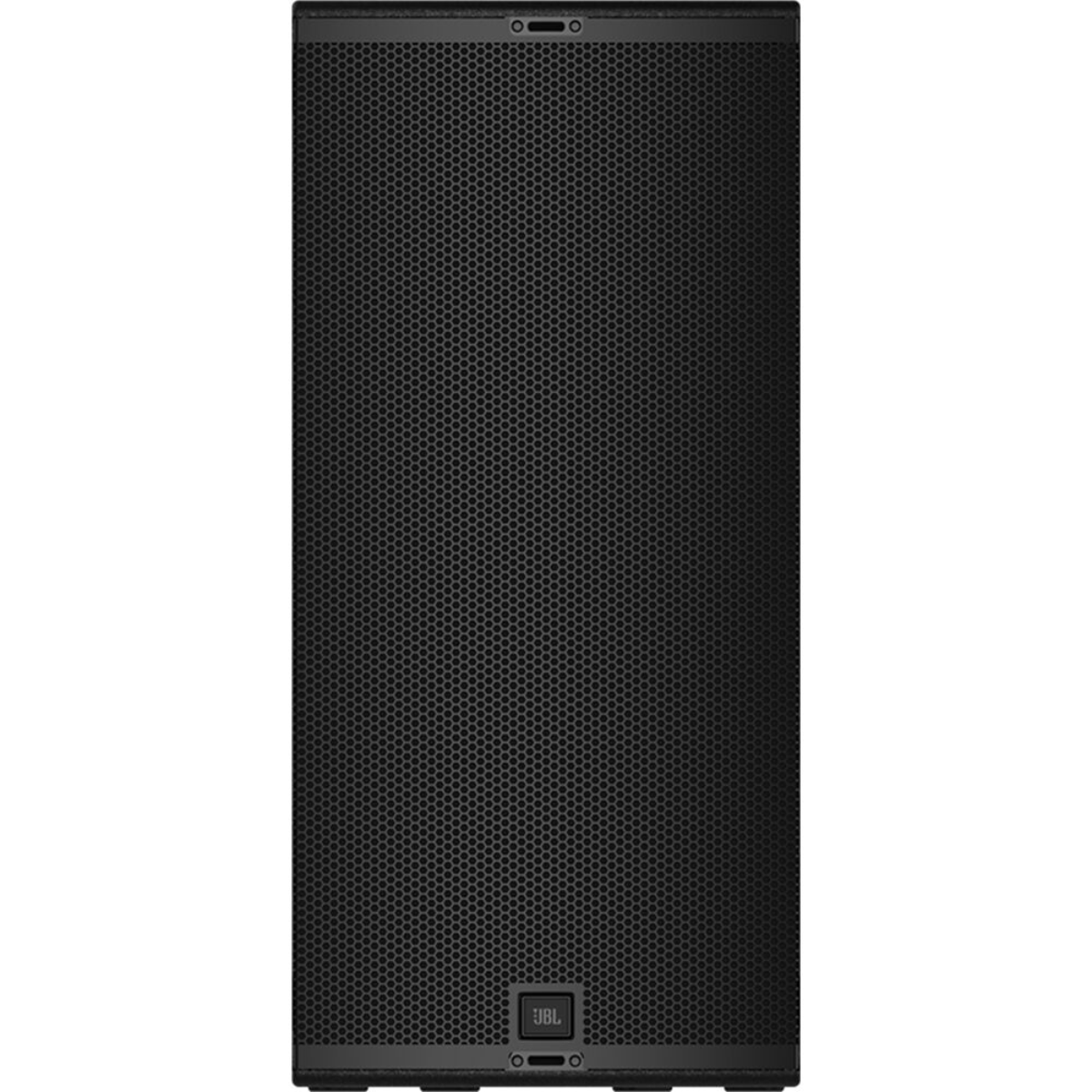

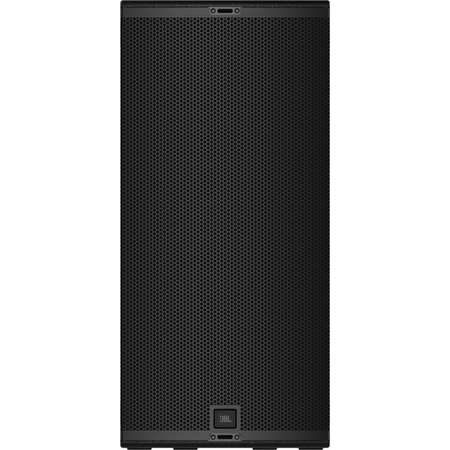

JBL SRX922 | Dual 12 Inch - 138 dB | 3-Way Powered Point-Source Speaker

Powered Point-Source Loudspeaker

JBL SRX922 is a high-output, dual 12-inch powered point-source loudspeaker designed for demanding live sound, touring, and installation environments. Its acoustically three-way design delivers full-range clarity, strong low-end performance, and precise directivity control, making it ideal for mains, side-fills, and scalable sound system deployments.

JBL SRX922 Competitive Differences

• Dual 12-inch three-way design delivers higher output and improved low-frequency headroom than traditional single-woofer systems
• 138 dB maximum SPL with integrated Class-D amplification, DSP control, and optimized 90° x 60° coverage

JBL SRX922 Description

The JBL SRX922 is engineered for professionals who need high output and consistent coverage from a compact enclosure. Its dual 12-inch low-frequency drivers use a dipole configuration to improve vertical directivity and deliver powerful bass performance, while the dedicated mid and high-frequency drivers ensure clarity and definition across the full frequency range.

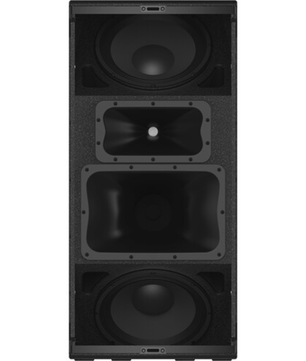

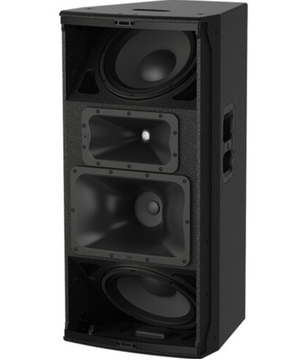

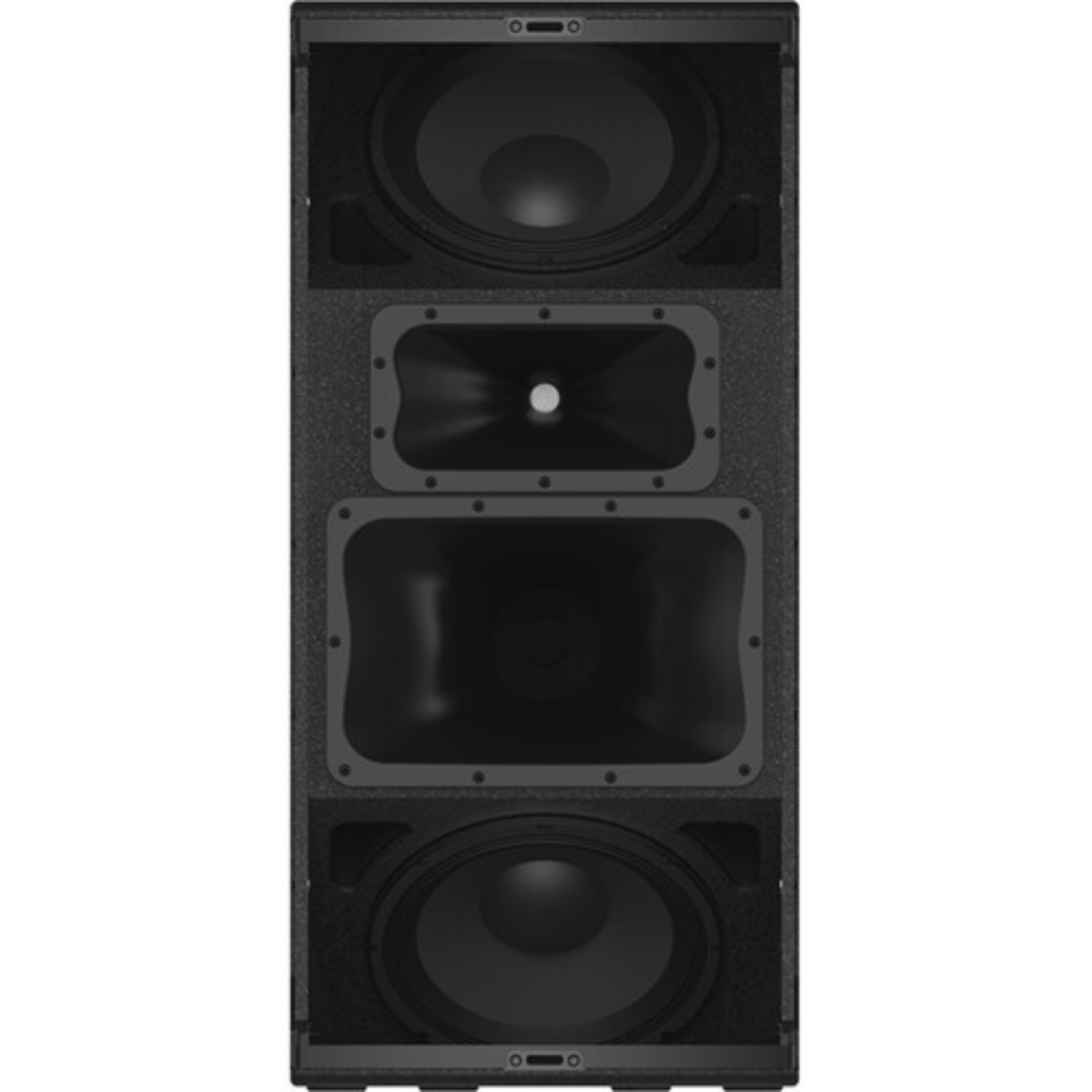

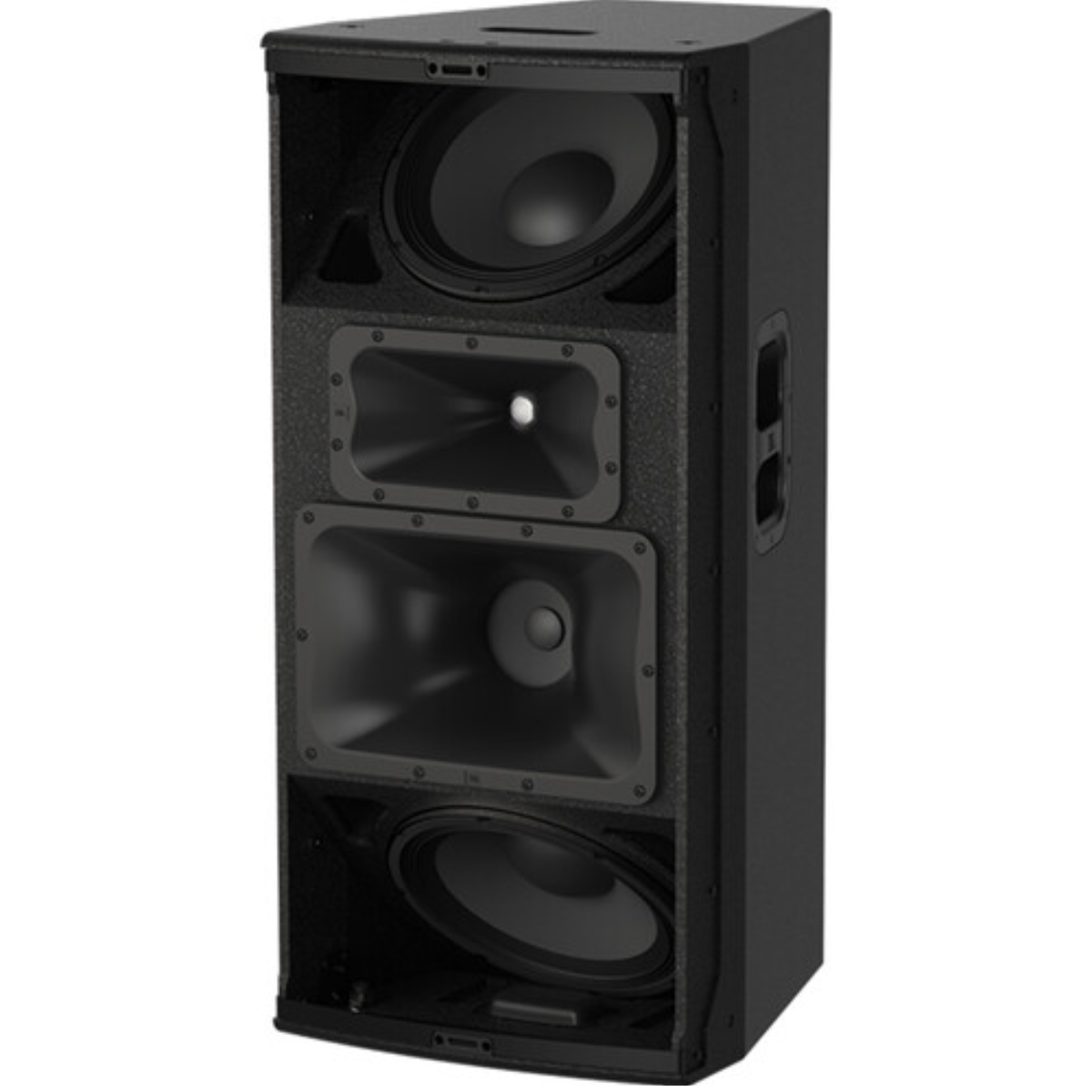

The three-way architecture incorporates a 6.5-inch horn-loaded mid driver and a 1.5-inch compression driver paired with JBL’s Progressive Transition waveguides. This design provides smooth, predictable 90° x 60° coverage, helping maintain consistent sound quality across large listening areas.

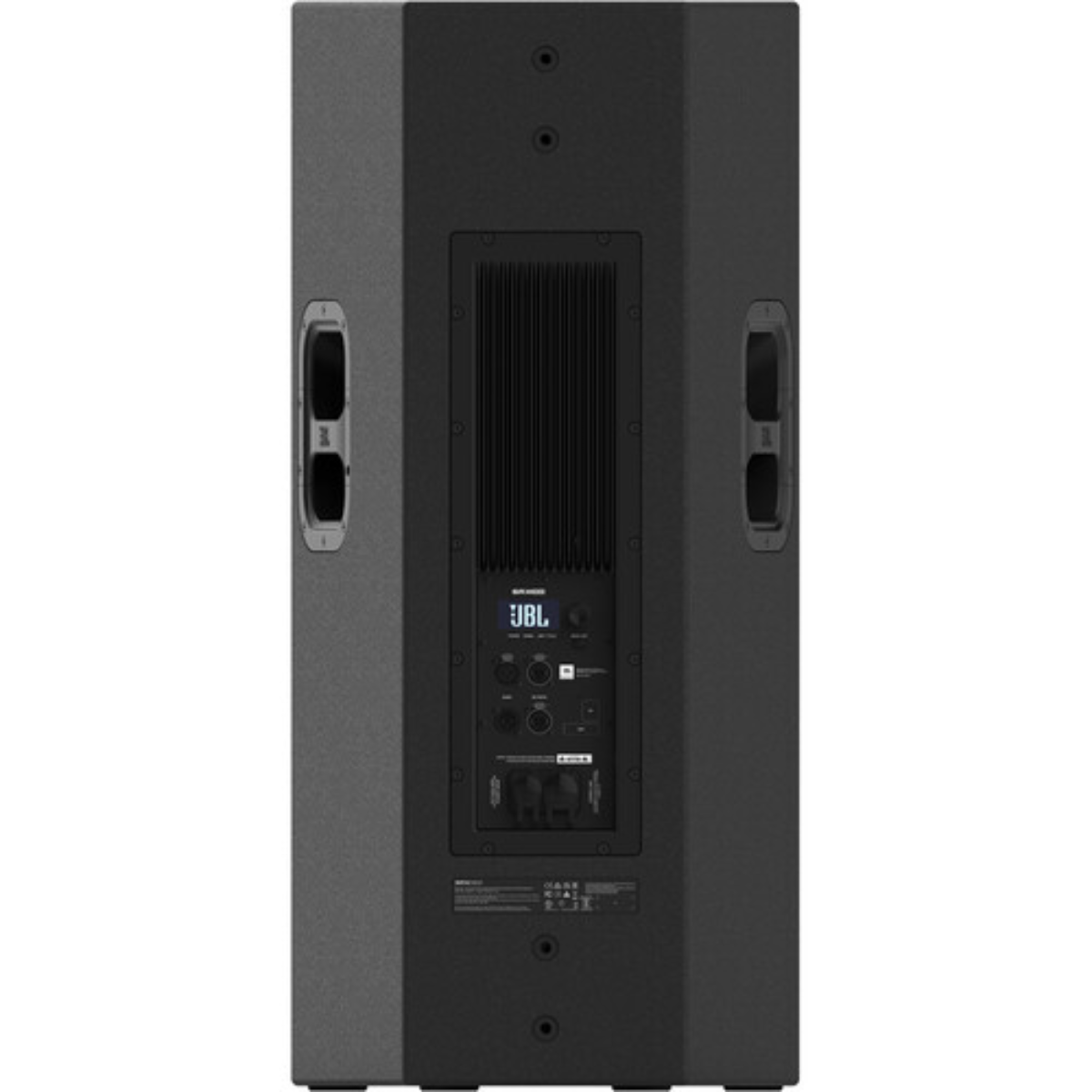

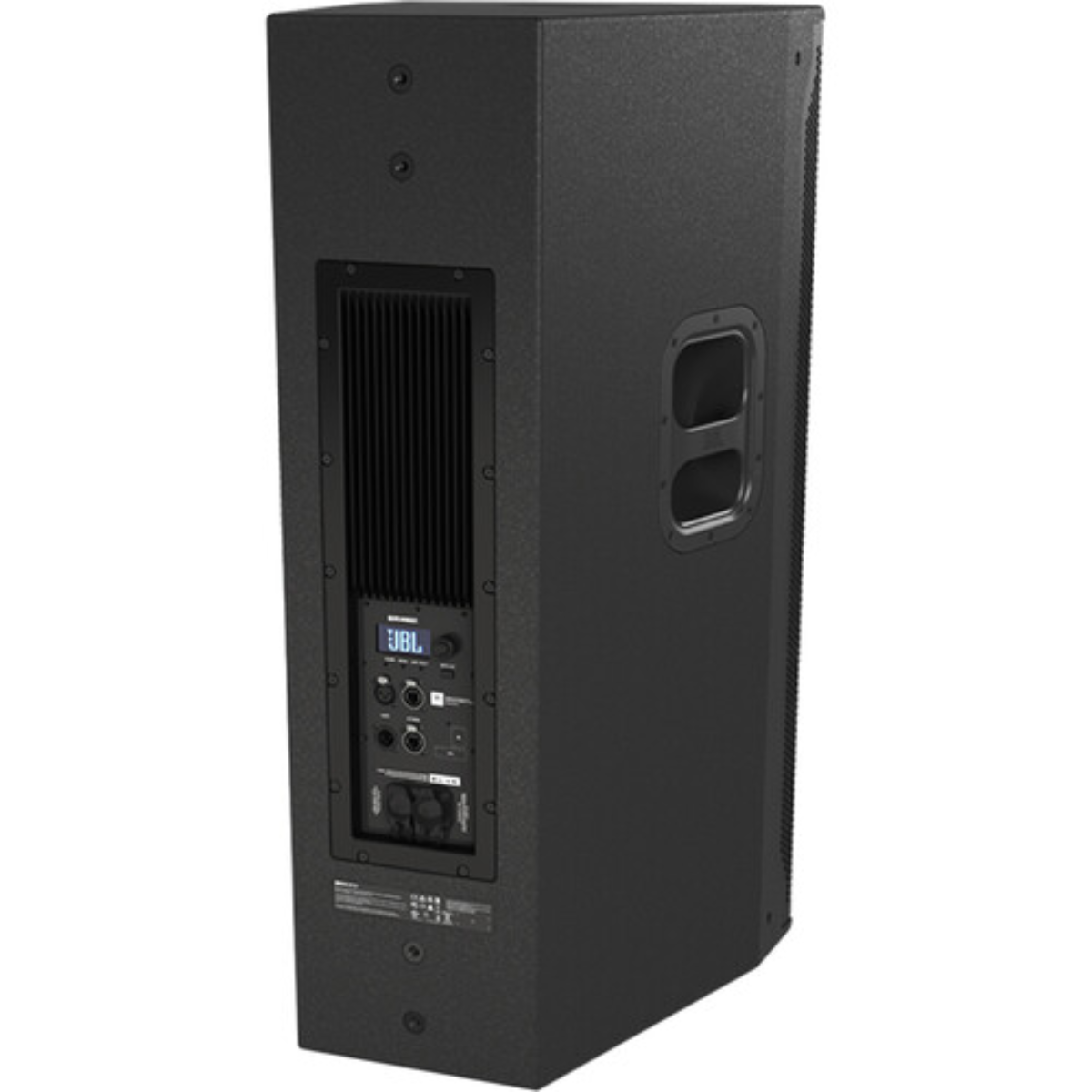

With built-in Class-D amplification and advanced DSP, the SRX922 offers a true plug-and-play experience. The onboard processing includes 24 user-adjustable filters, up to 2000 ms of delay, and JBL’s LevelMax limiting system for reliable protection under demanding conditions. Network control via HARMAN HControl and dual etherCON ports allows for streamlined system integration and monitoring.

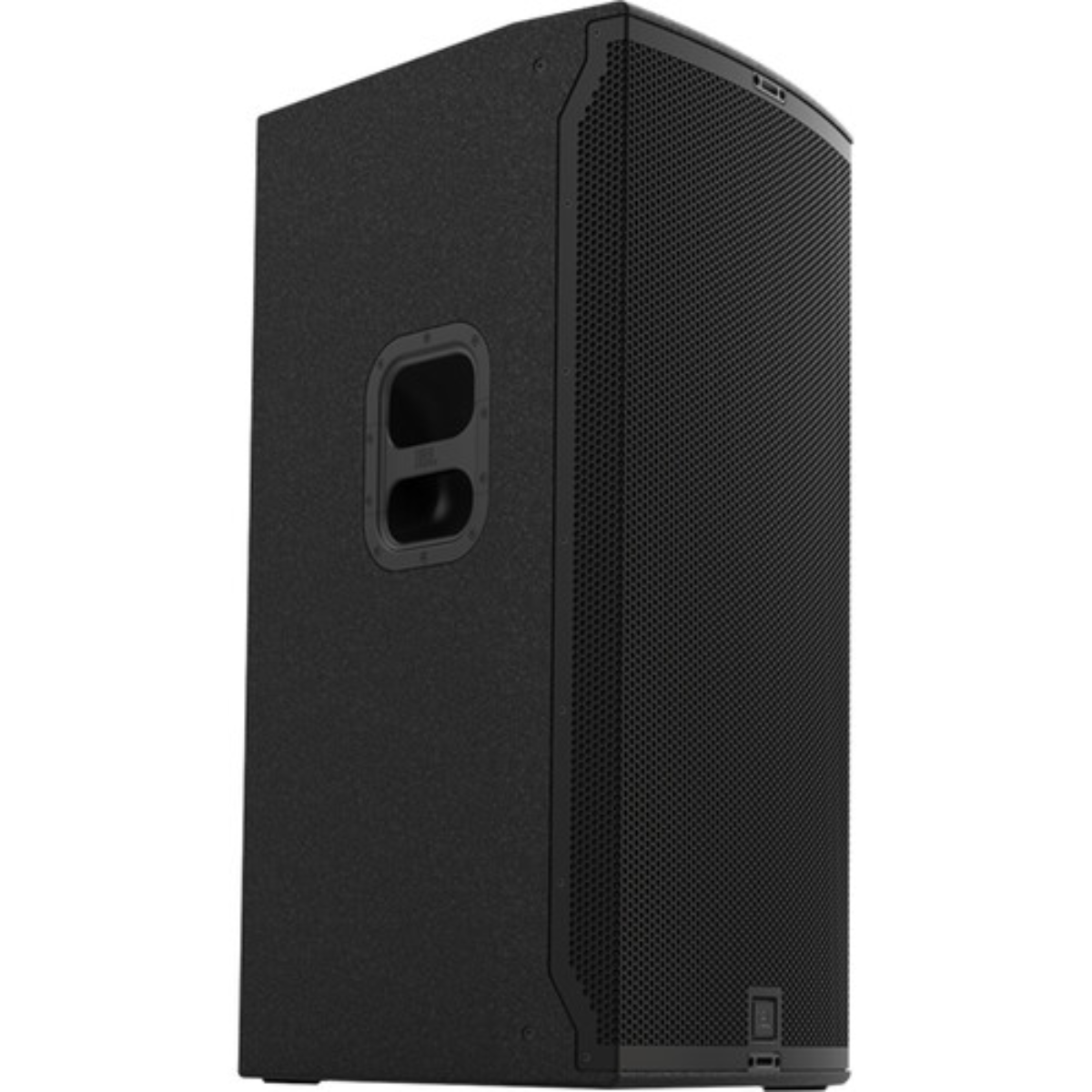

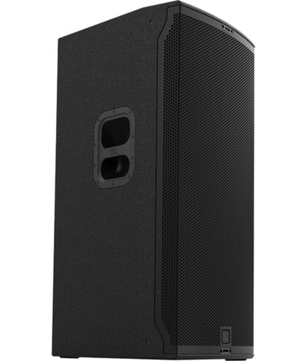

Constructed from durable Baltic birch plywood, the enclosure is built for both touring and permanent installation use. Eight M10 Quick-Link rigging points provide flexible deployment options, while the compact size and integrated handles make transport and setup efficient.

SRX922 Features

• Dual 12-inch powered point-source loudspeaker
• Acoustically three-way, bi-amplified design
• 138 dB maximum SPL output
• 90° horizontal x 60° vertical coverage
• (2) 12-inch low-frequency drivers
• 6.5-inch horn-loaded mid-frequency driver
• 1.5-inch compression driver
• Integrated Class-D amplification
• 1100W continuous / 1600W peak power
• Frequency range: 40 Hz - 17.5 kHz (-10 dB)

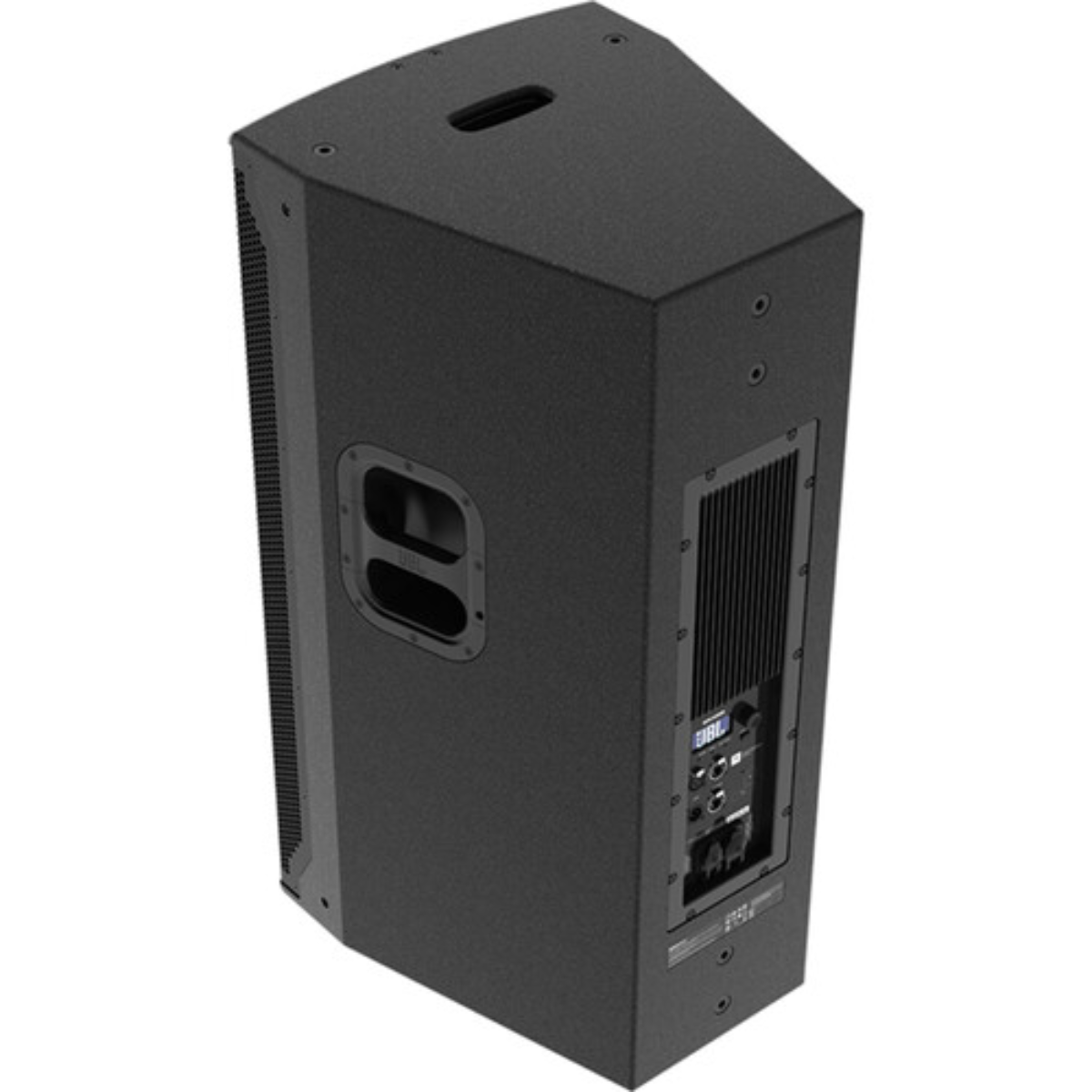

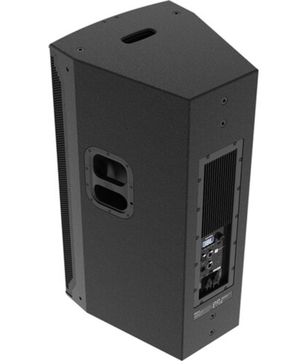

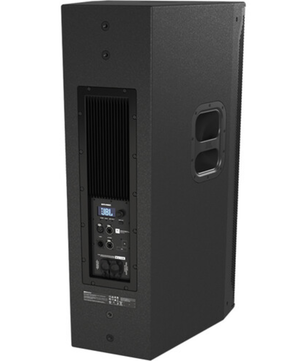

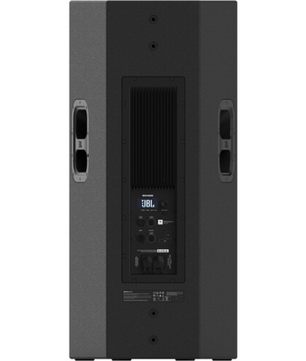

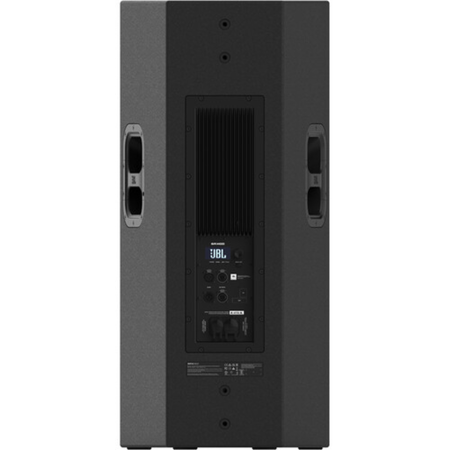

• Rear LCD for quick configuration
• DSP with 24 adjustable filters and 2000 ms delay
• LevelMax limiting for system protection
• Dual etherCON ports with HARMAN HControl networking
• Dual XLR input/output connections
• Eight M10 Quick-Link rigging points
• Durable Baltic birch plywood enclosure

SRX922 Specifications

• Max SPL: 138 dB
• Power Output: 1100W RMS / 1600W Peak
• Frequency Range (-10 dB): 40 Hz - 17.5 kHz
• Frequency Response (-3 dB): 48 Hz - 17 kHz
• Coverage: 90° H x 60° V
• LF Drivers: 2 x 12-inch woofers
• MF Driver: 6.5-inch horn-loaded
• HF Driver: 1.5-inch compression driver
• Amplifier Type: Class-D
• Inputs: 2 x XLR (line level)
• Networking: 2 x etherCON (HARMAN HControl)
• Power Input: 100-240V AC, 50/60 Hz
• Rigging: 8 x M10 points
• Dimensions: 37.2 x 17.3 x 19.9 in (944 x 440 x 505 mm)
• Weight: 100 lb (45.5 kg)

What's In The Box

• JBL SRX922 powered loudspeaker
• PowerCON TRUE1 connectors
