Moving Panel LED Fixture

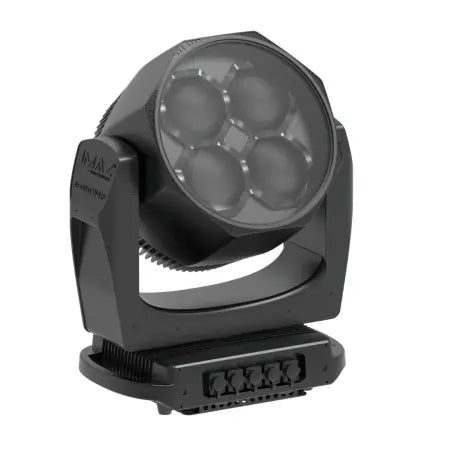

JMAZ Apollo W4 IP is a high-output moving panel LED fixture designed for outdoor and indoor productions requiring bold visuals, pixel mapping, and weather-resistant reliability. With its IP66 rating and advanced RGB+Lime color system, it delivers vibrant, consistent output in demanding environments such as festivals, concerts, and architectural lighting applications.
JMAZ Apollo W4 IP Competitive Differences
- Four 155W RGB+Lime LEDs with 16-bit color mixing and wide CCT range (2800K–8000K)
- IP66-rated housing for full outdoor operation in harsh weather conditions
JMAZ Apollo W4 IP Description
The JMAZ Apollo W4 IP is engineered for lighting professionals who need powerful output, precision control, and creative flexibility. Its four high-performance RGBL LEDs produce a combined 620W output, enhanced by a wide zoom range from 3.5° to 32°, allowing it to function as both a tight beam and a broad wash fixture. The addition of lime LEDs improves color rendering and produces smoother white tones across a wide color temperature range.
This fixture stands out with its dynamic ring effect, featuring RGB SMD LEDs capable of eye-catching animated macros and pixel-mapped visuals. Combined with individual head pixel control and a 4-facet linear prism, users can create layered effects, aerial beams, and immersive visual displays ideal for concerts, stages, and touring productions.
Built with a durable, fire-resistant housing reinforced with carbon fiber, the Apollo W4 IP is designed to withstand harsh environments. Its IP66 rating ensures protection against dust and water, making it ideal for outdoor events. Advanced motion features such as infinite pan/tilt, selectable movement speeds, and position correction ensure smooth, reliable operation in any setup.
Control flexibility is extensive, supporting DMX512, Art-Net, sACN, and RDM protocols, with multiple channel modes for simple or advanced programming. Whether used in large-scale shows or permanent installations, this fixture delivers professional-grade performance with robust build quality.
Apollo W4 IP Features
- 4 x 155W RGB+Lime LEDs (620W total output)
- 42W RGB SMD ring effect with dynamic macros
- 16-bit RGBL color mixing with CTO (2800K–8000K)
- Beam angle: 3.5° to 32° motorized zoom
- 4-facet linear prism and frost filter for wash effects
- Individual pixel control for heads and ring effects
- 360° infinite pan/tilt or 540°/270° movement modes
- High-speed shutter and strobe (0–25Hz)
- IP66-rated outdoor housing
- Supports DMX512, Art-Net, sACN, and RDM
- TRUE1 power input/output for secure connections
Apollo W4 IP Specifications
- Light Source: 620W (4 x 155W) RGBL LEDs
- Ring LEDs: 42W RGB SMD LEDs
- LED Life Expectancy: 50,000 hours
- Beam Angle: 3.5° – 32°
- Control Modes: 38CH / 66CH
- Protocols: DMX512, Art-Net, sACN, RDM
- Input Voltage: 100–240V AC, 50/60Hz
- Power Consumption: 620W
- IP Rating: IP66
- Cooling: Fan-cooled
- Dimensions: 10.43 x 17.95 x 21.32 in (265 x 456 x 541.5 mm)
- Weight: 54.9 lb (24.9 kg)
- UPC: 618528599830
What's In The Box
- JMAZ Apollo W4 IP fixture
- 5-Pin DMX cable
- Power cable (TRUE1)
- 2 x Omega brackets
- 2 x Safety cables
- User manual
