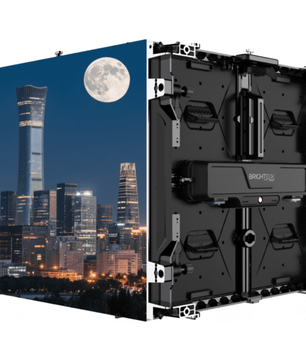

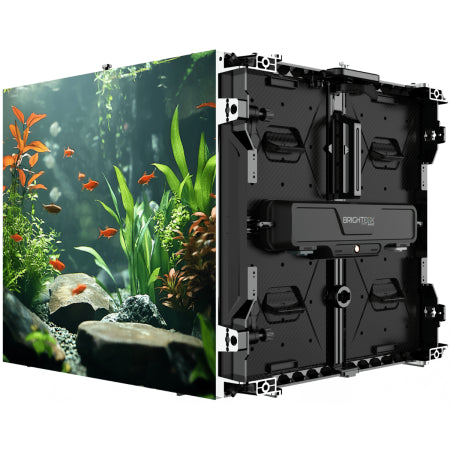

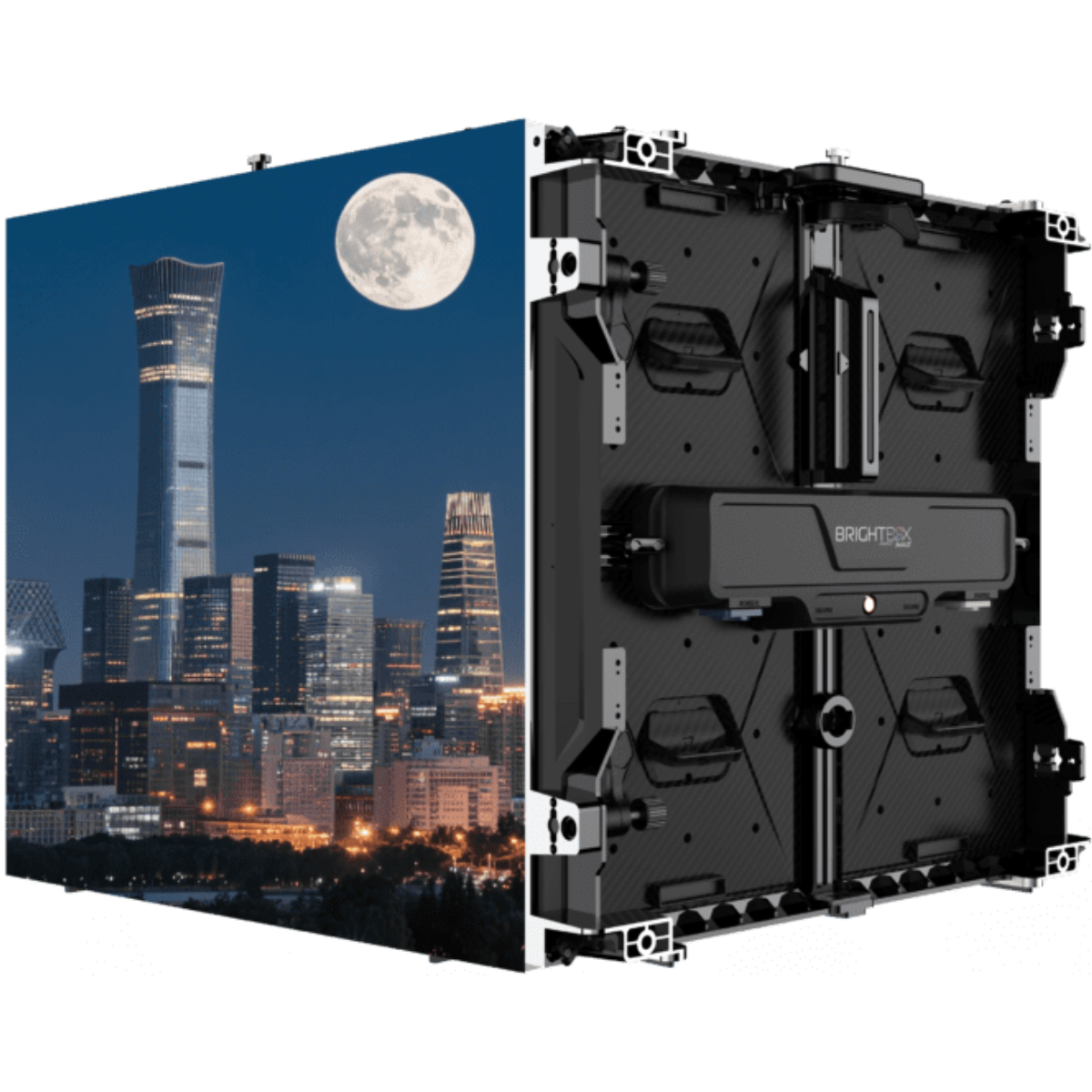

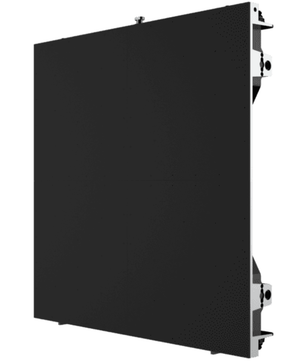

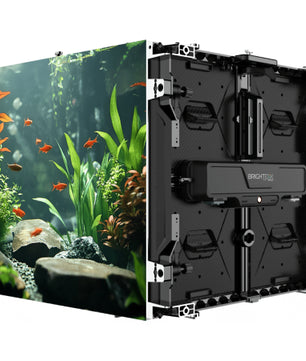

JMAZ BrightBox BB1033 Osiris 2.6 | 2.6mm 500x500 LED Video Wall Panel | Hybrid Mobile or Fixed Installation

LED Video Wall Panel

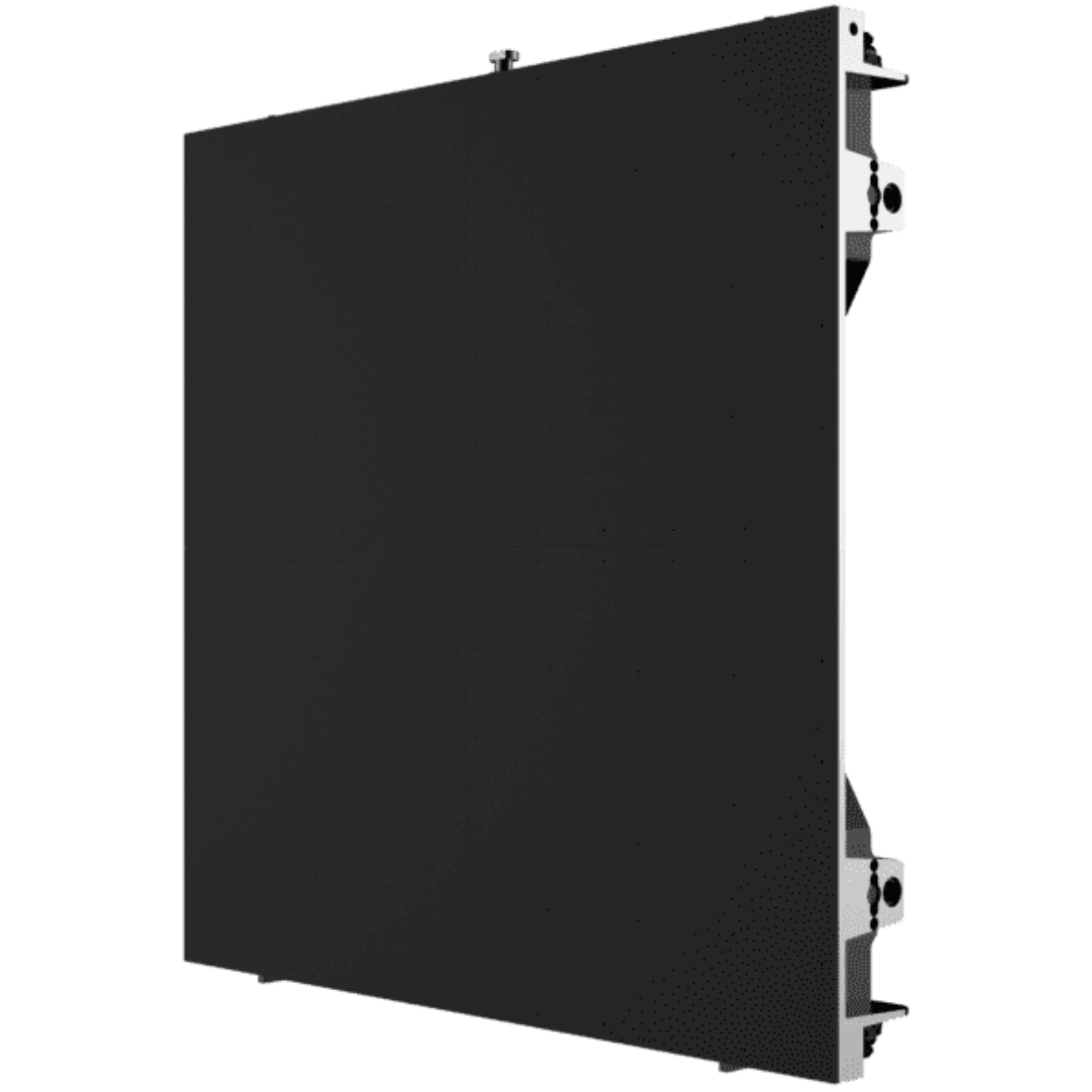

The JMAZ BrightBox BB1033 Osiris 2.6 is a professional LED video wall panel designed for both permanent installations and mobile event production. Featuring a 2.6mm pixel pitch and high refresh rate, it delivers crisp visuals, smooth motion, and reliable performance for stages, houses of worship, touring productions, and digital displays.

JMAZ BrightBox BB1033 Osiris 2.6 Competitive Differences

• 2.6mm pixel pitch with 192 × 192 resolution for sharp close-range viewing
• Hybrid design supports both fixed wall mounting and hanging mobile installations
• High 3840Hz refresh rate for smooth camera-friendly visuals
• Front and rear serviceability for faster maintenance and installation flexibility

JMAZ BrightBox BB1033 Osiris 2.6 Description

The JMAZ BrightBox BB1033 Osiris 2.6 is built to deliver high-quality LED wall performance while providing the flexibility needed for both touring and permanent setups. Its 2.6mm pixel pitch provides excellent clarity for audiences at closer viewing distances, making it ideal for corporate events, stage backdrops, broadcast environments, and retail installations.

Each 500 × 500 mm panel features an SMD1515 LED configuration and delivers 800 nits of brightness, producing vibrant and consistent visuals across large LED wall arrays. A high refresh rate of ≥3840Hz ensures flicker-free output for live video production and camera applications.

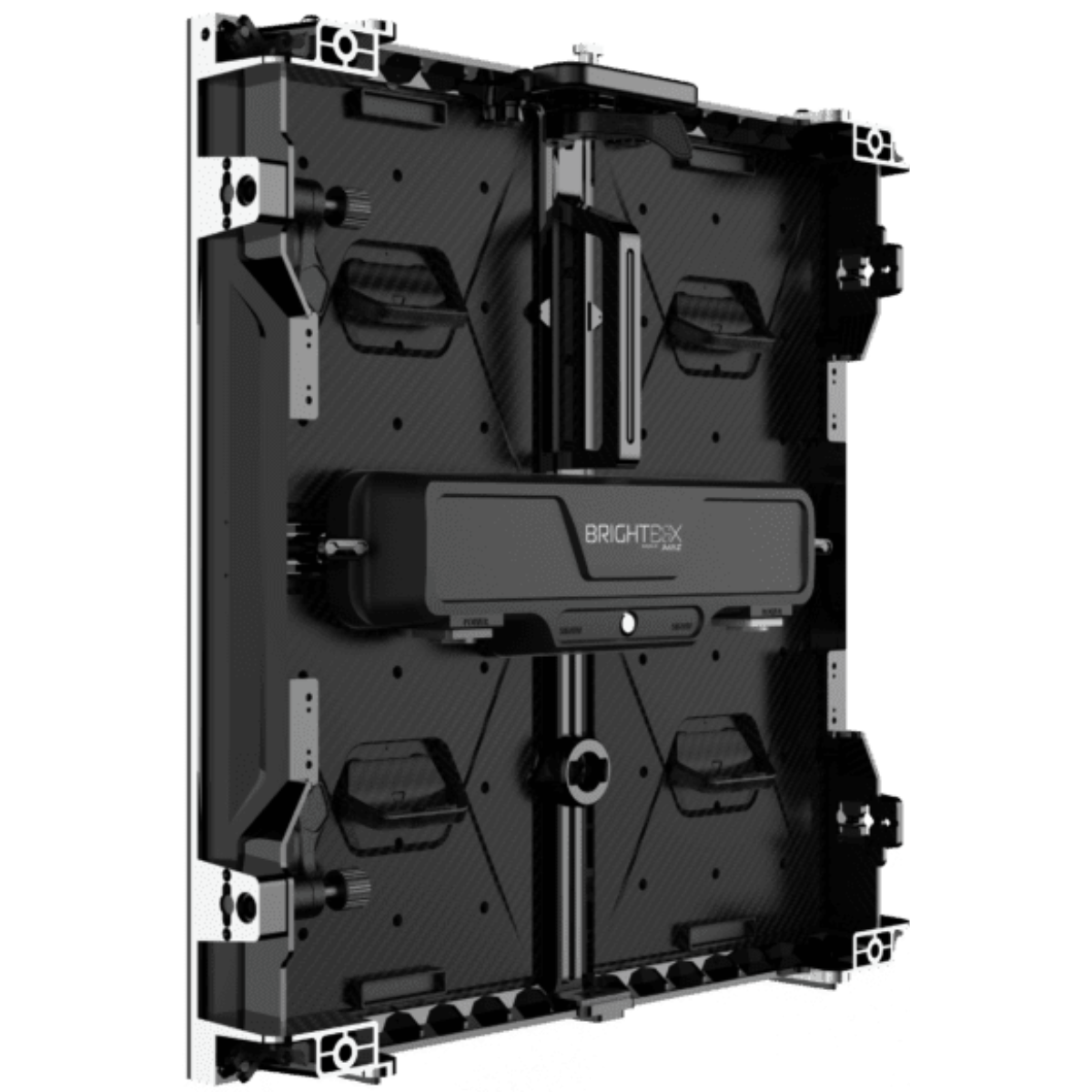

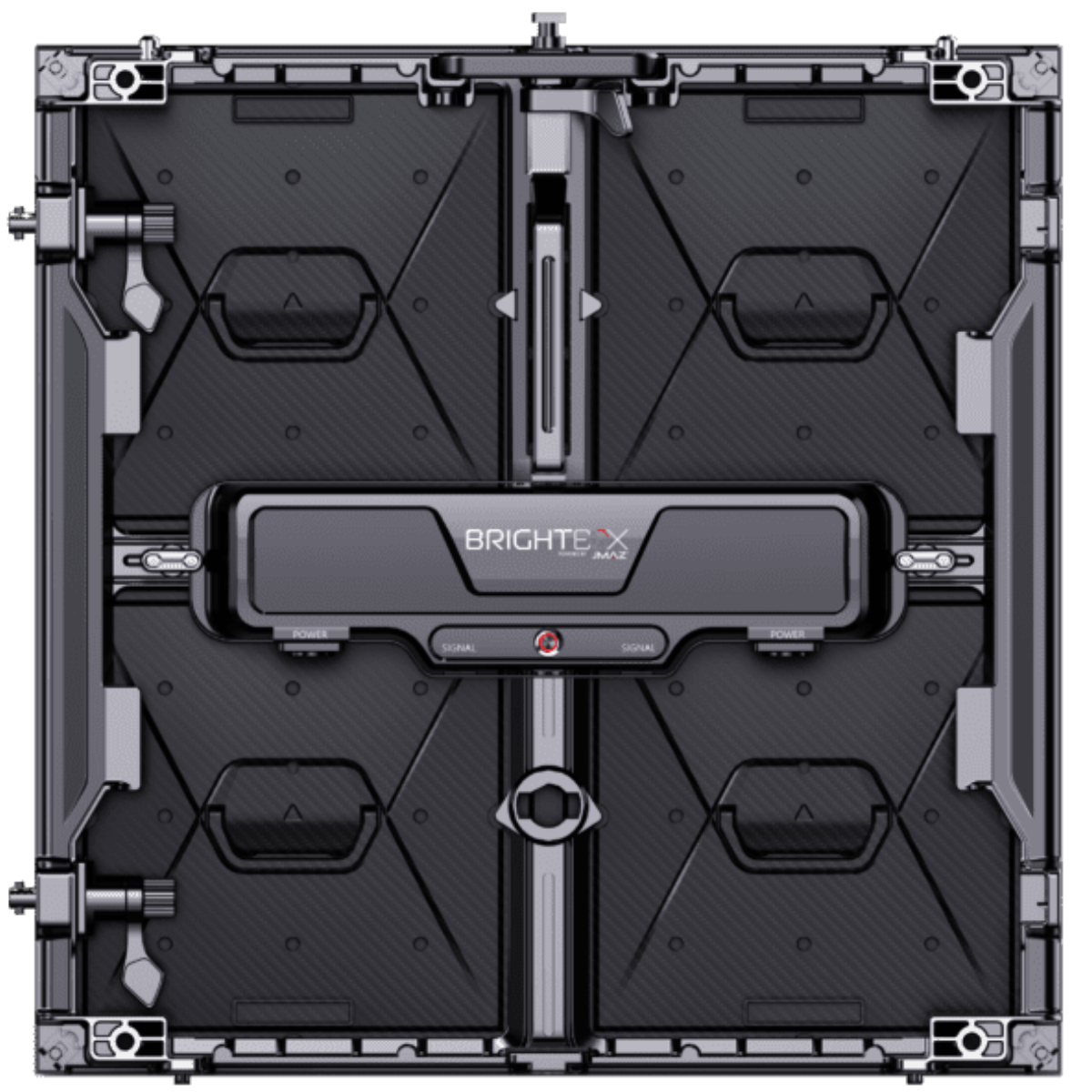

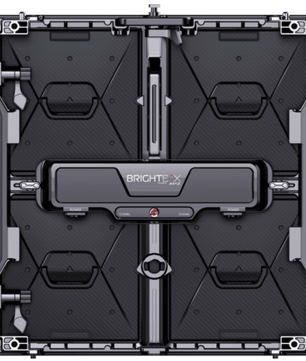

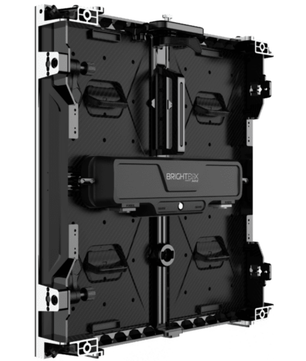

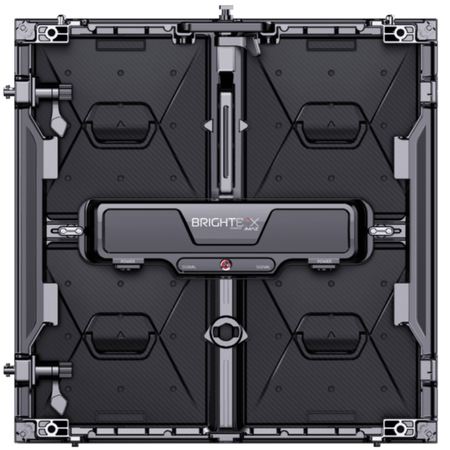

Designed with practical installation and maintenance in mind, the Osiris 2.6 panel includes corner protection for durability during transport and setup, as well as a swappable all-in-one power box for simplified servicing. Both front and rear service access allow technicians to perform maintenance quickly without disassembling the full video wall.

The hybrid mounting design allows panels to be directly wall mounted for permanent displays or flown and rigged for touring and mobile events. With durable construction and certified compliance standards, the Osiris 2.6 is a dependable solution for professional LED video wall systems.

BB1033 Features

• 2.6mm pixel pitch LED video wall panel
• 192 × 192 pixel resolution
• 800 nit brightness output
• High refresh rate ≥3840Hz for smooth video playback
• 500 × 500 mm modular panel design
• SMD1515 LED configuration
• Front and rear serviceable design
• Direct wall mount or hanging installation options
• Corner protection for safer transport and setup
• Swappable all-in-one power box

BB1033 Specifications

• Pixel Pitch: 2.6 mm
• Pixel Resolution: 192 × 192
• Brightness: 800 nits
• Refresh Rate: ≥3840 Hz
• LED Type: SMD1515
• Panel Dimensions: 19.6 x 19.6 x 2.4 in (500 x 500 x 63 mm)
• Weight: 17.6 lb
• Ingress Rating: IP30 (Front) / IP20 (Rear)
• Certifications: FCC, ROHS, CE
• UPC: 618528599533

What's In The Box

• BrightBox Osiris 2.6 LED Video Wall Panel
• Power box module
• Quick start documentation
• Road case or wood case (depending on configuration)
