JMAZ PIXL FX BAR 5050 | 180W RGB/CWW LED Bar with 3° Beam | Auto & Sound Programs with DMX Control

LED Effect Bar

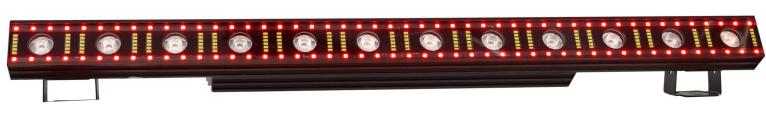

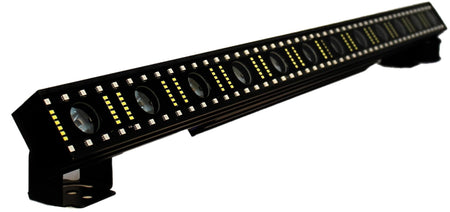

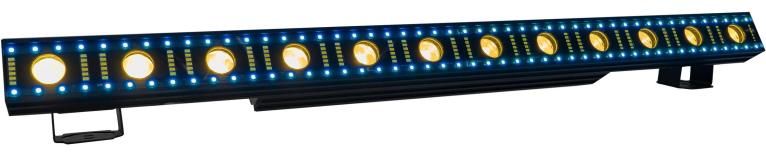

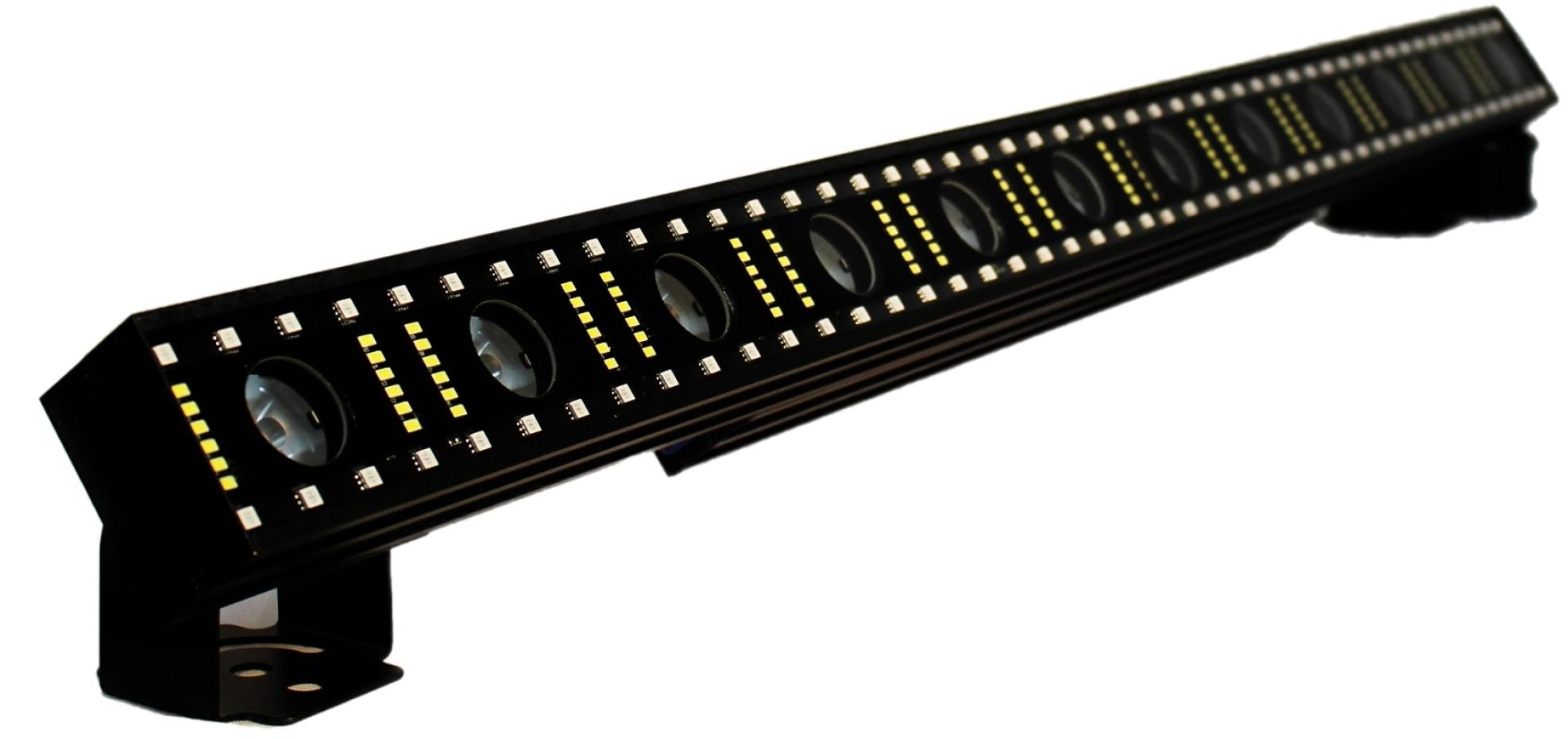

The JMAZ PIXL FX BAR 5050 is a compact and powerful 180W LED effect bar that combines warm white beams, cool white strobes, and dynamic RGB color washes in a single fixture. Designed for high-impact light shows, it delivers tight 3° beams, vivid color effects, and multiple built-in programs for easy plug-and-play operation or full DMX control.

JMAZ PIXL FX BAR 5050 Competitive Differences

• 180W total output with warm white beams, RGB SMDs, and cool white effects
• Ultra-narrow 3° beam angle for precise, sharp effects

JMAZ PIXL FX BAR 5050 Description

The JMAZ PIXL FX BAR 5050 offers a versatile lighting solution for DJs, clubs, stages, and event venues looking to add high-energy beam and wash effects. At its core are 12 x 5W warm white LEDs (60W total) that create powerful beams, supported by 96 x 0.5W RGB SMD LEDs (48W) for color mixing and 144 x 0.5W cool white SMD LEDs (72W) for strobes and layered visuals. This hybrid design enables dynamic light shows that blend beam, wash, and strobe effects from one fixture. The extremely narrow 3° beam angle allows for sharp, focused projection across long distances, perfect for aerial effects or precise stage targeting. The unit features 10 auto programs and 8 sound-active modes, making it easy to operate without external control. For full customization, the PIXL FX BAR 5050 supports DMX512 with 6 control modes (10 to 65 channels) and offers zone control for pixel-mapped sequences. Built with a durable die-cast aluminum housing and powerCON in/out connections, it’s ready for rugged use in professional environments. A stand mount, DMX cable, and powerCON cable are all included for a complete out-of-the-box solution.

Model Features

• 60W warm white beam LEDs (12 x 5W)
• 48W RGB SMD LEDs (96 x 0.5W)
• 72W cool white inner SMD LEDs (144 x 0.5W)
• 3° beam angle for tight aerial effects
• 10 built-in auto programs and 8 sound modes
• DMX512 control with 6 operational modes (10/18/23/28/33/65 channels)
• Zone control for pixel effects
• powerCON in/out for reliable power linking
• Includes stand mount, DMX cable, and powerCON cable

Model Specifications

• Power Output: 180W (Total)
• Beam Angle: 3°
• Dimensions: 39.4 x 2.8 x 2.9 in
• Weight: 8.6 lb
• UPC: 93674450530

What's In The Box

• JMAZ PIXL FX BAR 5050
• Stand Mount
• DMX Cable
• powerCON Cable
• User Manual
