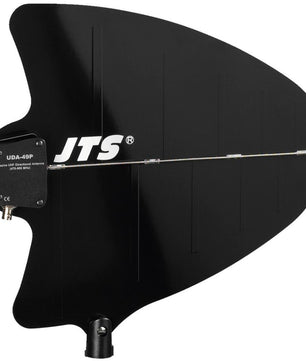

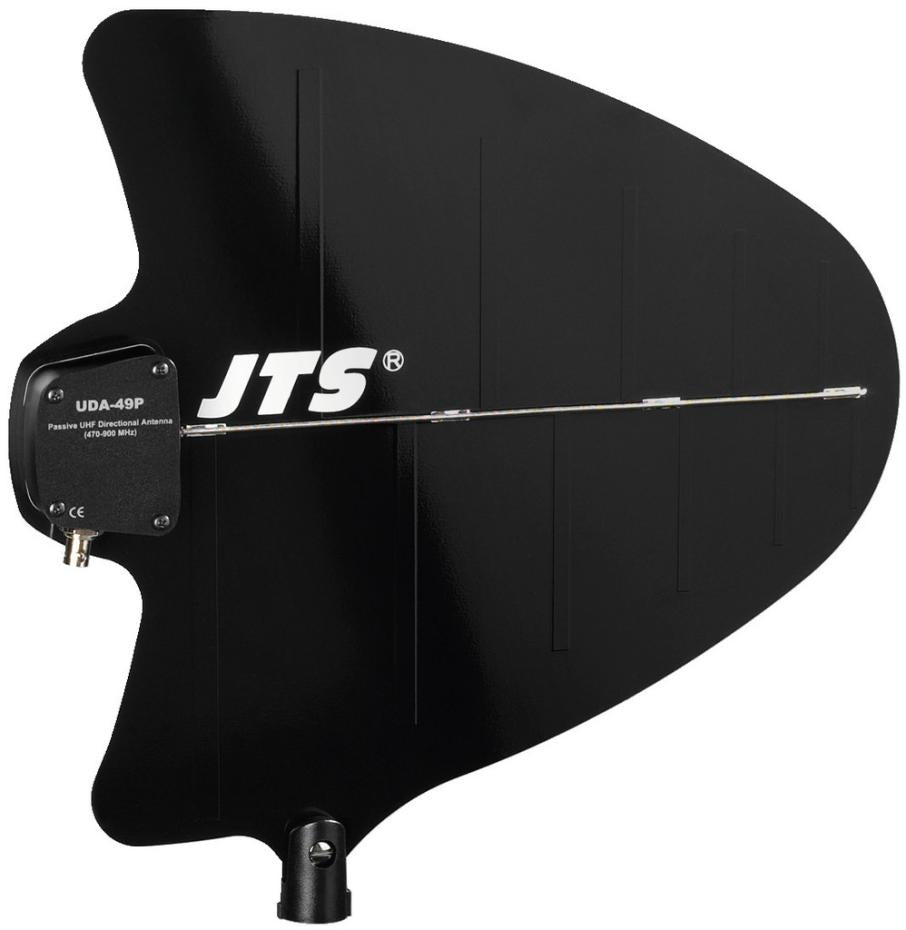

JTS UDA-49P | Passive Directional Fin Antenna

JTS UDA-49P | Passive Directional Fin Antenna

$179.00

Order within [hour] to get by [date_end]

Quantity

Direct Ship from Our Supplier

Guarantee Safe
Checkout

trust_2dea69ed-7223-44f3-828d-a80bc0f3aef4

NOTE: 2 x UDA-49P required for diversity reception.

UDA-49P
Passive UHF directional antenna
For wireless microphone systems (reception antenna) or for wireless in-ear monitoring systems, e.g. SIEM-111/5 from JTS (transmitting antenna)
Improved reception and a larger transmission range of 470-960 MHz
Rejects unwanted RF signals, minimises signal loss in multipath receptions and reduces interference susceptibility
Reliable operation also for short-term outdoor use
BNC connection (for UHF PLL receivers of the US/IN series or active antenna splitter UA-960)
Ideally suited for mobile applications, can be mounted onto any microphone stand with a thread of 9 mm (⅜") or 16 mm (⅝")

Technical specifications UDA-49P
UDA-49P
Frequency range 470-960 MHz
Aperture angle 100°
Antenna gain ≥ 10 dB
Impedance level 50 Ω
Support 9 mm (⅜") or 16 mm (⅝")
Dimensions 360 x 350 x 36 mm
(sheet thickness: 1.7 mm)

Weight 350 g
Connection BNC jack
