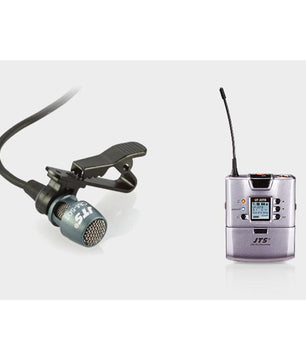

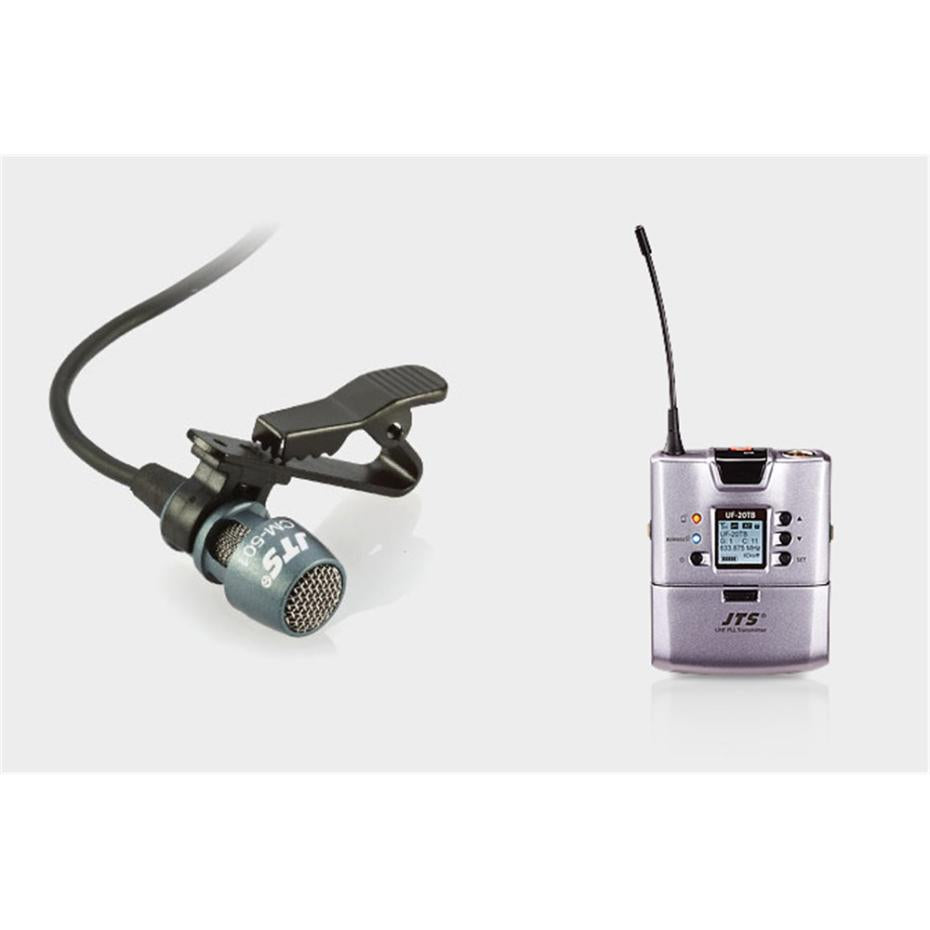

JTS UF-20TB/CM-501 | Belt Pack + Lapel Mic

UF-20TB TRANSMITTER BELT-PACK INCLUDING CM-501 LAPEL MIC FOR UF-20 SYSTEM

UF-20TB
2400 to 3000 selectable frequencies
Preset 15 groups each of up to 63 compatible channels
Phase-Locked Loop (PLL) synthesized tune
Extended dynamic range and smooth frequency response.
Adjustable transmission power between Low and High
The panel Lock-On function prevents tampering and RF interruption
Together with JTS various music instrument mics, headset mics and tie clip mics this bodypack is versatile for all applications.
Designed with slot-in charging feature with two AA NiMH rechargeable batteries.

SPECIFICATIONS
Frequency Preparation

PLL Synthesized Control
Carrier Frequency Range

UHF 624-694MHz
Bandwidth

60~75MHz Wideband
RF Outputs

Low / High
Stability

< ±10KHz
Frequency Deviation

± 48KHz (Peak)
Chassis

Aluminium alloy
LCD Display

Group, Channel, Frequency, Battery Status, User Name , GAIN Adjust
Controls

Power ON/OFF, AF Level, Frequency (Up/ Down), Lock-on Mode, REMOSET ID Pairing, RF Output Adjust
Output Connector

4P Mini XLR
Spurious Emissions

<-50 DBC
Audio Frequency Response

50Hz ~ 18k Hz
Battery

AA NiMH x2
Dimensions

62mm (W) x80.3mm (H) x22.6mm (D)
Weight

93g



CM-501
Uni-direction for high-quality voice pick-up.
Wide dynamic range and frequency response for excellent sound reinforcement.
Small size for minimum visibility.
Together with clip for easy attaching to a tie, lapel, dress etc.
SPECIFICATIONS
Connector

4P Mini XLR
Frequency Response

100~15,000 Hz
Polar Pattern

Cardioid
Sensitivity (at 1KHz)

-60±3 dB* (1mV)*0dB=1V/μbar
Impedance

2.2kΩ
Max. SPL for 1% THD

130dB
Dimension(mm)

Ø10.1mm(W)* 26.4mm(H)
Net Weight

21.5g
