Juice Goose CQ1520 | 3-Stage Power Sequencer - 20A Capacity | Rackmount Surge Protection with Remote Control

Rackmount Power Sequencer

Juice Goose CQ1520 is a 1U rackmount power distribution unit designed to sequence and protect up to seven connected devices. Ideal for front-of-house setups or AV installations, this unit provides precise power-up/down control with selectable delay times and robust surge protection. Its remote control compatibility makes it perfect for integrated systems requiring safe, automated power management.

Juice Goose CQ1520 Competitive Differences

• Three-stage sequencing with selectable delay (2, 10, 20, or 30 seconds)
• 20A capacity with NEMA 5/20P plug for high-load systems

Juice Goose CQ1520 Description

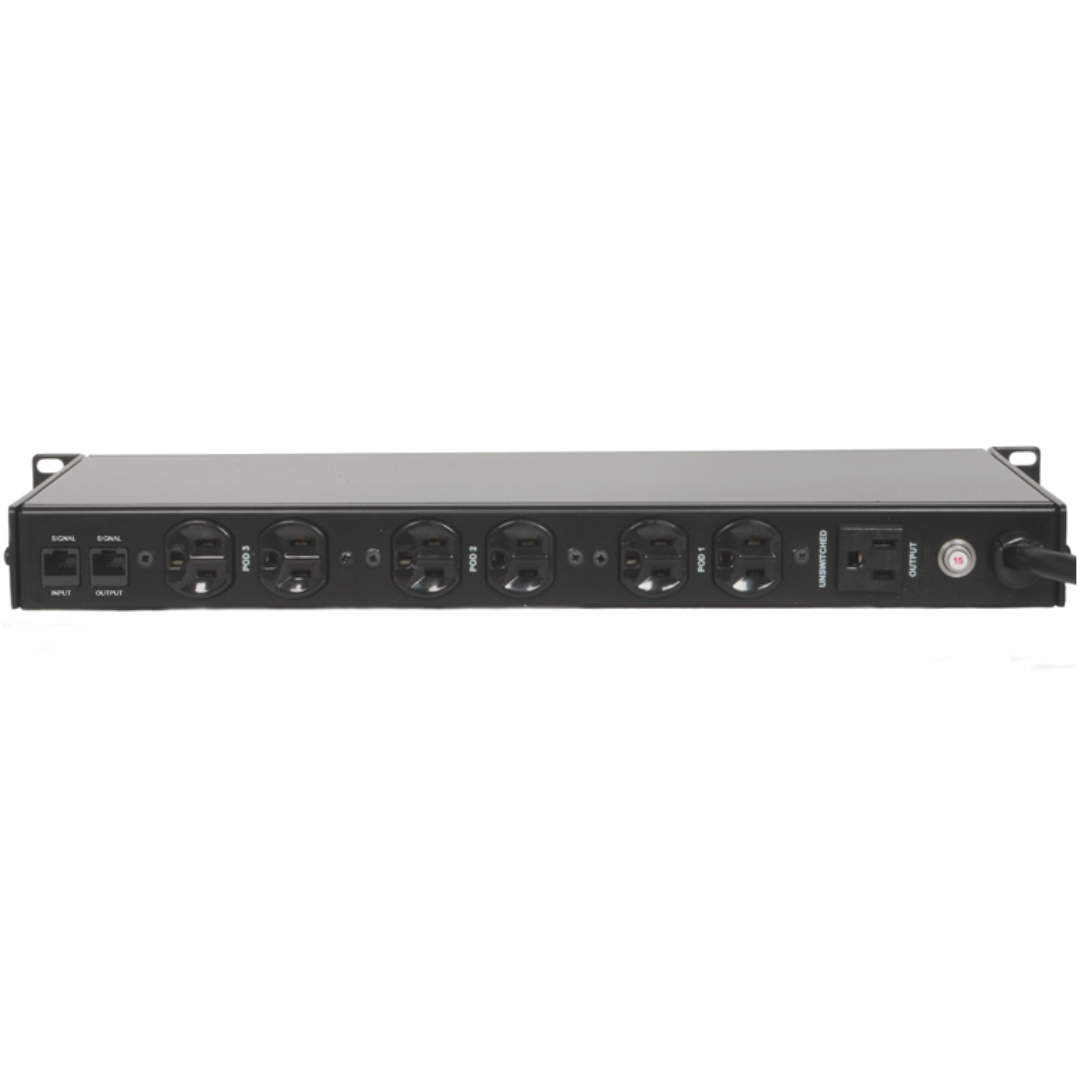

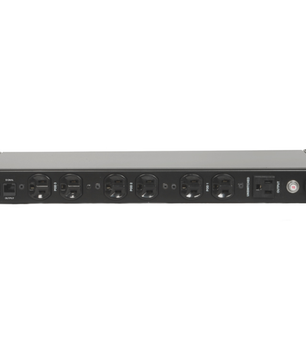

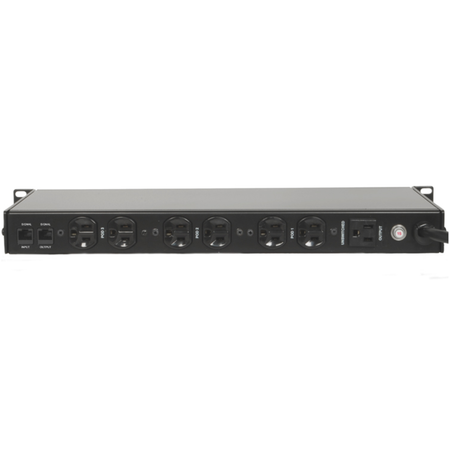

The Juice Goose CQ1520 is built for mission-critical applications requiring power sequencing and protection for audio, lighting, or AV gear. With seven rear AC outputs (six sequenced and one unswitched), it manages the startup and shutdown of connected equipment in three clearly defined stages called Power Pods. This unit includes an onboard sequencing circuit, allowing it to function as either a master or slave in a control chain via RJ-12 or RJ-45 connections. Whether installed in a standalone rack or part of a larger system, it offers dependable operation and full compatibility with other Juice Goose CQ devices. Featuring durable, replaceable triple-stage MOV surge protection across line and neutral, the CQ1520 protects gear without ground contamination. LED indicators provide clear system status, while a front-panel override switch allows for manual operation in emergency scenarios. Selectable delay times between sequencing events are easily configured via DIP switches inside the chassis, giving installers the flexibility to customize startup/shutdown timing based on system needs.

Model Features

• 1U rackmount steel chassis with 20A breaker
• Three-stage sequencing with LED indicators per stage

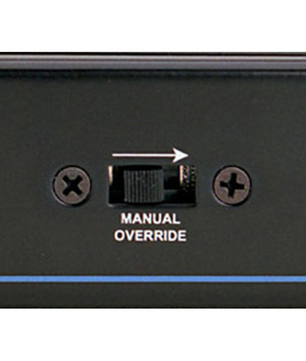

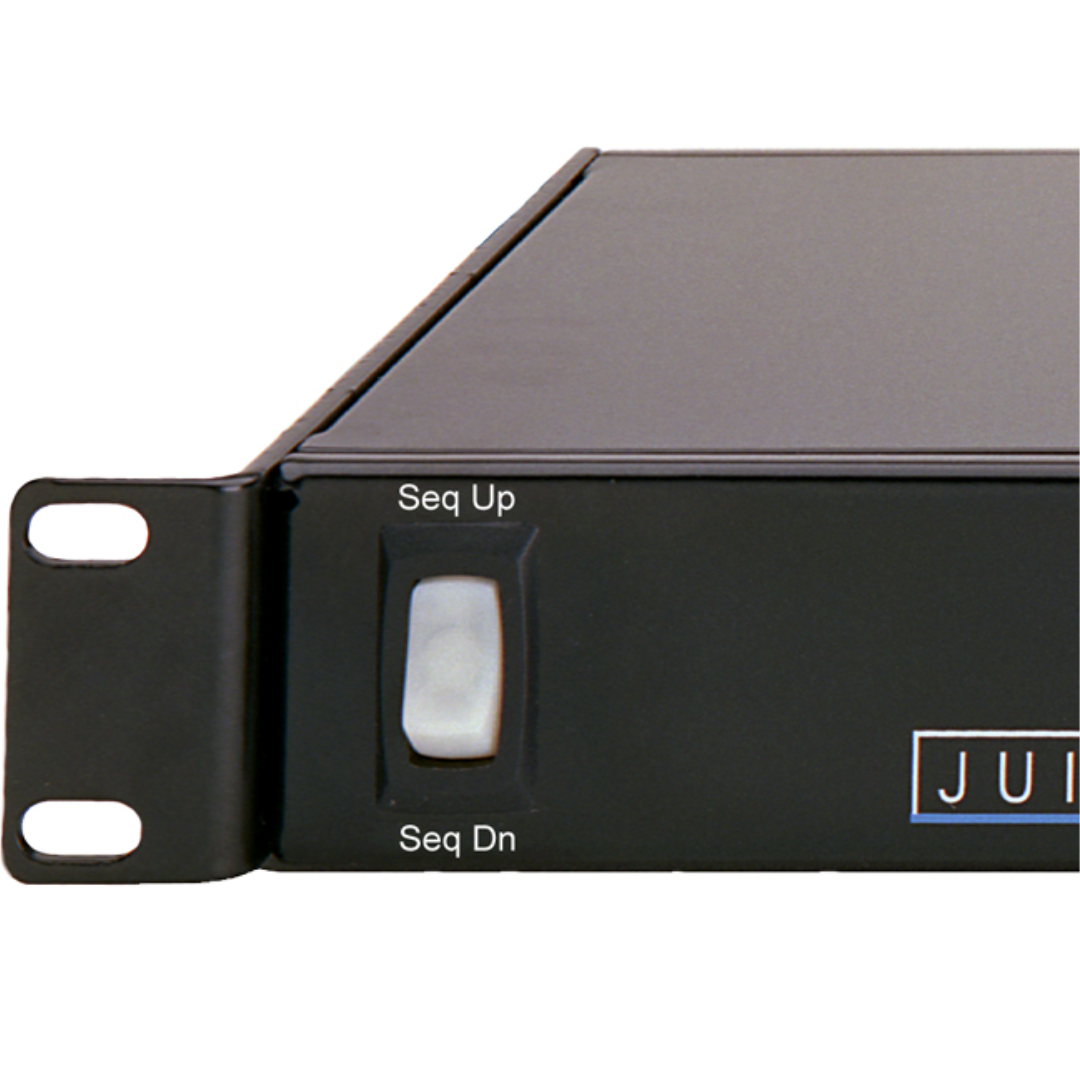

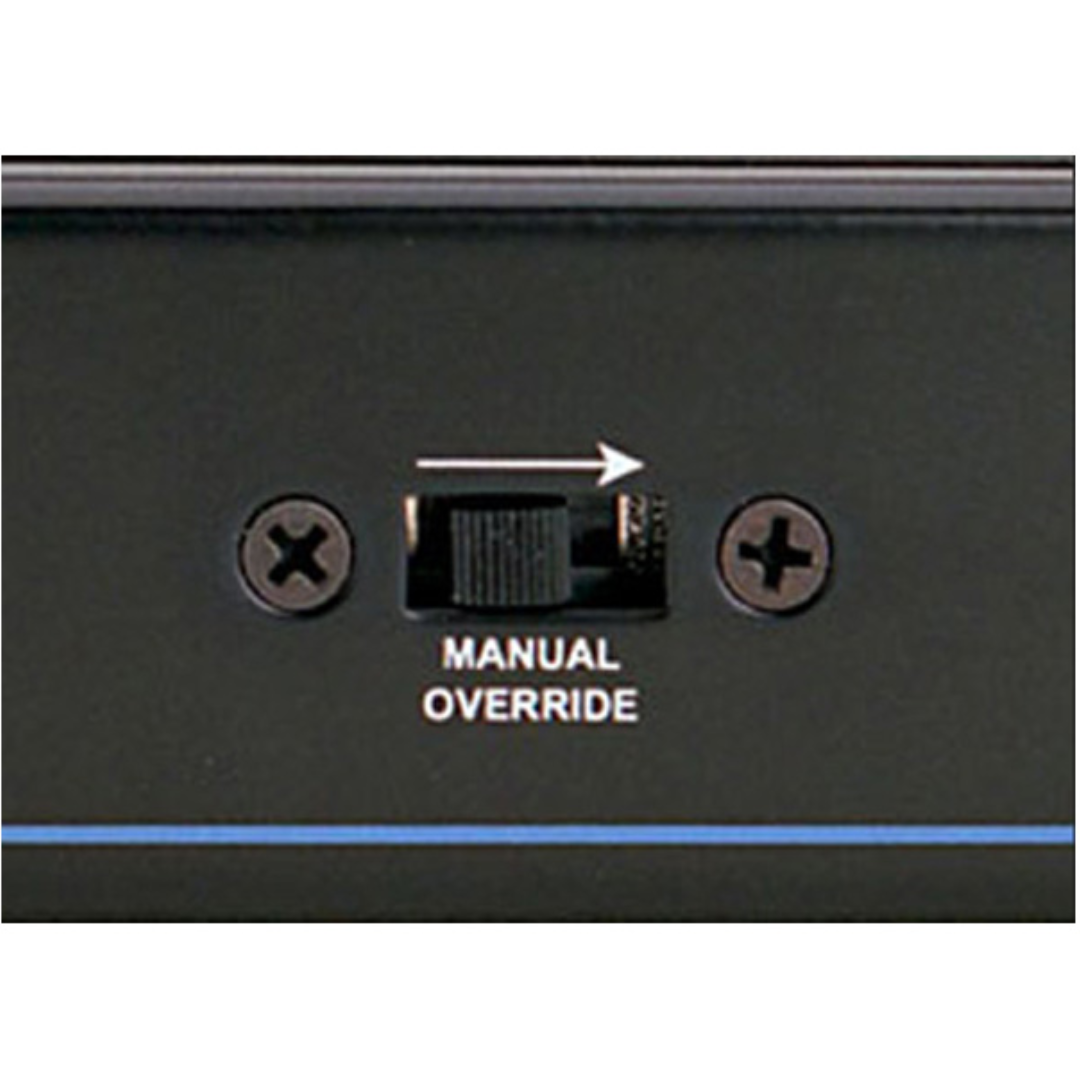

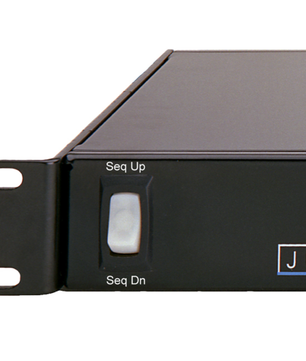

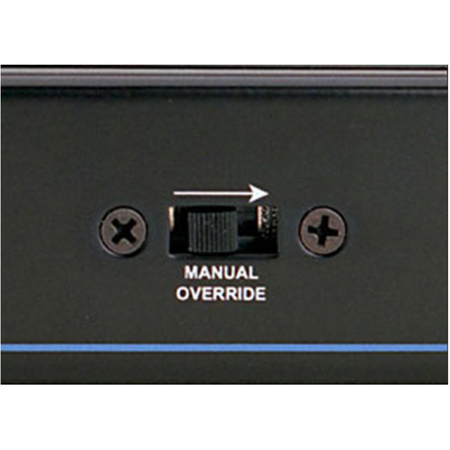

• Manual override and front-panel control switch
• RJ-45 and RJ-12 ports for control linking
• Durable surge protection with user-replaceable module

Model Specifications

• Max Output Current: 20A
• Surge Protection: Triple MOV, 300 Joules, 10,000A peak
• Sequence Events: 3 (2 outlets per stage)
• Sequence Delay Options: 2, 10, 20, or 30 seconds
• Power Input: 7ft 12/3 SJ cable with NEMA 5/20P plug
• Power Output: 6 sequenced NEMA 5/20R + 1 unswitched
• Signal Connections: RJ-45 (8-wire), RJ-12 (6-wire)
• Chassis: 1.75" H x 19" W x 7" D
• Weight: 10 lb

What's In The Box

• Juice Goose CQ1520 unit
• Attached power cable with NEMA 5/20P plug
• User manual
