Juice Goose CQ2200 | 2-Stage 20A Power Sequencer | Remote Activation & Surge Load Control

Rackmount Power Sequencer

Juice Goose CQ2200 is a compact, dual-stage 20-amp power distribution module designed to control and sequence high-demand equipment such as amplifiers or AV components. Whether used in standalone systems or integrated installations, it prevents circuit overload by staging power-up and power-down events across two separate output groups.

Juice Goose CQ2200 Competitive Differences

• Dual-stage sequencing reduces inrush current on startup
• Simple contact closure control — no external controller required

Juice Goose CQ2200 Description

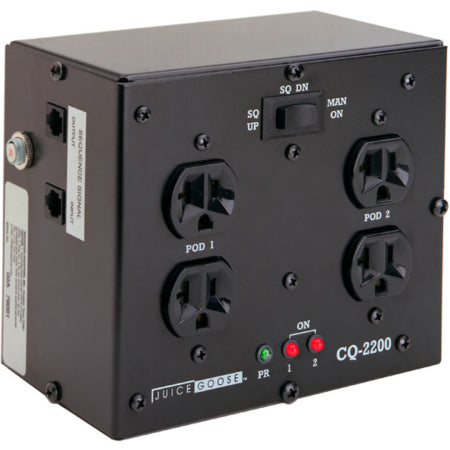

The Juice Goose CQ2200 provides smart power management in an economical, easy-to-install format. Designed for both sensitive electronics and high-current devices, it offers two separate sequence events, allowing staggered power delivery to prevent breaker trips and extend equipment lifespan. Perfect for small to mid-sized audio systems, the CQ2200 can power front-end gear first, followed by amplifiers, reducing demand on a single 20-amp circuit. It’s frequently used in churches, schools, and event venues where power safety and system longevity are essential. This unit supports remote triggering through a contact closure or RJ-45 connection, making it compatible with Juice Goose RC-5 keyswitches and third-party controllers like Crestron or AMX. Each outlet’s activation is indicated with bright LED status lights on the front panel, along with a processor status light that confirms correct operation. Thanks to its onboard sequencing circuitry, the CQ2200 doesn't require any external processor. It can operate as a master or slave unit in a power control chain and connect with unlimited CQ-series devices through standard RJ-45 cables.

Model Features

• Dual sequence events with relay-controlled outputs
• Controls up to four NEMA 5/20R outlets (two duplexes)
• Front-panel manual switch for override and local control
• Compatible with Juice Goose RC-5 and other remote triggers
• LED indicators for processor and POD status

Model Specifications

• Max Output Current: 20A
• Relay Rating: 30A
• Sequence Events: 2
• Power Input: Hardwired via strain relief
• Power Output: 4 x NEMA 5/20R
• Input Voltage: 120V AC, 60Hz
• Signal Connections: RJ-45 (8-wire)
• Chassis Dimensions: 5.5 x 6.4 x 3.75 in
• Weight: 5 lb

What's In The Box

• Juice Goose CQ2200 unit
• Mounting hardware
• User manual
