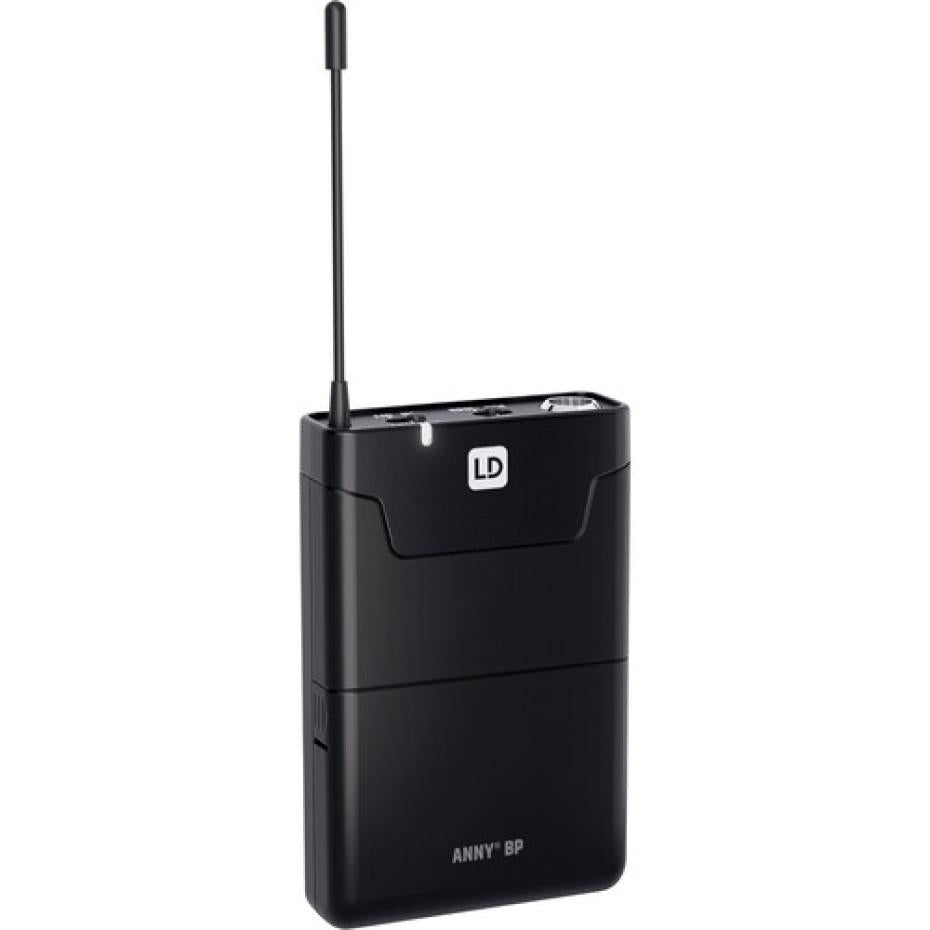

LD Systems Anny BP B4.7 | Bodypack Transmitter for ANNY (B47: 470 to 490 MHz)

The ANNY BP from LD Systems is a wireless bodypack transmitter designed for use with ANNY 10 and ANNY 8 PA systems equipped with the ANNY R wireless receiver module. The transmitter operates in the 470 to 490 MHz band in the UHF range and features 10mW of RF output power, helping to ensure reliable performance at a range up to 262'. Its 3-pin mini XLR connector (TA3M) supplies 5V plug-in power and accommodates a wide range of compatible lavalier and headset microphones (available separately), including the WS 100 MH 1 headset from LD Systems.

The unit syncs quickly and easily to the receiver via infrared and will run for up to 8 hours on the 2 supplied AA batteries. A status LED glows white when switched on and red when the battery is low. The power switch also provides a standby function for temporary muting, ideal when you want to take a quick break without having to switch the unit off completely.

FEATURES:

Bodypack transmitter with 2 AA batteries
For use with ANNY PA equipped with wireless receiver module
Up to 262' range
TA3M Mini XLR input for microphone or instrument cable
8 hours operating time
Input level switch (MIC, 0 dB, -10 dB)
Standby mode
Integrated status LED

SPECIFICATIONS:


Compatibility
LD Systems ANNY ANNY R
Inputs / Outputs
Audio I/O
1x Mini-XLR 3-Pin Hi-Z/Instrument/Line/Mic Input
Wireless
Wireless
UHF
*Built-In
Mobile App Compatible
No
Power
Power Source
Battery (Included)
Battery Type
2x AA
Environmental
Environmental Protection
No
Physical
Mounting
Back: 1x Belt Clip
Color
Black
Dimensions
3.9 x 2.5 x 0.8" / 100 x 64 x 21 mm
Weight
3.17 oz / 0.09 kg
