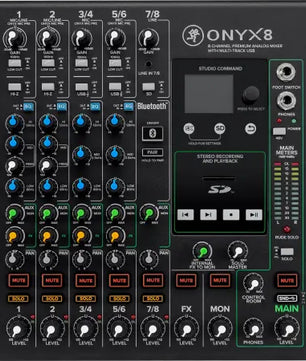

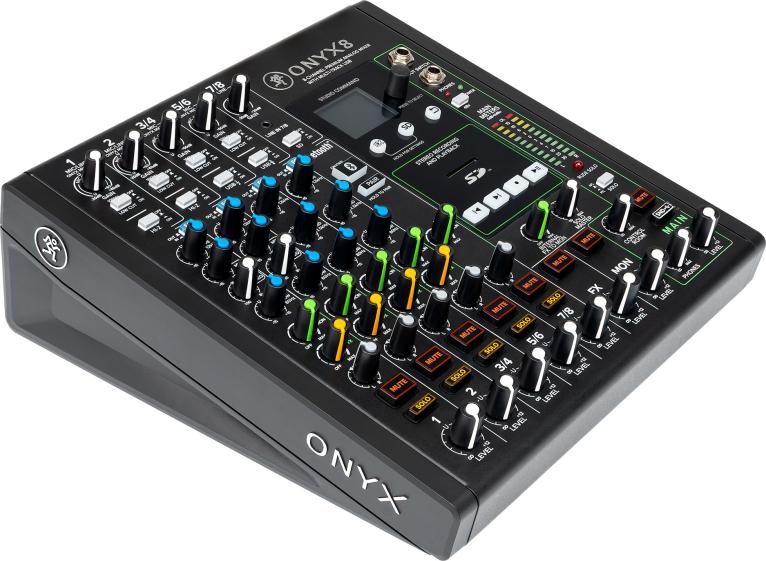

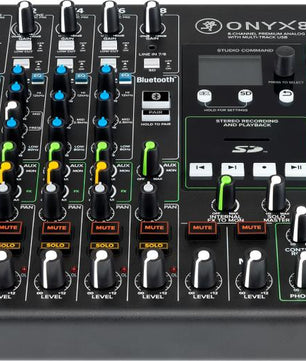

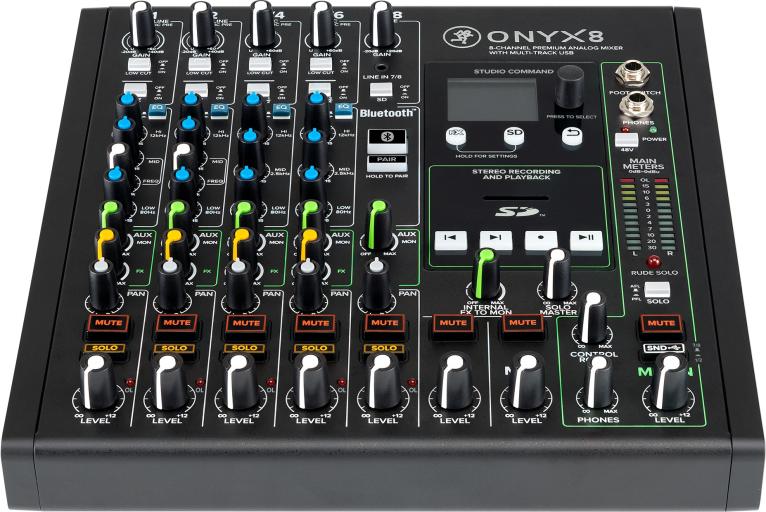

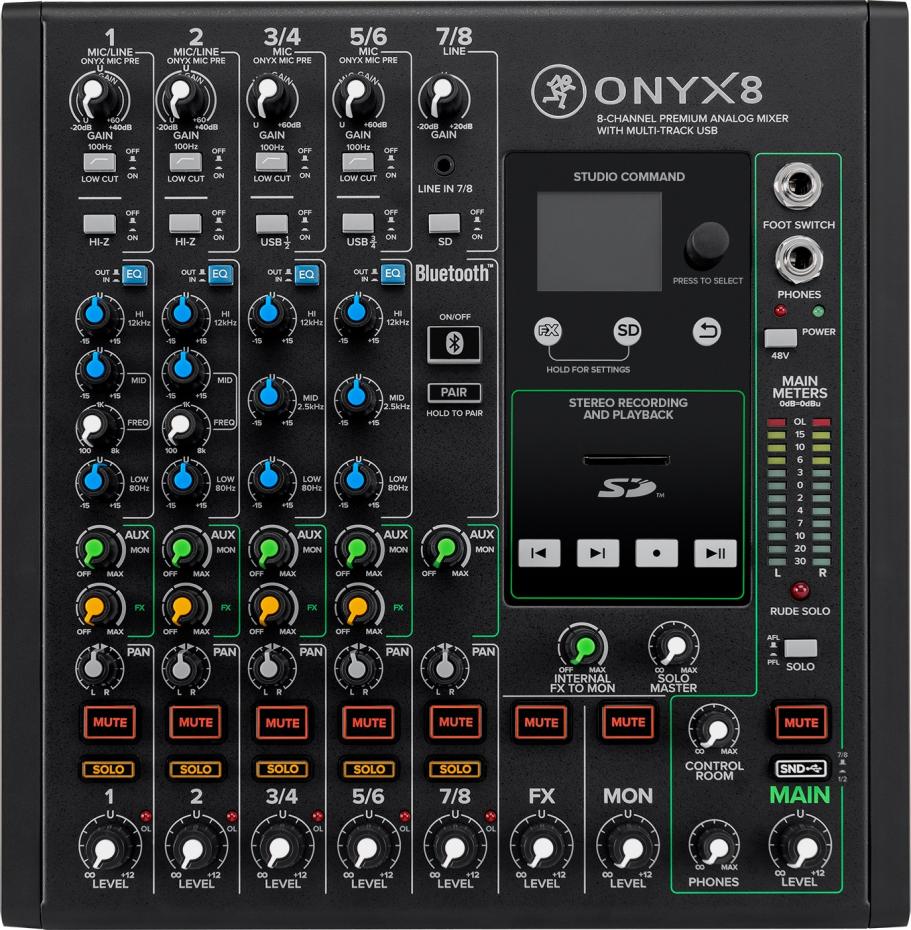

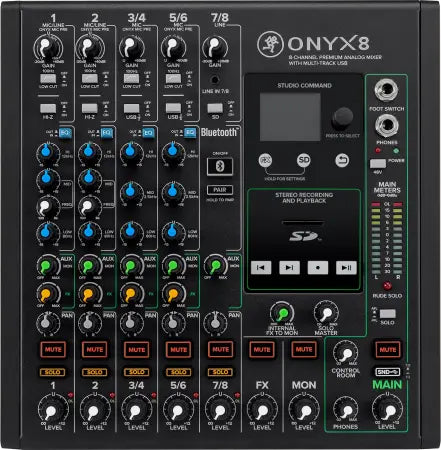

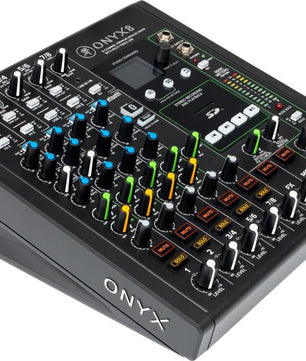

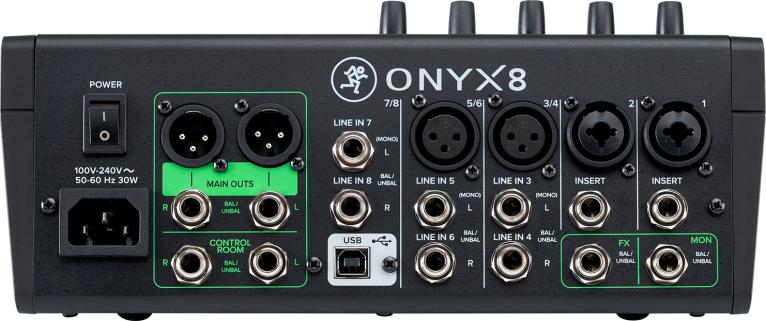

Mackie Onyx8 | 8-Channel Analog Mixer with USB & SD Recording | Perkins EQ, FX & Bluetooth Streaming

8-Channel Analog Mixer with USB & SD Recording

Mackie Onyx8 is a professional 8-channel analog mixer designed to deliver premium sound, intuitive workflow, and rugged reliability for studio, live, and mobile production. With high-resolution multitrack recording, Bluetooth streaming, onboard FX, and powerful EQ, it gives creators the tools to capture and shape audio at a professional level.

Mackie Onyx8 Competitive Differences

• Perkins “British-style” EQ for classic analog tone shaping
• Multitrack USB or SD card recording at up to 24-bit / 96kHz

Mackie Onyx8 Description

The Mackie Onyx8 elevates the analog mixing experience with pristine audio quality and advanced features for modern creators. At its core are four award-winning Onyx mic preamps offering up to 60 dB of gain and ultra-low noise, ensuring professional clarity for vocals, instruments, and live mics. Every channel features a musical 3-band Perkins EQ modeled after legendary British consoles of the '60s and '70s, giving your mix warmth and punch with precision control. Whether in a studio or a mobile rig, the Onyx8’s analog circuitry blends beautifully with digital enhancements. Record multitrack sessions directly to Mac or PC via USB, or skip the computer altogether and use the built-in SD recorder to capture stereo mixes at up to 96kHz. The Studio Command interface features a full-color LCD for easy effect control, file browsing, playback, and onboard preset management. Bluetooth streaming adds wireless versatility—stream backing tracks, reference mixes, or ambient music directly to your aux or main outputs. Custom FX are editable with multi-parameter controls, and the Onyx8 includes the Waveform OEM™ DAW and DAW Essentials FX plugin bundle to round out your hybrid studio setup. Built-Like-A-Tank™ with a steel chassis and QuickGrip handles, the Onyx8 is made to move and built to perform anywhere.

Model Features

• 4 Onyx mic preamps with up to 60 dB gain and ultra-low noise
• 3-band Perkins “British-style” EQ with hard bypass switch
• 24-bit / 96kHz multitrack recording via USB
• Stereo recording and playback via SD card
• Full-color LCD for FX control and SD management (Studio Command)
• Customizable built-in FX with multi-parameter adjustment
• Bluetooth streaming for background music or wireless playback
• QuickGrip side handles and steel chassis for mobile durability
• Switchable Hi-Z inputs for instruments
• Includes Waveform OEM™ DAW and FX plugin collection

Model Specifications

• Channels: 8
• Mic Preamps: 4 x Onyx with 60 dB gain
• EQ: 3-band Perkins “British-style” EQ (±15 dB)
• Recording: USB multitrack or SD card stereo, up to 24-bit / 96kHz
• FX: Built-in dynamic FX with customizable presets
• Display: Full-color LCD (Studio Command)
• Bluetooth: Yes (input to Aux or Main Mix)
• Construction: Steel chassis with sealed rotary knobs

What's In The Box

• Main unit
• USB cable
• Power supply
• Waveform OEM software license
• Quick start guide
