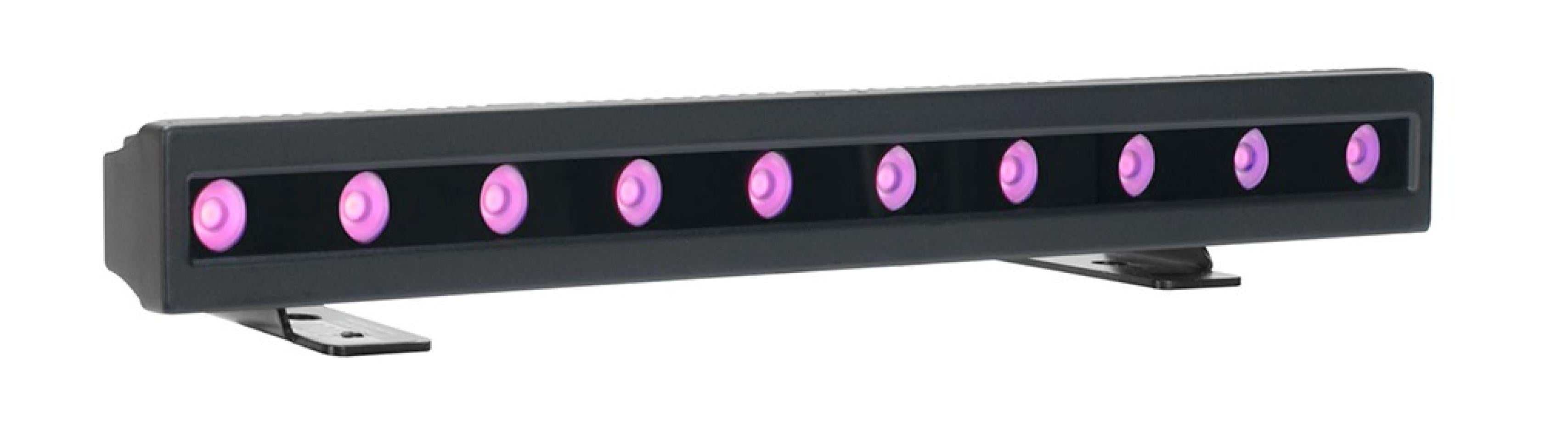

Magmatic Prisma Mini Bar 20 | 10x 2W 365nm UV LEDs | IP65 Outdoor Narrow Beam Wash
111264

Magmatic Prisma Mini Bar 20 | 10x 2W 365nm UV LEDs | IP65 Outdoor Narrow Beam Wash

$485.00
Order within [hour] to get by [date_end]

Direct Ship from Our Supplier

Contact Us to Order - Most Items Ship Just As Fast

Returns & Exchanges Policy
All orders come with our industry leading 90-Day return policy.
  • Cash Back or Store Credit available for returns within 30 days.
  • Store Credit available for returns within 31-90 days.
Restocking fees
  • Unopened Items: 5%
  • Opened but Mint Condition: 15%
  • Blemished, Missing/Damaged Packing or Accessories: 25%
Shipping Costs
  • Buyer is responsible for return shipping costs
  • If "Free" or discount shipping was provided with original order, our actual shipping cost will be deducted from the amount refunded/credited
Damages & Defects
  • We will swap any item reported as damaged or defective within 7 days of delivery for free. All transportation and replacement costs will be covered by us (within US48 states).


  • Guarantee Safe
    Checkout

trust_2dea69ed-7223-44f3-828d-a80bc0f3aef4

Description

Shipping

Return Policies

Outdoor UV Linear Wash Fixture

The Magmatic Prisma Mini Bar 20 is a compact, IP65-rated UV wash bar designed for true 365nm ultraviolet output with no visible light. Engineered for outdoor and architectural applications, it delivers a focused 20° beam angle, making it ideal for controlled UV effects in installations, themed environments, and special events.

Magmatic Prisma Mini Bar 20 Competitive Differences

  • True 365nm UV output with zero visible light
  • Compact, rugged IP65 housing for outdoor use

Magmatic Prisma Mini Bar 20 Description

The Prisma Mini Bar 20 delivers precise ultraviolet output using ten high-power 2W UV LEDs with a peak wavelength of 365nm, producing vibrant fluorescent effects while maintaining complete visual blackout under normal lighting conditions. This makes it ideal for UV-reactive installations where no spill light is desired. Housed in a weather-resistant IP65-rated aluminum chassis, the fixture is ready for permanent outdoor installations or mobile event setups exposed to the elements. Two adjustable mounting brackets provide flexible positioning for tight beam coverage, and its narrow 20° beam ensures highly directional UV light for targeted applications. This fixture requires the Prisma Driver 8 or Prisma Driver 8IP (sold separately) for power and control, supporting DMX-512 and RDM protocols. Control features include multiple channel modes, strobe effects, and selectable dimming curves. The included 9-foot cable with Phoenix connector supports up to 40 feet (12 meters) of cable run from the driver, offering installation flexibility.

Model Features

  • 10x 2W 365nm UV LEDs for true UV effects
  • Zero visible light output—ideal for blacklight scenes
  • Rugged, weather-resistant IP65 aluminum housing
  • 20° narrow beam angle for precise coverage
  • Supports strobe and dimming effects (via driver)

Model Specifications

  • LED Source: 10 x 2W UV Diode LEDs
  • Wavelength: 365nm peak
  • Beam Angle: 20°
  • Power Consumption: 24.3W Max
  • Voltage: 36.7V DC (requires Prisma Driver 8 or 8IP)
  • Dimensions: 3.97 x 18.9 x 4.19 in (100 x 480 x 106.5 mm)
  • Weight: 4.2 lb (1.9 kg)
  • Cable: 9 ft (2.75 m) 2-conductor with Phoenix connector
  • Max Cable Distance to Driver: 40 ft (12 m)
  • IP Rating: IP65
  • Operating Temperature: 14°F to 113°F (-10°C to 45°C)

What's In The Box

  • Prisma Mini Bar 20 fixture
  • Mounting brackets (x2)
  • 2.75m Phoenix connector cable
