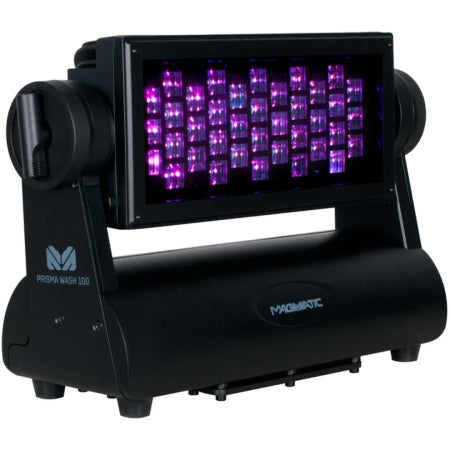

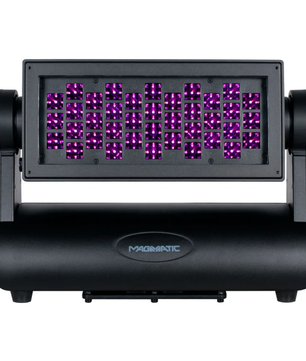

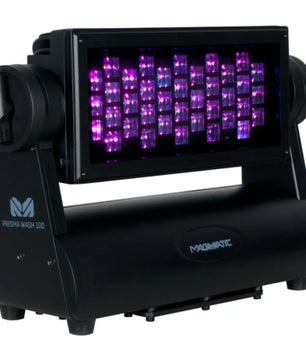

Magmatic Prisma Wash 100 | 38x 2W 365nm UV LEDs | IP65 Wide Beam Outdoor Fixture

Magmatic Prisma Wash 100 | 38x 2W 365nm UV LEDs | IP65 Wide Beam Outdoor Fixture

$2,118.00

Order within [hour] to get by [date_end]

Quantity

Direct Ship from Our Supplier

Guarantee Safe
Checkout

trust_2dea69ed-7223-44f3-828d-a80bc0f3aef4

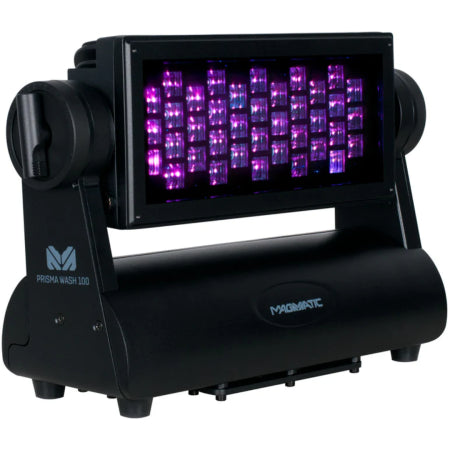

Outdoor UV Wash Lighting Fixture

The Magmatic Prisma Wash 100 is a high-powered, IP65-rated ultraviolet wash luminaire designed for permanent outdoor installations and demanding event environments. Featuring true 365nm UV output with zero visible light, a wide 90° beam angle, and rugged construction, it’s the ideal solution for immersive blacklight effects in architectural, themed, or entertainment applications.

Magmatic Prisma Wash 100 Competitive Differences

38x 2W UV LEDs for powerful 365nm true UV output

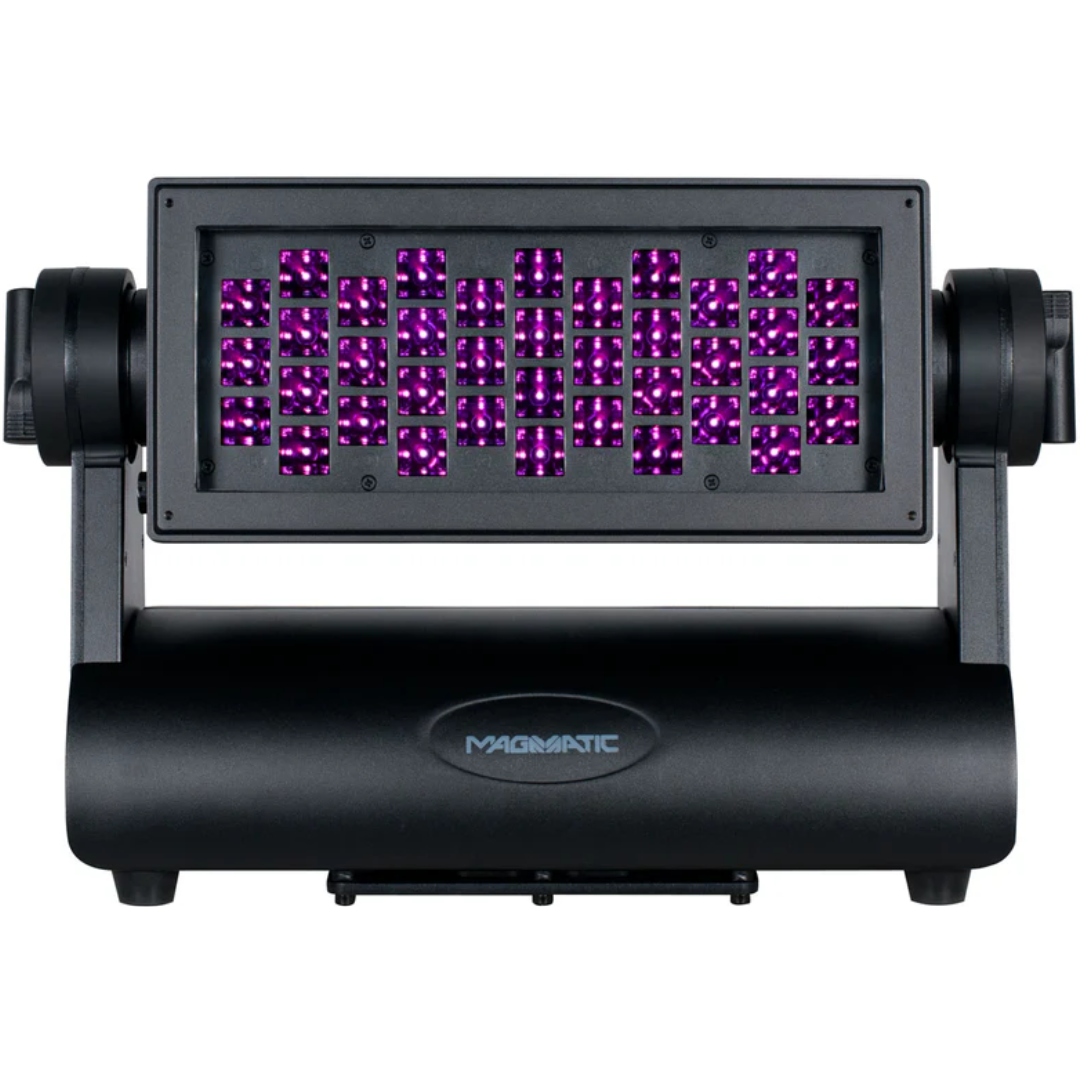

90° wide beam with scoop reflector for broad UV coverage

Magmatic Prisma Wash 100 Description

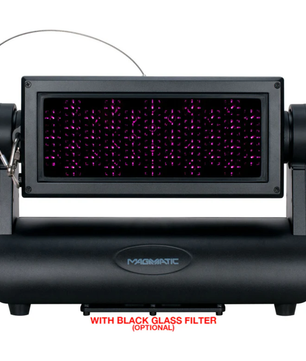

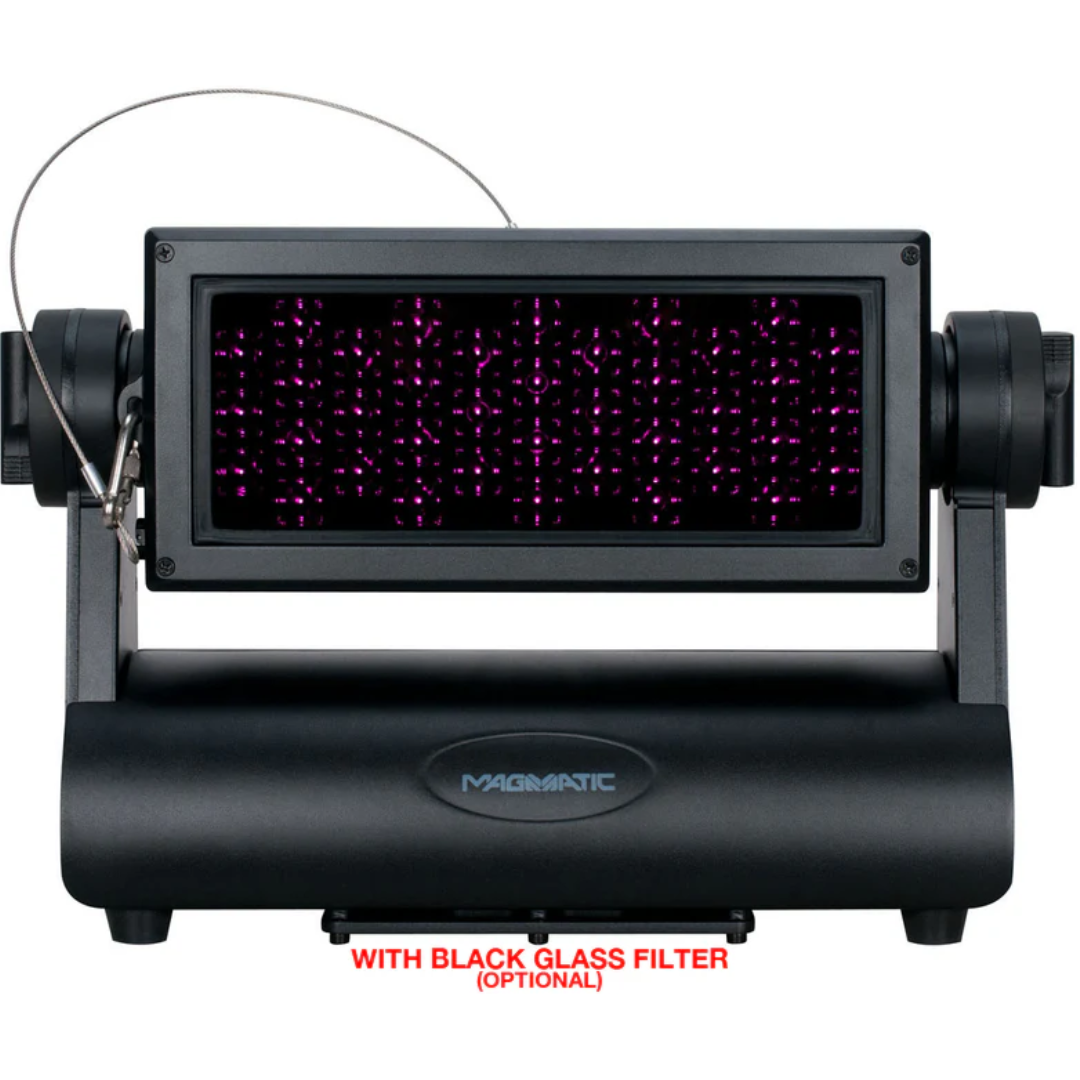

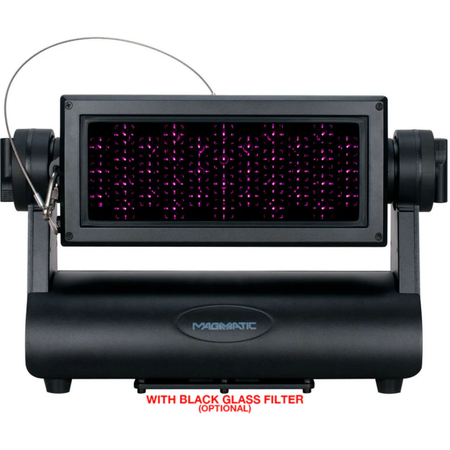

The Prisma Wash 100 delivers large-area ultraviolet coverage with true 365nm output and no visible light spill, making it ideal for venues, amusement parks, art installations, and any environment where high-output UV effects are required. Its scoop-style LED reflector design spreads the UV wash across a 90° beam angle, perfect for flooding walls, stages, or scenic elements. Housed in a durable aluminum chassis rated IP65, the unit is fully protected against outdoor conditions like dust and moisture. The onboard 2.5-inch LCD touchscreen offers easy access to configuration and control, with support for DMX-512 and RDM protocols. For maximum flexibility, the tilt angle is manually adjustable, and multiple DMX channel modes allow for integration into a variety of lighting setups. Optional accessories include a black glass filter for complete visual blackout (only UV light passes through) and extended-length IP-rated power/data cables for flexible rigging.

Model Features

True 365nm UV wash with zero visible light output
Wide 90° beam angle with scoop reflector design

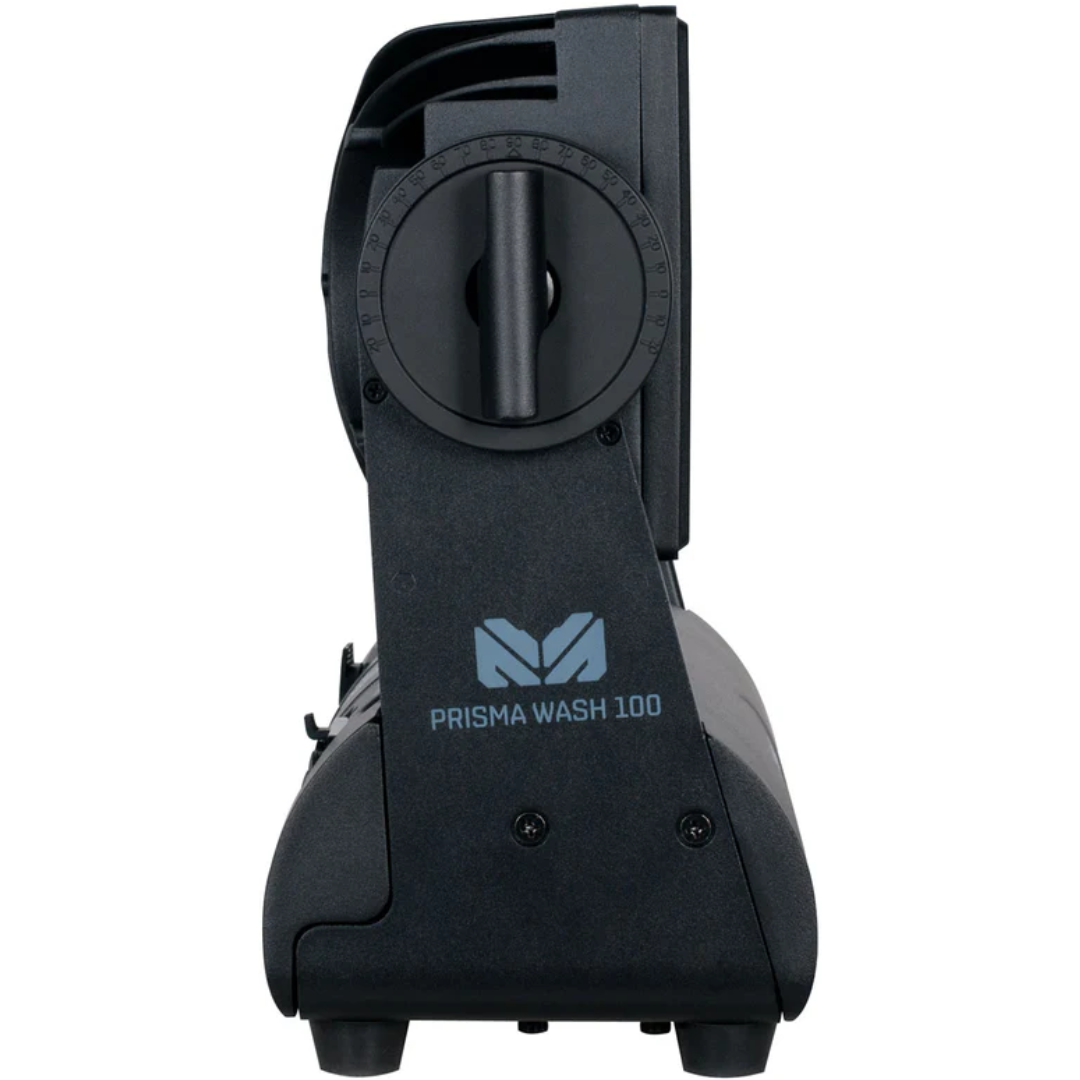

Manual tilt adjustment for precise aiming

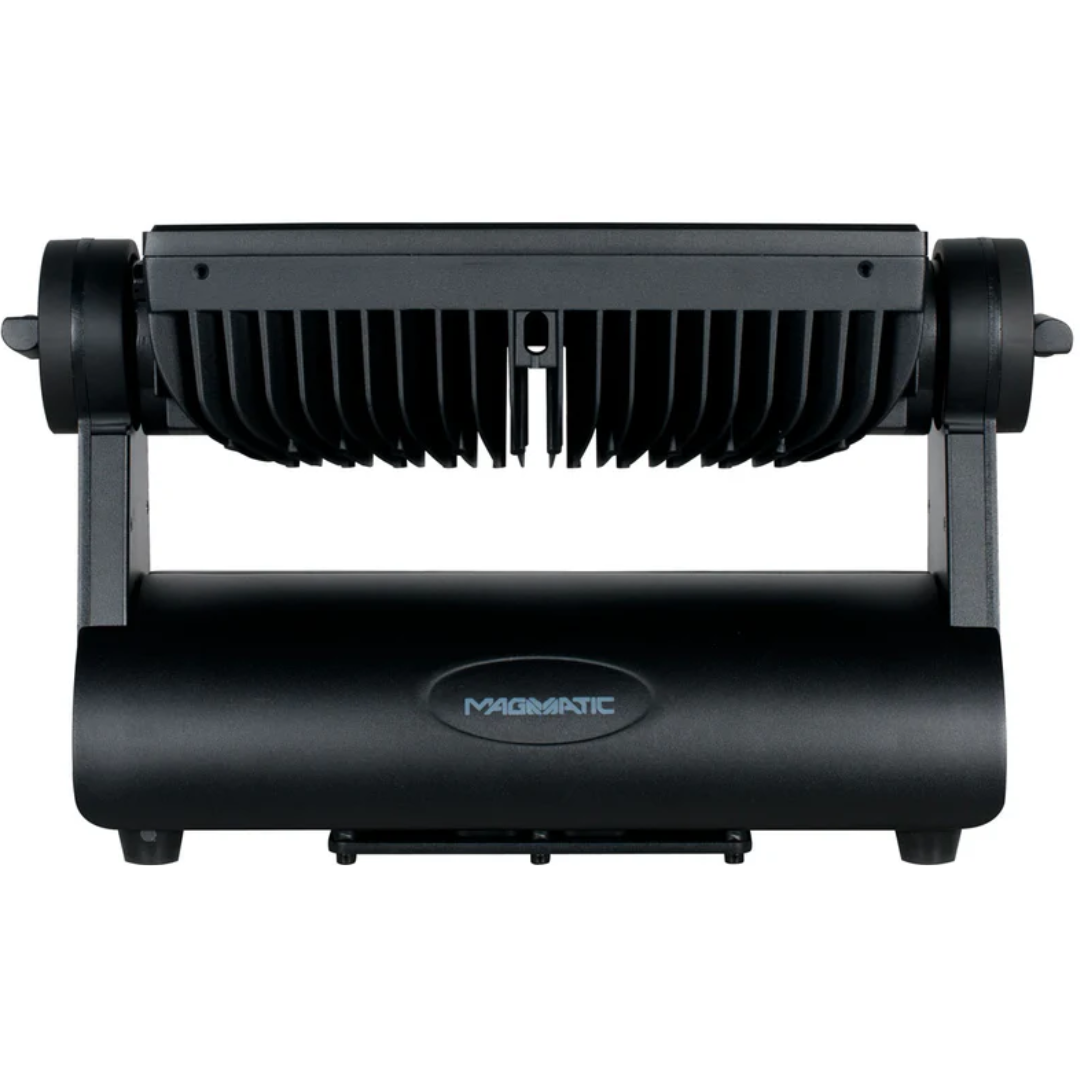

Rugged IP65 aluminum housing for outdoor use

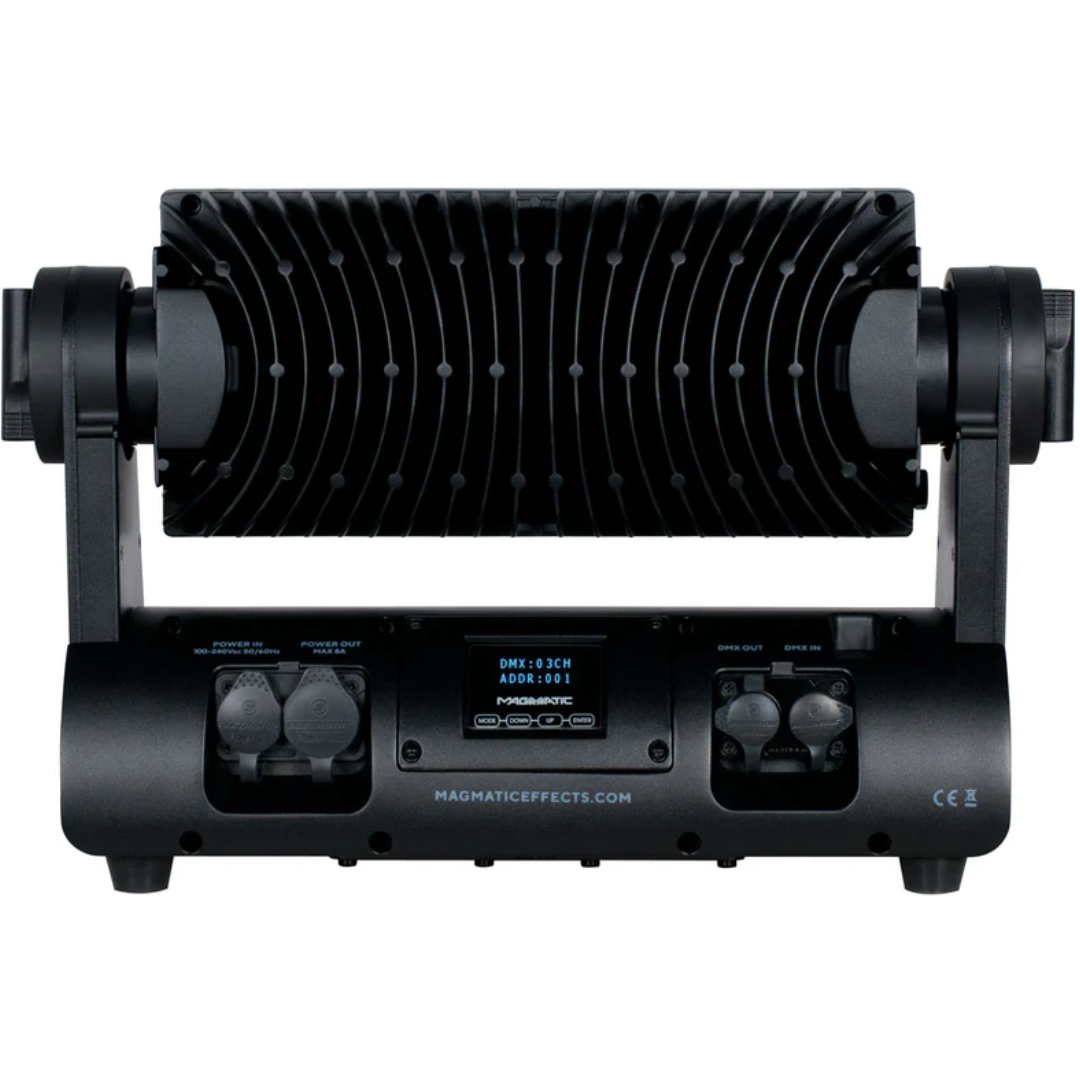

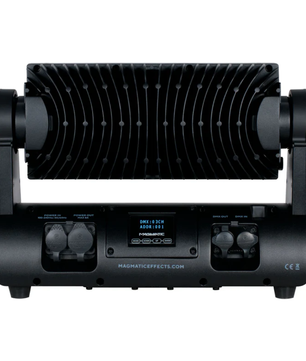

DMX-512 and RDM control with onboard LCD interface

Model Specifications

LED Source: 38 x 2W UV Diode LEDs
Wavelength: 365nm peak
Beam Angle: 90°
Power Consumption: 83W Max
Input Voltage: 100–240V AC, 50/60Hz
DMX Modes: Multiple channel options
DMX I/O: 5-pin locking XLR
Power In: IP65 locking power connector
Dimensions: 17.24 x 5.82 x 11.29 in (438 x 148 x 287 mm)
Weight: 18.5 lb (8.4 kg)
Operating Temperature: Up to 104°F (40°C)
Certifications: CE, cETLus | IP Rating: IP65

What's In The Box

Prisma Wash 100 unit
Power cable
User manual
