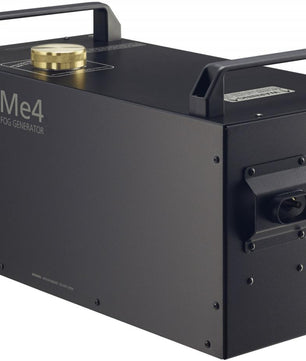

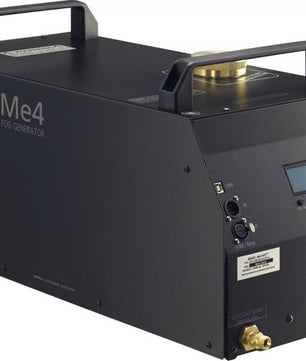

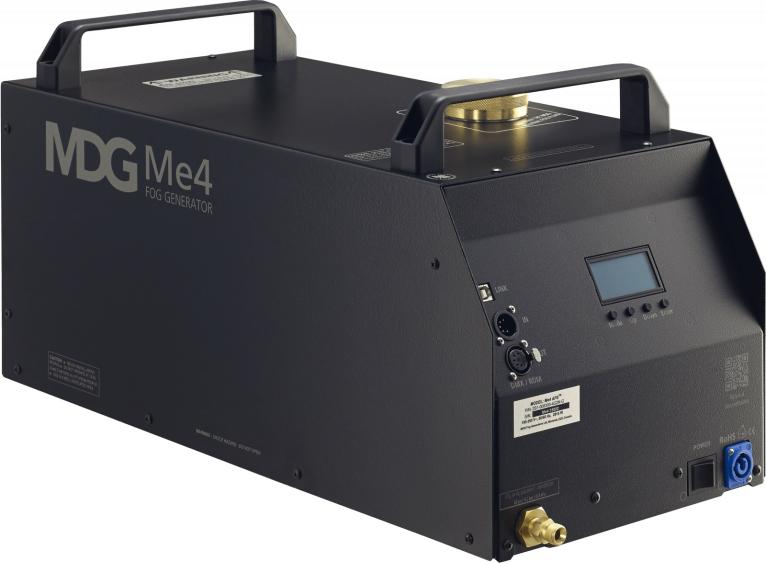

MDG Me 4 | Quad High Output Fog Generator

The powerful Me4’s quadruple output is ideal when you need seriously high amounts of fog.

Features:
VARIABLE FOG OUTPUT
0-100 % fog output control from your DMX/RDM device, or direct local control.

FLUID CONSUMPTION
At maximum output (2.76 bar / 40 psi) Me4 uses only 4 L (1.06 US gallon) of fluid per hour.

100% DUTY CYCLE
At all output levels Me4 produces a high-quality, consistent fog as long as there is fluid and gas.

NUMEROUS CONTROL OPTIONS

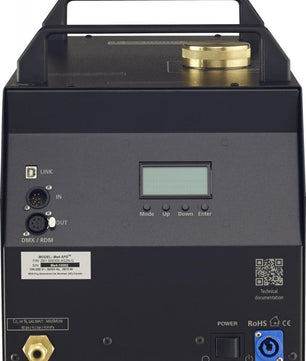

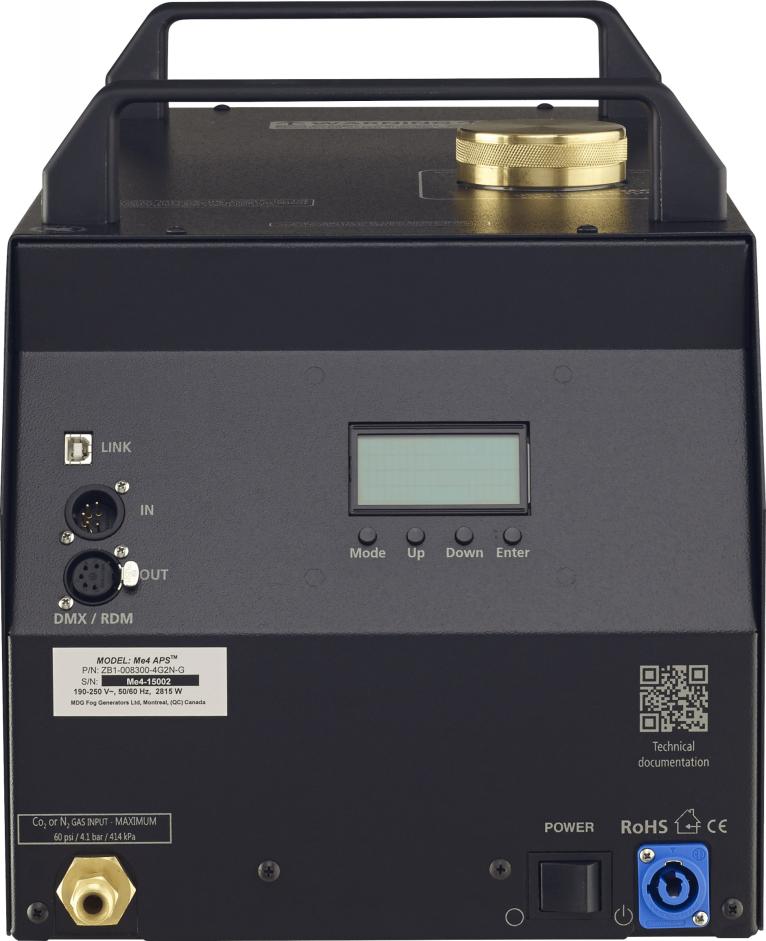

4-button LCD user interface, 3 standard USITT DMX512 channels, XLR-5 connectors, RDM compliant.

APS™ (AUTOMATIC PURGING SYSTEM)
This system purges the heating modules after the first heating cycle and after every emission of fog preventing residual build up and clogging.

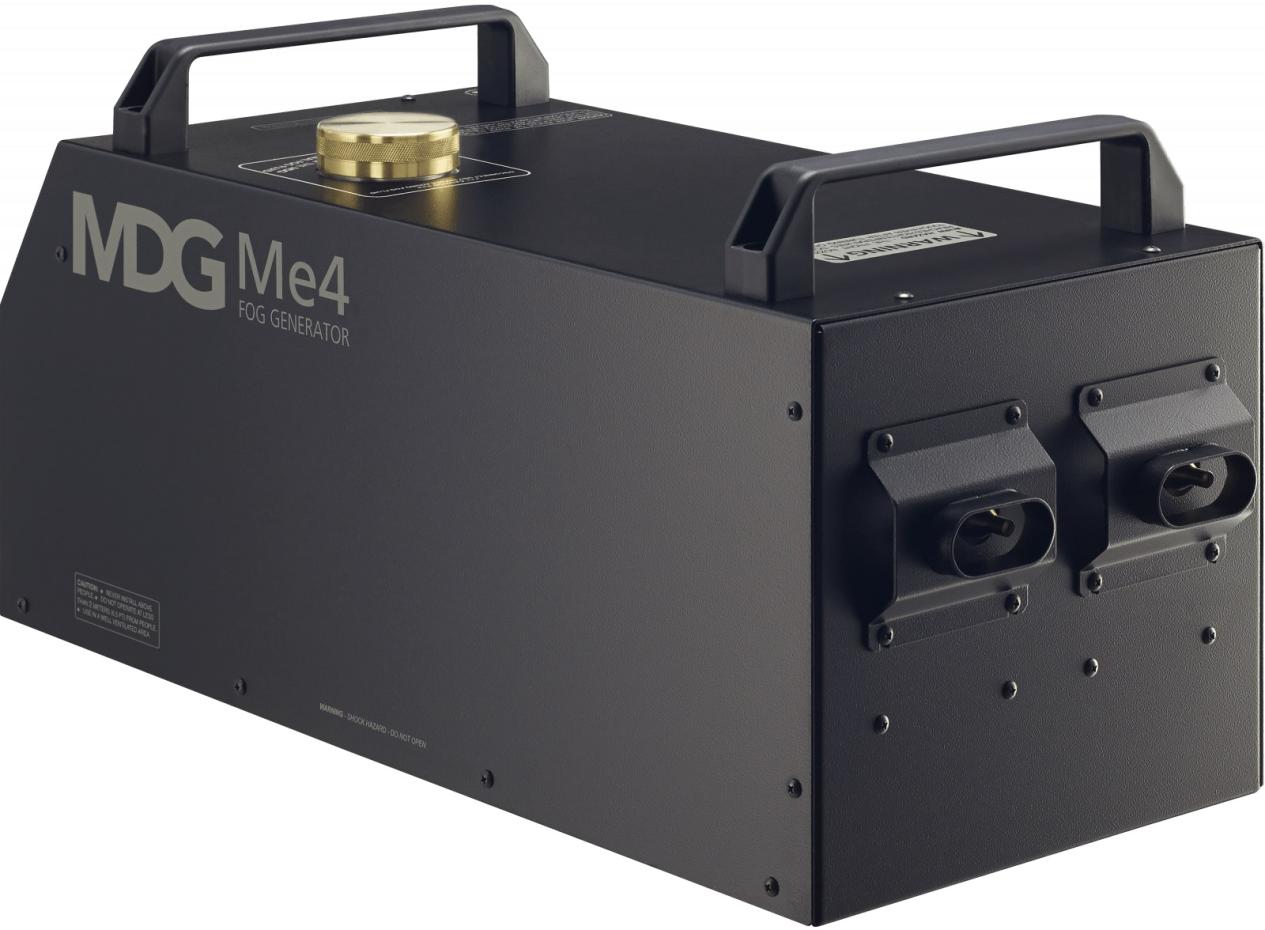

QUAD FOG OUTPUT
With its four nozzles, the maximum fog output is 400 m3 (14,126 ft3) per minute.

Specifications:
Maximum fog output
400 m3 (14,126 ft3) per minute

Fluid consumption
4 L (1.06 US gallon) (per hour at 2.76 bar/40 psi)

Gas type
N2

Gas consumption
3.4 kg (7.5 lb) per hour at 2.76 bar / 40 psi

Control
4-button LCD user interface, 3 standard USITT DMX512 channels, XLR-5 connectors, RDM compliant.

Reservoir capacity
6.5 L (1.7 US gallon)

APS™ (Automatic Purging System)
Standard

Fog colour
Pure white

Particle size
0.5 - 0.7 microns

Warm-up time
8 minutes (maximum)

Fluid type
MDG Neutral

Operating voltage
190 - 250 VAC, 50/60 Hz single phase

Power consumption
2,815 W

DIMENSIONS
Length
68.5 cm (27”)

Width
28 cm (11”)

Height
30 cm (12”)

Weight
33 kg (72 lb)

Shipping weight
44 kg (97 lb) with flight case

Approval
CE certified, CSA and UL approved
