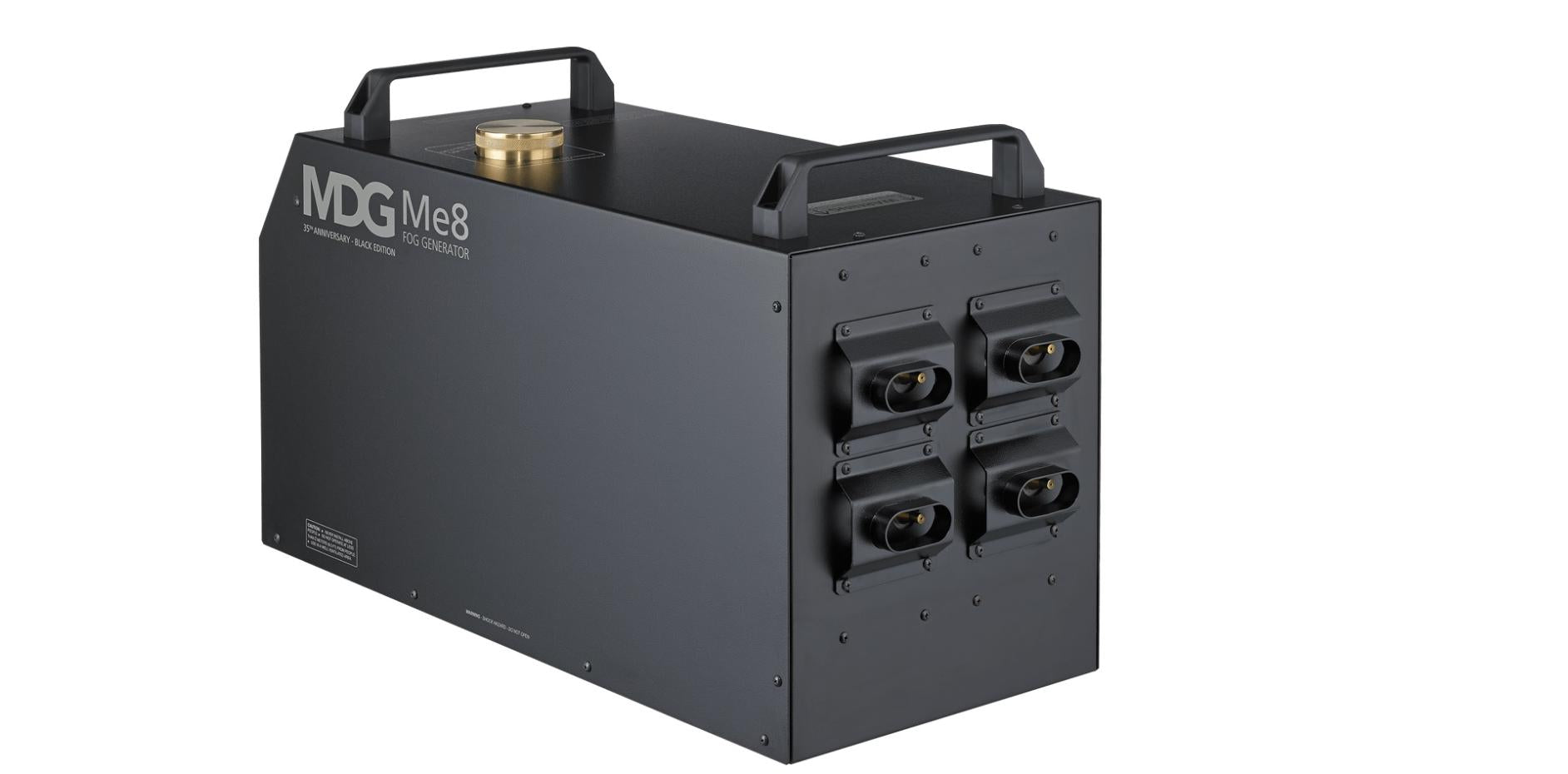

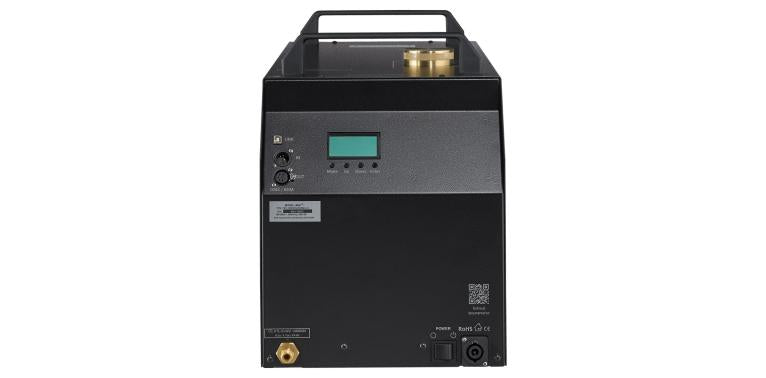

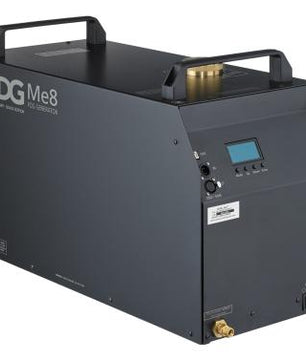

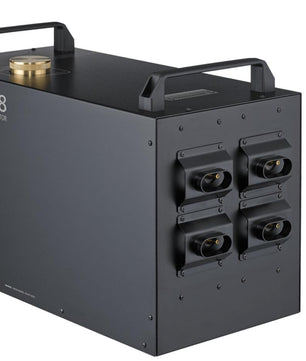

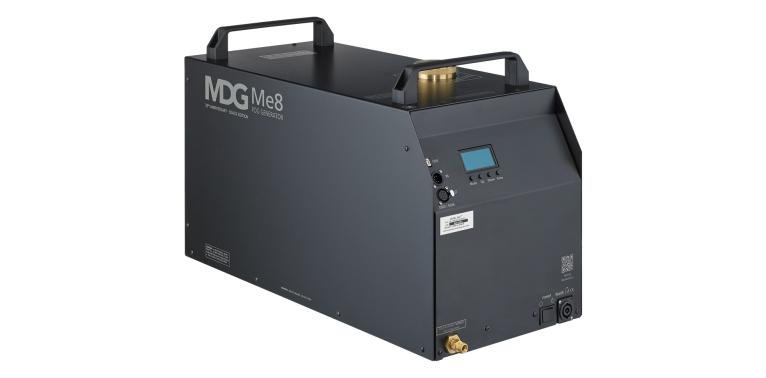

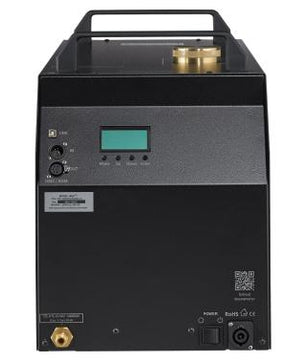

MDG Me8 | Octo High Output Fog Generator

The biggest of the family with a massive eight-nozzle fog output, Me8 delivers exceptional results on a vast scale.

Features:
VARIABLE FOG OUTPUT
0-100% fog output control from your DMX/RDM device, or direct local control.

FLUID CONSUMPTION
At maximum output (2.76 bar / 40 psi) Me8 uses only 8 L (2.11 US gallon) of fluid per hour.

100% DUTY CYCLE
At all output levels Me8 produces a high-quality, consistent fog as long as there is fluid and gas.

NUMEROUS CONTROL OPTIONS
4-button LCD user interface, 3 standard USITT DMX512 channels, XLR-5 connectors, RDM compliant.

APS™ (AUTOMATIC PURGING SYSTEM)
This system purges the heating modules after the first heating cycle and after every emission of fog preventing residual build up and clogging.

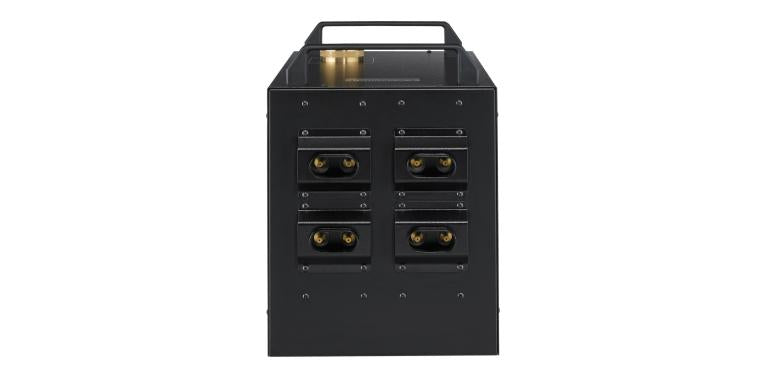

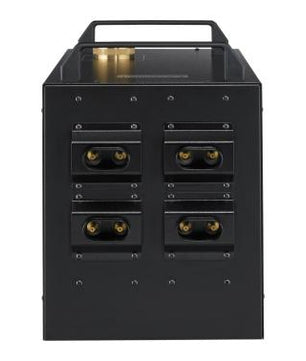

OCTO FOG OUTPUT
With its eight nozzles, the maximum fog output is 800 m3 (28,252 ft3) per minute.

Specifications:
Maximum fog output
800 m3 (28,251 ft3) per minute

Fluid consumption
8 L (2.11 US gallons) per hour at 2.76 bar / 40 psi

Gas type
N2

Gas consumption
8 kg (17.6 lb) per hour at 2.76 bar / 40 psi

Control
4-button LCD user interface, 3 standard DMX512 channels, XLR-5 connectors, RDM compliant.

Reservoir capacity
9.5 L (2.51 gallon US)

APS™ (Automatic Purging System)
Standard

Fog colour
Pure white

Particle size
0.5 - 0.7 microns

Warm-up time
8 minutes (maximum)

Fluid type
MDG Neutral

Operating voltage
190 - 250 VAC, 50/60 Hz single phase

Power consumption
5 630 W

DIMENSIONS
Length
73 cm (28.7”)

Width
30.4 cm (12”)

Height
41.5 cm (16.3”)

Weight
45 kg (100 lb)

Shipping weight
60 kg (132 lb) with flight case

Approval
CE certified, CSA and UL approved
