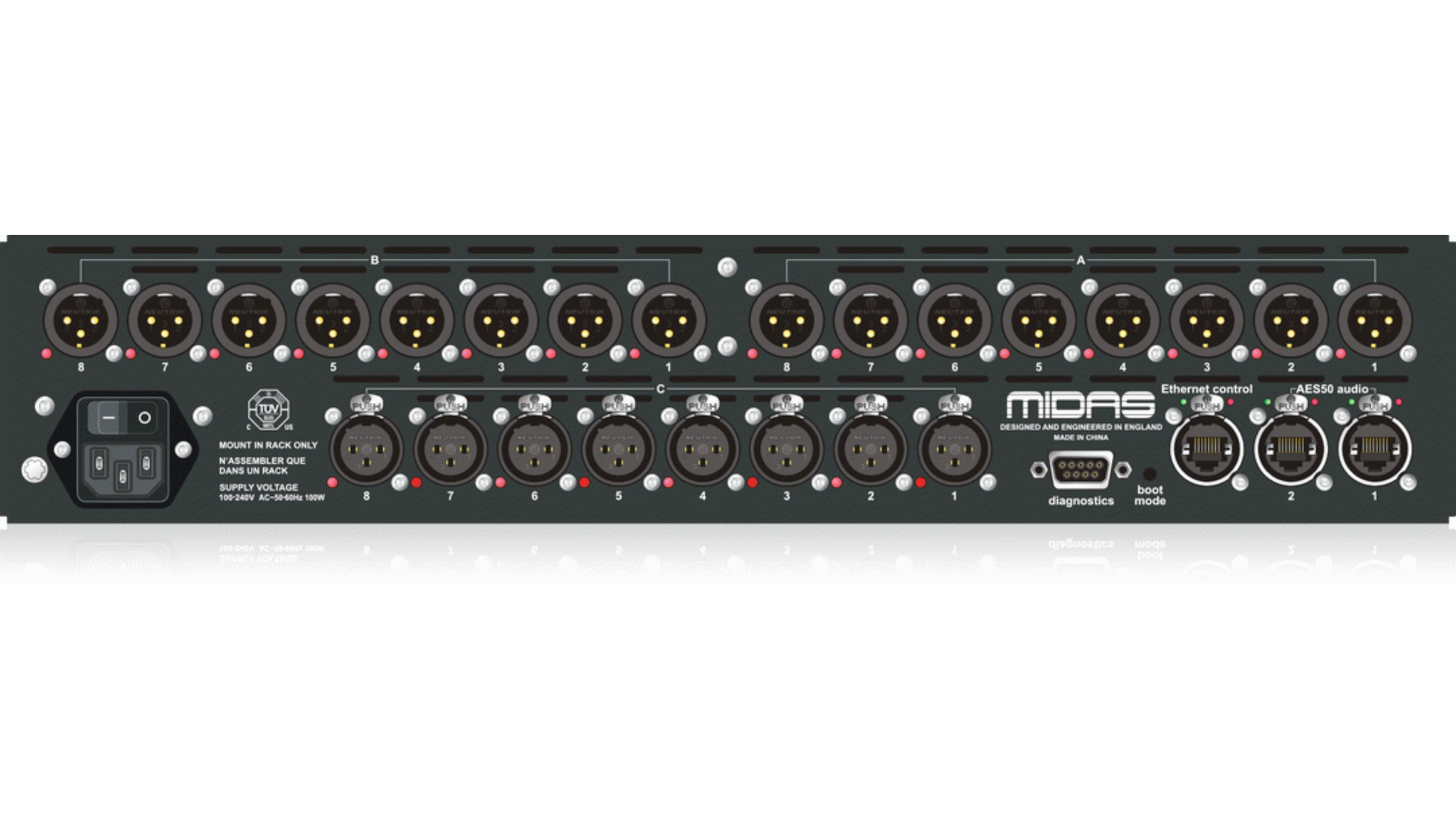

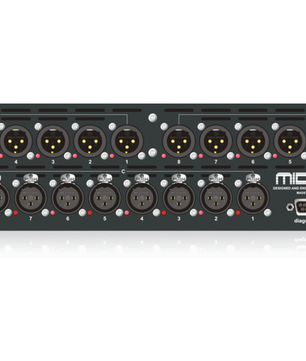

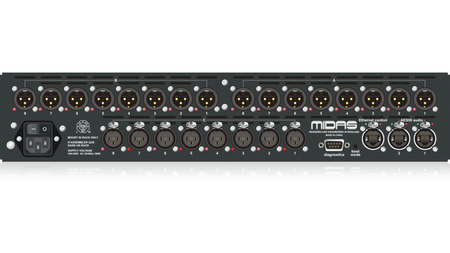

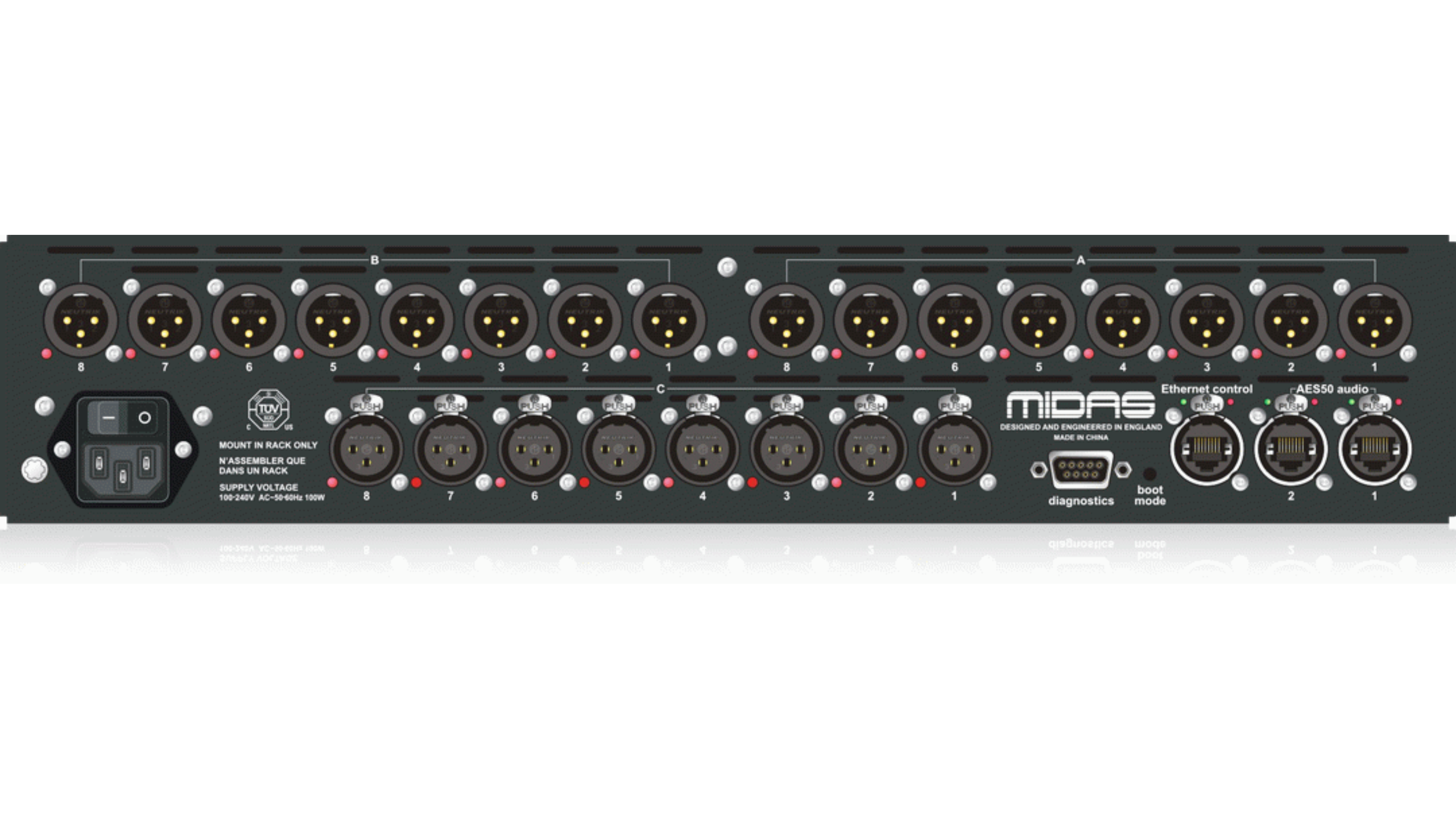

Midas MDS-DL154 | 8x16 Digital Stage Box | 48/96kHz Operation with Remote CAT5 Control

Midas DL154 | 8x16 Digital Stage Box | 48/96kHz Operation with Remote CAT5 Control

$2,399.00

Order within [hour] to get by [date_end]

Quantity

Direct Ship from Our Supplier

Guarantee Safe
Checkout

trust_2dea69ed-7223-44f3-828d-a80bc0f3aef4

8-In / 16-Out Digital Stage Box

Midas MDS-DL154 is a robust and reliable digital stage box offering 8 analog mic/line inputs and 16 electronically balanced line-level outputs. Perfect for expanding output capacity in Midas digital mixing environments, it supports remote configuration via AES50 networking over CAT5/5e cable up to 100 meters.

Midas MDS-DL154 Competitive Differences

16 analog line-level outputs for extensive routing flexibility
Remote-controlled via CAT5/5e with up to 100m range

Midas MDS-DL154 Description

The MDS-DL154 delivers professional-grade audio performance and networked control in a rugged 2U rackmount chassis. Designed for seamless integration with Midas consoles via AES50, it offers a flexible I/O configuration with 8 high-quality inputs and 16 balanced outputs—making it ideal for monitor world, multi-zone PA feeds, or broadcast send routing. With selectable 48 kHz or 96 kHz operation, the DL154 adapts easily to various audio systems and project requirements. The front-panel LCD and controls allow for quick local adjustments, while full remote configuration is also available from the connected console. Built for touring and installed AV environments, the MDS-DL154 offers reliable connectivity, superior sound quality, and the scalable I/O expansion trusted by audio professionals worldwide.

Model Features

8 analog mic/line inputs
16 electronically balanced line-level outputs
Remote operation via CAT5/5e up to 100 meters
Selectable 48 kHz or 96 kHz sample rate

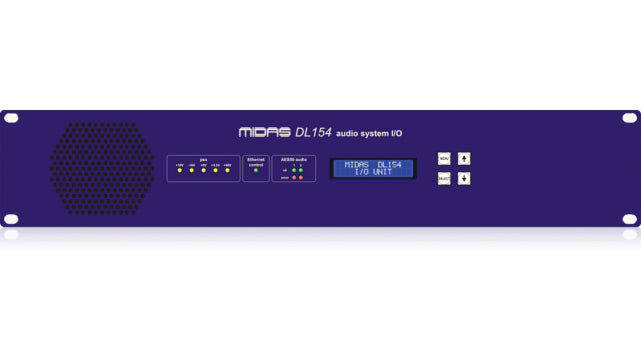

Front-panel LCD and LED indicators for easy setup
Compatible with Midas digital consoles via AES50

Model Specifications

Inputs: 8 x analog mic/line
Outputs: 16 x balanced line-level
Networking: AES50 over CAT5/5e (100m max)
Sample Rate: 48 kHz or 96 kHz (selectable)
Dimensions: 48.3 x 37.6 x 8.8 cm
Weight: 6.9 kg

What's In The Box

Midas MDS-DL154 stage box
Power cable
User documentation
