Obsidian NX Wing | USB Control Surface for ONYX | 64-Universe DMX with MIDI & Timecode

DMX Lighting Control Surface

Obsidian NX Wing is a professional-grade USB control surface designed for use with the ONYX lighting platform. Built on the same footprint and hardware design as the NX 2 console, it delivers a complete programming and playback solution for PC-based lighting control. With dedicated playbacks, encoders, a touchscreen, and physical DMX outputs, it's perfect for users needing a tactile interface without the footprint of a full console.

Obsidian NX Wing Competitive Differences

• Plug-and-play USB interface with ONYX software
• Includes ONYX Premier license for 64 DMX Universes

Obsidian NX Wing Description

The NX Wing provides lighting professionals with a seamless and intuitive control surface that mirrors the full ONYX console experience. It’s an ideal solution for mobile programmers, rental houses, or installations where a dedicated PC handles the processing but a physical interface is essential. Built with durable components and a sleek, compact footprint, the NX Wing offers 10 motorized playback faders, 4 rotary encoders, and a responsive 3.5" RGB touchscreen for parameter control. A full keypad and command section further enhance navigation and workflow. Its connectivity suite includes 4 DMX/RDM ports, MIDI I/O, SMPTE timecode, and more—giving you unmatched flexibility for syncing and integrating with external systems. With the included ONYX Premier license, users can access up to 64 Universes of control directly through the software, making the NX Wing a high-performance option for large-scale productions. Whether you're touring, installing, or building a PC-based lighting system, the Obsidian NX Wing delivers the control you need in a powerful, portable format.

Model Features

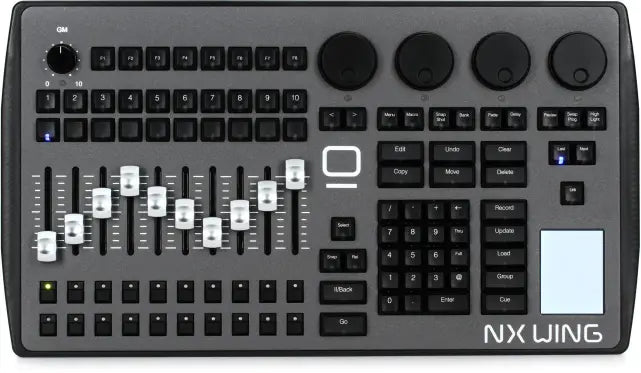

• 10 motorized 60mm playback faders with assignable buttons
• 3.5" RGB touchscreen for effect and parameter control
• 4 rotary encoders with push and LED feedback
• Full numerical keypad and command section
• 4x DMX/RDM 5-pin XLR outputs

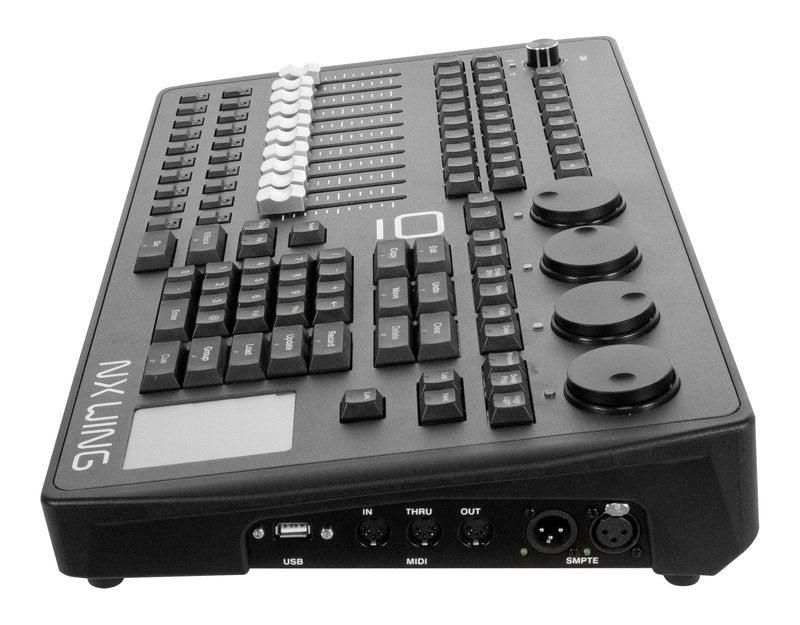

• MIDI in/out/thru and SMPTE Timecode support
• Includes ONYX Premier license (64 DMX Universes)
• Plug-and-play USB device — no additional drivers required

Model Specifications

• Max Universes: 64 (with ONYX on PC)
• Power Input: 12VDC via included PSU (100–240V AC)
• Dimensions: 21.3 x 11.9 x 3.9 in (540 x 300 x 99 mm)
• Weight: 10.2 lb (4.6 kg)
• UPC: 837874008715

What's In The Box

• NX Wing control surface
• 12VDC power supply
• USB cable
• Quick start guide
