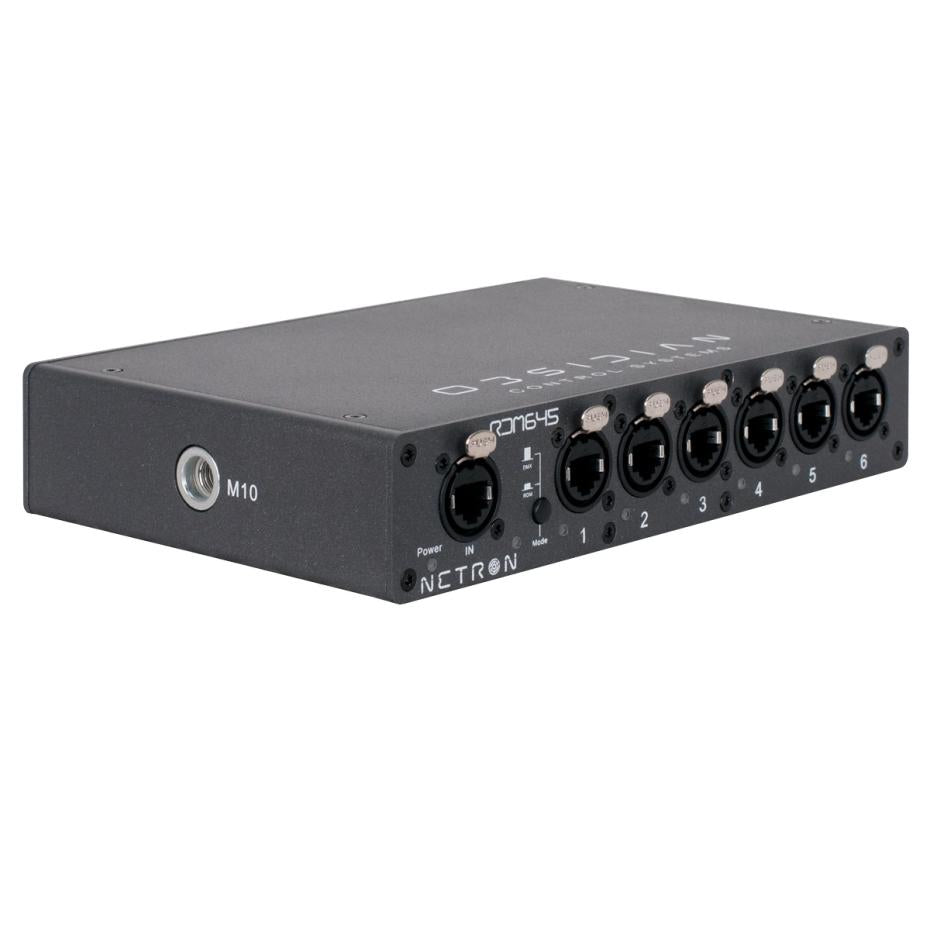

Obsidian RDM 645

The Netron RDM 645 is a rugged and compact DMX/RDM Splitter. Designed for live production and installations, it features six opto-isolated RJ45 DMX outputs and flexible mounting options to cover any situation.

Features:
(6) Locking RJ45 Ethernet DMX outputs
DMX and RDM compliant
Optically isolated ports
Power / DMX Through connectors
Powder-coated aluminum ½ rack housing

Specifications:
MOUNTING
Standalone
Truss-mount (M10 or M12 mounting hole)
Wall-mount horizontal or vertical (included)
DIN Rail horizontal or vertical (included)
Rack-mount option (requires NET Shelf)

CONNECTIONS
Front
Locking RJ45 Ethernet DMX Input
(6) Locking RJ45 Ethernet Opto-Isolated DMX Outputs
RDM Enable

Back
Locking RJ45 Ethernet DMX Input (parallel with front)
Locking RJ45 Ethernet DMX Through
Terminate
Locking Power In/Thru

PHYSICAL
Length: 215 mm (8.5 in.)
Width: 139 mm (5.5 in.)
Height: 42 mm (1.65 in.)
Weight: 1 kg (2.2 lbs)

ELECTRICAL
100-240 V nominal, 50/60 Hz, 10W

INCLUDED ITEMS
1.5m Locking power cable (EU or US version)
(2) Wallmount plates
(2) DIN-Rail clamps
