OnStage LS9900B | Crank-Up Lighting Stand | 185lb Capacity with 157.5in Height

Crank-Up Lighting Stand

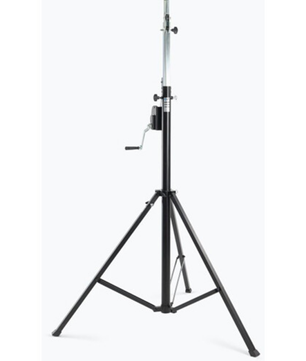

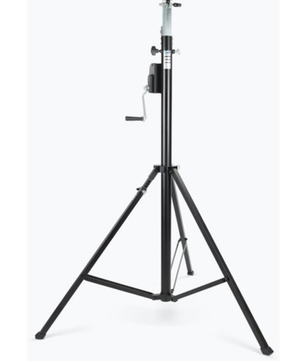

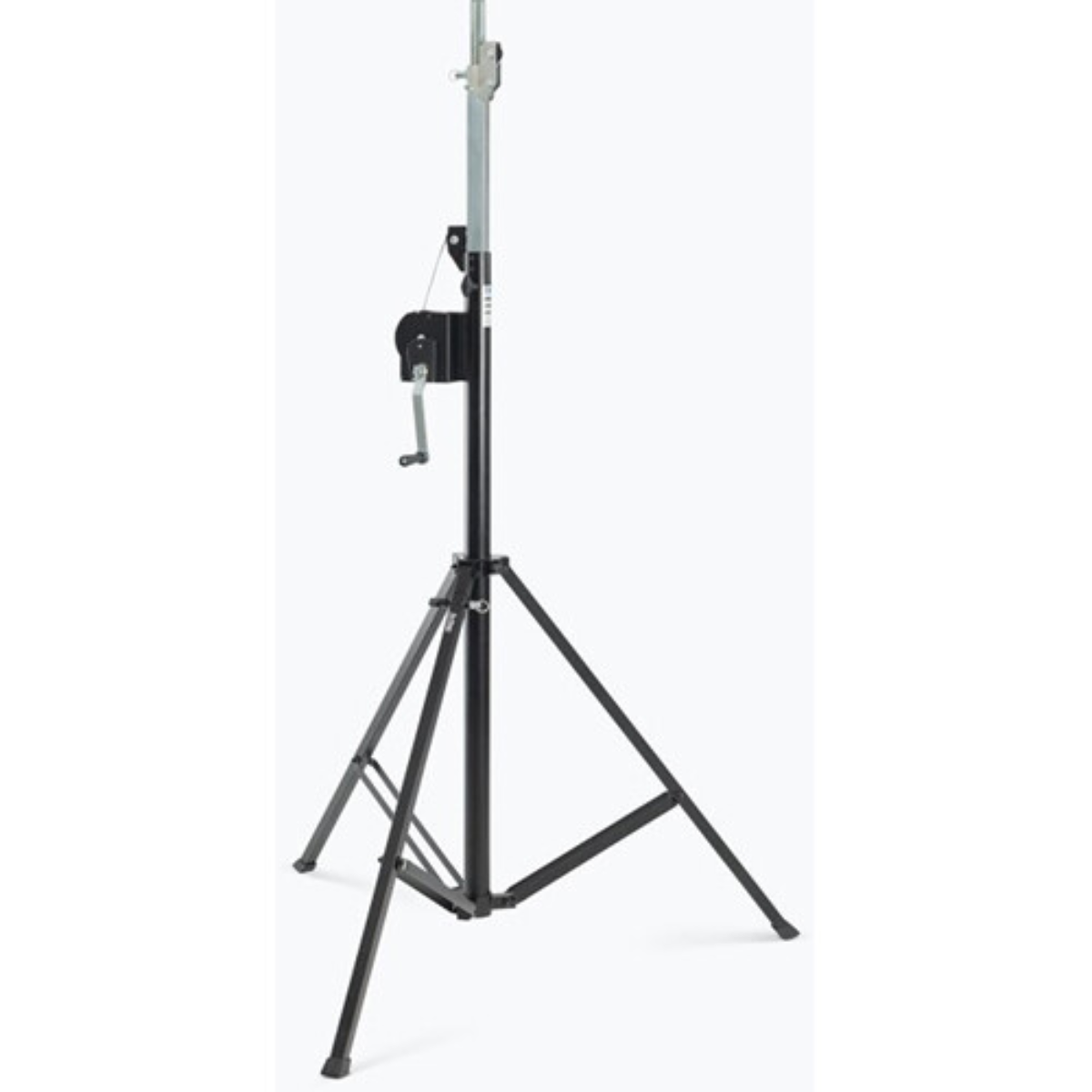

On-Stage LS9900B is a crank-up lighting stand designed to elevate multiple lighting fixtures for stages, theaters, studios, livestream setups, and outdoor event spaces. Its hand-cranked ratcheting winch, adjustable height range, and leveling legs make it a strong solution for portable lighting rigs.

On-Stage LS9900B Competitive Differences

• Hand-cranked ratcheting winch helps raise and lower heavy lighting fixtures safely
• 185 lb load capacity with adjustable legs for leveling on uneven surfaces

On-Stage LS9900B Description

The On-Stage LS9900B is built for lighting professionals, DJs, venues, theaters, production teams, and performance spaces that need a tall, stable lighting support system. Its crank-up design provides power-assisted height adjustment, making it easier to raise mounted fixtures compared to standard manual stands.

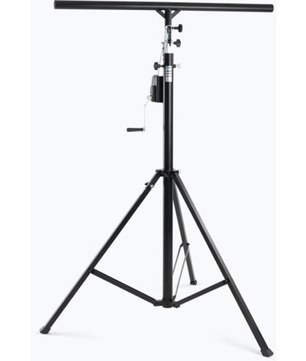

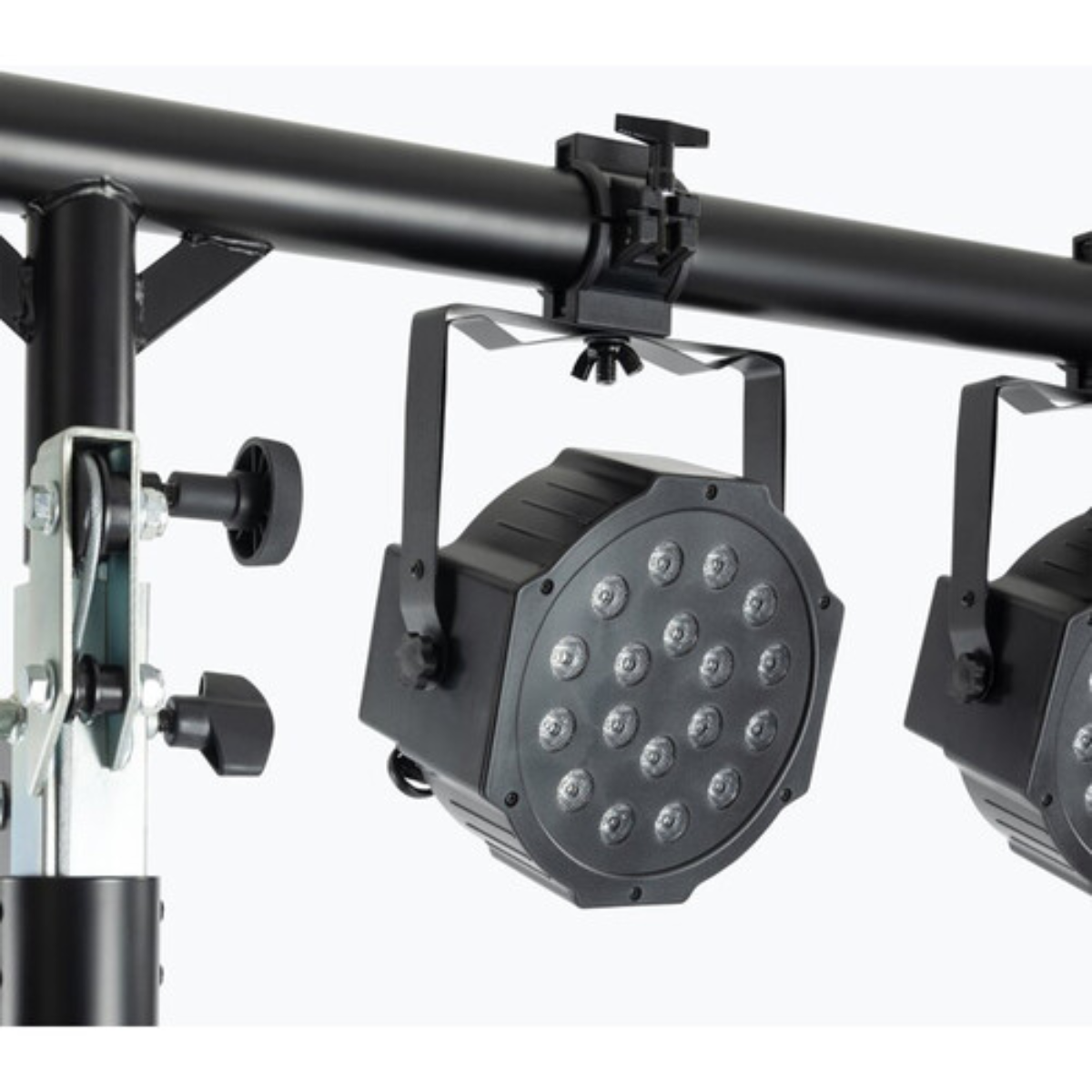

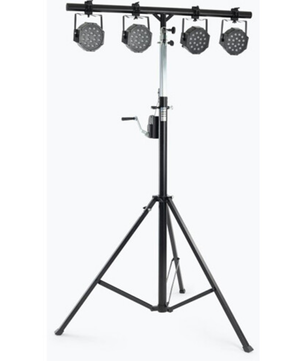

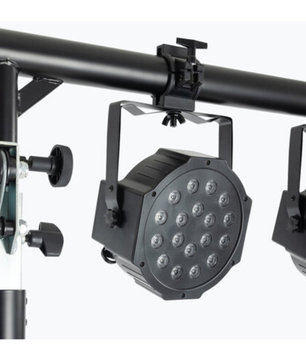

The stand adjusts from 74 to 157.5 inches, allowing users to position lighting effects high above stages, dance floors, studios, or outdoor performance areas. The included 51.5-inch T-bar provides four mounting spaces for PAR cans, LED fixtures, spots, lasers, projectors, moving heads, and other compatible lighting equipment.

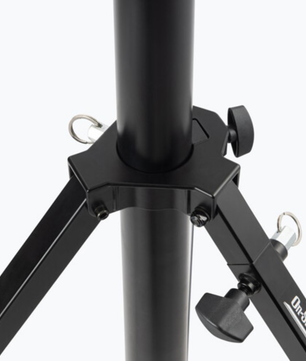

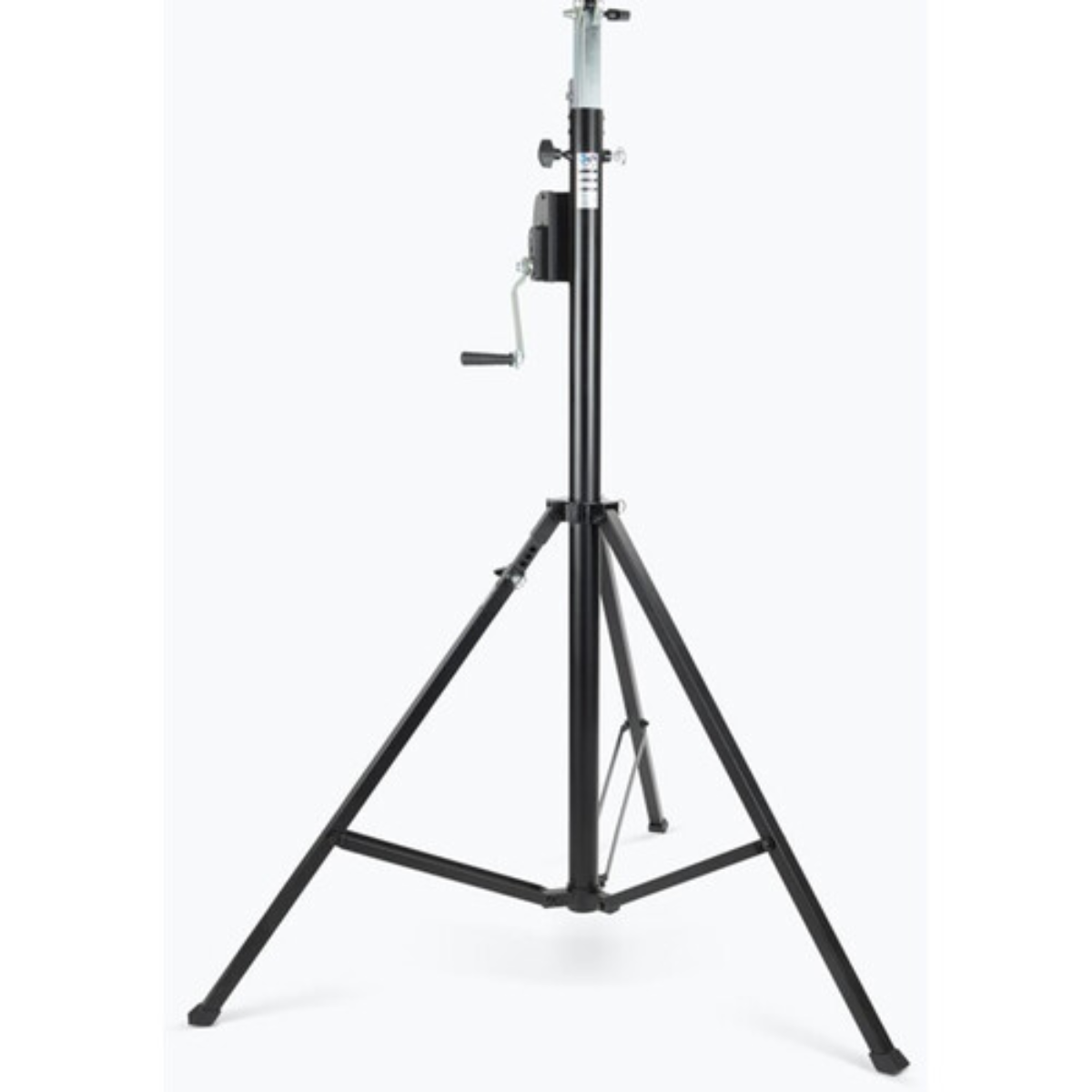

A braced tripod base provides stability, while adjustable leveling legs help the stand stay secure on a variety of surfaces. The black and steel finish resists chips and scratches, and the folding design with detachable T-bar makes transport and storage easier for mobile productions.

LS9900B Features

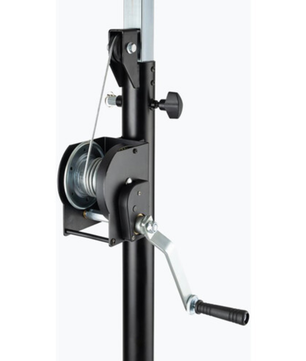

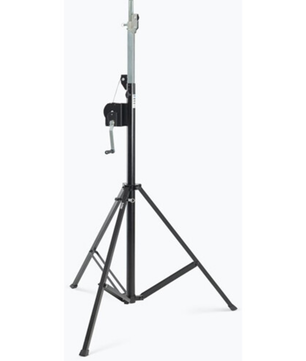

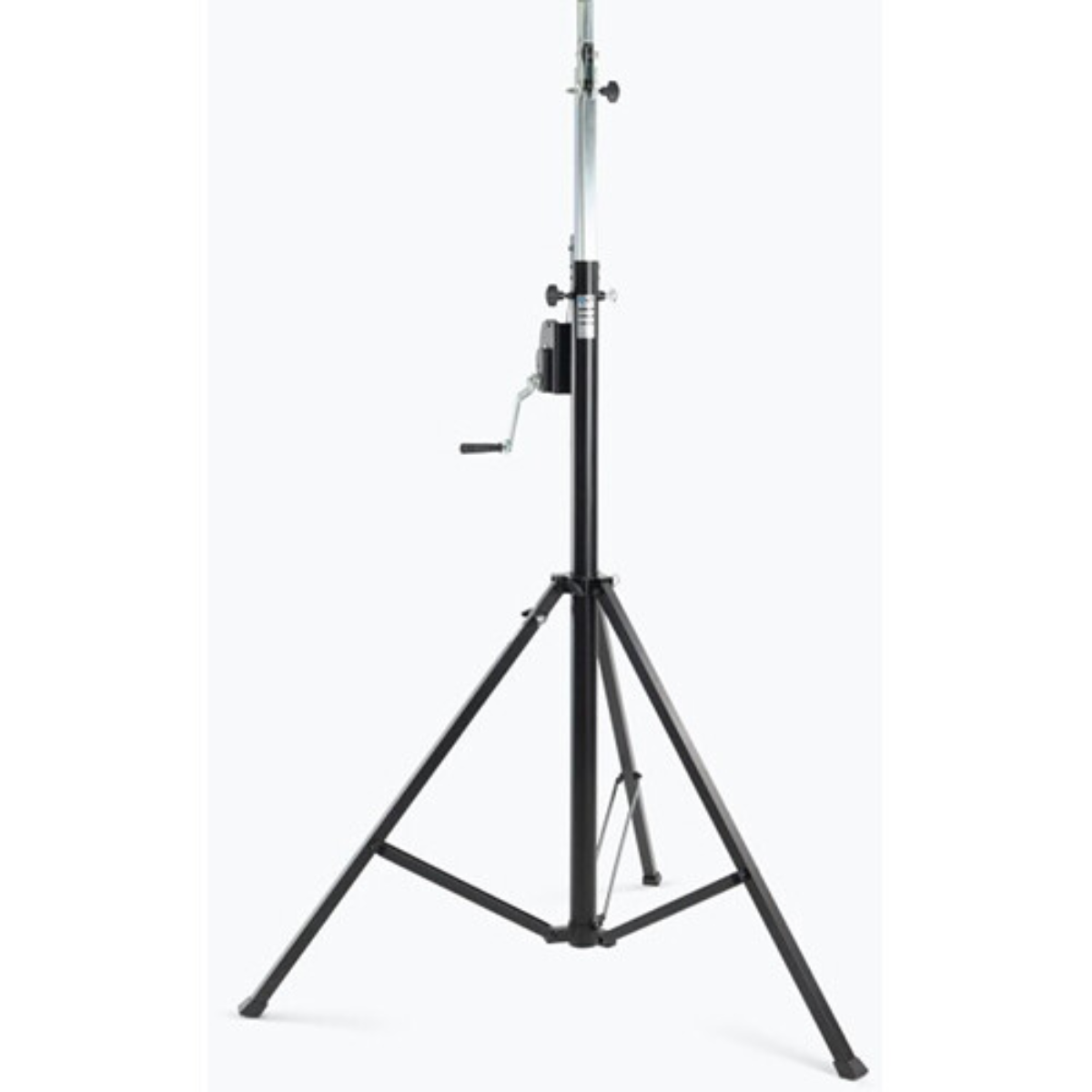

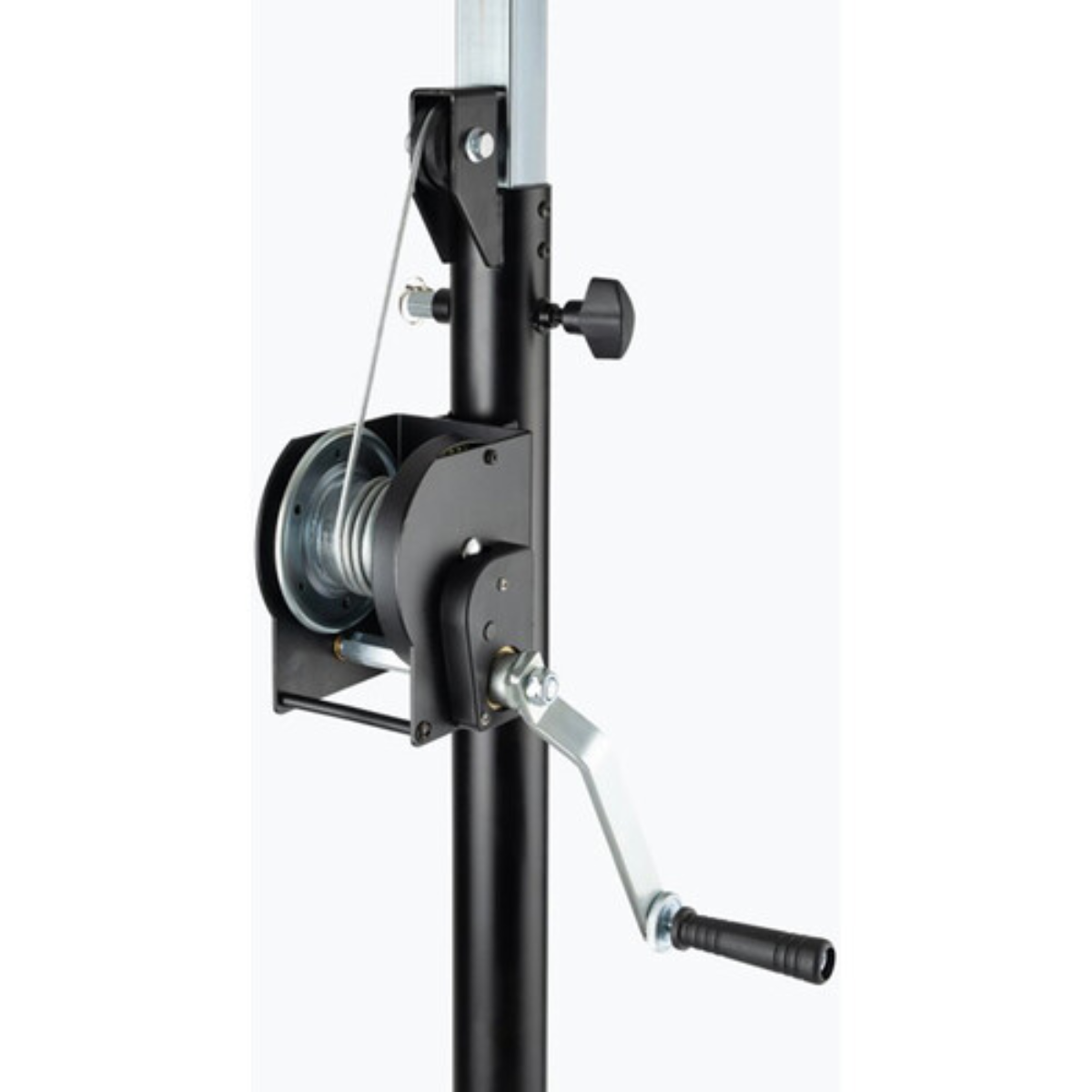

• Crank-up lighting stand with hand-cranked ratcheting winch

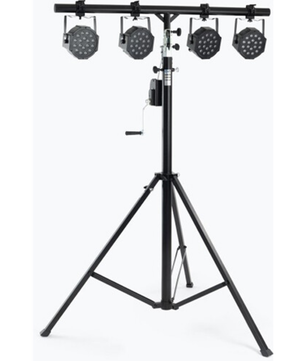

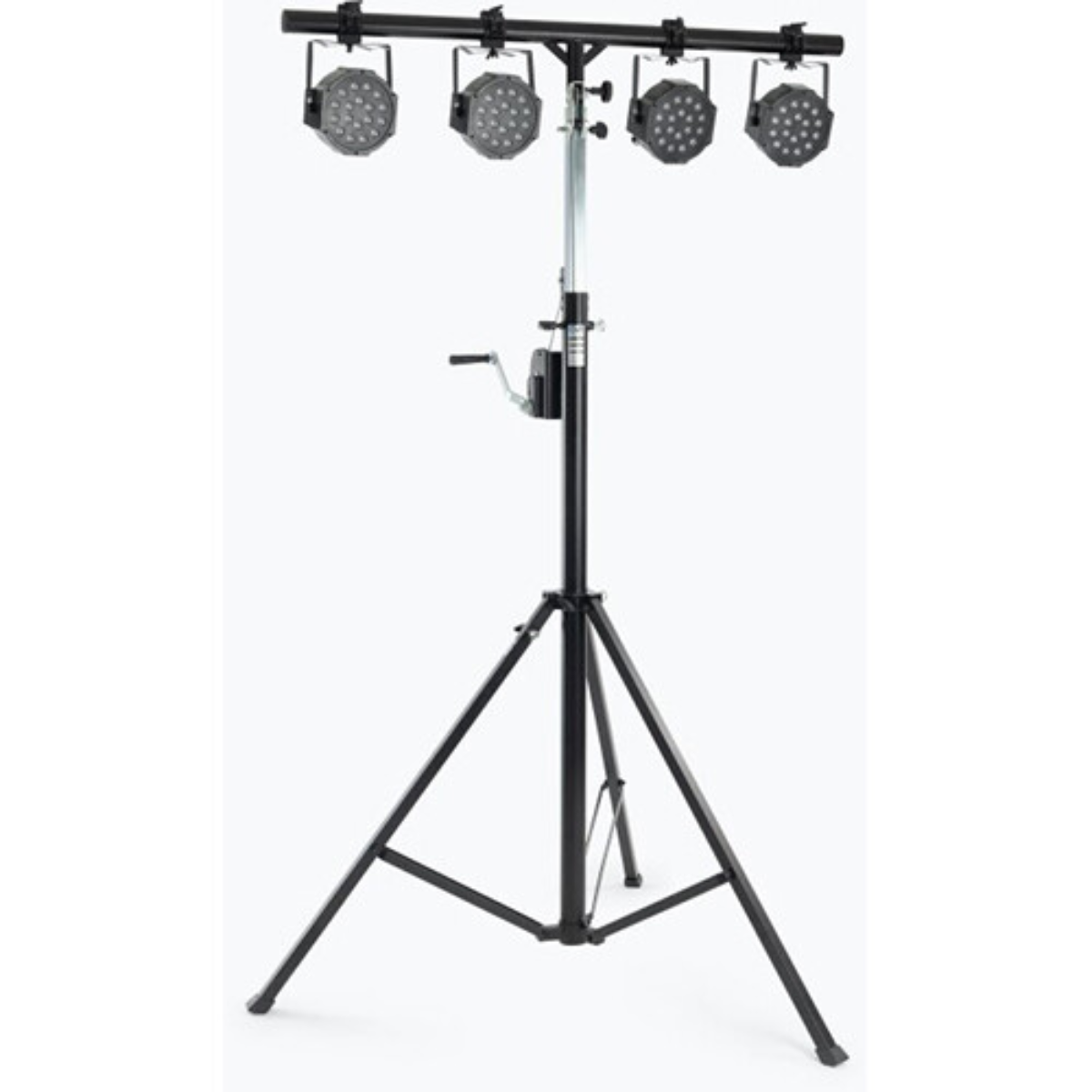

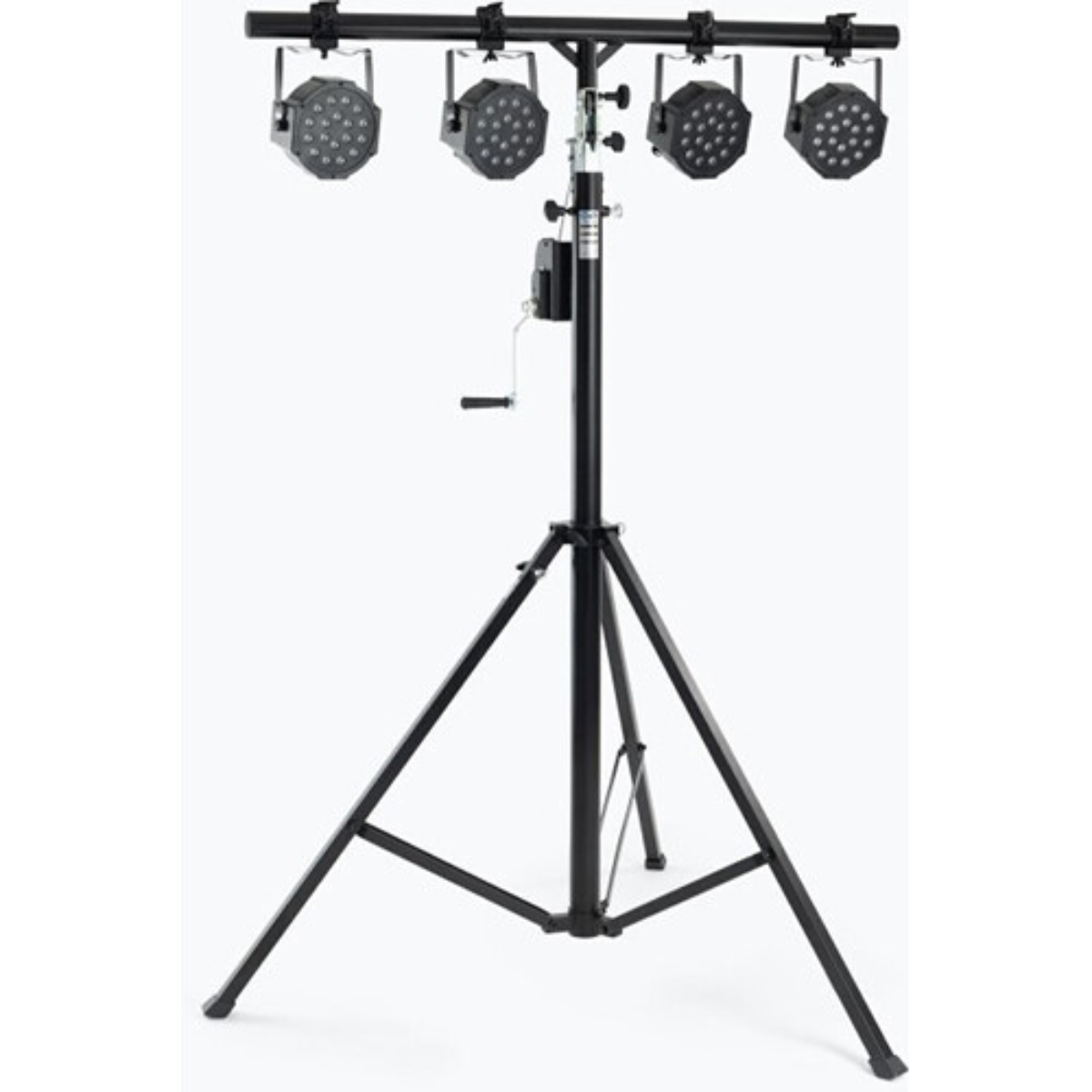

• Mounts up to four lighting fixtures
• 185 lb / 83.9 kg load capacity
• Height adjustable from 74 to 157.5 in
• 51.5 in T-bar length

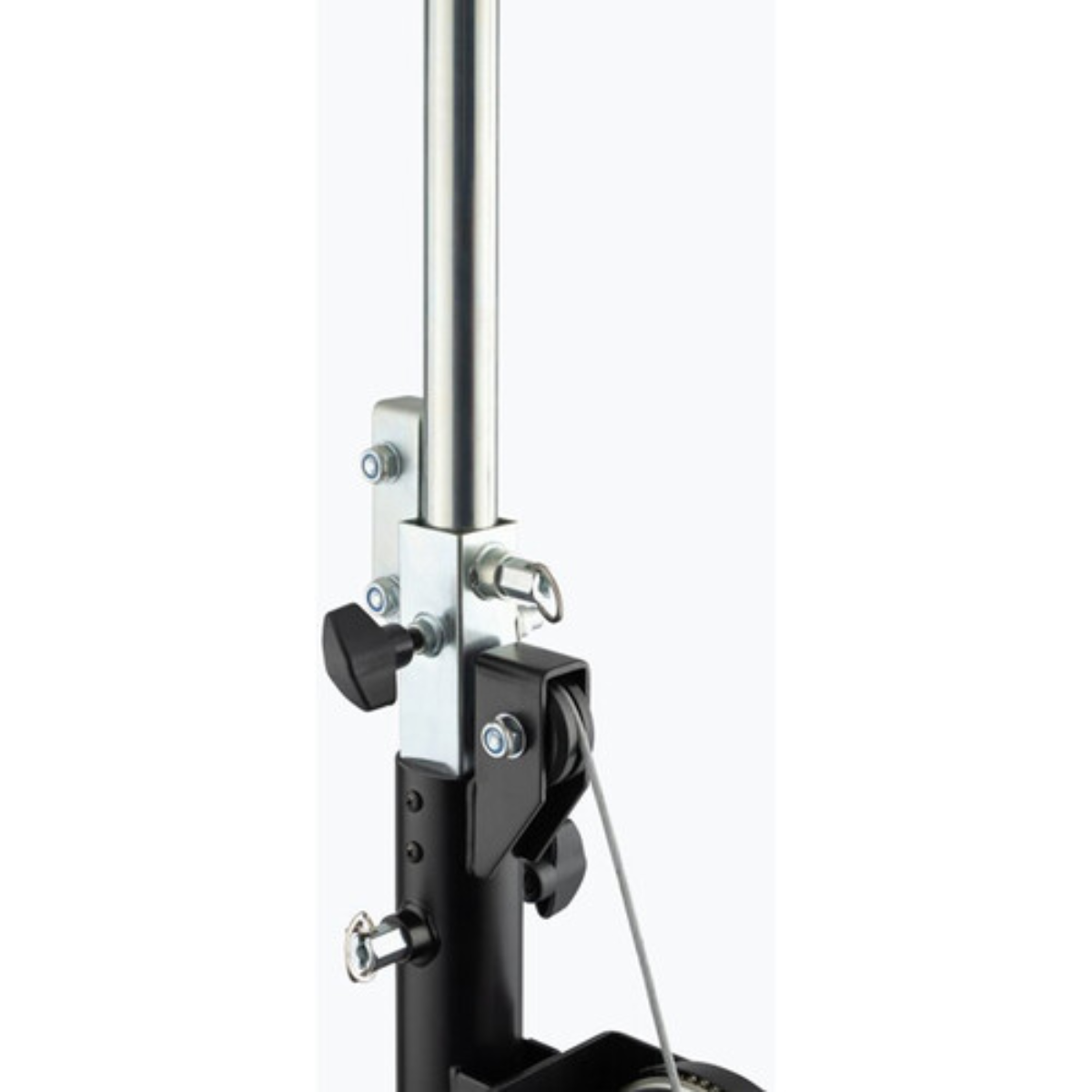

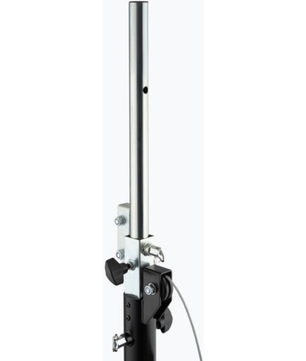

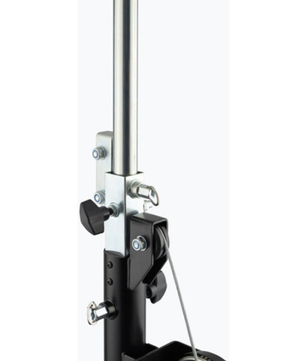

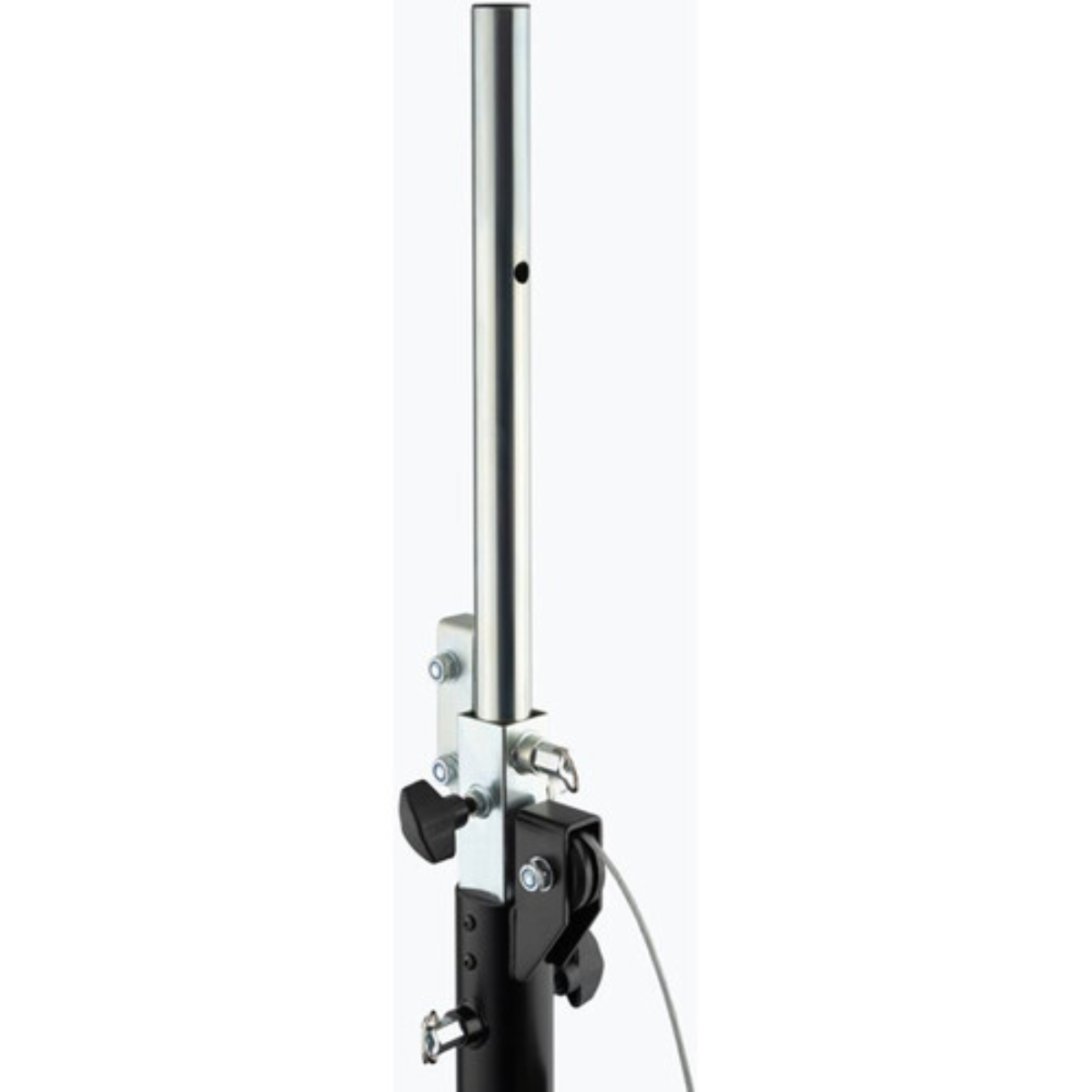

• Locking pin for secure height support

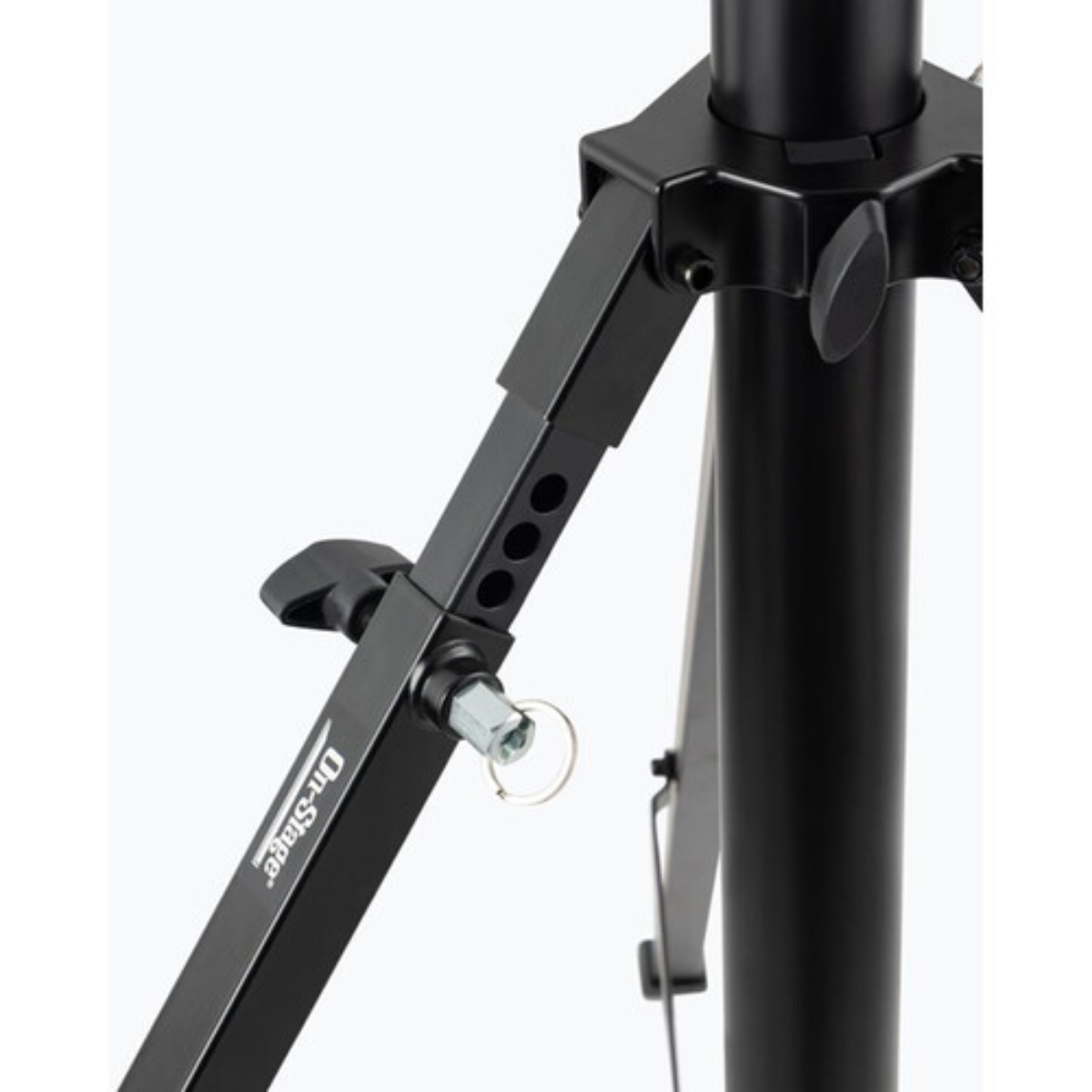

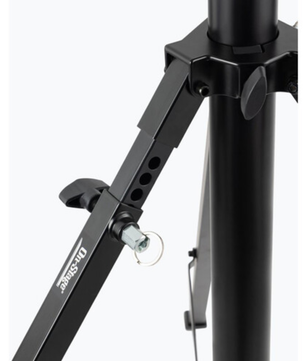

• Adjustable legs for leveling on most surfaces
• Non-slip rubber feet help reduce movement and vibration

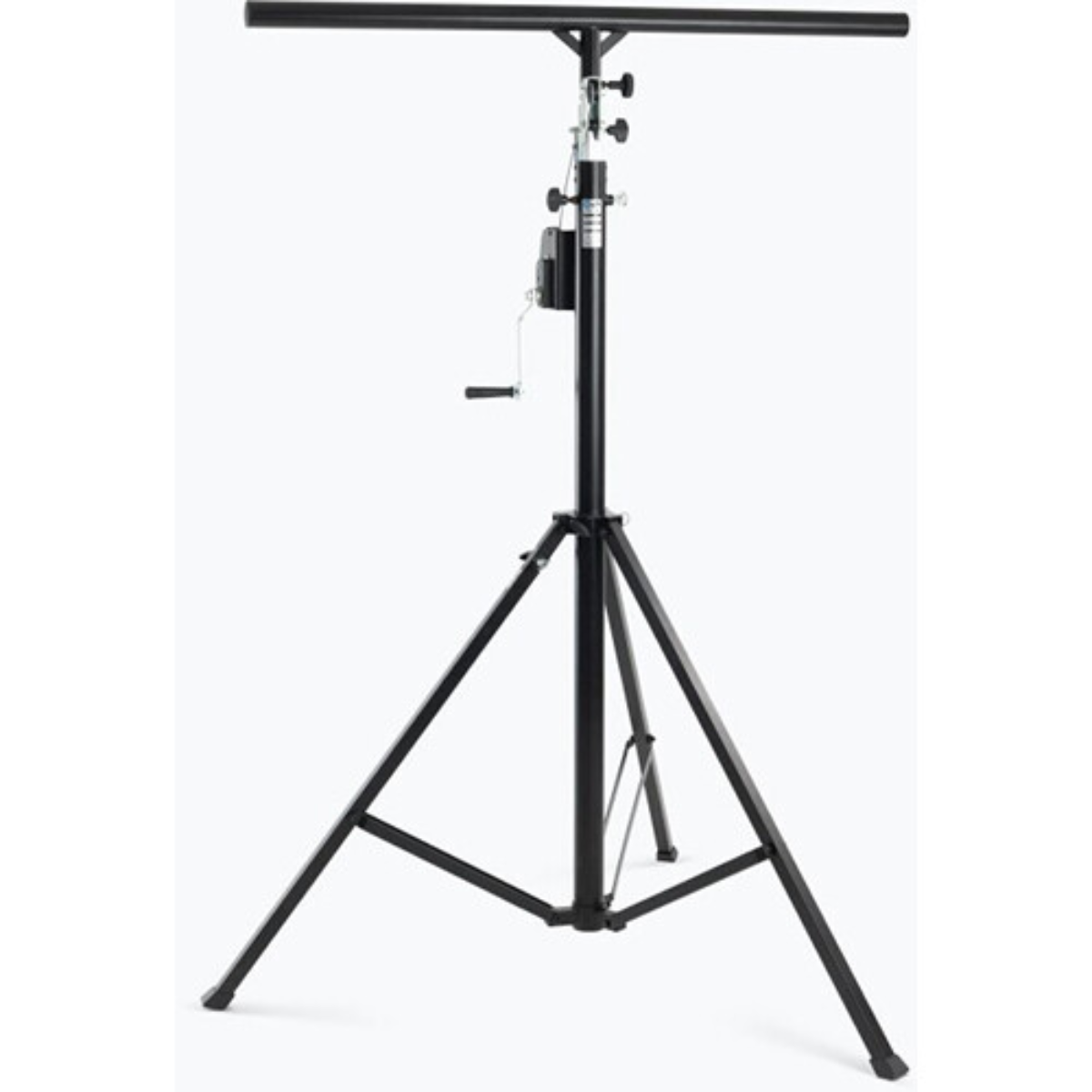

• Detachable T-bar

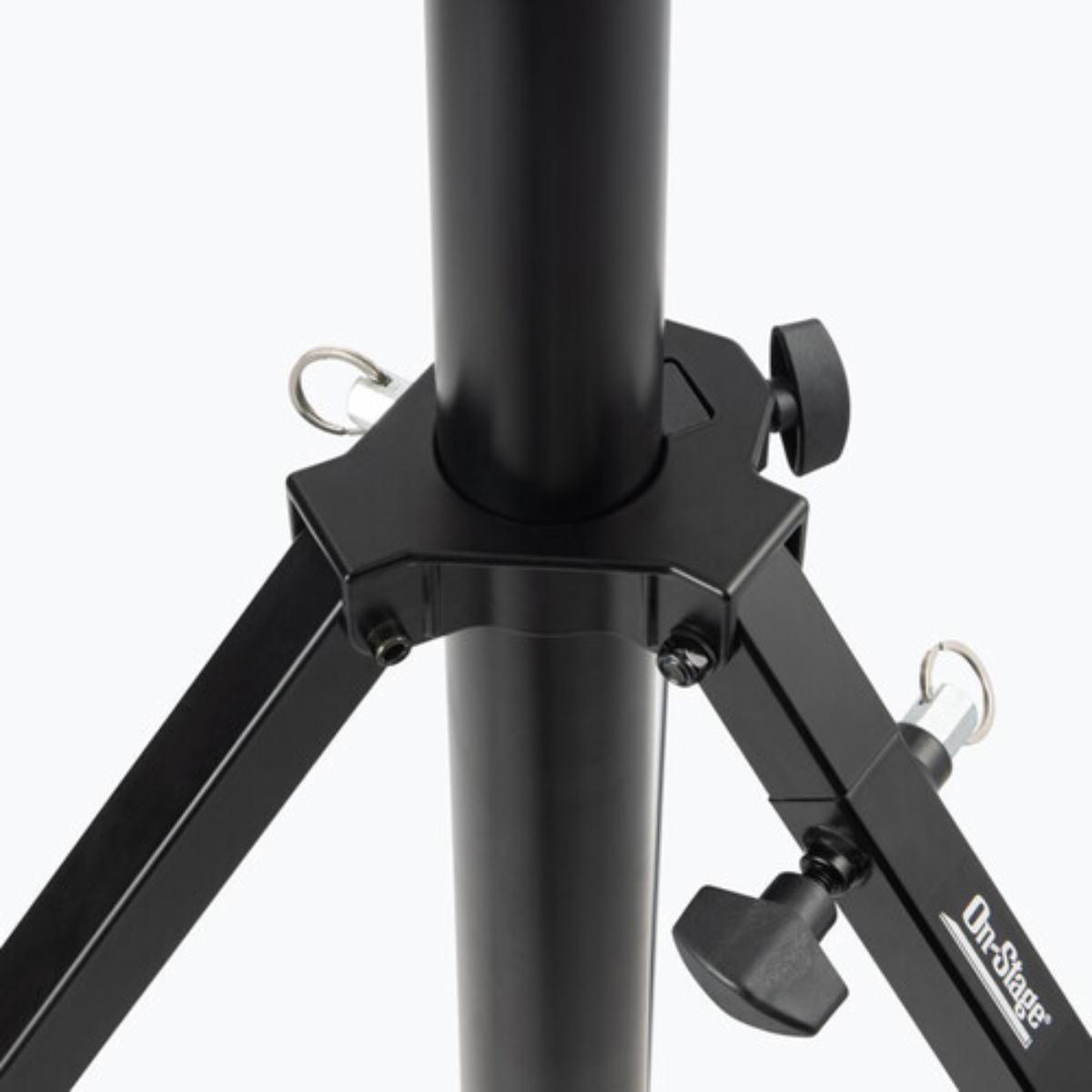

• Folding tripod base for transport and storage
• Black and steel finish

LS9900B Specifications

• Product Type: Crank and wind-up lighting stand
• Maximum Working Height: 157.5 in / 4 m
• Minimum Working Height: 74 in / 1.9 m
• Load Capacity: 185 lb / 83.9 kg
• Closed Length: 68.3 in / 1.7 m
• T-Bar Length: 51.5 in
• Stand/Column Top Mount: T-bar and light tree
• Column Diameter: 1.5 in / 38 mm
• Leveling Leg: Yes
• Wheels: Not compatible
• Accepts Second Riser: No
• Interlocking Design: No
• Leg Shape: Rectangular
• Material: Steel
• Finish: Black / Silver
• Product Weight: 52 lb / 23.6 kg
• Package Weight: 62 lb
• Shipping Dimensions: 68.5 x 11.5 x 8.5 in

What's In The Box

• On-Stage LS9900B crank-up lighting stand
• Detachable T-bar
