Palmer Orbit 11 | Dual 8in Woofers - 116dB SPL | Coaxial 3-Way Studio Monitor

Active Studio Monitor

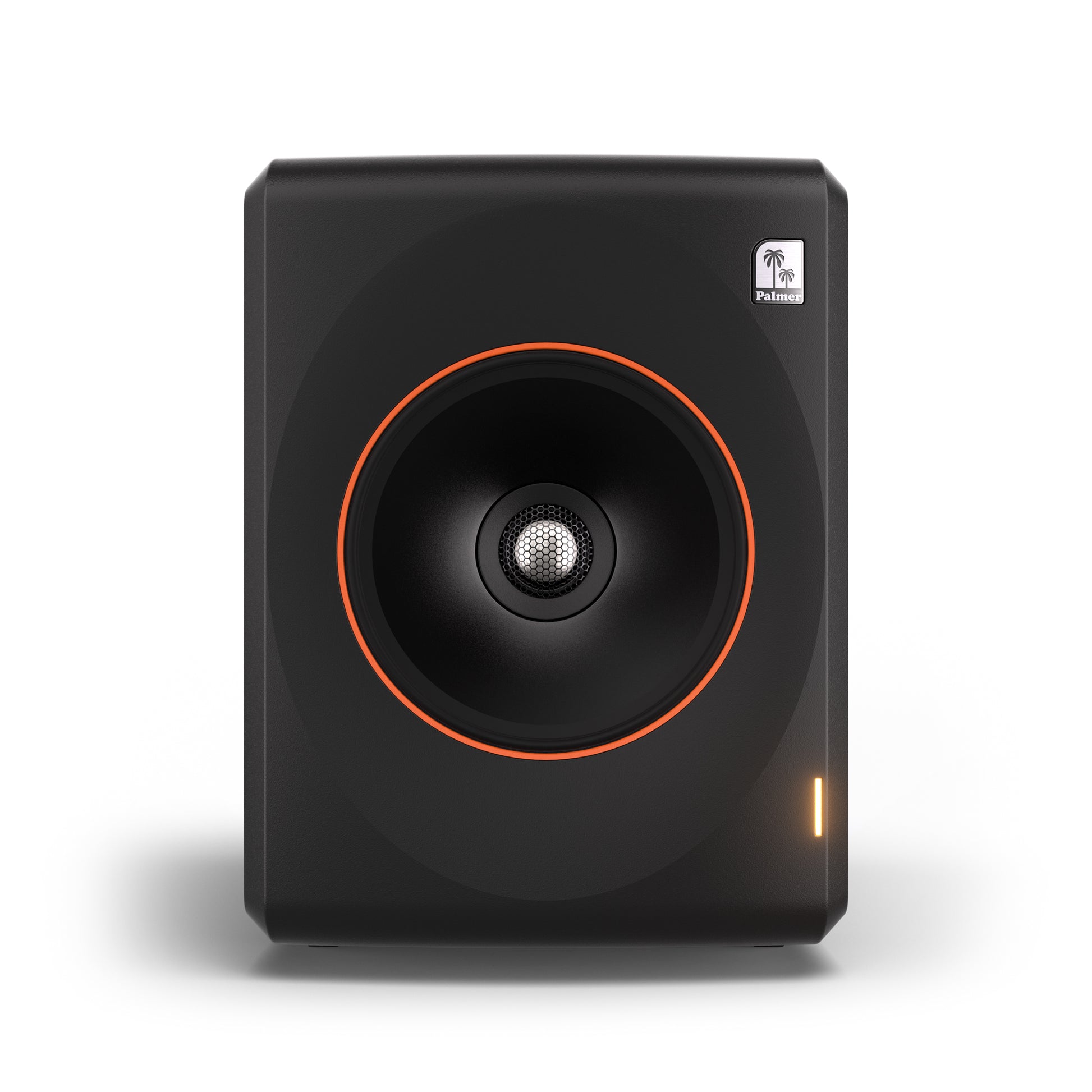

Palmer Orbit 11 is a 3-way coaxial studio monitor designed for uncompromising accuracy, tight low-end, and wide-range fidelity. Engineered for serious producers and engineers, it delivers flat response down to 28Hz without the need for a subwoofer. With dual impulse-compensated 8" woofers and a coaxially aligned 6.5" midrange and 1" tweeter, it offers phase-coherent monitoring with exceptional stereo imaging.

Palmer Orbit 11 Competitive Differences

• Coaxial point source design ensures perfect phase alignment
• Impulse-compensated dual 8" woofers deliver deep, resonance-free bass

Palmer Orbit 11 Description

The Palmer Orbit 11 stands out as a high-resolution studio monitor with true 3-way coaxial configuration, providing outstanding clarity and imaging across its full 28Hz–28kHz frequency range. Its FIR filters and 96kHz/24-bit DSP ensure linear phase response with only 4ms latency, making it ideal for precision mixing and mastering. Its cardioid front baffle reduces rear wall reflections, while the 120° x 120° constant directivity keeps your stereo image stable and focused. The cabinet is built from acoustically inert die-cast aluminum, minimizing resonance and offering a durable, low-vibration enclosure. Connectivity includes balanced XLR and AES3 digital inputs, with through outputs for daisy-chaining. Top-mounted controls provide quick access to EQ presets, input selection, and room adaptation filters (desk, small and large rear wall distances). Whether wall-mounted or desk-placed, the Orbit 11 adapts to your setup with precision, giving engineers and producers confidence in every decision.

Model Features

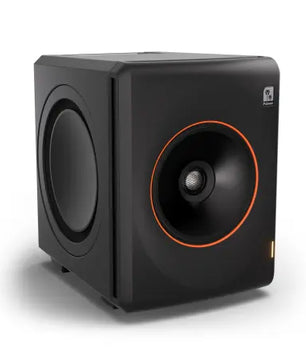

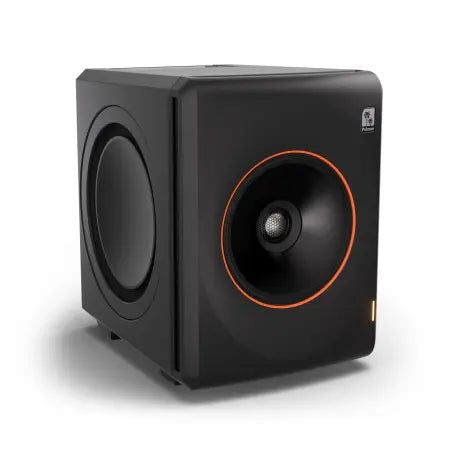

• 3-way coaxial design: 6.5" mid + 1" tweeter + 2 x 8" woofers
• 28Hz–28kHz response (±3 dB)
• FIR-based linear phase correction with 4ms latency
• Cardioid design reduces room interaction
• Wall-mountable with removable feet

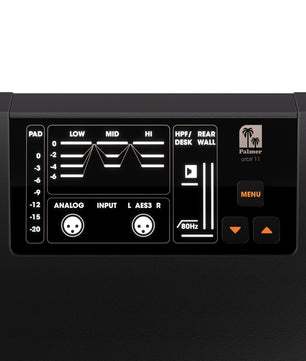

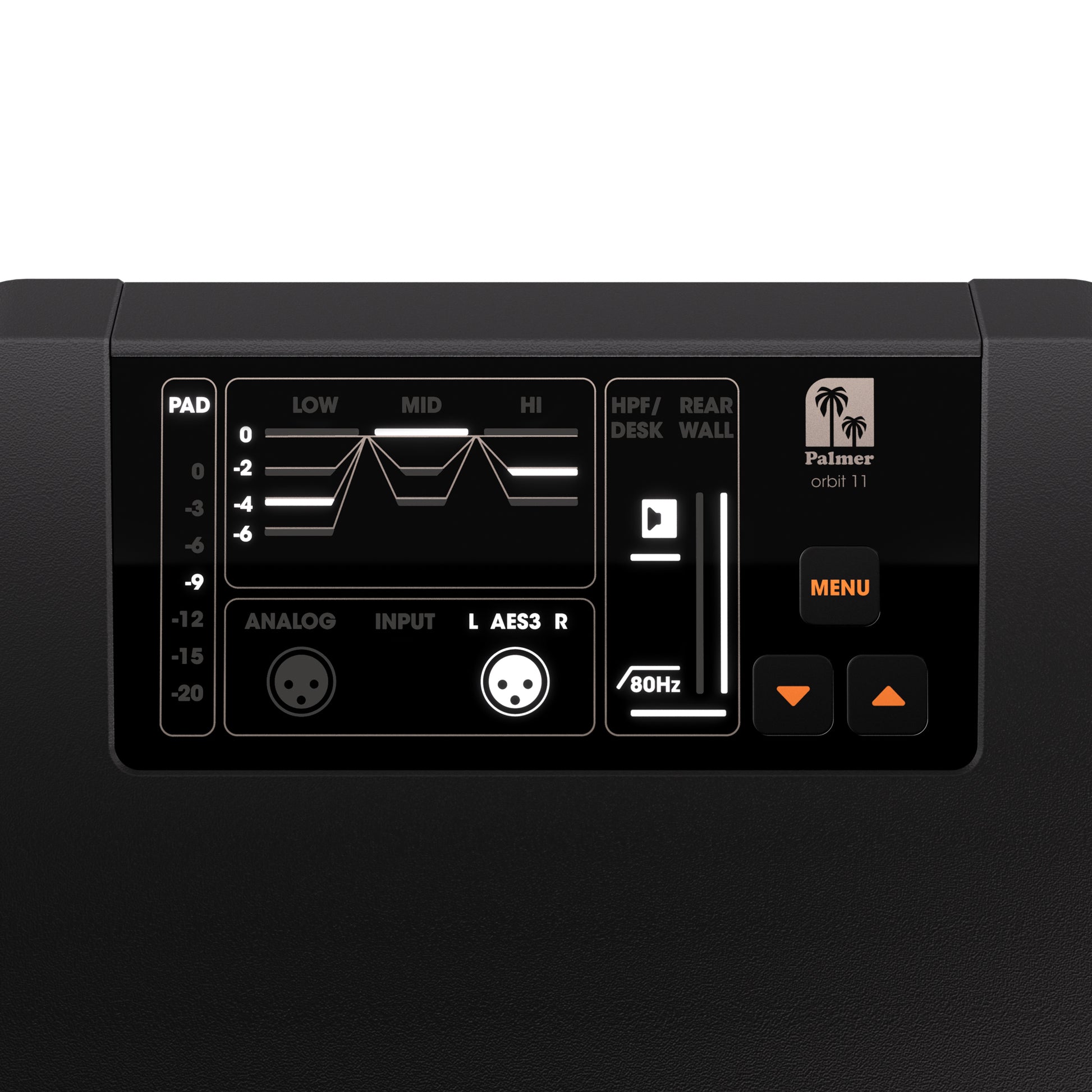

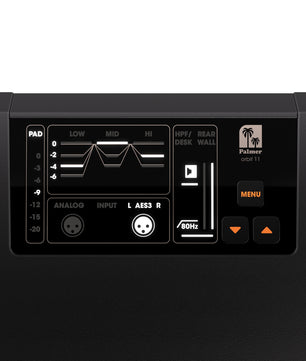

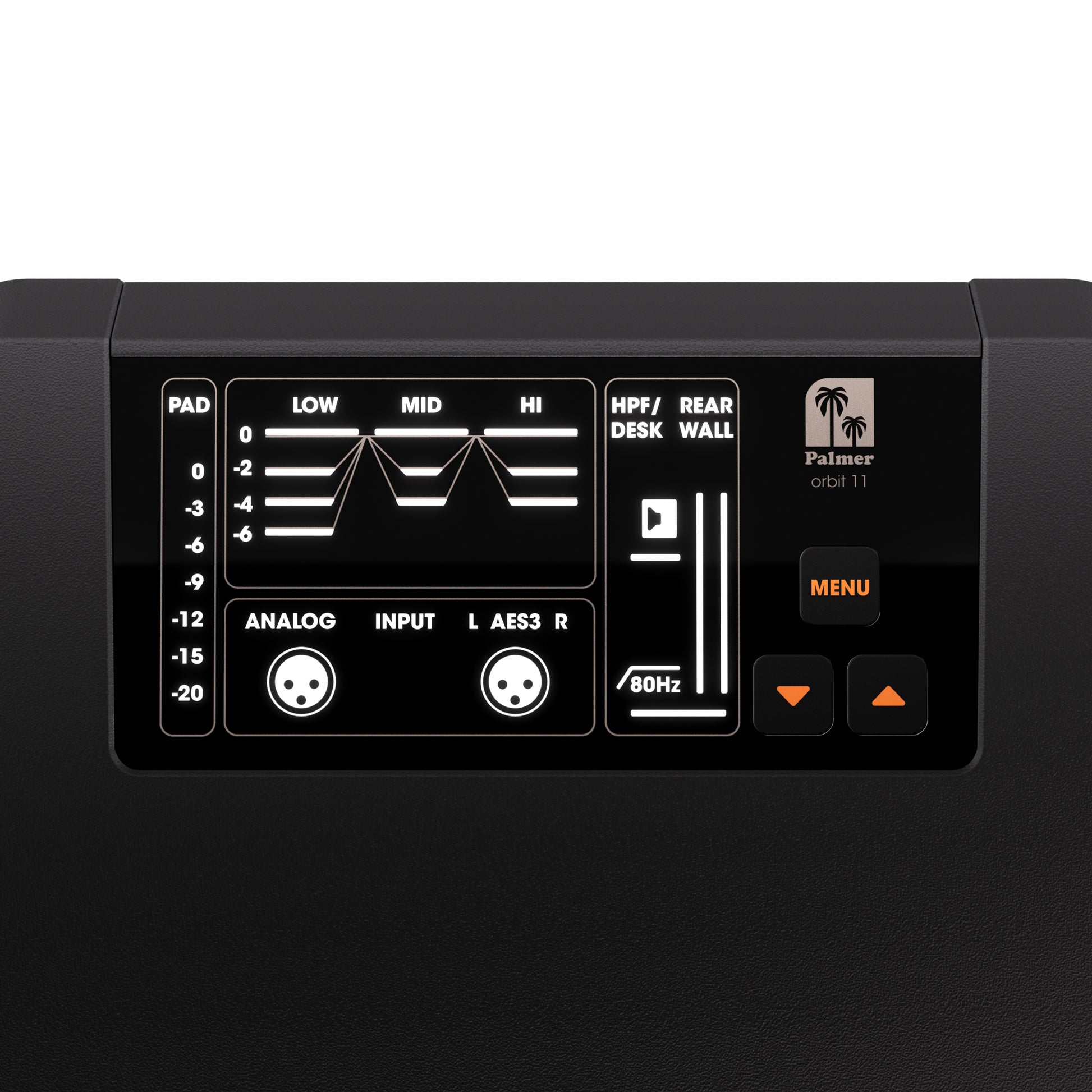

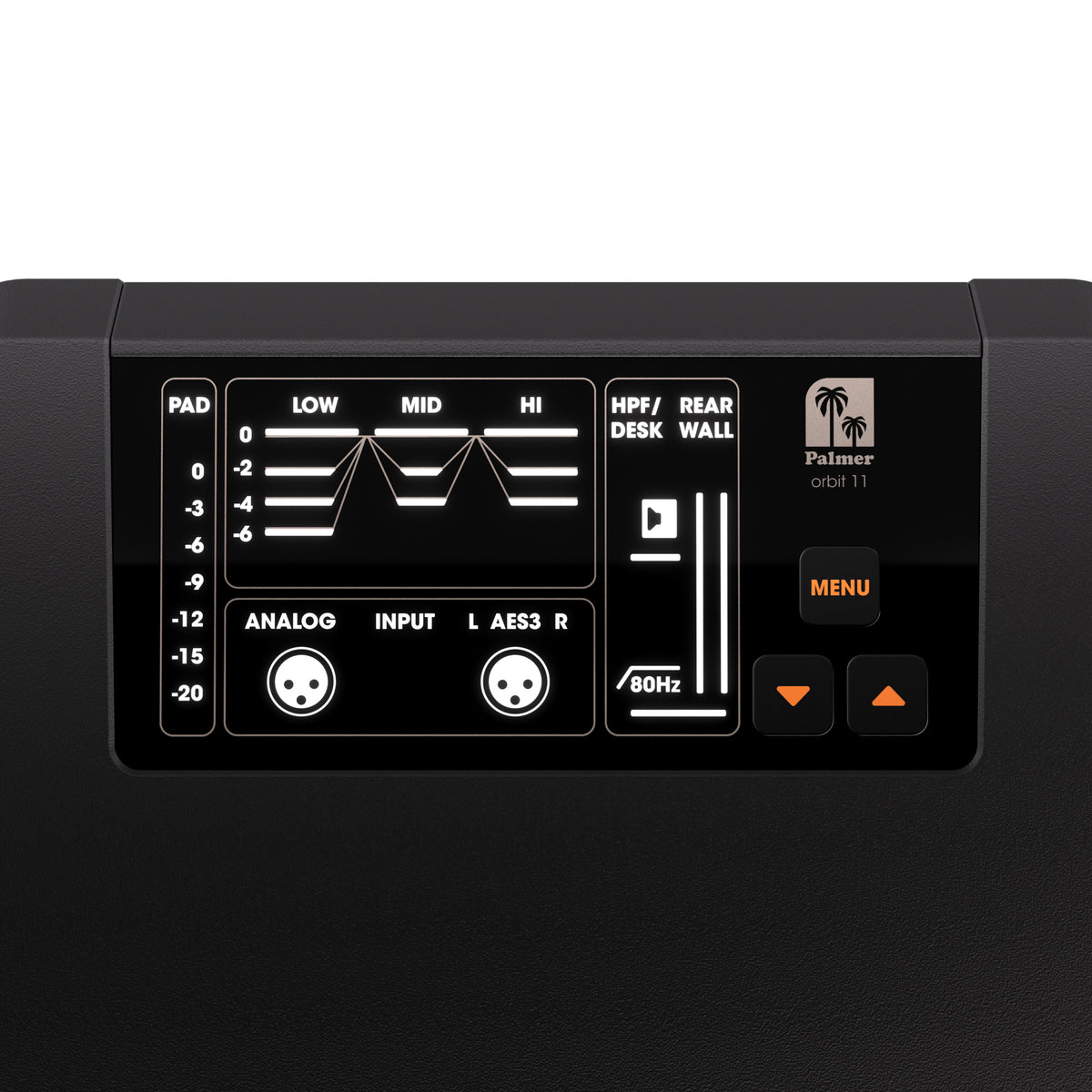

• Onboard DSP with top-panel controls and EQ presets

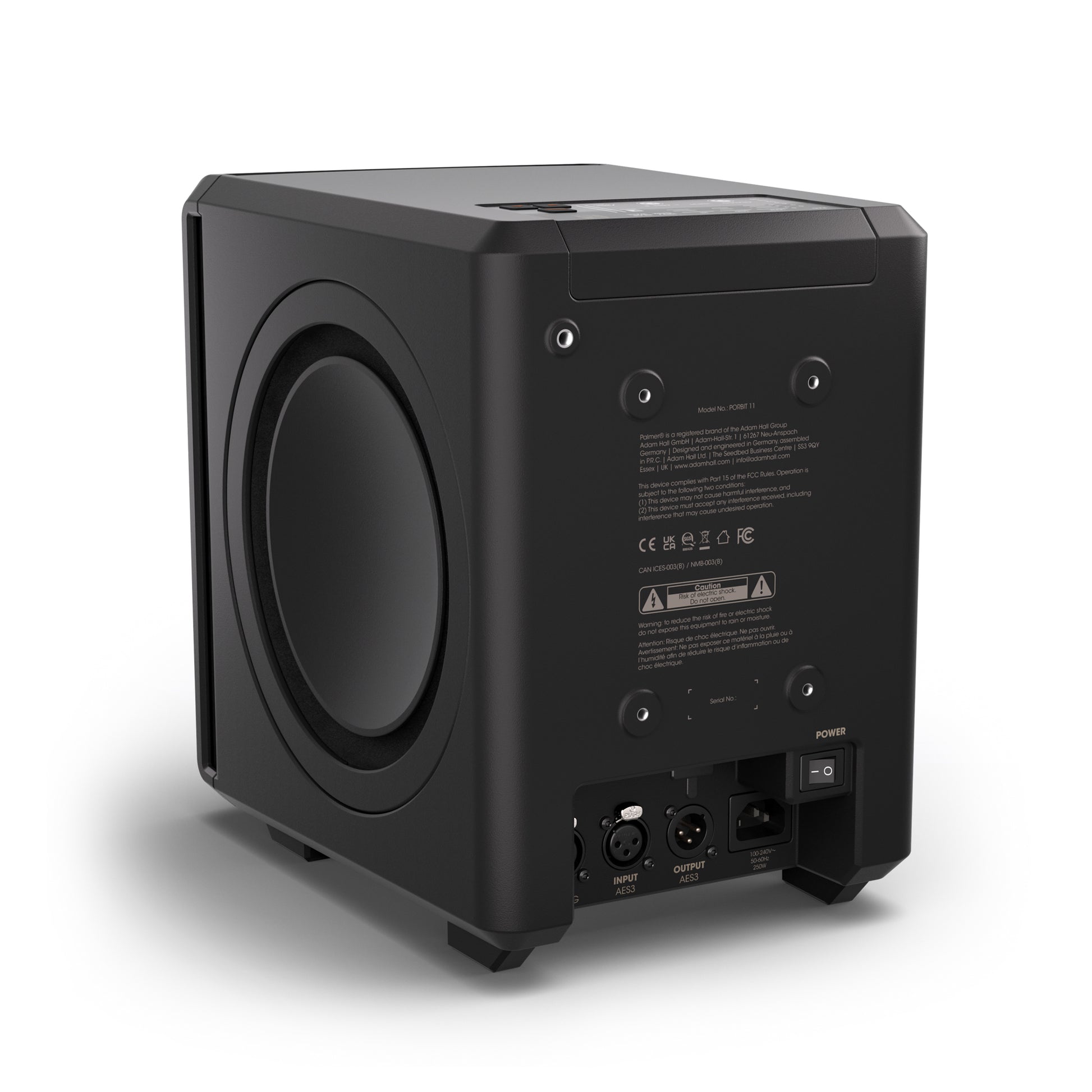

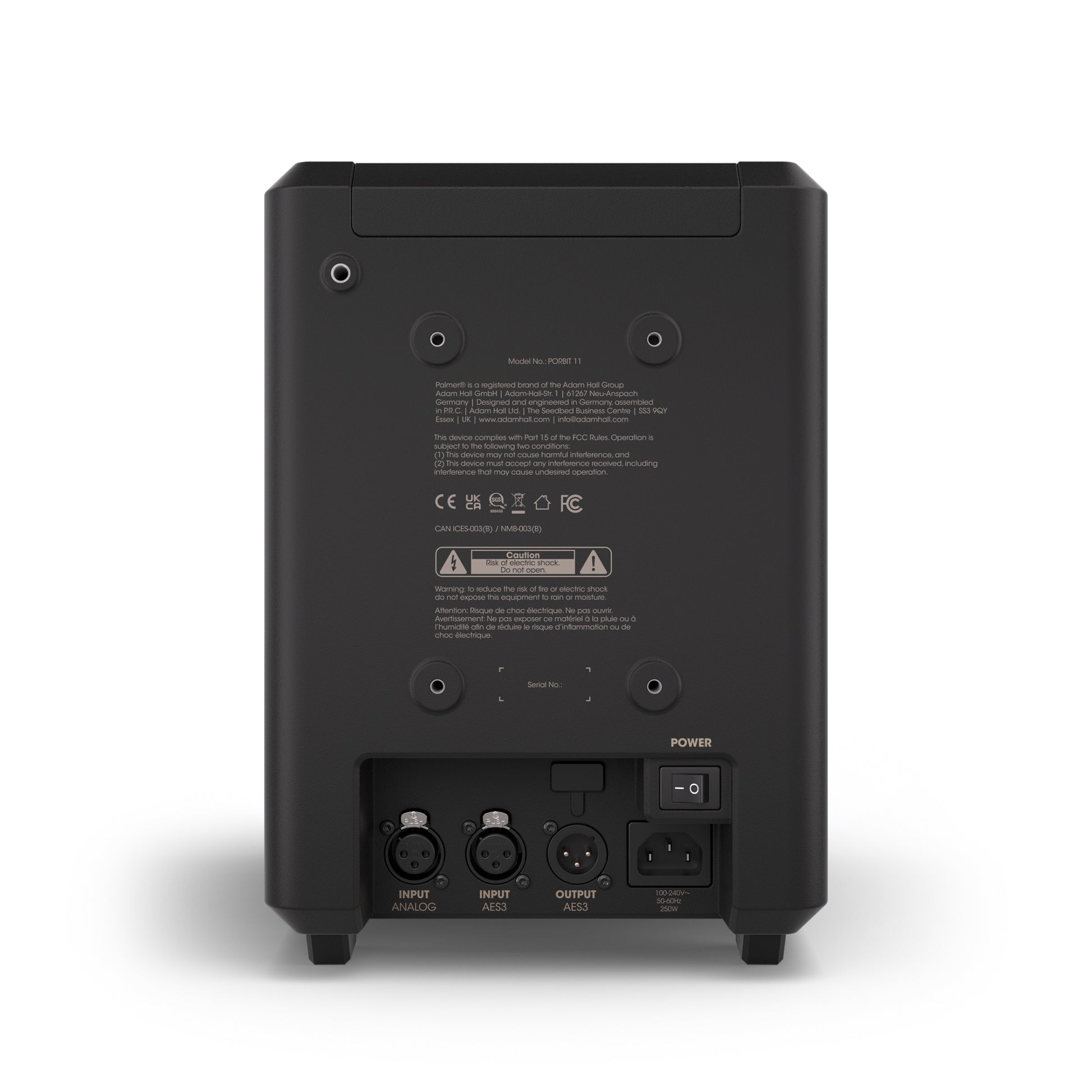

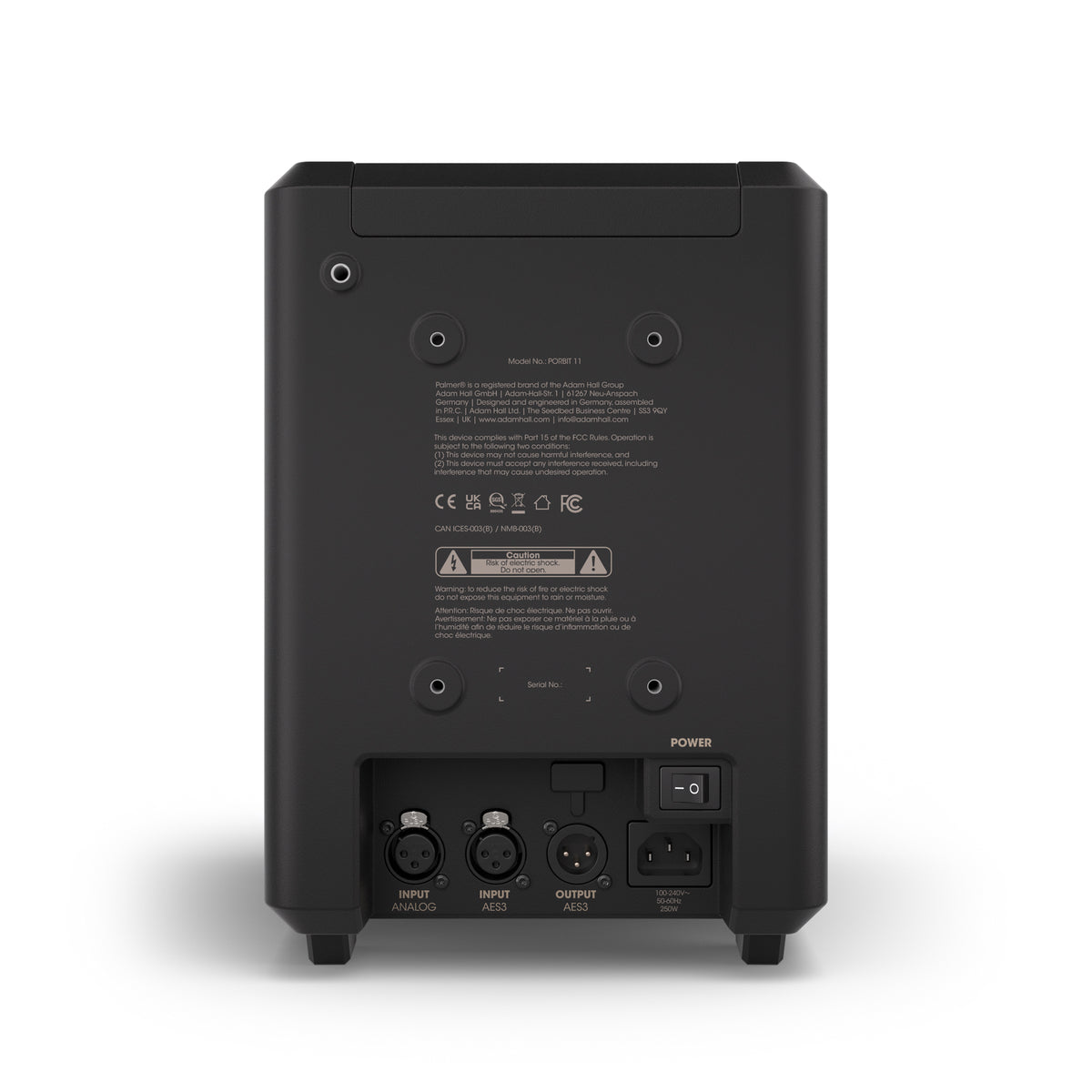

• Analog and AES3 digital inputs with AES3 loop-out

Model Specifications

• Max SPL: 116dB
• Power Output: 1000W Peak / 400W RMS
• Frequency Response: 28Hz–28kHz (±3 dB)
• DSP: FIR filters @ 96kHz / 24-bit
• Drivers: 1" tweeter, 6.5" mid, 2 x 8" woofers
• Directivity: 120° x 120°
• Cabinet: Die-cast aluminum (5–16 mm)
• Colors: Black or White finish

What's In The Box

• Orbit 11 studio monitor
• Power cable
• Quick start guide
