Pangolin RAW 3 FB4 | 3W Full-Color Laser with FB4 | DMX, ArtNET, ILDA Control

Full-Color Laser Projector

Pangolin RAW 3 FB4 is a powerful yet budget-conscious full-color laser projector built for lighting professionals and enthusiasts alike. Whether you're running atmospheric beam shows, laser graphics, or venue mapping, this compact unit delivers vibrant output and exceptional control — all in a plug-and-play package.

Pangolin RAW 3 FB4 Competitive Differences

• Integrated FB4 hardware for DMX, ArtNET, sACN, and ILDA control
• 3W guaranteed optical power with high-brightness RGB diode sources

Pangolin RAW 3 FB4 Description

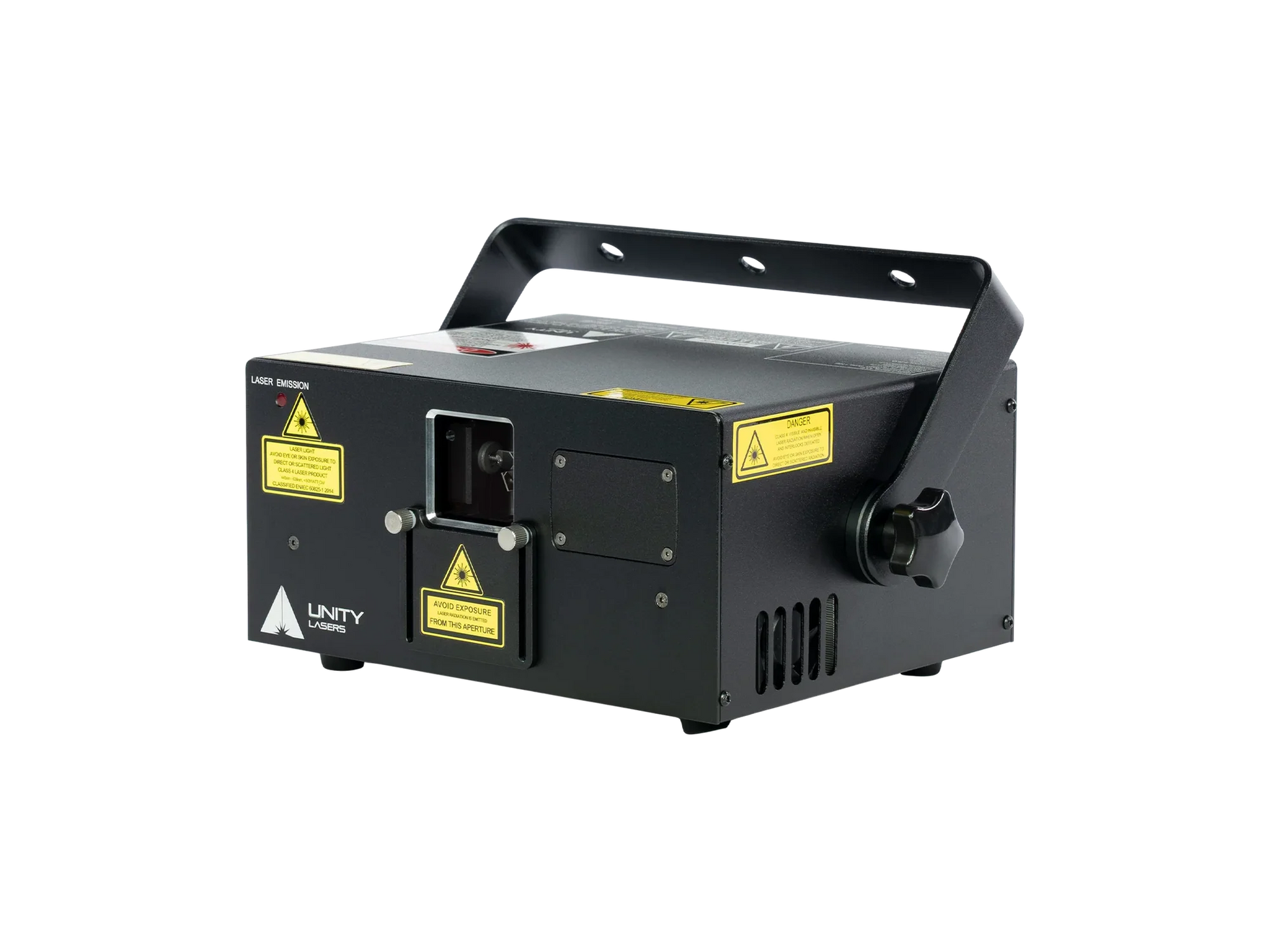

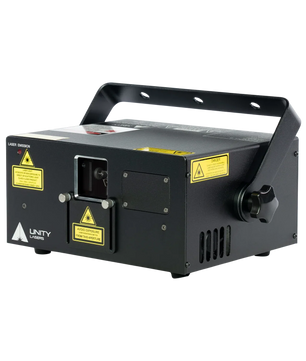

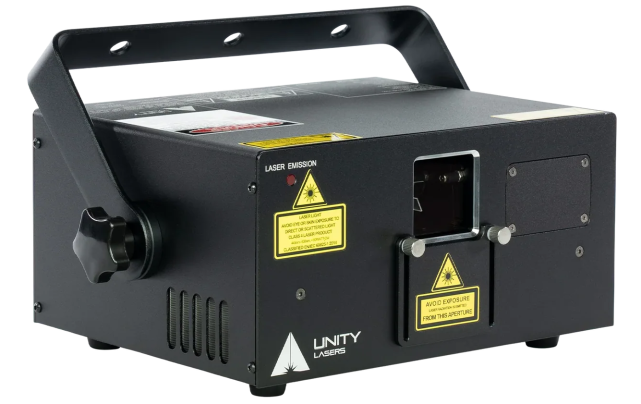

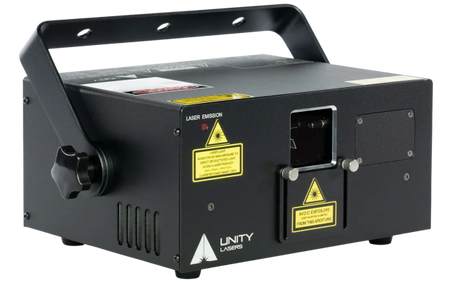

The Pangolin RAW 3 FB4 is a compact, high-output laser projector offering full-color RGB laser projection with 3W of guaranteed optical power. Designed for clubs, DJs, theaters, and medium indoor venues, it provides the advanced capabilities typically reserved for higher-end systems—at a more accessible price point. The heart of the RAW 3 FB4 is Pangolin’s FB4 hardware, built directly into the unit. This allows for direct control via Ethernet, ArtNET, DMX, sACN, and ILDA, offering a flexible solution whether you use a lighting console, software, or standalone show mode. It even includes Pangolin’s powerful QuickShow laser control software to get you started instantly. A robust scanning system offers 30Kpps at 8°, with a wide 50° max scan angle—ideal for text, logos, and graphics as well as high-impact beam shows. All adjustments, including output levels and axis inversions, are handled digitally within the FB4 system, streamlining setup and configuration. With precision analog modulation, advanced optical correction, and full compliance with EN 60825-1 and FDA laser safety standards, the RAW 3 FB4 is as safe as it is powerful. Its rugged design and IP4X rating make it ready for professional applications.

Model Features

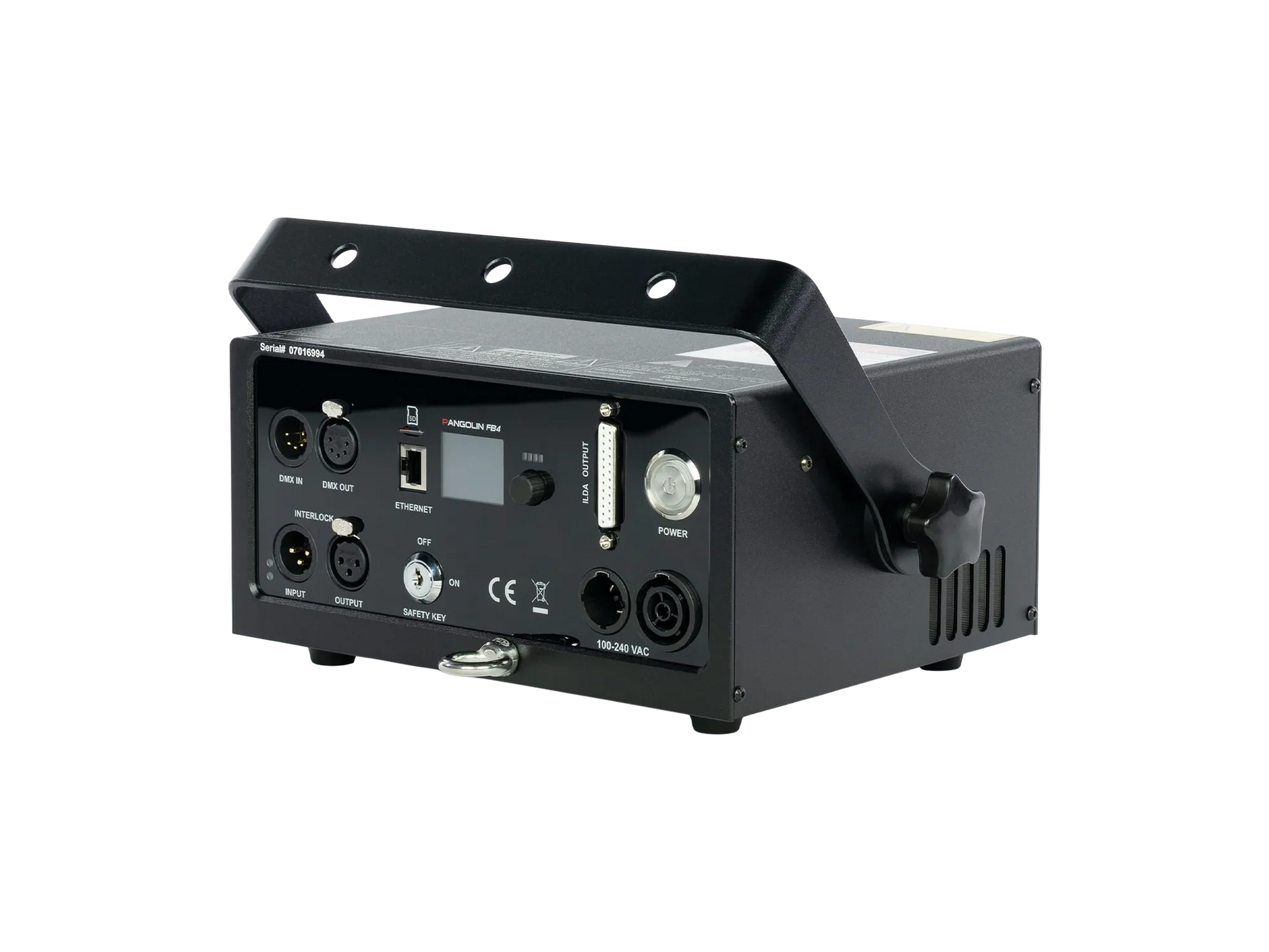

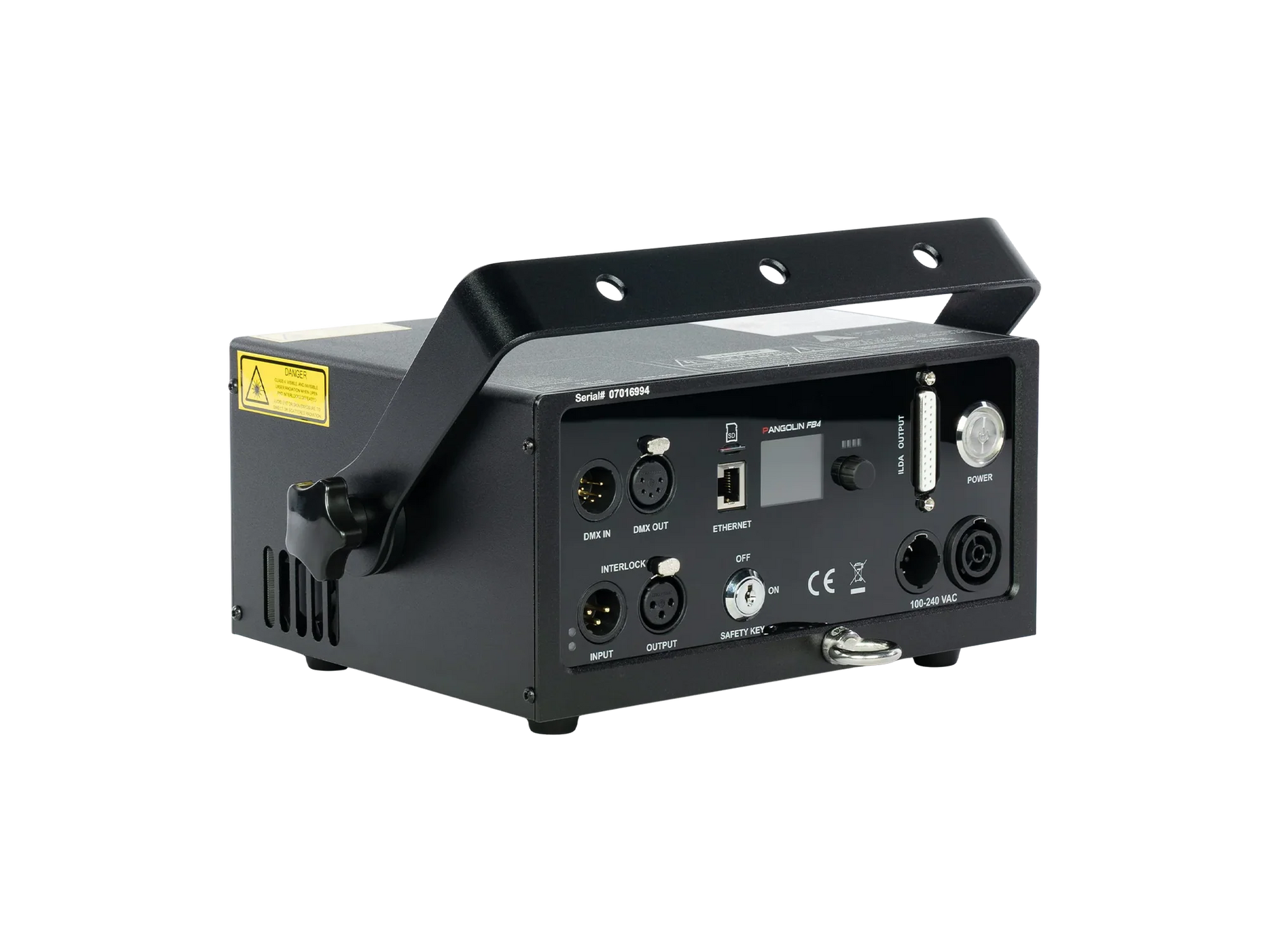

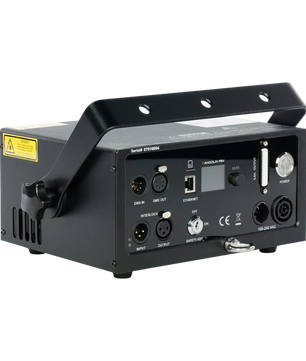

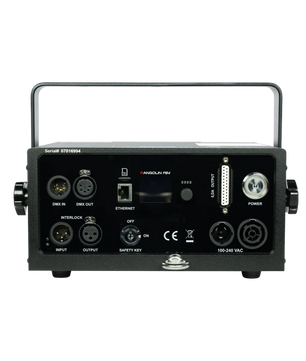

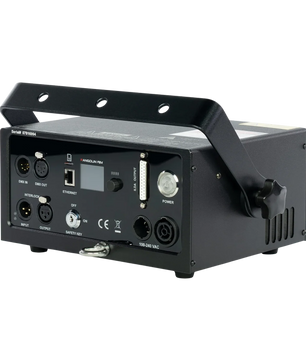

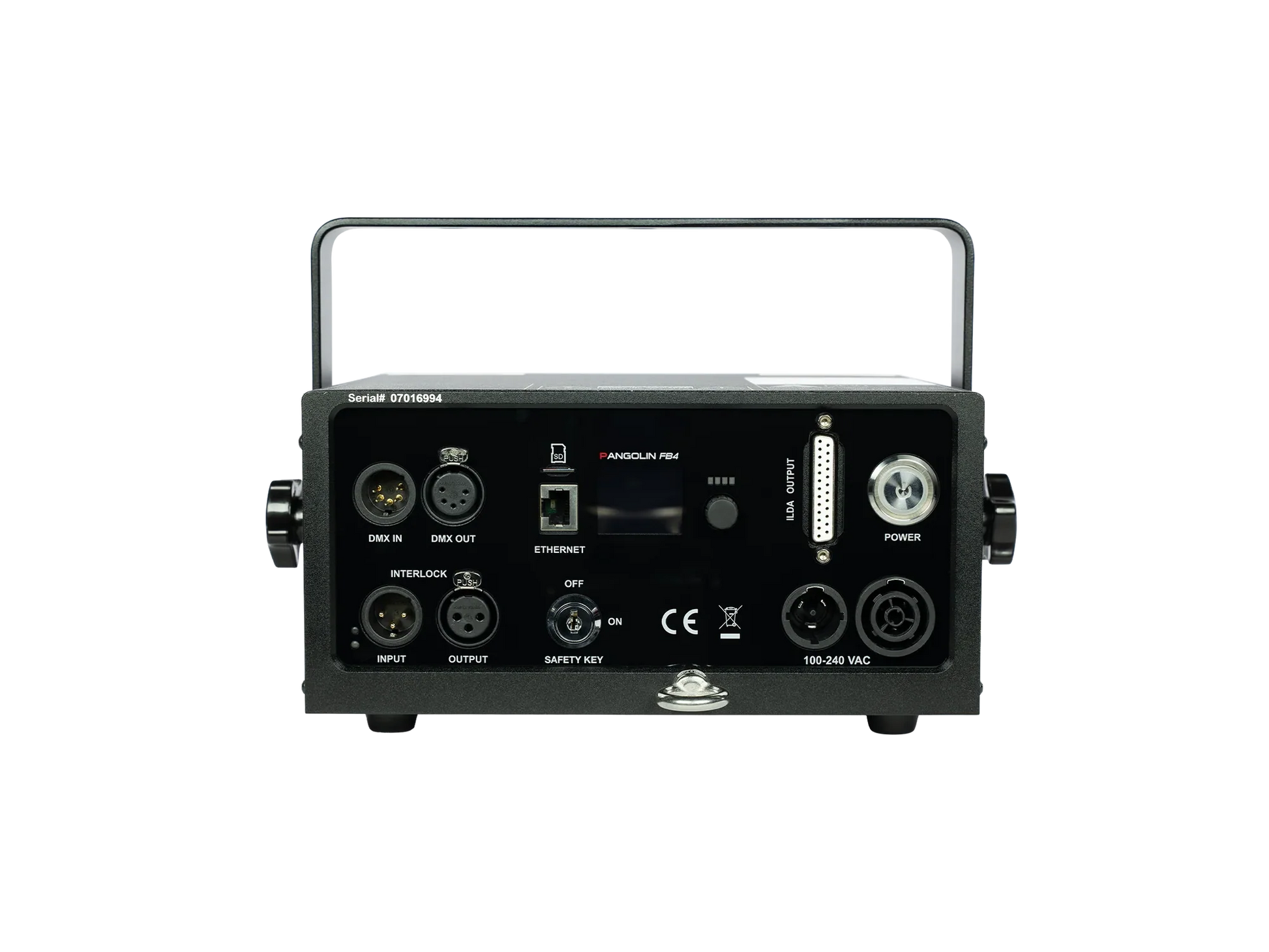

• FB4 control system with DMX, ArtNET, sACN, ILDA, and Ethernet
• Full-color RGB laser: 500mW Red, 800mW Green, 1,700mW Blue
• QuickShow software and MoboLaser app included
• Precision scanning at 30Kpps @ 8°
• Advanced safety features and locking interlocks

Model Specifications

• Max Optical Output: >3W
• Beam Size: 5 x 3 mm
• Beam Divergence: <1.1 mrad (full angle)
• Modulation: Analog 50kHz
• Scanning System: 30Kpps @ 8°
• Scan Angle: Max 50°

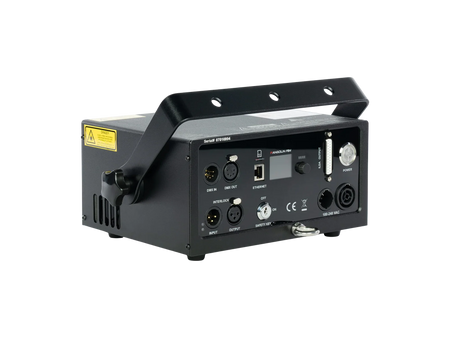

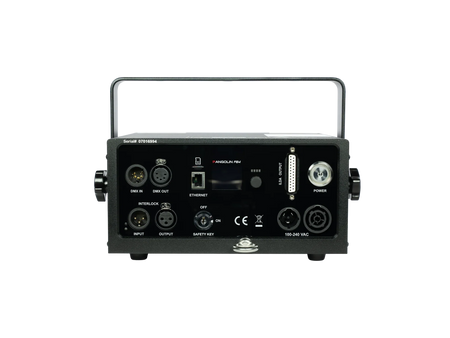

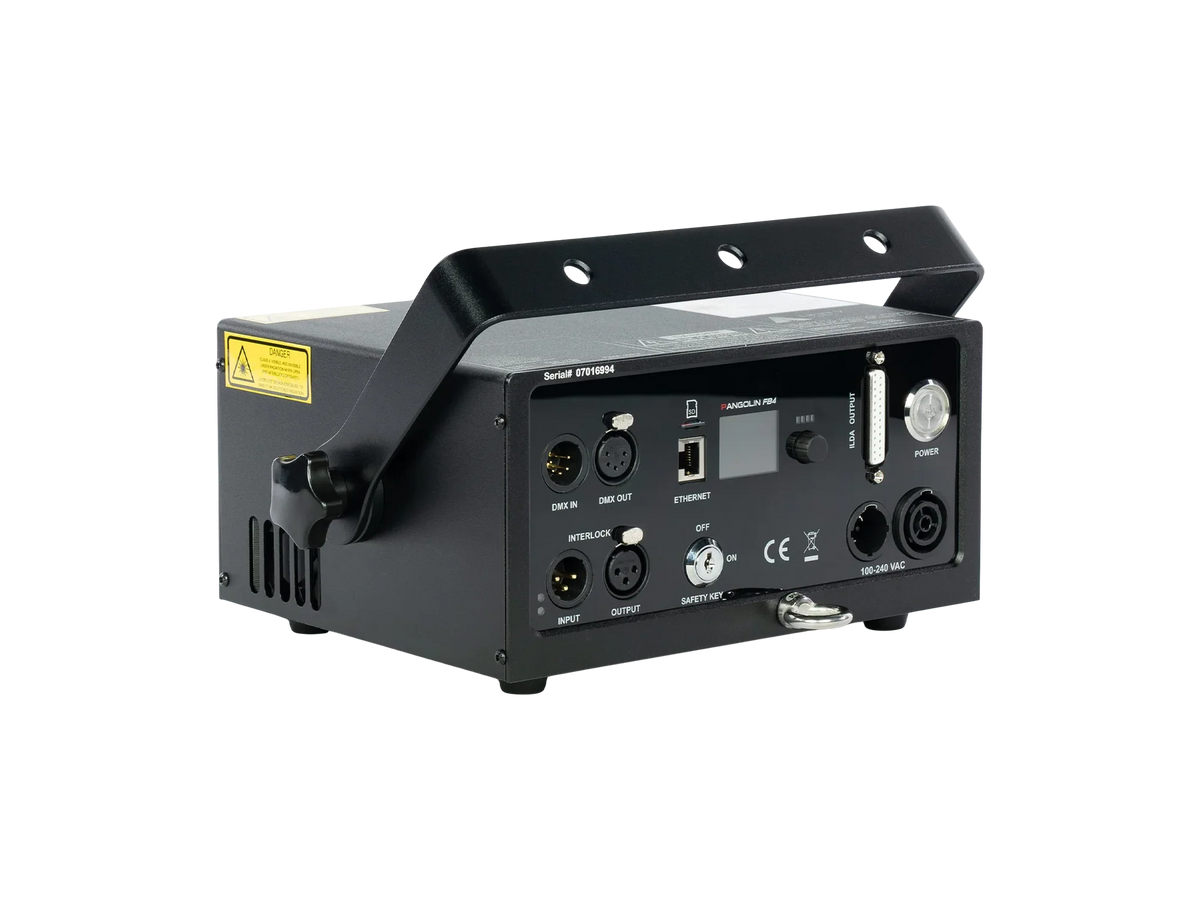

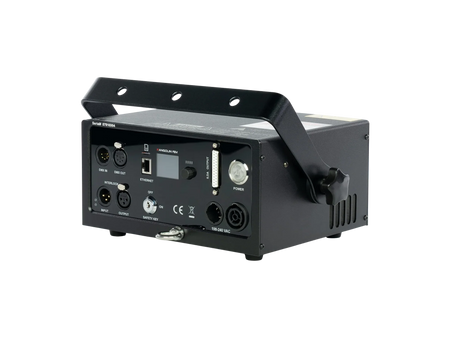

• Control: FB4 (DMX, ArtNET, ILDA, sACN, Ethernet)
• Power Requirements: 100–230V / 50Hz
• Power Consumption: Max 100W
• Ingress Rating: IP4X
• Operating Temp: 10–40°C
• Dimensions: 238 x 192 x 126 mm
• Weight: 5.3 kg

What’s In The Box

• RAW 3 FB4 laser projector
• QuickShow laser control software
• Protective case
• E-stop box and cable (10m)
• Ethernet cable (10m)
• Power cable (1.5m)
• Safety interlock and keys
• User manual and quickstart guide
• Variance card (with service dongle if outside US)
