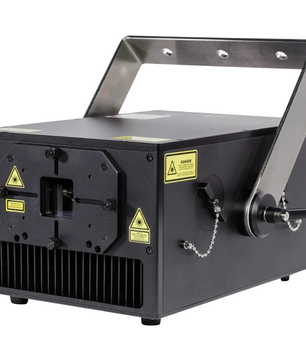

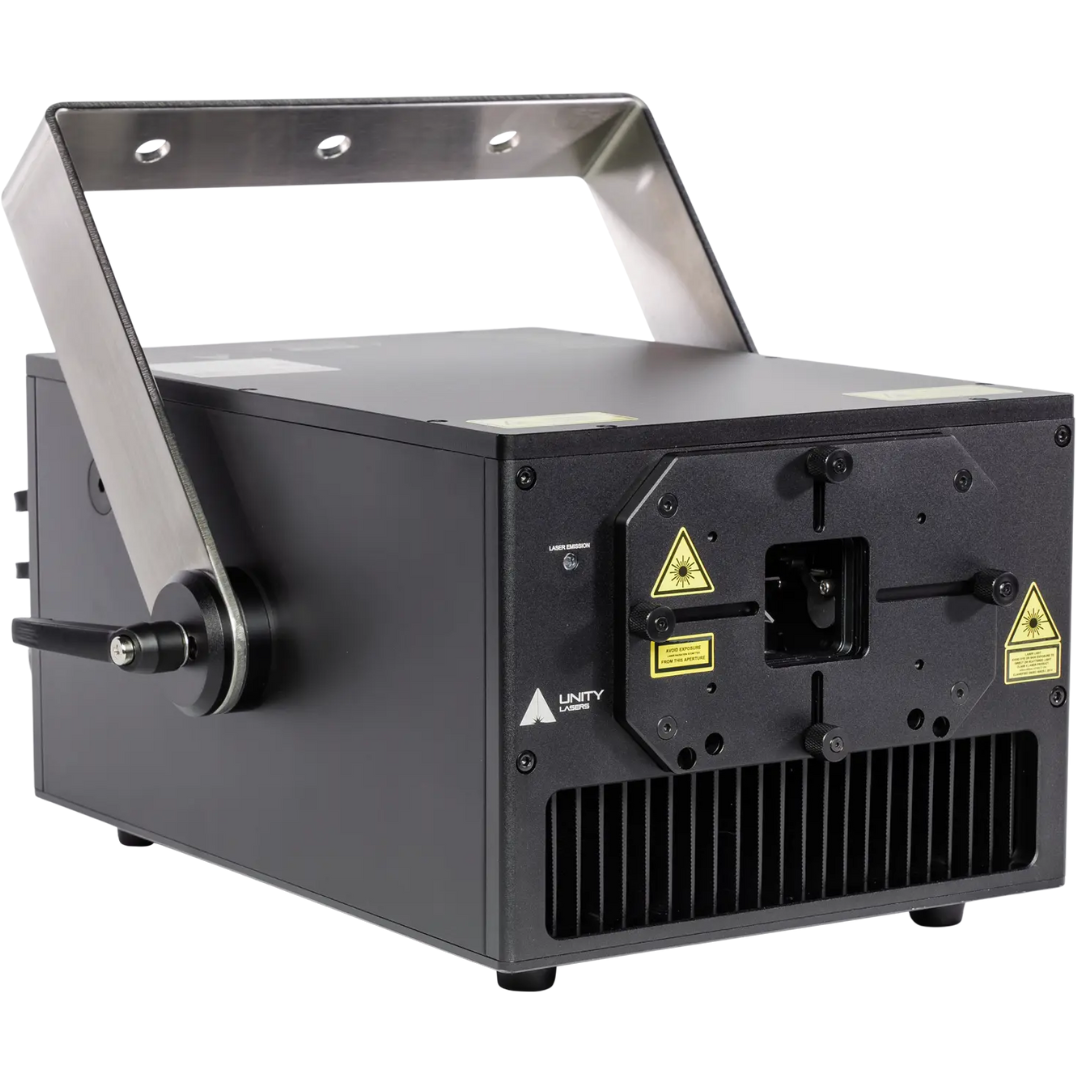

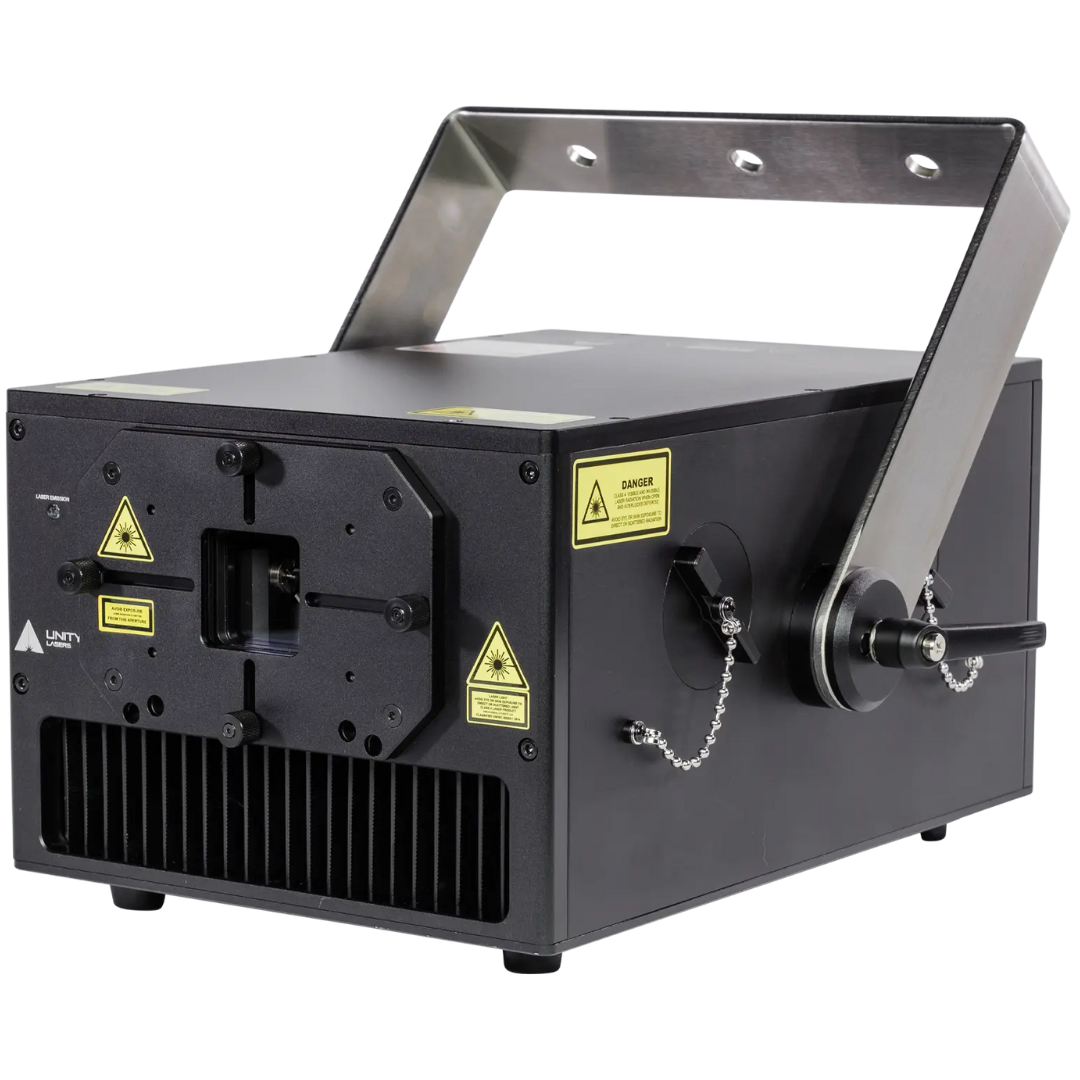

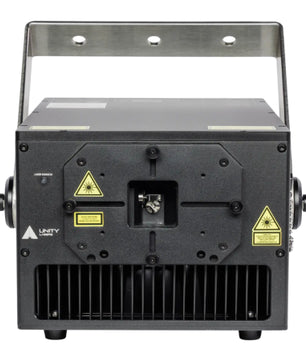

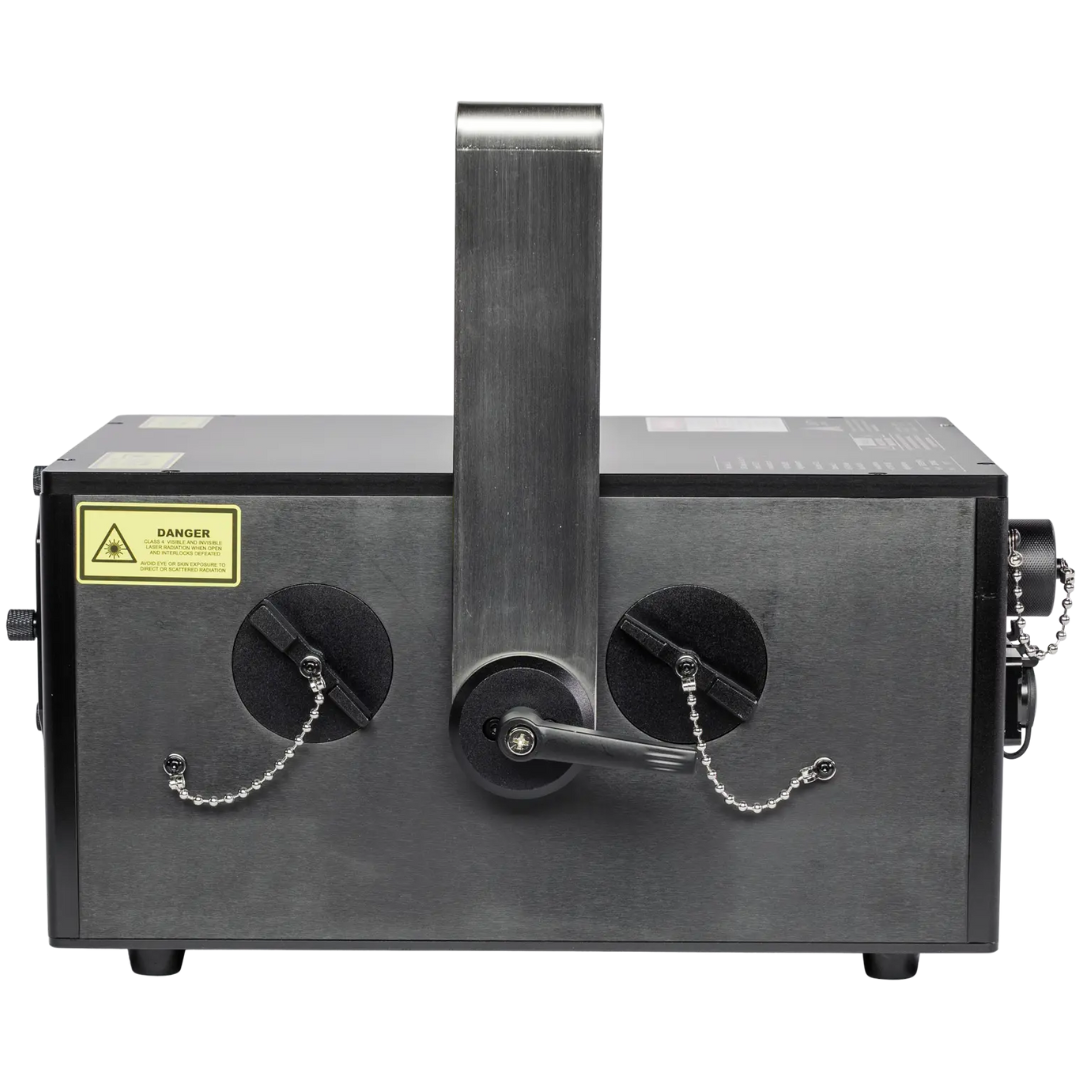

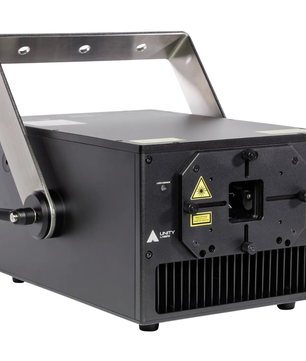

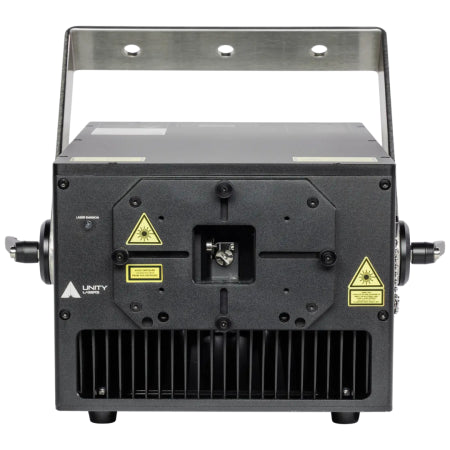

Pangolin Unity ELITE 20 PRO FB4 | 20W RGB Laser with IP65 Housing | FB4 DMX + QuickShow Control

High-Power Outdoor Laser Projector

Pangolin Unity ELITE 20 PRO FB4 is a top-tier full-color laser projector built for large-scale outdoor events and installations. With an output of over 20W and an IP65-rated housing, it’s designed to withstand the elements while delivering stunning, high-impact visuals for audiences of up to 30,000 people.

Pangolin Unity ELITE 20 PRO FB4 Competitive Differences

• Massive 20W RGB laser output for arenas and outdoor events
• IP65 waterproof housing for permanent or touring use

Pangolin Unity ELITE 20 PRO FB4 Description

Built for lighting professionals who need uncompromising power and durability, the Unity ELITE 20 PRO FB4 brings together robust hardware, powerful control options, and a weatherproof design. The projector uses high-quality diode-based laser modules for each color channel, achieving a full-color RGB output with excellent precision. The integrated Pangolin FB4 DMX media server gives you full control via ArtNET, DMX, ILDA, or direct PC connection. Whether you're syncing it with a lighting console, automating shows, or running content from a PC, the system offers complete flexibility. It also includes Pangolin’s QuickShow software for intuitive show programming out of the box. Thanks to its IP65 rating, this unit is ideal for both temporary outdoor events and permanent installations where weather resistance is critical. The analog modulation up to 100kHz ensures smooth, detailed effects for beam shows, graphics, or mapping applications. Built-in digital tools make adjusting color intensity, beam position, axis inversion, and safety parameters easy and precise. This heavy-duty laser is built to meet the needs of rental companies, SFX designers, and venue owners who demand performance and reliability in any environment.

Model Features

• 20W full-color RGB output with diode lasers
• IP65 waterproof housing for outdoor use

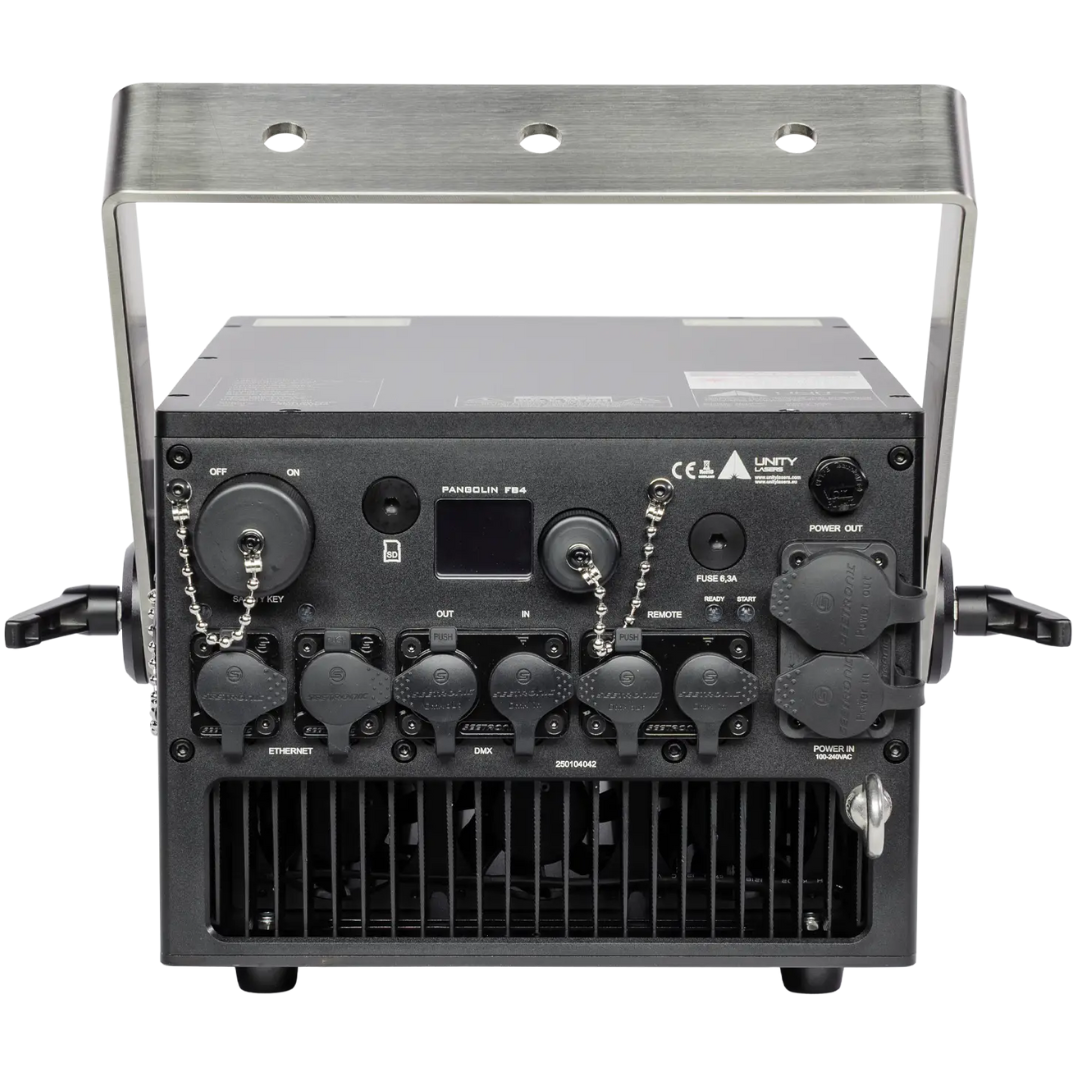

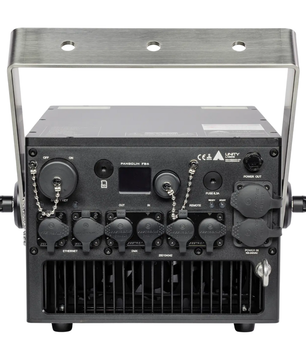

• Integrated FB4 DMX with Ethernet, ArtNET, sACN, and ILDA control
• Includes Pangolin QuickShow software
• Analog modulation up to 100kHz for smooth effects

Model Specifications

• Max Optical Output: >20W
• Beam Size: 6 x 6 mm
• Beam Divergence: <1.2 mrad (full angle)
• Scanning: 35,000pps @ 8°
• Scan Angle: 45° max
• Red / Green / Blue Output: 6400mW / 6400mW / 8000mW
• Modulation: Analog, 100kHz
• Ingress Rating: IP65
• Power Requirements: 100–240V, 50Hz
• Power Consumption: Max 400W
• Operating Temperature: -10 to 45 °C
• Dimensions: 385 x 338 x 191 mm
• Weight: 15.5 kg

What's In The Box

• Laser projector with FB4 DMX (IP65 housing)
• Protective flight case
• Estop box with 10M (30ft) cable
• Ethernet cable (10M / 30ft)
• Power cable (1.5M / 4.5ft)
• Outdoor-rated RJ45 connectors
• Interlock and keys
• User manual and quickstart guide
• Variance card
