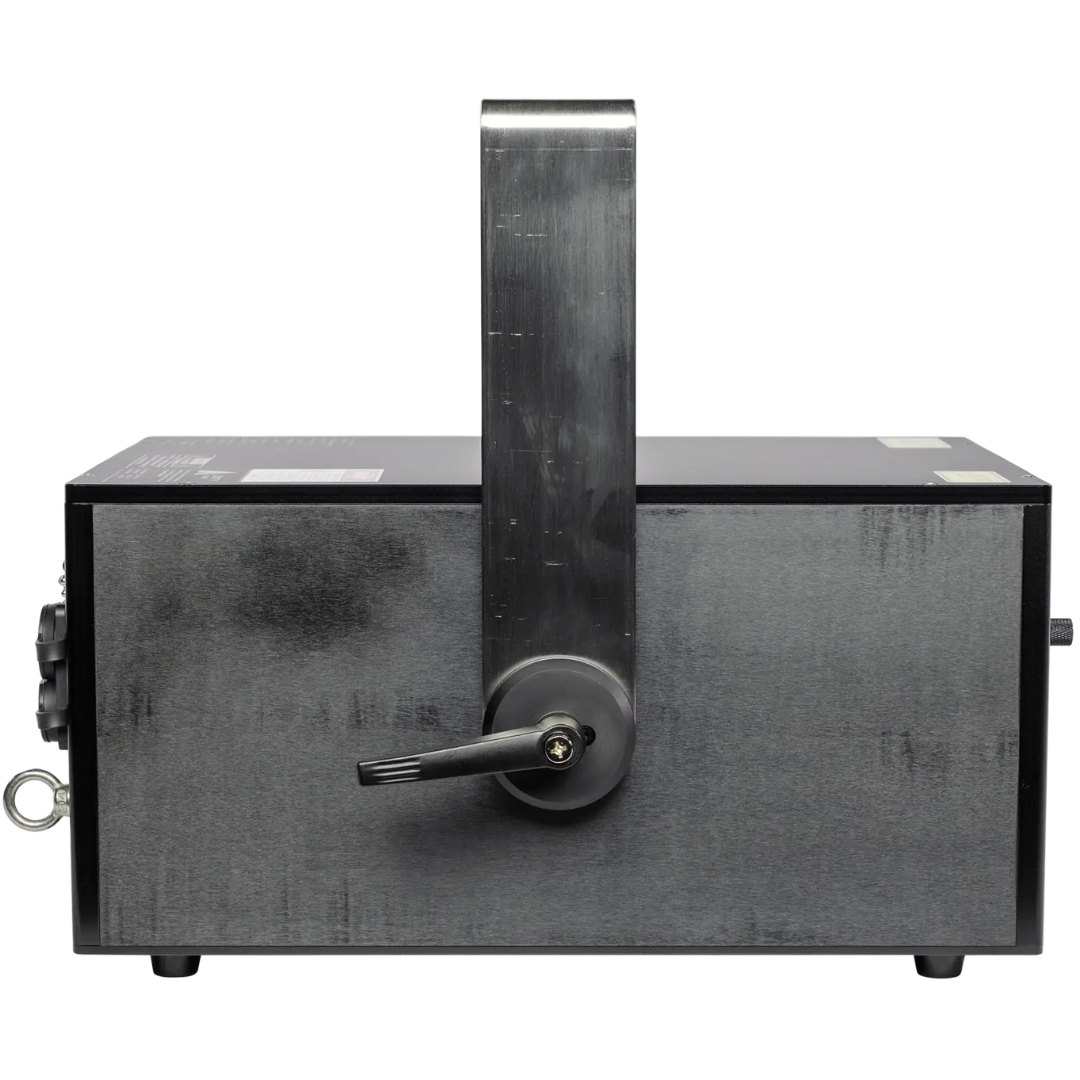

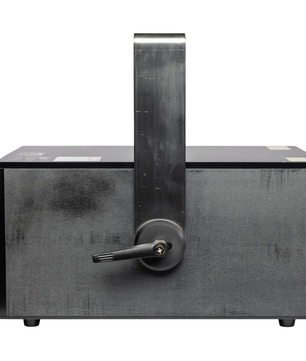

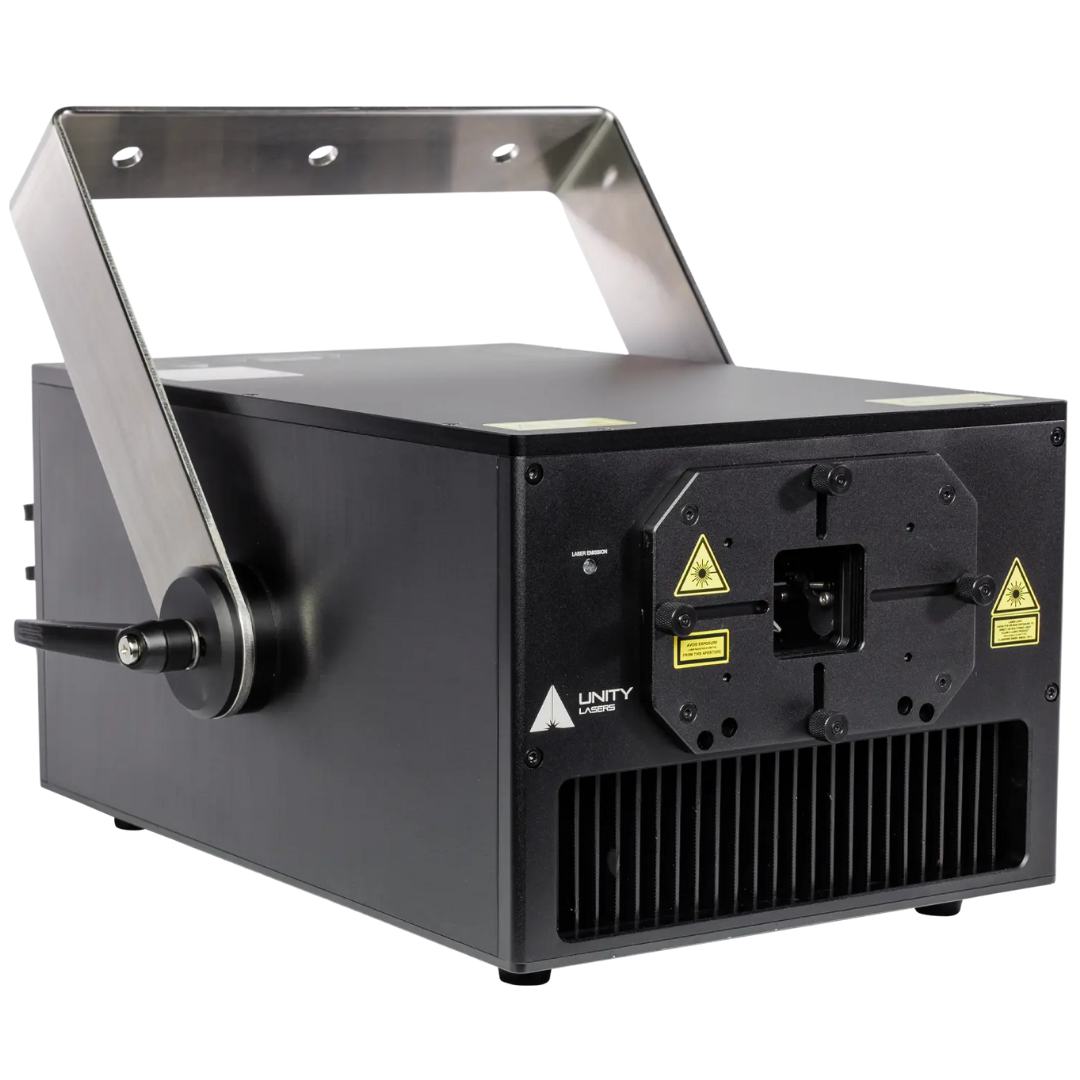

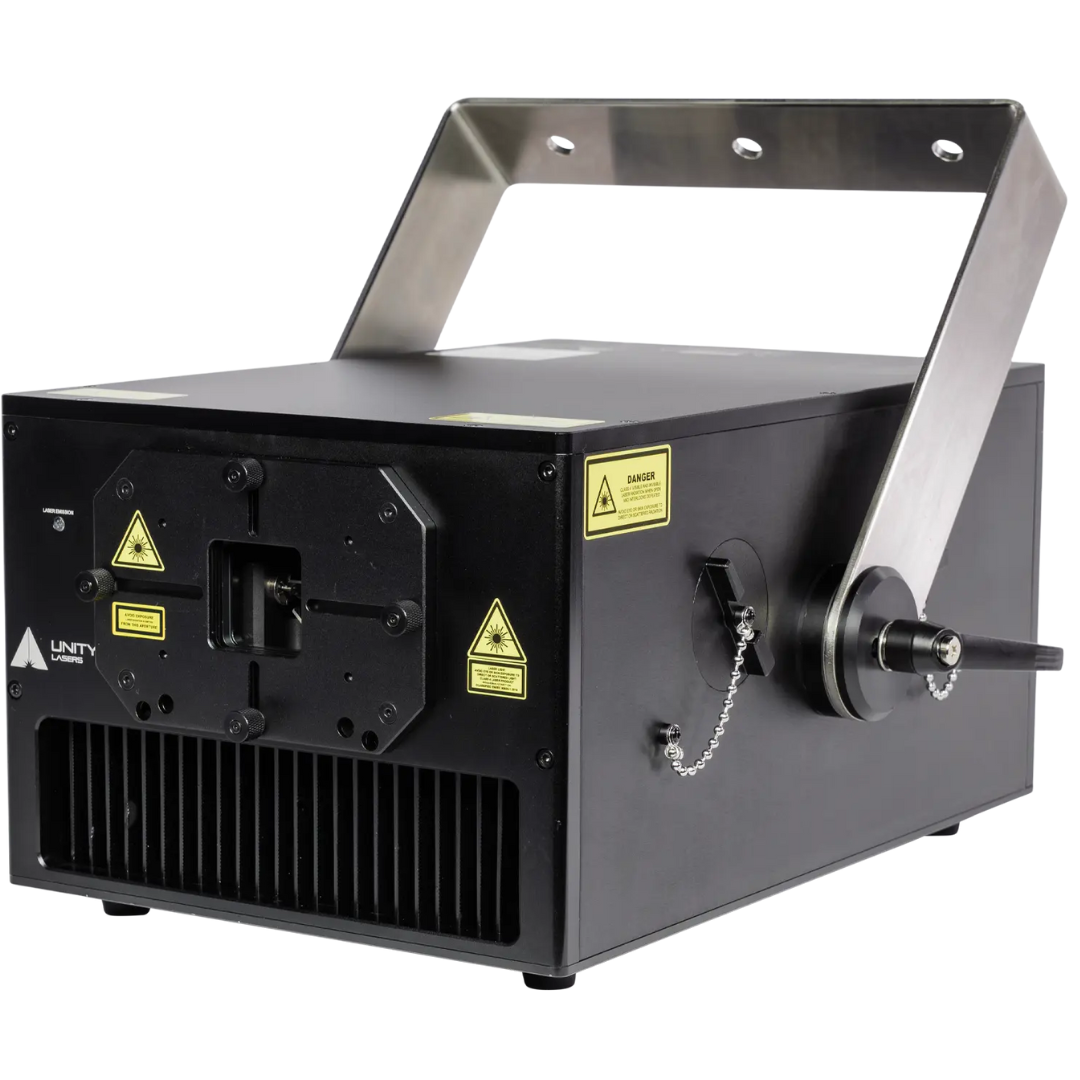

Pangolin Unity ELITE 30 PRO FB4 | 30W RGB Laser with IP65 Housing | FB4 DMX for Large Outdoor Shows

High-Powered Outdoor Laser Projector

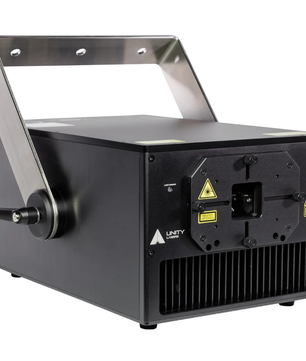

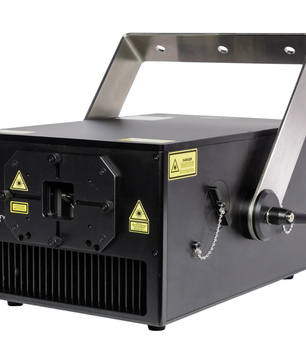

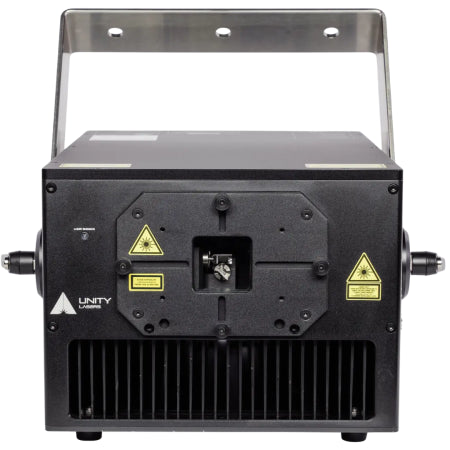

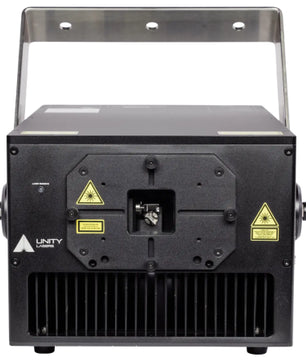

Pangolin Unity ELITE 30 PRO FB4 is a flagship-grade laser system engineered for large-scale outdoor shows and arena-level events. With a guaranteed output of over 30W, full-color RGB diodes, and an IP65-rated weatherproof enclosure, this system delivers stunning visuals even in the most demanding environments.

Pangolin Unity ELITE 30 PRO FB4 Competitive Differences

• Massive 30W RGB laser output for high-capacity outdoor events

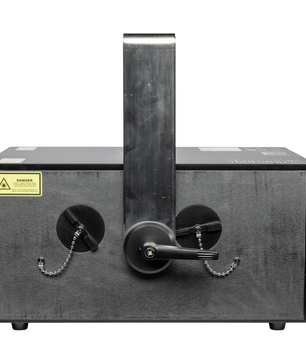

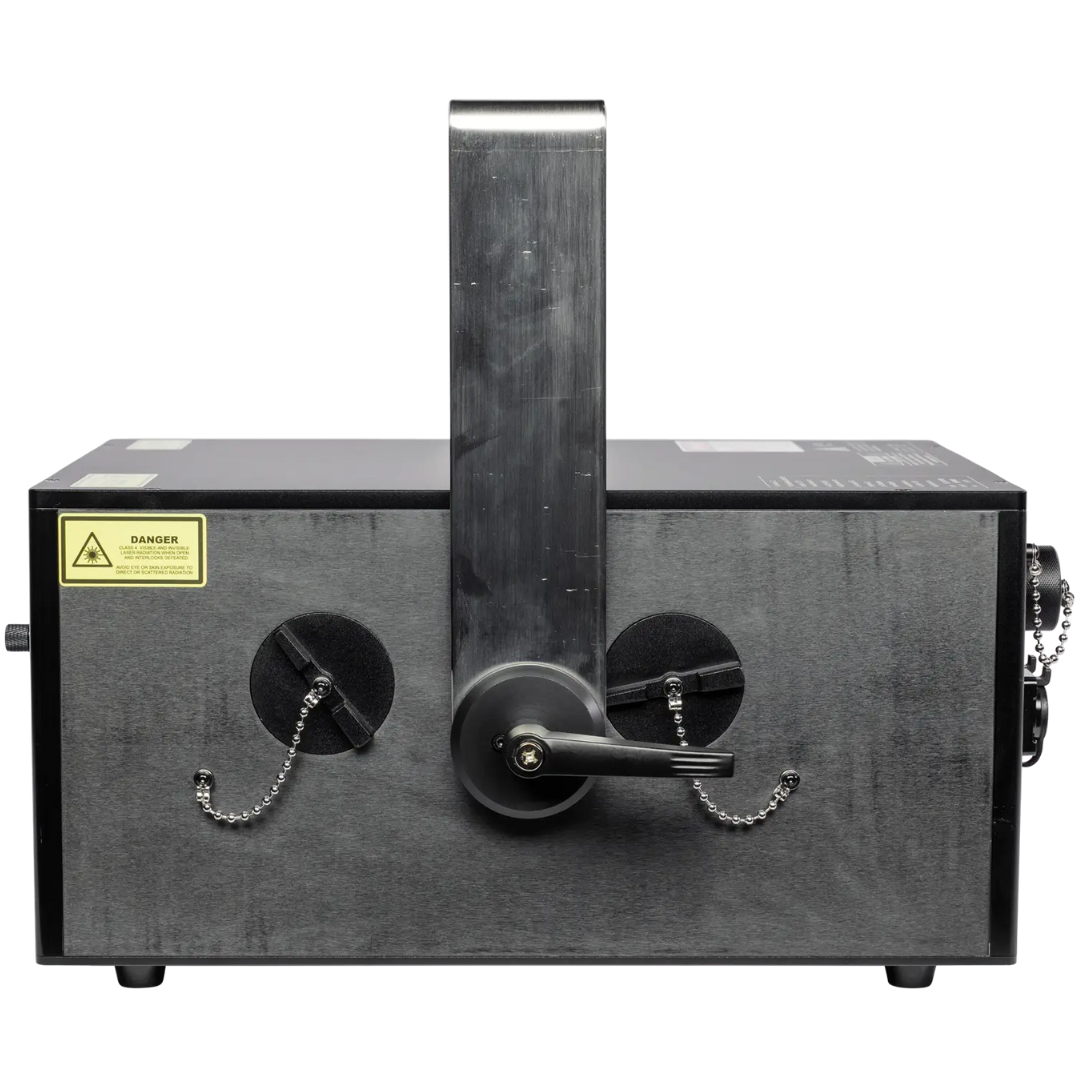

• IP65-rated enclosure built for touring and permanent installations

Pangolin Unity ELITE 30 PRO FB4 Description

Designed for lighting professionals, SFX teams, and production companies, the Unity ELITE 30 PRO FB4 is one of the most powerful laser projectors in its class. It uses high-performance diode modules for red, green, and blue output, achieving vibrant full-color effects with smooth analog modulation at up to 100kHz. The integrated Pangolin FB4 media server provides comprehensive control over Ethernet, ArtNET, DMX, ILDA, and sACN, giving operators full creative flexibility. It also includes Pangolin QuickShow software, allowing you to program professional laser shows right out of the box. Its durable IP65-rated housing protects the unit from dust, rain, and environmental wear, making it perfect for both temporary outdoor use and permanent installations in stadiums, amphitheaters, and large-scale venues. With 35,000pps scanning and a 45° scan angle, it handles everything from beam shows and mapping to complex graphics with clarity and precision. Safety is ensured with features like magnetic interlock, keyed access, emission delay, and mechanical shutter, meeting the latest international laser safety standards.

Model Features

• 30W RGB laser with full-color diode system
• IP65 waterproof housing for extreme environments

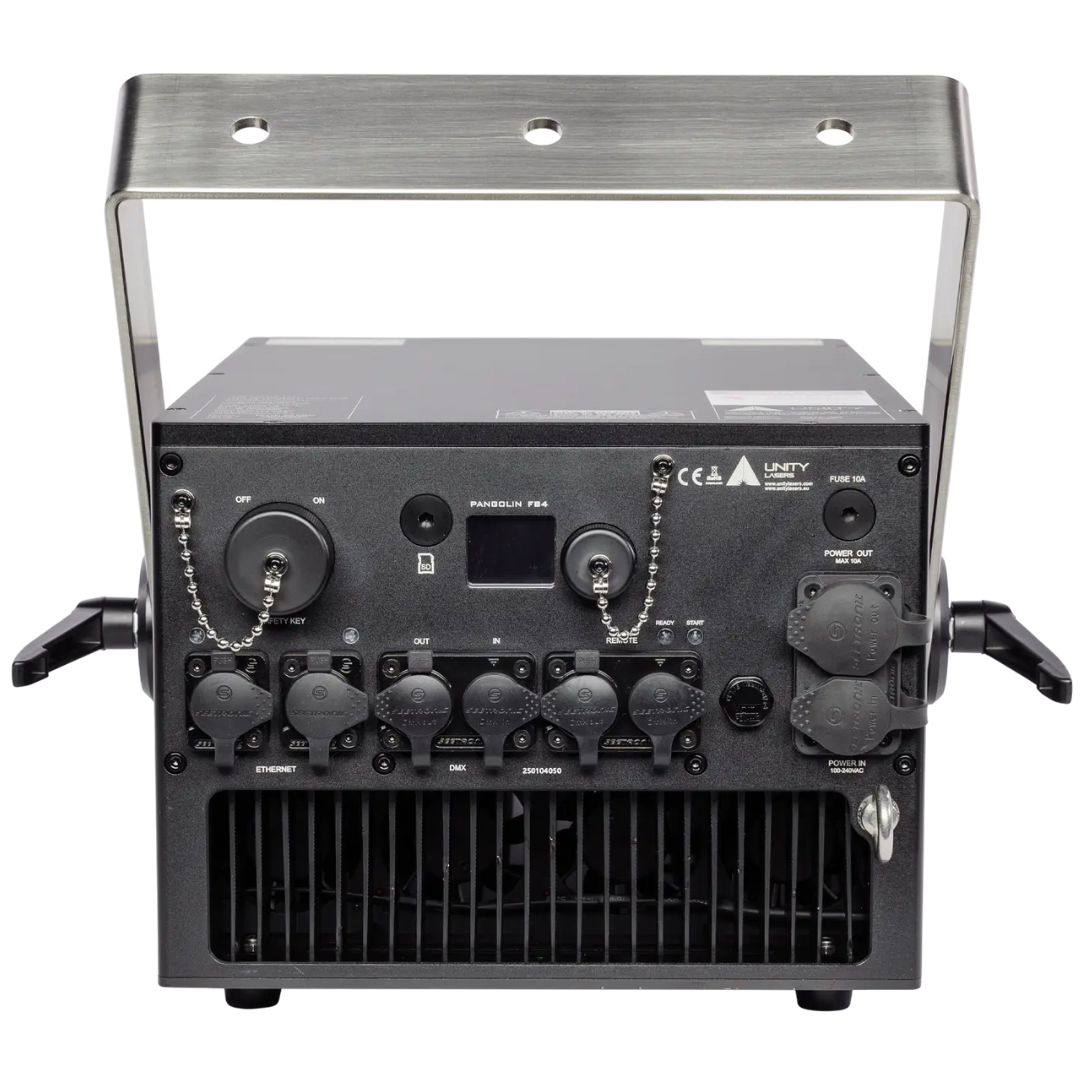

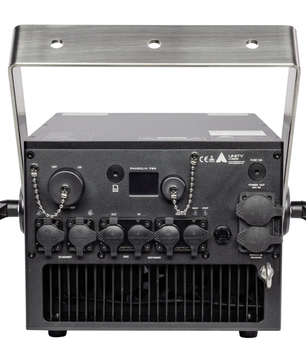

• Built-in FB4 DMX with Ethernet, ArtNET, sACN, and ILDA control
• Analog modulation up to 100kHz for smooth fades and effects
• Compatible with QuickShow software (included)

Model Specifications

• Max Optical Output: >30W
• Beam Size: 6 x 6 mm
• Beam Divergence: <1.2 mrad (full angle)
• Scanning: 35,000pps @ 8°
• Scan Angle: 45° max
• Red / Green / Blue Output: 9000mW / 10000mW / 12000mW
• Modulation: Analog, 100kHz
• Ingress Rating: IP65
• Power Requirements: 100–240V, 50Hz
• Power Consumption: Max 700W
• Operating Temperature: -10 to 45 °C
• Dimensions: 439 x 408 x 211 mm
• Weight: 21 kg

What's In The Box

• Laser projector with FB4 DMX (IP65 housing)
• Protective flight case
• Estop box with 10M (30ft) cable
• Ethernet cable (10M / 30ft)
• Power cable (1.5M / 4.5ft)
• Outdoor-rated RJ45 connectors
• Interlock and keys
• User manual and quickstart guide
• Variance card
