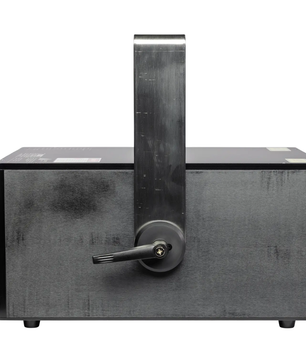

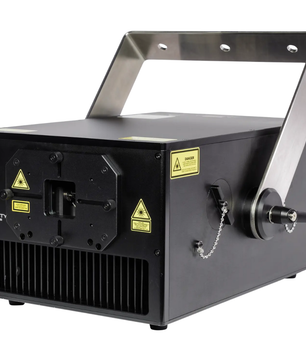

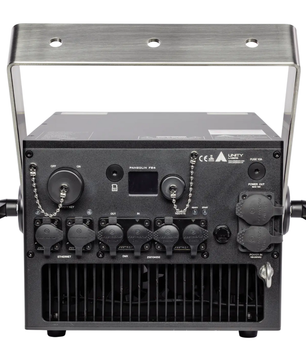

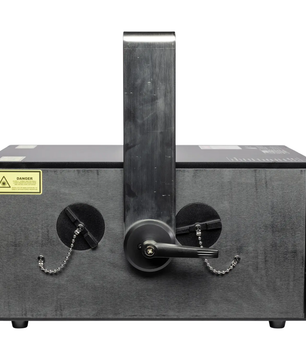

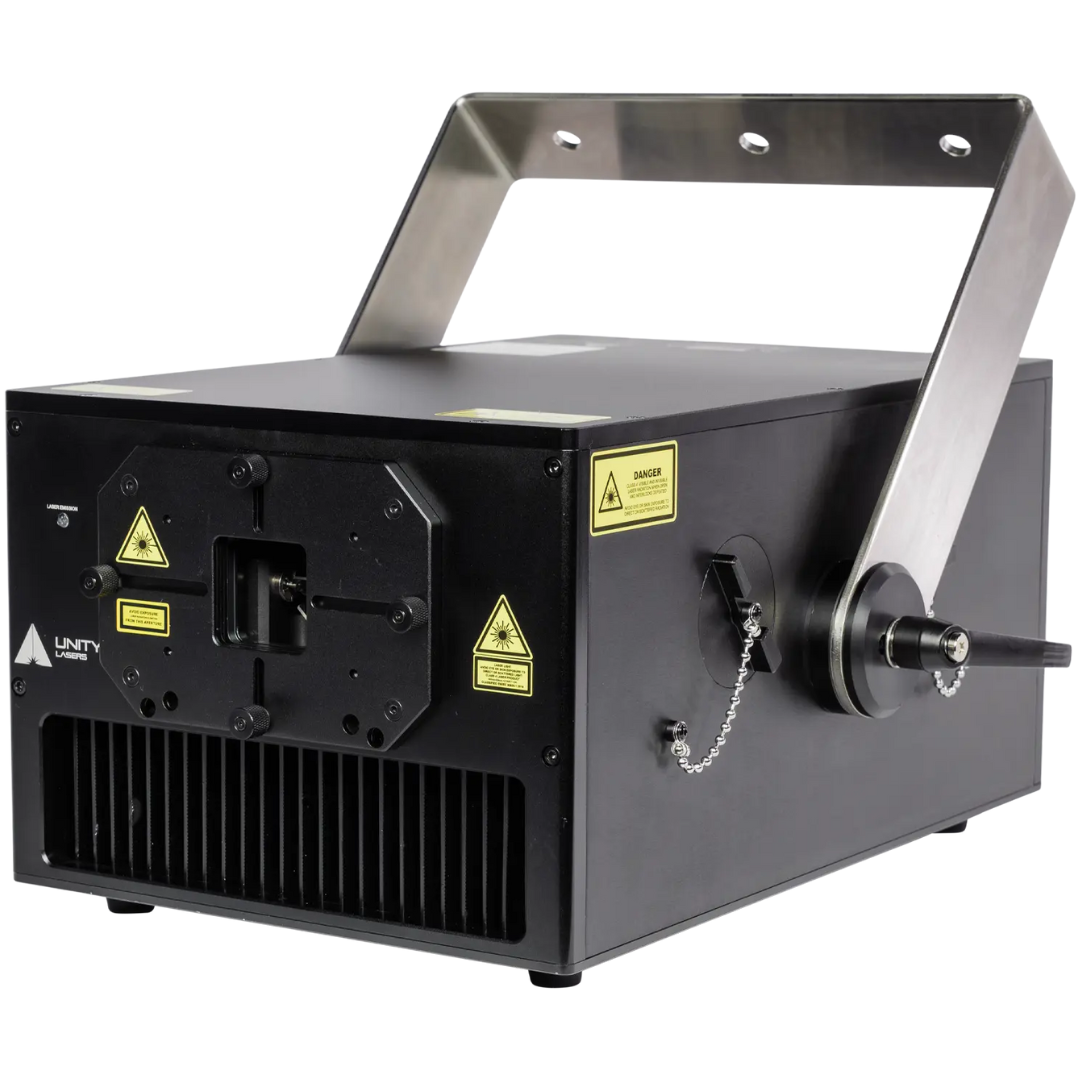

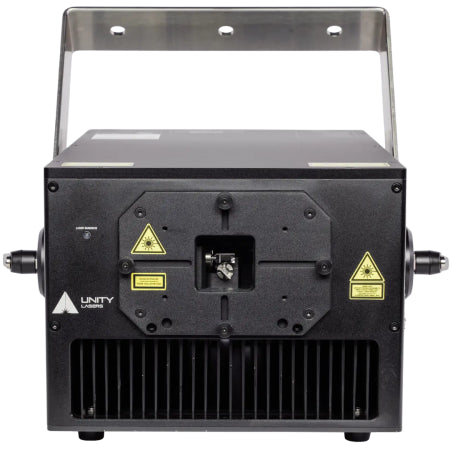

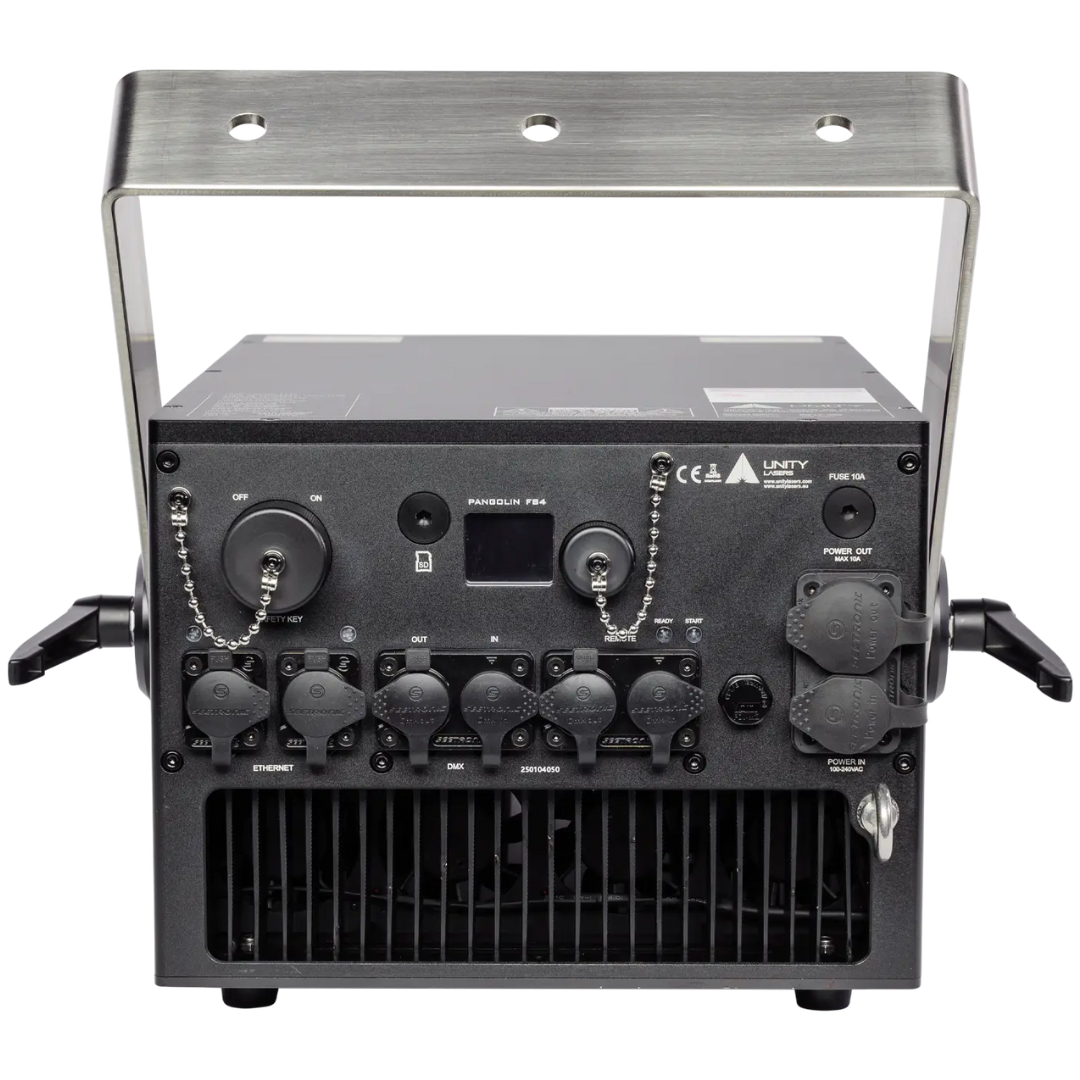

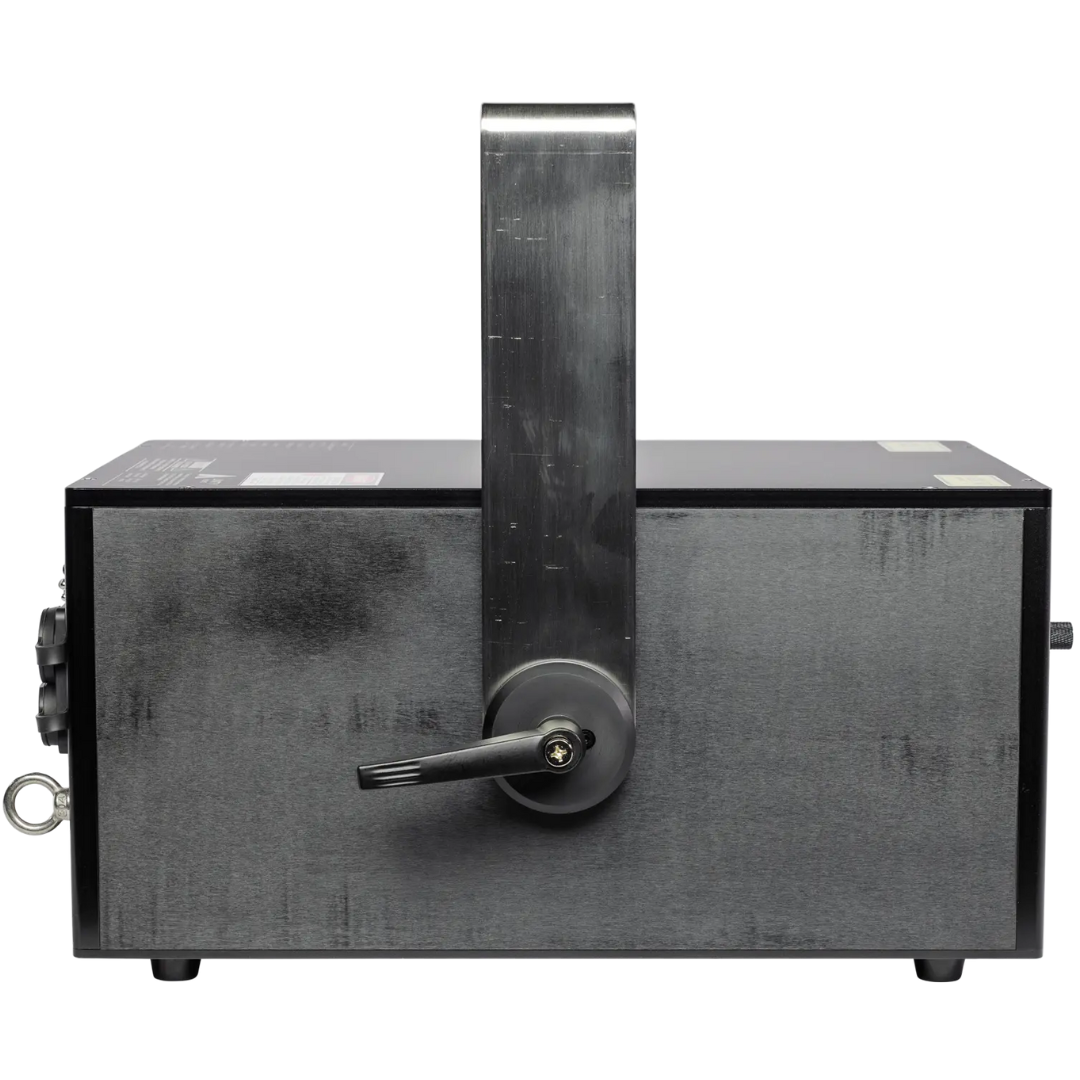

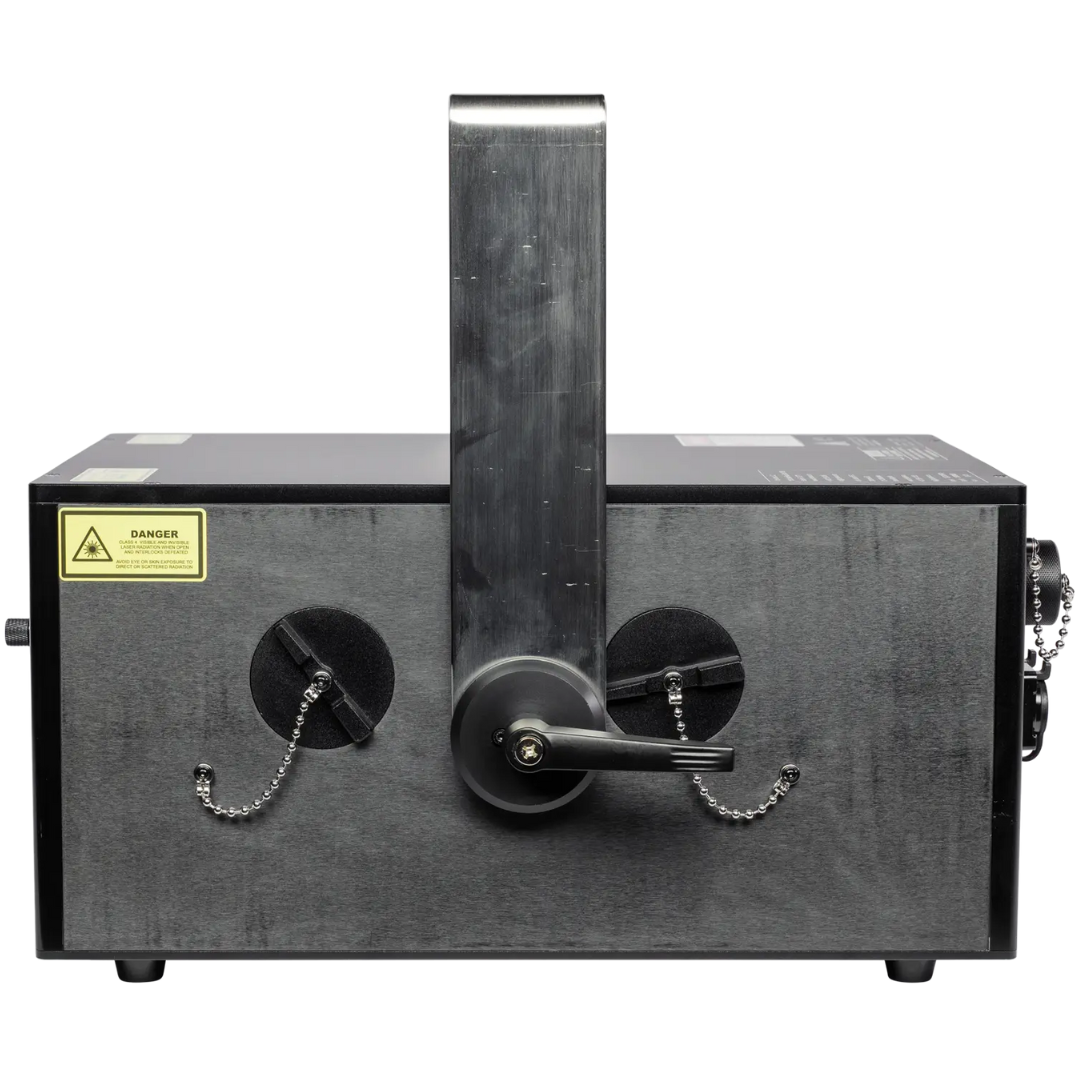

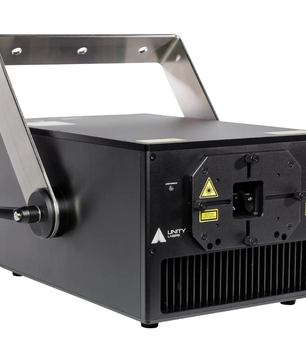

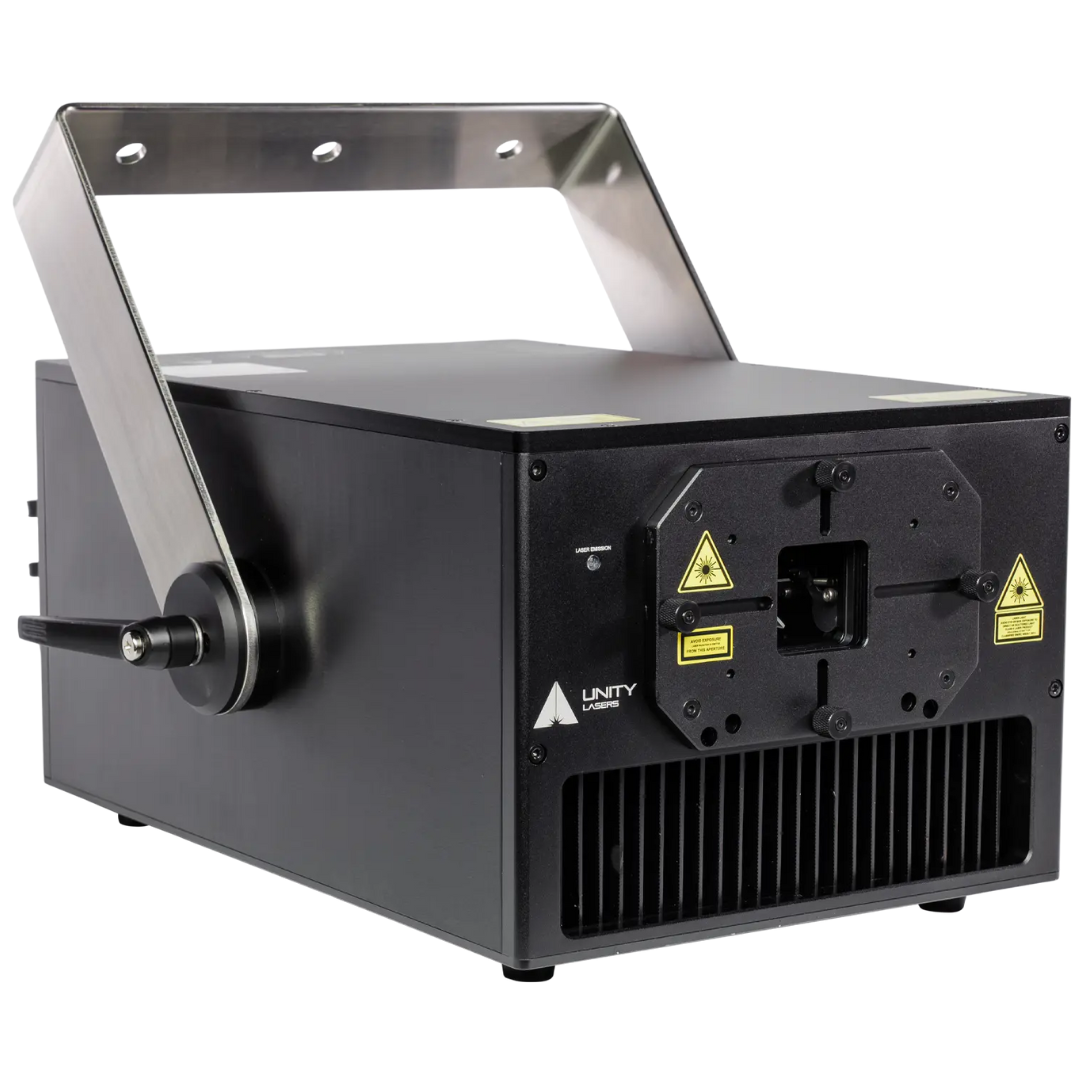

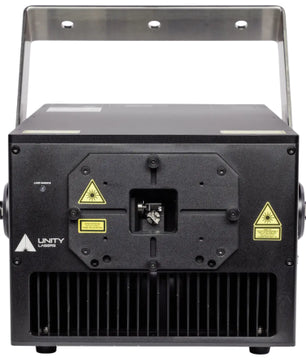

Pangolin Unity ELITE 40 PRO FB4 | 40W RGB Laser with IP65 Housing | FB4 DMX for Arena-Scale Outdoor Events

Ultra-Powerful Outdoor Laser Projector

Pangolin Unity ELITE 40 PRO FB4 is an elite-class full-color RGB laser projector built for maximum visual impact in the largest venues and outdoor arenas. With a guaranteed optical output of over 40 watts and an IP65-rated housing, it’s the ultimate solution for professional laser show designers operating in challenging environments.

Pangolin Unity ELITE 40 PRO FB4 Competitive Differences

• 40W RGB laser output for stadium-scale and outdoor productions
• Rugged IP65-rated enclosure for weather-resistant reliability

Pangolin Unity ELITE 40 PRO FB4 Description

At the top of Pangolin’s Unity product line, the Unity ELITE 40 PRO FB4 combines ultra-high power, digital control precision, and rugged design for maximum performance. Featuring diode-based laser sources for red, green, and blue with analog modulation up to 100kHz, it delivers vibrant, full-spectrum output for demanding beam shows, projections, and advanced laser mapping. The onboard FB4 DMX media server provides comprehensive control options, including ArtNET, Ethernet, DMX, sACN, ILDA, and standalone operation. Operators can use a lighting console, PC, or mobile app for full programming flexibility. QuickShow software is also included, offering an easy entry point for professional-grade show design. The IP65-rated chassis protects the unit from water, dust, and harsh weather — making it ideal for permanent installations or outdoor touring. With 30,000pps scanning and a 45° scan angle, it handles wide projection zones with clarity. Whether you're managing concerts, festivals, or large-scale installations, this model is built for precision and power.

Model Features

• Massive 40W RGB laser system with diode sources
• IP65 waterproof housing for outdoor and permanent installs
• Integrated FB4 DMX with ArtNET, Ethernet, ILDA, and sACN control
• Supports Pangolin QuickShow software (included)
• Analog modulation up to 100kHz for smooth rendering

Model Specifications

• Max Optical Output: >40W
• Beam Size: 6 x 6 mm
• Beam Divergence: <1.2 mrad (full angle)
• Scanning: 30,000pps @ 8°
• Scan Angle: 45° max
• Red / Green / Blue Output: 11000mW / 14000mW / 16000mW
• Modulation: Analog, 100kHz
• Ingress Rating: IP65
• Power Requirements: 100–240V, 50Hz
• Power Consumption: Max 750W
• Operating Temperature: -10 to 45 °C
• Dimensions: 439 x 408 x 211 mm
• Weight: 22 kg

What's In The Box

• Laser projector with FB4 DMX (IP65 housing)
• Protective flight case
• Estop box with 10M (30ft) cable
• Ethernet cable (10M / 30ft)
• Power cable (1.5M / 4.5ft)
• Outdoor-rated RJ45 connectors
• Interlock and keys
• User manual and quickstart guide
• Variance card
