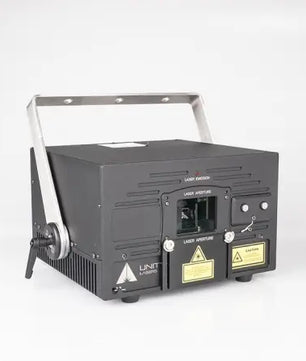

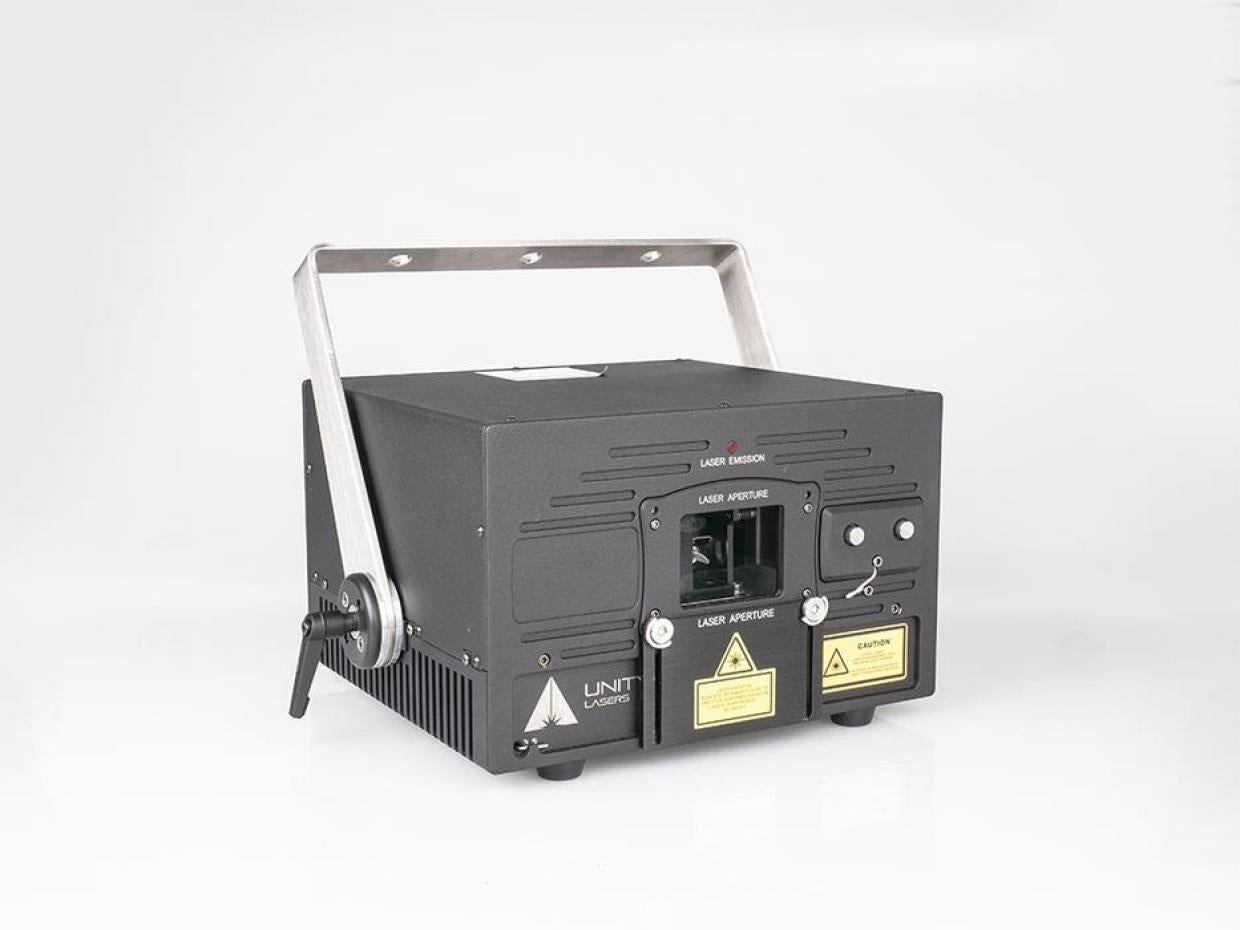

Pangolin Unity Elite 5 Pro FB4 | 5W RGB Diode Laser System | FB4 DMX Control for High-End Shows

Full-Color RGB Laser Projector

Pangolin Unity Elite 5 Pro FB4 is a high-powered, full-color diode laser system designed for demanding professional applications. With 5 watts of guaranteed optical output and advanced scanning technology, it delivers brilliant, high-resolution effects for beam shows, graphics, logos, and text projection. Whether you're designing lighting for a concert, nightclub, church, or corporate event, this laser brings flexibility and power to your rig.

Pangolin Unity Elite 5 Pro FB4 Competitive Differences

• 5W full-color output with advanced RGB diode configuration
• Integrated FB4 DMX interface with support for all major control protocols

Pangolin Unity Elite 5 Pro FB4 Description

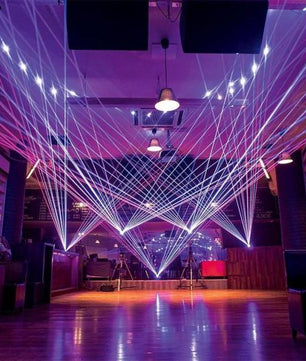

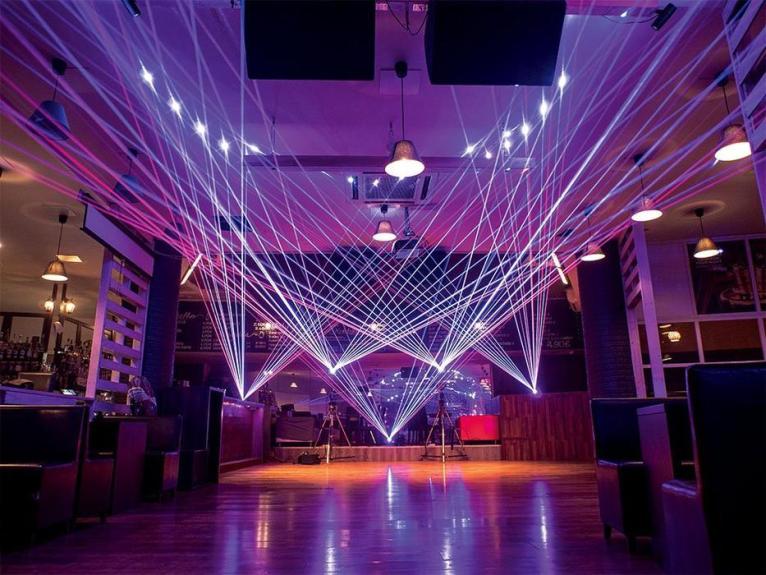

The Unity Elite 5 Pro FB4 stands out for its exceptional brightness, color accuracy, and scanning performance. It uses high-spec laser diodes with advanced optical correction to produce a balanced white beam and sharp colors across long distances. Its analog modulation at 100kHz ensures smooth fade transitions, while the fast 35K scanning system supports complex graphics and animations. This system is perfect for professionals working in venues up to 5,000 people, including large clubs, houses of worship, and small outdoor events. It supports beam shows, text, logos, and mapping capabilities, and thanks to FB4, integrates seamlessly into lighting control ecosystems using ArtNET, DMX, sACN, or timecode. The Elite 5 Pro includes safety features such as keyed interlocks, emission delay, magnetic interlock, and mechanical shutter, and provides easy external adjustments via its built-in digital FB4 interface.

Model Features

• Integrated Pangolin FB4 DMX interface with Ethernet, ArtNET, DMX, sACN, ILDA, and mobile control
• Full-color RGB laser with 5W guaranteed optical output
• 35,000 points per second scanning at 8° with 45° max scan angle
• Advanced analog modulation for smooth dimming and fades
• Network switch built-in for multi-unit synchronization
• All digital adjustments via onboard display (color, size, position, safety, etc.)

Model Specifications

• Max Optical Output: >5W
• Red / Green / Blue (mW): 1,800 | 1,600 | 2,000
• Wavelengths (nm): 638 | 525 | 450
• Beam Size: 6 x 5 mm
• Beam Divergence: <1.2mrad (Full Angle)
• Scanning Speed: 35,000 PPS @ 8°
• Scan Angle: Max 45°

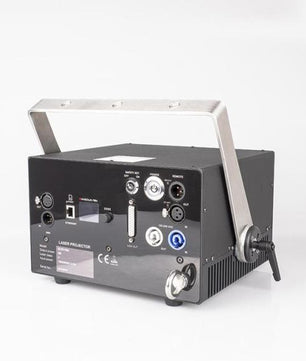

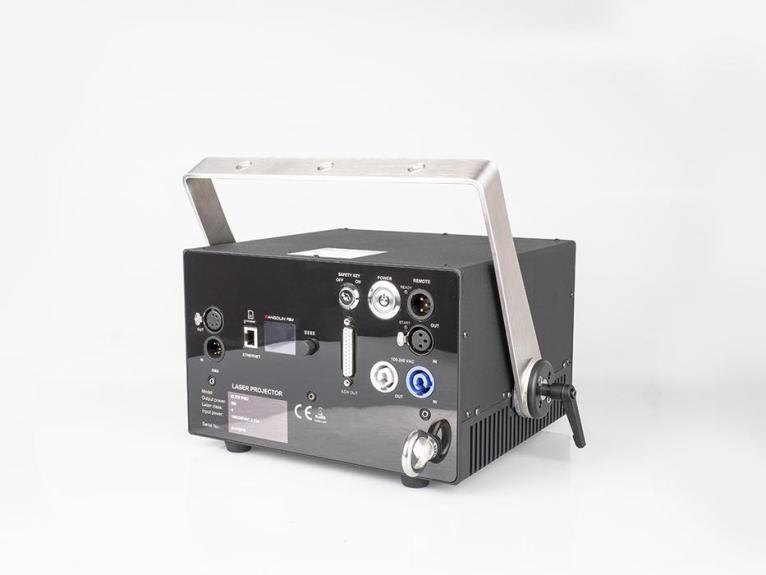

• Control: Ethernet, ArtNET, DMX, sACN, ILDA, Auto, Mobile App
• Modulation: Analog 100kHz
• Power Requirements: 100–240V / 50–60Hz
• Power Consumption: Max. 150W
• Dimensions: 11.8 x 12.1 x 7.1 in (300 x 307 x 181 mm)
• Weight: 19.8 lb (9 kg)
• Ingress Protection: IP4X

What's In The Box

• Laser projector with FB4 DMX
• Protective case
• Estop box
• Estop cable (10M / 30ft)
• Ethernet cable (10M / 30ft)
• Power cable (1.5M / 4.5ft)
• Interlock and keys
• User manual and quick start guide
• Variance card (and service dongle for non-US)
