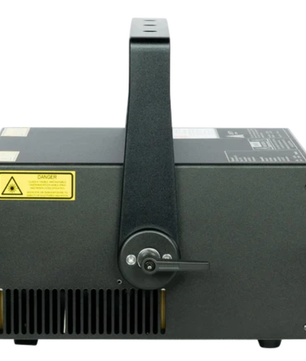

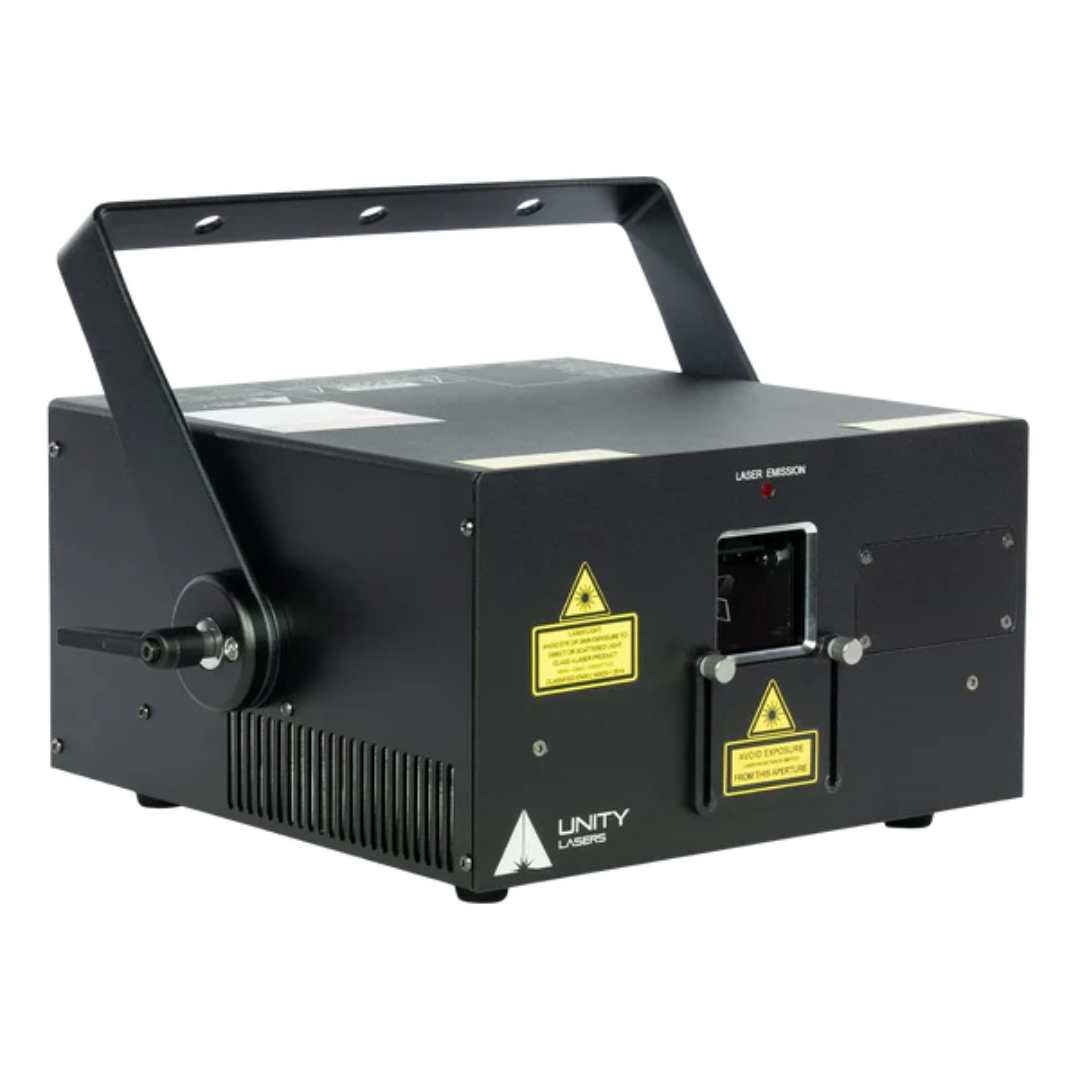

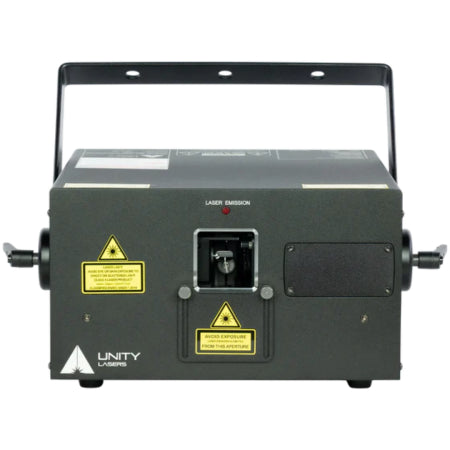

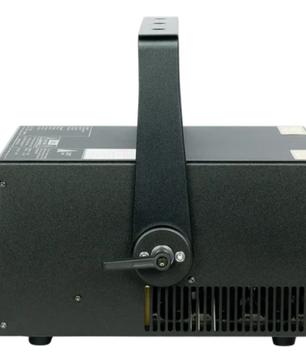

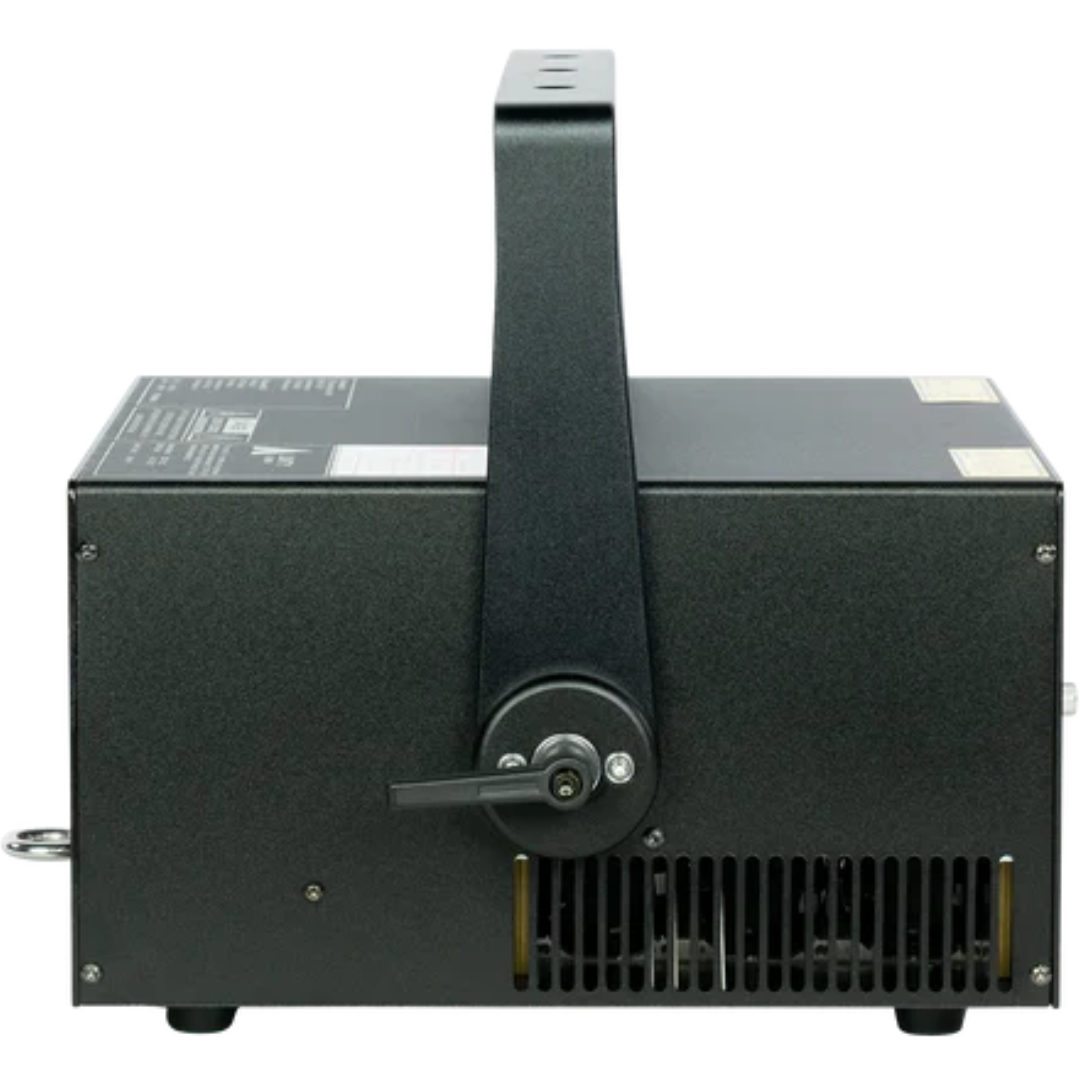

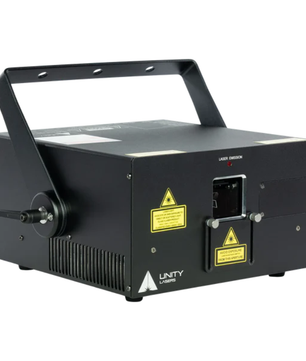

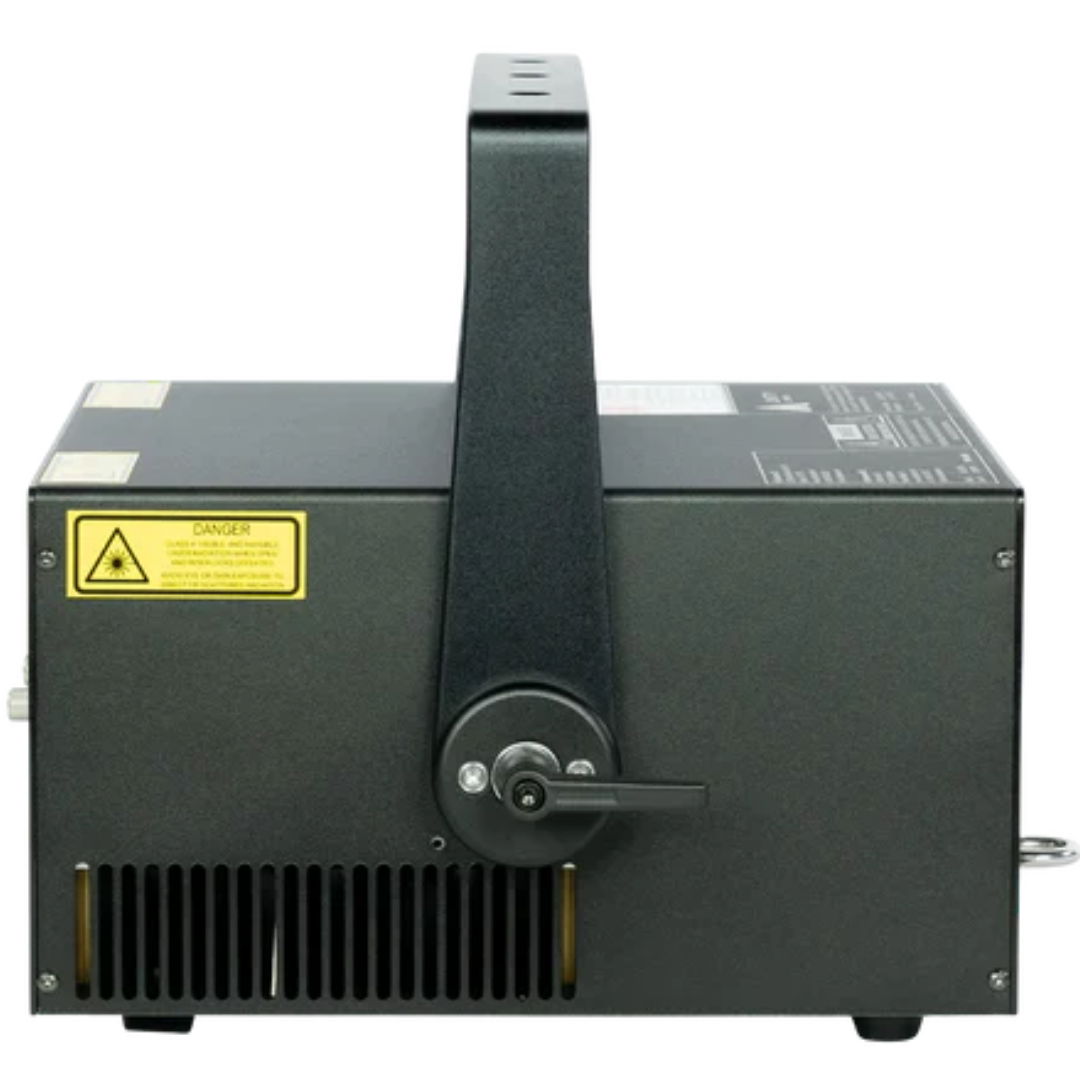

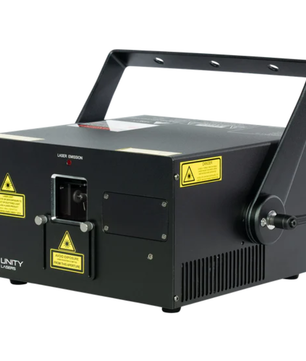

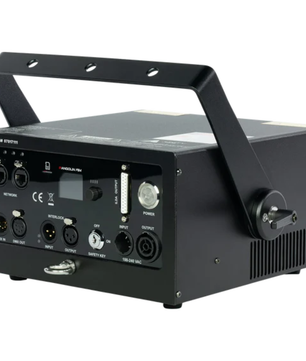

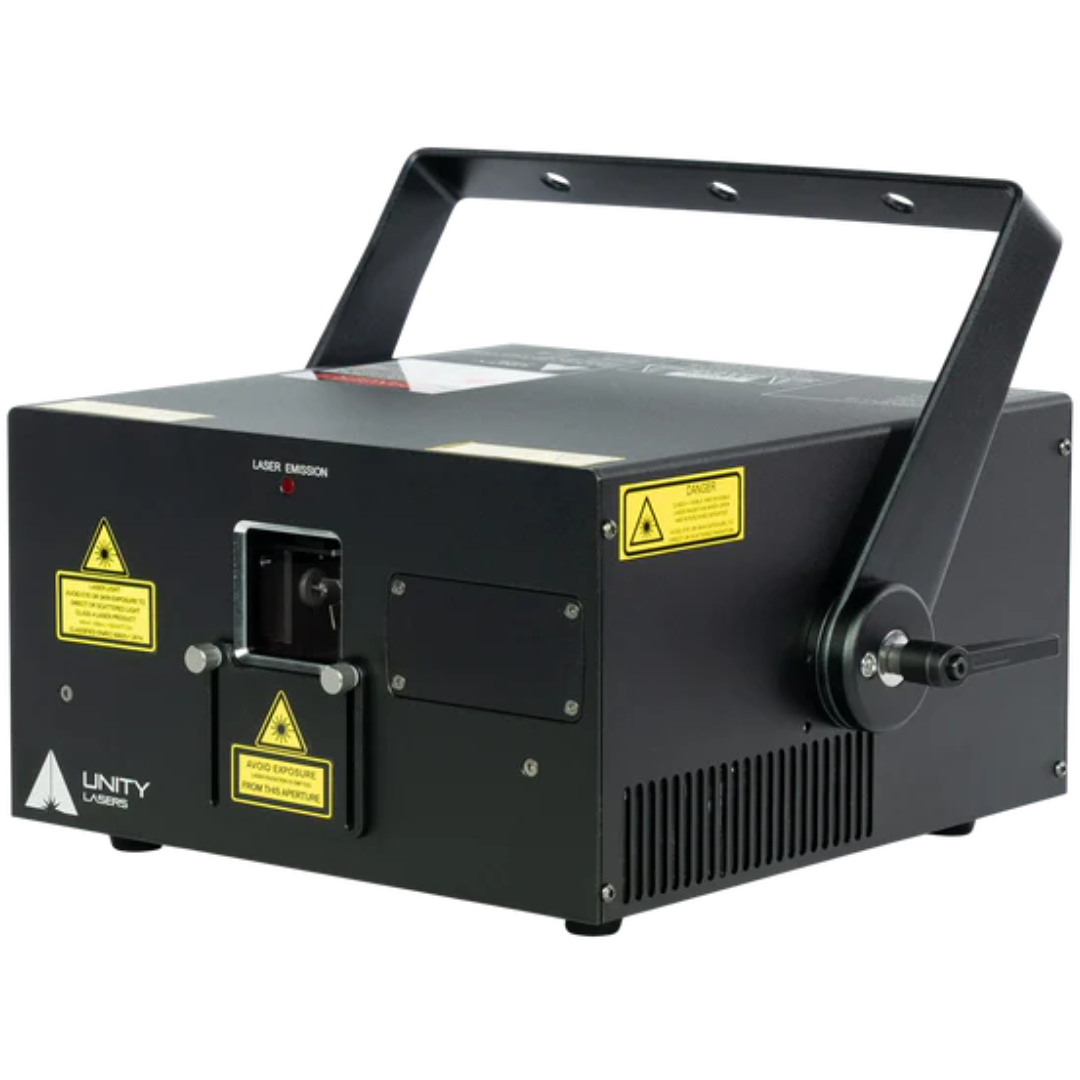

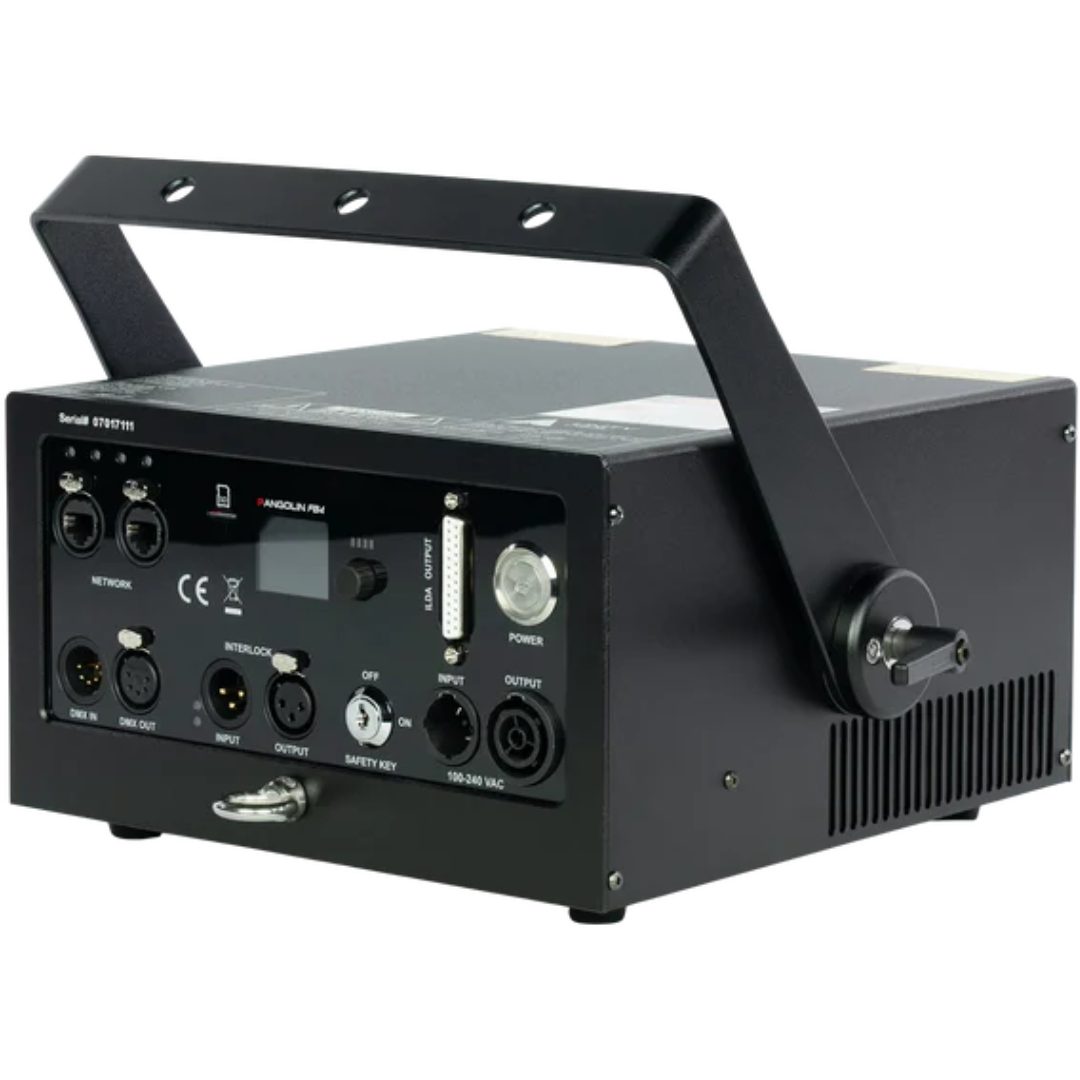

Pangolin Unity RAW 5 FB4 | 5W Full-Color Laser with FB4 DMX | QuickShow Included for Pro Control

Full-Color Laser Projector

Pangolin Unity RAW 5 FB4 is a powerful and affordable full-color laser system designed for lighting designers and venues seeking professional results without premium pricing. With 5W of guaranteed optical output and built-in FB4 hardware, it delivers stunning beam effects, graphics, and text projection — all easily controlled from lighting consoles, PCs, or mobile devices.

Pangolin Unity RAW 5 FB4 Competitive Differences

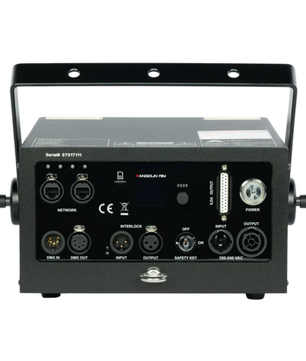

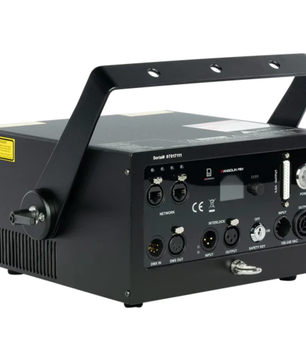

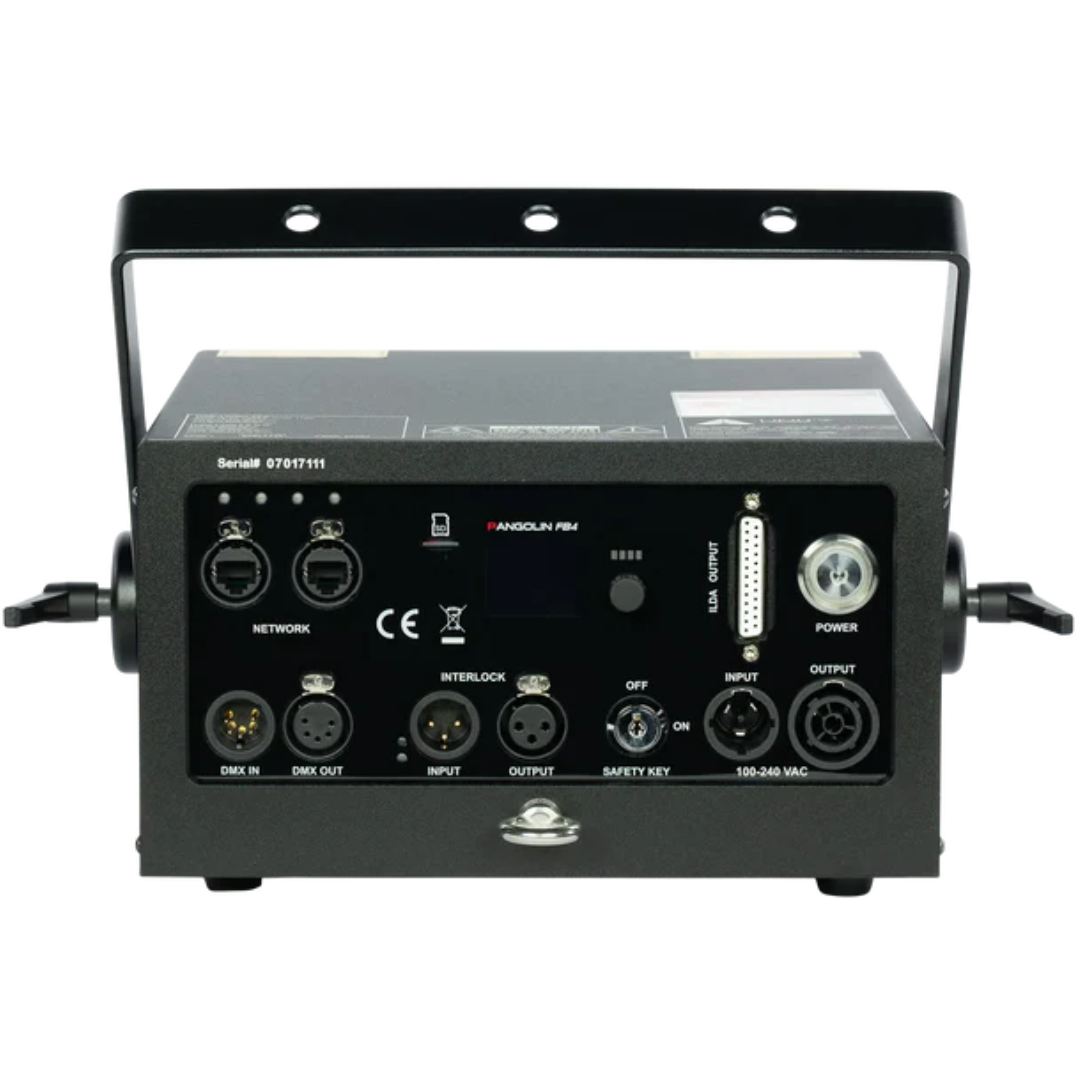

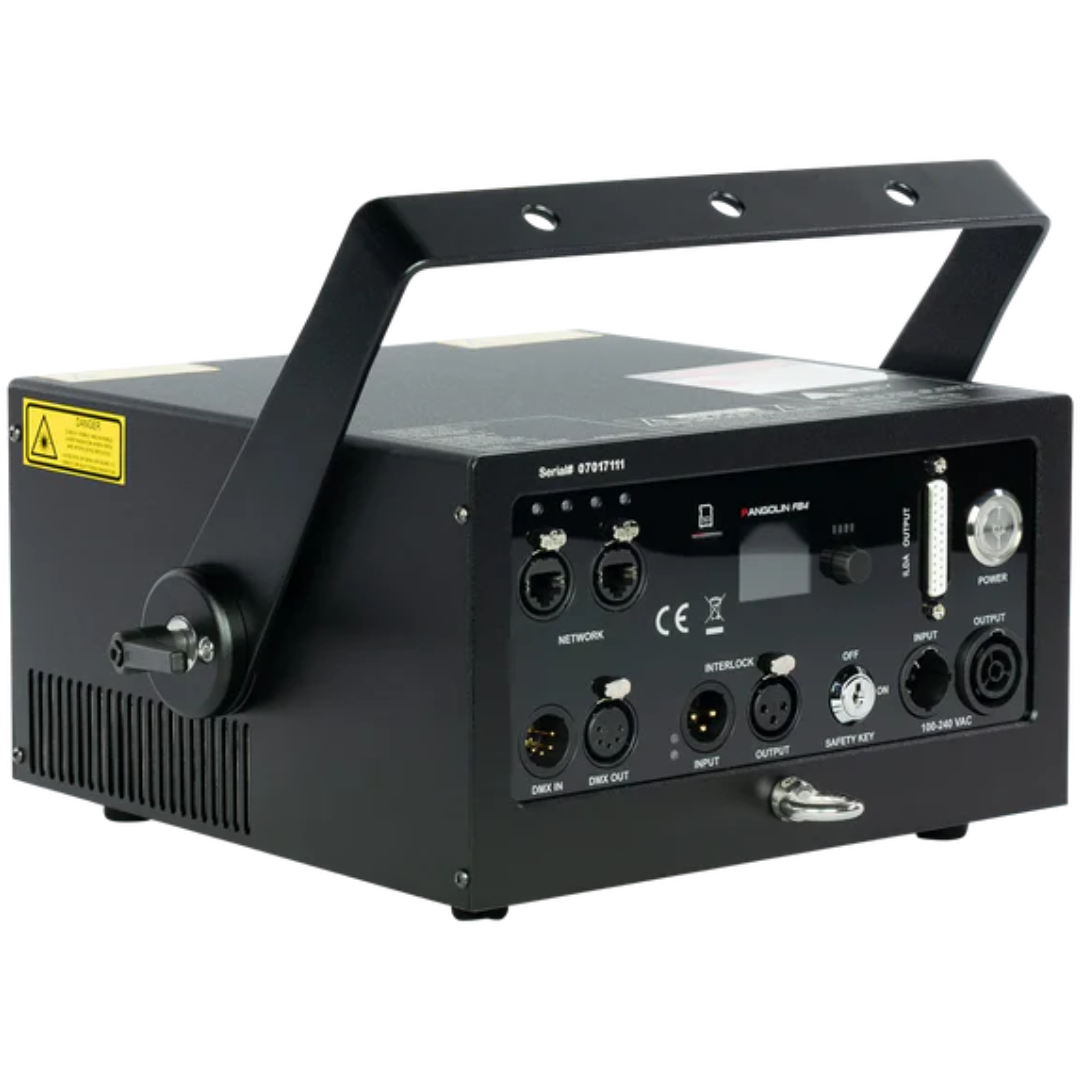

• Integrated FB4 DMX with ArtNET, sACN, ILDA, and Ethernet control
• Includes Pangolin QuickShow software at no extra cost

Pangolin Unity RAW 5 FB4 Description

Built with performance and flexibility in mind, the Unity RAW 5 FB4 offers a full-color, semiconductor diode laser engine capable of over 5 watts of optical output. It's engineered to meet the needs of DJs, clubs, and medium-size venues with capacity up to 5,000 people. The built-in FB4 control hardware unlocks a wide range of professional features — including compatibility with ArtNET, DMX, sACN, and ILDA protocols. You can run it from a PC using QuickShow, connect it to a console, or operate it in standalone or auto mode for maximum versatility. Its precision scanning system runs at 30,000 points per second at 8°, with a wide 50° scan angle, making it ideal for beam shows, text projection, and graphics mapping. The digitally managed system settings let you fine-tune color power, axis inversion, positioning, and more directly from the FB4 interface. Safety is a top priority, with features like keyed interlock, emission delay, magnetic interlock, scan-fail detection, and a mechanical shutter. This unit also includes a rugged flight case and all necessary cables for easy deployment.

Model Features

• Full-color 5W laser system with diode sources
• Integrated FB4 DMX control with Ethernet, ArtNET, ILDA, sACN
• Supports QuickShow software (included)
• 30kpps scanning at 8°, 50° max scan angle
• Precision analog modulation up to 50kHz

Model Specifications

• Max Optical Output: >5W
• Beam Size: 5 x 3 mm
• Beam Divergence: <1.1 mrad (full angle)
• Scanning: 30,000pps @ 8°
• Scan Angle: 50° max
• Red / Green / Blue Output: 1200mW / 1000mW / 2800mW
• Wavelengths: 638nm / 525nm / 455nm
• Modulation: Analog, 50kHz
• Ingress Rating: IP4X
• Power Requirements: 100–230V, 50Hz
• Power Consumption: Max 150W
• Operating Temperature: 10–40 °C
• Dimensions: 252 x 247 x 148 mm
• Weight: 8 kg

What's In The Box

• Laser projector with FB4 DMX
• Protective flight case
• Estop box with 10M (30ft) cable
• Ethernet cable (10M / 30ft)
• Power cable (1.5M / 4.5ft)
• Interlock and keys
• User manual and quickstart guide
• Variance card
