Active PA Loudspeaker

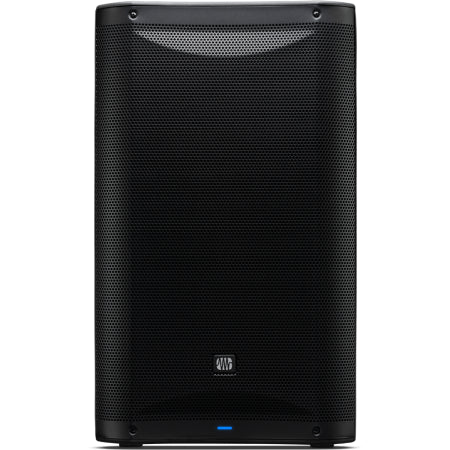

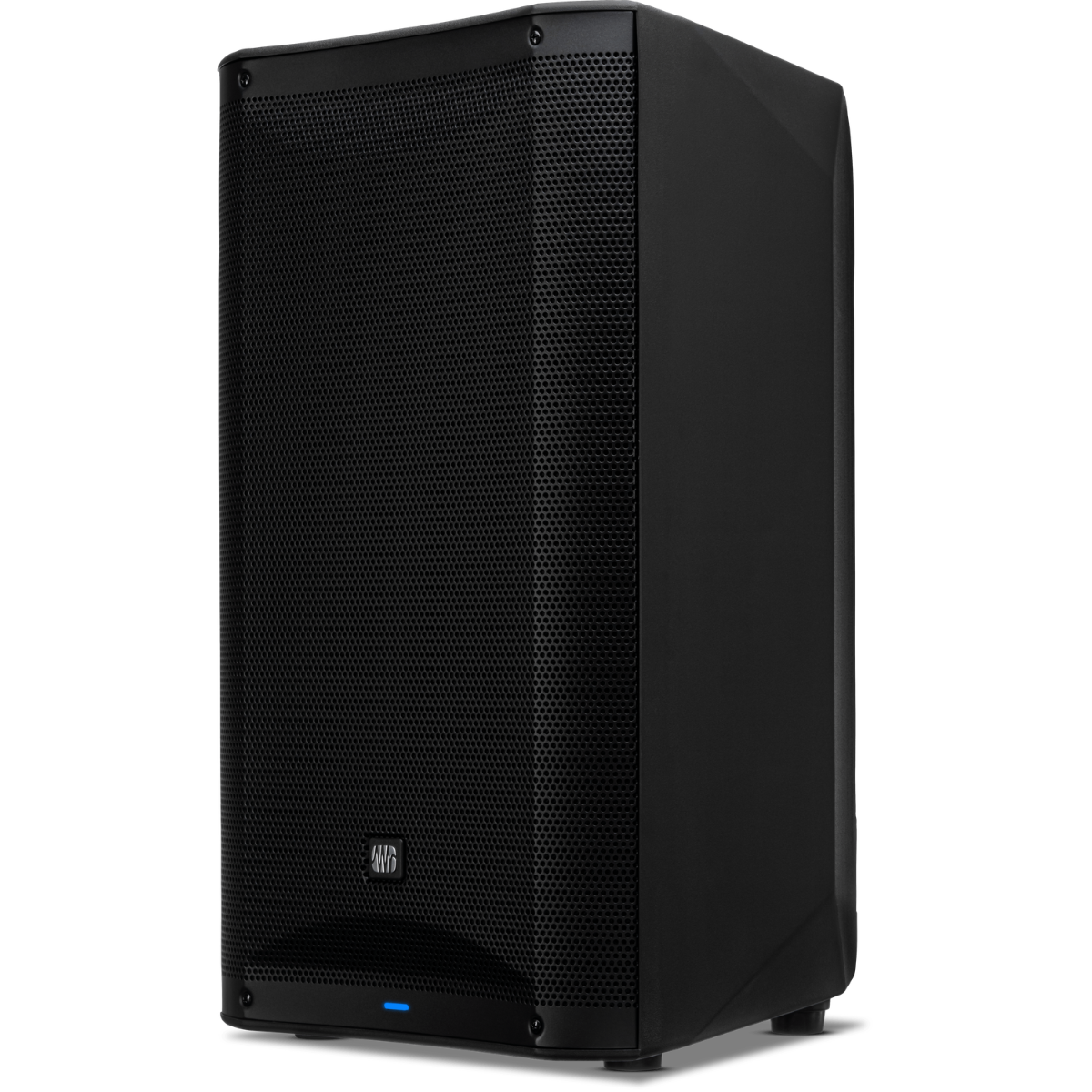

PreSonus AIR XD 12 is a 2-way active PA loudspeaker built for professional sound reinforcement in portable and installed systems. With a custom 12-inch woofer, 1.35-inch compression driver, onboard DSP, and Bluetooth TWS stereo capability, it delivers clear full-range sound, flexible connectivity, and dependable performance for music playback, speech, FOH, and monitor applications.
PreSonus AIR XD 12 Competitive Differences
- 1,500W Class D bi-amplification with up to 132 dB peak SPL
- Built-in Bluetooth 5.0 with TWS Bridge Mode for wireless stereo pairing
- Integrated 3-channel mixer with mic/line, aux, and Bluetooth inputs
- Full-color 2.6-inch LCD with onboard DSP control and metering
PreSonus AIR XD 12 Description

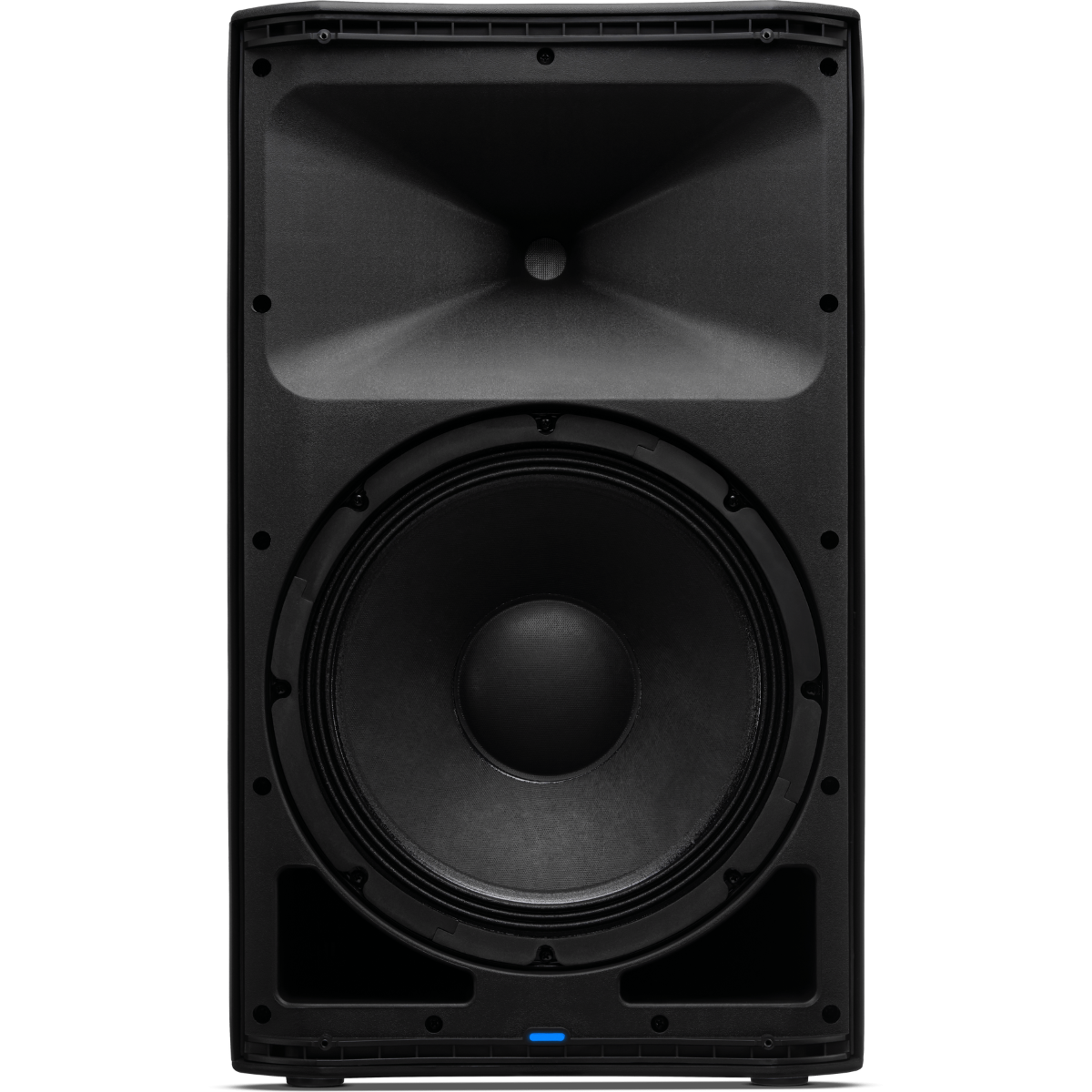

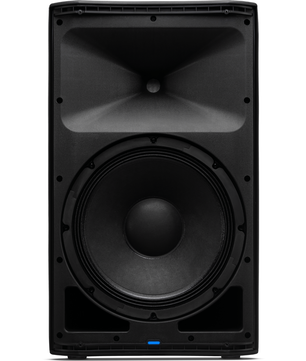

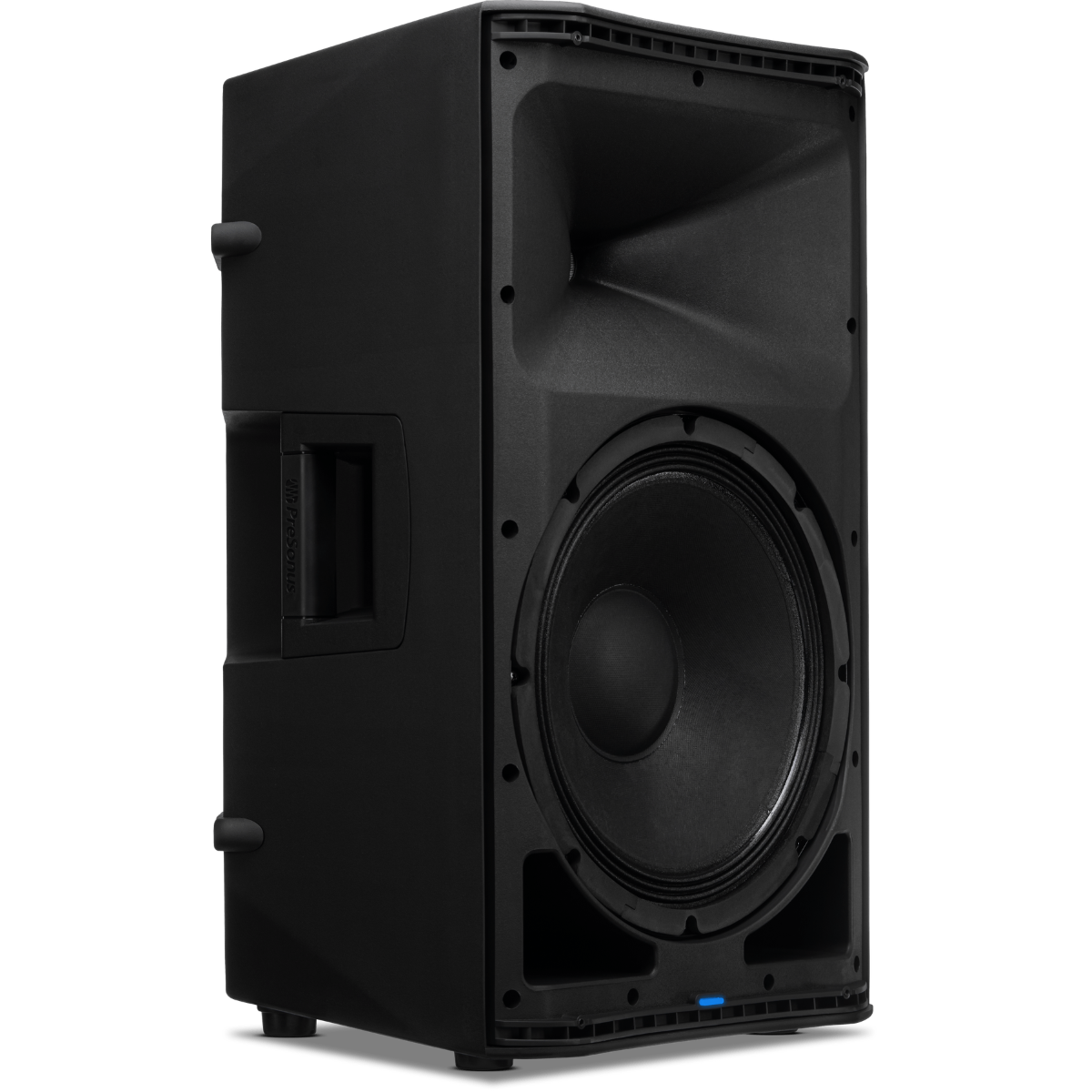

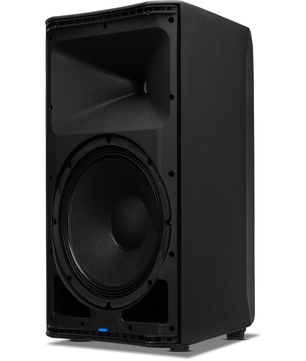

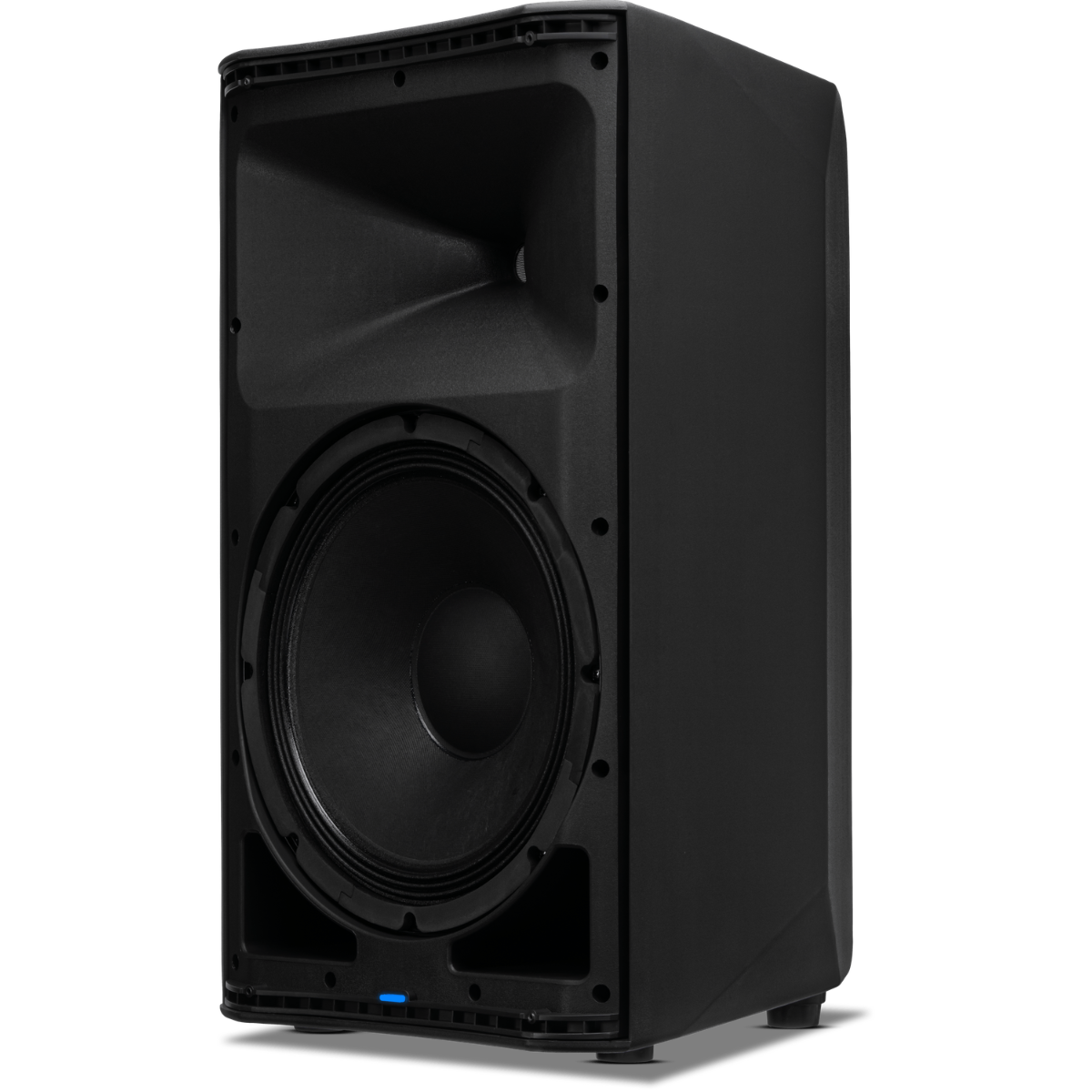

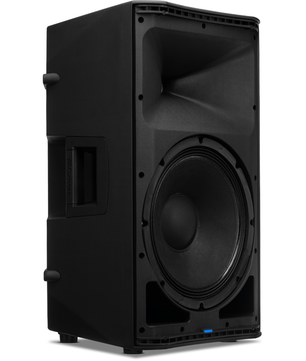

The PreSonus AIR XD 12 is designed for users who need a powerful, flexible full-range loudspeaker that can handle a wide range of live sound duties. Its 12-inch low-frequency driver uses an enlarged 2.56-inch voice coil for efficient power handling and strong low-end response, while the 1.35-inch high-frequency compression driver with a PEEK diaphragm helps deliver detailed highs with excellent durability under demanding use.
With 1,500 watts of Class D bi-amplification and a peak output of 132 dB SPL, the AIR XD 12 offers the headroom and clarity needed for DJs, bands, event production, corporate AV, houses of worship, and permanent installations. Onboard DSP provides speaker modes and tonal adjustment controls, making it easier to tailor the system for speech, music playback, front-of-house, or floor monitor use.

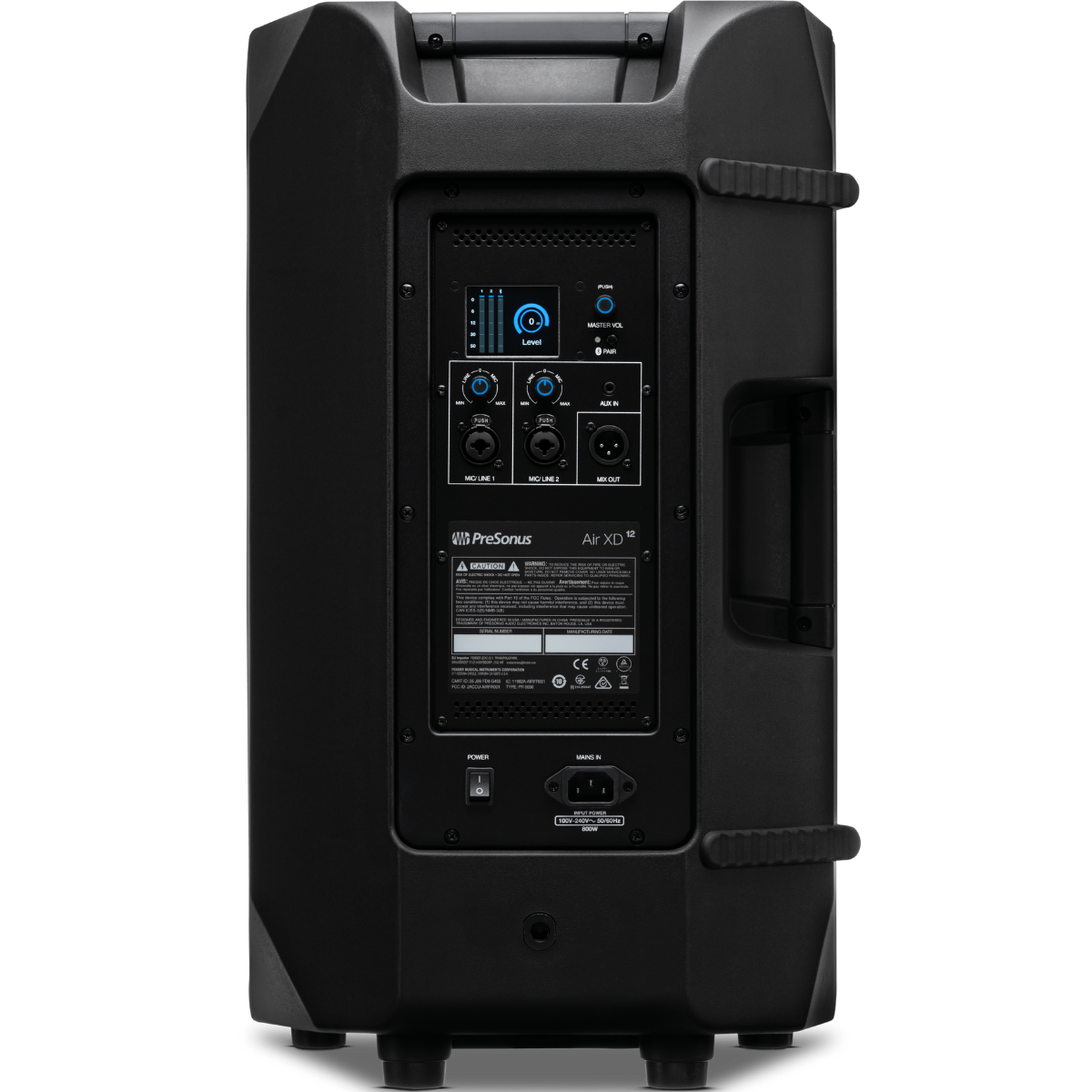

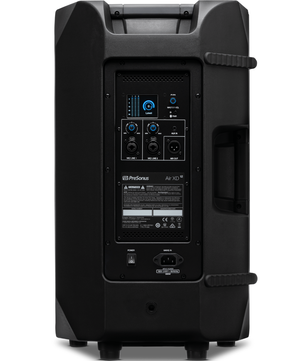

Connectivity is a major strength of the PreSonus AIR XD 12. Its integrated 3-channel mixer supports two XLR/TRS mic/line combo inputs, a 3.5 mm stereo aux input, and Bluetooth audio streaming. Bluetooth TWS Bridge Mode allows wireless stereo pairing for fast setups without extra cables, which is especially useful for mobile applications and simple event systems.

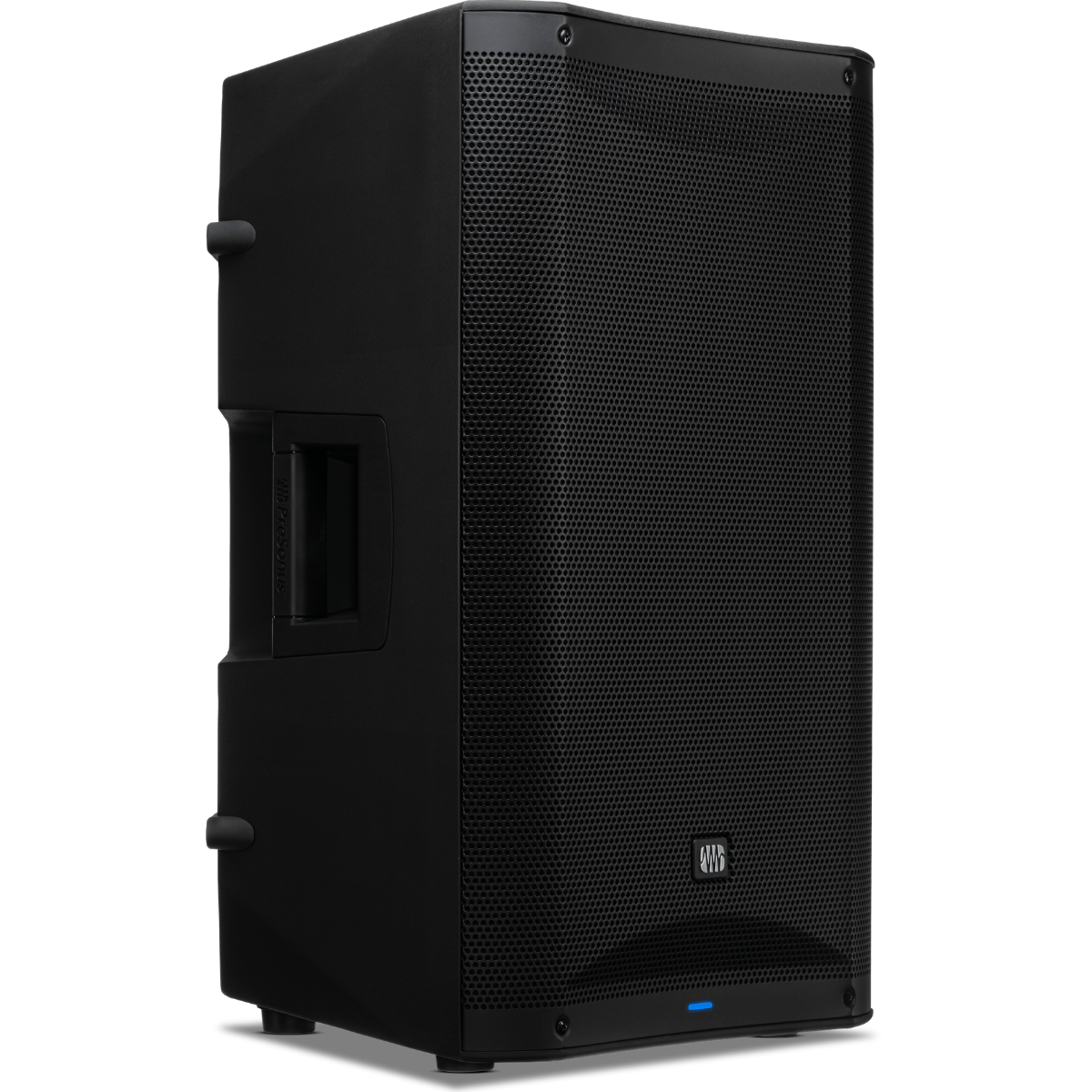

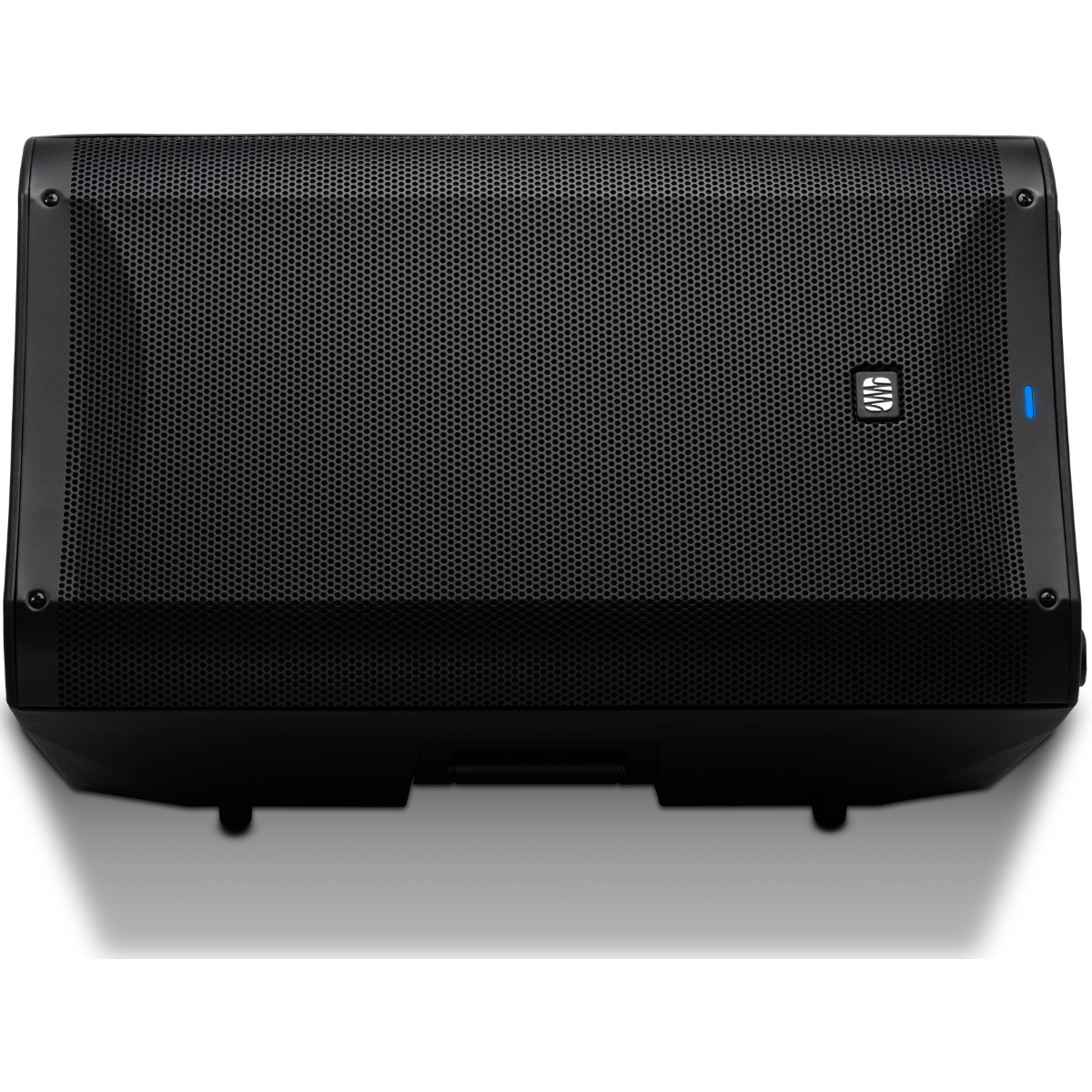

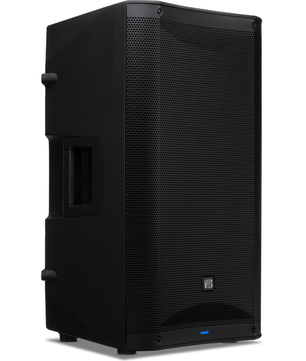

The molded enclosure is built for both portability and installation, with ergonomic handles, steel grille protection, dual-position pole mounting, and M10 suspension points for flown setups. Whether it is pole-mounted for mains, laid on its side as a monitor, or installed in a fixed system, the AIR XD 12 is built to adapt to professional real-world use.
AIR XD 12 Features
- 2-way active sound-reinforcement loudspeaker
- 12-inch low-frequency driver with 2.56-inch voice coil
- 1.35-inch high-frequency compression driver with PEEK diaphragm
- 1,500W Class D bi-amplification
- Bluetooth 5.0 audio streaming
- TWS Bridge Mode for wireless stereo pairing
- Integrated 3-channel mixer
- Full-color 2.6-inch LCD for metering and system control
- Onboard DSP with speaker modes, location, bass, and treble controls
- 90 degree x 60 degree coverage pattern
- Dual-position pole socket with 0 degree and 7.5 degree tilt
- M10 suspension points for flown installation
- Can be used for FOH, monitor, speech, and music playback applications
AIR XD 12 Specifications
- Speaker Type: Active 2-Way
- Total Power Output: 1500 Watts
- Amplifier Type: Class-D
- Peak SPL: 132 dB
- Frequency Response: 51 Hz - 20 kHz (-3 dB)
- Frequency Range: 48 Hz - 20 kHz (-10 dB)
- Crossover Frequency: 1.6 kHz
- Coverage Pattern: 90 degree (H) x 60 degree (V)
- LF Transducer: 12-inch with 2.56-inch voice coil
- HF Transducer: 1.35-inch compression driver
- LF Power: 1060W
- HF Power: 468W
- Inputs: 2 x XLR/TRS Mic/Line Combo, 1 x 1/8-inch TRS Stereo, Bluetooth Stereo
- Auxiliary Input: 1/8 in (3.5 mm) Stereo
- Line Out: 1 x XLR Mix Out
- Bluetooth: Bluetooth 5.0
- Channels: Three
- Line Input Impedance: 30K ohm
- Line Input Maximum Level: +14 dBu
- Cabinet Material: H-PP Molded
- Grille Material: 1.2 mm Steel
- Cooling: Passive radiator
- Protections: Output limiter
- Pole Socket: Dual Position (0 degree, 7.5 degree)
- Suspension: M10 Suspension Points, 2 Top, 1 Back
- Power Requirements: 100-240 VAC, 50-60 Hz
- Power Consumption: 3.3A (230V-50 Hz), 6.6A (120V)
- Dimensions: 24.4 x 14.2 x 13.8 in (61.9 x 36.0 x 35.1 cm)
- Weight: 43.3 lb (19.5 kg)
What's In The Box
- PreSonus AIR XD 12 active loudspeaker
- IEC power cable
- User documentation
