Personal Monitor Mixer

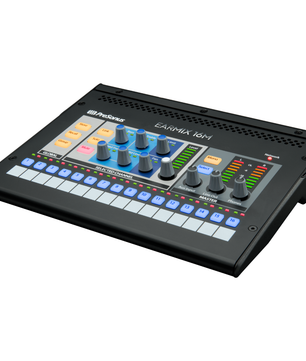

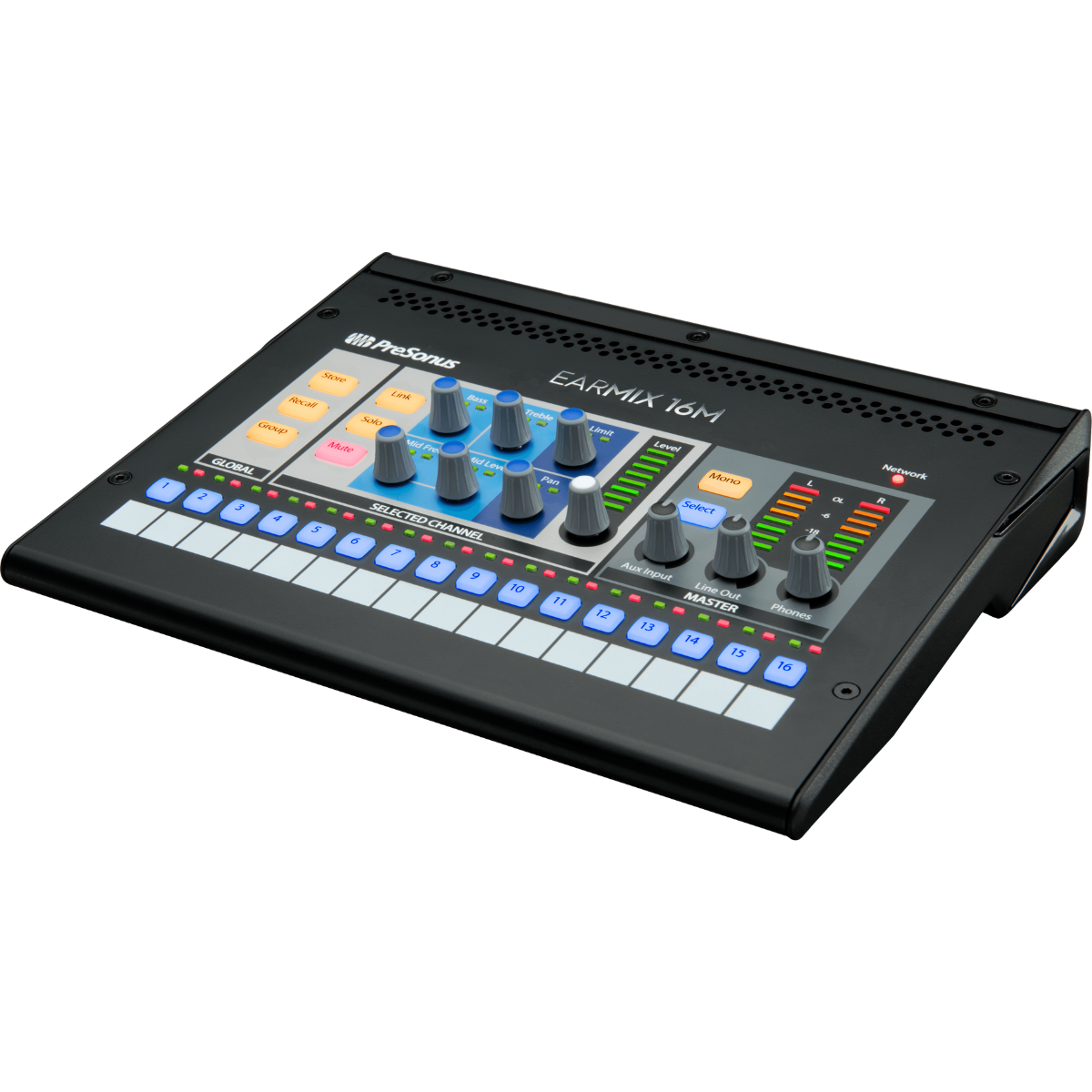

PreSonus EarMix 16M is a networked personal monitor mixer that gives performers complete control over their own mix directly from the stage. Designed for use with StudioLive Series III systems, it delivers 16 channels of audio over AVB with intuitive hands-on control and powerful onboard processing.

PreSonus EarMix 16M Competitive Differences

16-channel personal monitoring with AVB networking and PoE power support
Built-in 3-band EQ and limiter on every channel plus main mix

PreSonus EarMix 16M Description

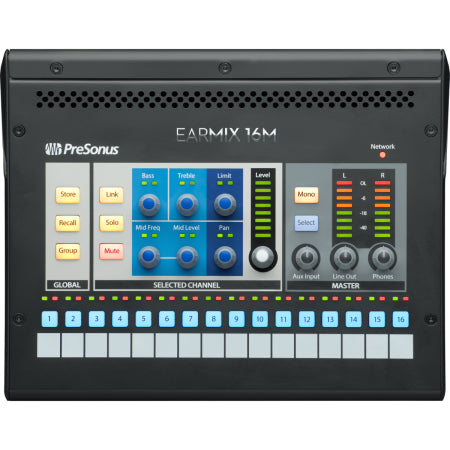

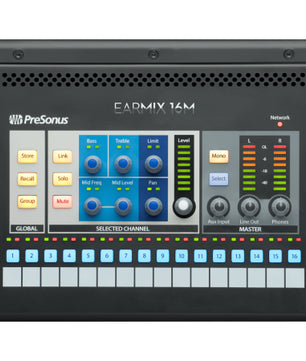

The PreSonus EarMix 16M is engineered to simplify on-stage monitoring while providing professional-level control and sound quality. With 16 mono input channels, musicians can adjust level, pan, mute, solo, and stereo linking directly from the unit, creating a fully customized monitor mix without relying on the front-of-house engineer.

Each channel features a built-in 3-band EQ and limiter, along with processing on the main mix, allowing performers to fine-tune their sound and protect their hearing. The intuitive interface makes grouping channels and saving up to 16 scenes quick and easy, streamlining workflow during rehearsals and live performances.

The EarMix 16M integrates seamlessly into AVB networks and supports Milan-certified systems, enabling up to 24 units to be connected simultaneously. Power over Ethernet (PoE) capability allows a single cable to deliver both audio and power, reducing stage clutter and simplifying setup.

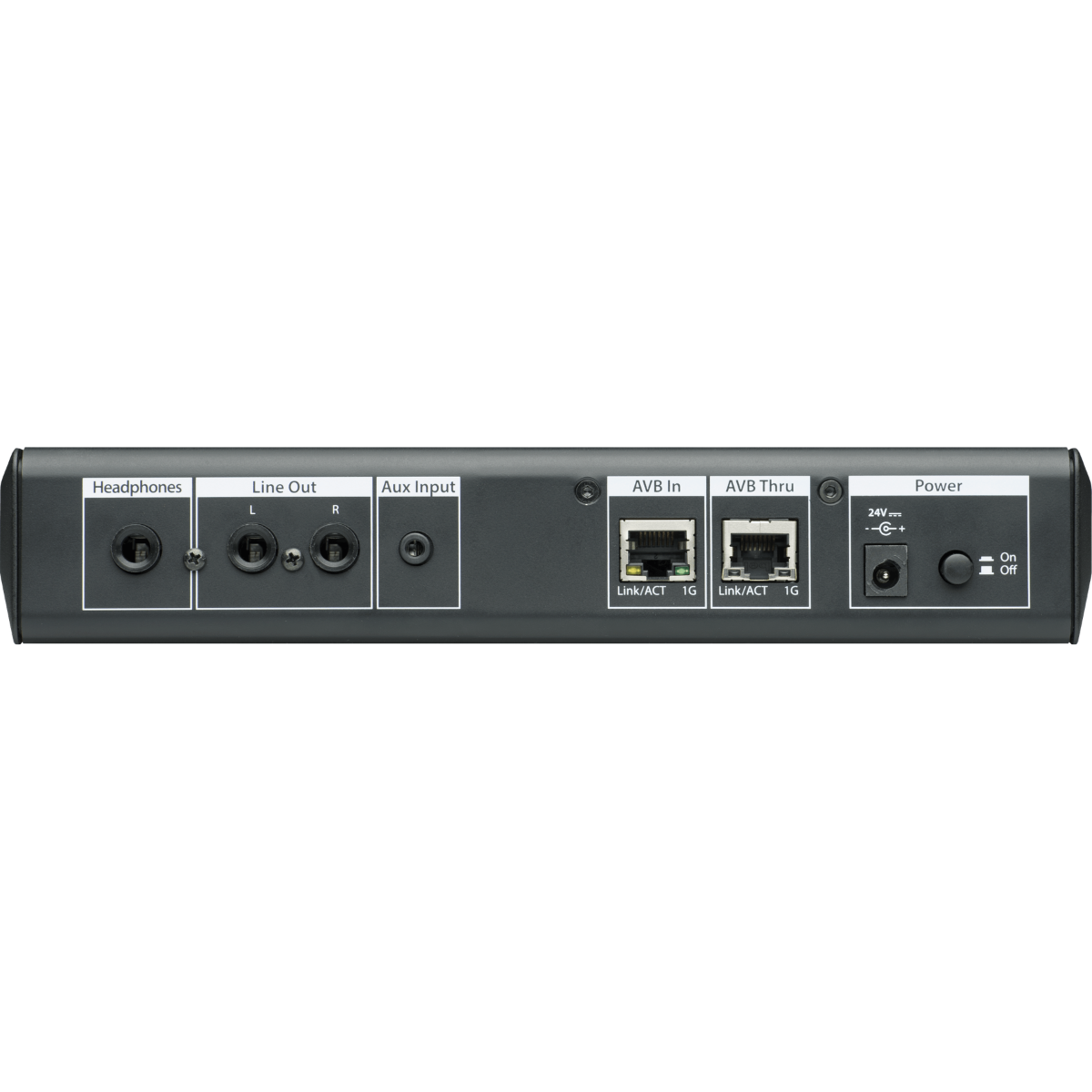

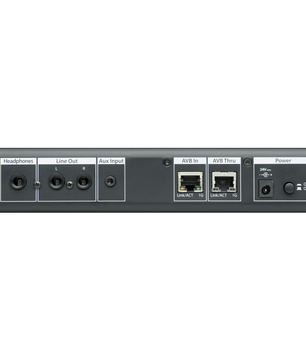

A powerful headphone amplifier ensures clear, loud output for in-ear monitors, even at low impedances. Additionally, balanced TRS outputs provide the flexibility to connect powered stage monitors, while the analog aux input allows for click tracks or external reference audio.

16M Features

16 mono input channels with level, pan, mute, solo, and stereo link controls
3-band EQ and limiter on every channel and main mix
Store up to 16 user mix scenes
AVB networking with Milan certification
Power over Ethernet (PoE) support for single-cable operation
High-output headphone amplifier for in-ear monitoring
Balanced 1/4" TRS outputs for powered monitors
Analog aux input for click tracks or external sources
Daisy-chain capability for multiple units

16M Specifications

Channels: 16 mono inputs
Dynamic Range: 115 dB (A-weighted)
Sample Rates: 44.1 kHz / 48 kHz
Headphone Output: 150 mW per channel @ 60Ω
Frequency Response: 20 Hz – 20 kHz (±0.5 dB)
Line Outputs: 1/4" TRS balanced
Maximum Output Level: +18 dBu
Dimensions: 9.4 x 7.6 x 1.8 in (238 x 193 x 45.7 mm)

What's In The Box

EarMix 16M personal monitor mixer
External power supply
Quick start guide
