Digital Mixing Console

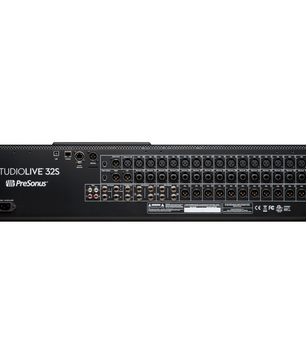

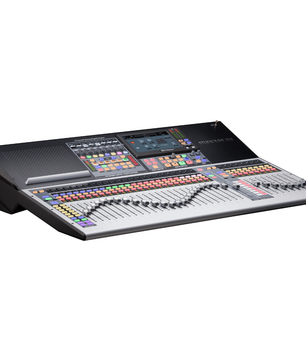

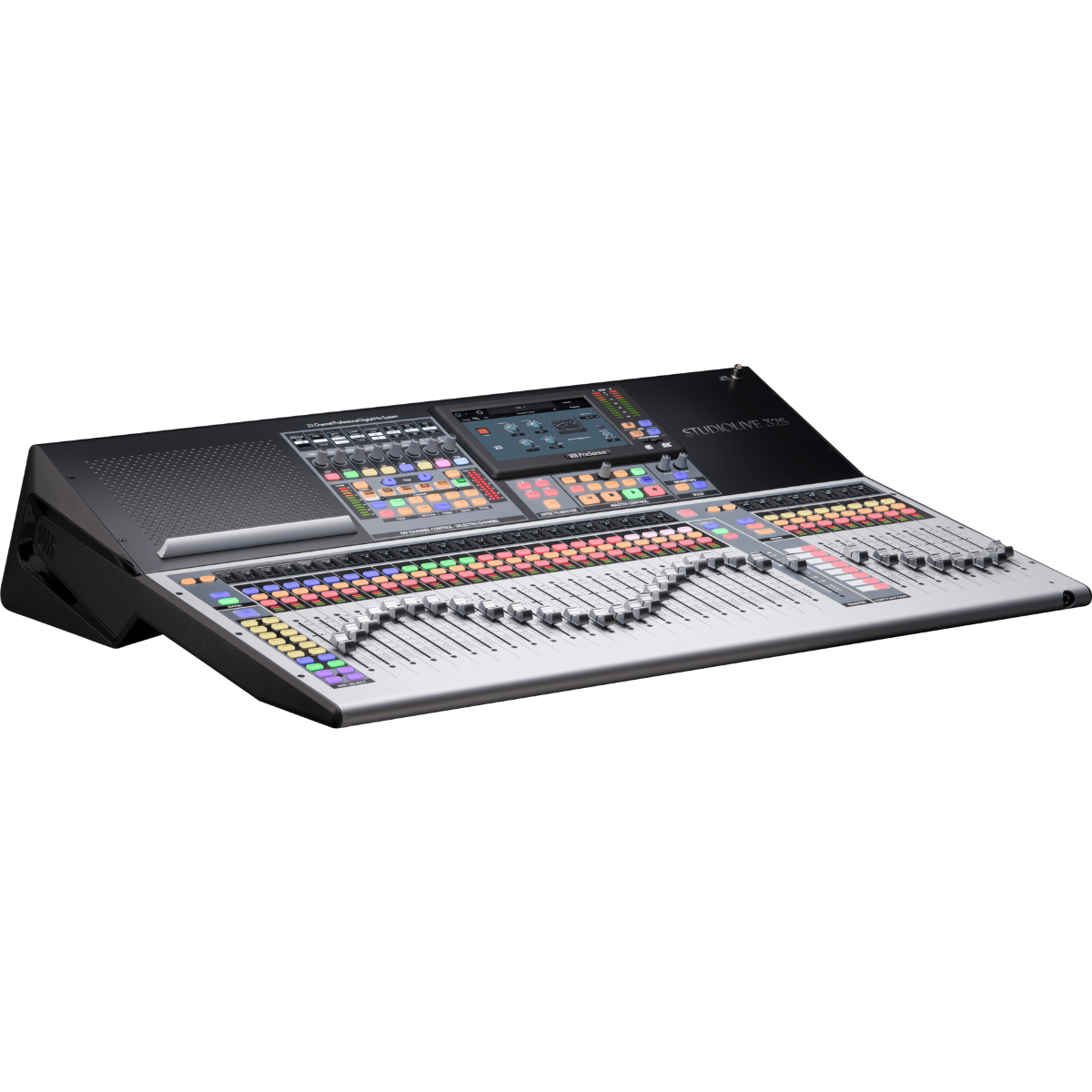

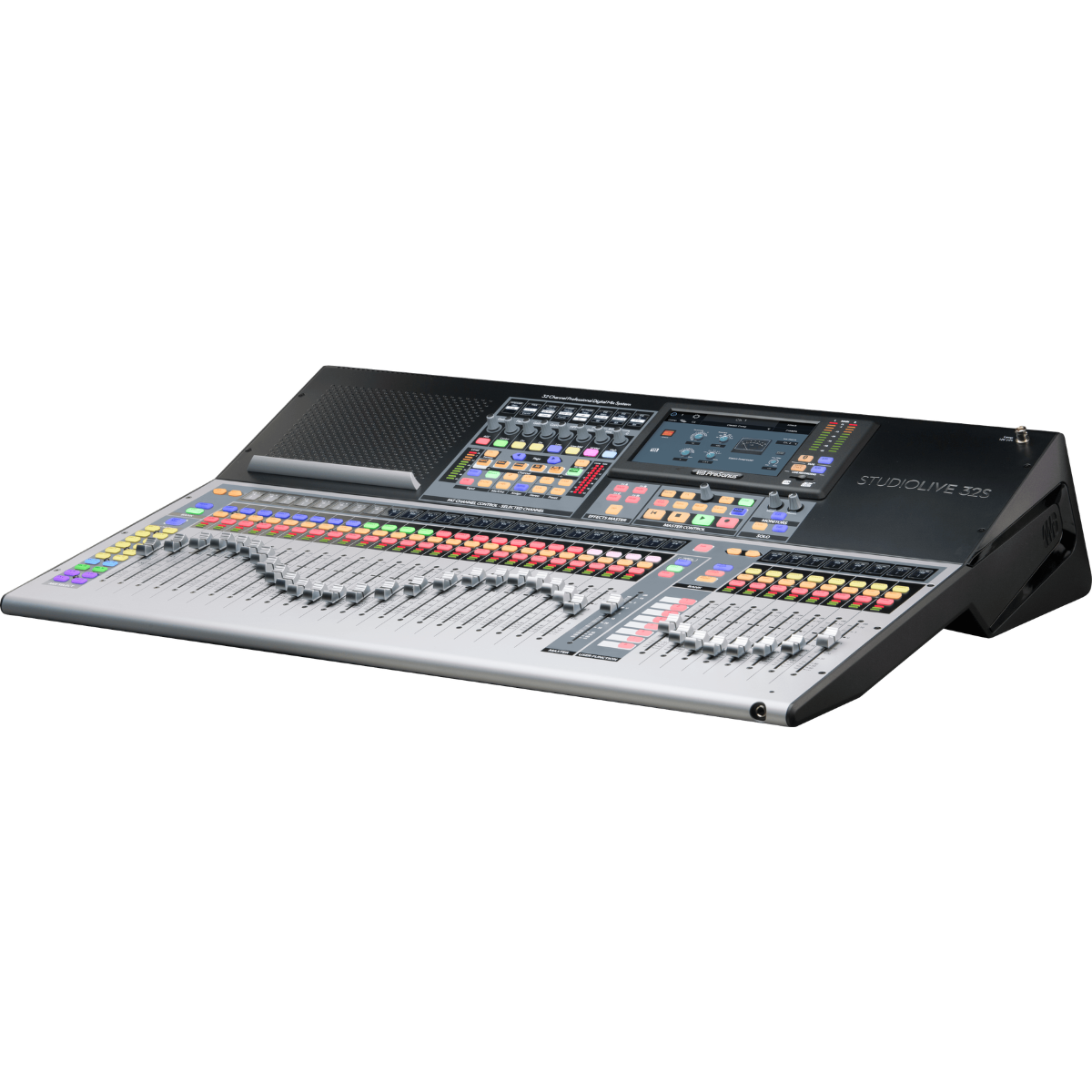

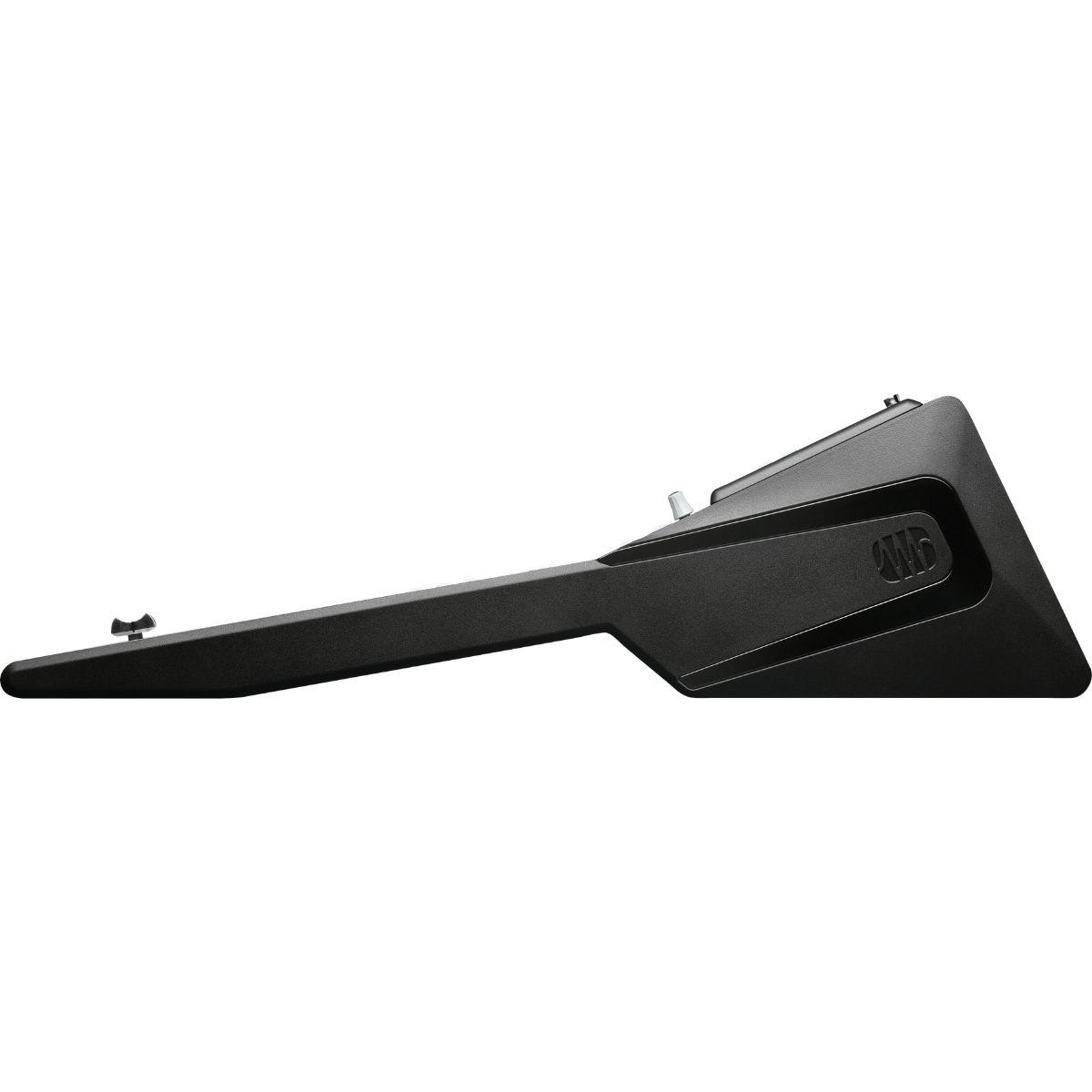

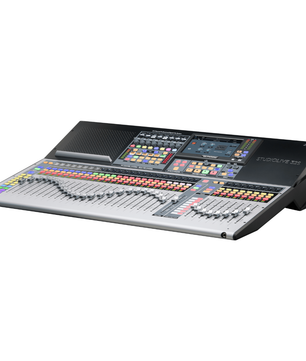

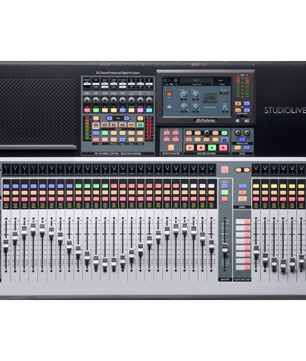

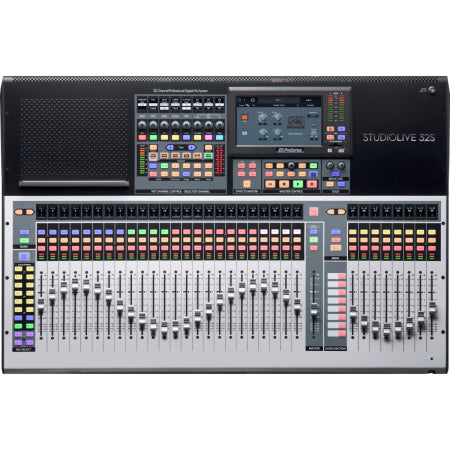

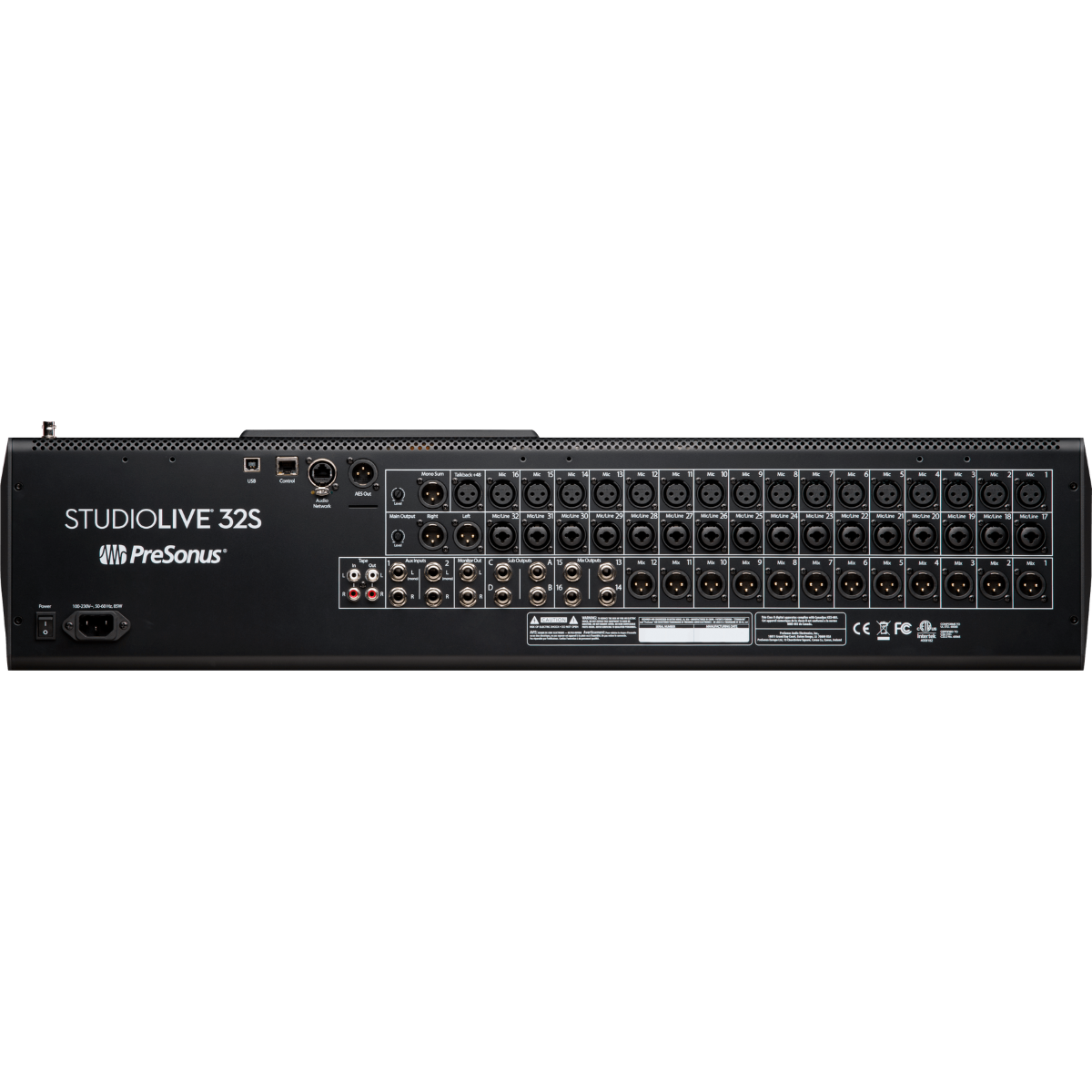

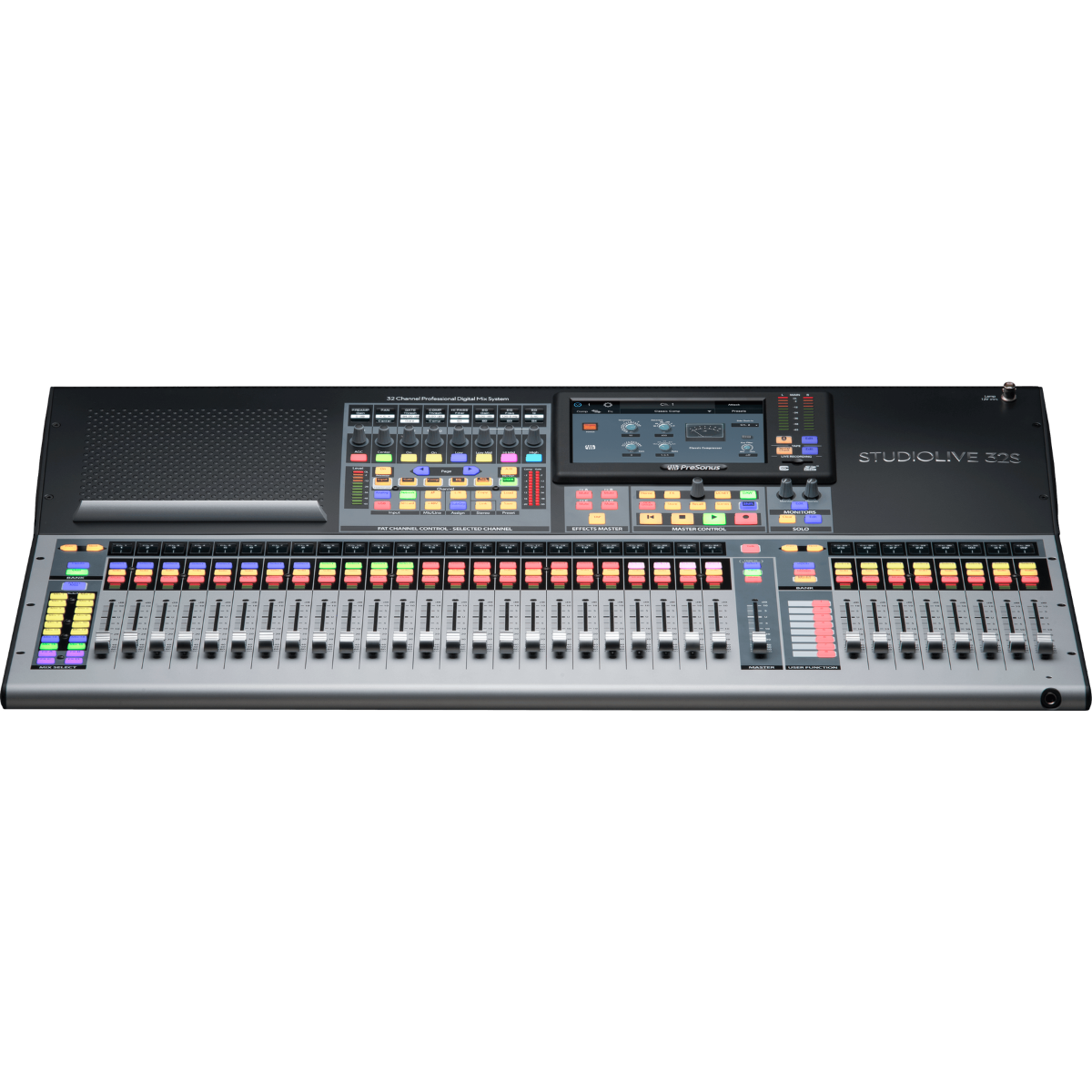

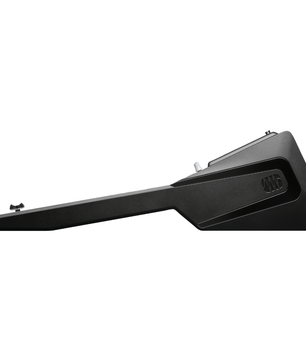

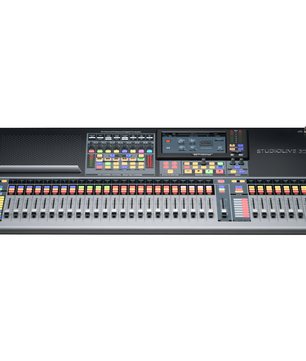

PreSonus StudioLive 32S is a professional 40-channel digital mixer that combines powerful DSP processing, flexible routing, and integrated recording capabilities in a compact console format. Designed for live sound, installations, and studio environments, it delivers full-scale mixing performance with intuitive control and advanced networking.
PreSonus StudioLive 32S Competitive Differences
- 40-channel mixer with 32 XMAX-R recallable mic preamps and 33 motorized faders
- 64x64 USB audio interface and onboard SD multitrack recording
- 16 FlexMixes configurable as aux, subgroup, or matrix mixes
- AVB networking for integration with stage boxes, personal mixers, and additional consoles
PreSonus StudioLive 32S Description
The PreSonus StudioLive 32S is built for engineers who need a flexible and powerful mixing solution for both live and studio applications. With 40 input channels and 32 XMAX-R mic preamps, it provides high headroom, low noise performance, and full recall capability for consistent results across sessions.
Its dual-core FLEX DSP engine powers extensive onboard processing, including Fat Channel EQs, compressors, and effects on every input and output. With 16 FlexMixes that can function as aux sends, subgroups, or matrix mixes, plus 4 FX buses and 4 subgroups, the mixer offers highly adaptable routing for complex productions.
The integrated 64x64 USB audio interface and onboard SD card recording make multitrack capture simple and efficient. Users can record up to 40 channels plus a stereo mix simultaneously, while seamless integration with Capture software and included Fender Studio Pro software enhances workflow from live recording to post-production.
AVB networking expands the system with compatible stage boxes, personal monitor mixers, and additional consoles using a single Ethernet connection. Optional Dante expansion adds even more connectivity for larger installations. Combined with motorized faders, touchscreen control, and low-latency performance, the StudioLive 32S is a comprehensive solution for modern audio production.
StudioLive 32S Features
- 40-channel digital mixing console
- 32 XMAX-R recallable mic preamps
- 33 touch-sensitive motorized faders
- Dual-core FLEX DSP with extensive onboard processing
- 16 FlexMixes (aux, subgroup, or matrix)
- 4 FX buses and 4 subgroups
- 24 DCAs for group control
- 64x64 USB audio interface
- Onboard multitrack SD recorder with Virtual Soundcheck
- AVB networking for system expansion
- Optional Dante expansion support
- Includes Capture software and Fender Studio Pro license
StudioLive 32S Specifications
- Channels: 40
- Mic Preamps: 32 XMAX-R
- Faders: 33 motorized, touch-sensitive
- Mix Buses: 24 total (16 FlexMixes, 4 FX, 4 subgroups)
- USB Audio Interface: 64x64
- AVB Networking: Yes
- Recording: USB and SD card multitrack
- Internal Processing: 32-bit floating point
- Dynamic Range: 115 dB (ADC/DAC)
- Total System Latency: 1.9 ms
- Phantom Power: +48V
- Power Consumption: 85W
- Voltage: 100–230V AC, 50/60Hz
- Dimensions: 32.4 x 23.0 x 6.5 in (822 x 584 x 165 mm)
- Weight: 37.2 lb (16.9 kg)
What's In The Box
- PreSonus StudioLive 32S mixer
- Power cable (IEC)
- Software bundle (Capture and Fender Studio Pro license)
