Compact Digital Mixing Console

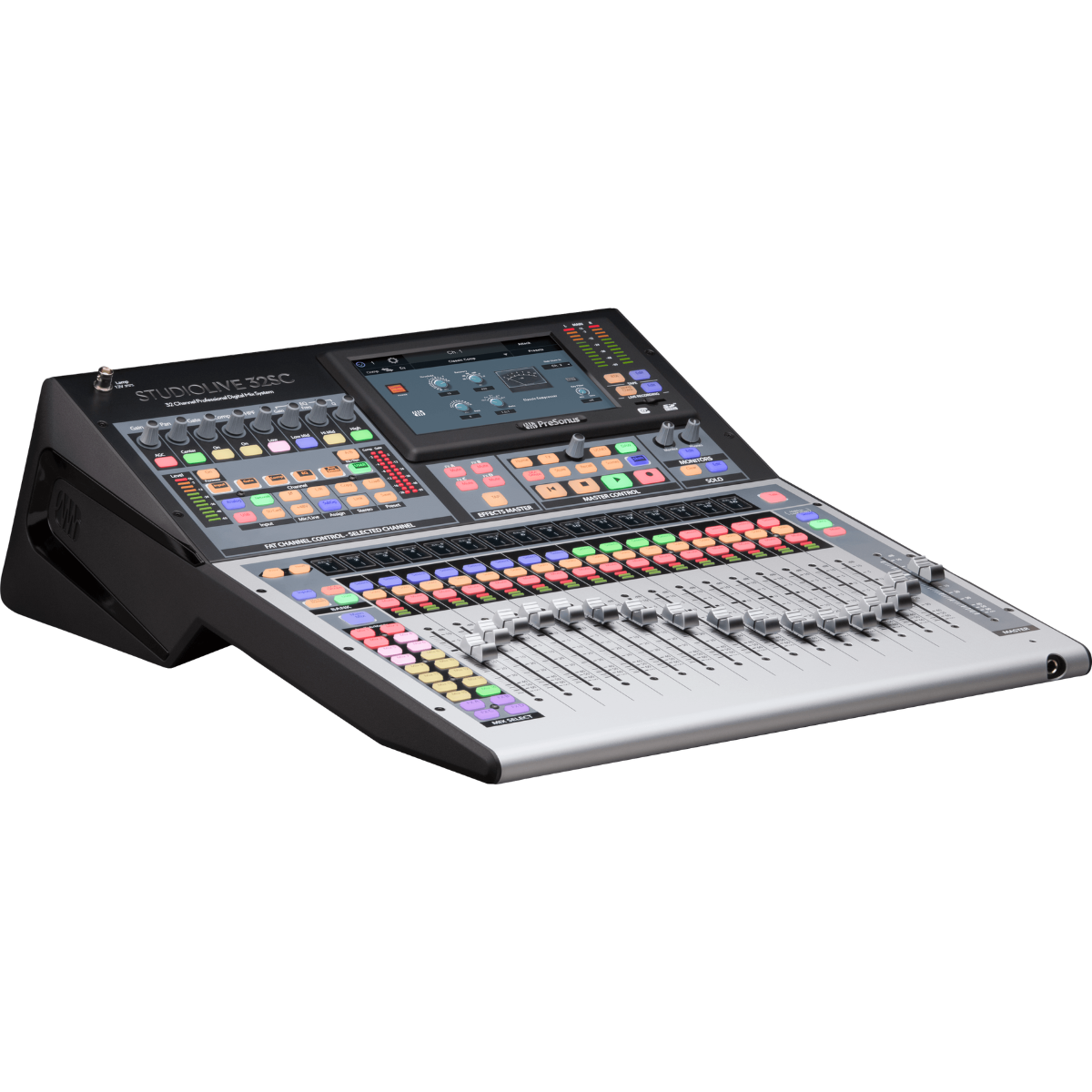

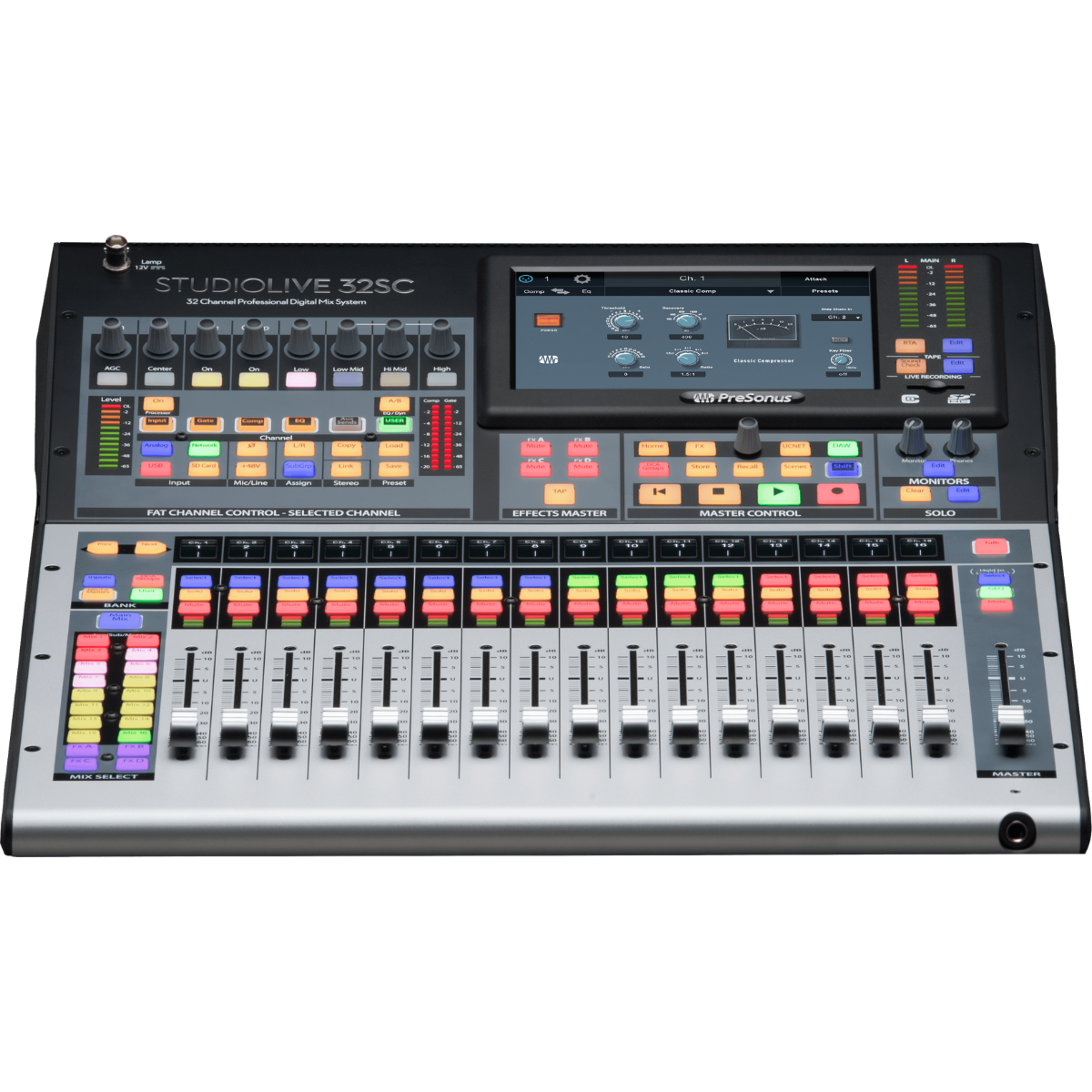

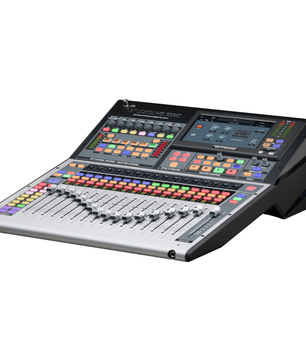

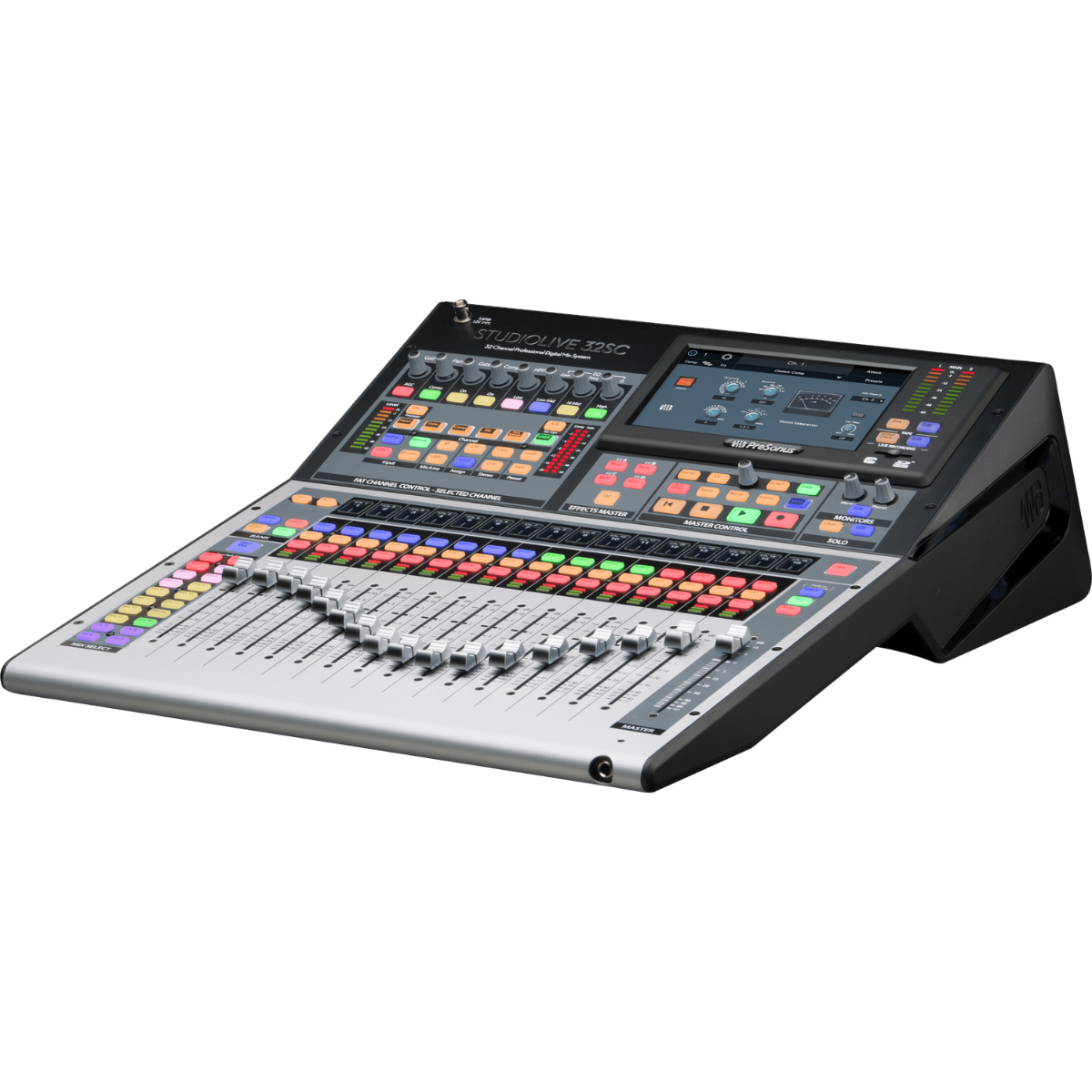

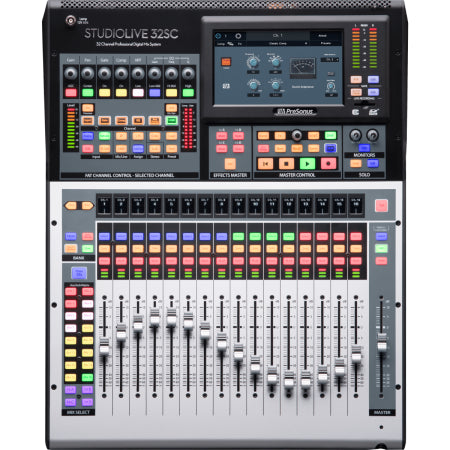

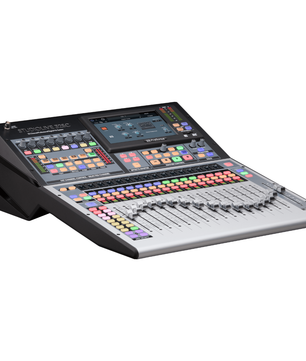

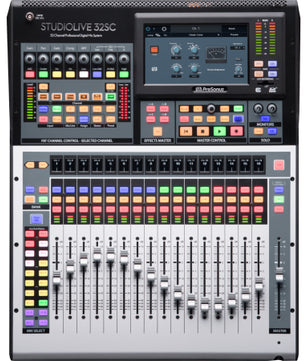

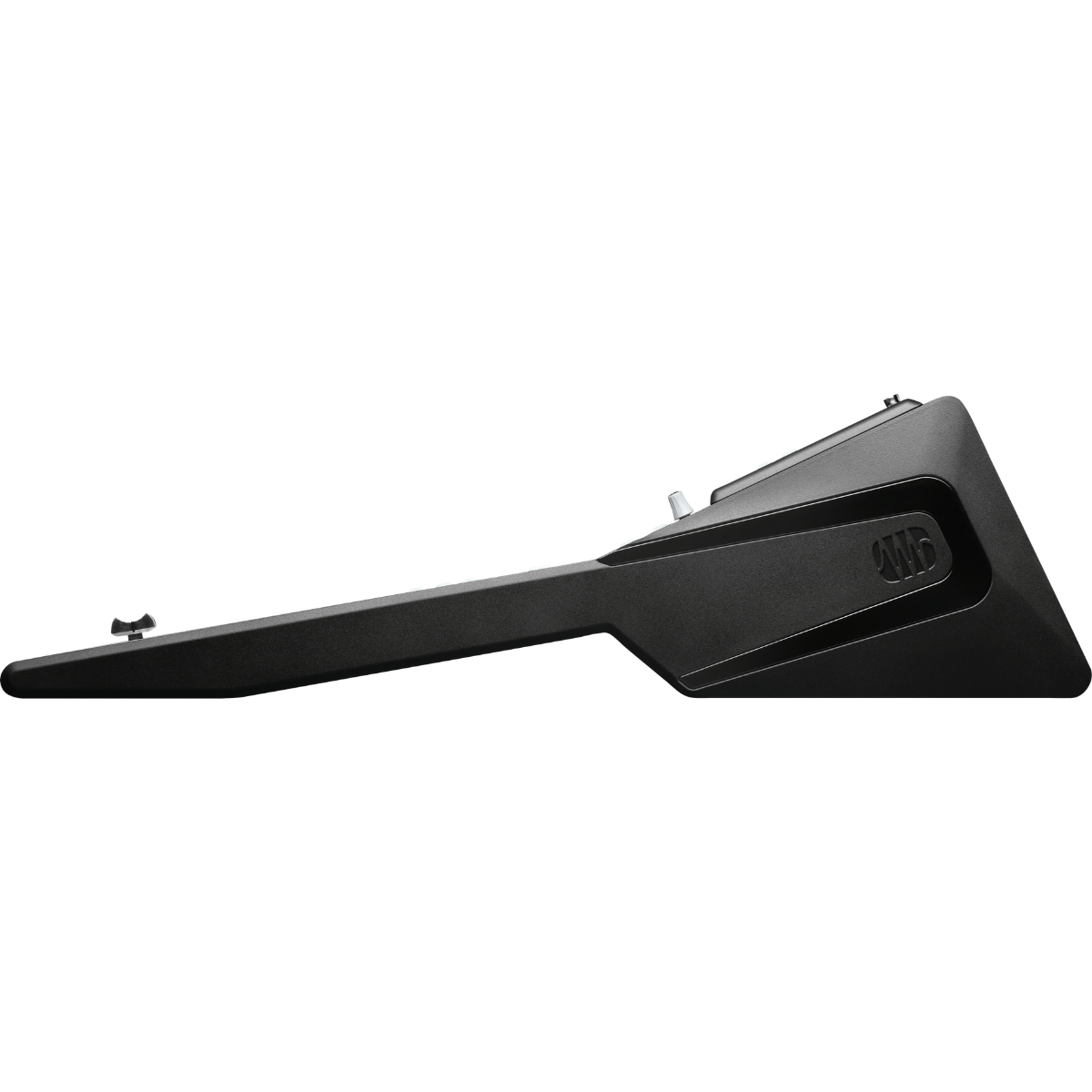

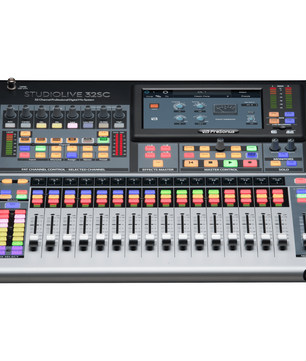

PreSonus StudioLive 32SC is a space-saving digital mixer that delivers full-scale mixing power in a compact, rack-mountable design. Built for live sound, installations, and studio workflows, it combines advanced DSP processing, flexible routing, and integrated recording capabilities in a highly portable form factor.
PreSonus StudioLive 32SC Competitive Differences
- Compact rack-mountable design with 40-channel mixing capability
- 16 XMAX-R recallable mic preamps and 17 motorized faders
- 64x64 USB audio interface with onboard SD multitrack recording
- AVB networking for seamless expansion with stage boxes and personal mixers
PreSonus StudioLive 32SC Description
The PreSonus StudioLive 32SC is engineered for users who need a powerful yet compact mixing solution. With 40 mix channels and 16 high-quality XMAX-R mic preamps, it delivers clean, low-noise audio performance suitable for live productions, houses of worship, and fixed installations.
Its dual-core FLEX DSP engine powers extensive processing on every input and output, including Fat Channel EQs, compressors, and effects. With 16 FlexMixes configurable as aux sends, subgroups, or matrix mixes, along with 4 FX buses and 4 subgroups, the mixer provides flexible routing for complex setups.
The built-in 64x64 USB audio interface and onboard SD card recorder allow simultaneous multitrack recording of all channels plus a stereo mix. Seamless integration with Capture software and included Fender Studio Pro enhances workflow from live tracking to post-production.
AVB networking enables easy system expansion with compatible stage boxes, personal monitor mixers, and additional mixers over a single Ethernet connection. Optional Dante support adds further flexibility for large-scale audio systems. With its compact footprint, motorized faders, and powerful feature set, the StudioLive 32SC is ideal for professionals who need performance without bulk.
StudioLive 32SC Features
- 40-channel digital mixing console
- 16 XMAX-R recallable mic preamps
- 17 touch-sensitive motorized faders
- Dual-core FLEX DSP with onboard Fat Channel processing
- 16 FlexMixes (aux, subgroup, or matrix)
- 4 FX buses and 4 subgroups
- 24 DCAs for group control
- 64x64 USB audio interface
- Onboard multitrack SD recorder with Virtual Soundcheck
- AVB networking for system expansion
- Optional Dante expansion support
- Includes Capture software and Fender Studio Pro license
StudioLive 32SC Specifications
- Channels: 40
- Mic Preamps: 16 XMAX-R
- Faders: 17 motorized, touch-sensitive
- Mix Buses: 24 total (16 FlexMixes, 4 FX, 4 subgroups)
- USB Audio Interface: 64x64
- AVB Networking: Yes
- Recording: USB and SD card multitrack
- Internal Processing: 32-bit floating point
- Dynamic Range: 115 dB (ADC/DAC)
- Total System Latency: 1.9 ms
- Phantom Power: +48V
- Power Consumption: 85W
- Voltage: 100–230V AC, 50/60Hz
- Dimensions: 17.6 x 23.0 x 6.5 in (447 x 584 x 165 mm)
- Weight: 23.1 lb (10.5 kg)
What's In The Box
- PreSonus StudioLive 32SC mixer
- Power cable (IEC)
- Software bundle (Capture and Fender Studio Pro license)
